Sayfa 1-31 - Isuzu EPC

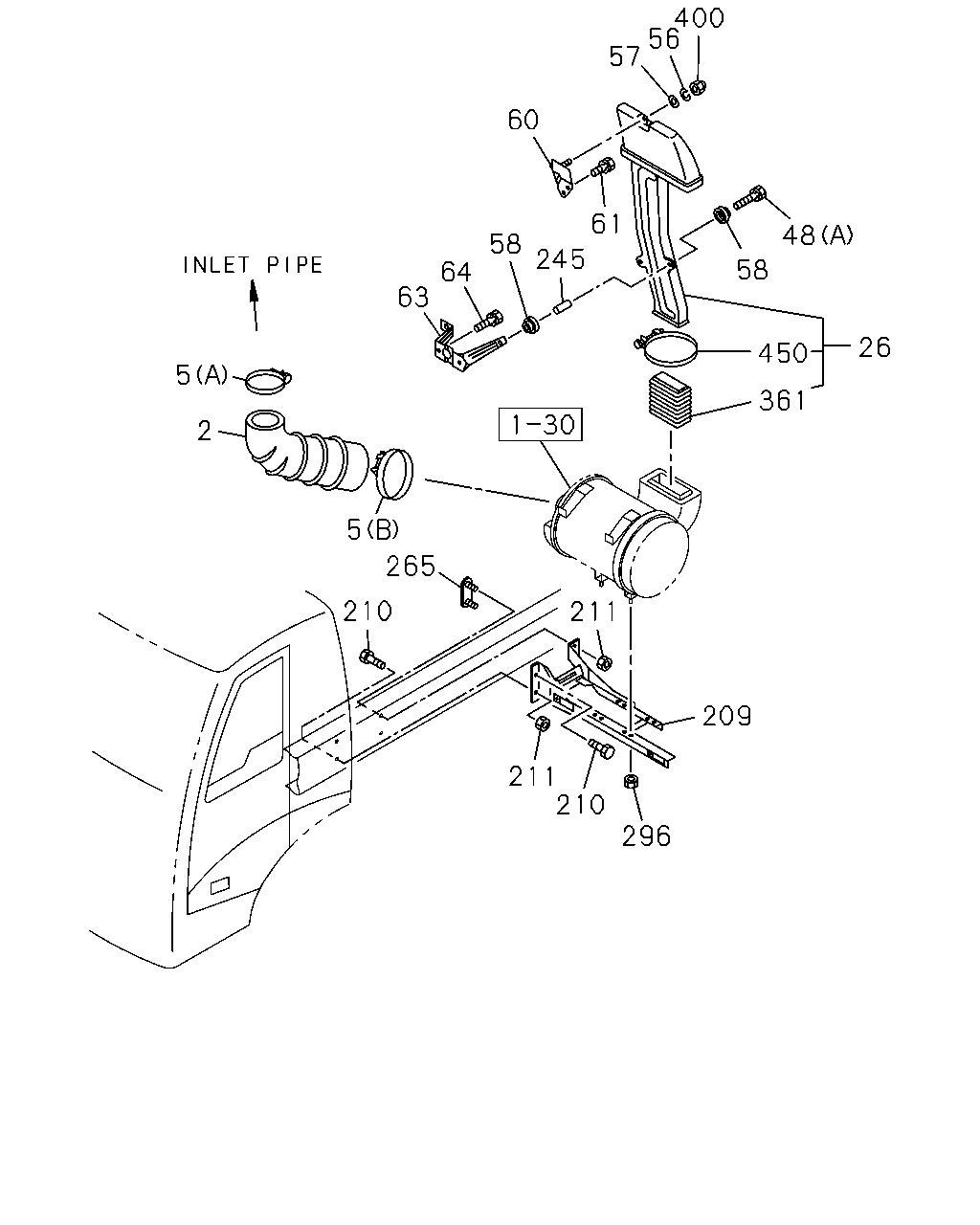

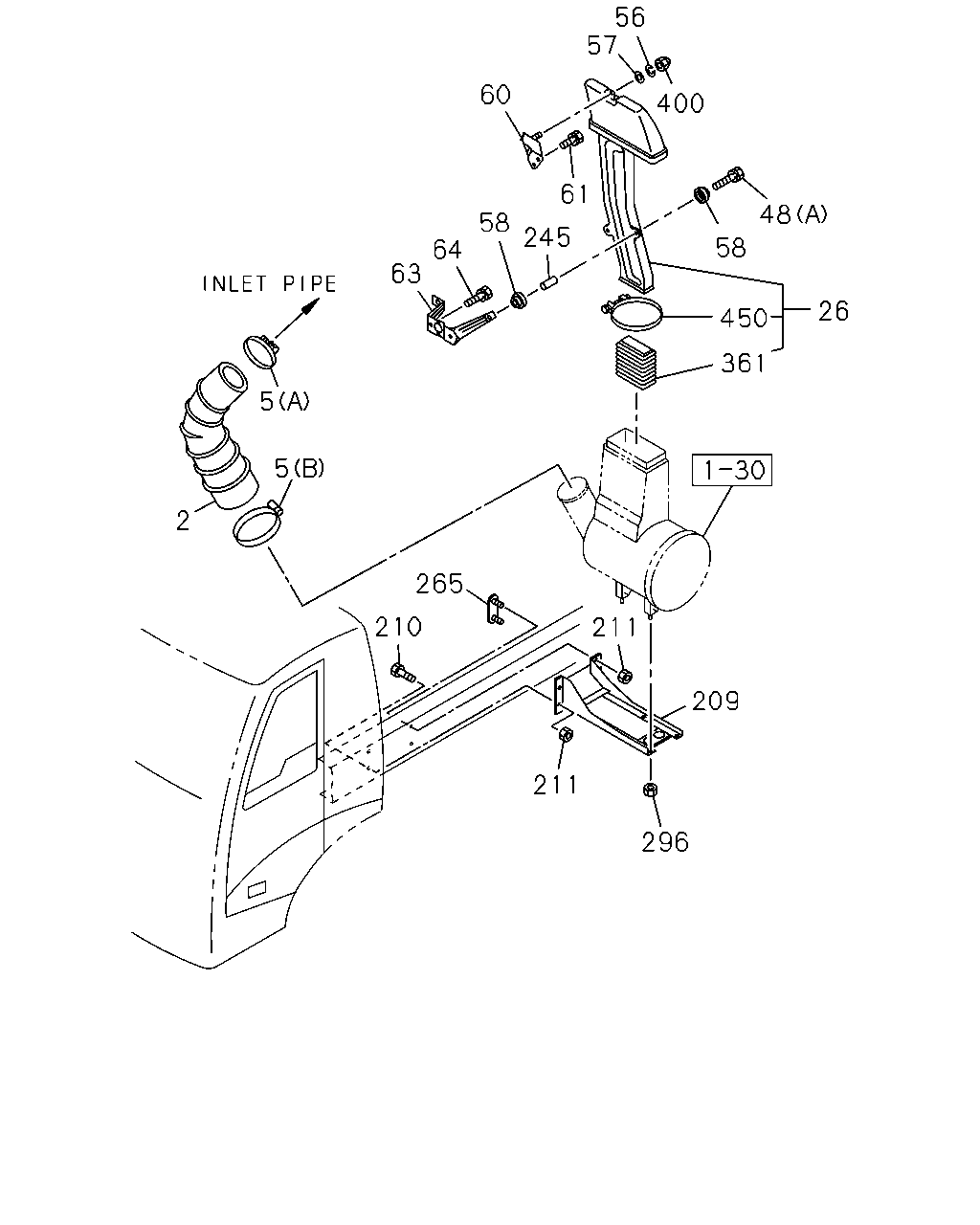

1-31 — AIR DUCT (#64219) — 395 parça

400 56 57 60 61 48 58 245 58 64 63 26 450 5 361 2 5 265 210 211 209 211 210 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	HOSE; ACL	1-14232-129-0	01	1	0406-	●
2	HOSE; ACL EURO2 SPECIFICATION<THN>	1-14232-064-0	01	1	9911-0004		●
2	HOSE; ACL	1-14232-064-0	01	1	0005-			●
2	HOSE; ACL STD CAB(FS*M) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-919-1	01	1	9510-9802		●		●
2	HOSE; ACL STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3)	1-14231-919-1	01	1	9510-9802		●		●
2	HOSE; ACL STD CAB(FS*M) EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-919-1	01	1	9803-0004		●		●
2	HOSE; ACL STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3)	1-14231-919-1	01	1	9803-0004		●		●
2	HOSE; ACL STD CAB(FS*M) EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-857-0	01	1	9510-9802		●		●
2	HOSE; ACL STD CAB(FS*M) EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-857-0	01	1	9803-9910		●		●
2	HOSE; ACL STD CAB(FS*M) EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	1-14231-857-0	01	1	9911-0004		●		●
2	HOSE; ACL	1-14231-857-0	01	1	0005-		●		●
2	HOSE; ACL DOUBLE CAB(FS*W)	1-14231-876-0	01	1	9510-0004		●		●
2	HOSE; ACL	1-14231-939-1	01	1	9610-					●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116	1-09707-138-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142	1-09707-139-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=77-99	1-09707-141-0	01	1	1002-	●				●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=130-169	8-98155-950-0	01	1	1002-	●				●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	9510-0004		●		●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	0005-0212		●	●	●
5	CLIP; AIR DUCT (A) ID=87-113	1-09707-199-0	01	1	0301-0811		●	●	●
5	CLIP; AIR DUCT (A) ID=90-110	8-98133-365-0	01	1	0812-1001		●	●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=90-110	8-98133-365-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	9510-0004		●		●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	0005-0212		●	●	●
5	CLIP; AIR DUCT (B) ID=104-139	1-09707-200-0	01	1	0301-0812		●	●	●
5	CLIP; AIR DUCT (B) ID=110-130	8-98133-359-0	01	1	0901-1001		●	●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=110-130	8-98133-359-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	9610-0212					●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-198-0	01	1	0301-0405					●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-198-0	01	1	0406-0810	●				●
5	CLIP; AIR DUCT (A) ID=75-95	8-98133-357-0	01	1	0811-1001	●				●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=75-95	8-98133-357-0	01	1	1002-	●				●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	9610-0212					●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0301-0405					●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0406-0810	●				●
5	CLIP; AIR DUCT (B) ID=130-150	8-98133-360-0	01	1	0811-1001	●				●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=130-150	8-98133-360-0	01	1	1002-	●				●
26	DUCT; AIR INT STD CAB(FS*M)	1-14230-126-4	01	1	9510-9610		●		●
26	DUCT; AIR INT STD CAB(FS*M)	1-14230-153-0	01	1	9611-9712		●		●
26	DUCT; AIR INT STD CAB(FS*M)	1-14230-176-0	01	1	9801-0004		●		●
26	DUCT; AIR INT	1-14230-176-2	01	1	0005-		●	●	●
26	DUCT; AIR INT DOUBLE CAB(FS*W)	1-14230-142-0	01	1	9510-0004		●		●
26	DUCT; AIR INT	1-14230-120-4	01	1	9610-9611					●
26	DUCT; AIR INT	1-14230-156-0	01	1	9612-9712					●
26	DUCT; AIR INT	1-14230-173-2	01	1	9801-0405					●
26	DUCT; AIR INT	1-14230-173-2	01	1	0406-	●				●
48	BOLT; AIR DUCT DOUBLE CAB(FS*W) (B) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606		●		●
48	BOLT; AIR DUCT DOUBLE CAB(FS*W) (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-0004		●		●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	9510-0004		●		●	●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0005-0405		●	●	●	●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0406-	●	●	●	●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	9510-0004		●		●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0005-0405		●	●	●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0406-	●	●	●	●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9510-0004		●		●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0005-0405		●	●	●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0406-	●	●	●	●	●
58	SUPPORT; AIR INL DUCT STD CAB(FS*M) OD=40 T=18.5	1-14119-267-0	04	1	9510-9802		●		●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	9510-9802					●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	9803-0004		●		●	●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0005-0405		●	●	●	●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0406-	●	●	●	●	●
58	SUPPORT; AIR INL DUCT DOUBLE CAB(FS*W) OD=40 T=18.5	1-14119-267-0	06	1	9510-9802		●		●
60	BRACKET; AIR DUCT,UPR STD CAB(FS*M)	1-79998-748-2	01	1	9510-0004		●		●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	9510-0004					●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	0005-0405		●	●	●	●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	0406-	●	●	●	●	●
60	BRACKET; AIR DUCT,UPR DOUBLE CAB(FS*W)	1-79998-571-2	01	1	9510-0004		●		●
61	BOLT; BRKT,AIR DUCT STD CAB(FS*M) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9510-0004		●		●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9510-0004					●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0405		●	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0406-	●	●	●	●	●
61	BOLT; BRKT,AIR DUCT DOUBLE CAB(FS*W) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0004		●		●
63	BRACKET; AIR DUCT,LWR STD CAB(FS*M)	1-79998-749-3	01	1	9510-0004		●		●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	9510-0004					●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	0005-0405		●	●	●	●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	0406-	●	●	●	●	●
63	BRACKET; AIR DUCT,LWR DOUBLE CAB(FS*W)	1-79998-572-2	01	1	9510-0004		●		●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9510-0004		●		●	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0405		●	●	●	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0406-	●	●	●	●	●
209	BRACKET; ACL STD CAB(FS*M)	1-53497-508-2	01	1	9510-0004		●		●
209	BRACKET; ACL	1-53497-508-2	01	1	0005-		●	●	●
209	BRACKET; ACL DOUBLE CAB(FS*W)	1-53497-554-0	01	1	9510-0004		●		●
209	BRACKET; ACL	1-53497-545-1	01	1	9610-0405					●
209	BRACKET; ACL	1-53497-545-1	01	1	0406-	●				●
210	BOLT; ACL BRKT STD CAB(FS*M) M12X35 FLANGE	0-28081-235-0	02	1	9510-9606		●		●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28081-235-0	02	1	9510-9606					●
210	BOLT; ACL BRKT STD CAB(FS*M) M12X40 FLANGE	0-28681-240-0	02	1	9607-9807		●		●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9607-9807					●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9808-0004		●		●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	0005-0405		●	●	●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	0406-0512	●	●	●	●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●	●	●	●
210	BOLT; ACL BRKT DOUBLE CAB(FS*W) M12X35 FLANGE	0-28081-235-0	04	1	9510-9606		●		●
210	BOLT; ACL BRKT DOUBLE CAB(FS*W) M12X40 FLANGE	0-28681-240-0	04	1	9607-9807		●		●
210	BOLT; ACL BRKT DOUBLE CAB(FS*W) M12X35 FLANGE	0-28681-235-0	02	1	9808-0004		●		●
211	NUT; BRKT STD CAB(FS*M) M12 FLANGE	0-91150-112-0	03	1	9510-9606		●		●
211	NUT; BRKT STD CAB(FS*M) M12 FLANGE	0-91150-212-0	03	1	9607-0004		●		●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	0005-0602		●	●	●
211	NUT; BRKT M12 FLANGE	0-91180-212-0	03	1	0603-		●	●	●
211	NUT; BRKT DOUBLE CAB(FS*W) M12 FLANGE	0-91150-112-0	01	1	9510-9606		●		●
211	NUT; BRKT DOUBLE CAB(FS*W) M12 FLANGE	0-91150-212-0	01	1	9607-9607		●		●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	9610-0405					●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	0406-0602	●				●
211	NUT; BRKT M12 FLANGE	0-91180-212-0	04	1	0603-	●				●
245	PIECE; DIST,AIR DUCT STD CAB(FS*M)	1-79998-228-0	02	1	9510-0004		●		●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	9510-0004					●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0005-0405		●	●	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0406-	●	●	●	●	●
245	PIECE; DIST,AIR DUCT DOUBLE CAB(FS*W)	1-79998-228-0	03	1	9510-0004		●		●
265	BRACKET; STUD,ACL STD CAB(FS*M)	1-53497-397-0	01	1	9510-0004		●		●
265	BRACKET; STUD,ACL	1-53497-397-0	01	1	0005-		●	●	●
265	BRACKET; STUD,ACL	1-53497-523-0	01	1	9610-0405					●
265	BRACKET; STUD,ACL	1-53497-523-0	01	1	0406-	●				●
296	NUT; ACL STD CAB(FS*M) M8 FLANGE	0-91150-108-0	04	1	9510-0004		●		●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	9510-0004					●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0005-0405		●	●	●	●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0406-0602	●	●	●	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●	●
361	RUBBER; CUSHION,AIR DUCT STD CAB(FS*M)	1-14231-973-0	01	1	9611-0004		●		●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-0	01	1	9611-0004					●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-1	01	1	0005-0405		●	●	●	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-1	01	1	0406-	●	●	●	●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	9510-0004		●		●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0005-0405		●	●	●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0406-	●	●	●	●	●
450	CLAMP; HOSE STD CAB(FS*M)	9-09915-504-1	01	1	9611-0004		●		●
450	CLAMP; HOSE	9-09915-504-1	01	1	9611-0004					●
450	CLAMP; HOSE	9-09915-504-1	01	1	0005-0405		●	●	●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0406-	●	●	●	●	●

56 57 60 400 61 48 58 245 58 64 63 26 450 361 5 5 2 265 210 211 209 211 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	HOSE; ACL	1-14232-129-0	01	1	0406-	●
2	HOSE; ACL EURO2 SPECIFICATION<THN>	1-14232-064-0	01	1	9911-0004		●
2	HOSE; ACL	1-14232-064-0	01	1	0005-			●
2	HOSE; ACL STD CAB(FS*M) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-919-1	01	1	9510-9802		●		●
2	HOSE; ACL STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3)	1-14231-919-1	01	1	9510-9802		●		●
2	HOSE; ACL STD CAB(FS*M) EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-919-1	01	1	9803-0004		●		●
2	HOSE; ACL STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3)	1-14231-919-1	01	1	9803-0004		●		●
2	HOSE; ACL STD CAB(FS*M) EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-857-0	01	1	9510-9802		●		●
2	HOSE; ACL STD CAB(FS*M) EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-857-0	01	1	9803-9910		●		●
2	HOSE; ACL STD CAB(FS*M) EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	1-14231-857-0	01	1	9911-0004		●		●
2	HOSE; ACL	1-14231-857-0	01	1	0005-		●		●
2	HOSE; ACL DOUBLE CAB(FS*W)	1-14231-876-0	01	1	9510-0004		●		●
2	HOSE; ACL	1-14231-939-1	01	1	9610-					●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116	1-09707-138-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142	1-09707-139-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=77-99	1-09707-141-0	01	1	1002-	●				●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=130-169	8-98155-950-0	01	1	1002-	●				●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	9510-0004		●		●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	0005-0212		●	●	●
5	CLIP; AIR DUCT (A) ID=87-113	1-09707-199-0	01	1	0301-0811		●	●	●
5	CLIP; AIR DUCT (A) ID=90-110	8-98133-365-0	01	1	0812-1001		●	●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=90-110	8-98133-365-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	9510-0004		●		●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	0005-0212		●	●	●
5	CLIP; AIR DUCT (B) ID=104-139	1-09707-200-0	01	1	0301-0812		●	●	●
5	CLIP; AIR DUCT (B) ID=110-130	8-98133-359-0	01	1	0901-1001		●	●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=110-130	8-98133-359-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	9610-0212					●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-198-0	01	1	0301-0405					●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-198-0	01	1	0406-0810	●				●
5	CLIP; AIR DUCT (A) ID=75-95	8-98133-357-0	01	1	0811-1001	●				●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=75-95	8-98133-357-0	01	1	1002-	●				●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	9610-0212					●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0301-0405					●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0406-0810	●				●
5	CLIP; AIR DUCT (B) ID=130-150	8-98133-360-0	01	1	0811-1001	●				●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=130-150	8-98133-360-0	01	1	1002-	●				●
26	DUCT; AIR INT STD CAB(FS*M)	1-14230-126-4	01	1	9510-9610		●		●
26	DUCT; AIR INT STD CAB(FS*M)	1-14230-153-0	01	1	9611-9712		●		●
26	DUCT; AIR INT STD CAB(FS*M)	1-14230-176-0	01	1	9801-0004		●		●
26	DUCT; AIR INT	1-14230-176-2	01	1	0005-		●	●	●
26	DUCT; AIR INT DOUBLE CAB(FS*W)	1-14230-142-0	01	1	9510-0004		●		●
26	DUCT; AIR INT	1-14230-120-4	01	1	9610-9611					●
26	DUCT; AIR INT	1-14230-156-0	01	1	9612-9712					●
26	DUCT; AIR INT	1-14230-173-2	01	1	9801-0405					●
26	DUCT; AIR INT	1-14230-173-2	01	1	0406-	●				●
48	BOLT; AIR DUCT DOUBLE CAB(FS*W) (B) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606		●		●
48	BOLT; AIR DUCT DOUBLE CAB(FS*W) (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-0004		●		●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	9510-0004		●		●	●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0005-0405		●	●	●	●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0406-	●	●	●	●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	9510-0004		●		●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0005-0405		●	●	●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0406-	●	●	●	●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9510-0004		●		●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0005-0405		●	●	●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0406-	●	●	●	●	●
58	SUPPORT; AIR INL DUCT STD CAB(FS*M) OD=40 T=18.5	1-14119-267-0	04	1	9510-9802		●		●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	9510-9802					●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	9803-0004		●		●	●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0005-0405		●	●	●	●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0406-	●	●	●	●	●
58	SUPPORT; AIR INL DUCT DOUBLE CAB(FS*W) OD=40 T=18.5	1-14119-267-0	06	1	9510-9802		●		●
60	BRACKET; AIR DUCT,UPR STD CAB(FS*M)	1-79998-748-2	01	1	9510-0004		●		●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	9510-0004					●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	0005-0405		●	●	●	●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	0406-	●	●	●	●	●
60	BRACKET; AIR DUCT,UPR DOUBLE CAB(FS*W)	1-79998-571-2	01	1	9510-0004		●		●
61	BOLT; BRKT,AIR DUCT STD CAB(FS*M) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9510-0004		●		●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9510-0004					●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0405		●	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0406-	●	●	●	●	●
61	BOLT; BRKT,AIR DUCT DOUBLE CAB(FS*W) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0004		●		●
63	BRACKET; AIR DUCT,LWR STD CAB(FS*M)	1-79998-749-3	01	1	9510-0004		●		●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	9510-0004					●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	0005-0405		●	●	●	●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	0406-	●	●	●	●	●
63	BRACKET; AIR DUCT,LWR DOUBLE CAB(FS*W)	1-79998-572-2	01	1	9510-0004		●		●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9510-0004		●		●	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0405		●	●	●	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0406-	●	●	●	●	●
209	BRACKET; ACL STD CAB(FS*M)	1-53497-508-2	01	1	9510-0004		●		●
209	BRACKET; ACL	1-53497-508-2	01	1	0005-		●	●	●
209	BRACKET; ACL DOUBLE CAB(FS*W)	1-53497-554-0	01	1	9510-0004		●		●
209	BRACKET; ACL	1-53497-545-1	01	1	9610-0405					●
209	BRACKET; ACL	1-53497-545-1	01	1	0406-	●				●
210	BOLT; ACL BRKT STD CAB(FS*M) M12X35 FLANGE	0-28081-235-0	02	1	9510-9606		●		●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28081-235-0	02	1	9510-9606					●
210	BOLT; ACL BRKT STD CAB(FS*M) M12X40 FLANGE	0-28681-240-0	02	1	9607-9807		●		●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9607-9807					●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9808-0004		●		●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	0005-0405		●	●	●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	0406-0512	●	●	●	●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●	●	●	●
210	BOLT; ACL BRKT DOUBLE CAB(FS*W) M12X35 FLANGE	0-28081-235-0	04	1	9510-9606		●		●
210	BOLT; ACL BRKT DOUBLE CAB(FS*W) M12X40 FLANGE	0-28681-240-0	04	1	9607-9807		●		●
210	BOLT; ACL BRKT DOUBLE CAB(FS*W) M12X35 FLANGE	0-28681-235-0	02	1	9808-0004		●		●
211	NUT; BRKT STD CAB(FS*M) M12 FLANGE	0-91150-112-0	03	1	9510-9606		●		●
211	NUT; BRKT STD CAB(FS*M) M12 FLANGE	0-91150-212-0	03	1	9607-0004		●		●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	0005-0602		●	●	●
211	NUT; BRKT M12 FLANGE	0-91180-212-0	03	1	0603-		●	●	●
211	NUT; BRKT DOUBLE CAB(FS*W) M12 FLANGE	0-91150-112-0	01	1	9510-9606		●		●
211	NUT; BRKT DOUBLE CAB(FS*W) M12 FLANGE	0-91150-212-0	01	1	9607-9607		●		●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	9610-0405					●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	0406-0602	●				●
211	NUT; BRKT M12 FLANGE	0-91180-212-0	04	1	0603-	●				●
245	PIECE; DIST,AIR DUCT STD CAB(FS*M)	1-79998-228-0	02	1	9510-0004		●		●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	9510-0004					●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0005-0405		●	●	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0406-	●	●	●	●	●
245	PIECE; DIST,AIR DUCT DOUBLE CAB(FS*W)	1-79998-228-0	03	1	9510-0004		●		●
265	BRACKET; STUD,ACL STD CAB(FS*M)	1-53497-397-0	01	1	9510-0004		●		●
265	BRACKET; STUD,ACL	1-53497-397-0	01	1	0005-		●	●	●
265	BRACKET; STUD,ACL	1-53497-523-0	01	1	9610-0405					●
265	BRACKET; STUD,ACL	1-53497-523-0	01	1	0406-	●				●
296	NUT; ACL STD CAB(FS*M) M8 FLANGE	0-91150-108-0	04	1	9510-0004		●		●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	9510-0004					●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0005-0405		●	●	●	●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0406-0602	●	●	●	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●	●
361	RUBBER; CUSHION,AIR DUCT STD CAB(FS*M)	1-14231-973-0	01	1	9611-0004		●		●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-0	01	1	9611-0004					●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-1	01	1	0005-0405		●	●	●	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-1	01	1	0406-	●	●	●	●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	9510-0004		●		●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0005-0405		●	●	●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0406-	●	●	●	●	●
450	CLAMP; HOSE STD CAB(FS*M)	9-09915-504-1	01	1	9611-0004		●		●
450	CLAMP; HOSE	9-09915-504-1	01	1	9611-0004					●
450	CLAMP; HOSE	9-09915-504-1	01	1	0005-0405		●	●	●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0406-	●	●	●	●	●

56 57 58 245 58 60 400 26 61 245 64 63 48 35 58 156 154 58 252 155 409 5 259 2 258 71 48 153 180 179 180 5 252 291 210 210 155 209 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	HOSE; ACL	1-14232-129-0	01	1	0406-	●
2	HOSE; ACL EURO2 SPECIFICATION<THN>	1-14232-064-0	01	1	9911-0004		●
2	HOSE; ACL	1-14232-064-0	01	1	0005-			●
2	HOSE; ACL STD CAB(FS*M) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-919-1	01	1	9510-9802		●		●
2	HOSE; ACL STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3)	1-14231-919-1	01	1	9510-9802		●		●
2	HOSE; ACL STD CAB(FS*M) EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-919-1	01	1	9803-0004		●		●
2	HOSE; ACL STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3)	1-14231-919-1	01	1	9803-0004		●		●
2	HOSE; ACL STD CAB(FS*M) EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-857-0	01	1	9510-9802		●		●
2	HOSE; ACL STD CAB(FS*M) EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-857-0	01	1	9803-9910		●		●
2	HOSE; ACL STD CAB(FS*M) EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	1-14231-857-0	01	1	9911-0004		●		●
2	HOSE; ACL	1-14231-857-0	01	1	0005-		●		●
2	HOSE; ACL DOUBLE CAB(FS*W)	1-14231-876-0	01	1	9510-0004		●		●
2	HOSE; ACL	1-14231-939-1	01	1	9610-					●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116	1-09707-138-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142	1-09707-139-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=77-99	1-09707-141-0	01	1	1002-	●				●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=130-169	8-98155-950-0	01	1	1002-	●				●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	9510-0004		●		●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	0005-0212		●	●	●
5	CLIP; AIR DUCT (A) ID=87-113	1-09707-199-0	01	1	0301-0811		●	●	●
5	CLIP; AIR DUCT (A) ID=90-110	8-98133-365-0	01	1	0812-1001		●	●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=90-110	8-98133-365-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	9510-0004		●		●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	0005-0212		●	●	●
5	CLIP; AIR DUCT (B) ID=104-139	1-09707-200-0	01	1	0301-0812		●	●	●
5	CLIP; AIR DUCT (B) ID=110-130	8-98133-359-0	01	1	0901-1001		●	●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=110-130	8-98133-359-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	9610-0212					●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-198-0	01	1	0301-0405					●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-198-0	01	1	0406-0810	●				●
5	CLIP; AIR DUCT (A) ID=75-95	8-98133-357-0	01	1	0811-1001	●				●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=75-95	8-98133-357-0	01	1	1002-	●				●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	9610-0212					●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0301-0405					●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0406-0810	●				●
5	CLIP; AIR DUCT (B) ID=130-150	8-98133-360-0	01	1	0811-1001	●				●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=130-150	8-98133-360-0	01	1	1002-	●				●
26	DUCT; AIR INT STD CAB(FS*M)	1-14230-126-4	01	1	9510-9610		●		●
26	DUCT; AIR INT STD CAB(FS*M)	1-14230-153-0	01	1	9611-9712		●		●
26	DUCT; AIR INT STD CAB(FS*M)	1-14230-176-0	01	1	9801-0004		●		●
26	DUCT; AIR INT	1-14230-176-2	01	1	0005-		●	●	●
26	DUCT; AIR INT DOUBLE CAB(FS*W)	1-14230-142-0	01	1	9510-0004		●		●
26	DUCT; AIR INT	1-14230-120-4	01	1	9610-9611					●
26	DUCT; AIR INT	1-14230-156-0	01	1	9612-9712					●
26	DUCT; AIR INT	1-14230-173-2	01	1	9801-0405					●
26	DUCT; AIR INT	1-14230-173-2	01	1	0406-	●				●
35	SEAL; DUCT,INT DOUBLE CAB(FS*W) OD=30 BLACK	1-76798-035-0	04	1	9510-0004		●		●
48	BOLT; AIR DUCT DOUBLE CAB(FS*W) (B) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606		●		●
48	BOLT; AIR DUCT DOUBLE CAB(FS*W) (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-0004		●		●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	9510-0004		●		●	●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0005-0405		●	●	●	●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0406-	●	●	●	●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	9510-0004		●		●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0005-0405		●	●	●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0406-	●	●	●	●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9510-0004		●		●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0005-0405		●	●	●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0406-	●	●	●	●	●
58	SUPPORT; AIR INL DUCT STD CAB(FS*M) OD=40 T=18.5	1-14119-267-0	04	1	9510-9802		●		●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	9510-9802					●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	9803-0004		●		●	●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0005-0405		●	●	●	●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0406-	●	●	●	●	●
58	SUPPORT; AIR INL DUCT DOUBLE CAB(FS*W) OD=40 T=18.5	1-14119-267-0	06	1	9510-9802		●		●
60	BRACKET; AIR DUCT,UPR STD CAB(FS*M)	1-79998-748-2	01	1	9510-0004		●		●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	9510-0004					●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	0005-0405		●	●	●	●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	0406-	●	●	●	●	●
60	BRACKET; AIR DUCT,UPR DOUBLE CAB(FS*W)	1-79998-571-2	01	1	9510-0004		●		●
61	BOLT; BRKT,AIR DUCT STD CAB(FS*M) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9510-0004		●		●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9510-0004					●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0405		●	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0406-	●	●	●	●	●
61	BOLT; BRKT,AIR DUCT DOUBLE CAB(FS*W) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0004		●		●
63	BRACKET; AIR DUCT,LWR STD CAB(FS*M)	1-79998-749-3	01	1	9510-0004		●		●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	9510-0004					●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	0005-0405		●	●	●	●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	0406-	●	●	●	●	●
63	BRACKET; AIR DUCT,LWR DOUBLE CAB(FS*W)	1-79998-572-2	01	1	9510-0004		●		●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9510-0004		●		●	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0405		●	●	●	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0406-	●	●	●	●	●
71	CLIP; AIR DUCT DOUBLE CAB(FS*W) ID=104-142	1-09707-155-0	01	1	9510-0004		●		●
153	BRACKET; ACL,FRT DOUBLE CAB(FS*W)	1-14239-222-0	01	1	9510-0004		●		●
154	BRACKET; ACL,RR DOUBLE CAB(FS*W)	1-14239-232-0	01	1	9510-0004		●		●
155	BOLT; BRKT DOUBLE CAB(FS*W) M8X25 FLANGE	0-28080-825-0	04	1	9510-9606		●		●
155	BOLT; BRKT DOUBLE CAB(FS*W) M8X25 FLANGE	0-28680-825-0	04	1	9607-0004		●		●
156	NUT; BRKT DOUBLE CAB(FS*W) M8	9-09110-408-0	02	1	9510-9606		●		●
156	NUT; BRKT DOUBLE CAB(FS*W) M8 FLANGE	0-91150-108-0	02	1	9607-0004		●		●
179	HOSE; AIR INT DOUBLE CAB(FS*W)	1-14231-810-1	01	1	9510-0004		●		●
180	CLIP; AIR INT HOSE DOUBLE CAB(FS*W) ID=104-142	1-09707-155-0	02	1	9510-0004		●		●
209	BRACKET; ACL STD CAB(FS*M)	1-53497-508-2	01	1	9510-0004		●		●
209	BRACKET; ACL	1-53497-508-2	01	1	0005-		●	●	●
209	BRACKET; ACL DOUBLE CAB(FS*W)	1-53497-554-0	01	1	9510-0004		●		●
209	BRACKET; ACL	1-53497-545-1	01	1	9610-0405					●
209	BRACKET; ACL	1-53497-545-1	01	1	0406-	●				●
210	BOLT; ACL BRKT STD CAB(FS*M) M12X35 FLANGE	0-28081-235-0	02	1	9510-9606		●		●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28081-235-0	02	1	9510-9606					●
210	BOLT; ACL BRKT STD CAB(FS*M) M12X40 FLANGE	0-28681-240-0	02	1	9607-9807		●		●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9607-9807					●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9808-0004		●		●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	0005-0405		●	●	●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	0406-0512	●	●	●	●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●	●	●	●
210	BOLT; ACL BRKT DOUBLE CAB(FS*W) M12X35 FLANGE	0-28081-235-0	04	1	9510-9606		●		●
210	BOLT; ACL BRKT DOUBLE CAB(FS*W) M12X40 FLANGE	0-28681-240-0	04	1	9607-9807		●		●
210	BOLT; ACL BRKT DOUBLE CAB(FS*W) M12X35 FLANGE	0-28681-235-0	02	1	9808-0004		●		●
211	NUT; BRKT STD CAB(FS*M) M12 FLANGE	0-91150-112-0	03	1	9510-9606		●		●
211	NUT; BRKT STD CAB(FS*M) M12 FLANGE	0-91150-212-0	03	1	9607-0004		●		●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	0005-0602		●	●	●
211	NUT; BRKT M12 FLANGE	0-91180-212-0	03	1	0603-		●	●	●
211	NUT; BRKT DOUBLE CAB(FS*W) M12 FLANGE	0-91150-112-0	01	1	9510-9606		●		●
211	NUT; BRKT DOUBLE CAB(FS*W) M12 FLANGE	0-91150-212-0	01	1	9607-9607		●		●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	9610-0405					●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	0406-0602	●				●
211	NUT; BRKT M12 FLANGE	0-91180-212-0	04	1	0603-	●				●
245	PIECE; DIST,AIR DUCT STD CAB(FS*M)	1-79998-228-0	02	1	9510-0004		●		●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	9510-0004					●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0005-0405		●	●	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0406-	●	●	●	●	●
245	PIECE; DIST,AIR DUCT DOUBLE CAB(FS*W)	1-79998-228-0	03	1	9510-0004		●		●
252	DUCT; AIR INT DOUBLE CAB(FS*W) (B)	1-14219-222-0	01	1	9510-0004		●		●
252	DUCT; AIR INT DOUBLE CAB(FS*W) (A)	1-14231-819-1	01	1	9510-0004		●		●
258	NUT; AIR DUCT DOUBLE CAB(FS*W) M8	9-09110-408-0	02	1	9510-9606		●		●
258	NUT; AIR DUCT DOUBLE CAB(FS*W) M8 FLANGE	0-91150-108-0	02	1	9607-0004		●		●
259	BOLT; AIR DUCT TO BRKT DOUBLE CAB(FS*W) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606		●		●
259	BOLT; AIR DUCT TO BRKT DOUBLE CAB(FS*W) M8X20 FLANGE	0-28680-820-0	02	1	9607-0004		●		●
291	BOLT; ACL DOUBLE CAB(FS*W) M8X25 FLANGE	0-28080-825-0	04	1	9510-9606		●		●
291	BOLT; ACL DOUBLE CAB(FS*W) M8X25 FLANGE	0-28680-825-0	04	1	9607-0004		●		●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	9510-0004		●		●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0005-0405		●	●	●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0406-	●	●	●	●	●
409	WASHER; PL,BRKT DOUBLE CAB(FS*W) ID=8.4 OD=18	9-09160-608-0	02	1	9510-9802		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
