◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#64218) — 489 parça

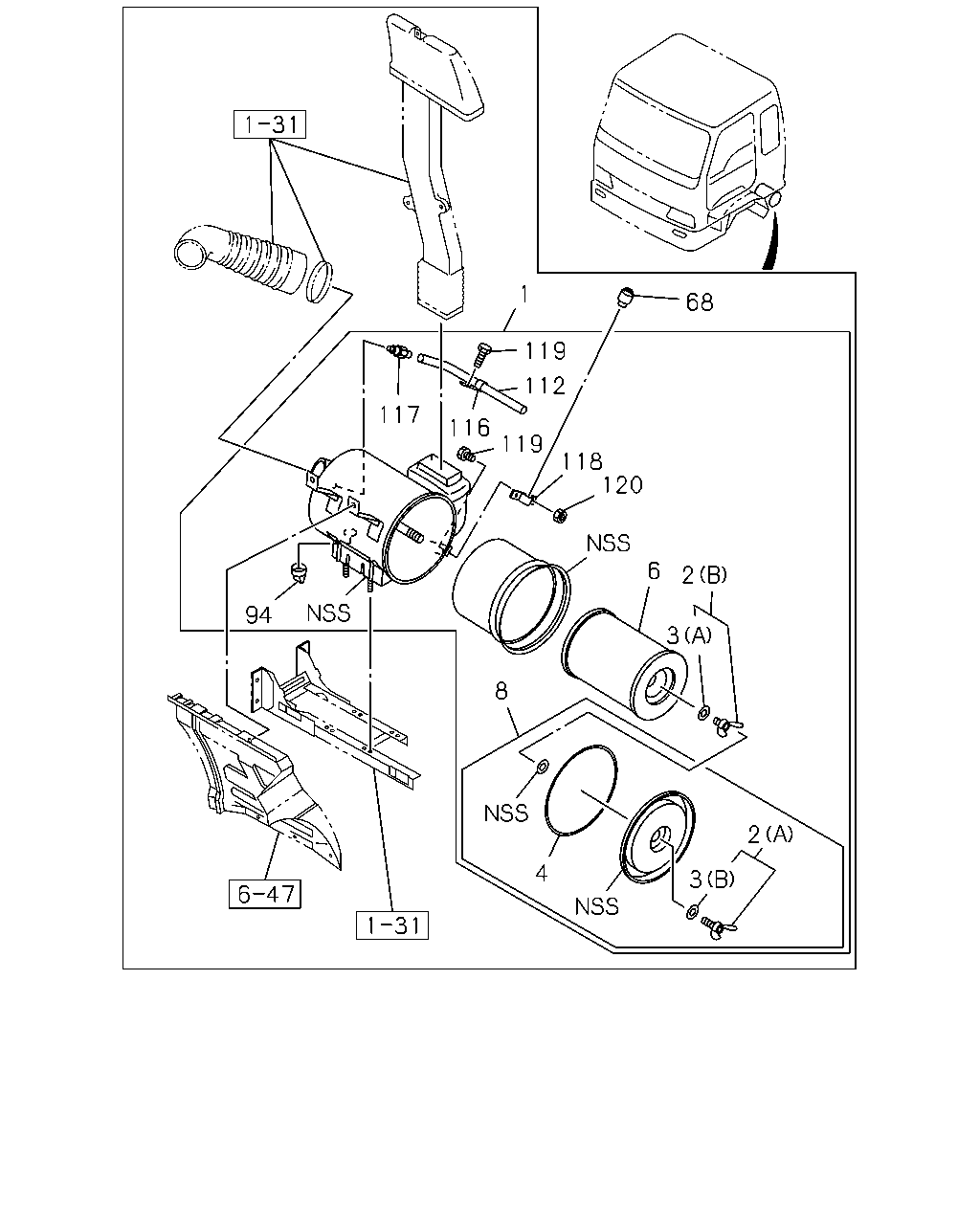

çizim 90577
1 68 119 112 117 116 119 118 120 6 2 94 3 8 2 4 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CLEANER ASM; AIR 1-14210-835-2 01 1 0406- ●
1 CLEANER ASM; AIR
STD CAB(FS**M*) AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-777-3 01 1 9510-9802 ● ●
1 CLEANER ASM; AIR
STD CAB(FS**M*) 		1-14210-777-3 01 1 9803-0004 ● ●
1 CLEANER ASM; AIR 1-14210-777-4 01 1 0005- ● ● ●
1 CLEANER ASM; AIR
STD CAB(FS**M*) AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-772-2 01 1 9510-9802 ● ●
1 CLEANER ASM; AIR
DOUBLE CAB(FS**W*) 		1-14210-791-0 01 1 9510-0004 ● ●
1 CLEANER ASM; AIR
DOUBLE CAB(FS**W*) AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-785-0 01 1 9510-9802 ● ●
1 CLEANER ASM; AIR 1-14210-794-0 01 1 9610-9703 ●
1 CLEANER ASM; AIR 1-14210-805-0 01 1 9704-9802 ●
1 CLEANER ASM; AIR 1-14210-815-0 01 1 9803-9803 ●
1 CLEANER ASM; AIR 1-14210-830-1 01 1 9804- ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 9510-9802 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 9803-0004 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0005- ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9510-0004 ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0405 ● ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0406- ● ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9510-0004 ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0405 ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0406- ● ● ● ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 9610-0405 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0406- ● ●
3 WASHER; SEAL,WING NUT
STD CAB(FS**M*) AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 9510-9802 ● ●
3 WASHER; SEAL,WING NUT
STD CAB(FS**M*) (C) 		9-14219-177-0 01 1 9803-0004 ● ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 0005- ● ● ●
3 WASHER; SEAL,WING NUT
DOUBLE CAB(FS**W*) (C) 		1-14219-177-0 01 1 9510-0004 ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9510-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0405 ● ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0406- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9510-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0405 ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0406- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 9610-0405 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0406- ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9510-0004 ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0005- ● ● ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9610-0405 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0406- ● ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14215-172-0 01 1 9510-9802 ● ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 11"(WG8) BEST VALUE PARTS 		1-87610-117-0 01 1 9510-9802 ● ●
8 COVER ASM; ACL
STD CAB(FS**M*) 		1-14212-084-0 01 1 9510-0004 ● ●
8 COVER ASM; ACL 1-14212-084-0 01 1 0005- ● ● ●
8 COVER ASM; ACL
DOUBLE CAB(FS**W*) 		1-14212-092-0 01 1 9510-0004 ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9610-0405 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0406- ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9510-0004 ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005-0405 ● ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0406- ● ● ● ● ●
94 VALVE; VACUATOR
STD CAB(FS**M*) 		1-14219-192-0 01 1 9510-9802 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9510-9802 ●
94 VALVE; VACUATOR
STD CAB(FS**M*) 		1-14219-192-0 01 1 9803-0004 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0005- ● ● ●
94 VALVE; VACUATOR
DOUBLE CAB(FS**W*) 		1-14219-129-0 01 1 9510-0004 ● ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 9803-0405 ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 0406- ● ●
112 HOSE; INDICATOR
STD CAB(FS**M*) 		1-09360-879-0 01 1 9510-9607 ● ●
112 HOSE; INDICATOR
STD CAB(FS**M*) 		1-14219-260-0 01 1 9608-0004 ● ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 0005- ● ● ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 9610-9703 ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 9803-0405 ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 0406- ● ●
116 CLIP; INDICATOR HOSE
STD CAB(FS**M*) 		1-09701-145-0 01 1 9510-9607 ● ●
117 JOINT; INDICATOR HOSE
STD CAB(FS**M*) 		1-14210-040-0 01 1 9510-0004 ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9510-0004 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0005-0405 ● ● ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0406- ● ● ● ● ●
118 BRACKET; INDICATOR
STD CAB(FS**M*) 		1-14219-187-0 01 1 9510-0004 ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9510-0004 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0405 ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0406- ● ● ● ● ●
119 BOLT; INDICATOR BRKT
STD CAB(FS**M*) M6X16 		9-02040-616-0 03 1 9510-9607 ● ●
119 BOLT; INDICATOR BRKT
STD CAB(FS**M*) M6X16 		9-02040-616-0 02 1 9608-0004 ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9608-0004 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0405 ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0406- ● ● ● ● ●
120 NUT; INDICATOR BRKT
STD CAB(FS**M*) M6 		9-09111-406-0 02 1 9510-0004 ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9510-0004 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0405 ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0406- ● ● ● ● ●

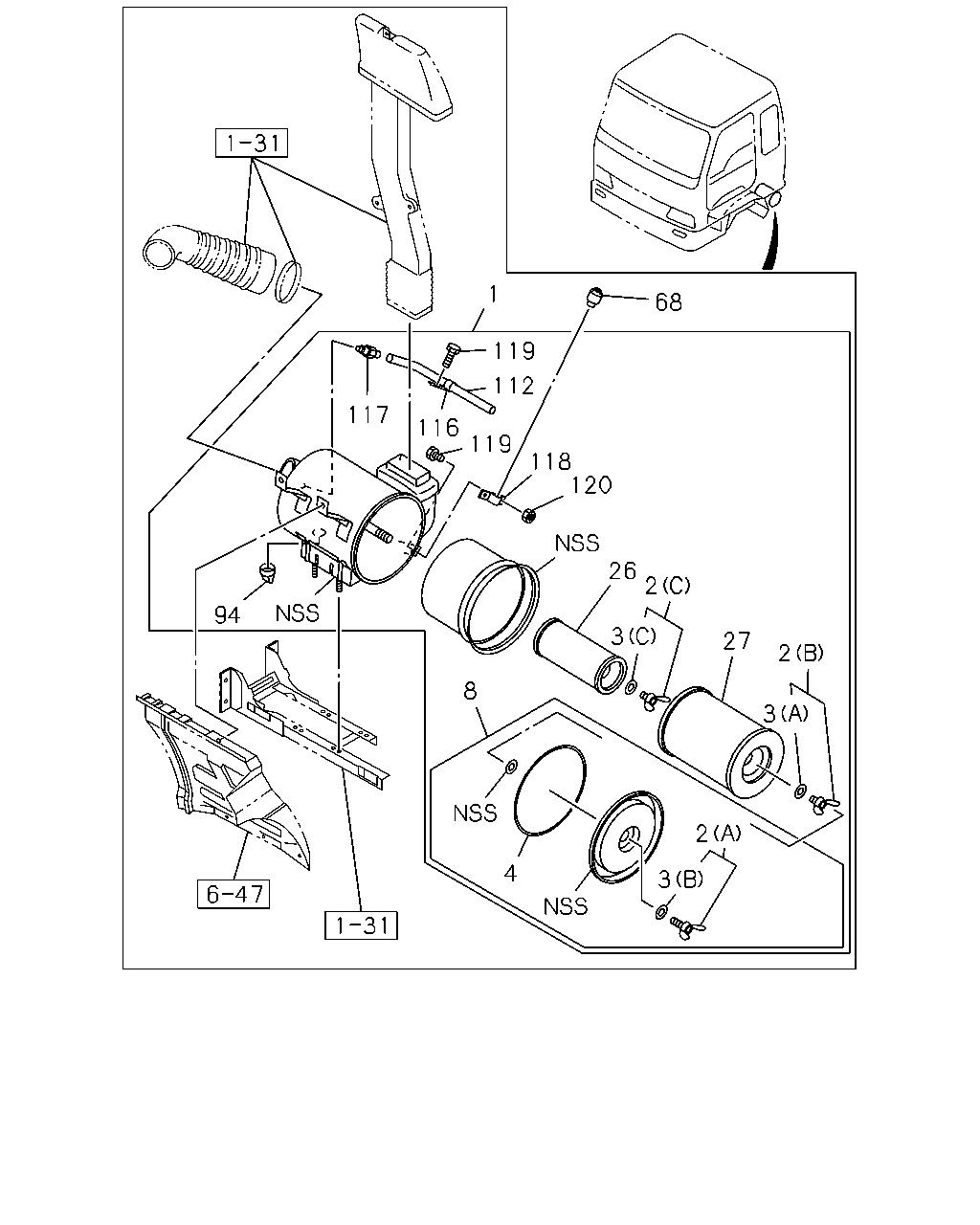

çizim 91382
1 68 119 112 117 116 119 118 120 26 2 94 3 27 2 8 3 2 4 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CLEANER ASM; AIR 1-14210-835-2 01 1 0406- ●
1 CLEANER ASM; AIR
STD CAB(FS**M*) AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-777-3 01 1 9510-9802 ● ●
1 CLEANER ASM; AIR
STD CAB(FS**M*) 		1-14210-777-3 01 1 9803-0004 ● ●
1 CLEANER ASM; AIR 1-14210-777-4 01 1 0005- ● ● ●
1 CLEANER ASM; AIR
STD CAB(FS**M*) AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-772-2 01 1 9510-9802 ● ●
1 CLEANER ASM; AIR
DOUBLE CAB(FS**W*) 		1-14210-791-0 01 1 9510-0004 ● ●
1 CLEANER ASM; AIR
DOUBLE CAB(FS**W*) AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-785-0 01 1 9510-9802 ● ●
1 CLEANER ASM; AIR 1-14210-794-0 01 1 9610-9703 ●
1 CLEANER ASM; AIR 1-14210-805-0 01 1 9704-9802 ●
1 CLEANER ASM; AIR 1-14210-815-0 01 1 9803-9803 ●
1 CLEANER ASM; AIR 1-14210-830-1 01 1 9804- ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 9510-9802 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 9803-0004 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0005- ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9510-0004 ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0405 ● ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0406- ● ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9510-0004 ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0405 ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0406- ● ● ● ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 9610-0405 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0406- ● ●
3 WASHER; SEAL,WING NUT
STD CAB(FS**M*) AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 9510-9802 ● ●
3 WASHER; SEAL,WING NUT
STD CAB(FS**M*) (C) 		9-14219-177-0 01 1 9803-0004 ● ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 0005- ● ● ●
3 WASHER; SEAL,WING NUT
DOUBLE CAB(FS**W*) (C) 		1-14219-177-0 01 1 9510-0004 ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9510-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0405 ● ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0406- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9510-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0405 ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0406- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 9610-0405 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0406- ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9510-0004 ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0005- ● ● ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9610-0405 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0406- ● ●
8 COVER ASM; ACL
STD CAB(FS**M*) 		1-14212-084-0 01 1 9510-0004 ● ●
8 COVER ASM; ACL 1-14212-084-0 01 1 0005- ● ● ●
8 COVER ASM; ACL
DOUBLE CAB(FS**W*) 		1-14212-092-0 01 1 9510-0004 ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9610-0405 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0406- ● ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-111-0 01 1 9510-9802 ● ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 9803-0004 ● ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 0005- ● ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9610-0405 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0406- ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-118-0 01 1 0005- ● ● ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-118-0 01 1 9510-9802 ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-118-0 01 1 9803-0004 ● ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-172-0 01 1 9510-9802 ● ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 9803-0004 ● ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 0005- ● ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9610-0405 ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0406- ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-117-0 01 1 0005- ● ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 9610-0405 ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0406- ● ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-117-0 01 1 9510-9802 ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-117-0 01 1 9803-0004 ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9510-0004 ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005-0405 ● ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0406- ● ● ● ● ●
94 VALVE; VACUATOR
STD CAB(FS**M*) 		1-14219-192-0 01 1 9510-9802 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9510-9802 ●
94 VALVE; VACUATOR
STD CAB(FS**M*) 		1-14219-192-0 01 1 9803-0004 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0005- ● ● ●
94 VALVE; VACUATOR
DOUBLE CAB(FS**W*) 		1-14219-129-0 01 1 9510-0004 ● ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 9803-0405 ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 0406- ● ●
112 HOSE; INDICATOR
STD CAB(FS**M*) 		1-09360-879-0 01 1 9510-9607 ● ●
112 HOSE; INDICATOR
STD CAB(FS**M*) 		1-14219-260-0 01 1 9608-0004 ● ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 0005- ● ● ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 9610-9703 ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 9803-0405 ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 0406- ● ●
116 CLIP; INDICATOR HOSE
STD CAB(FS**M*) 		1-09701-145-0 01 1 9510-9607 ● ●
117 JOINT; INDICATOR HOSE
STD CAB(FS**M*) 		1-14210-040-0 01 1 9510-0004 ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9510-0004 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0005-0405 ● ● ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0406- ● ● ● ● ●
118 BRACKET; INDICATOR
STD CAB(FS**M*) 		1-14219-187-0 01 1 9510-0004 ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9510-0004 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0405 ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0406- ● ● ● ● ●
119 BOLT; INDICATOR BRKT
STD CAB(FS**M*) M6X16 		9-02040-616-0 03 1 9510-9607 ● ●
119 BOLT; INDICATOR BRKT
STD CAB(FS**M*) M6X16 		9-02040-616-0 02 1 9608-0004 ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9608-0004 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0405 ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0406- ● ● ● ● ●
120 NUT; INDICATOR BRKT
STD CAB(FS**M*) M6 		9-09111-406-0 02 1 9510-0004 ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9510-0004 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0405 ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0406- ● ● ● ● ●

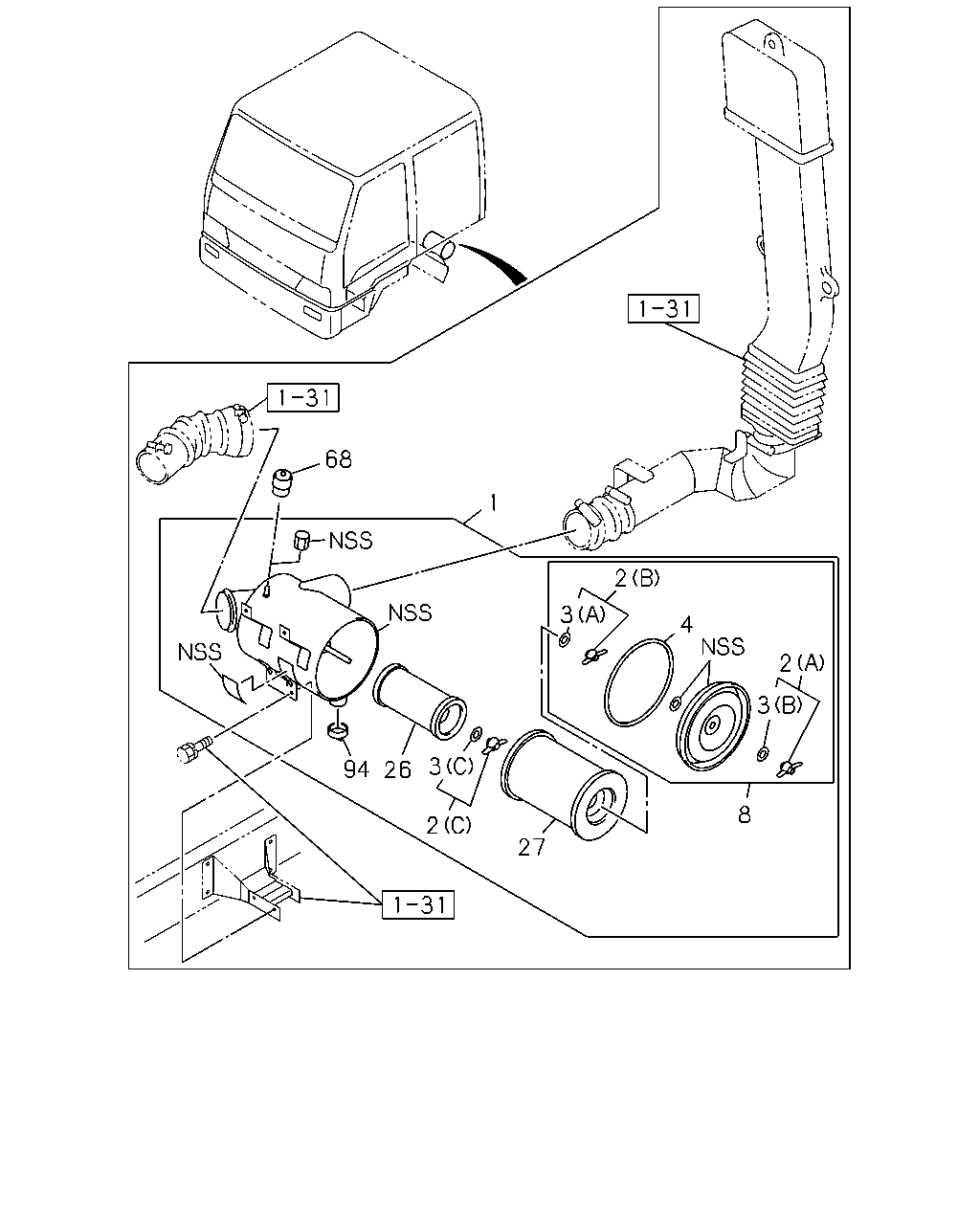

çizim 91579
68 1 2 3 4 2 3 3 94 26 8 2 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CLEANER ASM; AIR 1-14210-835-2 01 1 0406- ●
1 CLEANER ASM; AIR
STD CAB(FS**M*) AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-777-3 01 1 9510-9802 ● ●
1 CLEANER ASM; AIR
STD CAB(FS**M*) 		1-14210-777-3 01 1 9803-0004 ● ●
1 CLEANER ASM; AIR 1-14210-777-4 01 1 0005- ● ● ●
1 CLEANER ASM; AIR
STD CAB(FS**M*) AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-772-2 01 1 9510-9802 ● ●
1 CLEANER ASM; AIR
DOUBLE CAB(FS**W*) 		1-14210-791-0 01 1 9510-0004 ● ●
1 CLEANER ASM; AIR
DOUBLE CAB(FS**W*) AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-785-0 01 1 9510-9802 ● ●
1 CLEANER ASM; AIR 1-14210-794-0 01 1 9610-9703 ●
1 CLEANER ASM; AIR 1-14210-805-0 01 1 9704-9802 ●
1 CLEANER ASM; AIR 1-14210-815-0 01 1 9803-9803 ●
1 CLEANER ASM; AIR 1-14210-830-1 01 1 9804- ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 9510-9802 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 9803-0004 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0005- ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9510-0004 ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0405 ● ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0406- ● ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9510-0004 ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0405 ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0406- ● ● ● ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 9610-0405 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0406- ● ●
3 WASHER; SEAL,WING NUT
STD CAB(FS**M*) AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 9510-9802 ● ●
3 WASHER; SEAL,WING NUT
STD CAB(FS**M*) (C) 		9-14219-177-0 01 1 9803-0004 ● ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 0005- ● ● ●
3 WASHER; SEAL,WING NUT
DOUBLE CAB(FS**W*) (C) 		1-14219-177-0 01 1 9510-0004 ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9510-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0405 ● ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0406- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9510-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0405 ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0406- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 9610-0405 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0406- ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9510-0004 ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0005- ● ● ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9610-0405 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0406- ● ●
8 COVER ASM; ACL
STD CAB(FS**M*) 		1-14212-084-0 01 1 9510-0004 ● ●
8 COVER ASM; ACL 1-14212-084-0 01 1 0005- ● ● ●
8 COVER ASM; ACL
DOUBLE CAB(FS**W*) 		1-14212-092-0 01 1 9510-0004 ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9610-0405 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0406- ● ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-111-0 01 1 9510-9802 ● ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 9803-0004 ● ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 0005- ● ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9610-0405 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0406- ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-118-0 01 1 0005- ● ● ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-118-0 01 1 9510-9802 ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-118-0 01 1 9803-0004 ● ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-172-0 01 1 9510-9802 ● ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 9803-0004 ● ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 0005- ● ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9610-0405 ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0406- ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-117-0 01 1 0005- ● ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 9610-0405 ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0406- ● ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-117-0 01 1 9510-9802 ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-117-0 01 1 9803-0004 ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9510-0004 ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005-0405 ● ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0406- ● ● ● ● ●
94 VALVE; VACUATOR
STD CAB(FS**M*) 		1-14219-192-0 01 1 9510-9802 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9510-9802 ●
94 VALVE; VACUATOR
STD CAB(FS**M*) 		1-14219-192-0 01 1 9803-0004 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0005- ● ● ●
94 VALVE; VACUATOR
DOUBLE CAB(FS**W*) 		1-14219-129-0 01 1 9510-0004 ● ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 9803-0405 ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 0406- ● ●

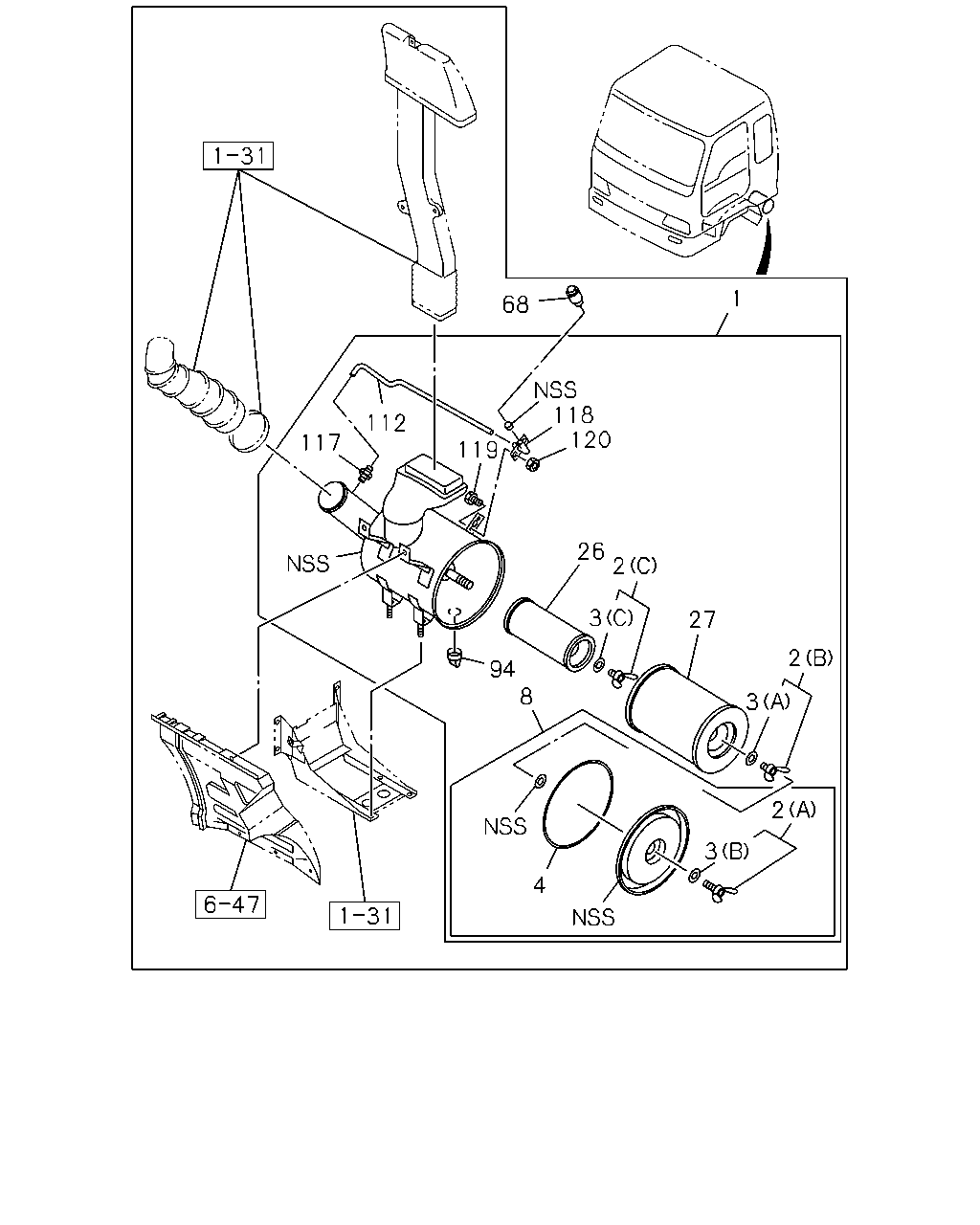

çizim 91616
1 68 118 120 112 117 119 26 2 3 27 2 94 8 3 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CLEANER ASM; AIR 1-14210-835-2 01 1 0406- ●
1 CLEANER ASM; AIR
STD CAB(FS**M*) AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-777-3 01 1 9510-9802 ● ●
1 CLEANER ASM; AIR
STD CAB(FS**M*) 		1-14210-777-3 01 1 9803-0004 ● ●
1 CLEANER ASM; AIR 1-14210-777-4 01 1 0005- ● ● ●
1 CLEANER ASM; AIR
STD CAB(FS**M*) AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-772-2 01 1 9510-9802 ● ●
1 CLEANER ASM; AIR
DOUBLE CAB(FS**W*) 		1-14210-791-0 01 1 9510-0004 ● ●
1 CLEANER ASM; AIR
DOUBLE CAB(FS**W*) AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-785-0 01 1 9510-9802 ● ●
1 CLEANER ASM; AIR 1-14210-794-0 01 1 9610-9703 ●
1 CLEANER ASM; AIR 1-14210-805-0 01 1 9704-9802 ●
1 CLEANER ASM; AIR 1-14210-815-0 01 1 9803-9803 ●
1 CLEANER ASM; AIR 1-14210-830-1 01 1 9804- ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 9510-9802 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 9803-0004 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0005- ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9510-0004 ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0405 ● ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0406- ● ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9510-0004 ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0405 ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0406- ● ● ● ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 9610-0405 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0406- ● ●
3 WASHER; SEAL,WING NUT
STD CAB(FS**M*) AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 9510-9802 ● ●
3 WASHER; SEAL,WING NUT
STD CAB(FS**M*) (C) 		9-14219-177-0 01 1 9803-0004 ● ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 0005- ● ● ●
3 WASHER; SEAL,WING NUT
DOUBLE CAB(FS**W*) (C) 		1-14219-177-0 01 1 9510-0004 ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9510-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0405 ● ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0406- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9510-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0405 ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0406- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 9610-0405 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0406- ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9510-0004 ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0005- ● ● ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9610-0405 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0406- ● ●
8 COVER ASM; ACL
STD CAB(FS**M*) 		1-14212-084-0 01 1 9510-0004 ● ●
8 COVER ASM; ACL 1-14212-084-0 01 1 0005- ● ● ●
8 COVER ASM; ACL
DOUBLE CAB(FS**W*) 		1-14212-092-0 01 1 9510-0004 ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9610-0405 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0406- ● ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-111-0 01 1 9510-9802 ● ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 9803-0004 ● ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 0005- ● ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9610-0405 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0406- ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-118-0 01 1 0005- ● ● ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-118-0 01 1 9510-9802 ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-118-0 01 1 9803-0004 ● ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-172-0 01 1 9510-9802 ● ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 9803-0004 ● ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 0005- ● ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9610-0405 ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0406- ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-117-0 01 1 0005- ● ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 9610-0405 ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0406- ● ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-117-0 01 1 9510-9802 ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-117-0 01 1 9803-0004 ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9510-0004 ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005-0405 ● ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0406- ● ● ● ● ●
94 VALVE; VACUATOR
STD CAB(FS**M*) 		1-14219-192-0 01 1 9510-9802 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9510-9802 ●
94 VALVE; VACUATOR
STD CAB(FS**M*) 		1-14219-192-0 01 1 9803-0004 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0005- ● ● ●
94 VALVE; VACUATOR
DOUBLE CAB(FS**W*) 		1-14219-129-0 01 1 9510-0004 ● ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 9803-0405 ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 0406- ● ●
112 HOSE; INDICATOR
STD CAB(FS**M*) 		1-09360-879-0 01 1 9510-9607 ● ●
112 HOSE; INDICATOR
STD CAB(FS**M*) 		1-14219-260-0 01 1 9608-0004 ● ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 0005- ● ● ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 9610-9703 ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 9803-0405 ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 0406- ● ●
117 JOINT; INDICATOR HOSE
STD CAB(FS**M*) 		1-14210-040-0 01 1 9510-0004 ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9510-0004 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0005-0405 ● ● ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0406- ● ● ● ● ●
118 BRACKET; INDICATOR
STD CAB(FS**M*) 		1-14219-187-0 01 1 9510-0004 ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9510-0004 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0405 ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0406- ● ● ● ● ●
119 BOLT; INDICATOR BRKT
STD CAB(FS**M*) M6X16 		9-02040-616-0 03 1 9510-9607 ● ●
119 BOLT; INDICATOR BRKT
STD CAB(FS**M*) M6X16 		9-02040-616-0 02 1 9608-0004 ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9608-0004 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0405 ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0406- ● ● ● ● ●
120 NUT; INDICATOR BRKT
STD CAB(FS**M*) M6 		9-09111-406-0 02 1 9510-0004 ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9510-0004 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0405 ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0406- ● ● ● ● ●

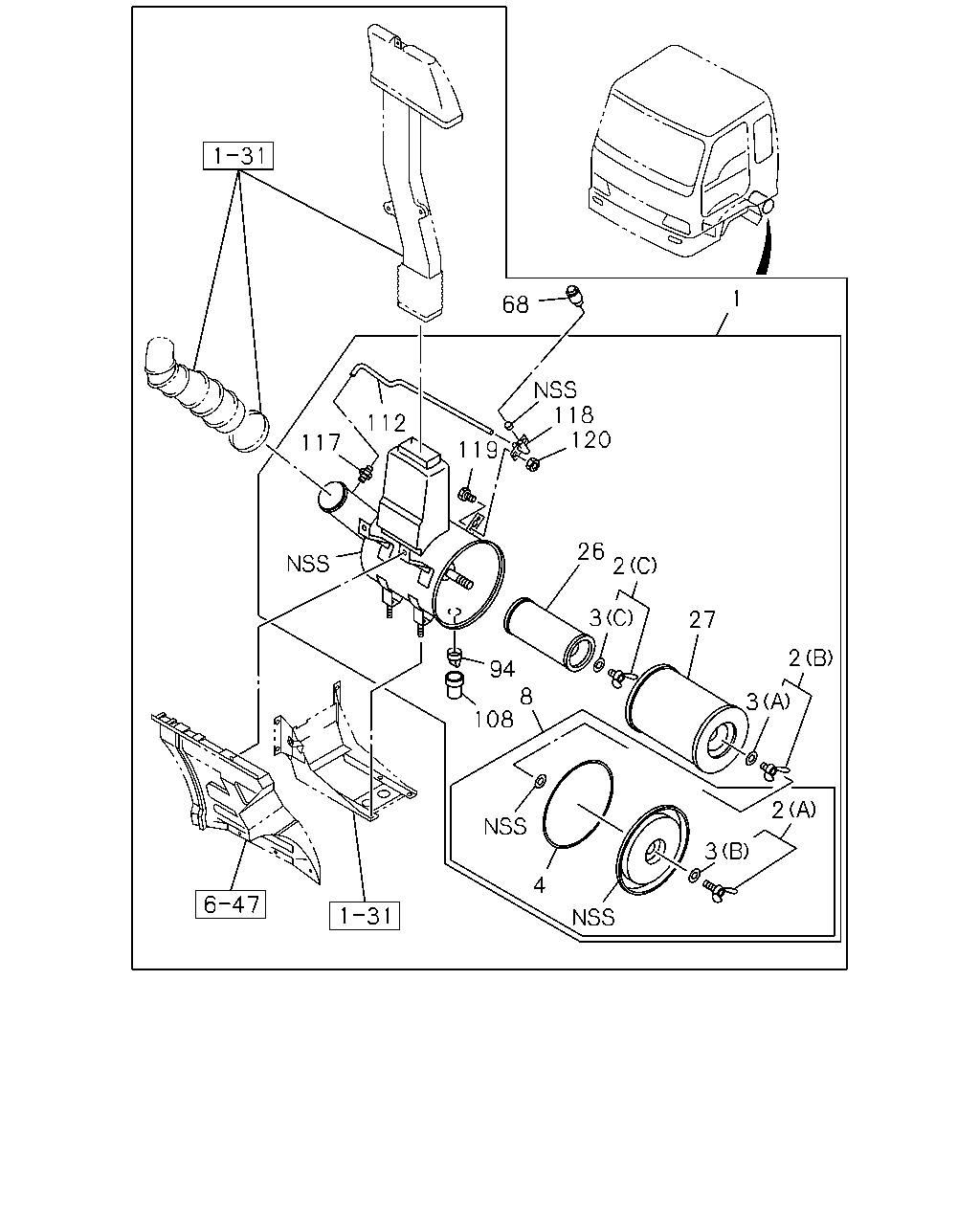

çizim 183964
1 68 118 120 112 117 119 26 2 3 27 2 94 8 108 3 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CLEANER ASM; AIR 1-14210-835-2 01 1 0406- ●
1 CLEANER ASM; AIR
STD CAB(FS**M*) AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-777-3 01 1 9510-9802 ● ●
1 CLEANER ASM; AIR
STD CAB(FS**M*) 		1-14210-777-3 01 1 9803-0004 ● ●
1 CLEANER ASM; AIR 1-14210-777-4 01 1 0005- ● ● ●
1 CLEANER ASM; AIR
STD CAB(FS**M*) AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-772-2 01 1 9510-9802 ● ●
1 CLEANER ASM; AIR
DOUBLE CAB(FS**W*) 		1-14210-791-0 01 1 9510-0004 ● ●
1 CLEANER ASM; AIR
DOUBLE CAB(FS**W*) AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-785-0 01 1 9510-9802 ● ●
1 CLEANER ASM; AIR 1-14210-794-0 01 1 9610-9703 ●
1 CLEANER ASM; AIR 1-14210-805-0 01 1 9704-9802 ●
1 CLEANER ASM; AIR 1-14210-815-0 01 1 9803-9803 ●
1 CLEANER ASM; AIR 1-14210-830-1 01 1 9804- ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 9510-9802 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 9803-0004 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0005- ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9510-0004 ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0405 ● ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0406- ● ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9510-0004 ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0405 ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0406- ● ● ● ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 9610-0405 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0406- ● ●
3 WASHER; SEAL,WING NUT
STD CAB(FS**M*) AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 9510-9802 ● ●
3 WASHER; SEAL,WING NUT
STD CAB(FS**M*) (C) 		9-14219-177-0 01 1 9803-0004 ● ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 0005- ● ● ●
3 WASHER; SEAL,WING NUT
DOUBLE CAB(FS**W*) (C) 		1-14219-177-0 01 1 9510-0004 ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9510-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0405 ● ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0406- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9510-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0405 ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0406- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 9610-0405 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0406- ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9510-0004 ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0005- ● ● ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9610-0405 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0406- ● ●
8 COVER ASM; ACL
STD CAB(FS**M*) 		1-14212-084-0 01 1 9510-0004 ● ●
8 COVER ASM; ACL 1-14212-084-0 01 1 0005- ● ● ●
8 COVER ASM; ACL
DOUBLE CAB(FS**W*) 		1-14212-092-0 01 1 9510-0004 ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9610-0405 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0406- ● ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-111-0 01 1 9510-9802 ● ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 9803-0004 ● ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 0005- ● ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9610-0405 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0406- ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-118-0 01 1 0005- ● ● ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-118-0 01 1 9510-9802 ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-118-0 01 1 9803-0004 ● ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-172-0 01 1 9510-9802 ● ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 9803-0004 ● ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 0005- ● ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9610-0405 ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0406- ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-117-0 01 1 0005- ● ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 9610-0405 ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0406- ● ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-117-0 01 1 9510-9802 ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-117-0 01 1 9803-0004 ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9510-0004 ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005-0405 ● ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0406- ● ● ● ● ●
94 VALVE; VACUATOR
STD CAB(FS**M*) 		1-14219-192-0 01 1 9510-9802 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9510-9802 ●
94 VALVE; VACUATOR
STD CAB(FS**M*) 		1-14219-192-0 01 1 9803-0004 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0005- ● ● ●
94 VALVE; VACUATOR
DOUBLE CAB(FS**W*) 		1-14219-129-0 01 1 9510-0004 ● ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 9803-0405 ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 0406- ● ●
108 COVER; ACL 1-14219-270-0 01 1 9803-9803 ●
112 HOSE; INDICATOR
STD CAB(FS**M*) 		1-09360-879-0 01 1 9510-9607 ● ●
112 HOSE; INDICATOR
STD CAB(FS**M*) 		1-14219-260-0 01 1 9608-0004 ● ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 0005- ● ● ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 9610-9703 ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 9803-0405 ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 0406- ● ●
117 JOINT; INDICATOR HOSE
STD CAB(FS**M*) 		1-14210-040-0 01 1 9510-0004 ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9510-0004 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0005-0405 ● ● ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0406- ● ● ● ● ●
118 BRACKET; INDICATOR
STD CAB(FS**M*) 		1-14219-187-0 01 1 9510-0004 ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9510-0004 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0405 ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0406- ● ● ● ● ●
119 BOLT; INDICATOR BRKT
STD CAB(FS**M*) M6X16 		9-02040-616-0 03 1 9510-9607 ● ●
119 BOLT; INDICATOR BRKT
STD CAB(FS**M*) M6X16 		9-02040-616-0 02 1 9608-0004 ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9608-0004 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0405 ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0406- ● ● ● ● ●
120 NUT; INDICATOR BRKT
STD CAB(FS**M*) M6 		9-09111-406-0 02 1 9510-0004 ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9510-0004 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0405 ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0406- ● ● ● ● ●

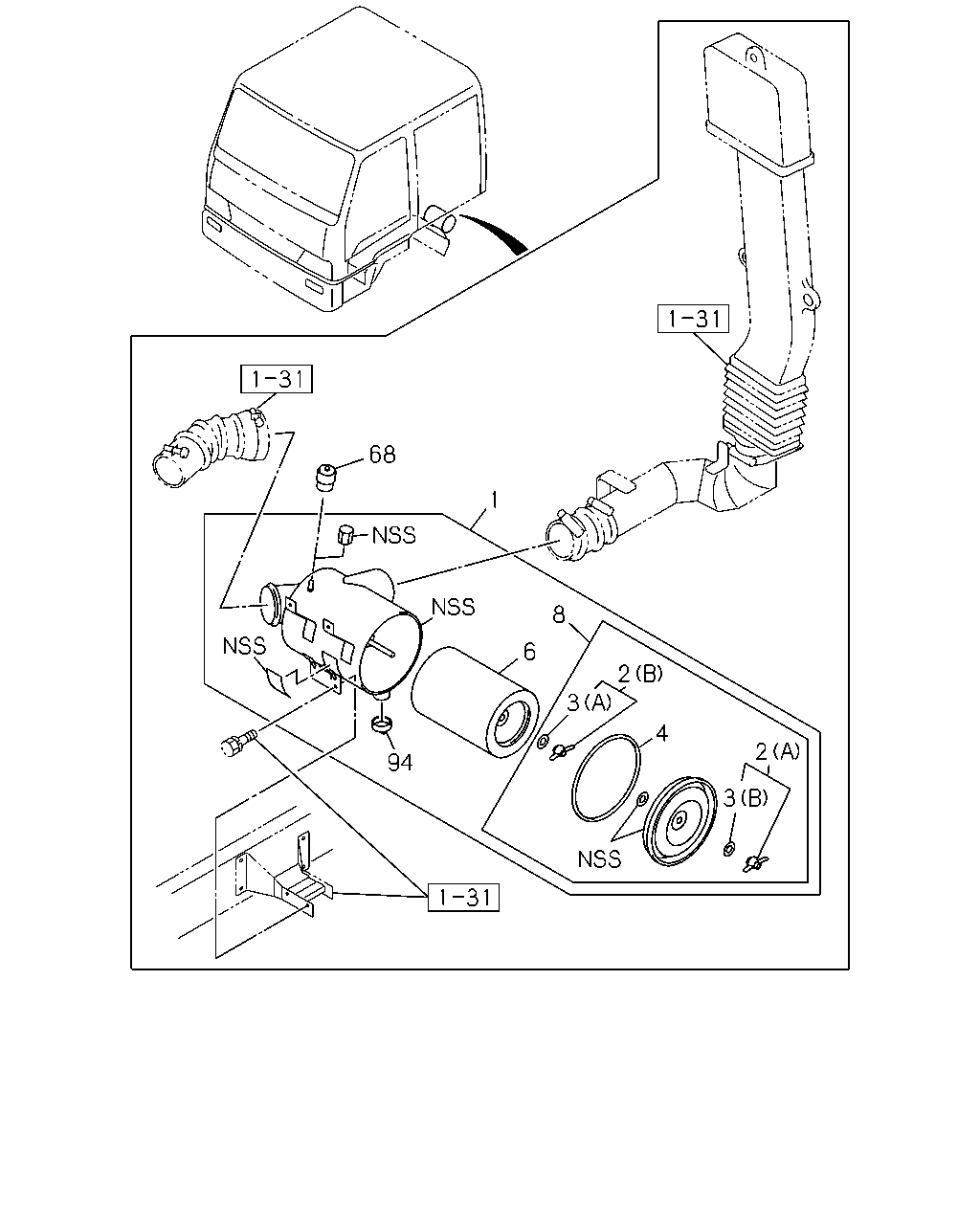

çizim 183966
68 1 8 6 2 3 4 2 94 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CLEANER ASM; AIR 1-14210-835-2 01 1 0406- ●
1 CLEANER ASM; AIR
STD CAB(FS**M*) AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-777-3 01 1 9510-9802 ● ●
1 CLEANER ASM; AIR
STD CAB(FS**M*) 		1-14210-777-3 01 1 9803-0004 ● ●
1 CLEANER ASM; AIR 1-14210-777-4 01 1 0005- ● ● ●
1 CLEANER ASM; AIR
STD CAB(FS**M*) AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-772-2 01 1 9510-9802 ● ●
1 CLEANER ASM; AIR
DOUBLE CAB(FS**W*) 		1-14210-791-0 01 1 9510-0004 ● ●
1 CLEANER ASM; AIR
DOUBLE CAB(FS**W*) AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-785-0 01 1 9510-9802 ● ●
1 CLEANER ASM; AIR 1-14210-794-0 01 1 9610-9703 ●
1 CLEANER ASM; AIR 1-14210-805-0 01 1 9704-9802 ●
1 CLEANER ASM; AIR 1-14210-815-0 01 1 9803-9803 ●
1 CLEANER ASM; AIR 1-14210-830-1 01 1 9804- ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 9510-9802 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 9803-0004 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0005- ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9510-0004 ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0405 ● ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0406- ● ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9510-0004 ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0405 ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0406- ● ● ● ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 9610-0405 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0406- ● ●
3 WASHER; SEAL,WING NUT
STD CAB(FS**M*) AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 9510-9802 ● ●
3 WASHER; SEAL,WING NUT
STD CAB(FS**M*) (C) 		9-14219-177-0 01 1 9803-0004 ● ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 0005- ● ● ●
3 WASHER; SEAL,WING NUT
DOUBLE CAB(FS**W*) (C) 		1-14219-177-0 01 1 9510-0004 ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9510-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0405 ● ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0406- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9510-0004 ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0405 ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0406- ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 9610-0405 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0406- ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9510-0004 ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0005- ● ● ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9610-0405 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0406- ● ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14215-172-0 01 1 9510-9802 ● ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 11"(WG8) BEST VALUE PARTS 		1-87610-117-0 01 1 9510-9802 ● ●
8 COVER ASM; ACL
STD CAB(FS**M*) 		1-14212-084-0 01 1 9510-0004 ● ●
8 COVER ASM; ACL 1-14212-084-0 01 1 0005- ● ● ●
8 COVER ASM; ACL
DOUBLE CAB(FS**W*) 		1-14212-092-0 01 1 9510-0004 ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9610-0405 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0406- ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9510-0004 ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005-0405 ● ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0406- ● ● ● ● ●
94 VALVE; VACUATOR
STD CAB(FS**M*) 		1-14219-192-0 01 1 9510-9802 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9510-9802 ●
94 VALVE; VACUATOR
STD CAB(FS**M*) 		1-14219-192-0 01 1 9803-0004 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0005- ● ● ●
94 VALVE; VACUATOR
DOUBLE CAB(FS**W*) 		1-14219-129-0 01 1 9510-0004 ● ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 9803-0405 ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 0406- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
