◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#64216) — 401 parça

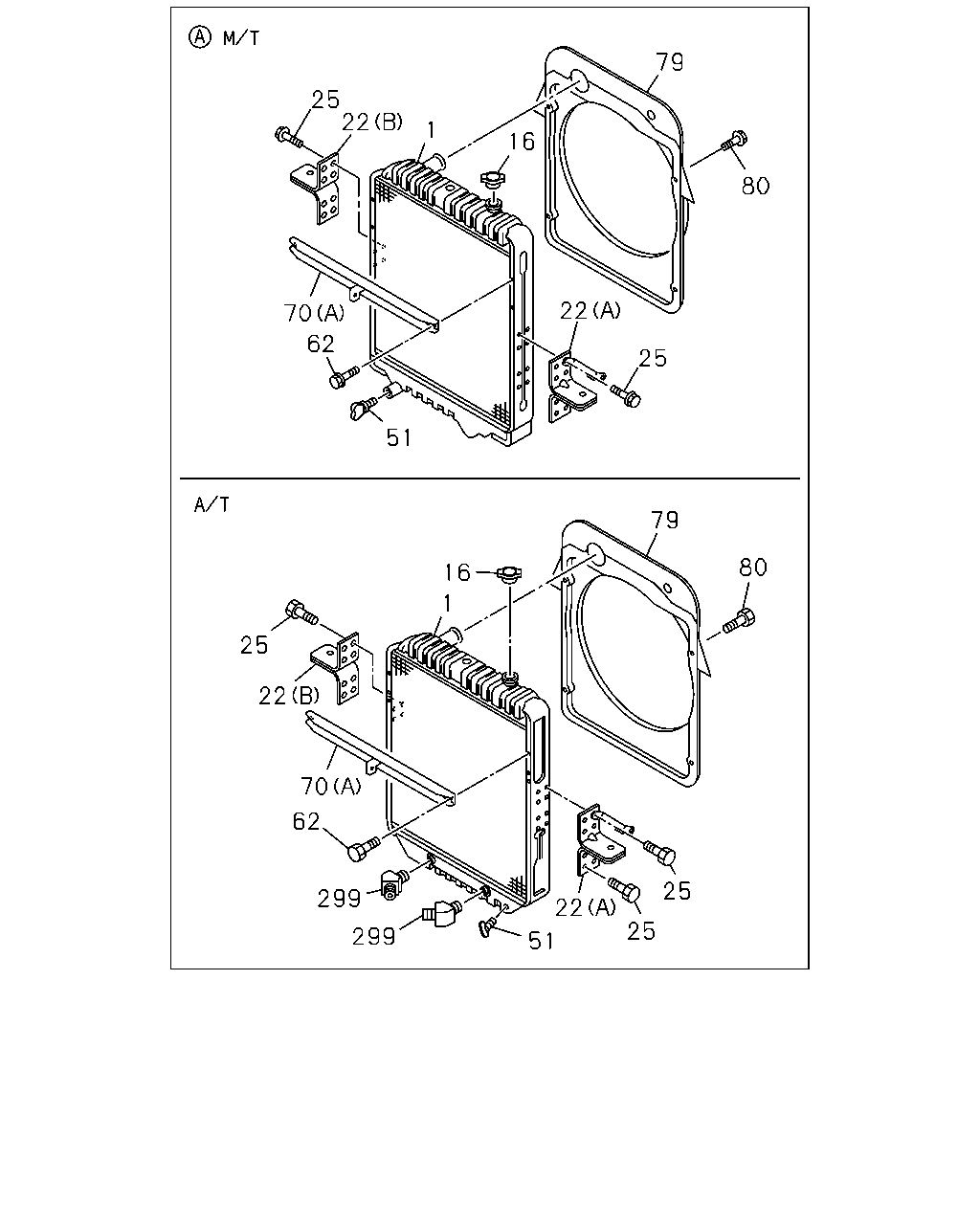

çizim 85417
79 25 22 1 16 80 22 70 62 25 51 79 80 16 1 25 22 70 62 25 299 22 25 299 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 RADIATOR ASM 1-21410-863-0 01 1 0406- ●
1 RADIATOR ASM
A/T<X9D> AUSTRALIA EQUIPMENT(RR3) 		1-21410-689-1 01 1 9510-9802 ● ●
1 RADIATOR ASM
A/T<X9D> AUSTRALIA EQUIPMENT(RR3) 		1-21410-689-1 01 1 9803-9903 ●
1 RADIATOR ASM
A/T<X9D> AUSTRALIA EQUIPMENT(RR3) 		1-21410-689-1 01 1 9904-0004 ● ●
1 RADIATOR ASM
A/T<X9D> 		1-21410-689-2 01 1 0005- ●
1 RADIATOR ASM
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-21410-675-1 01 1 9510-0004 ● ●
1 RADIATOR ASM 1-21410-675-1 01 1 9510-0004 ●
1 RADIATOR ASM 1-21410-675-1 01 1 0005-0010 ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0011- ● ● ●
1 RADIATOR ASM 1-21410-675-1 01 1 0011- ●
1 RADIATOR ASM
ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-21410-674-1 01 1 9510-0004 ● ●
1 RADIATOR ASM 1-21410-674-1 01 1 0005-0010 ● ●
1 RADIATOR ASM
EXC. A/T<X9D> 		1-21410-674-1 01 1 0005-0010 ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> 		1-21410-674-1 01 1 0011-0205 ● ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0011-0205 ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> 		1-21410-674-1 01 1 0206-0302 ● ●
1 RADIATOR ASM
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0206-0302 ●
1 RADIATOR ASM
STD CAB(FS**M*) EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0303-0305 ● ●
1 RADIATOR ASM
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0303-0305 ●
1 RADIATOR ASM
STD CAB(FS**M*) EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0306-0308 ●
1 RADIATOR ASM
STD CAB(FS**M*) EXC. RADIATOR HEAVY DUTY<V05>,CAUTIONS ARABIAN<WJ7>,A/T<X9D> 		1-21410-674-1 01 1 0306-0308 ●
1 RADIATOR ASM
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0306-0308 ●
1 RADIATOR ASM
STD CAB(FS**M*) EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0309- ● ●
1 RADIATOR ASM
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0309- ●
1 RADIATOR ASM
NEW ZEALAND EQUIPMENT(PK5) 		1-21410-733-0 01 1 0206- ●
16 CAP; RAD 1-21450-097-2 01 1 0406- ●
16 CAP; RAD
STD CAB(FS**M*) CAUTIONS ARABIAN<WJ7> EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21450-142-0 01 1 0306-0308 ●
16 CAP; RAD
STD CAB(FS**M*) EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21450-142-0 01 1 0309-0311 ● ●
16 CAP; RAD
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21450-142-0 01 1 0309-0311 ●
16 CAP; RAD
STD CAB(FS**M*) RADIATOR HEAVY DUTY<V05> 		1-21450-142-0 01 1 0312- ● ●
16 CAP; RAD
STD CAB(FS**M*) EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21450-142-0 01 1 0312- ● ●
16 CAP; RAD 1-21450-142-0 01 1 0312- ●
16 CAP; RAD
NEW ZEALAND EQUIPMENT(PK5) 		1-21450-142-0 01 1 0312- ●
16 CAP; RAD
RADIATOR HEAVY DUTY<V05> 		1-21450-142-0 01 1 0312- ●
16 CAP; RAD
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21450-142-0 01 1 0312- ●
16 CAP; RAD 1-21450-053-2 01 1 9510-0004 ● ● ●
16 CAP; RAD 1-21450-053-1 01 1 0005-0305 ● ● ● ●
16 CAP; RAD
EXC. CAUTIONS ARABIAN<WJ7> 		1-21450-053-1 01 1 0306-0308 ● ● ● ●
16 CAP; RAD
STD CAB(FS**M*) RADIATOR HEAVY DUTY<V05> 		1-21450-053-2 01 1 0309-0311 ● ●
16 CAP; RAD
STD CAB(FS**M*) A/T<X9D> 		1-21450-053-2 01 1 0309-0311 ● ●
16 CAP; RAD 1-21450-053-2 01 1 0309-0311 ●
16 CAP; RAD
NEW ZEALAND EQUIPMENT(PK5) 		1-21450-053-2 01 1 0309-0311 ●
16 CAP; RAD
RADIATOR HEAVY DUTY<V05> 		1-21450-053-2 01 1 0309-0311 ●
16 CAP; RAD
A/T<X9D> 		1-21450-053-2 01 1 0309-0311 ●
16 CAP; RAD
A/T<X9D> 		1-21450-053-2 01 1 0312- ●
22 BRACKET; RAD MTG
(A) 		1-21464-646-0 01 1 0406- ●
22 BRACKET; RAD MTG
(B) 		1-21464-654-0 01 1 0406- ●
22 BRACKET; RAD MTG
(B) 		1-21464-362-2 01 1 9510-9704 ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-544-0 01 1 9705-9910 ● ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21464-544-0 01 1 9911-0004 ●
22 BRACKET; RAD MTG
(B) 		1-21464-544-0 01 1 9911-0004 ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 9510-0004 ● ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 0005-0205 ● ● ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 0206-0405 ● ● ●
22 BRACKET; RAD MTG
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-21464-361-0 01 1 0206-0405 ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 0406- ● ● ●
22 BRACKET; RAD MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIATOR HEAVY DUTY<V05> (A) 		1-21464-361-0 01 1 0406- ●
22 BRACKET; RAD MTG
RADIATOR HEAVY DUTY<V05> (B) 		1-21464-544-0 01 1 0011- ● ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-521-0 01 1 9610-9704 ●
22 BRACKET; RAD MTG
(B) 		1-21464-548-0 01 1 9705-9910 ●
22 BRACKET; RAD MTG
EURO2 SPECIFICATION<THN> (B) 		1-21464-548-0 01 1 9911-0004 ●
22 BRACKET; RAD MTG
(B) 		1-21464-548-0 01 1 9911-0004 ●
22 BRACKET; RAD MTG
(B) 		1-21464-548-0 01 1 0005-0010 ● ● ● ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05> (B) 		1-21464-548-0 01 1 0011- ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-548-0 01 1 0011- ●
22 BRACKET; RAD MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIATOR HEAVY DUTY<V05> (B) 		1-21464-548-0 01 1 0011- ●
22 BRACKET; RAD MTG
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-21464-735-0 01 1 0011-0205 ●
22 BRACKET; RAD MTG
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-21464-590-0 01 1 0206- ●
22 BRACKET; RAD MTG
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-21464-591-0 01 1 0206- ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 9510-9609 ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 9610-0004 ● ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0005-0205 ● ● ● ●
25 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5) M8X12 FLANGE 		0-28080-812-0 08 1 0206- ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9510-0004 ● ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0205 ● ● ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0206-0405 ● ● ●
25 BOLT; BRKT
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28080-816-0 01 1 0206-0405 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0406- ● ● ● ●
25 BOLT; BRKT
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28080-816-0 01 1 0406- ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0206-0405 ● ● ●
25 BOLT; BRKT
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X12 FLANGE 		0-28080-812-0 15 1 0206-0405 ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0406- ● ● ● ●
25 BOLT; BRKT
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X12 FLANGE 		0-28080-812-0 15 1 0406- ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9510-0004 ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0005-0205 ● ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0206-0405 ● ● ●
51 PLUG; DRAIN
EXC. NEW ZEALAND EQUIPMENT(PK5) W/GASKET 		1-09609-009-0 01 1 0206-0405 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0406- ● ● ● ●
51 PLUG; DRAIN
EXC. NEW ZEALAND EQUIPMENT(PK5) W/GASKET 		1-09609-009-0 01 1 0406- ●
51 PLUG; DRAIN
NEW ZEALAND EQUIPMENT(PK5) W/GASKET 		1-09609-023-0 01 1 0206- ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9510-9609 ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9610-0004 ● ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0005-0010 ● ● ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0011-0205 ● ● ●
62 BOLT; STAY
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X12 FLANGE 		0-28080-812-0 02 1 0011-0205 ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0206- ● ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9510-0004 ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0005- ● ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9510-0004 ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005- ● ● ● ●
79 GUIDE; FAN,RAD 1-21551-471-1 01 1 0406- ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9510-0004 ● ● ●
79 GUIDE; FAN,RAD 1-21551-374-4 01 1 0005- ● ● ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9510-0004 ● ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0205 ● ● ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0206-0405 ● ● ●
80 BOLT; FAN GUIDE
EXC. NEW ZEALAND EQUIPMENT(PK5) M6X10 FLANGE 		0-28080-610-0 04 1 0206-0405 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0406- ● ● ● ●
80 BOLT; FAN GUIDE
EXC. NEW ZEALAND EQUIPMENT(PK5) M6X10 FLANGE 		0-28080-610-0 04 1 0406- ●
80 BOLT; FAN GUIDE
NEW ZEALAND EQUIPMENT(PK5) M6X12 FLANGE 		0-28080-612-0 04 1 0206- ●
299 NIPPLE; RAD
A/T<X9D> AUSTRALIA EQUIPMENT(RR3) 		1-09660-646-0 02 1 9510-9802 ● ●
299 NIPPLE; RAD
A/T<X9D> AUSTRALIA EQUIPMENT(RR3) 		1-09660-646-0 02 1 9803-9903 ●
299 NIPPLE; RAD
A/T<X9D> AUSTRALIA EQUIPMENT(RR3) 		1-09660-646-0 02 1 9904-0004 ● ●
299 NIPPLE; RAD
A/T<X9D> 		1-09660-646-0 02 1 0005-0203 ●
çizim 89076
1 528 526 529 232 267 89 529 528 527 267
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 RADIATOR ASM 1-21410-863-0 01 1 0406- ●
1 RADIATOR ASM
A/T<X9D> AUSTRALIA EQUIPMENT(RR3) 		1-21410-689-1 01 1 9510-9802 ● ●
1 RADIATOR ASM
A/T<X9D> AUSTRALIA EQUIPMENT(RR3) 		1-21410-689-1 01 1 9803-9903 ●
1 RADIATOR ASM
A/T<X9D> AUSTRALIA EQUIPMENT(RR3) 		1-21410-689-1 01 1 9904-0004 ● ●
1 RADIATOR ASM
A/T<X9D> 		1-21410-689-2 01 1 0005- ●
1 RADIATOR ASM
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-21410-675-1 01 1 9510-0004 ● ●
1 RADIATOR ASM 1-21410-675-1 01 1 9510-0004 ●
1 RADIATOR ASM 1-21410-675-1 01 1 0005-0010 ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0011- ● ● ●
1 RADIATOR ASM 1-21410-675-1 01 1 0011- ●
1 RADIATOR ASM
ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-21410-674-1 01 1 9510-0004 ● ●
1 RADIATOR ASM 1-21410-674-1 01 1 0005-0010 ● ●
1 RADIATOR ASM
EXC. A/T<X9D> 		1-21410-674-1 01 1 0005-0010 ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> 		1-21410-674-1 01 1 0011-0205 ● ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0011-0205 ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> 		1-21410-674-1 01 1 0206-0302 ● ●
1 RADIATOR ASM
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0206-0302 ●
1 RADIATOR ASM
STD CAB(FS**M*) EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0303-0305 ● ●
1 RADIATOR ASM
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0303-0305 ●
1 RADIATOR ASM
STD CAB(FS**M*) EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0306-0308 ●
1 RADIATOR ASM
STD CAB(FS**M*) EXC. RADIATOR HEAVY DUTY<V05>,CAUTIONS ARABIAN<WJ7>,A/T<X9D> 		1-21410-674-1 01 1 0306-0308 ●
1 RADIATOR ASM
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0306-0308 ●
1 RADIATOR ASM
STD CAB(FS**M*) EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0309- ● ●
1 RADIATOR ASM
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0309- ●
1 RADIATOR ASM
NEW ZEALAND EQUIPMENT(PK5) 		1-21410-733-0 01 1 0206- ●
89 BOLT
NEW ZEALAND EQUIPMENT(PK5) M8X25 W/PL WASHER 		1-21469-153-0 02 1 0206- ●
232 COLLAR; DIST,CUSHION RUBBER
NEW ZEALAND EQUIPMENT(PK5) 		8-98141-232-0 02 1 0206- ●
267 RUBBER; CUSHION
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-21467-020-0 02 1 0206- ●
267 RUBBER; CUSHION
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-21467-023-0 02 1 0206- ●
526 TANK; UPR,RADIATOR CORE
NEW ZEALAND EQUIPMENT(PK5) 		1-21414-032-0 01 1 0206- ●
527 TANK; LWR,RADIATOR CORE
NEW ZEALAND EQUIPMENT(PK5) 		1-21415-032-0 01 1 0206- ●
528 PLATE; SIDE,RADIATOR CORE
NEW ZEALAND EQUIPMENT(PK5) 		1-21416-078-0 01 1 0206- ●
528 PLATE; SIDE,RADIATOR CORE
NEW ZEALAND EQUIPMENT(PK5) 		1-21416-077-0 01 1 0206- ●
529 GASKET; CORE,RADIATOR
NEW ZEALAND EQUIPMENT(PK5) 		1-21439-122-0 02 1 0206- ●

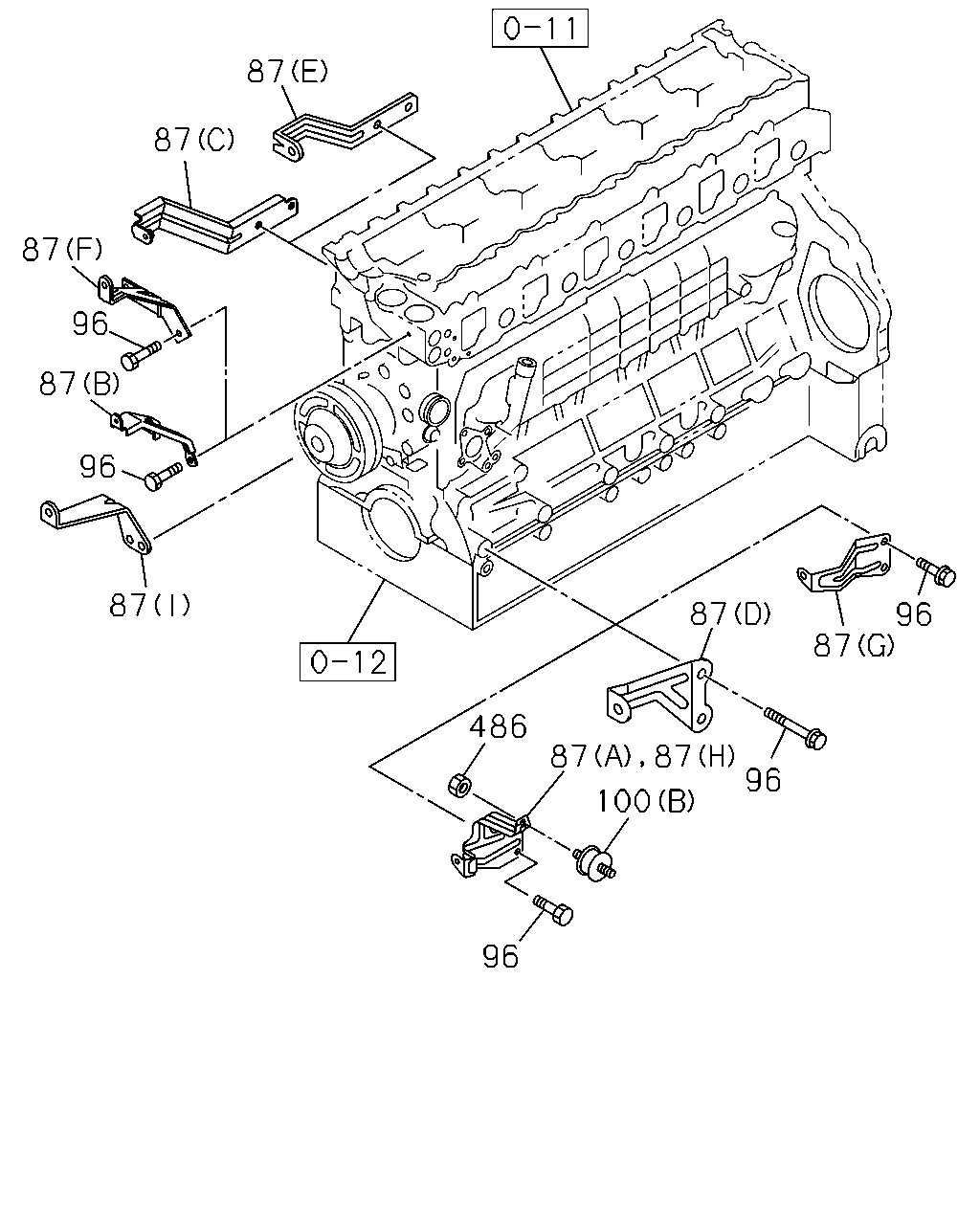

çizim 89097
87 87 87 96 87 96 87 87 96 87 486 87 87 96 100 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E
87 STAY; FAN GUIDE
(H) 		8-97602-940-0 01 1 0406- ●
87 STAY; FAN GUIDE
(I) 		8-97603-527-0 01 1 0406- ●
87 STAY; FAN GUIDE
A/T<X9D> (G) 		8-97601-016-0 01 1 0002-0004 ●
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 9510-9808 ● ●
87 STAY; FAN GUIDE
14" CLUTCH(WF6) (E) 		8-94394-775-0 01 1 9809-0004 ●
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 9809-0004 ●
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 0005-0607 ● ● ●
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 0608-1101 ● ● ● ● ●
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 1102- ● ● ●
87 STAY; FAN GUIDE
(F) 		8-94396-496-1 01 1 9510-9808 ● ●
87 STAY; FAN GUIDE
14" CLUTCH(WF6) (F) 		8-94396-496-1 01 1 9809-0004 ●
87 STAY; FAN GUIDE
(F) 		8-94396-496-1 01 1 9809-0004 ●
87 STAY; FAN GUIDE
(F) 		8-94396-496-1 01 1 0005- ● ● ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 9510-9808 ● ●
87 STAY; FAN GUIDE
14" CLUTCH(WF6) (D) 		8-94397-395-1 01 1 9809-0004 ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 9809-0004 ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 0005- ● ●
87 STAY; FAN GUIDE
EURO2 SPECIFICATION<THN> (D) 		8-94397-395-1 01 1 0005- ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9610-9802 ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9610-9802 ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-1 01 1 9610-9802 ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9803-9808 ●
87 STAY; FAN GUIDE
A/T<X9D> (C) 		8-94393-119-2 01 1 9809-0004 ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9809-0004 ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 0005- ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9803-9808 ●
87 STAY; FAN GUIDE
A/T<X9D> (B) 		8-94393-726-0 01 1 9809-0004 ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9809-0004 ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 0005-0405 ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 0406- ● ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-1 01 1 9803-9808 ●
87 STAY; FAN GUIDE
A/T<X9D> (A) 		8-94394-263-2 01 1 9809-0001 ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-2 01 1 9809-0001 ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-2 01 1 0002- ●
87 STAY; FAN GUIDE
EXC. EURO2 SPECIFICATION<THN> (D) 		8-94392-394-0 01 1 0011- ●
96 BOLT; STAY FIX
M10X45 FLANGE 		0-28181-045-0 01 1 0406-0512 ●
96 BOLT; STAY FIX
M10X45 FLANGE 		0-28151-045-0 01 1 0601- ●
96 BOLT; STAY FIX
M10X75 FLANGE 		8-94399-669-1 01 1 0406- ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 9510-0004 ● ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0005-0010 ● ● ●
96 BOLT; STAY FIX
EURO2 SPECIFICATION<THN> M10X16 FLANGE 		0-28181-016-0 02 1 0005-0010 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0011-0405 ● ● ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0406-0512 ● ● ● ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ● ● ● ● ●
100 RUBBER; MTG
(A) 		1-09337-027-0 06 1 9510-9603 ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9604-9606 ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9607-0004 ● ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 0005-0405 ● ● ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 0406- ● ● ● ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9610-9808 ●
100 RUBBER; MTG
A/T<X9D> (B) 		8-94394-268-1 01 1 9809-0001 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9809-0001 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0002-0405 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0406-0910 ● ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 9610-9808 ●
486 NUT; MTG RUBBER
A/T<X9D> M8 FLANGE 		0-91150-108-0 01 1 9809-0001 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 9809-0001 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0002-0405 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0406-0602 ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●

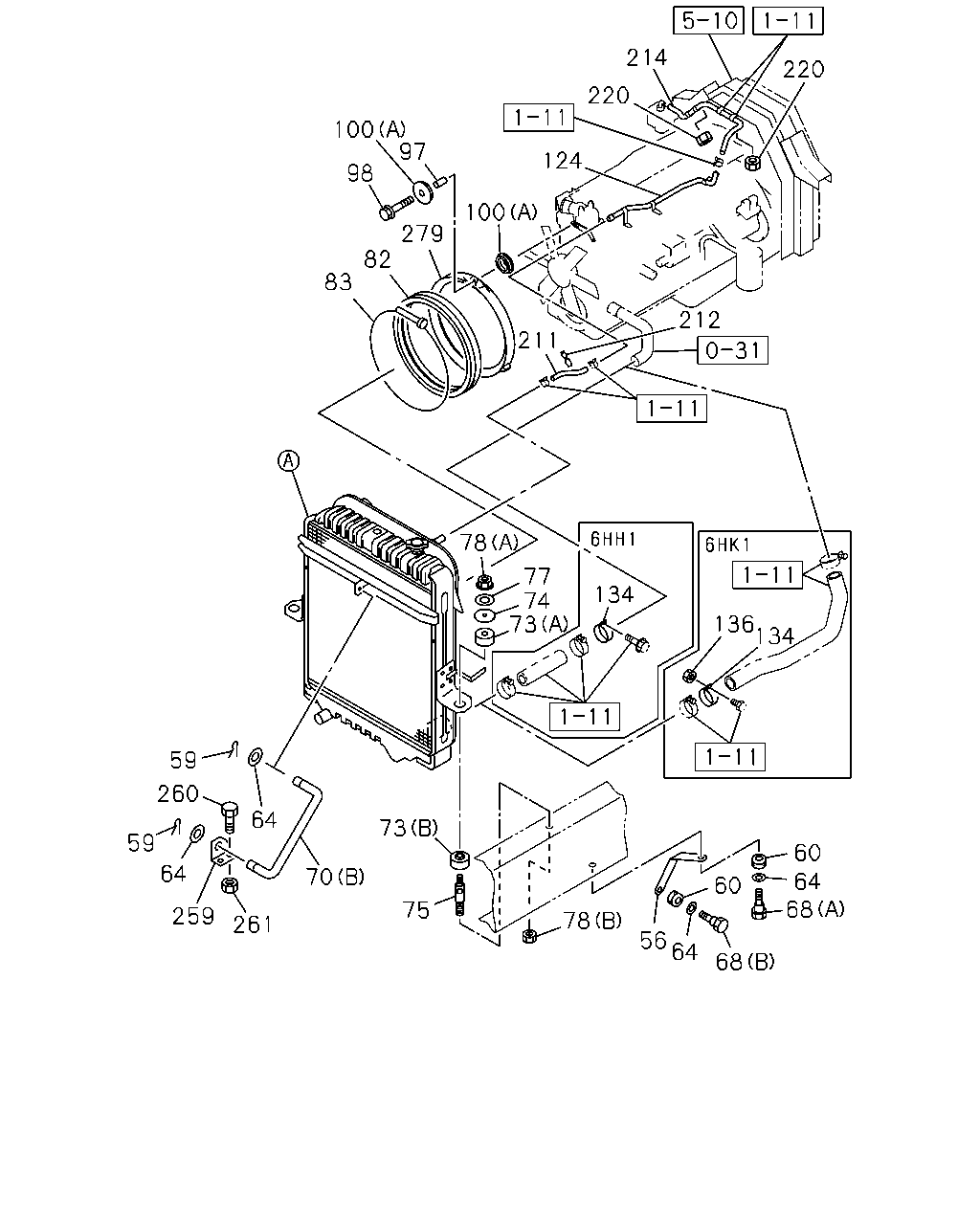

çizim 183963
214 220 220 100 97 124 98 100 279 82 83 212 211 78 77 74 73 134 136 134 59 260 64 73 59 60 64 70 64 68 60 78 75 259 261 56 64 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E
56 STAY; RAD 1-21464-569-0 01 1 0406- ●
56 STAY; RAD 1-21464-570-0 01 1 0406- ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 9510-0004 ● ● ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 0005- ● ● ● ●
60 GROMMET 1-09332-117-0 04 1 0406- ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 0406-0605 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 9510-0004 ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 0005-0605 ● ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ● ● ● ●
68 BOLT; STAY TO BRKT
(A) M8X30 		1-09009-020-1 02 1 0406- ●
68 BOLT; STAY TO BRKT
(B) M8X22 		1-09009-123-0 02 1 0406- ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9510-0004 ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0005- ● ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9510-0004 ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005- ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9510-0004 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0005-0205 ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0206-0405 ● ● ●
73 RUBBER; CUSHION,RAD MTG
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) T=14 		1-21467-004-0 02 1 0206-0405 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0406- ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) T=14 		1-21467-004-0 02 1 0406- ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9510-0004 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0005-0405 ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0406- ● ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-21467-017-2 02 1 0206- ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9510-9604 ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9605-0004 ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0005-0405 ● ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0406- ● ● ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9510-0004 ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0005-0405 ● ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0406- ● ● ● ● ●
77 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9510-9702 ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9510-0004 ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0005-0405 ● ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0406- ● ● ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 		9-99110-512-0 02 1 9510-9702 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9703-0004 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0005-0405 ● ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0406-0602 ● ● ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ● ● ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 9510-9808 ● ●
82 COVER; FAN,RAD
14" CLUTCH(WF6) 		1-21559-340-0 01 1 9809-0004 ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 9809-0004 ●
82 COVER; FAN,RAD
ISUZU M/T<X9A> 		1-21559-340-0 01 1 0005- ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 0005- ● ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 9610-9808 ●
82 COVER; FAN,RAD
A/T<X9D> 		1-21559-211-0 01 1 9809-0405 ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 9809-0405 ●
82 COVER; FAN,RAD
A/T<X9D> 		1-21559-211-0 01 1 0406- ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 0406- ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9510-0004 ● ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0005-0405 ● ● ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0406- ● ● ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9604-0004 ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0005-0405 ● ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0406- ● ● ● ● ●
98 BOLT; RAD FAN GUIDE
M8X25 FLANGE 		0-28080-825-0 03 1 9510-9606 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9607-0004 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0005-0405 ● ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0406-0512 ● ● ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ● ● ● ●
100 RUBBER; MTG
(A) 		1-09337-027-0 06 1 9510-9603 ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9604-9606 ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9607-0004 ● ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 0005-0405 ● ● ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 0406- ● ● ● ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9610-9808 ●
100 RUBBER; MTG
A/T<X9D> (B) 		8-94394-268-1 01 1 9809-0001 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9809-0001 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0002-0405 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0406-0910 ● ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ● ●
124 PIPE; WATER,TANK TO RAD 8-97602-556-1 01 1 0406- ●
124 PIPE; WATER,TANK TO RAD
EURO2 SPECIFICATION<THN> 		8-94392-986-0 01 1 9911-0004 ●
124 PIPE; WATER,TANK TO RAD
EURO2 SPECIFICATION<THN> 		8-94392-986-0 01 1 0005-0010 ●
124 PIPE; WATER,TANK TO RAD 8-94392-986-0 01 1 0011- ●
124 PIPE; WATER,TANK TO RAD
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94394-461-4 01 1 9510-9611 ● ●
124 PIPE; WATER,TANK TO RAD
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94394-461-4 01 1 9612-9702 ● ●
124 PIPE; WATER,TANK TO RAD
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94394-461-4 01 1 9703-9802 ● ●
124 PIPE; WATER,TANK TO RAD
AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94394-461-4 01 1 9803-9808 ● ●
124 PIPE; WATER,TANK TO RAD
AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> 		8-94394-461-4 01 1 9809-0004 ● ●
124 PIPE; WATER,TANK TO RAD
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94396-222-1 01 1 9510-9611 ● ●
124 PIPE; WATER,TANK TO RAD
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94396-222-1 01 1 9612-9612 ● ●
124 PIPE; WATER,TANK TO RAD
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94396-222-1 01 1 9701-9802 ● ●
124 PIPE; WATER,TANK TO RAD
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94396-222-1 01 1 9803-9807 ● ●
124 PIPE; WATER,TANK TO RAD
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) 		8-94396-222-1 01 1 9808-0004 ● ●
124 PIPE; WATER,TANK TO RAD 8-94396-222-2 01 1 0005- ● ●
124 PIPE; WATER,TANK TO RAD 8-94395-451-1 01 1 9610- ●
134 CLIP; OUTLET PIPE,RAD
NEW ZEALAND EQUIPMENT(PK5) 		1-09700-842-1 01 1 0011-0405 ●
134 CLIP; OUTLET PIPE,RAD
NEW ZEALAND EQUIPMENT(PK5) 		1-09700-842-1 01 1 0406- ●
134 CLIP; OUTLET PIPE,RAD 1-09700-842-1 01 1 0406- ●
136 NUT; CLIP,OUTLET HOSE
M8 FLANGE 		0-91150-108-0 01 1 0406-0602 ●
136 NUT; CLIP,OUTLET HOSE
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
211 HOSE; RAD TO PIPE
L=450 SERVICED BY L=3000 		0-03557-300-0 01 1 0406- ●
211 HOSE; RAD TO PIPE
EURO2 SPECIFICATION<THN> L=560 SERVICED BY L=3000 		0-03257-300-0 01 1 0002-0004 ●
211 HOSE; RAD TO PIPE
EURO2 SPECIFICATION<THN> L=560 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
211 HOSE; RAD TO PIPE
EURO2 SPECIFICATION<THN> L=560 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ● ●
211 HOSE; RAD TO PIPE
AUSTRALIA EQUIPMENT(RR3) L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ● ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ● ●
211 HOSE; RAD TO PIPE
AUSTRALIA EQUIPMENT(RR3) L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ● ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ● ●
211 HOSE; RAD TO PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0001 ● ●
211 HOSE; RAD TO PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 0002-0004 ● ●
211 HOSE; RAD TO PIPE
L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ●
211 HOSE; RAD TO PIPE
L=290 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
211 HOSE; RAD TO PIPE
NEW ZEALAND EQUIPMENT(PK5) L=540 SERVICED BY L=3000 		0-03257-300-0 01 1 0011-0109 ●
211 HOSE; RAD TO PIPE
NEW ZEALAND EQUIPMENT(PK5) L=540 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
212 CLIP; HOSE
ID=13 & 21 		8-94417-626-0 01 1 0406- ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FS**M*) CAB SUSPENSION SEMI FLOATING<SDK> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ● ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FS**M*) CAB SUSPENSION SEMI FLOATING<SDK> EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 0007-0109 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1200 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FS**M*) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ● ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FS**M*) EMISSION SYSTEM ECE REQUIREMENTS<SFV> CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FS**M*) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ● ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FS**M*) AUSTRALIA EQUIPMENT(RR3) CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ● ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FS**M*) CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ● ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FS**M*) EMISSION SYSTEM ECE REQUIREMENTS<SFV> CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ● ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FS**M*) AUSTRALIA EQUIPMENT(RR3) CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ● ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FS**M*) CAB SUSPENSION RIGID<W71> EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ● ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0007-0011 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0007-0011 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0007-0011 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0012-0109 ● ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0012-0109 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EXC. NEW ZEALAND EQUIPMENT(PK5) L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0012-0109 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EXC. NEW ZEALAND EQUIPMENT(PK5) L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
214 HOSE; PIPE TO RESERVE TANK
DOUBLE CAB(FS**W*) L=1800 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ● ●
214 HOSE; PIPE TO RESERVE TANK
DOUBLE CAB(FS**W*) L=1800 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ●
214 HOSE; PIPE TO RESERVE TANK
NEW ZEALAND EQUIPMENT(PK5) L=1500 SERVICED BY L=3000 		0-03257-300-0 01 1 0011-0109 ●
214 HOSE; PIPE TO RESERVE TANK
NEW ZEALAND EQUIPMENT(PK5) L=1500 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0405 ●
214 HOSE; PIPE TO RESERVE TANK
NEW ZEALAND EQUIPMENT(PK5) L=1500 SERVICED BY L=3000 		0-03557-300-0 01 1 0406- ●
214 HOSE; PIPE TO RESERVE TANK
L=1500 SERVICED BY L=3000 		0-03557-300-0 01 1 0406- ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 		9-09110-408-0 02 1 9510-9606 ● ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 		9-09110-408-0 03 1 9510-9606 ● ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 FLANGE 		0-91150-108-0 03 1 9607-0004 ● ● ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 FLANGE 		0-91150-108-0 04 1 0005-0602 ● ● ● ● ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ● ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 01 1 0005-0405 ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 01 1 0406-0602 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0406-0602 ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
259 BRACKET; RAD STAY 1-21523-024-0 01 1 9510-0004 ● ● ●
259 BRACKET; RAD STAY 1-21523-024-0 01 1 0005-0405 ● ● ● ●
259 BRACKET; RAD STAY 1-21523-024-0 01 1 0406-0406 ● ● ● ● ●
259 BRACKET; RAD STAY 1-21523-024-0 01 1 0407- ● ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9607-0004 ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0405 ● ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0406-0406 ● ● ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0407-0512 ● ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
261 NUT; BRKT
M8 		9-09110-408-0 02 1 9510-9606 ● ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0405 ● ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0406-0406 ● ● ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0602 ● ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
279 BELL MOUTH 8-94394-808-2 01 1 9510-9808 ● ●
279 BELL MOUTH
14" CLUTCH(WF6) 		8-94394-808-2 01 1 9809-0004 ●
279 BELL MOUTH 8-94394-808-2 01 1 9809-0004 ●
279 BELL MOUTH
ISUZU M/T<X9A> 		8-94394-808-2 01 1 0005- ●
279 BELL MOUTH 8-94394-808-2 01 1 0005- ● ●
279 BELL MOUTH 8-94394-174-1 01 1 9610-9808 ●
279 BELL MOUTH
A/T<X9D> 		8-94394-174-1 01 1 9809-0405 ●
279 BELL MOUTH 8-94394-174-1 01 1 9809-0405 ●
279 BELL MOUTH
A/T<X9D> 		8-94394-174-1 01 1 0406- ●
279 BELL MOUTH 8-94394-174-1 01 1 0406- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
