◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87 - COUPLING; INJECTION PUMP ▶
0-87 — COUPLING; INJECTION PUMP (#64214) — 415 parça

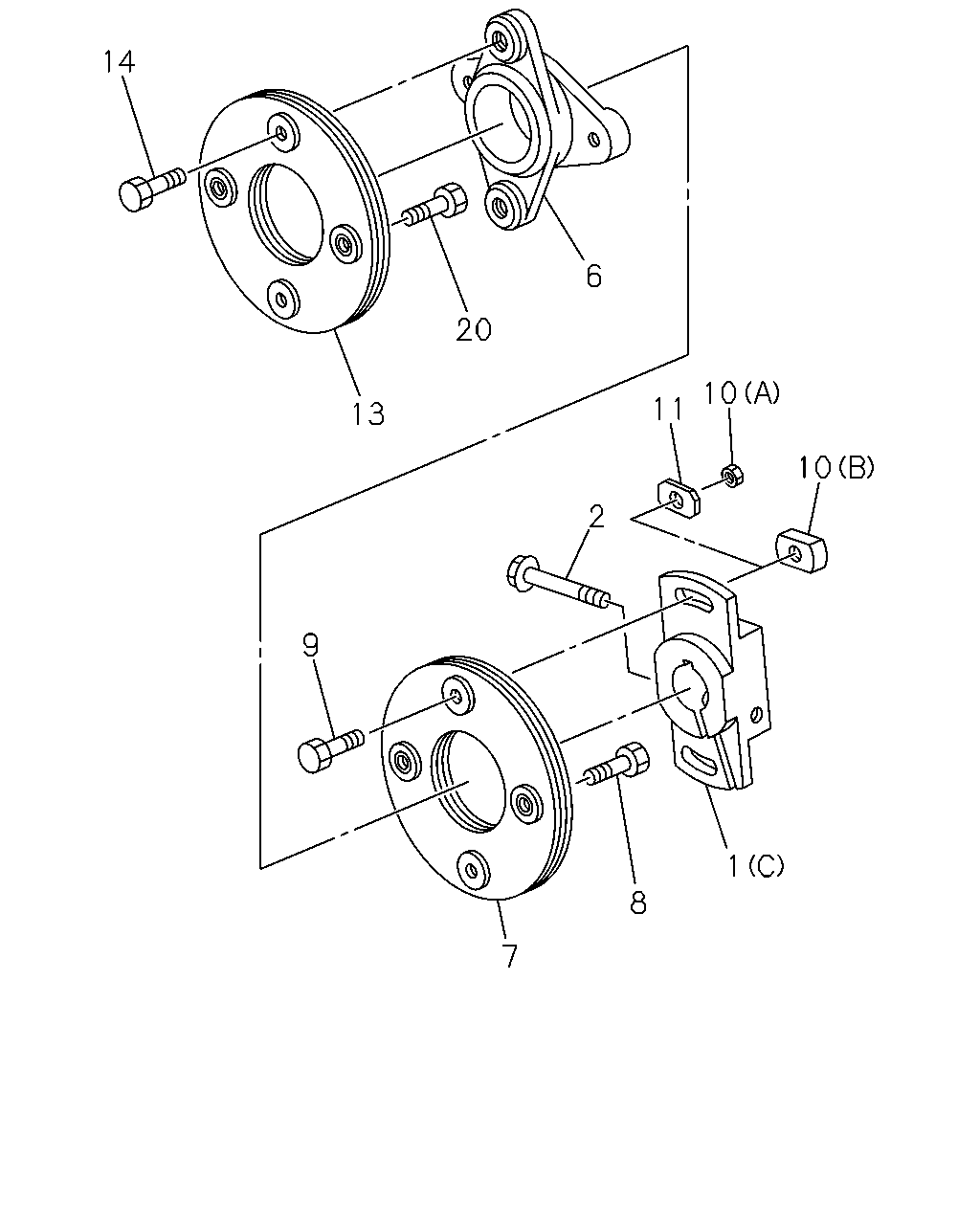

çizim 84868
14 6 20 10 11 13 10 2 9 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (C) 		1-15780-193-0 01 1 9911-0004 ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (C) 		1-15780-193-0 01 1 0005-0010 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15780-193-0 01 1 0011- ●
1 COUPLING; INJ PUMP DRIVE
THAILAND EQUIPMENT(PM9) (C) 		1-15782-019-0 01 1 9510-9611 ●
1 COUPLING; INJ PUMP DRIVE
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		1-15782-019-0 01 1 9612-9702 ●
1 COUPLING; INJ PUMP DRIVE
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (C) 		1-15782-019-0 01 1 9703-9802 ●
1 COUPLING; INJ PUMP DRIVE
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> (C) 		1-15782-019-0 01 1 9803-0004 ●
1 COUPLING; INJ PUMP DRIVE
EXC. THAILAND EQUIPMENT(PM9) (C) 		1-15782-014-0 01 1 9510-9611 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 9510-9611 ●
1 COUPLING; INJ PUMP DRIVE
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		1-15782-014-0 01 1 9612-9612 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 9612-9612 ●
1 COUPLING; INJ PUMP DRIVE
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (C) 		1-15782-014-0 01 1 9701-9802 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 9701-9802 ●
1 COUPLING; INJ PUMP DRIVE
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (C) 		1-15782-014-0 01 1 9803-9911 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 9803-9911 ●
1 COUPLING; INJ PUMP DRIVE
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) (C) 		1-15782-014-0 01 1 9912-0004 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 9912-0004 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 0005- ● ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 9610-9802 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 9610-9802 ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 9803- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 9803- ●
2 BOLT; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-079-0 01 1 9911-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-079-0 01 1 0005-0010 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-079-0 01 1 0011- ●
2 BOLT; COUPLING FIX,INJ PUMP
THAILAND EQUIPMENT(PM9) 		1-15789-170-0 01 1 9510-9611 ●
2 BOLT; COUPLING FIX,INJ PUMP
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-170-0 01 1 9612-9702 ●
2 BOLT; COUPLING FIX,INJ PUMP
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-170-0 01 1 9703-9802 ●
2 BOLT; COUPLING FIX,INJ PUMP
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 9803-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-010-0 01 1 9510-9611 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9510-9611 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-010-0 01 1 9612-9612 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9612-9612 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-010-0 01 1 9701-9802 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9701-9802 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-010-0 01 1 9803-9911 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9803-9911 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) 		1-15789-010-0 01 1 9912-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9912-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 0005- ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9610- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-099-0 01 1 9911-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-099-0 01 1 0005-0010 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-099-0 01 1 0011- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
THAILAND EQUIPMENT(PM9) 		1-15789-184-0 01 1 9510-9611 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-184-0 01 1 9612-9702 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-184-0 01 1 9703-9802 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 9803-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-155-0 01 1 9510-9611 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9510-9611 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-155-0 01 1 9612-9612 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9612-9612 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-155-0 01 1 9701-9802 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9701-9802 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-155-0 01 1 9803-9911 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9803-9911 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) 		1-15789-155-0 01 1 9912-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9912-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 0005- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9610- ●
7 PLATE; COUPLING,COUPLING SIDE
EURO2 SPECIFICATION<THN> 		1-15789-204-0 01 1 9911-0004 ●
7 PLATE; COUPLING,COUPLING SIDE
EURO2 SPECIFICATION<THN> 		1-15789-204-0 01 1 0005-0010 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-204-0 01 1 0011- ●
7 PLATE; COUPLING,COUPLING SIDE
THAILAND EQUIPMENT(PM9) 		1-15789-199-0 01 1 9510-9611 ●
7 PLATE; COUPLING,COUPLING SIDE
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-199-0 01 1 9612-9702 ●
7 PLATE; COUPLING,COUPLING SIDE
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-199-0 01 1 9703-9802 ●
7 PLATE; COUPLING,COUPLING SIDE
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9803-0004 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-194-0 01 1 9510-9611 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9510-9611 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-194-0 01 1 9612-9612 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9612-9612 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-194-0 01 1 9701-9802 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9701-9802 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-194-0 01 1 9803-9911 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9803-9911 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) 		1-15789-194-0 01 1 9912-0004 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9912-0004 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 0005- ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 9610- ●
8 BOLT; PLATE TO CROSS COUPLING
EURO2 SPECIFICATION<THN> 		1-15789-098-0 02 1 9911-0004 ●
8 BOLT; PLATE TO CROSS COUPLING
EURO2 SPECIFICATION<THN> 		1-15789-098-0 02 1 0005-0010 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-098-0 02 1 0011- ●
8 BOLT; PLATE TO CROSS COUPLING
THAILAND EQUIPMENT(PM9) 		1-15789-183-0 02 1 9510-9611 ●
8 BOLT; PLATE TO CROSS COUPLING
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-183-0 02 1 9612-9702 ●
8 BOLT; PLATE TO CROSS COUPLING
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-183-0 02 1 9703-9802 ●
8 BOLT; PLATE TO CROSS COUPLING
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9803-0004 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. THAILAND EQUIPMENT(PM9) 		1-15749-501-0 02 1 9510-9611 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9510-9611 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15749-501-0 02 1 9612-9612 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9612-9612 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15749-501-0 02 1 9701-9802 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9701-9802 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15749-501-0 02 1 9803-9911 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9803-9911 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) 		1-15749-501-0 02 1 9912-0004 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9912-0004 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 0005- ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9610- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-016-0 02 1 9911-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-016-0 02 1 0005-0010 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-016-0 02 1 0011- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
THAILAND EQUIPMENT(PM9) 		1-15789-182-0 02 1 9510-9611 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-182-0 02 1 9612-9702 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-182-0 02 1 9703-9802 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 9803-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-122-0 02 1 9510-9611 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9510-9611 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-122-0 02 1 9612-9612 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9612-9612 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-122-0 02 1 9701-9802 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9701-9802 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-122-0 02 1 9803-9911 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9803-9911 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) 		1-15789-122-0 02 1 9912-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9912-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 0005- ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9610- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> (A) 		1-15789-073-0 02 1 9911-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> (A) 		1-15789-073-0 02 1 0005-0010 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
(A) 		1-15789-073-0 02 1 0011- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
THAILAND EQUIPMENT(PM9) (B) 		1-15789-167-0 02 1 9510-9611 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) (B) 		1-15789-167-0 02 1 9612-9702 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (B) 		1-15789-167-0 02 1 9703-9802 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> (B) 		1-15789-167-0 02 1 9803-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9) (B) 		1-15789-066-0 02 1 9510-9611 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
(B) 		1-15789-066-0 02 1 9510-9611 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) (B) 		1-15789-066-0 02 1 9612-9612 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
(B) 		1-15789-066-0 02 1 9612-9612 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (B) 		1-15789-066-0 02 1 9701-9802 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
(B) 		1-15789-066-0 02 1 9701-9802 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (B) 		1-15789-066-0 02 1 9803-9911 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
(B) 		1-15789-066-0 02 1 9803-9911 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) (B) 		1-15789-066-0 02 1 9912-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
(B) 		1-15789-066-0 02 1 9912-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
(B) 		1-15789-066-0 02 1 0005- ● ●
11 WASHER; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-076-0 02 1 9911-0004 ●
11 WASHER; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-076-0 02 1 0005-0010 ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-076-0 02 1 0011- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-188-0 02 1 9610- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-204-0 01 1 9911-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-204-0 01 1 0005-0010 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-204-0 01 1 0011- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
THAILAND EQUIPMENT(PM9) 		1-15789-199-0 01 1 9510-9611 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-199-0 01 1 9612-9702 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-199-0 01 1 9703-9802 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9803-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-194-0 01 1 9510-9611 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9510-9611 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-194-0 01 1 9612-9612 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9612-9612 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-194-0 01 1 9701-9802 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9701-9802 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-194-0 01 1 9803-9911 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9803-9911 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) 		1-15789-194-0 01 1 9912-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9912-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 0005- ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9610- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EURO2 SPECIFICATION<THN> 		1-15789-098-0 02 1 9911-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EURO2 SPECIFICATION<THN> 		1-15789-098-0 02 1 0005-0010 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-098-0 02 1 0011- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
THAILAND EQUIPMENT(PM9) 		1-15789-183-0 02 1 9510-9611 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-183-0 02 1 9612-9702 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-183-0 02 1 9703-9802 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9803-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-120-0 02 1 9510-9611 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9510-9611 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-120-0 02 1 9612-9612 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9612-9612 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-120-0 02 1 9701-9802 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9701-9802 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-120-0 02 1 9803-9911 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9803-9911 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) 		1-15789-120-0 02 1 9912-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9912-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 0005- ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9610- ●
20 BOLT; COUPLING TO INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-205-0 02 1 9911-0004 ●
20 BOLT; COUPLING TO INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-205-0 02 1 0005-0010 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-205-0 02 1 0011- ●
20 BOLT; COUPLING TO INJ PUMP
THAILAND EQUIPMENT(PM9) 		1-15789-183-0 02 1 9510-9611 ●
20 BOLT; COUPLING TO INJ PUMP
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-183-0 02 1 9612-9702 ●
20 BOLT; COUPLING TO INJ PUMP
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-183-0 02 1 9703-9802 ●
20 BOLT; COUPLING TO INJ PUMP
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9803-0004 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-119-0 02 1 9510-9611 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9510-9611 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-119-0 02 1 9612-9612 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9612-9612 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-119-0 02 1 9701-9802 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9701-9802 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-119-0 02 1 9803-9911 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9803-9911 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) 		1-15789-119-0 02 1 9912-0004 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9912-0004 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 0005- ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9610- ●

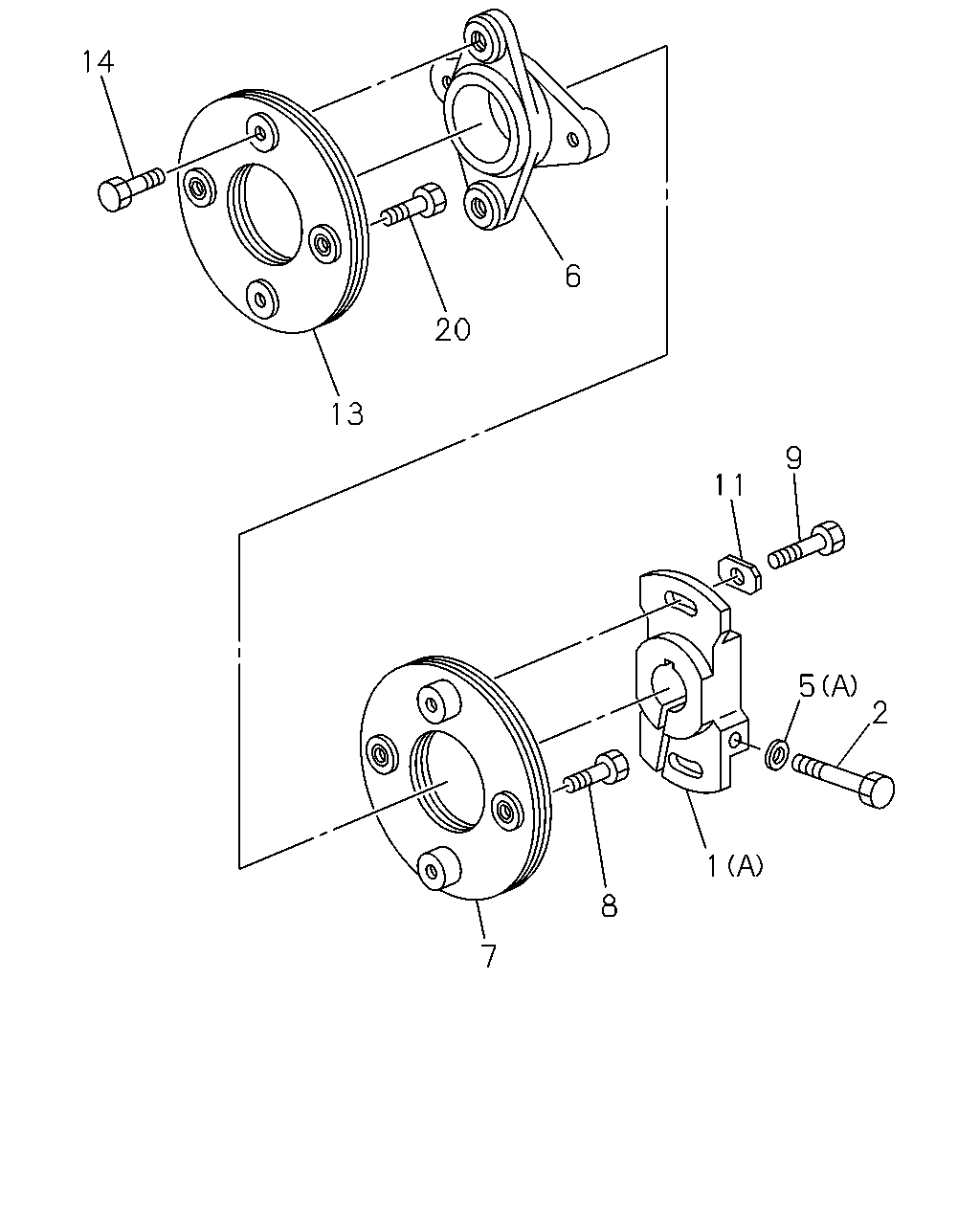

çizim 85050
14 6 20 13 9 11 5 2 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (C) 		1-15780-193-0 01 1 9911-0004 ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (C) 		1-15780-193-0 01 1 0005-0010 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15780-193-0 01 1 0011- ●
1 COUPLING; INJ PUMP DRIVE
THAILAND EQUIPMENT(PM9) (C) 		1-15782-019-0 01 1 9510-9611 ●
1 COUPLING; INJ PUMP DRIVE
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		1-15782-019-0 01 1 9612-9702 ●
1 COUPLING; INJ PUMP DRIVE
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (C) 		1-15782-019-0 01 1 9703-9802 ●
1 COUPLING; INJ PUMP DRIVE
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> (C) 		1-15782-019-0 01 1 9803-0004 ●
1 COUPLING; INJ PUMP DRIVE
EXC. THAILAND EQUIPMENT(PM9) (C) 		1-15782-014-0 01 1 9510-9611 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 9510-9611 ●
1 COUPLING; INJ PUMP DRIVE
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		1-15782-014-0 01 1 9612-9612 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 9612-9612 ●
1 COUPLING; INJ PUMP DRIVE
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (C) 		1-15782-014-0 01 1 9701-9802 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 9701-9802 ●
1 COUPLING; INJ PUMP DRIVE
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (C) 		1-15782-014-0 01 1 9803-9911 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 9803-9911 ●
1 COUPLING; INJ PUMP DRIVE
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) (C) 		1-15782-014-0 01 1 9912-0004 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 9912-0004 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 0005- ● ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 9610-9802 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 9610-9802 ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 9803- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 9803- ●
2 BOLT; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-079-0 01 1 9911-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-079-0 01 1 0005-0010 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-079-0 01 1 0011- ●
2 BOLT; COUPLING FIX,INJ PUMP
THAILAND EQUIPMENT(PM9) 		1-15789-170-0 01 1 9510-9611 ●
2 BOLT; COUPLING FIX,INJ PUMP
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-170-0 01 1 9612-9702 ●
2 BOLT; COUPLING FIX,INJ PUMP
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-170-0 01 1 9703-9802 ●
2 BOLT; COUPLING FIX,INJ PUMP
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 9803-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-010-0 01 1 9510-9611 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9510-9611 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-010-0 01 1 9612-9612 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9612-9612 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-010-0 01 1 9701-9802 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9701-9802 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-010-0 01 1 9803-9911 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9803-9911 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) 		1-15789-010-0 01 1 9912-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9912-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 0005- ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9610- ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 9610-9802 ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9610- ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 9803- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-099-0 01 1 9911-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-099-0 01 1 0005-0010 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-099-0 01 1 0011- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
THAILAND EQUIPMENT(PM9) 		1-15789-184-0 01 1 9510-9611 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-184-0 01 1 9612-9702 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-184-0 01 1 9703-9802 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 9803-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-155-0 01 1 9510-9611 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9510-9611 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-155-0 01 1 9612-9612 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9612-9612 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-155-0 01 1 9701-9802 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9701-9802 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-155-0 01 1 9803-9911 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9803-9911 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) 		1-15789-155-0 01 1 9912-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9912-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 0005- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9610- ●
7 PLATE; COUPLING,COUPLING SIDE
EURO2 SPECIFICATION<THN> 		1-15789-204-0 01 1 9911-0004 ●
7 PLATE; COUPLING,COUPLING SIDE
EURO2 SPECIFICATION<THN> 		1-15789-204-0 01 1 0005-0010 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-204-0 01 1 0011- ●
7 PLATE; COUPLING,COUPLING SIDE
THAILAND EQUIPMENT(PM9) 		1-15789-199-0 01 1 9510-9611 ●
7 PLATE; COUPLING,COUPLING SIDE
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-199-0 01 1 9612-9702 ●
7 PLATE; COUPLING,COUPLING SIDE
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-199-0 01 1 9703-9802 ●
7 PLATE; COUPLING,COUPLING SIDE
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9803-0004 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-194-0 01 1 9510-9611 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9510-9611 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-194-0 01 1 9612-9612 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9612-9612 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-194-0 01 1 9701-9802 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9701-9802 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-194-0 01 1 9803-9911 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9803-9911 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) 		1-15789-194-0 01 1 9912-0004 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9912-0004 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 0005- ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 9610- ●
8 BOLT; PLATE TO CROSS COUPLING
EURO2 SPECIFICATION<THN> 		1-15789-098-0 02 1 9911-0004 ●
8 BOLT; PLATE TO CROSS COUPLING
EURO2 SPECIFICATION<THN> 		1-15789-098-0 02 1 0005-0010 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-098-0 02 1 0011- ●
8 BOLT; PLATE TO CROSS COUPLING
THAILAND EQUIPMENT(PM9) 		1-15789-183-0 02 1 9510-9611 ●
8 BOLT; PLATE TO CROSS COUPLING
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-183-0 02 1 9612-9702 ●
8 BOLT; PLATE TO CROSS COUPLING
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-183-0 02 1 9703-9802 ●
8 BOLT; PLATE TO CROSS COUPLING
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9803-0004 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. THAILAND EQUIPMENT(PM9) 		1-15749-501-0 02 1 9510-9611 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9510-9611 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15749-501-0 02 1 9612-9612 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9612-9612 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15749-501-0 02 1 9701-9802 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9701-9802 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15749-501-0 02 1 9803-9911 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9803-9911 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) 		1-15749-501-0 02 1 9912-0004 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9912-0004 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 0005- ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9610- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-016-0 02 1 9911-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-016-0 02 1 0005-0010 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-016-0 02 1 0011- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
THAILAND EQUIPMENT(PM9) 		1-15789-182-0 02 1 9510-9611 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-182-0 02 1 9612-9702 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-182-0 02 1 9703-9802 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 9803-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-122-0 02 1 9510-9611 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9510-9611 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-122-0 02 1 9612-9612 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9612-9612 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-122-0 02 1 9701-9802 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9701-9802 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-122-0 02 1 9803-9911 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9803-9911 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) 		1-15789-122-0 02 1 9912-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9912-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 0005- ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9610- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-076-0 02 1 9911-0004 ●
11 WASHER; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-076-0 02 1 0005-0010 ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-076-0 02 1 0011- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-188-0 02 1 9610- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-204-0 01 1 9911-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-204-0 01 1 0005-0010 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-204-0 01 1 0011- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
THAILAND EQUIPMENT(PM9) 		1-15789-199-0 01 1 9510-9611 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-199-0 01 1 9612-9702 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-199-0 01 1 9703-9802 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9803-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-194-0 01 1 9510-9611 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9510-9611 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-194-0 01 1 9612-9612 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9612-9612 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-194-0 01 1 9701-9802 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9701-9802 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-194-0 01 1 9803-9911 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9803-9911 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) 		1-15789-194-0 01 1 9912-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9912-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 0005- ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9610- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EURO2 SPECIFICATION<THN> 		1-15789-098-0 02 1 9911-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EURO2 SPECIFICATION<THN> 		1-15789-098-0 02 1 0005-0010 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-098-0 02 1 0011- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
THAILAND EQUIPMENT(PM9) 		1-15789-183-0 02 1 9510-9611 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-183-0 02 1 9612-9702 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-183-0 02 1 9703-9802 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9803-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-120-0 02 1 9510-9611 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9510-9611 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-120-0 02 1 9612-9612 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9612-9612 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-120-0 02 1 9701-9802 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9701-9802 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-120-0 02 1 9803-9911 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9803-9911 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) 		1-15789-120-0 02 1 9912-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9912-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 0005- ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9610- ●
20 BOLT; COUPLING TO INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-205-0 02 1 9911-0004 ●
20 BOLT; COUPLING TO INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-205-0 02 1 0005-0010 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-205-0 02 1 0011- ●
20 BOLT; COUPLING TO INJ PUMP
THAILAND EQUIPMENT(PM9) 		1-15789-183-0 02 1 9510-9611 ●
20 BOLT; COUPLING TO INJ PUMP
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-183-0 02 1 9612-9702 ●
20 BOLT; COUPLING TO INJ PUMP
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-183-0 02 1 9703-9802 ●
20 BOLT; COUPLING TO INJ PUMP
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9803-0004 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. THAILAND EQUIPMENT(PM9) 		1-15789-119-0 02 1 9510-9611 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9510-9611 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) 		1-15789-119-0 02 1 9612-9612 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9612-9612 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-119-0 02 1 9701-9802 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9701-9802 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		1-15789-119-0 02 1 9803-9911 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9803-9911 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) 		1-15789-119-0 02 1 9912-0004 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9912-0004 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 0005- ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9610- ●

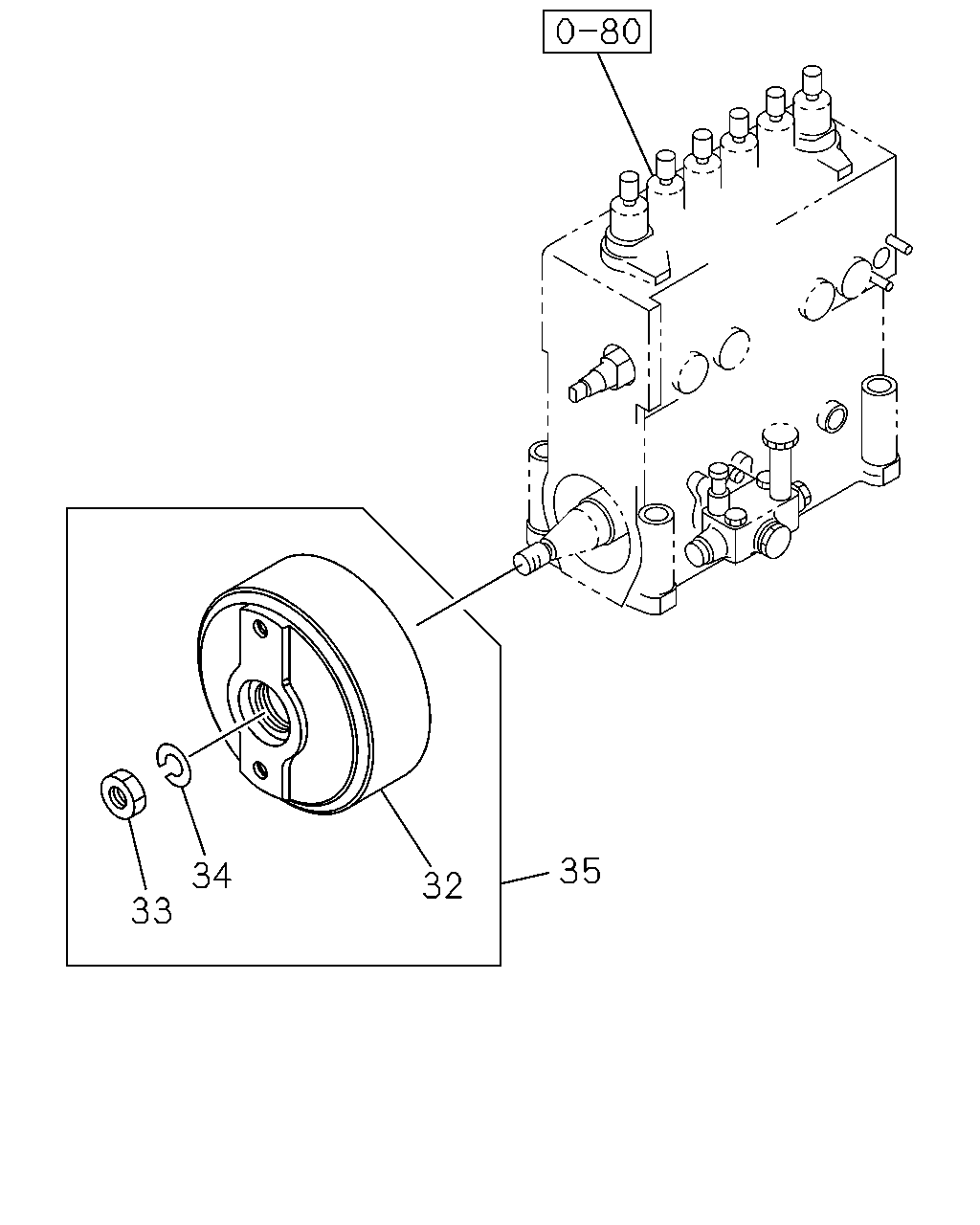

çizim 183954
35 34 32 33
BalonParca AdiParca NoAdetTipApplied Date A B C D
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION<THN> 		8-94390-807-0 01 1 0005-0010 ●
32 DAMPER; INJ PUMP 8-94390-807-0 01 1 0011- ●
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION<THN> 		8-94390-807-0 01 1 9911-0004 ●
33 NUT; DAMPER
EURO2 SPECIFICATION<THN> 		1-15619-132-0 01 1 9911-0004 ●
33 NUT; DAMPER
EURO2 SPECIFICATION<THN> 		1-15619-132-0 01 1 0005-0010 ●
33 NUT; DAMPER 1-15619-132-0 01 1 0011- ●
34 WASHER; DAMPER
EURO2 SPECIFICATION<THN> 		1-15619-131-0 01 1 9911-0004 ●
34 WASHER; DAMPER
EURO2 SPECIFICATION<THN> 		1-15619-131-0 01 1 0005-0010 ●
34 WASHER; DAMPER 1-15619-131-0 01 1 0011- ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15744-016-0 01 1 9911-0004 ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15744-016-0 01 1 0005-0010 ●
35 DAMPER ASM; INJ PUMP 1-15744-016-0 01 1 0011- ●

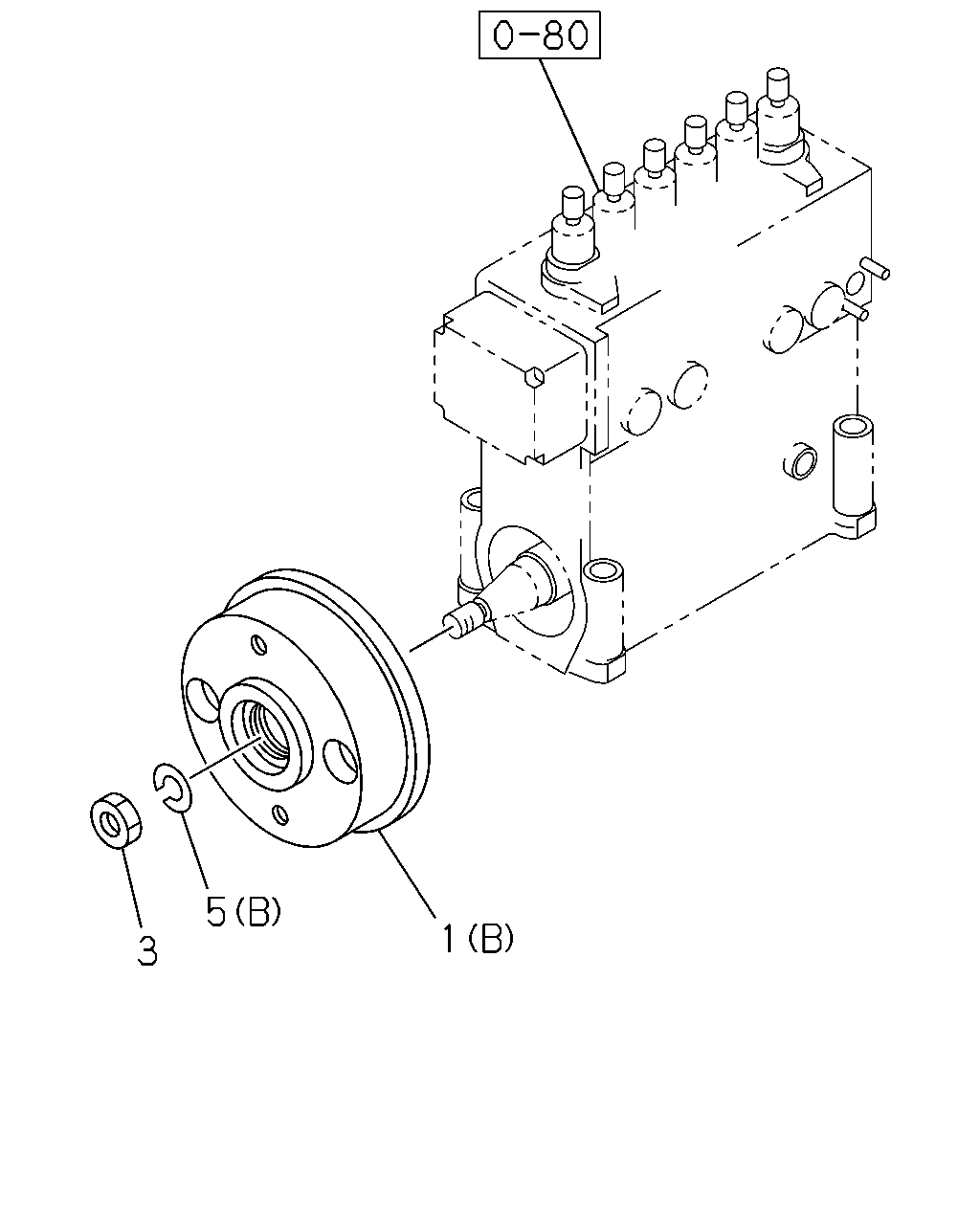

çizim 183957
5 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (C) 		1-15780-193-0 01 1 9911-0004 ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (C) 		1-15780-193-0 01 1 0005-0010 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15780-193-0 01 1 0011- ●
1 COUPLING; INJ PUMP DRIVE
THAILAND EQUIPMENT(PM9) (C) 		1-15782-019-0 01 1 9510-9611 ●
1 COUPLING; INJ PUMP DRIVE
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		1-15782-019-0 01 1 9612-9702 ●
1 COUPLING; INJ PUMP DRIVE
THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (C) 		1-15782-019-0 01 1 9703-9802 ●
1 COUPLING; INJ PUMP DRIVE
WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> (C) 		1-15782-019-0 01 1 9803-0004 ●
1 COUPLING; INJ PUMP DRIVE
EXC. THAILAND EQUIPMENT(PM9) (C) 		1-15782-014-0 01 1 9510-9611 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 9510-9611 ●
1 COUPLING; INJ PUMP DRIVE
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) (C) 		1-15782-014-0 01 1 9612-9612 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 9612-9612 ●
1 COUPLING; INJ PUMP DRIVE
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (C) 		1-15782-014-0 01 1 9701-9802 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 9701-9802 ●
1 COUPLING; INJ PUMP DRIVE
EXC. WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (C) 		1-15782-014-0 01 1 9803-9911 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 9803-9911 ●
1 COUPLING; INJ PUMP DRIVE
EXC. WEST MALAYSIA EQUIPMENT(SEQ),EURO2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) (C) 		1-15782-014-0 01 1 9912-0004 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 9912-0004 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 0005- ● ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 9610-9802 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 9610-9802 ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 9803- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 9803- ●
3 NUT; COUPLING FIX,INJ PUMP 1-15619-132-0 01 1 9610- ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 9610-9802 ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9610- ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 9803- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
