Sayfa 0-84 - Isuzu EPC

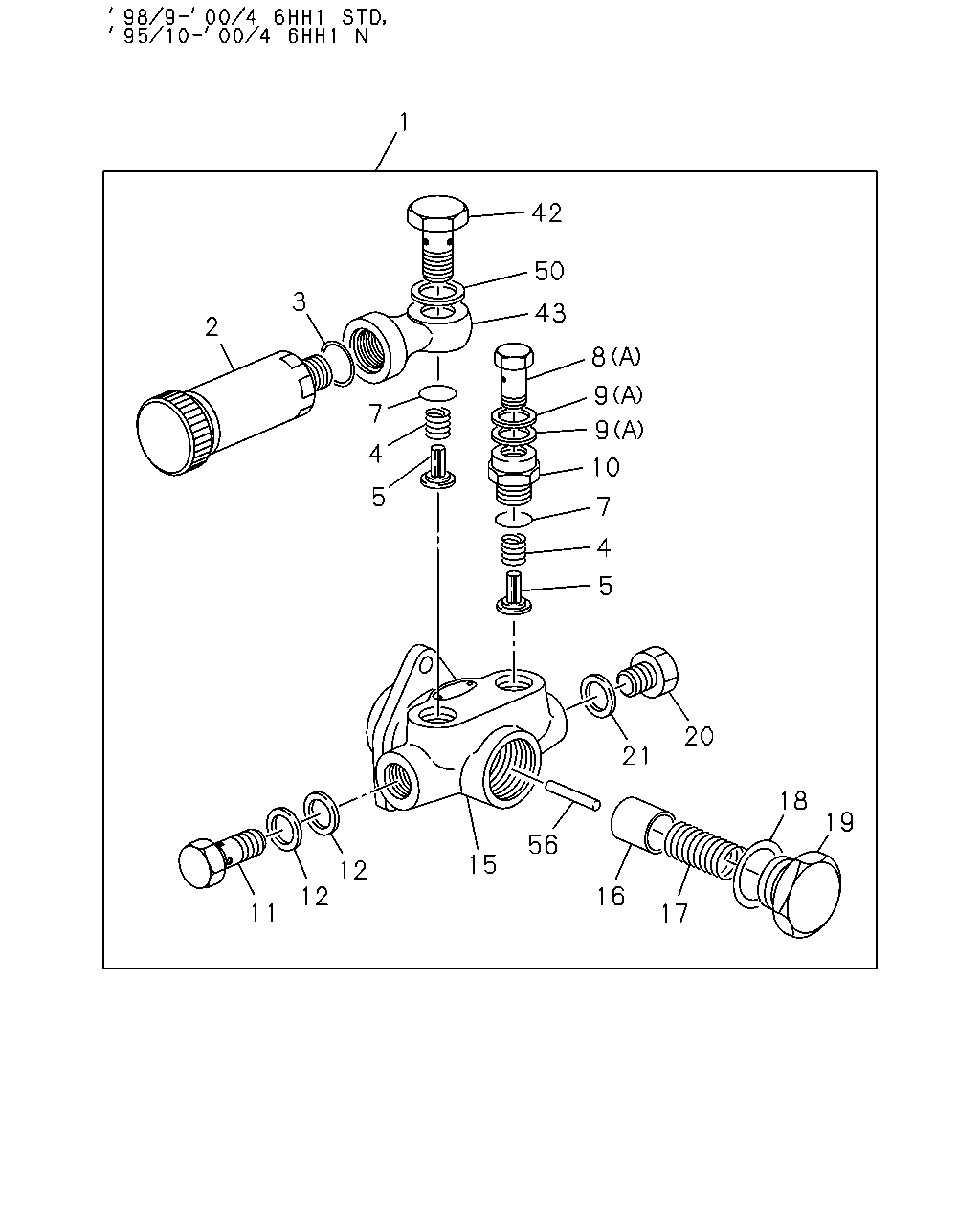

0-84 — FEED PUMP; INJECTION PUMP (#64212) — 123 parça

1 42 50 3 43 2 8 9 7 9 4 10 5 7 4 5 20 21 18 19 56 15 12 12 16 11 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15750-140-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: E = 8-94391-335-0, F = 8-94391-336-0, O = 8-94395-908-1	1-15750-150-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2	1-15750-155-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, G = 8-94392-231-8, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, G = 8-94392-231-8, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	9-81351-702-0	02	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15755-002-0	04	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0	1-19623-016-0	01	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: E = 8-94391-335-0, F = 8-94391-336-0, O = 8-94395-908-1	1-19623-016-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-19623-016-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, G = 8-94392-231-8, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (B) ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-051-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (C), M14X30 ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A) ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A) ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	9-81215-182-1	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	1-15759-003-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-067-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	1-15759-029-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	1-09630-085-0	02	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: G = 8-94392-231-8	1-15751-036-0	01	1	-0503
15	HOUSING; FUEL FEED PUMP ASM PART: B = 8-94391-109-3, P = 8-97600-576-1, Q = 8-97602-131-0	1-15751-036-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: G = 8-94392-231-8	1-15751-049-0	01	1	0504-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, G = 8-94392-231-8, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15752-001-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15753-005-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	9-81351-302-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, G = 8-94392-231-8, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-042-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, G = 8-94392-231-8, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: G = 8-94392-231-8	1-15759-004-0	01	1	-0503
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	1-15759-007-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: G = 8-94392-231-8	9-81215-182-1	01	1	-0503
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: B = 8-94391-109-3, P = 8-97600-576-1, Q = 8-97602-131-0	9-81215-182-1	01	1	-
42	BOLT; EYE,PRIMING PUMP ASM PART: E = 8-94391-335-0, F = 8-94391-336-0, O = 8-94395-908-1	1-15759-065-0	01	1	-
43	ADAPTER; PRIMING PUMP ASM PART: E = 8-94391-335-0, F = 8-94391-336-0, O = 8-94395-908-1	1-15759-064-0	01	1	-
50	GASKET; EYE BOLT ASM PART: E = 8-94391-335-0, F = 8-94391-336-0, O = 8-94395-908-1	1-15759-049-0	01	1	-
56	PUSH ROD ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-074-0	01	1	-
56	PUSH ROD ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	8-97115-990-0	01	1	-
56	PUSH ROD ASM PART: H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2	8-97115-991-0	01	1	-

1 8 2 9 9 10 3 7 4 4 5 5 20 21 16 56 15 12 12 11 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15750-140-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: E = 8-94391-335-0, F = 8-94391-336-0, O = 8-94395-908-1	1-15750-150-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2	1-15750-155-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, G = 8-94392-231-8, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, G = 8-94392-231-8, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	9-81351-702-0	02	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15755-002-0	04	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0	1-19623-016-0	01	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: E = 8-94391-335-0, F = 8-94391-336-0, O = 8-94395-908-1	1-19623-016-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-19623-016-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, G = 8-94392-231-8, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (B) ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-051-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (C), M14X30 ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A) ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A) ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	9-81215-182-1	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	1-15759-003-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-067-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	1-15759-029-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	1-09630-085-0	02	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: G = 8-94392-231-8	1-15751-036-0	01	1	-0503
15	HOUSING; FUEL FEED PUMP ASM PART: B = 8-94391-109-3, P = 8-97600-576-1, Q = 8-97602-131-0	1-15751-036-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: G = 8-94392-231-8	1-15751-049-0	01	1	0504-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, G = 8-94392-231-8, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15752-001-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15753-005-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	9-81351-302-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, G = 8-94392-231-8, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-042-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, G = 8-94392-231-8, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: G = 8-94392-231-8	1-15759-004-0	01	1	-0503
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	1-15759-007-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: G = 8-94392-231-8	9-81215-182-1	01	1	-0503
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: B = 8-94391-109-3, P = 8-97600-576-1, Q = 8-97602-131-0	9-81215-182-1	01	1	-
56	PUSH ROD ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-074-0	01	1	-
56	PUSH ROD ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	8-97115-990-0	01	1	-
56	PUSH ROD ASM PART: H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2	8-97115-991-0	01	1	-

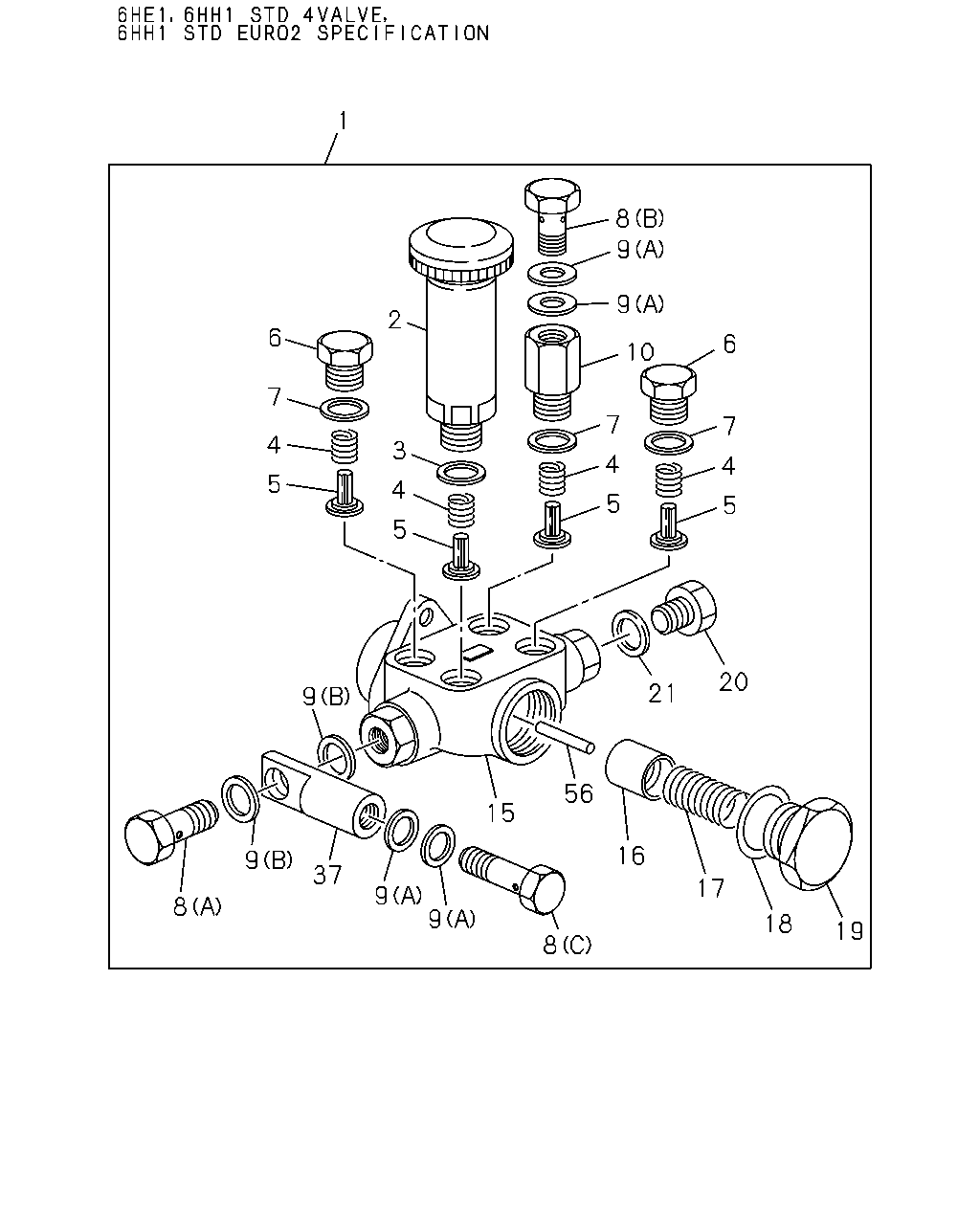

1 8 9 9 2 6 6 10 7 7 7 4 3 4 4 5 4 5 5 5 20 21 9 56 15 16 9 37 17 9 9 8 18 19 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15750-140-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: E = 8-94391-335-0, F = 8-94391-336-0, O = 8-94395-908-1	1-15750-150-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2	1-15750-155-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, G = 8-94392-231-8, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, G = 8-94392-231-8, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	9-81351-702-0	02	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15755-002-0	04	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-066-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0	1-19623-016-0	01	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: E = 8-94391-335-0, F = 8-94391-336-0, O = 8-94395-908-1	1-19623-016-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-19623-016-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, G = 8-94392-231-8, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (B) ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-051-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (C), M14X30 ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A) ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A) ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	9-81215-182-1	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	1-15759-003-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-067-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: G = 8-94392-231-8	1-15751-036-0	01	1	-0503
15	HOUSING; FUEL FEED PUMP ASM PART: B = 8-94391-109-3, P = 8-97600-576-1, Q = 8-97602-131-0	1-15751-036-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: G = 8-94392-231-8	1-15751-049-0	01	1	0504-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, G = 8-94392-231-8, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15752-001-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15753-005-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	9-81351-302-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, G = 8-94392-231-8, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-042-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, G = 8-94392-231-8, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: G = 8-94392-231-8	1-15759-004-0	01	1	-0503
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94391-109-3, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	1-15759-007-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: G = 8-94392-231-8	9-81215-182-1	01	1	-0503
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: B = 8-94391-109-3, P = 8-97600-576-1, Q = 8-97602-131-0	9-81215-182-1	01	1	-
37	EYE; FUEL OUTLET,FUEL FEED PUMP ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-050-0	01	1	-
56	PUSH ROD ASM PART: B = 8-94391-109-3, G = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-074-0	01	1	-
56	PUSH ROD ASM PART: A = 8-94390-081-1, C = 8-94391-333-0, D = 8-94391-334-0, E = 8-94391-335-0, F = 8-94391-336-0, L = 8-94395-905-2, M = 8-94395-906-0, N = 8-94395-907-0, O = 8-94395-908-1	8-97115-990-0	01	1	-
56	PUSH ROD ASM PART: H = 8-94395-812-1, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-902-2	8-97115-991-0	01	1	-
