0-83 — ANEROID COMPENSATOR; INJECTION GOVERNOR (#64211) — 50 parça

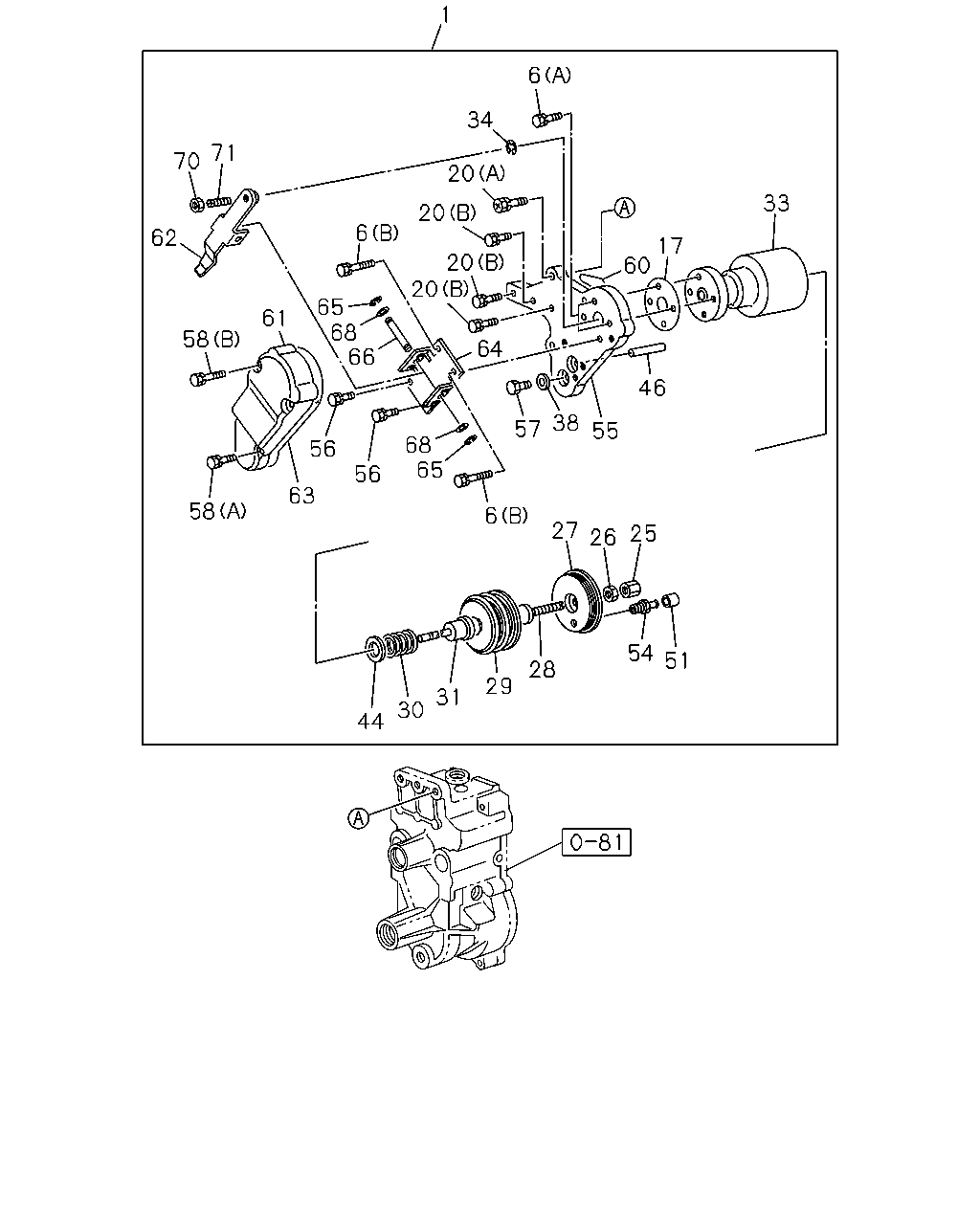

çizim 183953
1 6 34 71 70 20 33 20 6 62 17 60 20 20 65 68 66 61 58 64 46 38 57 55 68 65 56 56 63 58 6 27 25 26 54 51 28 29 31 30 44
BalonParca AdiParca NoAdetTipApplied Date
1 COMPENSATOR ASM; ANEROID,INJ PUMP
ASM PART: A = 8-94395-812-1 		1-15728-066-1 01 1 -
1 COMPENSATOR ASM; ANEROID,INJ PUMP
ASM PART: B = 8-94395-813-1 		1-15728-096-0 01 1 -
6 BOLT; HSG FIX,ANEROID COMPENSATOR
(A) ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		5-15719-013-0 02 1 -
6 BOLT; HSG FIX,ANEROID COMPENSATOR
(B), M5X25 ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		5-15729-279-0 02 1 -
17 GASKET; HSG,ANEROID COMPENSATOR
ASM PART: A = 8-94395-812-1 		5-15729-272-0 01 1 -
17 GASKET; HSG,ANEROID COMPENSATOR
ASM PART: B = 8-94395-813-1 		8-97102-855-0 01 1 -
20 BOLT; SPACER FIX,ANEROID COMPENSATOR
(A), M8X25 ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		5-15729-281-0 01 1 -
20 BOLT; SPACER FIX,ANEROID COMPENSATOR
(B) ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		9-81325-186-0 03 1 -
25 NUT; CAP,SET BOLT,ANEROID COMPENSATOR
CAP NUT ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-15729-093-0 01 1 -
26 NUT; SET BOLT,ANEROID COMPENSATOR
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		9-81325-081-0 01 1 -
27 COVER; HSG,ANEROID COMPENSATOR
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-15721-103-0 01 1 -
28 BOLT; BELLOWS SET,ANEROID COMPENSATOR
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-15729-342-0 01 1 -
29 BELLOWS; ANEROID COMPENSATOR
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-15729-622-0 01 1 -
30 SPRING; PUSH ROD,ANEROID COMPENSATOR
ASM PART: A = 8-94395-812-1 		1-15723-151-0 01 1 -
30 SPRING; PUSH ROD,ANEROID COMPENSATOR
ASM PART: B = 8-94395-813-1 		1-15723-411-0 01 1 -
31 ROD; PUSH,BELLOWS,ANEROID COMPENSATOR
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		5-15729-270-0 01 1 -
33 HOUSING; ANEROID COMPENSATOR
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-15779-159-0 01 1 -
34 RING; SNAP,PUSH ROD,ANEROID COMPENSATO
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		5-15729-271-0 01 1 -
38 GASKET; SPACER BOLT,GOV
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		5-15729-099-0 01 1 -
44 SHIM; SPRING,ANEROID COMPENSATOR
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		9-81393-301-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=102.0 ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-15729-346-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=102.5 ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-15729-347-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=103.0 ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-15729-348-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=103.5 ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-15729-623-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=104.0 ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-15729-624-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=97.0 ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-15729-631-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=98.0 ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-15729-632-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=99.0 ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-15729-633-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=100.0 ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-15729-634-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=101.0 ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-15729-635-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=95.0 ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-15779-065-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=96.0 ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-15779-066-0 01 1 -
51 CAP; HOSE JOINT,ANEROID COMPENSATOR
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		8-94424-221-0 01 1 -
54 JOINT; HOSE,ANEROID COMPENSATOR
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-15729-360-0 01 1 -
55 SPACER; HSG,ANEROID COMPENSATOR
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		5-15729-273-0 01 1 -
56 BOLT; PLATE TO SPACER,GOV
M5X8 ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		5-15729-280-0 02 1 -
57 BOLT; SPACER,GOV
M6X12 ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		5-15729-282-0 01 1 -
58 BOLT; COVER TO SPACER,GOV
(A) ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-83569-079-0 02 1 -
58 BOLT; COVER TO SPACER,GOV
(B), M5X25 ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		5-15729-279-0 02 1 -
60 RING; SPACER,GOV
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		8-94424-220-0 01 1 -
61 COVER; LEVER,GOV
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		5-15721-047-0 01 1 -
62 LEVER; ANEROID COMPENSATOR,GOV
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		5-15725-141-0 01 1 -
63 GASKET; LEVER COVER,GOV
ASM PART: A = 8-94395-812-1 		5-15729-283-0 01 1 -
63 GASKET; LEVER COVER,GOV
ASM PART: B = 8-94395-813-1 		8-97102-856-0 01 1 -
64 PLATE; LEVER,GOV
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		5-15729-274-0 01 1 -
65 RING; SNAP,LEVER PIN,GOV
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		1-09588-170-0 02 1 -
66 SHAFT; LEVER,GOV
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		5-15729-275-0 01 1 -
68 WASHER; LEVER PIN,GOV
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		9-81393-309-0 02 1 -
70 NUT; LEVER SCREW,GOV
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		5-15729-278-0 01 1 -
71 SCREW; LEVER,GOV
ASM PART: A = 8-94395-812-1, B = 8-94395-813-1 		5-15729-277-0 01 1 -
