Sayfa 0-65 - Isuzu EPC

0-65 — STARTER (#64206) — 263 parça

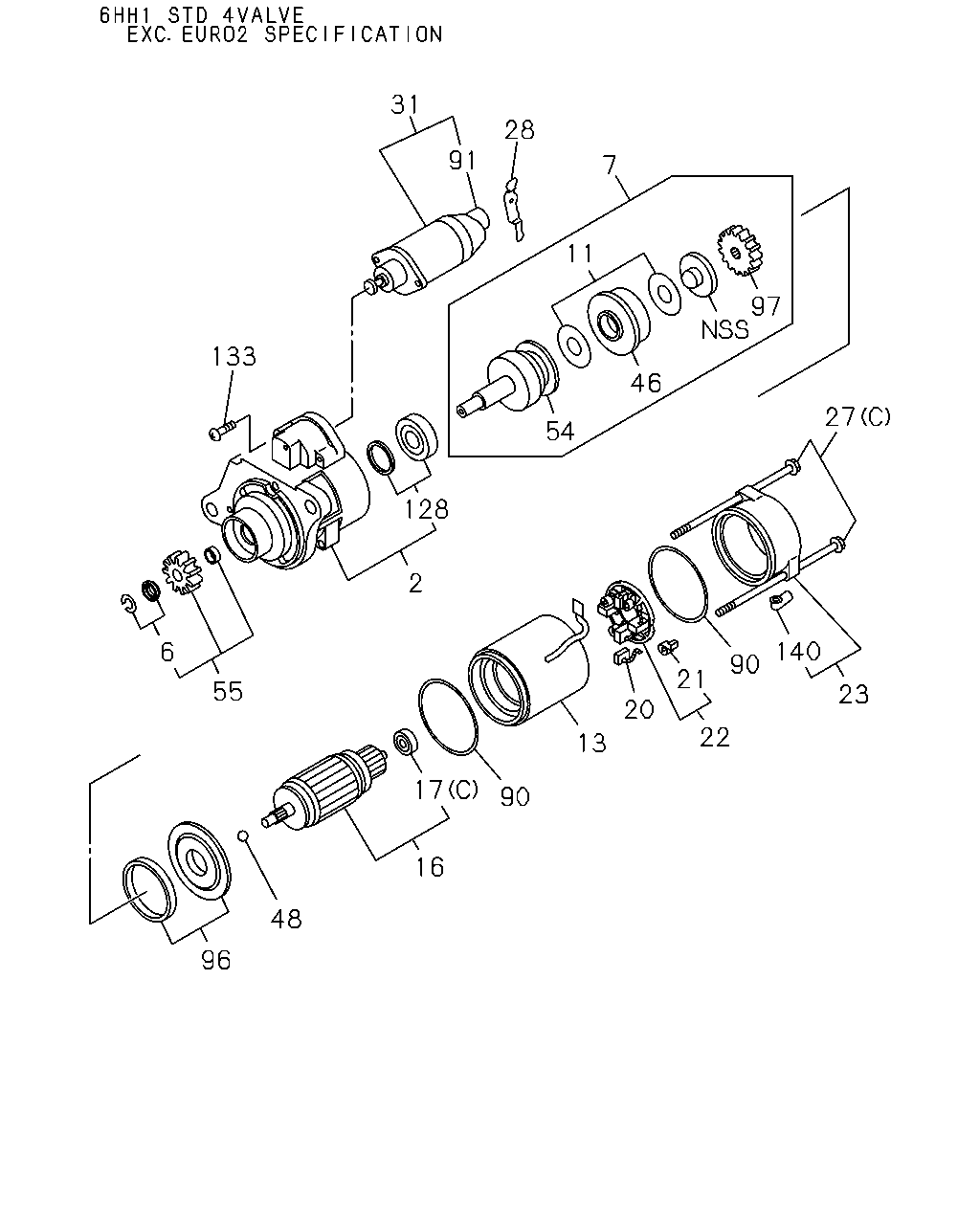

31 28 91 7 11 97 46 54 128 2 133 55 6 96 48 16 17 90 13 21 22 20 23 140 90 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER DENSO ASM PART: E = 8-94399-159-4	1-81114-036-2	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81123-049-0	01	1	-
2	CASE; PINION,STARTER MITSUBISHI ASM PART: H = 8-98141-206-2	1-81123-053-0	01	1	-0911
2	CASE; PINION,STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0	1-81123-053-0	01	1	-
2	CASE; PINION,STARTER DENSO ASM PART: D = 8-94394-151-2, F = 8-97602-169-1	1-81129-697-0	01	1	-
2	CASE; PINION,STARTER MITSUBISHI ASM PART: H = 8-98141-206-2	8-98152-868-0	01	1	0912-
2	CASE; PINION,STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-98261-349-0	01	1	-
6	STOPPER; PINION STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	8-94475-688-0	01	1	-
7	CLUTCH ASM; PINION,STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2	1-81129-759-0	01	1	-
7	CLUTCH ASM; PINION,STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-98245-549-0	01	1	-
11	WASHER; GEAR SHAFT STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	8-97116-484-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: E = 8-94399-159-4	1-81111-009-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: D = 8-94394-151-2, F = 8-97602-169-1	1-81129-696-0	01	1	-
13	YOKE; STARTER NIKKO ASM PART: A = 1-81100-307-0	1-81129-705-0	01	1	-
13	YOKE; STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81129-705-0	01	1	-1105
13	YOKE; STARTER MITSUBISHI ASM PART: C = 1-81100-414-2	1-81129-766-0	01	1	-
13	YOKE; STARTER MITSUBISHI ASM PART: G = 8-98060-854-0	8-98060-836-0	01	1	-
13	YOKE; STARTER MITSUBISHI ASM PART: H = 8-98141-206-2	8-98152-277-0	01	1	-
13	YOKE; STARTER ASM PART: B = 1-81100-323-1	8-98197-520-0	01	1	1106-
13	YOKE; STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-98285-040-0	01	1	-
16	ARMATURE; STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	1-81121-055-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81121-062-0	01	1	-
16	ARMATURE; STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81121-075-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	1-81129-626-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81129-837-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-09800-081-0	01	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: A = 1-81100-307-0	1-81116-060-0	02	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81116-060-0	02	1	-1105
20	BRUSH; (+),STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81116-066-0	02	1	-
20	BRUSH; (+),STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	8-94171-853-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: B = 1-81100-323-1	8-98197-175-0	02	1	1106-
21	SPRING; BRUSH HOLDER STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81129-768-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	5-81117-019-0	04	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: A = 1-81100-307-0	1-81118-061-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81118-061-0	01	1	-1105
22	HOLDER; BRUSH STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2	1-81121-066-0	01	1	-
22	HOLDER; BRUSH STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81118-013-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-323-1	8-98155-174-0	01	1	1106-
22	HOLDER; BRUSH STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-98245-553-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: D = 8-94394-151-2, F = 8-97602-169-1	1-81115-220-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81115-221-0	01	1	-
23	COVER; RR COVER STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2	1-81115-229-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: E = 8-94399-159-4	1-81129-701-0	01	1	-
23	COVER; RR COVER STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-98248-764-0	01	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: E = 8-94399-159-4	1-81129-625-0	03	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: E = 8-94399-159-4	1-81129-698-0	02	1	9905-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: D = 8-94394-151-2, F = 8-97602-169-1	1-81129-698-0	02	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: E = 8-94399-159-4	1-81129-702-0	02	1	-9904
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-706-0	04	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-708-0	02	1	-
27	BOLT; THROUGH,STARTER (C) MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81129-769-0	01	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: D = 8-94394-151-2, F = 8-97602-169-1	8-94167-434-0	03	1	-
28	LEVER; SHIFT,STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81129-762-0	01	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: E = 8-94399-159-4	1-81151-088-2	01	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: D = 8-94394-151-2	1-81151-099-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81151-102-1	01	1	-0306
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: A = 1-81100-307-0	1-81151-102-1	01	1	-
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: C = 1-81100-414-2	1-81151-110-0	01	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: F = 8-97602-169-1	1-81151-126-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81151-132-0	01	1	0307-
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: G = 8-98060-854-0	8-98060-832-0	01	1	-
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: H = 8-98141-206-2	8-98152-274-0	01	1	-1308
31	SWITCH; ENGAGE STARTER ASM PART: H = 8-98141-206-2	8-98237-257-0	01	1	1309-
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-98285-039-0	01	1	-
46	GEAR; CLU STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-714-0	01	1	-
46	GEAR; CLU STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81123-018-0	01	1	-
46	GEAR; CLU STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-97116-485-0	01	1	-
46	GEAR; CLU STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2	8-97178-153-0	01	1	-
48	BALL; PINION,STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-713-0	01	1	-
48	BALL; PINION,STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81129-092-0	01	1	-
48	BALL; PINION,STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	8-97116-515-0	01	1	-
54	CLUTCH; PINION,STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: A = 1-81100-307-0	1-81129-712-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81129-712-0	01	1	-0306
54	CLUTCH; PINION,STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81129-761-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: B = 1-81100-323-1	8-98146-940-0	01	1	0307-
55	PINION; CLU,STARTER MITSUBISHI ASM PART: C = 1-81100-414-2	1-81129-763-0	01	1	-
55	PINION; CLU,STARTER MITSUBISHI ASM PART: G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	8-98060-835-0	01	1	-
90	GASKET; ARMATURE MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81129-767-0	02	1	-
91	COVER; STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81129-764-0	01	1	-
96	GASKET; FRT CASE MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2	8-97116-489-0	01	1	-
96	GASKET; FRT CASE MITSUBISHI ASM PART: I = 8-98261-669-0	8-98248-761-0	01	1	-
97	GEAR; STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	8-97116-490-0	04	1	-
128	BEARING; STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81129-758-0	01	1	-
133	SCREW SET; STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81129-765-0	01	1	-
140	GROMMET; RR COVER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2	8-97376-390-0	01	1	-

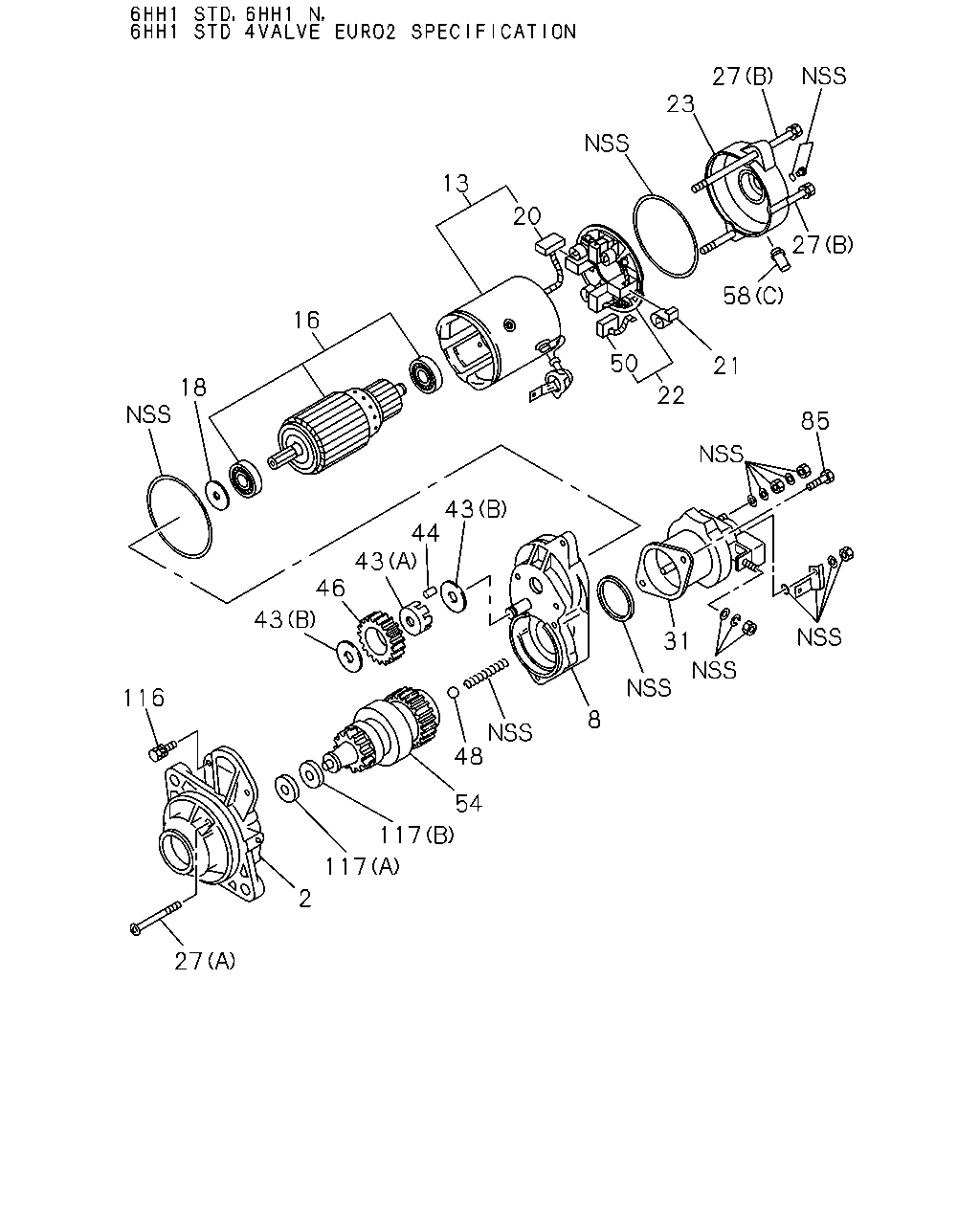

27 23 13 20 27 58 16 50 21 18 22 85 43 44 43 46 43 31 116 8 48 54 117 117 2 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER DENSO ASM PART: E = 8-94399-159-4	1-81114-036-2	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81123-049-0	01	1	-
2	CASE; PINION,STARTER MITSUBISHI ASM PART: H = 8-98141-206-2	1-81123-053-0	01	1	-0911
2	CASE; PINION,STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0	1-81123-053-0	01	1	-
2	CASE; PINION,STARTER DENSO ASM PART: D = 8-94394-151-2, F = 8-97602-169-1	1-81129-697-0	01	1	-
2	CASE; PINION,STARTER MITSUBISHI ASM PART: H = 8-98141-206-2	8-98152-868-0	01	1	0912-
2	CASE; PINION,STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-98261-349-0	01	1	-
8	BRACKET; CENTER STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81118-059-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: E = 8-94399-159-4	1-81111-009-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: D = 8-94394-151-2, F = 8-97602-169-1	1-81129-696-0	01	1	-
13	YOKE; STARTER NIKKO ASM PART: A = 1-81100-307-0	1-81129-705-0	01	1	-
13	YOKE; STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81129-705-0	01	1	-1105
13	YOKE; STARTER MITSUBISHI ASM PART: C = 1-81100-414-2	1-81129-766-0	01	1	-
13	YOKE; STARTER MITSUBISHI ASM PART: G = 8-98060-854-0	8-98060-836-0	01	1	-
13	YOKE; STARTER MITSUBISHI ASM PART: H = 8-98141-206-2	8-98152-277-0	01	1	-
13	YOKE; STARTER ASM PART: B = 1-81100-323-1	8-98197-520-0	01	1	1106-
13	YOKE; STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-98285-040-0	01	1	-
16	ARMATURE; STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	1-81121-055-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81121-062-0	01	1	-
16	ARMATURE; STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81121-075-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	5-81129-156-0	01	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: A = 1-81100-307-0	1-81116-060-0	02	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81116-060-0	02	1	-1105
20	BRUSH; (+),STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81116-066-0	02	1	-
20	BRUSH; (+),STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	8-94171-853-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: B = 1-81100-323-1	8-98197-175-0	02	1	1106-
21	SPRING; BRUSH HOLDER STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81129-768-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	5-81117-019-0	04	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: A = 1-81100-307-0	1-81118-061-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81118-061-0	01	1	-1105
22	HOLDER; BRUSH STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2	1-81121-066-0	01	1	-
22	HOLDER; BRUSH STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81118-013-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-323-1	8-98155-174-0	01	1	1106-
22	HOLDER; BRUSH STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-98245-553-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: D = 8-94394-151-2, F = 8-97602-169-1	1-81115-220-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81115-221-0	01	1	-
23	COVER; RR COVER STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2	1-81115-229-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: E = 8-94399-159-4	1-81129-701-0	01	1	-
23	COVER; RR COVER STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-98248-764-0	01	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: E = 8-94399-159-4	1-81129-625-0	03	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: E = 8-94399-159-4	1-81129-698-0	02	1	9905-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: D = 8-94394-151-2, F = 8-97602-169-1	1-81129-698-0	02	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: E = 8-94399-159-4	1-81129-702-0	02	1	-9904
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-706-0	04	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-708-0	02	1	-
27	BOLT; THROUGH,STARTER (C) MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81129-769-0	01	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: D = 8-94394-151-2, F = 8-97602-169-1	8-94167-434-0	03	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: E = 8-94399-159-4	1-81151-088-2	01	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: D = 8-94394-151-2	1-81151-099-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81151-102-1	01	1	-0306
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: A = 1-81100-307-0	1-81151-102-1	01	1	-
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: C = 1-81100-414-2	1-81151-110-0	01	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: F = 8-97602-169-1	1-81151-126-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81151-132-0	01	1	0307-
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: G = 8-98060-854-0	8-98060-832-0	01	1	-
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: H = 8-98141-206-2	8-98152-274-0	01	1	-1308
31	SWITCH; ENGAGE STARTER ASM PART: H = 8-98141-206-2	8-98237-257-0	01	1	1309-
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-98285-039-0	01	1	-
43	RETAINER; PINION STARTER (A) NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81118-060-0	01	1	-
43	RETAINER; PINION STARTER (B) NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-709-0	02	1	-
43	RETAINER; PINION STARTER (A) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81129-127-0	01	1	-
44	ROLLER; PINION STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-715-0	05	1	-
44	ROLLER; PINION STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81129-120-0	05	1	-
46	GEAR; CLU STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-714-0	01	1	-
46	GEAR; CLU STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81123-018-0	01	1	-
46	GEAR; CLU STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-97116-485-0	01	1	-
46	GEAR; CLU STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2	8-97178-153-0	01	1	-
48	BALL; PINION,STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-713-0	01	1	-
48	BALL; PINION,STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81129-092-0	01	1	-
48	BALL; PINION,STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	8-97116-515-0	01	1	-
50	BRUSH; (-),STARTER NIKKO ASM PART: A = 1-81100-307-0	1-81116-061-0	02	1	-
50	BRUSH; (-),STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81116-061-0	02	1	-1105
50	BRUSH; (-),STARTER ASM PART: B = 1-81100-323-1	8-98197-176-0	02	1	1106-
54	CLUTCH; PINION,STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: A = 1-81100-307-0	1-81129-712-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81129-712-0	01	1	-0306
54	CLUTCH; PINION,STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81129-761-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: B = 1-81100-323-1	8-98146-940-0	01	1	0307-
58	PIPE; DRAIN RR COVER STARTER (A) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	1-81129-677-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (C) NIKKO ASM PART: B = 1-81100-323-1	1-81129-757-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (A) DENSO ASM PART: F = 8-97602-169-1	1-81129-924-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (B) DENSO ASM PART: F = 8-97602-169-1	1-81129-925-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-722-0	02	1	-
116	BOLT; BRKT NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-722-0	02	1	-
117	WASHER; CLUTCH (A) NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-710-0	01	1	-
117	WASHER; CLUTCH (B) NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-711-0	01	1	-

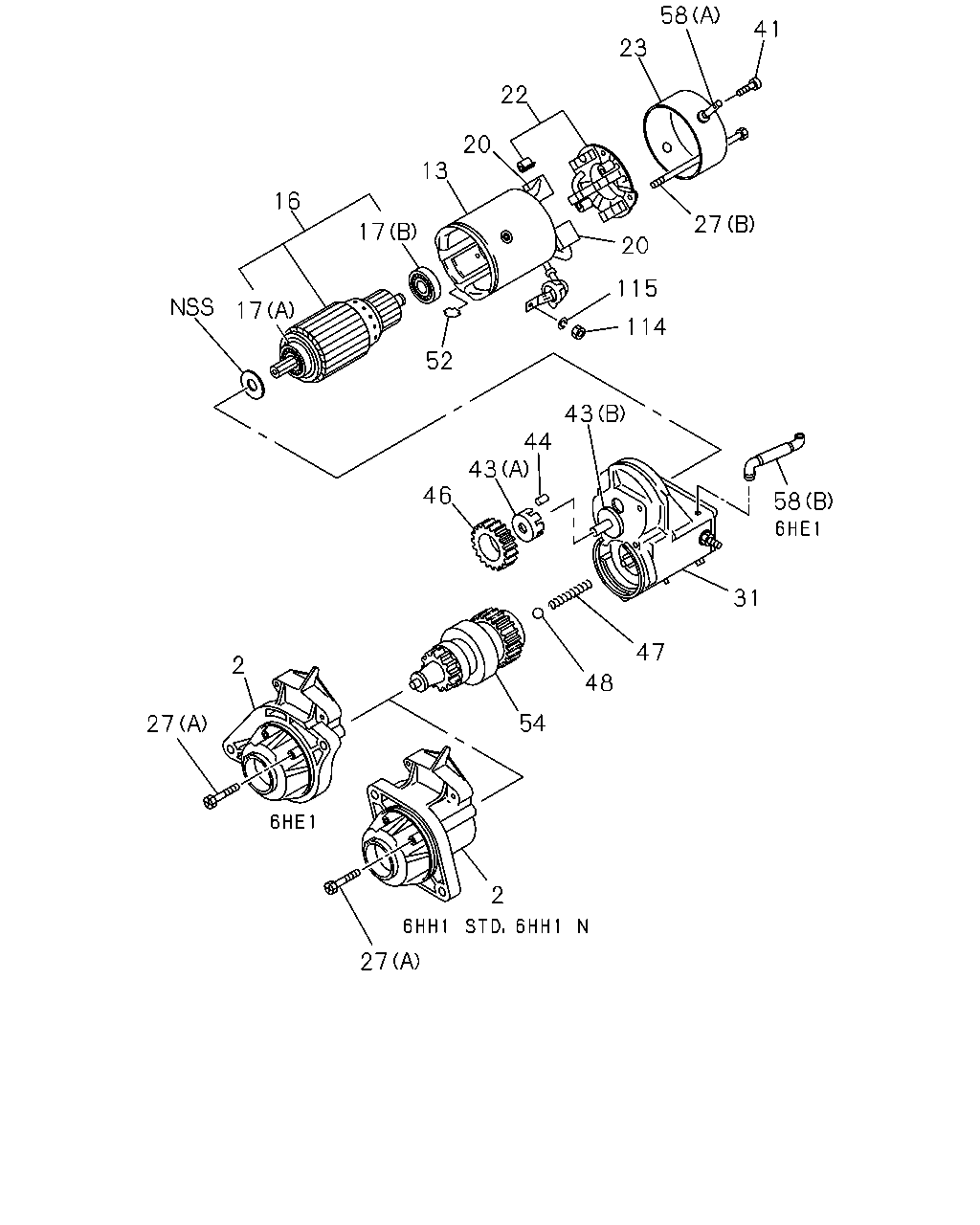

58 41 23 22 20 13 16 27 17 20 115 17 114 52 43 44 43 46 58 31 47 2 48 54 27 2 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER DENSO ASM PART: E = 8-94399-159-4	1-81114-036-2	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81123-049-0	01	1	-
2	CASE; PINION,STARTER MITSUBISHI ASM PART: H = 8-98141-206-2	1-81123-053-0	01	1	-0911
2	CASE; PINION,STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0	1-81123-053-0	01	1	-
2	CASE; PINION,STARTER DENSO ASM PART: D = 8-94394-151-2, F = 8-97602-169-1	1-81129-697-0	01	1	-
2	CASE; PINION,STARTER MITSUBISHI ASM PART: H = 8-98141-206-2	8-98152-868-0	01	1	0912-
2	CASE; PINION,STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-98261-349-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: E = 8-94399-159-4	1-81111-009-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: D = 8-94394-151-2, F = 8-97602-169-1	1-81129-696-0	01	1	-
13	YOKE; STARTER NIKKO ASM PART: A = 1-81100-307-0	1-81129-705-0	01	1	-
13	YOKE; STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81129-705-0	01	1	-1105
13	YOKE; STARTER MITSUBISHI ASM PART: C = 1-81100-414-2	1-81129-766-0	01	1	-
13	YOKE; STARTER MITSUBISHI ASM PART: G = 8-98060-854-0	8-98060-836-0	01	1	-
13	YOKE; STARTER MITSUBISHI ASM PART: H = 8-98141-206-2	8-98152-277-0	01	1	-
13	YOKE; STARTER ASM PART: B = 1-81100-323-1	8-98197-520-0	01	1	1106-
13	YOKE; STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-98285-040-0	01	1	-
16	ARMATURE; STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	1-81121-055-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81121-062-0	01	1	-
16	ARMATURE; STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81121-075-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	1-81129-626-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81129-837-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-09800-081-0	01	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: A = 1-81100-307-0	1-81116-060-0	02	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81116-060-0	02	1	-1105
20	BRUSH; (+),STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81116-066-0	02	1	-
20	BRUSH; (+),STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	8-94171-853-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: B = 1-81100-323-1	8-98197-175-0	02	1	1106-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: A = 1-81100-307-0	1-81118-061-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81118-061-0	01	1	-1105
22	HOLDER; BRUSH STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2	1-81121-066-0	01	1	-
22	HOLDER; BRUSH STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81118-013-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-323-1	8-98155-174-0	01	1	1106-
22	HOLDER; BRUSH STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-98245-553-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: D = 8-94394-151-2, F = 8-97602-169-1	1-81115-220-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81115-221-0	01	1	-
23	COVER; RR COVER STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2	1-81115-229-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: E = 8-94399-159-4	1-81129-701-0	01	1	-
23	COVER; RR COVER STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-98248-764-0	01	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: E = 8-94399-159-4	1-81129-625-0	03	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: E = 8-94399-159-4	1-81129-698-0	02	1	9905-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: D = 8-94394-151-2, F = 8-97602-169-1	1-81129-698-0	02	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: E = 8-94399-159-4	1-81129-702-0	02	1	-9904
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-706-0	04	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-708-0	02	1	-
27	BOLT; THROUGH,STARTER (C) MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81129-769-0	01	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: D = 8-94394-151-2, F = 8-97602-169-1	8-94167-434-0	03	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: E = 8-94399-159-4	1-81151-088-2	01	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: D = 8-94394-151-2	1-81151-099-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81151-102-1	01	1	-0306
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: A = 1-81100-307-0	1-81151-102-1	01	1	-
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: C = 1-81100-414-2	1-81151-110-0	01	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: F = 8-97602-169-1	1-81151-126-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81151-132-0	01	1	0307-
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: G = 8-98060-854-0	8-98060-832-0	01	1	-
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: H = 8-98141-206-2	8-98152-274-0	01	1	-1308
31	SWITCH; ENGAGE STARTER ASM PART: H = 8-98141-206-2	8-98237-257-0	01	1	1309-
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-98285-039-0	01	1	-
41	SCREW; RR COVER,STARTER DENSO ASM PART: E = 8-94399-159-4	1-81129-703-0	02	1	-
41	SCREW; RR COVER,STARTER DENSO ASM PART: D = 8-94394-151-2, F = 8-97602-169-1	5-81129-130-0	02	1	-
43	RETAINER; PINION STARTER (A) NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81118-060-0	01	1	-
43	RETAINER; PINION STARTER (B) NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-709-0	02	1	-
43	RETAINER; PINION STARTER (A) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81129-127-0	01	1	-
44	ROLLER; PINION STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-715-0	05	1	-
44	ROLLER; PINION STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81129-120-0	05	1	-
46	GEAR; CLU STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-714-0	01	1	-
46	GEAR; CLU STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81123-018-0	01	1	-
46	GEAR; CLU STARTER MITSUBISHI ASM PART: I = 8-98261-669-0	8-97116-485-0	01	1	-
46	GEAR; CLU STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2	8-97178-153-0	01	1	-
47	SPRING; PINION STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81129-119-0	01	1	-
48	BALL; PINION,STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-713-0	01	1	-
48	BALL; PINION,STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81129-092-0	01	1	-
48	BALL; PINION,STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	8-97116-515-0	01	1	-
52	PLATE; LK,STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81129-136-0	01	1	-
54	CLUTCH; PINION,STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: A = 1-81100-307-0	1-81129-712-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: B = 1-81100-323-1	1-81129-712-0	01	1	-0306
54	CLUTCH; PINION,STARTER MITSUBISHI ASM PART: C = 1-81100-414-2, G = 8-98060-854-0, H = 8-98141-206-2, I = 8-98261-669-0	1-81129-761-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: B = 1-81100-323-1	8-98146-940-0	01	1	0307-
58	PIPE; DRAIN RR COVER STARTER (A) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	1-81129-677-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (C) NIKKO ASM PART: B = 1-81100-323-1	1-81129-757-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (A) DENSO ASM PART: F = 8-97602-169-1	1-81129-924-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (B) DENSO ASM PART: F = 8-97602-169-1	1-81129-925-0	01	1	-
114	NUT; TERMINAL DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81129-126-0	01	1	-
115	WASHER; TERMINAL DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4, F = 8-97602-169-1	5-81129-134-0	01	1	-

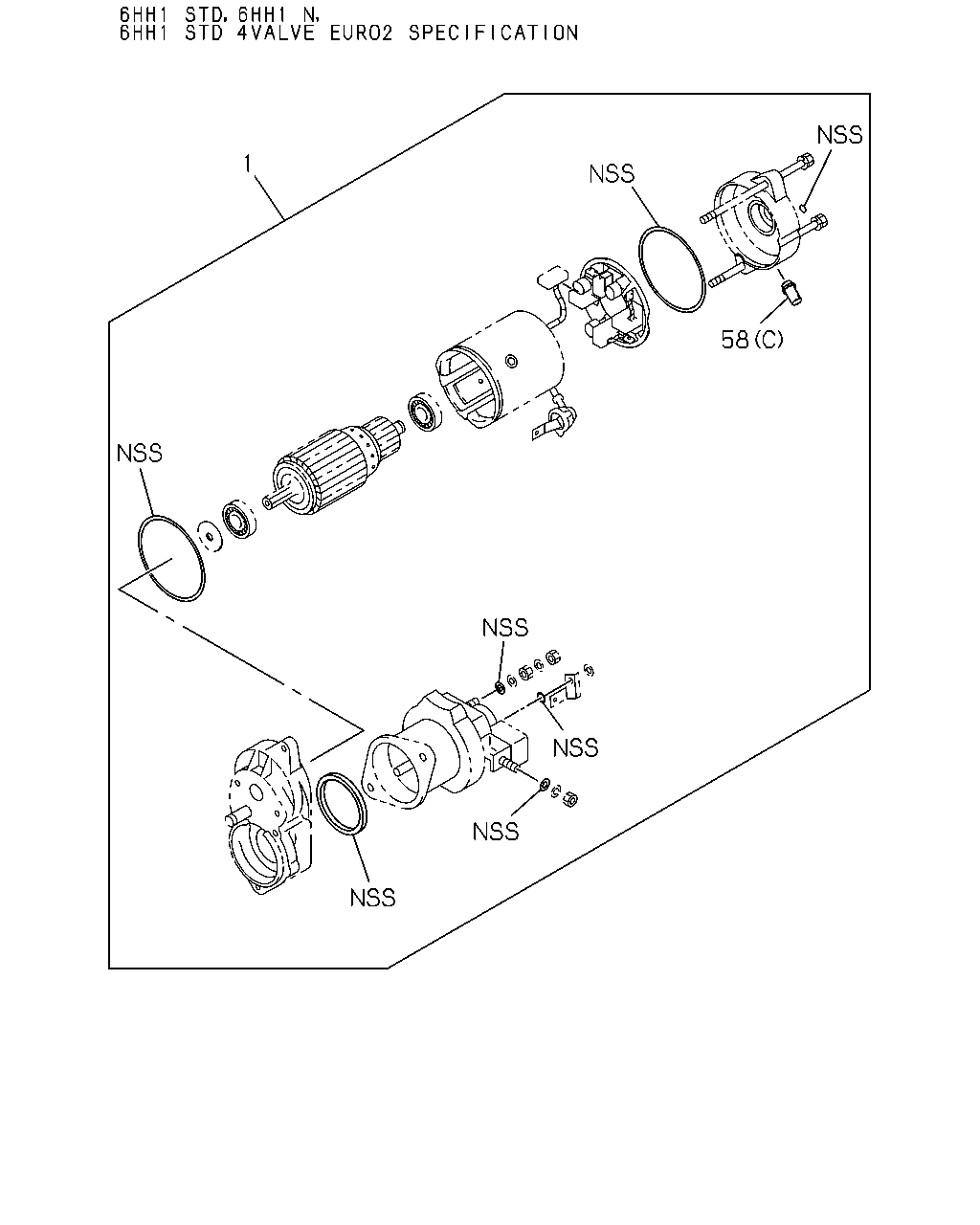

1 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER NIKKO ASM PART: A = 1-81100-307-0, B = 1-81100-323-1	1-81129-716-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (A) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	1-81129-677-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (C) NIKKO ASM PART: B = 1-81100-323-1	1-81129-757-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (A) DENSO ASM PART: F = 8-97602-169-1	1-81129-924-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (B) DENSO ASM PART: F = 8-97602-169-1	1-81129-925-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
