0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#64205) — 118 parça
çizim 73560
114 11 10 8 115 1 2 112 26 25 80 33 23 79 28 27 24 26 26 25 25 13 23 23 28 28 27 27 24 24 71 1 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=450 		9-82932-417-1 01 1 9510-9802 ● ● ●
1 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=450 		1-82650-281-2 01 1 9803-0004 ● ● ●
1 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=450 		1-82650-281-2 01 1 0005-0405 ● ● ● ●
1 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=450 		1-82650-281-2 01 1 0406-0711 ● ● ● ● ●
1 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=500 		8-97623-077-0 01 1 0712- ● ● ● ● ●
1 CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=180 		1-82650-265-0 01 1 9510-0004 ● ● ●
1 CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=180 		1-82650-265-0 01 1 0005-0405 ● ● ● ●
1 CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=180 		1-82650-265-0 01 1 0406-0712 ● ● ● ● ●
1 CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=280 		8-97230-719-2 01 1 0801- ● ● ● ●
2 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=380 		9-82932-713-2 01 1 9510-0004 ● ● ●
2 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=380 		9-82932-713-3 01 1 0005-0405 ● ● ● ●
2 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=380 		9-82932-713-3 01 1 0406-0508 ● ● ● ● ●
2 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=380 		8-97604-629-1 01 1 0509- ● ● ● ●
2 CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=185 		1-82650-067-2 01 1 9510-0004 ● ● ●
2 CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=185 		1-82650-067-3 01 1 0005-0405 ● ● ● ●
2 CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=185 		1-82650-067-3 01 1 0406-0711 ● ● ● ● ●
2 CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=185 		8-97623-075-0 01 1 0712- ● ● ● ● ●
8 CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2300 		1-82650-212-1 01 1 9510-0004 ● ● ●
8 CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2300 		1-82650-212-1 01 1 0005-0012 ● ● ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2300 		1-82650-212-1 01 1 0101-0405 ● ● ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2300 		1-82650-212-1 01 1 0101-0405 ● ● ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2300 		1-82650-212-1 01 1 0406- ● ● ● ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2300 		1-82650-212-1 01 1 0406- ● ● ● ●
8 CABLE; BATTERY,STARTER
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2250 		1-82650-261-1 01 1 9510-0004 ● ● ●
8 CABLE; BATTERY,STARTER
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2250 		1-82650-261-1 01 1 0005-0012 ● ● ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2250 		1-82650-261-1 01 1 0101-0405 ● ● ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2250 		1-82650-261-1 01 1 0406- ● ● ● ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2350 		1-82650-342-0 01 1 0101- ● ● ● ●
9 CLIP; BATTERY CABLE
ID=14 L=44 		9-09917-427-0 01 1 9510-0004 ● ● ●
9 CLIP; BATTERY CABLE
ID=14 L=44 		9-09917-427-0 01 1 0005-0405 ● ● ● ●
9 CLIP; BATTERY CABLE
ID=14 L=44 		9-09917-427-0 01 1 0406- ● ● ● ● ●
10 BOLT; BATTERY CABLE CLIP
M10X30 W/LK&PL WASHER 		8-97087-206-0 01 1 9510-9907 ● ● ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9908-0004 ● ● ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0005-0405 ● ● ● ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0406- ● ● ● ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 		9-09160-610-0 01 1 9510-9907 ● ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 9908-0004 ● ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0005-0405 ● ● ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0406- ● ● ● ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9510-0004 ● ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0005-0405 ● ● ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0406- ● ● ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (B) L=55 		1-47475-304-0 01 1 9510-0004 ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (B) L=55 		1-47475-304-0 01 1 0005-0405 ● ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (B) L=55 		1-47475-304-0 01 1 0406- ● ● ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=95 		1-82699-085-0 04 1 9510-0004 ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=95 		1-82699-085-0 04 1 0005-0012 ● ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 3700MM(37W) (A) L=95 		1-82699-085-0 03 1 0101- ● ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=95 		1-82699-085-0 05 1 9510-0004 ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=95 		1-82699-085-0 05 1 0005-0012 ● ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=95 		1-82699-085-0 04 1 0101-0405 ● ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=95 		1-82699-085-0 04 1 0406- ● ● ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 3700MM(37W) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=145 		1-47475-655-0 01 1 0101- ● ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 3700MM(37W) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=145 		1-47475-655-0 02 1 0101- ● ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=95 		1-82699-085-0 05 1 0101-0405 ● ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=95 		1-82699-085-0 05 1 0406- ● ● ● ● ●
24 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28080-825-0 05 1 9510-9606 ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 05 1 9607-0004 ● ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 05 1 0005-0405 ● ● ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 05 1 0406-0512 ● ● ● ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 05 1 0601- ● ● ● ●
25 CLIP; BATTERY CABLE TO BRKT
ID=15 L=28 		1-09701-216-0 05 1 9510-0004 ● ● ●
25 CLIP; BATTERY CABLE TO BRKT
ID=15 L=28 		1-09701-216-0 05 1 0005-0405 ● ● ● ●
25 CLIP; BATTERY CABLE TO BRKT
ID=15 L=28 		1-09701-216-0 05 1 0406- ● ● ● ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28080-825-0 05 1 9510-9606 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28680-820-0 05 1 9607-9801 ● ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28680-825-0 05 1 9802-0004 ● ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28680-825-0 05 1 0005-0405 ● ● ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28680-825-0 05 1 0406-0512 ● ● ● ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0601- ● ● ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 		9-09110-408-0 05 1 9510-9606 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 05 1 9607-0004 ● ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 05 1 0005-0405 ● ● ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 05 1 0406-0602 ● ● ● ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ● ● ●
28 NUT; BRKT TO FRAME
M8 		9-09110-408-0 05 1 9510-9606 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 05 1 9607-0004 ● ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 05 1 0005-0405 ● ● ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 05 1 0406-0602 ● ● ● ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ● ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 9510-0004 ● ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 0005-0405 ● ● ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 0406- ● ● ● ● ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28081-020-0 01 1 9510-0004 ● ● ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28081-020-0 01 1 0005-0405 ● ● ● ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28081-020-0 01 1 0406-0512 ● ● ● ● ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28051-020-0 01 1 0601- ● ● ● ● ●
79 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 9510-0004 ● ● ●
79 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 0005-0405 ● ● ● ●
79 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 0406- ● ● ● ● ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9510-0004 ● ● ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0405 ● ● ● ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ● ● ● ● ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ● ●
112 TERMINAL; BATTERY
<+> 		1-82695-003-0 01 1 9510-0004 ● ● ●
112 TERMINAL; BATTERY
<+> 		1-82695-003-0 01 1 0005-0403 ● ● ● ●
112 TERMINAL; BATTERY
<+> 		1-82695-175-0 01 1 0404-0405 ● ● ● ●
112 TERMINAL; BATTERY
<+> 		1-82695-175-0 01 1 0406- ● ● ● ● ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		9-09110-510-0 01 1 9510-0004 ● ● ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		9-09110-510-0 01 1 0005-0405 ● ● ● ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		9-09110-510-0 01 1 0406-0512 ● ● ● ● ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		0-91110-510-0 01 1 0601- ● ● ● ● ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		9-09150-510-0 01 1 9510-0004 ● ● ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		9-09150-510-0 01 1 0005-0405 ● ● ● ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		9-09150-510-0 01 1 0406-0603 ● ● ● ● ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		0-91510-510-0 01 1 0604- ● ● ● ●

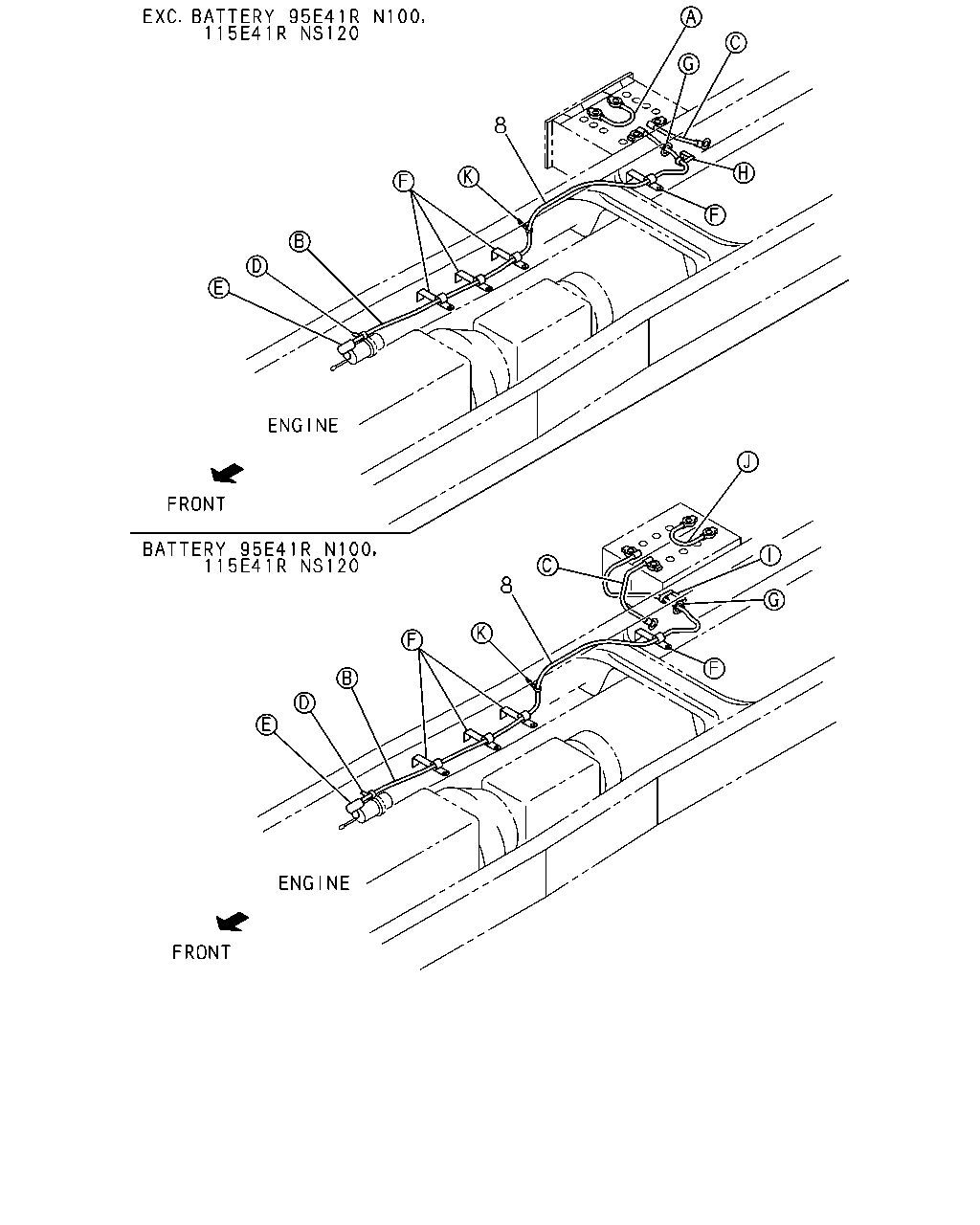

çizim 183947
8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
8 CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2300 		1-82650-212-1 01 1 9510-0004 ● ● ●
8 CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2300 		1-82650-212-1 01 1 0005-0012 ● ● ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2300 		1-82650-212-1 01 1 0101-0405 ● ● ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2300 		1-82650-212-1 01 1 0101-0405 ● ● ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2300 		1-82650-212-1 01 1 0406- ● ● ● ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2300 		1-82650-212-1 01 1 0406- ● ● ● ●
8 CABLE; BATTERY,STARTER
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2250 		1-82650-261-1 01 1 9510-0004 ● ● ●
8 CABLE; BATTERY,STARTER
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2250 		1-82650-261-1 01 1 0005-0012 ● ● ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2250 		1-82650-261-1 01 1 0101-0405 ● ● ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W), WHEEL BASE 5500MM(55W) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2250 		1-82650-261-1 01 1 0406- ● ● ● ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2350 		1-82650-342-0 01 1 0101- ● ● ● ●

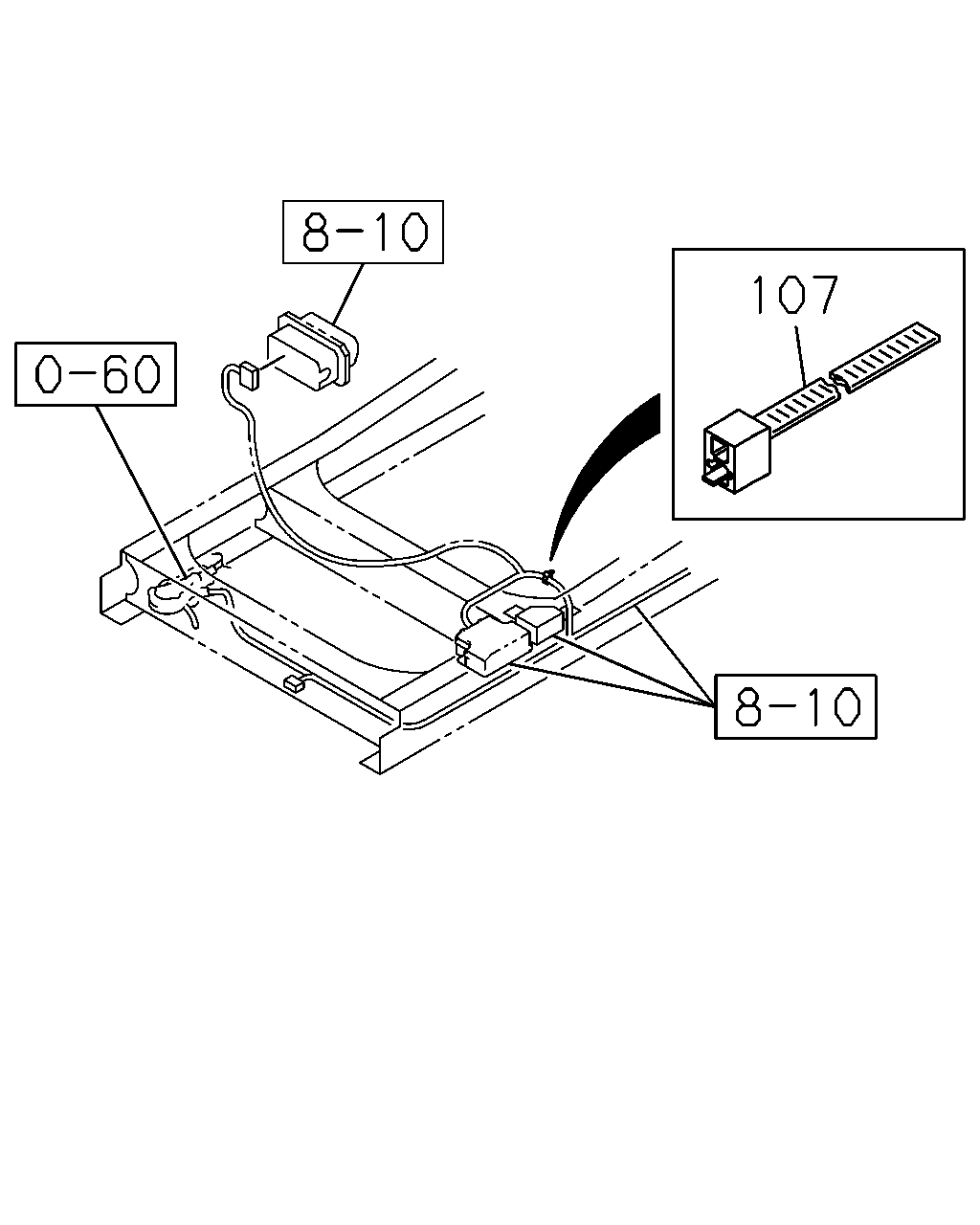

çizim 184086
107
BalonParca AdiParca NoAdetTipApplied Date A B C D E
107 CLIP; BAND
L=300 		1-09707-001-1 01 1 0607- ●
