0-60 — ENGINE ELECTRICAL CONTROL PARTS (#64204) — 332 parça

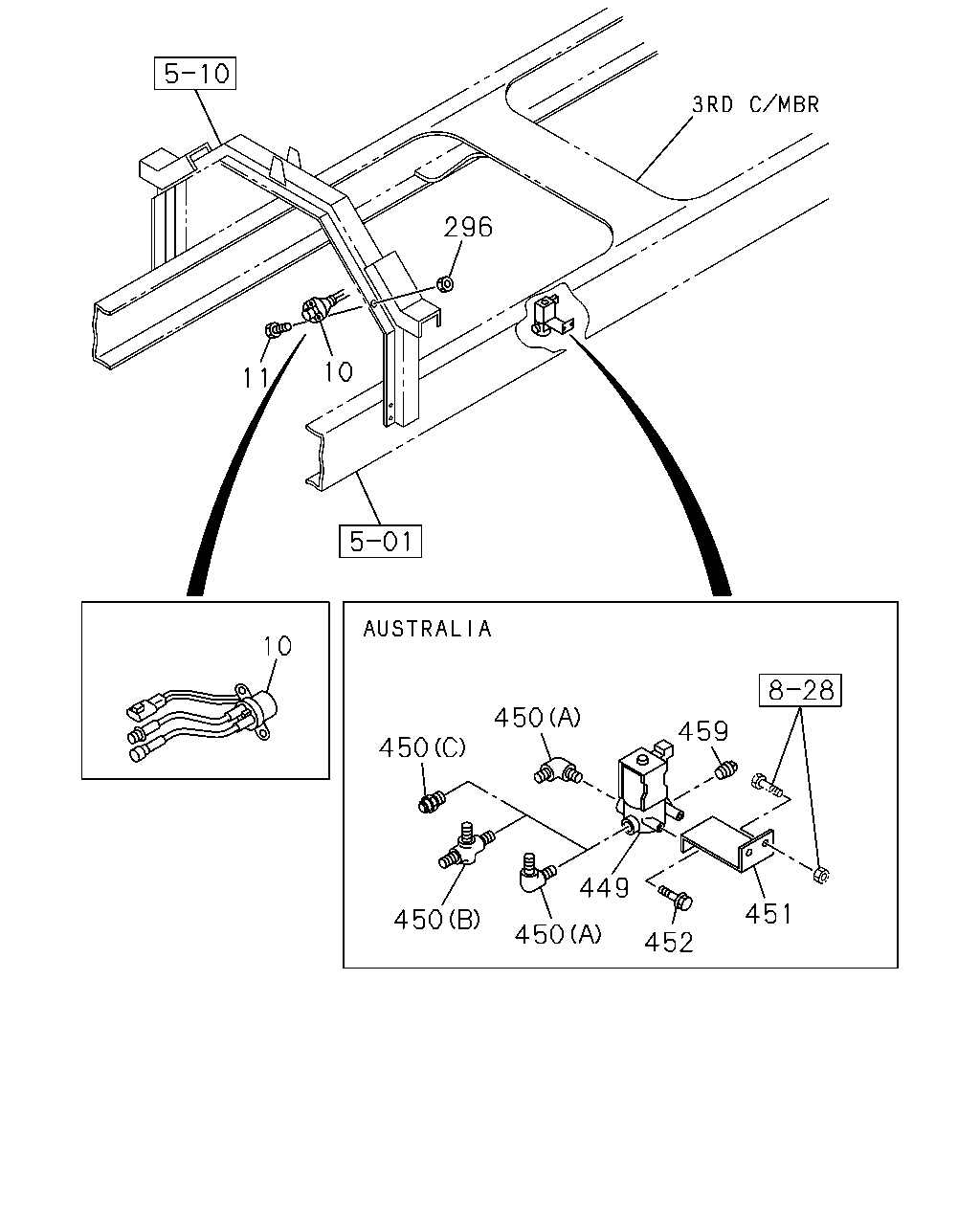

çizim 72575
296 10 11 10 450 459 450 449 451 450 450 452
BalonParca AdiParca NoAdetTipApplied Date A B C D E
10 RELAY; STARTER
STARTER DENSO(RC6) DENSO 		1-81171-070-0 01 1 9510-9802 ●
10 RELAY; STARTER
DENSO 		1-81171-070-0 01 1 9510-9802 ●
10 RELAY; STARTER
DENSO 		1-81171-070-0 01 1 9803- ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) NIKKO 		1-81171-067-0 01 1 9510-9608 ●
10 RELAY; STARTER
NIKKO 		1-81171-067-0 01 1 9510-9608 ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) NIKKO 		1-81171-075-0 01 1 9609-9802 ●
10 RELAY; STARTER
NIKKO 		1-81171-075-0 01 1 9609-9802 ●
10 RELAY; STARTER
NIKKO 		1-81171-075-0 01 1 9803-0004 ● ●
10 RELAY; STARTER
HITACHI 		1-81171-087-0 01 1 0005-0303 ● ● ●
10 RELAY; STARTER
NIKKO 		1-81171-075-1 01 1 0304- ● ● ●
10 RELAY; STARTER
HITACHI 		1-81171-087-0 01 1 9904-9907 ● ●
10 RELAY; STARTER
EXC. NIKKO<Y70> HITACHI 		1-81171-087-0 01 1 9908-0004 ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ● ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 9802-0004 ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0405 ● ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 0406-0512 ● ● ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ● ●
296 NUT; RELAY,STARTER
M8 		9-09110-408-0 02 1 9510-9606 ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 0005-0405 ● ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 0406-0602 ● ● ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
AUSTRALIA EQUIPMENT(RR3) 		1-82563-600-2 01 1 9510-9802 ● ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
AUSTRALIA EQUIPMENT(RR3) 		1-82563-599-4 01 1 9803-0001 ● ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
AUSTRALIA EQUIPMENT(RR3) 		1-82563-778-2 01 1 0002-0004 ● ●
450 CONNECTOR; MAG VLV,INL PORT
AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9510-9802 ● ●
450 CONNECTOR; MAG VLV,INL PORT
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9510-9802 ● ●
450 CONNECTOR; MAG VLV,INL PORT
AUSTRALIA EQUIPMENT(RR3) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9803-0004 ● ●
450 CONNECTOR; MAG VLV,INL PORT
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 9510-9802 ● ●
450 CONNECTOR; MAG VLV,INL PORT
AUSTRALIA EQUIPMENT(RR3) (B) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 9803-9804 ● ●
450 CONNECTOR; MAG VLV,INL PORT
AUSTRALIA EQUIPMENT(RR3) (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 9805-0004 ● ●
451 BRACKET; MAG VLV,VSS
AUSTRALIA EQUIPMENT(RR3) 		1-47477-462-0 01 1 9510-9704 ● ●
451 BRACKET; MAG VLV,VSS
AUSTRALIA EQUIPMENT(RR3) 		1-47477-953-0 01 1 9705-9802 ● ●
451 BRACKET; MAG VLV,VSS
AUSTRALIA EQUIPMENT(RR3) 		1-82569-208-0 01 1 9803-0004 ● ●
452 BOLT; VSS MAG VLV
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9810 ● ●
452 BOLT; VSS MAG VLV
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9811-0004 ● ●
459 PLUG
AUSTRALIA EQUIPMENT(RR3) PT1/4 		9-99204-513-0 01 1 9510-9802 ● ●
459 PLUG
AUSTRALIA EQUIPMENT(RR3) PT1/4 		9-99204-513-0 01 1 0002-0004 ● ●
459 PLUG
NEW ZEALAND EQUIPMENT(PK5) PT1/4 		9-99204-513-0 01 1 0011- ●

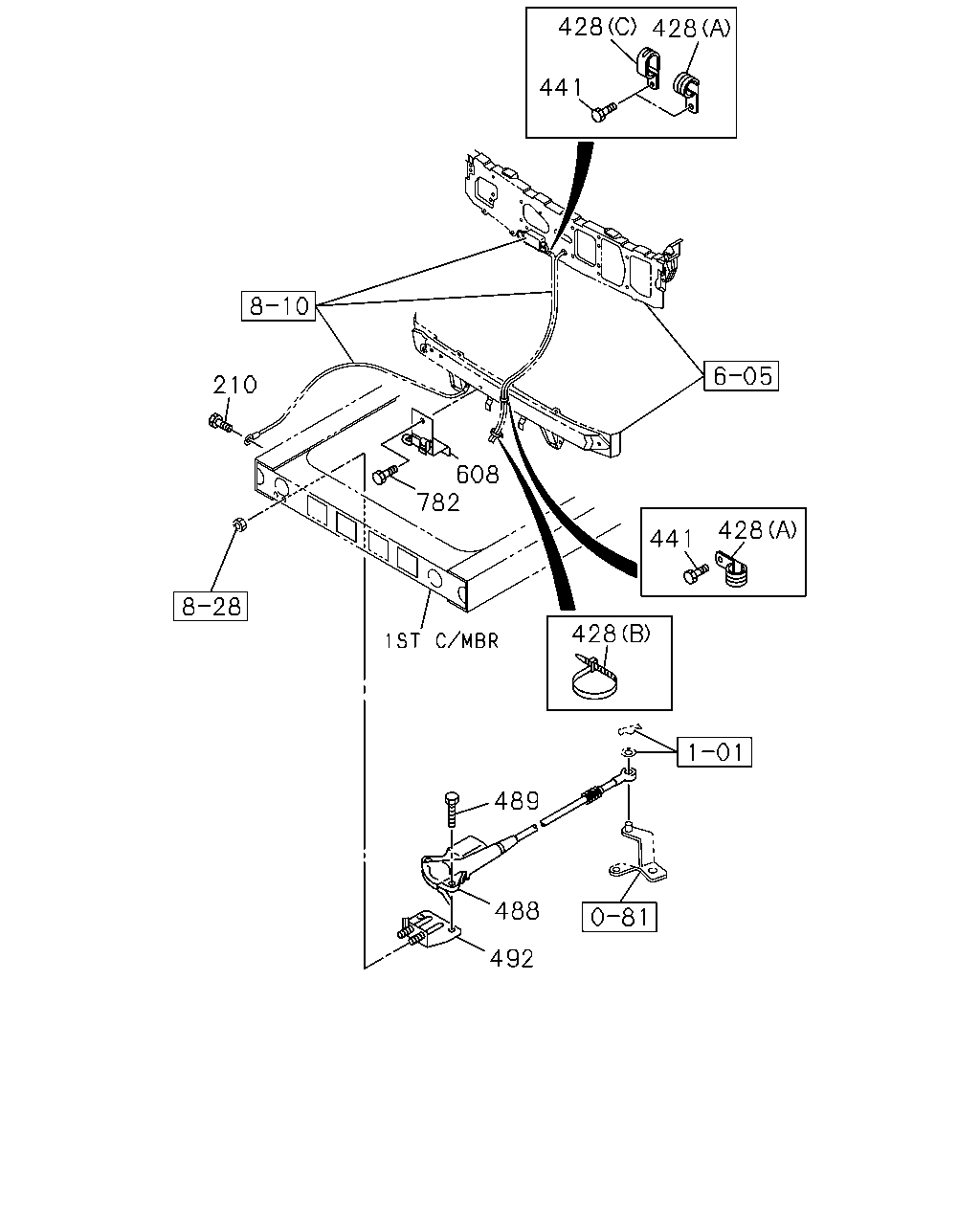

çizim 72651
428 428 441 210 608 782 428 441 428 489 488 492
BalonParca AdiParca NoAdetTipApplied Date A B C D E
210 BOLT; CABLE FIX
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9510-9907 ● ● ●
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-0004 ● ● ●
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0005-0405 ● ● ● ●
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0406-1201 ● ● ● ● ●
210 BOLT; CABLE FIX
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ● ● ●
428 CLIP; HARNESS
(B) L=300 		1-09707-001-1 02 1 0406- ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 0105-0405 ● ●
428 CLIP; HARNESS
EXC. EURO2 SPECIFICATION<THN> (A) ID=35 L=50 		1-09701-214-0 02 1 0105-0405 ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 0406- ● ● ●
428 CLIP; HARNESS
EXC. EURO2 SPECIFICATION<THN> (A) ID=35 L=50 		1-09701-214-0 02 1 0406- ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 9510-0004 ● ● ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 0005-0104 ● ● ● ●
428 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (A) ID=35 L=50 		1-09701-214-0 01 1 0105- ● ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 01 1 0105- ●
428 CLIP; HARNESS
(B) L=300 		1-09707-001-1 03 1 9610-0010 ●
428 CLIP; HARNESS
(B) L=300 		1-09707-001-1 03 1 0011- ● ●
428 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (C) ID=30X2 L=28 		1-09701-266-0 01 1 0105- ● ●
428 CLIP; HARNESS
(C) ID=30X2 L=28 		1-09701-266-0 01 1 0105- ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0405 ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ● ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ● ● ●
488 STOPPER; ENG 1-82840-128-1 01 1 9510-9609 ● ●
488 STOPPER; ENG 1-82840-128-2 01 1 9610-9912 ● ● ●
488 STOPPER; ENG 1-82840-128-2 01 1 0001-0004 ● ●
488 STOPPER; ENG
EXC. EURO2 SPECIFICATION<THN> 		1-82840-128-2 01 1 0001-0004 ●
488 STOPPER; ENG 1-82840-128-3 01 1 0005- ● ● ●
488 STOPPER; ENG
EXC. EURO2 SPECIFICATION<THN> 		1-82840-128-3 01 1 0005- ●
488 STOPPER; ENG 1-82840-153-1 01 1 9610-9912 ●
488 STOPPER; ENG
EURO2 SPECIFICATION<THN> 		1-82840-153-2 01 1 0001- ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9510-0004 ● ● ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0005-0512 ● ● ● ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50640-825-0 02 1 0601- ● ● ● ●
492 BRACKET; ENG STOPPER 1-82849-067-0 01 1 9510-0004 ● ● ●
492 BRACKET; ENG STOPPER 1-82849-067-0 01 1 0005- ● ● ● ●
608 SENSOR; AIR TEMP 1-83544-031-0 01 1 0406- ●
608 SENSOR; AIR TEMP
NEW ZEALAND EQUIPMENT(PK5) 		1-83544-031-0 01 1 0101-0304 ●
782 BOLT; SENSOR
NEW ZEALAND EQUIPMENT(PK5) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0201-0405 ●
782 BOLT; SENSOR
NEW ZEALAND EQUIPMENT(PK5) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0406- ●
782 BOLT; SENSOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0406- ●

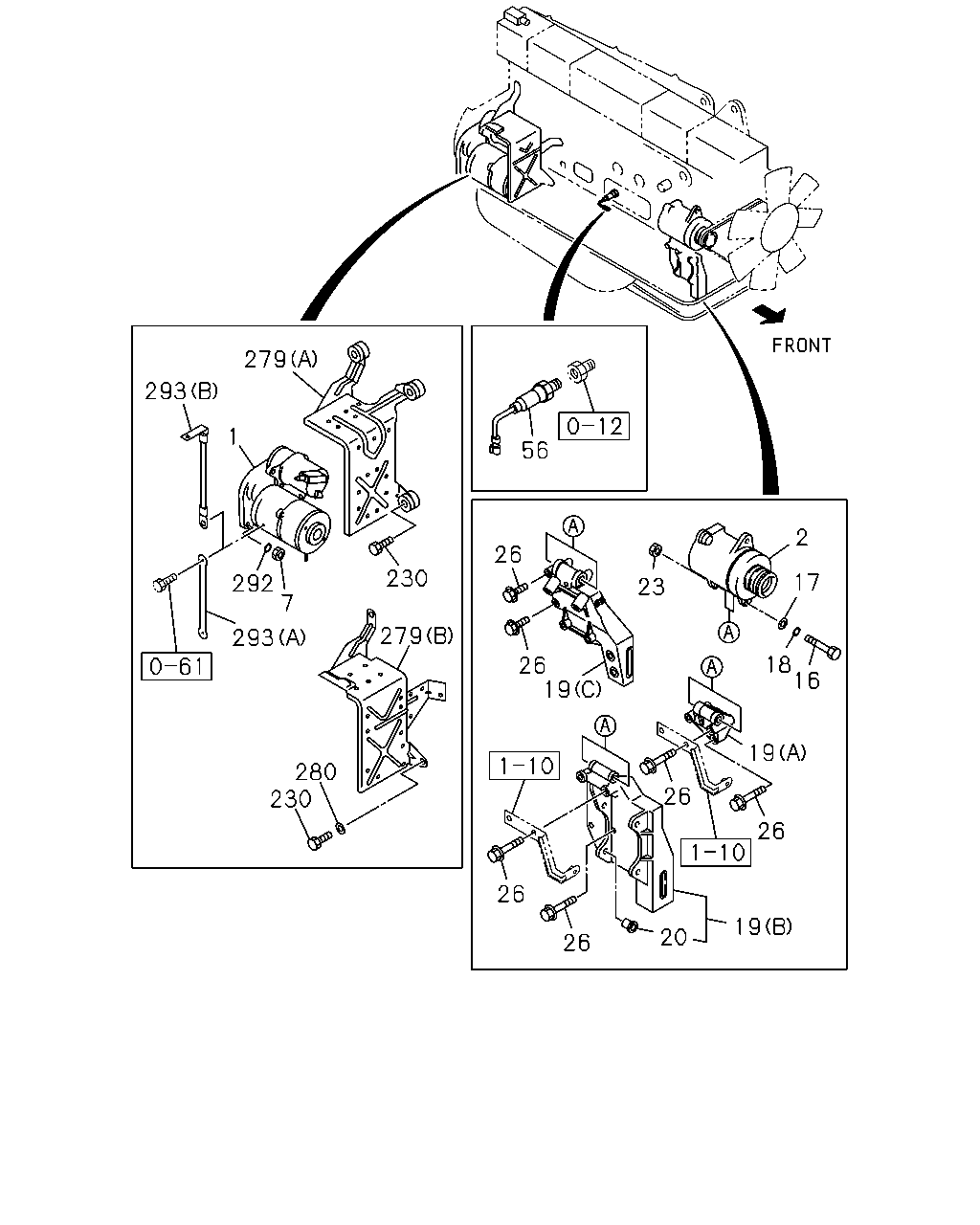

çizim 72746
279 293 1 56 2 26 230 17 292 7 23 279 293 26 19 18 16 19 280 230 26 26 26 19 20 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) 24V 4.5KW DENSO 		8-94399-159-3 01 1 9510-9802 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER DENSO(RC6) 24V 4.5KW NIKKO 		1-81100-307-0 01 1 9510-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-307-0 01 1 9510-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER DENSO(RC6) 24V 4.5KW NIKKO 		1-81100-323-0 01 1 9709-9802 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-323-0 01 1 9709-9802 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-323-0 01 1 9803-0004 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		1-81100-323-1 01 1 0005- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW NIKKO 		1-81100-323-1 01 1 0005- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94394-151-2 01 1 9610-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-97602-169-1 01 1 0109-0405 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-97602-169-1 01 1 0406- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 5.0KW MITSUBISHI 		1-81100-414-2 01 1 0011-0609 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 5.0KW MITSUBISHI 		8-98060-854-0 01 1 0610-0909 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 0910-1409 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 5.0KW MITSUBISHI 		8-98261-669-0 01 1 1410- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI 		1-81200-599-5 01 1 0406- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO 24V-40A 1KW(SC4) 24V 40A DENSO 		8-94399-157-1 01 1 9510-9802 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR DENSO 24V-40A 1KW(SC4) 24V 40A NIKKO 		1-81200-416-4 01 1 9510-9802 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9510-9802 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9803-0004 ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-5 01 1 0005- ● ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9904-9905 ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-577-0 01 1 9906-9907 ● ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9510-0004 ● ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 0005-0405 ● ● ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 0406-0512 ● ● ● ● ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0601- ● ● ● ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9510-0004 ● ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0005-0405 ● ● ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0406- ● ● ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9510-0004 ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0005-0405 ● ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0406-0605 ● ● ● ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606- ● ● ● ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9510-0004 ● ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 0005-0405 ● ● ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 0406-0603 ● ● ● ● ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0604- ● ● ● ● ●
19 BRACKET; GEN
(C) 		8-94390-588-0 01 1 0406-0511 ●
19 BRACKET; GEN
(C) 		8-94390-589-1 01 1 0512-0704 ●
19 BRACKET; GEN
(C) 		8-97609-149-0 01 1 0705-0803 ●
19 BRACKET; GEN
(C) 		8-98082-615-1 01 1 0804- ●
19 BRACKET; GEN
(A) 		8-94396-297-0 01 1 9510-9805 ● ● ●
19 BRACKET; GEN
(A) 		8-94396-297-0 01 1 9806-0004 ● ●
19 BRACKET; GEN
HEATER & DEFROSTER(C41) (A) 		8-94396-297-0 01 1 9806-0004 ●
19 BRACKET; GEN
(A) 		8-94396-297-0 01 1 0005-0112 ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94396-297-0 01 1 0005-0112 ●
19 BRACKET; GEN
HEATER & DEFROSTER(C41) (A) 		8-94396-297-0 01 1 0005-0112 ●
19 BRACKET; GEN
EURO2 SPECIFICATION<THN> (A) 		8-94396-297-0 01 1 0005-0112 ●
19 BRACKET; GEN
(A) 		8-97602-318-0 01 1 0201- ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97602-318-0 01 1 0201- ●
19 BRACKET; GEN
HEATER & DEFROSTER(C41) (A) 		8-97602-318-0 01 1 0201- ●
19 BRACKET; GEN
EURO2 SPECIFICATION<THN> (A) 		8-97602-318-0 01 1 0201- ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94395-470-2 01 1 9803-0004 ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94395-470-2 01 1 0005-0010 ● ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94395-470-5 01 1 0011- ● ●
19 BRACKET; GEN
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94395-470-5 01 1 0011- ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 9803-0004 ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 0005-0010 ● ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 0011-1302 ● ●
20 COLLAR; BRKT,GEN
EXC. EURO2 SPECIFICATION<THN> 		8-94201-057-1 02 1 0011-1302 ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9510-0004 ● ● ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 0005-0405 ● ● ● ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 0406-0512 ● ● ● ● ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0601- ● ● ● ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9510-9805 ● ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9806-0004 ● ●
26 BOLT; GEN BRKT
HEATER & DEFROSTER(C41) M10X40 FLANGE 		0-28181-040-0 01 1 9806-0004 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 0005-0512 ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 01 1 0005-0512 ●
26 BOLT; GEN BRKT
HEATER & DEFROSTER(C41) M10X40 FLANGE 		0-28181-040-0 01 1 0005-0512 ●
26 BOLT; GEN BRKT
EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28181-040-0 01 1 0005-0512 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 01 1 0601- ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28151-040-0 01 1 0601- ●
26 BOLT; GEN BRKT
HEATER & DEFROSTER(C41) M10X40 FLANGE 		0-28151-040-0 01 1 0601- ●
26 BOLT; GEN BRKT
EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28151-040-0 01 1 0601- ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9510-0004 ● ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 0005-0405 ● ● ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 0406-0512 ● ● ● ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0601- ● ● ● ● ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 9803-0004 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 0005-0010 ● ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 0011-0405 ● ●
26 BOLT; GEN BRKT
EXC. EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28181-040-0 02 1 0011-0405 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 0406-0512 ● ●
26 BOLT; GEN BRKT
EXC. EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28181-040-0 02 1 0406-0512 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 02 1 0406-0512 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28151-040-0 02 1 0601- ● ●
26 BOLT; GEN BRKT
EXC. EURO2 SPECIFICATION<THN> M10X40 FLANGE 		0-28151-040-0 02 1 0601- ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 02 1 0601- ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 9510-0004 ● ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 0005-0010 ● ● ●
56 SWITCH; OIL PRESSURE WARNING
EURO2 SPECIFICATION<THN> 		1-82410-170-0 01 1 0005-0010 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 0011-0405 ● ● ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0406- ● ● ● ● ●
230 BOLT; HEAT PROTECTOR
AUSTRALIA EQUIPMENT(RR3) M8X14 		0-20800-814-0 03 1 9510-9611 ●
230 BOLT; HEAT PROTECTOR
AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M8X14 		0-20800-814-0 03 1 9612-0004 ●
230 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> M8X14 		0-20800-814-0 03 1 0005- ●
230 BOLT; HEAT PROTECTOR
EXC. AUSTRALIA EQUIPMENT(RR3) M8X28 FLANGE 		0-28080-828-0 01 1 9510-9611 ●
230 BOLT; HEAT PROTECTOR
M8X28 FLANGE 		0-28080-828-0 01 1 9510-9611 ●
230 BOLT; HEAT PROTECTOR
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M8X28 FLANGE 		0-28080-828-0 01 1 9612-0004 ●
230 BOLT; HEAT PROTECTOR
M8X28 FLANGE 		0-28080-828-0 01 1 9612-0004 ●
230 BOLT; HEAT PROTECTOR
M8X28 FLANGE 		0-28080-828-0 01 1 0005- ● ●
230 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 01 1 0005- ●
230 BOLT; HEAT PROTECTOR
EXC. AUSTRALIA EQUIPMENT(RR3) M10X30 FLANGE 		0-28181-030-0 01 1 9510-9611 ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28181-030-0 01 1 9510-9611 ●
230 BOLT; HEAT PROTECTOR
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M10X30 FLANGE 		0-28181-030-0 01 1 9612-0004 ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28181-030-0 01 1 9612-0004 ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28181-030-0 01 1 0005-0512 ● ●
230 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28181-030-0 01 1 0005-0512 ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28151-030-0 01 1 0601- ● ●
230 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28151-030-0 01 1 0601- ●
279 PROTECTOR; STARTER
AUSTRALIA EQUIPMENT(RR3) (B) 		8-94394-435-2 01 1 9510-9611 ●
279 PROTECTOR; STARTER
AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) 		8-94394-435-2 01 1 9612-0004 ●
279 PROTECTOR; STARTER
EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (B) 		8-94394-435-2 01 1 0005- ●
279 PROTECTOR; STARTER
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-94394-952-1 01 1 9510-9611 ●
279 PROTECTOR; STARTER
(A) 		8-94394-952-1 01 1 9510-9611 ●
279 PROTECTOR; STARTER
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		8-94394-952-1 01 1 9612-0004 ●
279 PROTECTOR; STARTER
(A) 		8-94394-952-1 01 1 9612-0004 ●
279 PROTECTOR; STARTER
(A) 		8-94394-952-1 01 1 0005- ● ●
279 PROTECTOR; STARTER
EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (A) 		8-94394-952-1 01 1 0005- ●
280 WASHER; PL,HEAT PROTECTOR
AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=18 		9-09160-608-0 03 1 9510-9611 ●
280 WASHER; PL,HEAT PROTECTOR
AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) ID=8.4 OD=18 		9-09160-608-0 03 1 9612-0004 ●
280 WASHER; PL,HEAT PROTECTOR
EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=18 		9-09160-608-0 03 1 0005-0605 ●
280 WASHER; PL,HEAT PROTECTOR
EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=18 		0-91610-608-0 03 1 0606- ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9510-0004 ● ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 0005-0405 ● ● ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 0406-0603 ● ● ● ● ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 0604- ● ● ● ● ●
293 CABLE; STARTER EARTH
(B) L=320 		1-82650-324-0 01 1 0406- ●
293 CABLE; STARTER EARTH
(A) L=360 		1-82650-230-1 01 1 9510-0004 ● ●
293 CABLE; STARTER EARTH
(A) L=360 		1-82650-230-1 01 1 0005- ● ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> (A) L=360 		1-82650-230-1 01 1 0005- ●
293 CABLE; STARTER EARTH
(A) L=290 		1-82650-279-0 01 1 9610-0012 ●
293 CABLE; STARTER EARTH
(A) L=290 		1-82650-279-0 01 1 0101- ●
293 CABLE; STARTER EARTH
EXC. EURO2 SPECIFICATION<THN> (A) L=290 		1-82650-279-0 01 1 0101- ●
293 CABLE; STARTER EARTH
EXC. EURO2 SPECIFICATION<THN> (B) L=320 		1-82650-324-0 01 1 0011-0012 ●

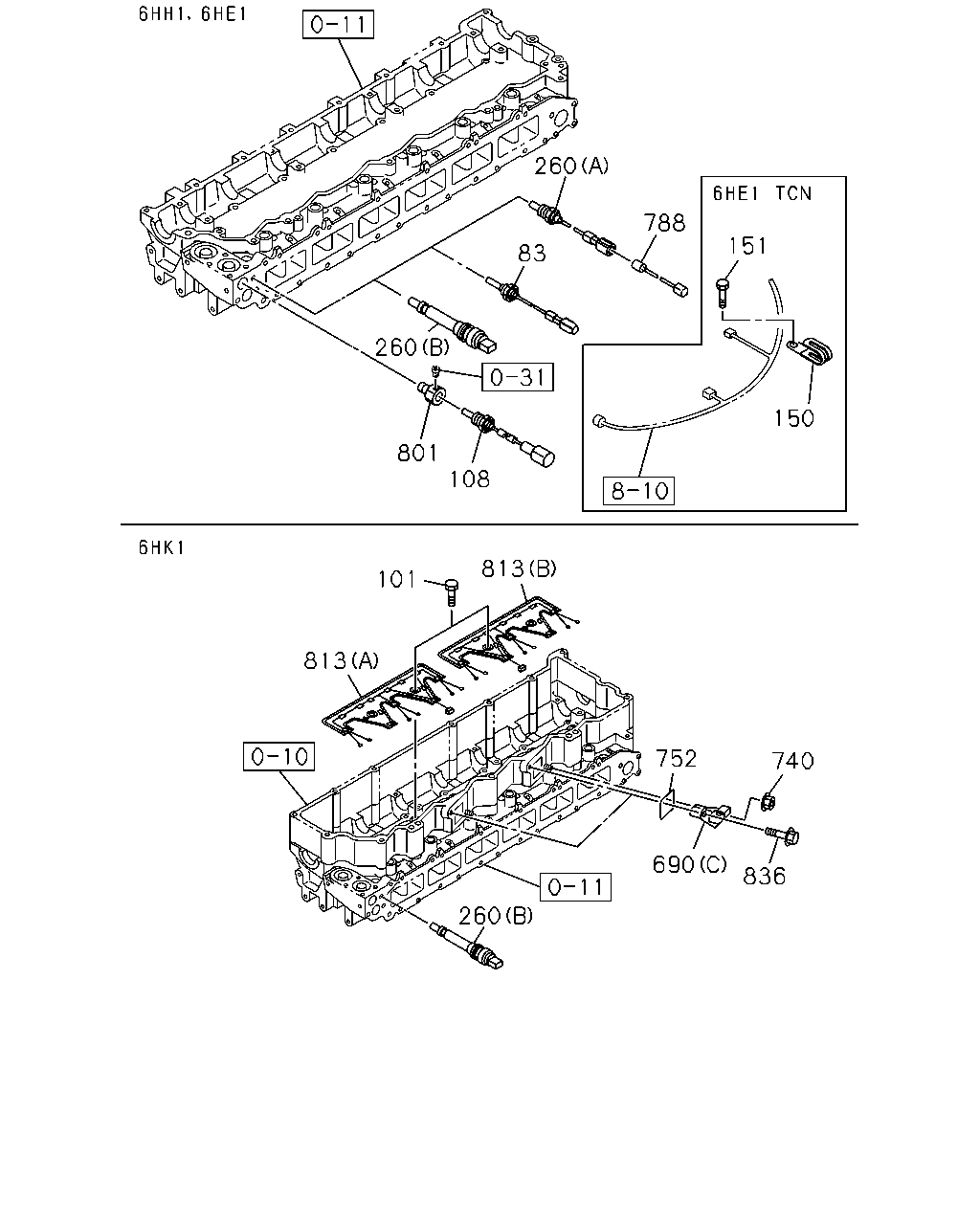

çizim 72933
260 788 151 83 260 150 801 108 813 101 813 752 740 690 836 260
BalonParca AdiParca NoAdetTipApplied Date A B C D E
83 THERMOMETER UNIT 1-83161-031-1 01 1 9510-9911 ● ●
83 THERMOMETER UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 9911-0004 ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9911-0004 ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 0005- ● ●
101 BOLT; HARNESS
M8X40 FLANGE 		0-28680-840-0 04 1 0406-0512 ●
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 0601- ●
108 SWITCH; THERMO
AUSTRALIA EQUIPMENT(RR3) 		1-83161-030-0 01 1 9510-0004 ● ●
150 CLIP; HARNESS,SOLENOID VLV
ID=18 L=44 		8-94225-185-0 02 1 9610-0801 ●
150 CLIP; HARNESS,SOLENOID VLV
ID=18 L=44 		8-97367-985-1 02 1 0802- ●
151 BOLT; HARNESS CLIP,SOLENOID VLV
M8X12 FLANGE 		0-28080-812-0 02 1 9610-0512 ●
151 BOLT; HARNESS CLIP,SOLENOID VLV
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
260 SENSOR; WATER TEMP
EURO2 SPECIFICATION<THN> (B) 		1-80210-005-0 01 1 9911-0004 ●
260 SENSOR; WATER TEMP
EURO2 SPECIFICATION<THN> (B) 		1-80210-005-0 01 1 0005-0010 ●
260 SENSOR; WATER TEMP
(B) 		1-80210-005-1 01 1 0011-0405 ●
260 SENSOR; WATER TEMP
(B) 		1-80210-005-1 01 1 0406- ● ●
260 SENSOR; WATER TEMP
(A) 		1-80210-004-0 01 1 9610- ●
690 CONNECTOR
(C) 		8-94390-858-1 02 1 0406- ●
690 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5) (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 0011- ●
690 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 05 1 0011- ●
740 NUT
M8 FLANGE 		0-91150-108-0 04 1 0406-0602 ●
740 NUT
M8 FLANGE 		0-91180-108-0 04 1 0603-1011 ●
740 NUT
M8 FLANGE 		0-91180-108-0 02 1 1012- ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0406- ●
788 HARNESS; EXT,WATER TEMP SENSOR 8-94395-142-1 01 1 9610-9612 ●
801 ADAPTER; THERMO SWITCH
AUSTRALIA EQUIPMENT(RR3) 		8-94395-352-0 01 1 9510-0004 ● ●
801 ADAPTER; THERMO SWITCH
EXC. EURO2 SPECIFICATION<THN> 		8-94395-851-1 01 1 0011-1008 ●
801 ADAPTER; THERMO SWITCH
EXC. EURO2 SPECIFICATION<THN> 		8-98177-501-0 01 1 1009- ●
813 HARNESS; INJECTOR
(A) FRONT 		8-94391-302-3 01 1 0406- ●
813 HARNESS; INJECTOR
(B) REAR 		8-94391-303-3 01 1 0406- ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1012- ●

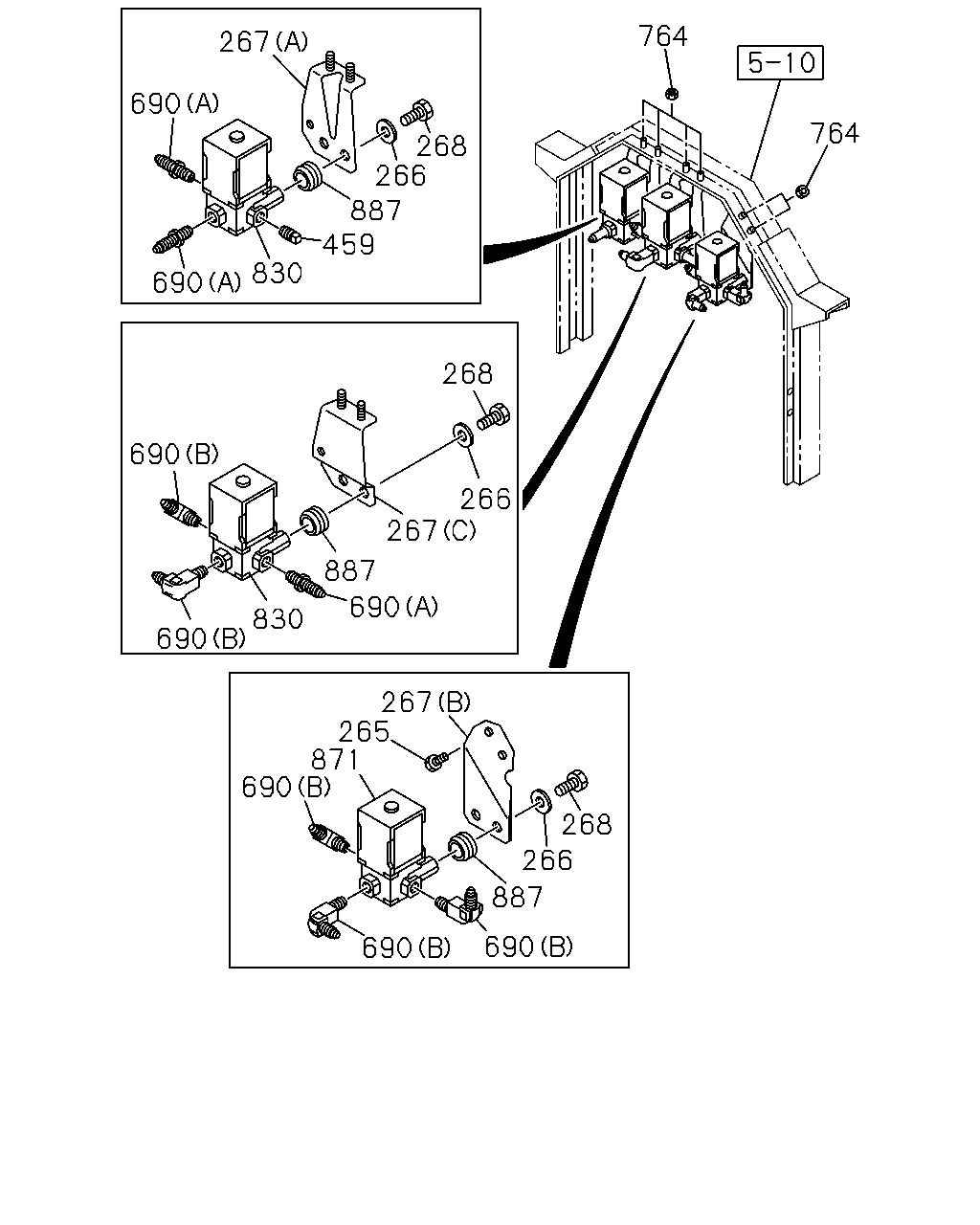

çizim 73252
764 267 690 764 268 266 887 459 830 690 268 690 266 267 887 690 830 690 267 265 871 690 268 266 887 690 690
BalonParca AdiParca NoAdetTipApplied Date A B C D E
265 BOLT; MAG VLV FIX
NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE 		0-28680-820-0 02 1 0011-0512 ●
265 BOLT; MAG VLV FIX
NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
266 WASHER; PL,MAG VLV FIX
NEW ZEALAND EQUIPMENT(PK5) ID=12.5 OD=26 		9-09160-612-0 06 1 0011-0605 ●
266 WASHER; PL,MAG VLV FIX
NEW ZEALAND EQUIPMENT(PK5) ID=12.5 OD=26 		0-91610-612-0 06 1 0606- ●
267 BRACKET; MAG VLV
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47478-245-0 01 1 0011- ●
267 BRACKET; MAG VLV
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-47478-401-0 01 1 0011- ●
267 BRACKET; MAG VLV
NEW ZEALAND EQUIPMENT(PK5) (C) 		1-47478-644-0 01 1 0011- ●
268 BOLT; BRKT,MAG VLV
NEW ZEALAND EQUIPMENT(PK5) M8X30 		1-09009-020-1 06 1 0011- ●
459 PLUG
AUSTRALIA EQUIPMENT(RR3) PT1/4 		9-99204-513-0 01 1 9510-9802 ● ●
459 PLUG
AUSTRALIA EQUIPMENT(RR3) PT1/4 		9-99204-513-0 01 1 0002-0004 ● ●
459 PLUG
NEW ZEALAND EQUIPMENT(PK5) PT1/4 		9-99204-513-0 01 1 0011- ●
690 CONNECTOR
(C) 		8-94390-858-1 02 1 0406- ●
690 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5) (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 0011- ●
690 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 05 1 0011- ●
764 NUT; MAG VLV
NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91150-108-0 06 1 0011-0602 ●
764 NUT; MAG VLV
NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 06 1 0603- ●
830 VALVE; MAG,EGR
NEW ZEALAND EQUIPMENT(PK5) 		1-82563-798-4 02 1 0011- ●
871 VALVE; MAG,INTAKE SHUTTER
NEW ZEALAND EQUIPMENT(PK5) 		1-82563-798-4 01 1 0011- ●
887 GROMMET; MAG VLV
NEW ZEALAND EQUIPMENT(PK5) 		1-09332-117-0 06 1 0011- ●

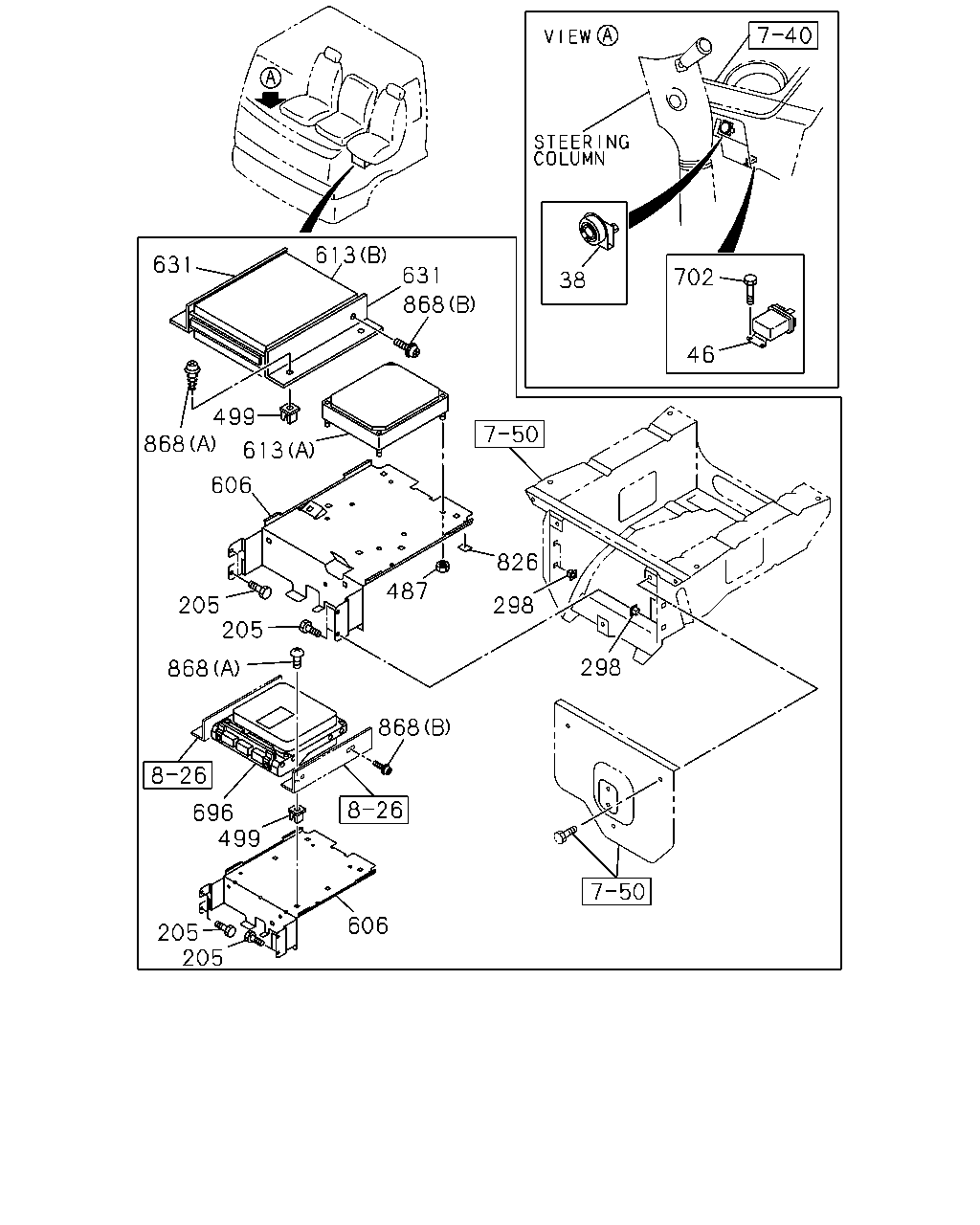

çizim 73534
613 631 631 702 38 868 46 499 868 613 606 826 487 205 205 298 298 868 868 696 499 205 205 606
BalonParca AdiParca NoAdetTipApplied Date A B C D E
38 RESISTOR; CONT,GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) 		1-81402-008-0 01 1 9510-9802 ● ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 9510-9802 ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 9803-0004 ● ● ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 0005-0012 ● ● ● ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 0101-0405 ● ● ●
38 RESISTOR; CONT,GLOW PLUG
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-81402-008-0 01 1 0101-0405 ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 0406- ● ●
38 RESISTOR; CONT,GLOW PLUG
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-81402-008-0 01 1 0406- ● ● ●
46 RELAY; GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) 		8-94258-014-0 01 1 9510-9802 ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 9510-9802 ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 9803-0004 ● ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 0005-0405 ● ● ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 0406- ● ● ● ● ●
205 SCREW; BRKT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 9611-9802 ●
205 SCREW; BRKT
A/T<X9D> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 9803-9804 ●
205 SCREW; BRKT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 9803-9804 ●
205 SCREW; BRKT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 9805-0012 ●
205 SCREW; BRKT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0101-0405 ● ●
205 SCREW; BRKT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0406- ● ● ●
298 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 9611-9802 ●
298 GROMMET; SCREW
A/T<X9D> D=9.7X9.7 L=8 		8-94222-314-0 04 1 9803-9804 ●
298 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 9803-9804 ●
298 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 9805-0012 ●
298 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0101-0405 ● ●
298 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0406- ● ● ●
487 NUT
M6 FLANGE 		0-91150-106-0 04 1 9611-0602 ●
487 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603- ●
499 GROMMET
EXC. EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8 		8-94222-314-0 04 1 0101-0405 ●
499 GROMMET
EXC. EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8 		8-94222-314-0 04 1 0406- ●
499 GROMMET
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0406- ●
606 BRACKET; CONT UNIT
A/T<X9D> 		1-75557-465-2 01 1 9803-9804 ●
606 BRACKET; CONT UNIT 1-75558-534-9 01 1 9611- ●
606 BRACKET; CONT UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-75558-552-9 01 1 0101-0405 ●
606 BRACKET; CONT UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-75558-552-9 01 1 0406- ●
606 BRACKET; CONT UNIT 1-75558-552-9 01 1 0406- ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> (A) 		8-94392-232-2 01 1 9911-0004 ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> (A) 		8-94392-232-2 01 1 0005- ●
613 CONTROL UNIT; ENG
(A) 		1-80110-102-0 01 1 9610-9612 ●
613 CONTROL UNIT; ENG
(A) 		1-80110-133-0 01 1 9701-9701 ●
613 CONTROL UNIT; ENG
(A) 		1-80110-179-0 01 1 9702-0004 ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> (A) 		1-80110-179-0 01 1 0005- ●
613 CONTROL UNIT; ENG
NEW ZEALAND EQUIPMENT(PK5) (B) 		8-97600-397-1 01 1 0101- ●
631 BRACKET; CONT UNIT "TICS"
EXC. EURO2 SPECIFICATION<THN> 		1-75558-579-1 02 1 0101- ●
696 CONTROL UNIT 8-94392-865-1 01 1 0406- ●
702 BOLT; RELAY
EXC. THAILAND EQUIPMENT(PM9) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9510-9802 ● ●
702 BOLT; RELAY
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9510-9802 ●
702 BOLT; RELAY
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9803-0004 ● ● ●
702 BOLT; RELAY
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0005- ● ● ● ●
826 SEAL; NOISE INSULATION
30X30 		8-97866-626-0 03 1 9611-9802 ●
826 SEAL; NOISE INSULATION
A/T<X9D> 30X30 		8-97866-626-0 03 1 9803-9804 ●
826 SEAL; NOISE INSULATION
30X30 		8-97866-626-0 03 1 9803-9804 ●
826 SEAL; NOISE INSULATION
30X30 		8-97866-626-0 03 1 9805-0012 ●
826 SEAL; NOISE INSULATION
30X30 		8-97866-626-0 03 1 0101-0309 ● ●
826 SEAL; NOISE INSULATION
30X30 		1-74998-128-1 03 1 0310-0405 ● ●
826 SEAL; NOISE INSULATION
30X30 		1-74998-128-1 03 1 0406-0908 ● ● ●
826 SEAL; NOISE INSULATION
30X30 		8-98142-344-0 03 1 0909- ● ● ●
868 SCREW
EXC. EURO2 SPECIFICATION<THN> (A) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0101-0405 ●
868 SCREW
EXC. EURO2 SPECIFICATION<THN> (A) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0406- ●
868 SCREW
(A) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0406- ●
868 SCREW
EXC. EURO2 SPECIFICATION<THN> (B) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0101-0405 ●
868 SCREW
EXC. EURO2 SPECIFICATION<THN> (B) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0406-0604 ●
868 SCREW
(B) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0406-0604 ●
868 SCREW
EXC. EURO2 SPECIFICATION<THN> (B) M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0605- ●
868 SCREW
(B) M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0605- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
