0-52 — OIL AND VACUUM PIPING; ENGINE (#64202) — 421 parça

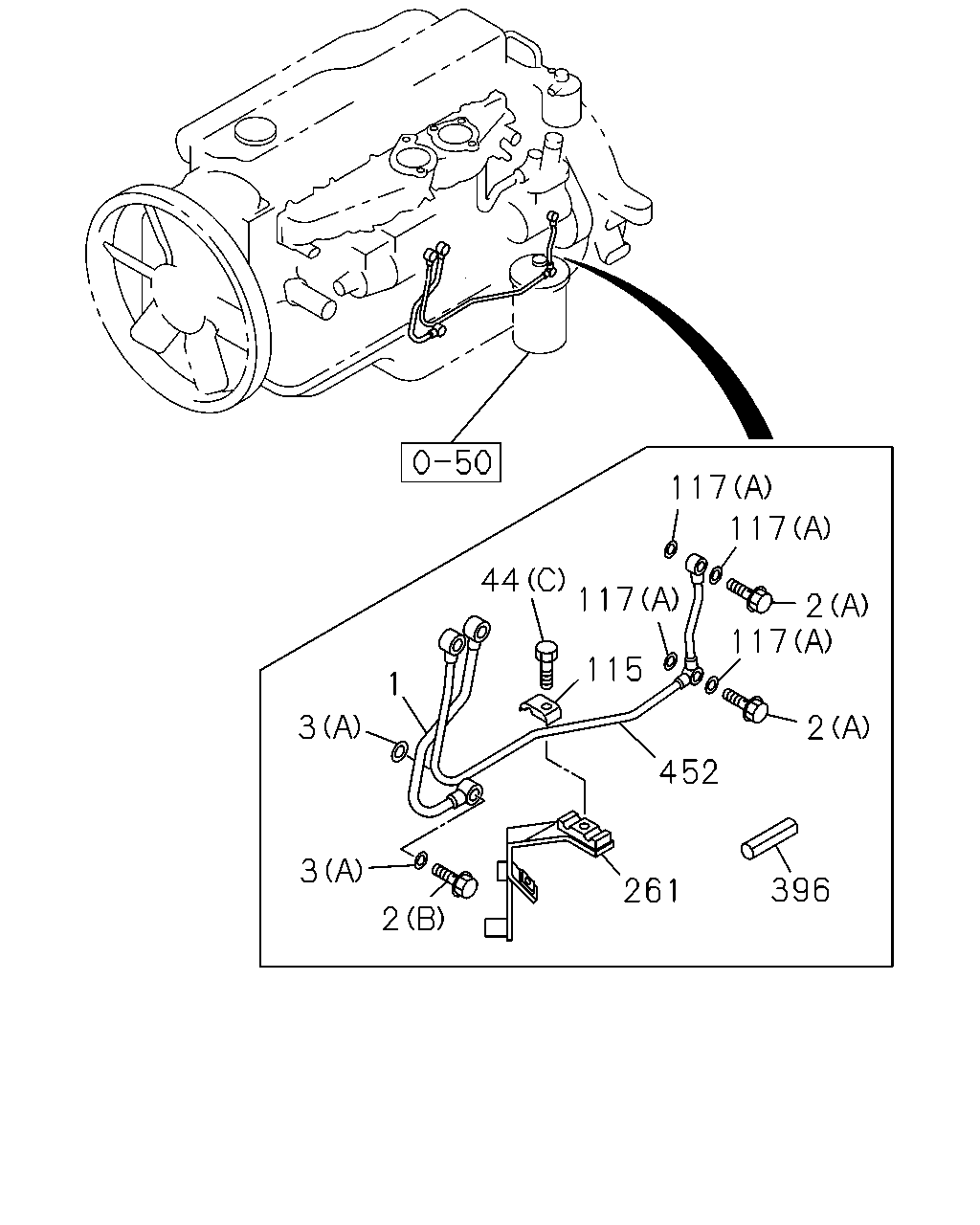

çizim 64393
117 117 44 117 2 117 115 1 3 2 452 3 396 261 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PIPE; OIL,INJ PUMP TO C/BL 8-94390-823-0 01 1 0406- ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 0005-0010 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94392-964-0 01 1 0011- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9510-9910 ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. EURO2 SPECIFICATION<THN> 		8-94394-276-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 0005- ● ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 9610- ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 0406- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9802 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9510-9802 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9803-0004 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0405 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0406-0805 ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9803-9910 ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0005-0405 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0406- ● ● ● ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 9610-0004 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 03 1 0005-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0005- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0406-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9510-9910 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN>. (A) ID=12.2 		1-09630-084-0 02 1 9911-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9911-0004 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0005-0405 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0406-1312 ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 02 1 1401- ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9610-9802 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9610-9802 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9803- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9803-0405 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8 		1-09623-274-0 01 1 0406- ●
44 BOLT; CLIP,OIL PIPE
(D) M6X35 FLANGE 		0-28680-635-0 01 1 0406-0512 ●
44 BOLT; CLIP,OIL PIPE
(D) M6X35 FLANGE 		0-28650-635-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9510-9910 ● ●
44 BOLT; CLIP,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE 		0-28080-622-0 01 1 9911-0004 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9911-0004 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 0005-0605 ● ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 0606- ● ● ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9610-9802 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9610-9802 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9803-0512 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9803-0512 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9510-9910 ● ●
115 CLIP; PIPE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-09701-091-0 01 1 9911-0004 ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9911-0004 ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 0005-0605 ● ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 0606- ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 9911-0004 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 0005-0010 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		1-09630-084-0 01 1 0011-1312 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		8-98251-344-0 01 1 1401- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9510-0004 ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0005-0405 ● ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0406- ● ● ● ● ●
261 BRACKET; CLIP,OIL PIPE 8-94394-410-3 01 1 9510-9910 ● ●
261 BRACKET; CLIP,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> 		8-94394-410-3 01 1 9911-0004 ●
261 BRACKET; CLIP,OIL PIPE 8-94394-410-3 01 1 9911-0004 ●
261 BRACKET; CLIP,OIL PIPE 8-94394-410-3 01 1 0005- ● ●
396 SLEEVE; RUBBER,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30 		9-09956-682-0 01 1 0002-0004 ●
396 SLEEVE; RUBBER,OIL PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0002-0004 ●
396 SLEEVE; RUBBER,OIL PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0005- ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-570-0 01 1 0406- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 0005-0010 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-571-0 01 1 0011- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94390-073-0 01 1 9510-9906 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 9907-9910 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> EXC. EURO2 SPECIFICATION<THN> 		8-97600-569-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 0005- ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94395-595-1 01 1 9510-9906 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-97600-573-0 01 1 9907- ● ●

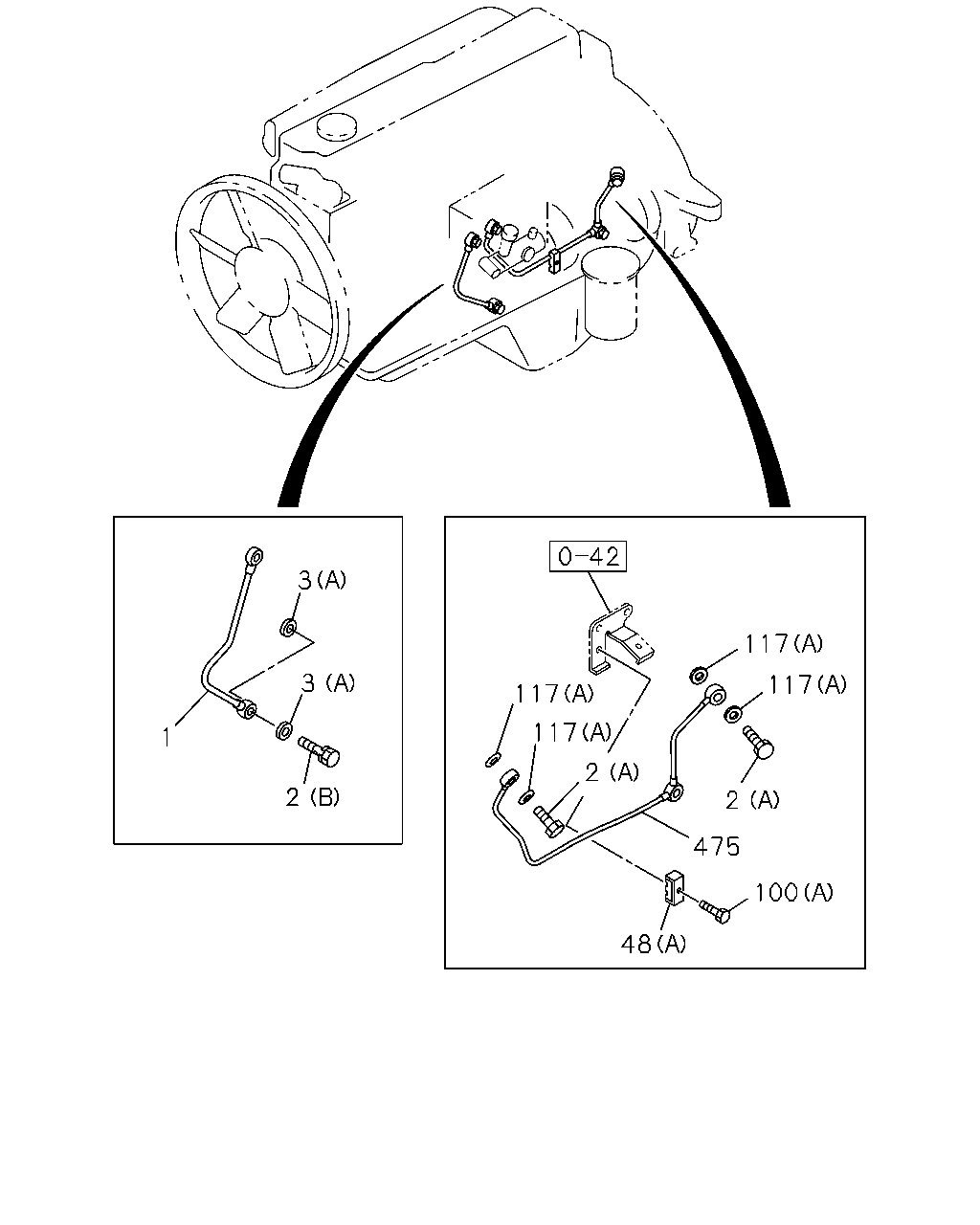

çizim 64575
3 117 3 117 117 117 1 2 2 2 475 100 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PIPE; OIL,INJ PUMP TO C/BL 8-94390-823-0 01 1 0406- ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 0005-0010 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94392-964-0 01 1 0011- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9510-9910 ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. EURO2 SPECIFICATION<THN> 		8-94394-276-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 0005- ● ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 9610- ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 0406- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9802 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9510-9802 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9803-0004 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0405 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0406-0805 ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9803-9910 ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0005-0405 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0406- ● ● ● ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 9610-0004 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 03 1 0005-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0005- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0406-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9510-9910 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN>. (A) ID=12.2 		1-09630-084-0 02 1 9911-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9911-0004 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0005-0405 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0406-1312 ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 02 1 1401- ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9610-9802 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9610-9802 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9803- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9803-0405 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8 		1-09623-274-0 01 1 0406- ●
48 CLIP; OIL PIPE
(C) ID=7 & 9 L=25 		1-09701-228-3 01 1 0406- ●
48 CLIP; OIL PIPE
(D) ID=7 & 9 L=25 		1-09701-229-2 01 1 0406- ●
48 CLIP; OIL PIPE
(A) 		1-09701-091-0 01 1 9610-9802 ●
48 CLIP; OIL PIPE
(B) 		8-94395-170-0 01 1 9610- ●
48 CLIP; OIL PIPE
(A) 		1-09701-091-0 01 1 9803- ●
100 BOLT; CLIP
(B) M6X16 FLANGE 		0-28080-616-0 01 1 9610-9802 ●
100 BOLT; CLIP
(A) M6X22 FLANGE 		0-28080-622-0 01 1 9610- ●
100 BOLT; CLIP
(B) M6X16 FLANGE 		0-28080-616-0 01 1 9803-0512 ●
100 BOLT; CLIP
(B) M6X16 FLANGE 		0-28050-616-0 01 1 0601- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 9911-0004 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 0005-0010 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		1-09630-084-0 01 1 0011-1312 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		8-98251-344-0 01 1 1401- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9510-0004 ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0005-0405 ● ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0406- ● ● ● ● ●
475 PIPE; OIL,OIL FILTER TO INJ PUMP 8-94390-488-0 01 1 9610-9906 ●
475 PIPE; OIL,OIL FILTER TO INJ PUMP 8-97600-567-1 01 1 9907- ●

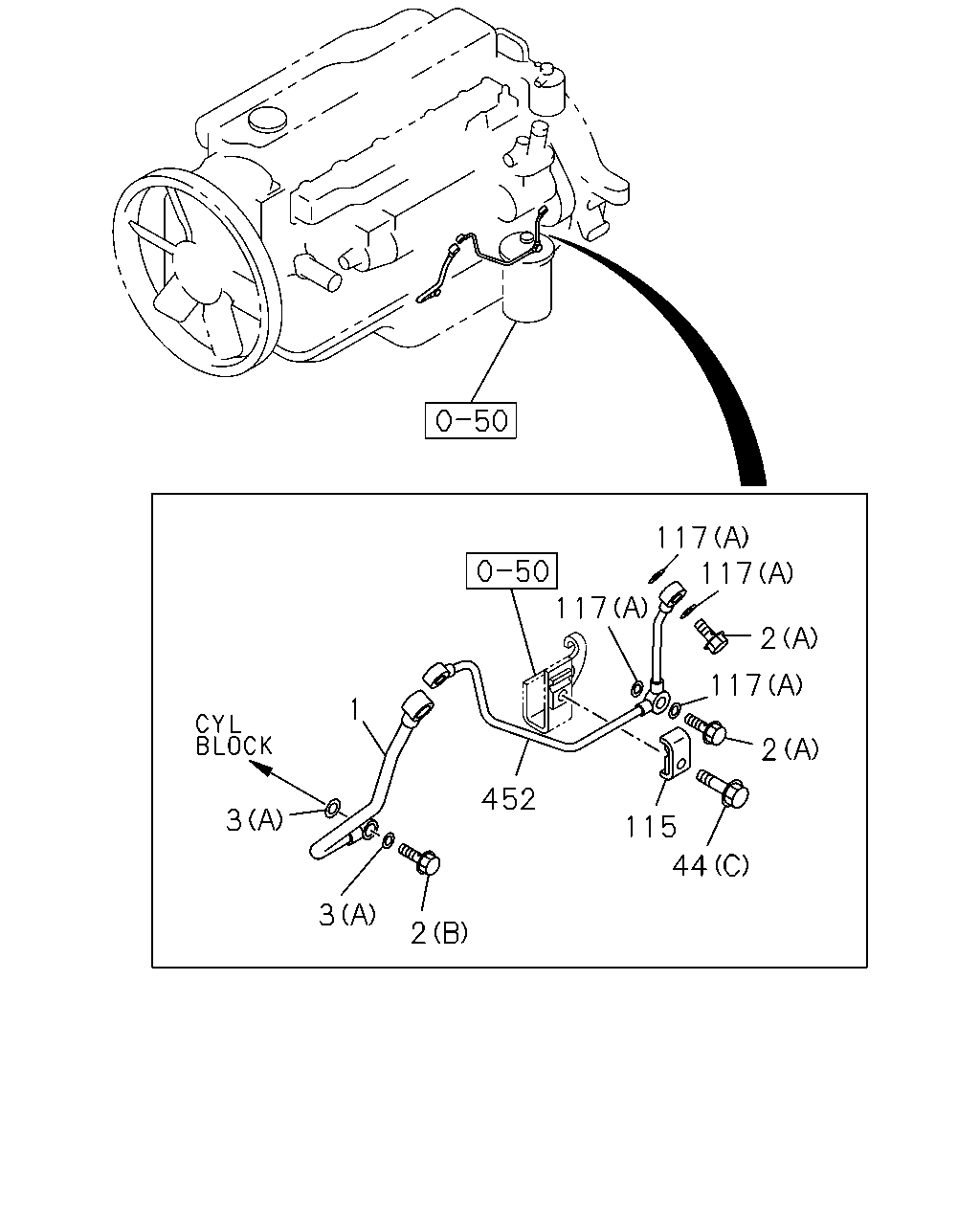

çizim 64632
117 117 117 2 117 1 2 452 3 115 44 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PIPE; OIL,INJ PUMP TO C/BL 8-94390-823-0 01 1 0406- ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 0005-0010 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94392-964-0 01 1 0011- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9510-9910 ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. EURO2 SPECIFICATION<THN> 		8-94394-276-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 0005- ● ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 9610- ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 0406- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9802 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9510-9802 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9803-0004 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0405 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0406-0805 ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9803-9910 ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0005-0405 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0406- ● ● ● ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 9610-0004 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 03 1 0005-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0005- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0406-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9510-9910 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN>. (A) ID=12.2 		1-09630-084-0 02 1 9911-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9911-0004 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0005-0405 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0406-1312 ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 02 1 1401- ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9610-9802 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9610-9802 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9803- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9803-0405 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8 		1-09623-274-0 01 1 0406- ●
44 BOLT; CLIP,OIL PIPE
(D) M6X35 FLANGE 		0-28680-635-0 01 1 0406-0512 ●
44 BOLT; CLIP,OIL PIPE
(D) M6X35 FLANGE 		0-28650-635-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9510-9910 ● ●
44 BOLT; CLIP,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE 		0-28080-622-0 01 1 9911-0004 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9911-0004 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 0005-0605 ● ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 0606- ● ● ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9610-9802 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9610-9802 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9803-0512 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9803-0512 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9510-9910 ● ●
115 CLIP; PIPE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-09701-091-0 01 1 9911-0004 ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9911-0004 ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 0005-0605 ● ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 0606- ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 9911-0004 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 0005-0010 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		1-09630-084-0 01 1 0011-1312 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		8-98251-344-0 01 1 1401- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9510-0004 ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0005-0405 ● ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0406- ● ● ● ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-570-0 01 1 0406- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 0005-0010 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-571-0 01 1 0011- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94390-073-0 01 1 9510-9906 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 9907-9910 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> EXC. EURO2 SPECIFICATION<THN> 		8-97600-569-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 0005- ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94395-595-1 01 1 9510-9906 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-97600-573-0 01 1 9907- ● ●

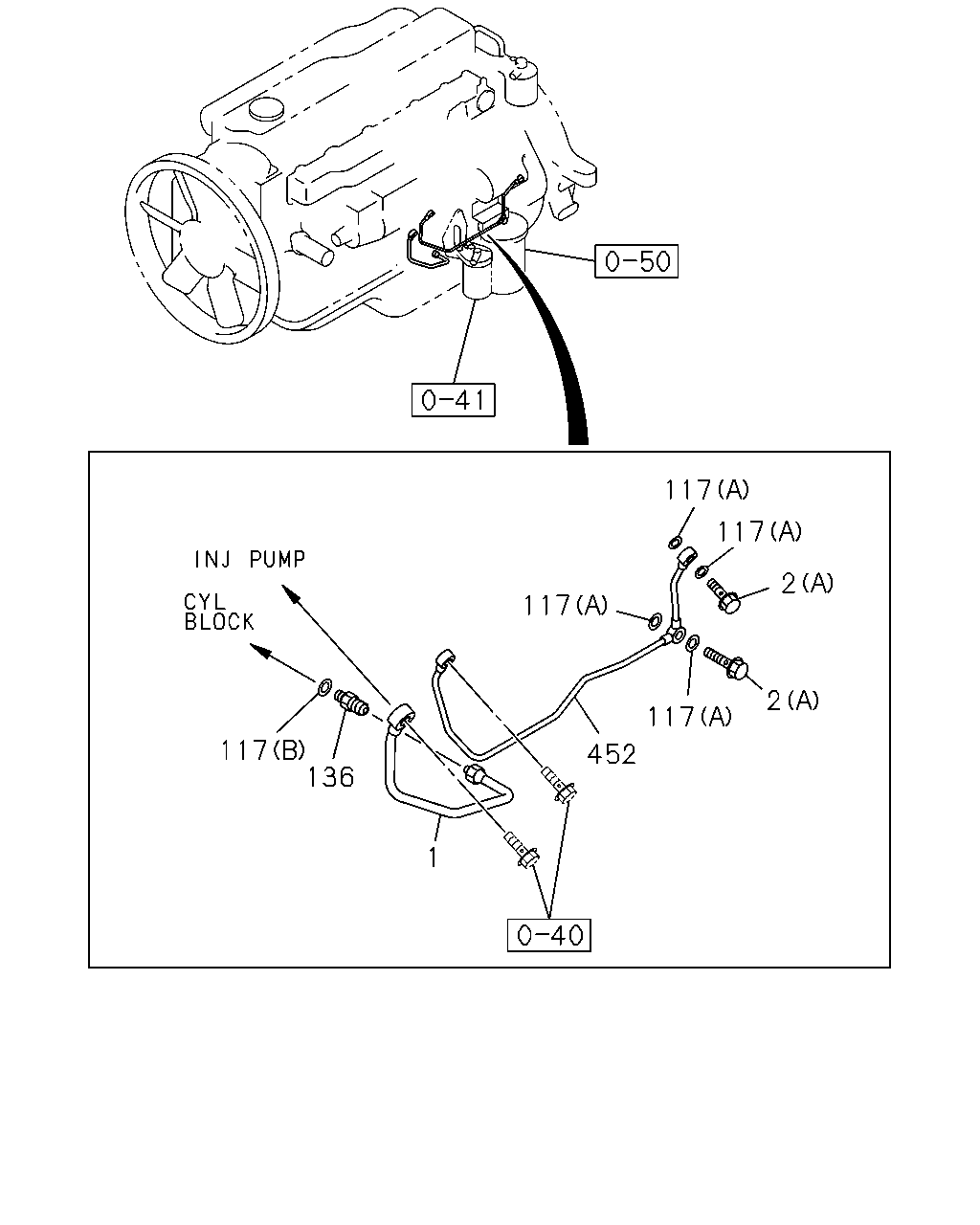

çizim 64763
117 117 2 117 2 117 117 136 452 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PIPE; OIL,INJ PUMP TO C/BL 8-94390-823-0 01 1 0406- ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN> 		8-94392-964-0 01 1 0005-0010 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94392-964-0 01 1 0011- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9510-9910 ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. EURO2 SPECIFICATION<THN> 		8-94394-276-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9911-0004 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 0005- ● ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 9610- ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 0406- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9802 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9510-9802 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9803-0004 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0405 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0406-0805 ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9803-9910 ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0005-0405 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0406- ● ● ● ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 9610-0004 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 03 1 0005-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0005- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 9911-0004 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2 		1-09630-084-0 01 1 0005-0010 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		1-09630-084-0 01 1 0011-1312 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		8-98251-344-0 01 1 1401- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9510-0004 ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0005-0405 ● ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0406- ● ● ● ● ●
136 UNION
EURO2 SPECIFICATION<THN> 		8-94392-422-0 01 1 9911-0004 ●
136 UNION
EURO2 SPECIFICATION<THN> 		8-94392-422-0 01 1 0005-0010 ●
136 UNION 8-94392-422-0 01 1 0011- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-570-0 01 1 0406- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EURO2 SPECIFICATION<THN> 		8-97600-571-0 01 1 0005-0010 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-571-0 01 1 0011- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94390-073-0 01 1 9510-9906 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 9907-9910 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> EXC. EURO2 SPECIFICATION<THN> 		8-97600-569-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 9911-0004 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 0005- ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94395-595-1 01 1 9510-9906 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-97600-573-0 01 1 9907- ● ●

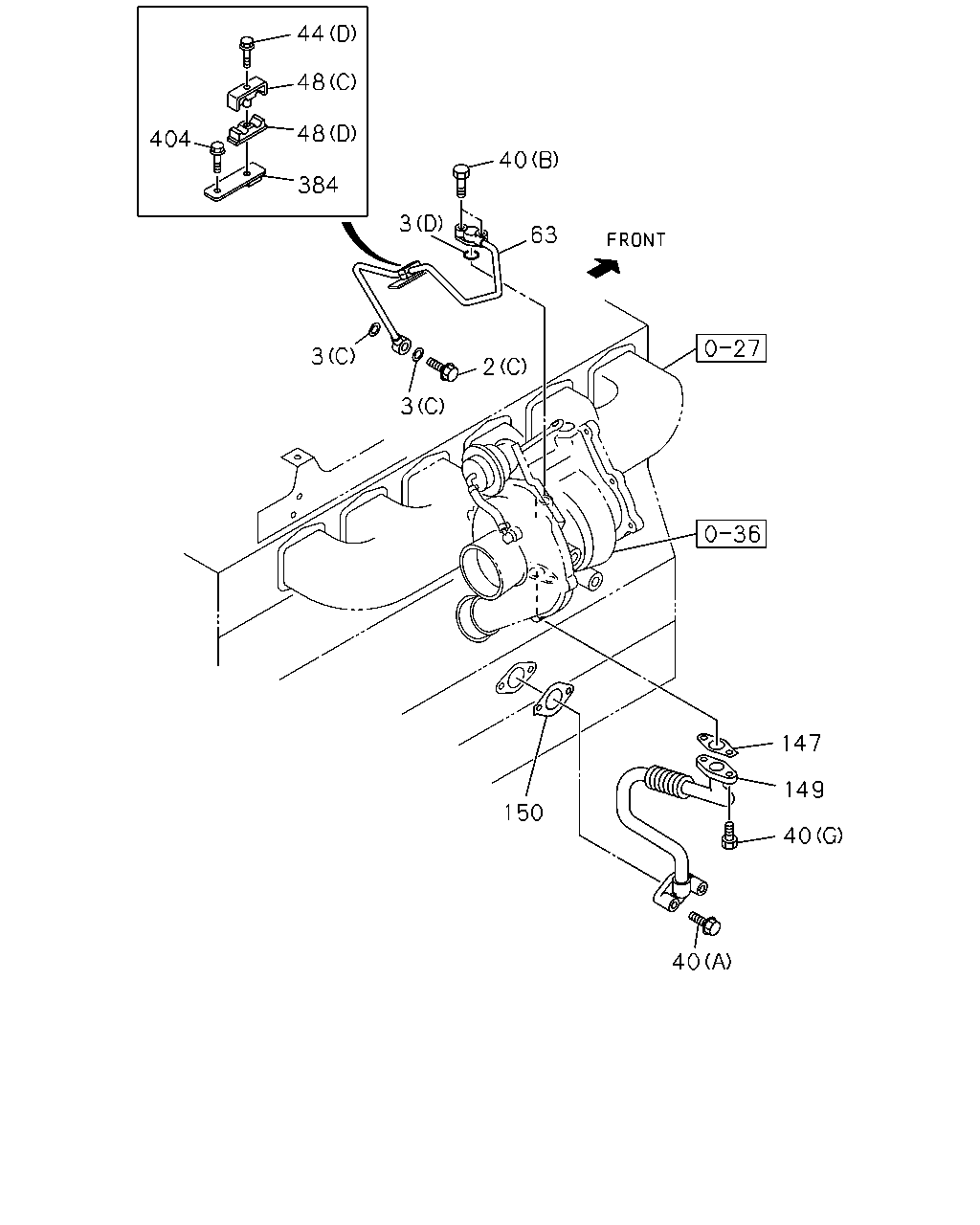

çizim 64931
44 48 48 404 40 384 3 63 3 2 3 147 149 150 40 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 0406- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9802 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9510-9802 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9803-0004 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0405 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0406-0805 ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9803-9910 ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0005-0405 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0406- ● ● ● ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 9610-0004 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 03 1 0005-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0005- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0406-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9510-9910 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN>. (A) ID=12.2 		1-09630-084-0 02 1 9911-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9911-0004 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0005-0405 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0406-1312 ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 02 1 1401- ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9610-9802 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9610-9802 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9803- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9803-0405 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8 		1-09623-274-0 01 1 0406- ●
40 BOLT; OIL PIPE
(G) M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ●
40 BOLT; OIL PIPE
(G) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 9610-9802 ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9610-9802 ●
40 BOLT; OIL PIPE
(F) M10X16 FLANGE 		0-28181-016-0 02 1 9610-9802 ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 9610-9802 ●
40 BOLT; OIL PIPE
(D) M10X21 FLANGE 		1-09675-077-0 01 1 9610-9802 ●
40 BOLT; OIL PIPE
(E) M14X27 FLANGE 		1-09675-086-0 01 1 9610-9802 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 9803-0405 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 0406-0512 ● ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ● ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9803-0405 ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0406-0512 ● ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ● ●
40 BOLT; OIL PIPE
(F) M10X16 FLANGE 		0-28181-016-0 02 1 9803-0512 ●
40 BOLT; OIL PIPE
(F) M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 9803- ●
40 BOLT; OIL PIPE
(D) M10X21 FLANGE 		1-09675-077-0 01 1 9803-0004 ●
40 BOLT; OIL PIPE
(E) M14X27 FLANGE 		1-09675-086-0 01 1 9803-0004 ●
44 BOLT; CLIP,OIL PIPE
(D) M6X35 FLANGE 		0-28680-635-0 01 1 0406-0512 ●
44 BOLT; CLIP,OIL PIPE
(D) M6X35 FLANGE 		0-28650-635-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9510-9910 ● ●
44 BOLT; CLIP,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE 		0-28080-622-0 01 1 9911-0004 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9911-0004 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 0005-0605 ● ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 0606- ● ● ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9610-9802 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9610-9802 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9803-0512 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9803-0512 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
48 CLIP; OIL PIPE
(C) ID=7 & 9 L=25 		1-09701-228-3 01 1 0406- ●
48 CLIP; OIL PIPE
(D) ID=7 & 9 L=25 		1-09701-229-2 01 1 0406- ●
48 CLIP; OIL PIPE
(A) 		1-09701-091-0 01 1 9610-9802 ●
48 CLIP; OIL PIPE
(B) 		8-94395-170-0 01 1 9610- ●
48 CLIP; OIL PIPE
(A) 		1-09701-091-0 01 1 9803- ●
63 PIPE; OIL,TURBOCHARGER FEED 8-97602-629-0 01 1 0406- ●
63 PIPE; OIL,TURBOCHARGER FEED 8-94390-652-0 01 1 9610-9808 ●
63 PIPE; OIL,TURBOCHARGER FEED 8-94392-976-0 01 1 9809- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94390-641-1 01 1 0406- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09637-058-2 01 1 9610- ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94390-643-1 01 1 0406- ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94390-653-0 01 1 9610-9808 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94392-977-0 01 1 9809- ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 9610-0405 ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 0406- ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER 1-13319-041-0 01 1 0406- ●
404 BOLT; BRKT
M8X15 		1-09000-114-0 01 1 0406- ●

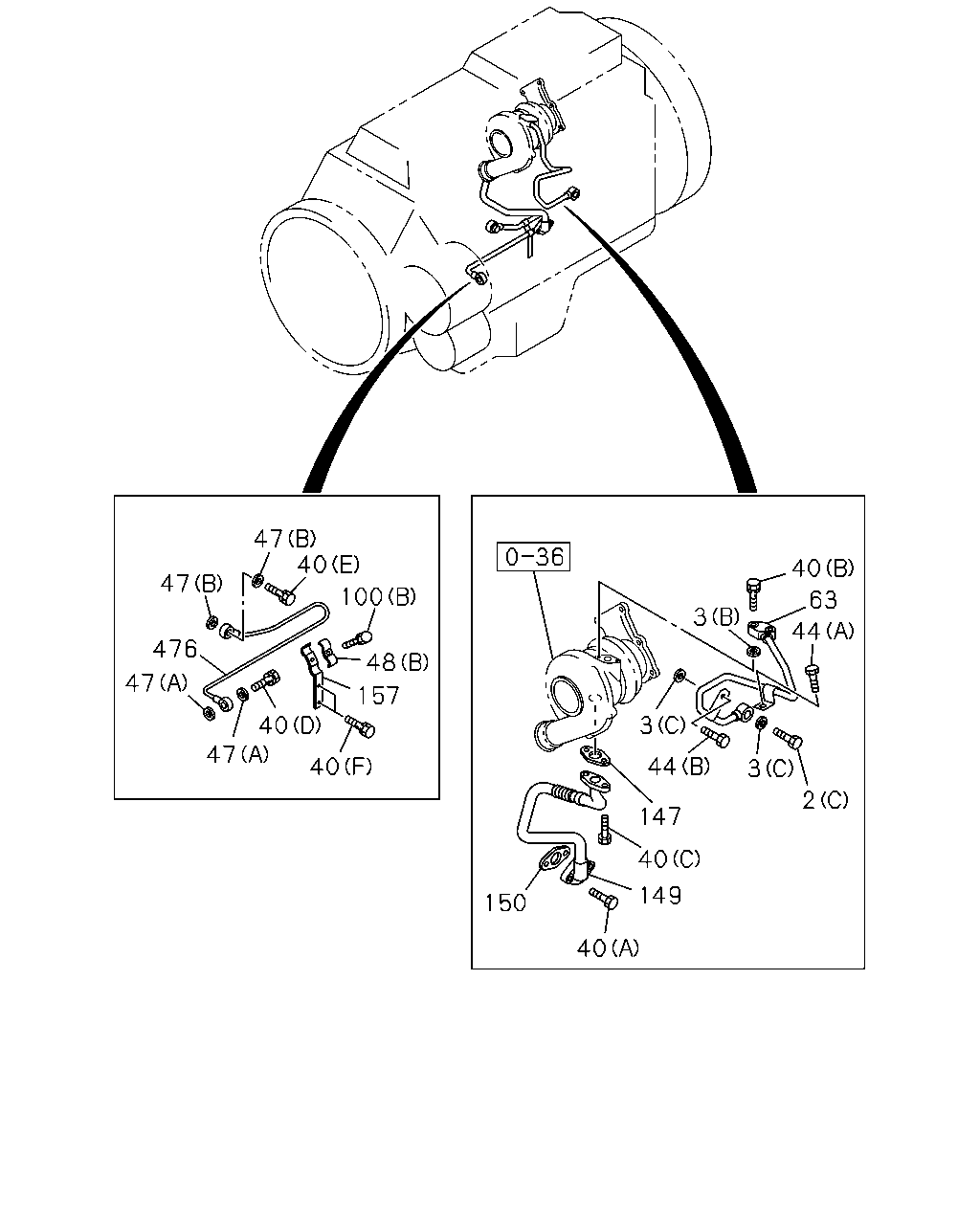

çizim 64996
47 40 40 47 100 63 3 44 476 48 47 157 3 40 47 44 40 3 2 147 40 149 150 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 0406- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-9802 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9510-9802 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9803-0004 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0005-0405 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0406-0805 ● ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9803-9910 ● ● ●
2 BOLT; EYE,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9911-0004 ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0005-0405 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0406- ● ● ● ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 9610-0004 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 03 1 0005-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0005- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0406-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9510-9910 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN>. (A) ID=12.2 		1-09630-084-0 02 1 9911-0004 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9911-0004 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0005-0405 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0406-1312 ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 02 1 1401- ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9610-9802 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9610-9802 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9803- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9803-0405 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8 		1-09623-274-0 01 1 0406- ●
40 BOLT; OIL PIPE
(G) M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ●
40 BOLT; OIL PIPE
(G) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 9610-9802 ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9610-9802 ●
40 BOLT; OIL PIPE
(F) M10X16 FLANGE 		0-28181-016-0 02 1 9610-9802 ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 9610-9802 ●
40 BOLT; OIL PIPE
(D) M10X21 FLANGE 		1-09675-077-0 01 1 9610-9802 ●
40 BOLT; OIL PIPE
(E) M14X27 FLANGE 		1-09675-086-0 01 1 9610-9802 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 9803-0405 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 0406-0512 ● ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ● ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9803-0405 ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0406-0512 ● ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ● ●
40 BOLT; OIL PIPE
(F) M10X16 FLANGE 		0-28181-016-0 02 1 9803-0512 ●
40 BOLT; OIL PIPE
(F) M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 9803- ●
40 BOLT; OIL PIPE
(D) M10X21 FLANGE 		1-09675-077-0 01 1 9803-0004 ●
40 BOLT; OIL PIPE
(E) M14X27 FLANGE 		1-09675-086-0 01 1 9803-0004 ●
44 BOLT; CLIP,OIL PIPE
(D) M6X35 FLANGE 		0-28680-635-0 01 1 0406-0512 ●
44 BOLT; CLIP,OIL PIPE
(D) M6X35 FLANGE 		0-28650-635-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9510-9910 ● ●
44 BOLT; CLIP,OIL PIPE
EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE 		0-28080-622-0 01 1 9911-0004 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 9911-0004 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 0005-0605 ● ●
44 BOLT; CLIP,OIL PIPE
(C) M6X22 FLANGE 		0-28080-622-0 01 1 0606- ● ● ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9610-9802 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9610-9802 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9803-0512 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9803-0512 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9610-9802 ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9610-1312 ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9803- ●
48 CLIP; OIL PIPE
(C) ID=7 & 9 L=25 		1-09701-228-3 01 1 0406- ●
48 CLIP; OIL PIPE
(D) ID=7 & 9 L=25 		1-09701-229-2 01 1 0406- ●
48 CLIP; OIL PIPE
(A) 		1-09701-091-0 01 1 9610-9802 ●
48 CLIP; OIL PIPE
(B) 		8-94395-170-0 01 1 9610- ●
48 CLIP; OIL PIPE
(A) 		1-09701-091-0 01 1 9803- ●
63 PIPE; OIL,TURBOCHARGER FEED 8-97602-629-0 01 1 0406- ●
63 PIPE; OIL,TURBOCHARGER FEED 8-94390-652-0 01 1 9610-9808 ●
63 PIPE; OIL,TURBOCHARGER FEED 8-94392-976-0 01 1 9809- ●
100 BOLT; CLIP
(B) M6X16 FLANGE 		0-28080-616-0 01 1 9610-9802 ●
100 BOLT; CLIP
(A) M6X22 FLANGE 		0-28080-622-0 01 1 9610- ●
100 BOLT; CLIP
(B) M6X16 FLANGE 		0-28080-616-0 01 1 9803-0512 ●
100 BOLT; CLIP
(B) M6X16 FLANGE 		0-28050-616-0 01 1 0601- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94390-641-1 01 1 0406- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09637-058-2 01 1 9610- ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94390-643-1 01 1 0406- ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94390-653-0 01 1 9610-9808 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94392-977-0 01 1 9809- ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 9610-0405 ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 0406- ● ●
157 BRACKET; OIL PIPE 8-94395-168-0 01 1 9610- ●
476 PIPE; OIL,C/BL TO AIR CMPR 8-94394-940-1 01 1 9610- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
