1 |

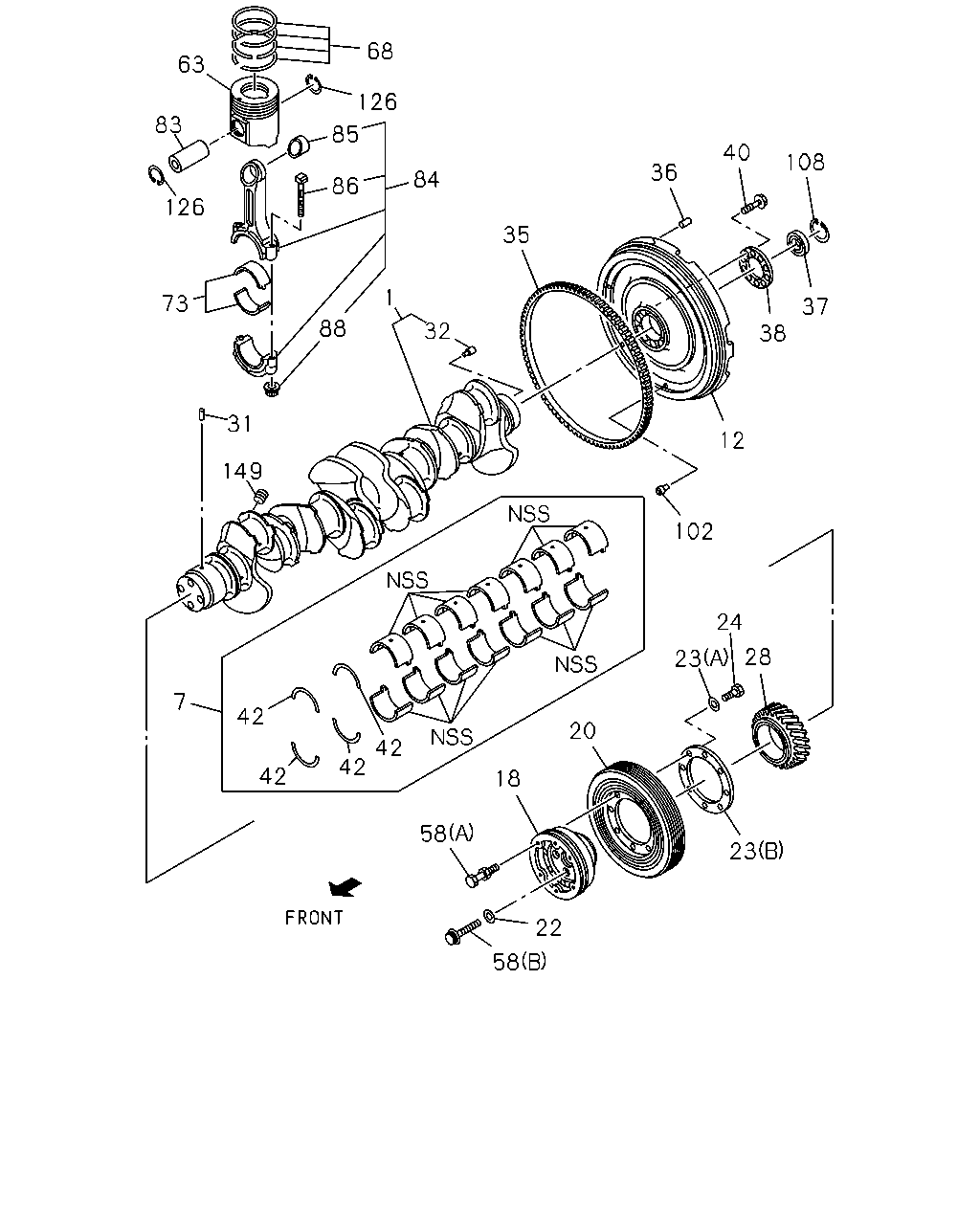

CRANKSHAFT
|
1-12310-625-7 |
01 |
1 |
9601-9610 |
● |
|
|
|
| |
1 |
CRANKSHAFT
|
1-12310-625-9 |
01 |
1 |
9611-9904 |
● |
● |
|
|
| |
1 |
CRANKSHAFT
|
1-12310-625-9 |
01 |
1 |
9905- |
|
● |
● |
● |
| |
7 |
METAL KIT; CRANKSHAFT,STANDARD
|
1-11510-080-0 |
01 |
1 |
9601-9602 |
● |
|
|
|
| |
7 |
METAL KIT; CRANKSHAFT,STANDARD
|
1-11510-093-0 |
01 |
1 |
9603-9610 |
● |
|
|
|
| |
7 |
METAL KIT; CRANKSHAFT,STANDARD
|
1-11510-093-0 |
01 |
1 |
9611-9904 |
● |
● |
|
|
| |
7 |
METAL KIT; CRANKSHAFT,STANDARD
|
1-11510-093-2 |
01 |
1 |
9905- |
|
● |
● |
● |
| |
12 |
FLYWHEEL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)
|
1-12330-417-0 |
01 |
1 |
9601-9902 |
● |
|
|
|
| |
12 |
FLYWHEEL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)
|
1-12330-417-0 |
01 |
1 |
9903-9904 |
|
● |
● |
|
| |
12 |
FLYWHEEL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)
|
1-12330-417-0 |
01 |
1 |
9905- |
|
● |
● |
|
| |
12 |
FLYWHEEL
|
1-12330-417-0 |
01 |
1 |
9905- |
|
|
|
● |
| |
12 |
FLYWHEEL
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)
|
1-12330-400-1 |
01 |
1 |
9601-9705 |
● |
|
|
|
| |
12 |
FLYWHEEL
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),
CLUTCH-15.5" TWIN PLATE SPICER(TEY)
|
1-12330-400-1 |
01 |
1 |
9706-9810 |
● |
|
|
|
| |
12 |
FLYWHEEL
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),
CLUTCH-15.5" TWIN PLATE SPICER(TEY)
|
1-12330-400-1 |
01 |
1 |
9811-9904 |
● |
● |
|
|
| |
12 |
FLYWHEEL
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),
CLUTCH-15.5" TWIN PLATE SPICER(TEY)
|
1-12330-400-1 |
01 |
1 |
9905- |
|
● |
● |
|
| |
12 |
FLYWHEEL
CLUTCH-15.5" TWIN PLATE SPICER(TEY)
|
1-12331-309-1 |
01 |
1 |
9611-9801 |
|
● |
|
|
| |
12 |
FLYWHEEL
CLUTCH-15.5" TWIN PLATE SPICER(TEY)
|
1-12330-480-0 |
01 |
1 |
9802-9904 |
|
● |
|
|
| |
12 |
FLYWHEEL
CLUTCH-15.5" TWIN PLATE SPICER(TEY)
|
1-12330-480-0 |
01 |
1 |
9905- |
|
● |
● |
|
| |
18 |
PULLEY; CR/SHF
1-GROOVE
|
1-12371-420-1 |
01 |
1 |
9601-9610 |
● |
|
|
|
| |
18 |
PULLEY; CR/SHF
1-GROOVE
|
1-12371-420-2 |
01 |
1 |
9611-9904 |
● |
● |
|
|
| |
18 |
PULLEY; CR/SHF
1-GROOVE
|
1-12371-420-2 |
01 |
1 |
9905- |
|
● |
● |
● |
| |
20 |
DAMPER; CR/SHF
|
1-12375-153-0 |
01 |
1 |
9601-9610 |
● |
|
|
|
| |
20 |
DAMPER; CR/SHF
|
1-12375-153-0 |
01 |
1 |
9611-9904 |
● |
● |
|
|
| |
20 |
DAMPER; CR/SHF
|
1-12375-153-0 |
01 |
1 |
9905- |
|
● |
● |
● |
| |
22 |
PLATE; PULLEY
ID=18
|
9-09851-862-0 |
04 |
1 |
9601-9610 |
● |
|
|
|
| |
22 |
PLATE; PULLEY
ID=18
|
9-09851-862-0 |
04 |
1 |
9611-9904 |
● |
● |
|
|
| |
22 |
PLATE; PULLEY
ID=18
|
9-09851-862-0 |
04 |
1 |
9905- |
|
● |
● |
● |
| |
23 |
WASHER; DAMPER
(A)
ID=12.2
|
1-09503-008-0 |
08 |
1 |
9601-9604 |
● |
|
|
|
| |
23 |
WASHER; DAMPER
(B) OD=193 ID=142
|
1-12379-039-0 |
01 |
1 |
9601-9610 |
● |
|
|
|
| |
23 |
WASHER; DAMPER
(B) OD=193 ID=142
|
1-12379-039-0 |
01 |
1 |
9611-9904 |
● |
● |
|
|
| |
23 |
WASHER; DAMPER
(B) OD=193 ID=142
|
1-12379-039-0 |
01 |
1 |
9905- |
|
● |
● |
● |
| |
24 |
BOLT; DAMPER
M12X30
|
9-02361-230-0 |
08 |
1 |
9601-9604 |
● |
|
|
|
| |
24 |
BOLT; DAMPER
M12X30 FLANGE
|
0-28791-230-0 |
08 |
1 |
9605-9610 |
● |
|
|
|
| |
24 |
BOLT; DAMPER
M12X30 FLANGE
|
0-28791-230-0 |
08 |
1 |
9611-9904 |
● |
● |
|
|
| |
24 |
BOLT; DAMPER
M12X30 FLANGE
|
0-28791-230-0 |
08 |
1 |
9905- |
|
● |
● |
● |
| |
28 |
GEAR; CR/SHF
Z=48
|
1-12521-048-5 |
01 |
1 |
9601-9610 |
● |
|
|
|
| |
28 |
GEAR; CR/SHF
Z=48
|
1-12521-048-6 |
01 |
1 |
9611-9904 |
● |
● |
|
|
| |
28 |
GEAR; CR/SHF
Z=48
|
1-12521-048-6 |
01 |
1 |
9905-9910 |
|
● |
● |
● |
| |
28 |
GEAR; CR/SHF
Z=48
|
1-12521-061-1 |
01 |
1 |
9911- |
|
● |
● |
● |
| |
31 |
KEY; FEATHER,CR/SHF
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
9601-9610 |
● |
|
|
|
| |
31 |
KEY; FEATHER,CR/SHF
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
9611-9904 |
● |
● |
|
|
| |
31 |
KEY; FEATHER,CR/SHF
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
9905- |
|
● |
● |
● |
| |
32 |
PIN; FLYWHEEL
OD=8 L=16
|
9-08150-816-0 |
01 |
1 |
9601-9610 |
● |
|
|
|
| |
32 |
PIN; FLYWHEEL
OD=8 L=16
|
9-08150-816-0 |
01 |
1 |
9611-9904 |
● |
● |
|
|
| |
32 |
PIN; FLYWHEEL
OD=8 L=16
|
9-08150-816-0 |
01 |
1 |
9905- |
|
● |
● |
● |
| |
35 |
GEAR; RING
Z=139
|
1-12333-013-0 |
01 |
1 |
9601-9610 |
● |
|
|
|
| |
35 |
GEAR; RING
Z=139
|
1-12333-013-0 |
01 |
1 |
9611-9904 |
● |
● |
|
|
| |
35 |
GEAR; RING
Z=139
|
1-12333-013-1 |
01 |
1 |
9905- |
|
● |
● |
● |
| |
36 |
PIN; FLYWHEEL
OD=10 L=22
|
9-08151-022-0 |
02 |
1 |
9601-9610 |
● |
|
|
|
| |
36 |
PIN; FLYWHEEL
OD=10 L=22
|
9-08151-022-0 |
02 |
1 |
9611-9904 |
● |
● |
|
|
| |
36 |
PIN; FLYWHEEL
OD=10 L=22
|
9-08151-022-0 |
02 |
1 |
9905- |
|
● |
● |
● |
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
|
1-09800-257-0 |
01 |
1 |
9601-9610 |
● |
|
|
|
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
|
1-09800-257-0 |
01 |
1 |
9611-9904 |
● |
● |
|
|
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
|
1-09800-257-0 |
01 |
1 |
9905- |
|
● |
● |
● |
| |
38 |
WASHER; FLYWHEEL
|
1-12336-011-0 |
01 |
1 |
9601-9610 |
● |
|
|
|
| |
38 |
WASHER; FLYWHEEL
|
1-12336-011-0 |
01 |
1 |
9611-9904 |
● |
● |
|
|
| |
38 |
WASHER; FLYWHEEL
|
1-12336-011-0 |
01 |
1 |
9905- |
|
● |
● |
● |
| |
40 |
BOLT; FLYWHEEL
|
1-09070-017-1 |
10 |
1 |
9601-9610 |
● |
|
|
|
| |
40 |
BOLT; FLYWHEEL
|
1-09070-017-1 |
10 |
1 |
9611-9904 |
● |
● |
|
|
| |
40 |
BOLT; FLYWHEEL
|
1-09070-017-1 |
10 |
1 |
9905- |
|
● |
● |
● |
| |
42 |
WASHER; THRUST,CR/SHF
|
1-11599-009-0 |
02 |
1 |
9601-9610 |
● |
|
|
|
| |
42 |
WASHER; THRUST,CR/SHF
|
1-11599-009-0 |
02 |
1 |
9611-9904 |
● |
● |
|
|
| |
42 |
WASHER; THRUST,CR/SHF
|
1-11599-009-0 |
02 |
1 |
9905- |
|
● |
● |
● |
| |
58 |
BOLT; CR/SHF PULLEY
(A)
|
1-09029-073-0 |
06 |
1 |
9601-9610 |
● |
|
|
|
| |
58 |
BOLT; CR/SHF PULLEY
(A)
|
1-09029-073-0 |
06 |
1 |
9611-9904 |
● |
● |
|
|
| |
58 |
BOLT; CR/SHF PULLEY
(A)
|
1-09029-073-0 |
06 |
1 |
9905- |
|
● |
● |
● |
| |
58 |
BOLT; CR/SHF PULLEY
(B)
|
1-09070-017-1 |
04 |
1 |
9601-9610 |
● |
|
|
|
| |
58 |
BOLT; CR/SHF PULLEY
(B)
|
1-09070-017-1 |
04 |
1 |
9611-9904 |
● |
● |
|
|
| |
58 |
BOLT; CR/SHF PULLEY
(B)
|
1-09070-017-1 |
04 |
1 |
9905- |
|
● |
● |
● |
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
GLOW SYSTEM-FAST DIESEL ENGINE<KM6>
NON GRADE
|
1-12111-857-0 |
06 |
1 |
9601-9603 |
● |
|
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>
NON GRADE
|
1-12111-852-0 |
06 |
1 |
9601-9610 |
● |
|
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
HONG KONG EQUIPMENT(PQ1)
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>
NON GRADE
|
1-12111-852-0 |
06 |
1 |
9611-9704 |
● |
|
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
NON GRADE
|
1-12111-852-0 |
06 |
1 |
9611-9704 |
● |
|
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
EXC. EMISSION SYSTEM '90US FEDERAL
REQUIREMENT<TEH>,EURO2 SPECIFICATION<THN>
NON GRADE
|
1-12111-852-0 |
06 |
1 |
9611-9704 |
|
● |
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
HONG KONG EQUIPMENT(PQ1)
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>
NON GRADE
|
1-12111-906-0 |
06 |
1 |
9705-9904 |
● |
|
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
NON GRADE
|
1-12111-906-0 |
06 |
1 |
9705-9904 |
● |
|
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
EXC. EMISSION SYSTEM '90US FEDERAL
REQUIREMENT<TEH>,EURO2 SPECIFICATION<THN>
NON GRADE
|
1-12111-906-0 |
06 |
1 |
9705-9904 |
|
● |
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
NON GRADE
|
1-12111-906-1 |
06 |
1 |
9905- |
|
|
● |
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
HONG KONG EQUIPMENT(PQ1)
EURO2 SPECIFICATION<THN>
NON GRADE
|
1-12111-853-0 |
06 |
1 |
9611-9704 |
● |
|
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
HONG KONG EQUIPMENT(PQ1)
EURO2 SPECIFICATION<THN>
NON GRADE
|
1-12111-908-0 |
06 |
1 |
9705-9904 |
● |
|
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
1-12111-908-1 |
06 |
1 |
9905- |
|
● |
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>
ALSO INCLUDED IN LINER SET.
NON GRADE
|
1-12111-907-1 |
06 |
1 |
9905- |
|
|
● |
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
1-12111-907-1 |
06 |
1 |
9905- |
|
|
|
● |
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
1-12121-127-1 |
06 |
1 |
9601-9607 |
● |
|
|
|
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
1-12121-136-0 |
06 |
1 |
9608-9610 |
● |
|
|
|
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
1-12121-136-0 |
06 |
1 |
9611-9704 |
● |
● |
|
|
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
1-12121-139-0 |
06 |
1 |
9705-9710 |
● |
● |
|
|
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
1-12121-141-0 |
06 |
1 |
9711-9904 |
● |
● |
|
|
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
1-12121-141-0 |
06 |
1 |
9905- |
|
● |
● |
● |
| |
73 |
METAL SET; CONN ROD,STANDARD
|
1-12271-072-0 |
06 |
1 |
9601-9610 |
● |
|
|
|
| |
73 |
METAL SET; CONN ROD,STANDARD
|
1-12271-072-0 |
06 |
1 |
9611-9904 |
● |
● |
|
|
| |
73 |
METAL SET; CONN ROD,STANDARD
|
1-12271-072-1 |
06 |
1 |
9905- |
|
● |
● |
● |
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
1-12211-029-0 |
06 |
1 |
9601-9610 |
● |
|
|
|
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
1-12211-029-0 |
06 |
1 |
9611-9904 |
● |
● |
|
|
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
1-12211-029-1 |
06 |
1 |
9905- |
|
● |
● |
● |
| |
84 |
ROD ASM; CONN
|
1-12230-176-1 |
06 |
1 |
9601-9610 |
● |
|
|
|
| |
84 |
ROD ASM; CONN
|
1-12230-176-2 |
06 |
1 |
9611-9904 |
● |
● |
|
|
| |
84 |
ROD ASM; CONN
|
1-12230-176-2 |
06 |
1 |
9905- |
|
● |
● |
● |
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
1-12251-037-4 |
06 |
1 |
9601-9610 |
● |
|
|
|
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
1-12251-037-4 |
06 |
1 |
9611-9904 |
● |
● |
|
|
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
1-12251-037-4 |
06 |
1 |
9905- |
|
● |
● |
● |
| |
86 |
BOLT; CONNROD
|
1-12235-036-2 |
12 |
1 |
9601-9610 |
● |
|
|
|
| |
86 |
BOLT; CONNROD
|
1-12235-036-3 |
12 |
1 |
9611-9904 |
● |
● |
|
|
| |
86 |
BOLT; CONNROD
|
1-12235-036-3 |
12 |
1 |
9905- |
|
● |
● |
● |
| |
88 |
NUT; CONNROD
|
1-12239-005-1 |
12 |
1 |
9601-9610 |
● |
|
|
|
| |
88 |
NUT; CONNROD
|
1-12239-005-1 |
12 |
1 |
9611-9904 |
● |
● |
|
|
| |
88 |
NUT; CONNROD
|
1-12239-005-1 |
12 |
1 |
9905- |
|
● |
● |
● |
| |
102 |
PIN; TIMING SENSOR
|
1-12339-013-0 |
06 |
1 |
9601-9801 |
● |
|
|
|
| |
102 |
PIN; TIMING SENSOR
|
1-12339-013-0 |
06 |
1 |
9802-9904 |
● |
● |
|
|
| |
102 |
PIN; TIMING SENSOR
|
1-12339-013-0 |
06 |
1 |
9905- |
|
● |
● |
● |
| |
108 |
RING; SNAP,BRG SET
OD=67.2
|
9-09180-163-0 |
01 |
1 |
9601-9610 |
● |
|
|
|
| |
108 |
RING; SNAP,BRG SET
OD=67.2
|
9-09180-163-0 |
01 |
1 |
9611-9904 |
● |
● |
|
|
| |
108 |
RING; SNAP,BRG SET
OD=67.2
|
9-09180-163-0 |
01 |
1 |
9905- |
|
● |
● |
● |
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
1-09587-082-0 |
12 |
1 |
9601-9610 |
● |
|
|
|
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
1-09587-082-0 |
12 |
1 |
9611-9904 |
● |
● |
|
|
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
1-09587-082-0 |
12 |
1 |
9905- |
|
● |
● |
● |
| |
149 |
PLUG
PT1
|
1-09605-021-0 |
06 |
1 |
9601-9610 |
● |
|
|
|
| |
149 |
PLUG
PT1
|
1-09605-021-0 |
06 |
1 |
9611-9904 |
● |
● |
|
|
| |
149 |
PLUG
PT1
|
1-09605-021-0 |
06 |
1 |
9905- |
|
● |
● |
● |
