0-84 — FEED PUMP; INJECTION PUMP (#642) — 69 parça

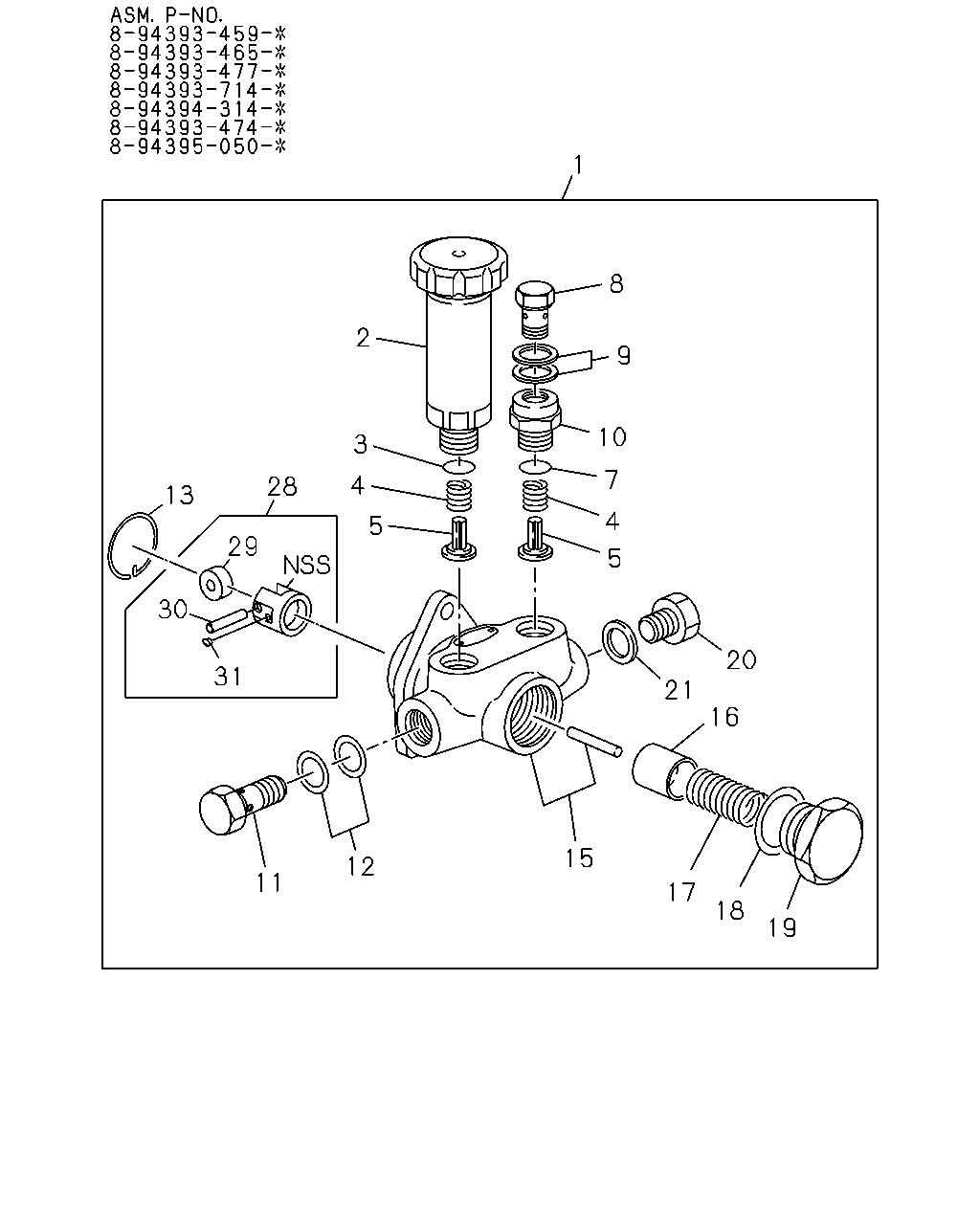

1 8 2 9 10 3 7 4 28 13 4 5 29 5 30 20 31 21 16 15 12 11 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-94393-459-2, E = 8-94393-477-2, H = 8-94394-314-1, I = 8-94395-050-0	1-15750-113-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 8-94393-465-0, D = 8-94393-474-1, G = 8-94393-714-1	1-15750-114-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: F = 8-94393-478-2	1-15750-116-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 8-94393-466-0	1-15750-117-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	9-81351-702-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	9-81351-602-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-19623-016-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15759-011-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15759-012-0	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15759-003-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15759-029-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15759-012-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	9-81355-025-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 8-94393-459-2, E = 8-94393-477-2, H = 8-94394-314-1, I = 8-94395-050-0	1-15751-027-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: F = 8-94393-478-2	1-15751-029-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: C = 8-94393-466-0	1-15751-030-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: B = 8-94393-465-0, D = 8-94393-474-1, G = 8-94393-714-1	8-94472-292-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	9-81351-302-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15759-007-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 8-94393-459-2, E = 8-94393-477-2, F = 8-94393-478-2, H = 8-94394-314-1, I = 8-94395-050-0	1-15754-002-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, G = 8-94393-714-1	5-15754-001-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, E = 8-94393-477-2, F = 8-94393-478-2, H = 8-94394-314-1, I = 8-94395-050-0	1-15759-043-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, G = 8-94393-714-1	9-81351-403-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, E = 8-94393-477-2, F = 8-94393-478-2, H = 8-94394-314-1, I = 8-94395-050-0	9-81351-406-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, G = 8-94393-714-1	9-81351-410-0	01	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, G = 8-94393-714-1	1-15759-002-0	02	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, E = 8-94393-477-2, F = 8-94393-478-2, H = 8-94394-314-1, I = 8-94395-050-0	9-81351-416-0	02	1	-

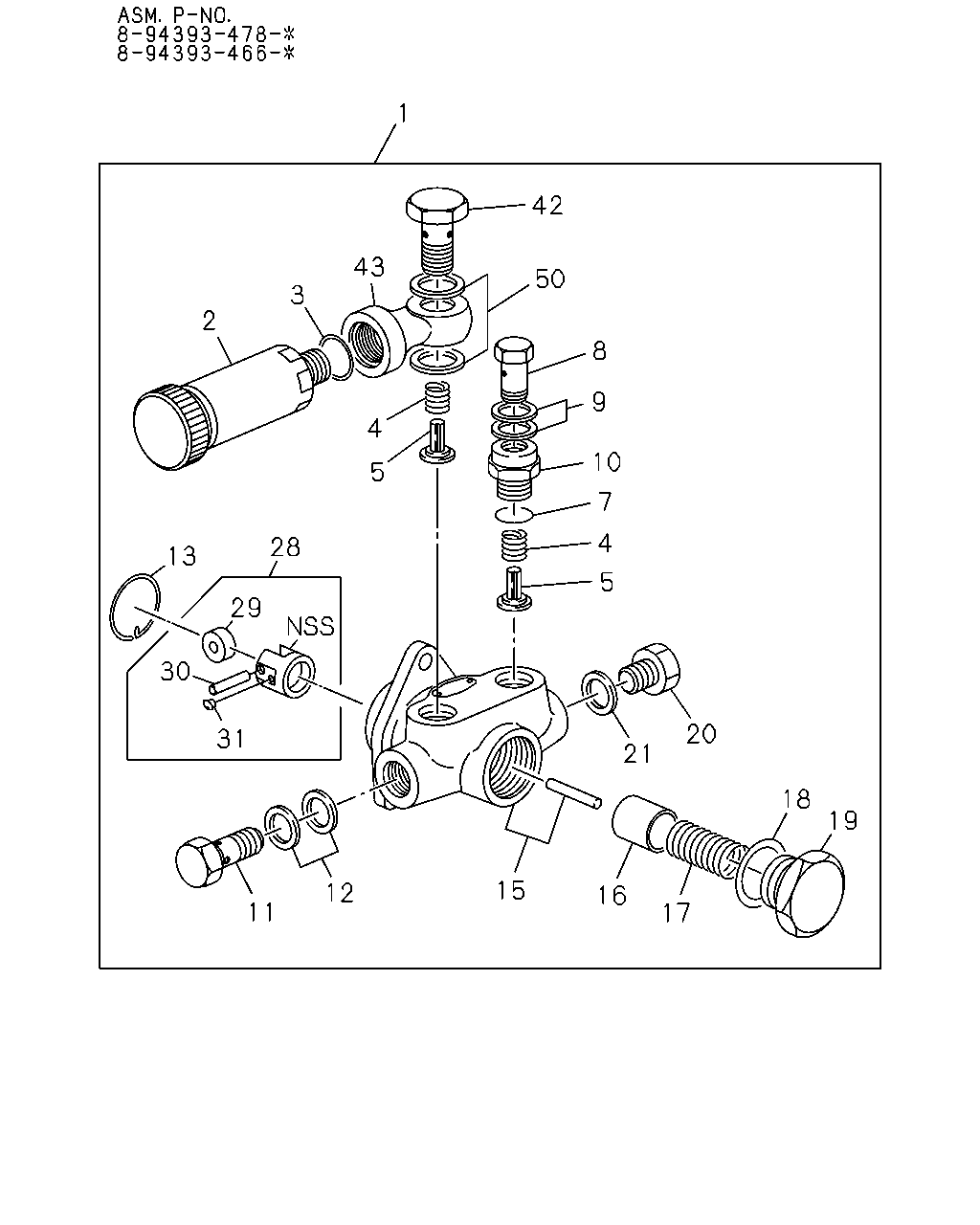

1 42 43 50 3 2 8 9 4 10 5 7 4 28 13 5 29 30 20 31 21 18 19 15 12 16 11 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-94393-459-2, E = 8-94393-477-2, H = 8-94394-314-1, I = 8-94395-050-0	1-15750-113-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 8-94393-465-0, D = 8-94393-474-1, G = 8-94393-714-1	1-15750-114-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: F = 8-94393-478-2	1-15750-116-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 8-94393-466-0	1-15750-117-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	9-81351-702-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	9-81351-602-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-19623-016-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15759-011-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15759-012-0	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15759-003-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15759-029-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15759-012-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	9-81355-025-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 8-94393-459-2, E = 8-94393-477-2, H = 8-94394-314-1, I = 8-94395-050-0	1-15751-027-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: F = 8-94393-478-2	1-15751-029-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: C = 8-94393-466-0	1-15751-030-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: B = 8-94393-465-0, D = 8-94393-474-1, G = 8-94393-714-1	8-94472-292-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	9-81351-302-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, E = 8-94393-477-2, F = 8-94393-478-2, G = 8-94393-714-1, H = 8-94394-314-1, I = 8-94395-050-0	1-15759-007-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 8-94393-459-2, E = 8-94393-477-2, F = 8-94393-478-2, H = 8-94394-314-1, I = 8-94395-050-0	1-15754-002-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, G = 8-94393-714-1	5-15754-001-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, E = 8-94393-477-2, F = 8-94393-478-2, H = 8-94394-314-1, I = 8-94395-050-0	1-15759-043-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, G = 8-94393-714-1	9-81351-403-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, E = 8-94393-477-2, F = 8-94393-478-2, H = 8-94394-314-1, I = 8-94395-050-0	9-81351-406-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, G = 8-94393-714-1	9-81351-410-0	01	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: B = 8-94393-465-0, C = 8-94393-466-0, D = 8-94393-474-1, G = 8-94393-714-1	1-15759-002-0	02	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: A = 8-94393-459-2, E = 8-94393-477-2, F = 8-94393-478-2, H = 8-94394-314-1, I = 8-94395-050-0	9-81351-416-0	02	1	-
42	BOLT; EYE,PRIMING PUMP ASM PART: C = 8-94393-466-0, F = 8-94393-478-2	1-15759-048-0	01	1	-
43	ADAPTER; PRIMING PUMP ASM PART: C = 8-94393-466-0, F = 8-94393-478-2	1-15759-047-0	01	1	-
50	GASKET; EYE BOLT ASM PART: C = 8-94393-466-0, F = 8-94393-478-2	1-15759-049-0	02	1	-
