Sayfa 0-38 - Isuzu EPC

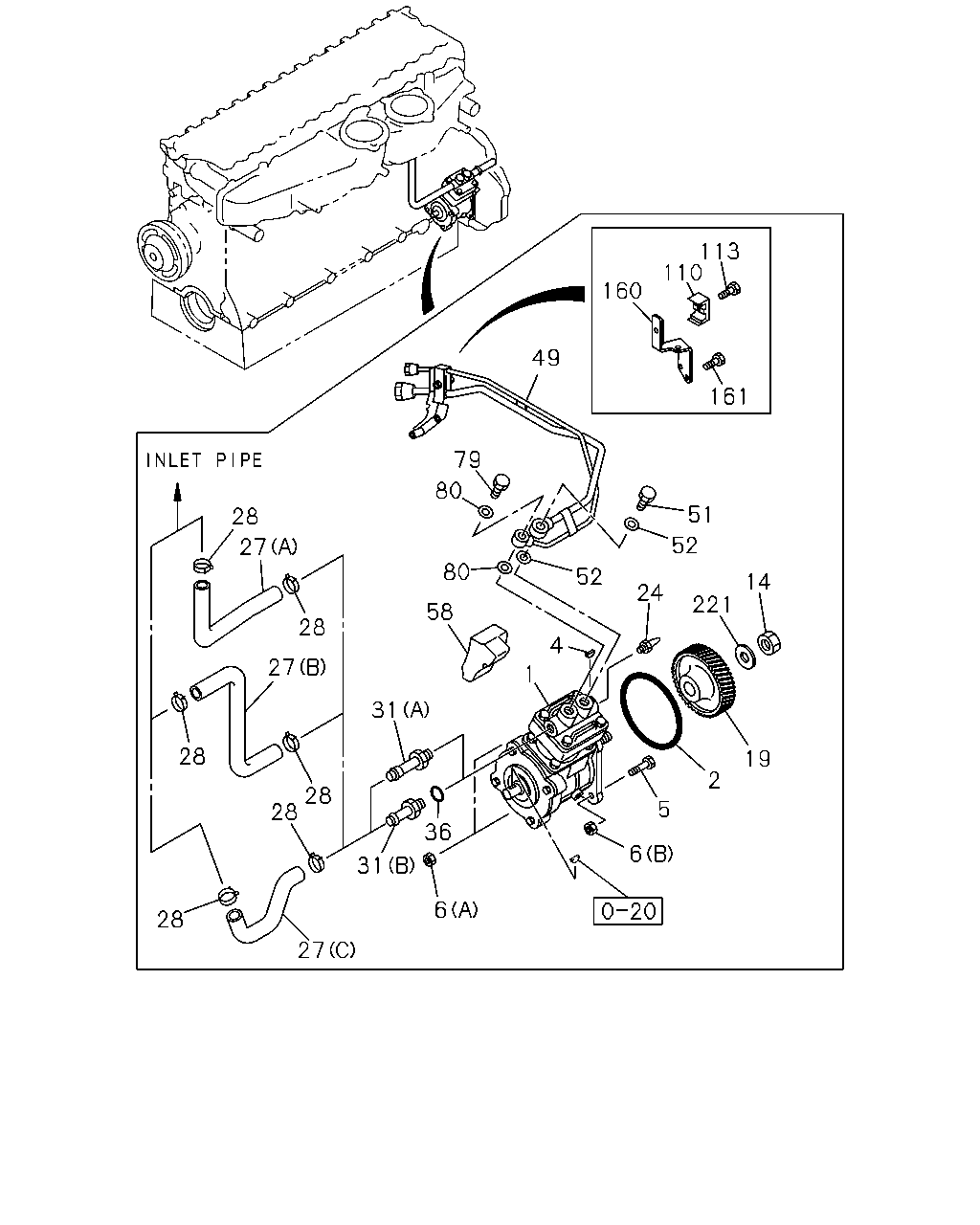

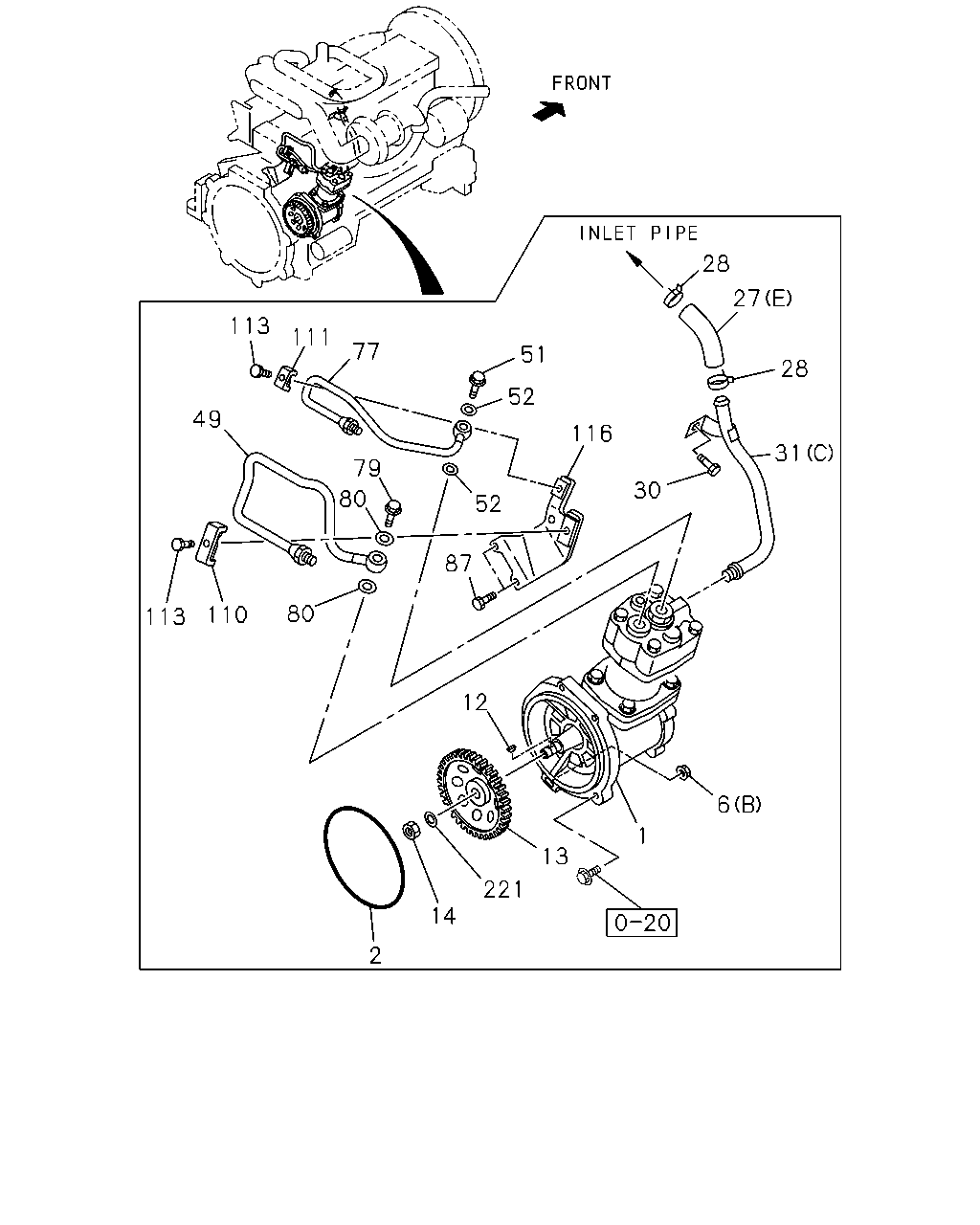

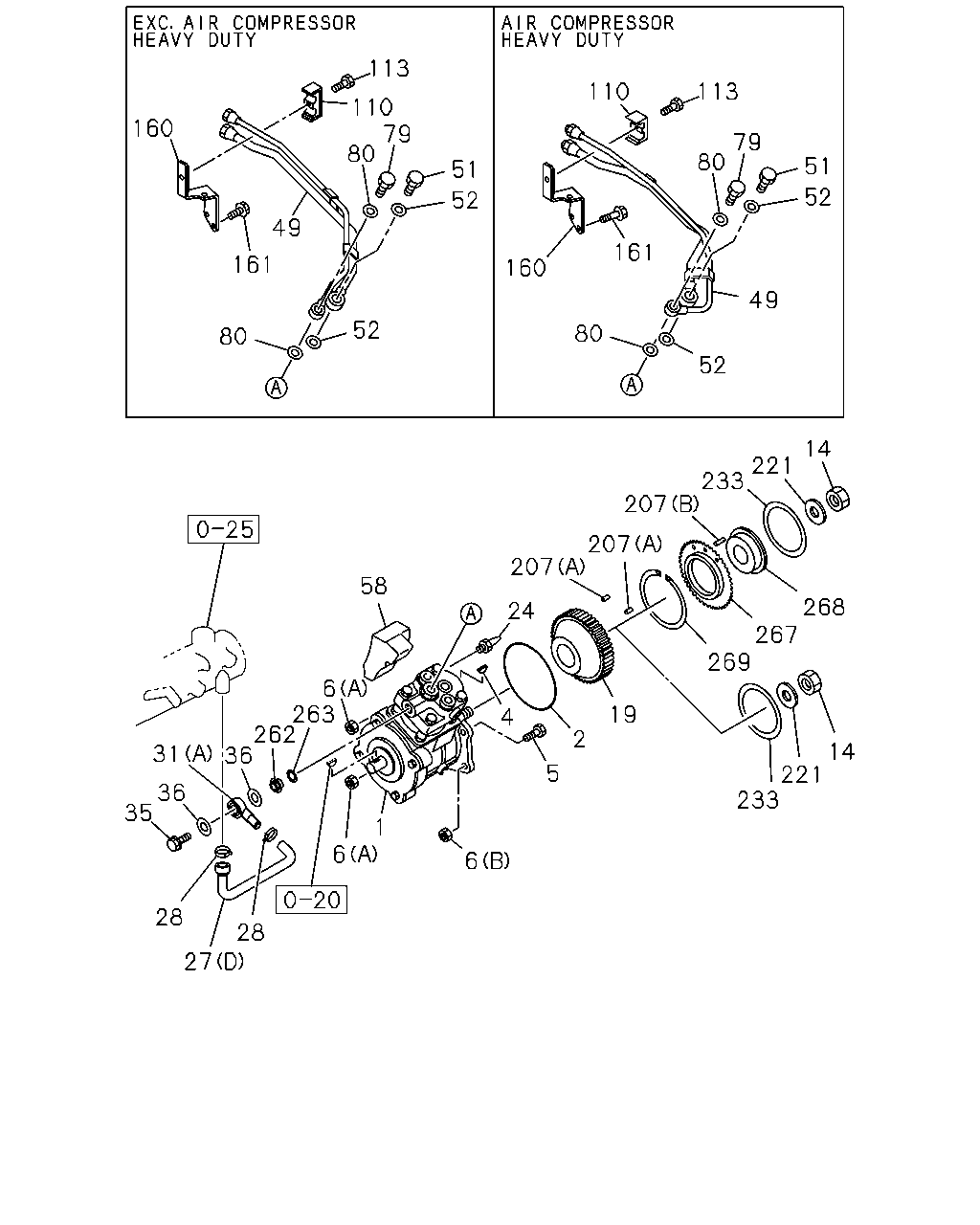

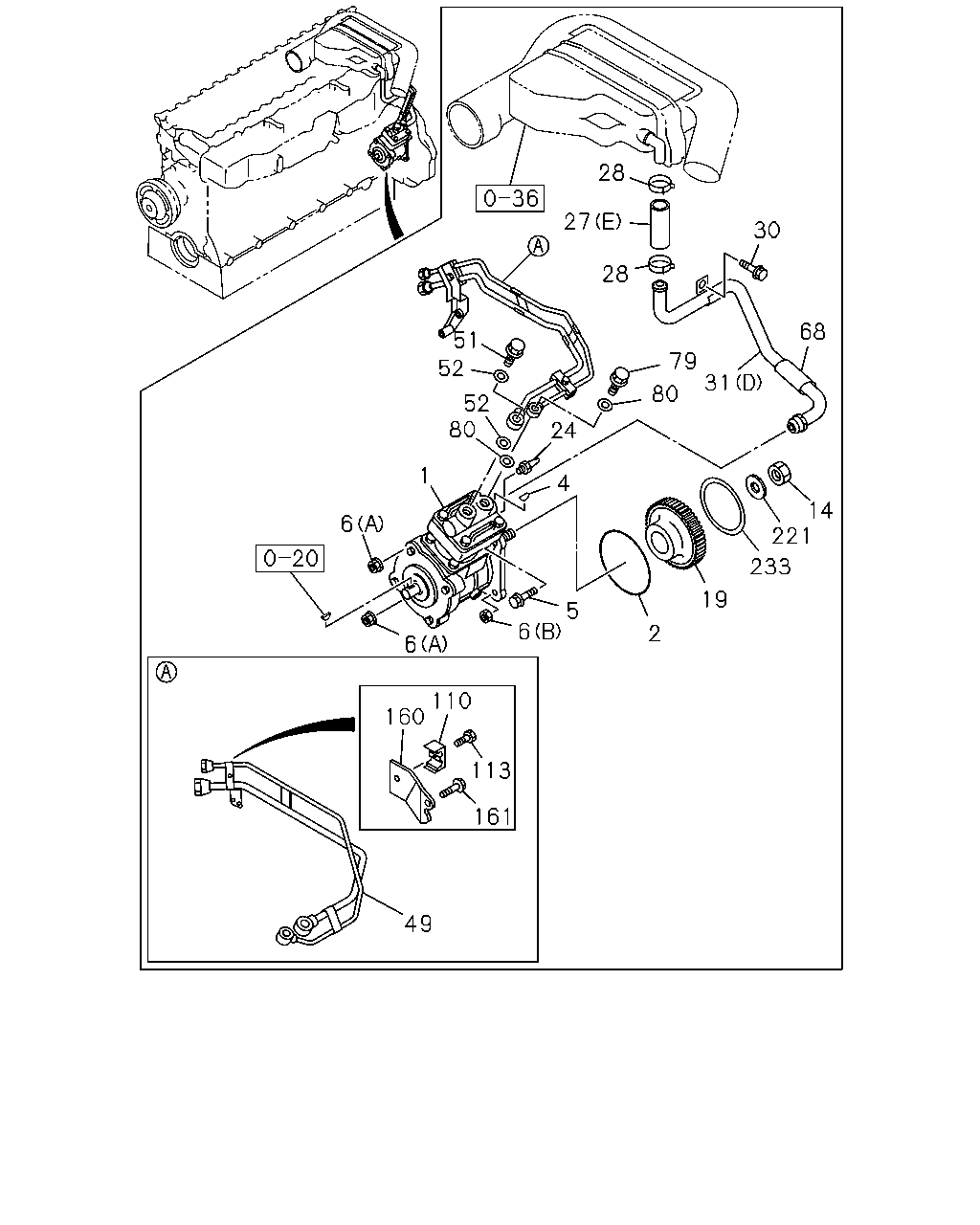

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#64195) — 1057 parça

28 27 113 111 77 51 28 52 49 116 31 79 30 80 52 87 80 110 113 12 6 1 13 221 14 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97600-704-2	01	1	0406-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN>	8-97600-705-0	01	1	9911-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-705-0	01	1	0005-0010			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-705-1	01	1	0011-1107			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-306-0	01	1	1108-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-699-0	01	1	9911-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-699-1	01	1	0005-1107			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-305-0	01	1	1108-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-8	01	1	9510-9808		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN>	8-94396-892-8	01	1	9809-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-8	01	1	9809-0004				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-9	01	1	0005-1107		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-310-1	01	1	1108-		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9510-9910		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN>	8-94396-891-4	01	1	9911-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9911-0004				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0005-1107		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-309-1	01	1	1108-		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	9610-1107					●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202					●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-					●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9510-0004		●		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0405		●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0406-	●	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9610-					●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9510-0004		●		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0405		●	●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0406-0602	●	●	●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9510-0004		●		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0405		●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0406-0602	●	●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-	●	●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-212-0	01	1	9610-0602					●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-212-0	01	1	0603-					●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	9610-					●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	9610-					●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	9-99110-524-0	01	1	9911-0004		●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	9-99110-524-0	01	1	0005-0010			●
14	NUT; GEAR M24	9-99110-524-0	01	1	0011-0405			●
14	NUT; GEAR M24	9-99110-524-0	01	1	0406-0512	●		●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-	●		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9510-9910		●		●	●
14	NUT; GEAR EXC. EURO2 SPECIFICATION<THN> M20	9-99110-520-0	01	1	9911-0004		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9911-0004				●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0512		●		●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-		●		●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (D)	8-94391-030-2	01	1	9911-0004		●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94391-030-2	01	1	0005-0010			●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94391-030-2	01	1	0011-			●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94390-542-2	01	1	9911-0004		●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94390-542-2	01	1	0005-			●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-085-0	01	1	9510-9802		●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) (B)	8-94395-085-0	01	1	9510-9802				●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) (B)	8-94395-085-0	01	1	9803-0004		●		●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-084-0	01	1	9510-9802		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) AUSTRALIA EQUIPMENT(RR3) (C)	8-94394-967-0	01	1	9510-9702		●		●
27	HOSE; AIR CMPR,SUCTION HONG KONG EQUIPMENT(PQ1) (C)	8-94394-967-0	01	1	9510-9702				●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(WQ3) (C)	8-94394-967-0	01	1	9703-9808		●		●
27	HOSE; AIR CMPR,SUCTION HONG KONG EQUIPMENT(PQ1) (C)	8-94394-967-0	01	1	9703-9808				●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> (C)	8-94394-967-0	01	1	9911-0004		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-082-0	01	1	9510-9611		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A)	8-94395-082-0	01	1	9612-9612		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SI NGAPORE EQUIPMENT(WQ3) (A)	8-94395-082-0	01	1	9701-9802		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SING APORE EQUIPMENT(WQ3) (A)	8-94395-082-0	01	1	9803-9910		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),EURO 2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) (A)	8-94395-082-0	01	1	9911-0004		●		●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	0005-		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-809-1	01	1	9510-9611		●		●
27	HOSE; AIR CMPR,SUCTION THAILAND EQUIPMENT(PM9) (C)	8-94394-809-1	01	1	9510-9611		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-809-1	01	1	9612-9702		●		●
27	HOSE; AIR CMPR,SUCTION THAILAND EQUIPMENT(PM9) (C)	8-94394-809-1	01	1	9612-9702		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-809-1	01	1	9703-9910		●		●
27	HOSE; AIR CMPR,SUCTION THAILAND EQUIPMENT(PM9) (C)	8-94394-809-1	01	1	9703-9910		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (C)	8-94394-809-1	01	1	9911-0004		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-083-0	01	1	9510-9802				●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(WQ3) (A)	8-94395-083-0	01	1	9803-0004		●		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-083-0	01	1	0005-		●		●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9703-0405					●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0406-	●				●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=26	1-09707-091-0	01	1	9911-0004		●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=26	1-09707-091-0	01	1	0005-0010			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	01	1	0011-			●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=22.7	8-94466-382-0	01	1	9911-0004		●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=22.7	8-94466-382-0	01	1	0005-0010			●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	01	1	0011-			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9510-9910		●		●	●
28	CLIP; HOSE,AIR CMPR EXC. EURO2 SPECIFICATION<THN> ID=26	1-09707-091-0	02	1	9911-0004		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9911-0004				●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0405		●		●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0406-	●	●		●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9610-0405					●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0406-0512	●				●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-	●				●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-94390-859-1	01	1	0406-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<THN> (A)	8-94390-949-0	01	1	9911-0004		●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<THN> (A)	8-94390-949-0	01	1	0005-0010			●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94390-949-0	01	1	0011-			●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	9510-9808		●		●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A)	8-94399-954-0	01	1	9809-0004		●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94399-954-0	01	1	9809-0004				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	0005-		●		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	9510-9910		●		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (B)	8-94399-942-1	01	1	9911-0004		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	9911-0004				●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	0005-		●		●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94390-405-0	01	1	9610-					●
49	PIPE; AIR,CHARGE	8-97600-184-1	01	1	0406-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN>	8-94392-073-0	01	1	9911-0004		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-073-0	01	1	0005-0010			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-073-0	01	1	0011-			●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-087-0	01	1	9911-0004		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-087-0	01	1	0005-			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	9510-9808		●		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN>	8-94395-087-2	01	1	9809-0004		●
49	PIPE; AIR,CHARGE	8-94395-087-2	01	1	9809-0004				●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	0005-		●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9510-9910		●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN>	8-94390-063-0	01	1	9911-0004		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9911-0004				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-1	01	1	0005-0112		●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94394-275-1	01	1	0201-		●		●
49	PIPE; AIR,CHARGE	8-94395-723-0	01	1	9610-					●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9510-0004		●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9510-0004					●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	0005-0405		●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0405					●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-1	01	1	0406-1404		●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0406-1404	●				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-2	01	1	1405-		●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●				●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9510-9911		●		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> M20X38	1-09675-133-0	01	1	9912-0004		●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9912-0004				●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0005		●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0408		●		●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0408			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-1	01	1	0409-		●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	9510-0004		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9510-0004					●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	0005-0405		●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-0405					●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	0406-		●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0406-	●				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9510-9911		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN>. ID=20.5 OD=28.0	9-09571-420-0	02	1	9912-0004		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	02	1	9912-0004				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0005		●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0408		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0408			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0409-		●	●	●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	9610-					●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9510-0004		●		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9510-0004					●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0005-0405		●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0405					●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0406-		●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0406-	●				●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9510-9911		●		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> M18X33	1-09675-058-0	01	1	9912-0004		●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9912-0004				●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0005		●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0408		●		●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0408			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0409-		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0004		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0004					●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0405		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0405					●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0406-1312		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0406-1312	●				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9510-9911		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9912-0004		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9912-0004				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0005		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0408		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0408			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0409-		●	●	●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28080-816-0	02	1	9610-0512					●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-					●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9510-0004		●		●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0005-0405		●	●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0406-	●	●	●	●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	9610-					●
111	CLIP; AIR PIPE	1-09701-091-0	01	1	9610-					●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9510-9709		●		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9710-0004		●		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0005-0405		●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0406-0512	●	●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●	●	●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9610-9802					●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9610-9709					●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9710-0512					●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-					●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9803-0512					●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28650-620-0	01	1	0601-0611					●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28050-630-0	01	1	0612-					●
116	BRACKET; AIR PIPE	8-94394-594-2	01	1	9610-					●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	9911-0004		●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0005-0405			●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0406-			●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0406-	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9510-9911		●		●	●
221	WASHER; PL,GEAR EXC. EURO2 SPECIFICATION<THN> ID=21	9-09160-520-0	01	1	9911-0004		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9911-0004				●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0605		●		●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-		●		●	●

210 41 40 153 171 128 92 152 184 155 154 177 176

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	D
40	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9510-9802	●	●
41	BOLT; CLIP AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	02	1	9510-9802	●	●
92	NUT; UNION AUSTRALIA EQUIPMENT(RR3) M12	9-09840-280-0	01	1	9510-0004	●	●
128	WASHER; LK,UNION AUSTRALIA EQUIPMENT(RR3) ID=12.2	9-09150-512-0	01	1	9510-0004	●	●
152	HOSE; FLEX AUSTRALIA EQUIPMENT(RR3) L=300	0-07120-300-0	01	1	9510-9602	●	●
152	HOSE; FLEX AUSTRALIA EQUIPMENT(RR3) L=290	0-07120-290-0	01	1	9603-9802	●	●
153	GASKET; FLEX HOSE AUSTRALIA EQUIPMENT(RR3) ID=11 OD=18	9-09572-510-0	01	1	9510-9802	●	●
154	NUT; FLEX HOSE FIX AUSTRALIA EQUIPMENT(RR3) M12	9-09840-280-0	01	1	9510-9802	●	●
155	WASHER; LK,FLEX HOSE FIX AUSTRALIA EQUIPMENT(RR3) ID=12.2	9-09150-512-0	01	1	9510-9802	●	●
171	UNION AUSTRALIA EQUIPMENT(RR3)	1-09654-185-1	01	1	9510-9802	●	●
171	UNION AUSTRALIA EQUIPMENT(RR3) M12 L=56.5	9-09223-106-1	01	1	9803-0004	●	●
176	BOLT; BRKT FIX AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
176	BOLT; BRKT FIX AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE	0-28680-830-0	02	1	9607-9802	●	●
177	NUT; BRKT FIX AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9510-9606	●	●
177	NUT; BRKT FIX AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	02	1	9607-9802	●	●
184	BRACKET; FLEX HOSE AUSTRALIA EQUIPMENT(RR3)	1-47477-270-0	01	1	9510-9802	●	●
210	PIPE; AIR,MAG VLV AUSTRALIA EQUIPMENT(RR3)	1-49116-269-0	01	1	9510-9802	●	●

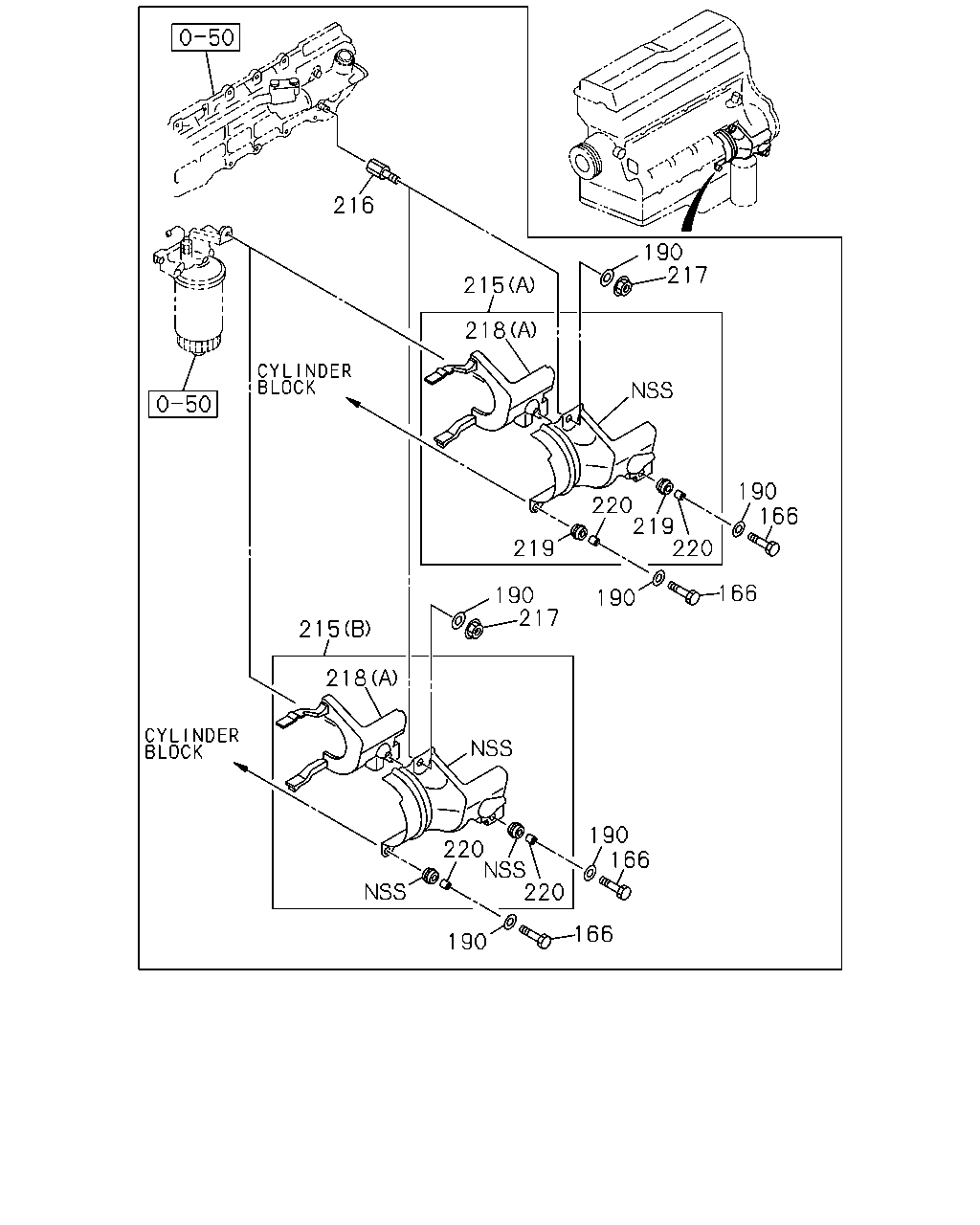

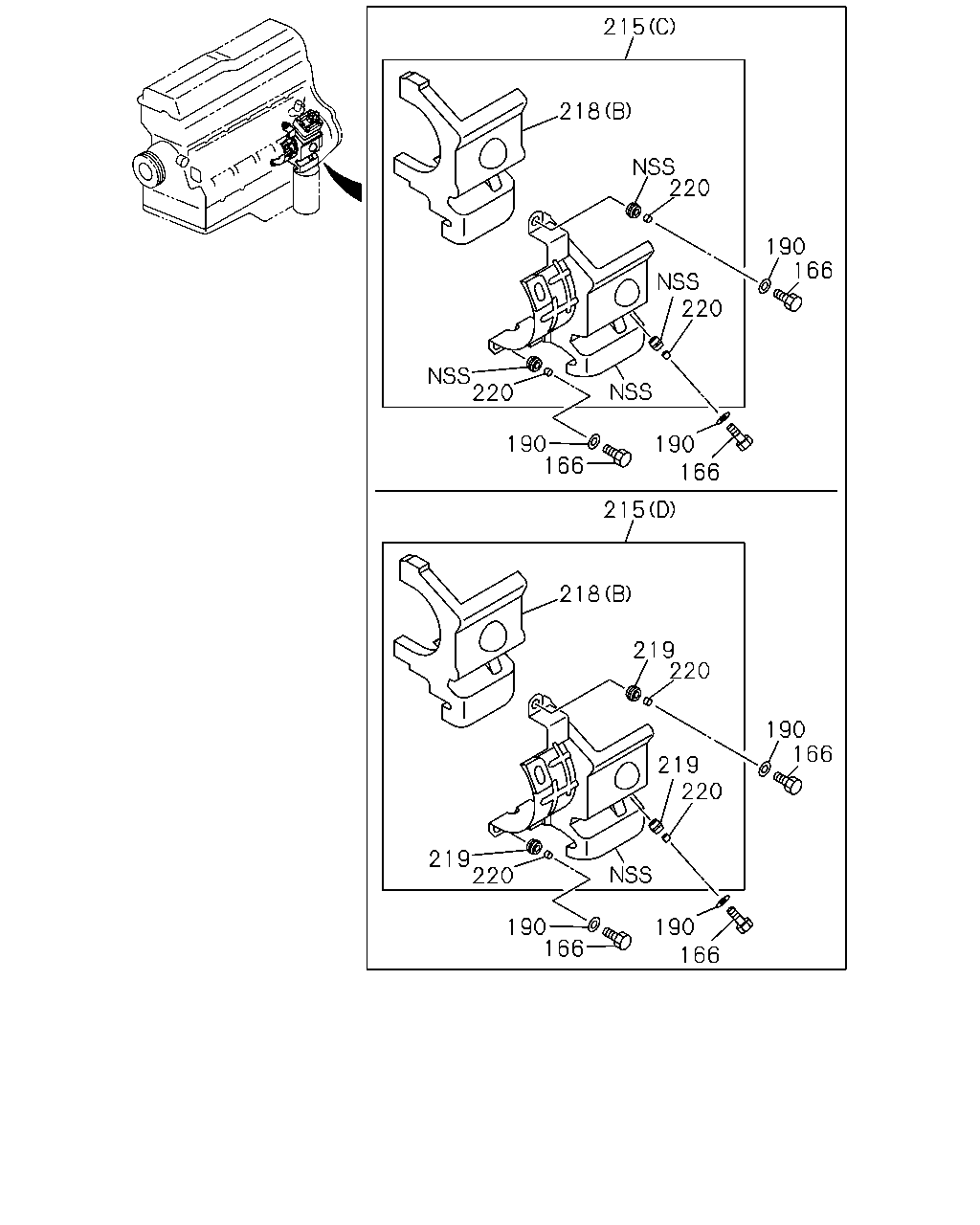

216 190 217 215 218 190 166 220 219 220 219 166 190 217 190 215 218 190 166 220 220 166 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
166	BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) M10X25 FLANGE	0-28181-025-0	02	1	9510-9611	●		●
166	BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M10X25 FLANGE	0-28181-025-0	02	1	9612-9802	●		●
166	BOLT; COVER FIX AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M10X25 FLANGE	0-28181-025-0	02	1	9803-9805	●		●
166	BOLT; COVER FIX AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M10X25 FLANGE	0-28781-025-0	02	1	9806-0004	●		●
166	BOLT; COVER FIX EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> M10X25 FLANGE	0-28781-025-0	03	1	0005-0512		●
166	BOLT; COVER FIX EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> M10X25 FLANGE	0-28751-025-0	03	1	0601-		●
190	WASHER; PL,COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) ID=10.5 OD=26	9-09160-710-0	03	1	9510-9611	●		●
190	WASHER; PL,COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) ID=10.5 OD=26	9-09160-710-0	03	1	9612-9802	●		●
190	WASHER; PL,COVER AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) ID=10.5 OD=26	9-09160-710-0	03	1	9803-0004	●		●
190	WASHER; PL,COVER EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> ID=10.5 OD=26	9-09160-710-0	03	1	0005-		●
215	COVER; AIR CMPR HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94394-993-2	01	1	9510-9512	●		●
215	COVER; AIR CMPR HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B)	8-94390-408-0	01	1	9609-9611	●		●
215	COVER; AIR CMPR HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B)	8-94390-408-0	01	1	9612-9802	●		●
215	COVER; AIR CMPR AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B)	8-94390-408-0	01	1	9803-0004	●		●
215	COVER; AIR CMPR EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (C)	8-97600-108-0	01	1	0005-0112		●
215	COVER; AIR CMPR EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (D)	8-97602-469-1	01	1	0201-0208		●
215	COVER; AIR CMPR EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (D)	8-97602-627-0	01	1	0209-		●
216	SPACER; COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94394-990-1	01	1	9510-9611	●		●
216	SPACER; COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ)	8-94394-990-1	01	1	9612-9802	●		●
216	SPACER; COVER AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ)	8-94394-990-1	01	1	9803-0004	●		●
217	NUT; COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) M10	9-09110-410-0	01	1	9510-9611	●		●
217	NUT; COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M10	9-09110-410-0	01	1	9612-9802	●		●
217	NUT; COVER AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M10	9-09110-410-0	01	1	9803-0004	●		●
218	INSULATOR; COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94394-995-2	01	1	9510-9611	●		●
218	INSULATOR; COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A)	8-94394-995-2	01	1	9612-9802	●		●
218	INSULATOR; COVER AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A)	8-94394-995-2	01	1	9803-0004	●		●
218	INSULATOR; COVER EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (B)	8-97600-109-0	01	1	0005-0208		●
218	INSULATOR; COVER EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (B)	8-97602-628-0	01	1	0209-		●
219	RUBBER; MTG HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) OD=22	8-94140-428-1	03	1	9510-9608	●		●
219	RUBBER; MTG EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK>	8-97602-472-0	03	1	0201-		●
220	TUBE; DIST HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) OD=13 T=9.5	8-94140-427-1	03	1	9510-9611	●		●
220	TUBE; DIST HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) OD=13 T=9.5	8-94140-427-1	03	1	9612-9802	●		●
220	TUBE; DIST AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) OD=13 T=9.5	8-94140-427-1	03	1	9803-0004	●		●
220	TUBE; DIST EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> OD=13 T=9.5	8-94140-427-1	03	1	0005-		●

28 27 30 28 68 51 79 31 52 80 52 80 24 1 4 14 221 6 233 19 5 6 2 6 110 160 113 161 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97600-704-2	01	1	0406-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN>	8-97600-705-0	01	1	9911-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-705-0	01	1	0005-0010			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-705-1	01	1	0011-1107			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-306-0	01	1	1108-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-699-0	01	1	9911-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-699-1	01	1	0005-1107			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-305-0	01	1	1108-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-8	01	1	9510-9808		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN>	8-94396-892-8	01	1	9809-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-8	01	1	9809-0004				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-9	01	1	0005-1107		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-310-1	01	1	1108-		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9510-9910		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN>	8-94396-891-4	01	1	9911-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9911-0004				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0005-1107		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-309-1	01	1	1108-		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	9610-1107					●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202					●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-					●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9510-0004		●		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0405		●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0406-	●	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9610-					●
4	KEY; INJ PUMP GEAR EURO2 SPECIFICATION<THN>	9-08055-519-0	01	1	9911-0004		●
4	KEY; INJ PUMP GEAR EURO2 SPECIFICATION<THN>	9-08055-519-0	01	1	0005-0010			●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0011-0405			●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0406-	●		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9510-9910		●		●
4	KEY; INJ PUMP GEAR EXC. EURO2 SPECIFICATION<THN>	9-08055-516-0	01	1	9911-0004		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9911-0004				●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0005-		●		●
5	BOLT; AIR CMPR FIX EURO2 SPECIFICATION<THN> M12X110	0-28186-211-0	01	1	9911-0004		●
5	BOLT; AIR CMPR FIX EURO2 SPECIFICATION<THN> M12X110	0-28186-211-0	01	1	0005-0010			●
5	BOLT; AIR CMPR FIX M12X110	0-28186-211-0	01	1	0011-0405			●
5	BOLT; AIR CMPR FIX M12X110	0-28186-211-0	01	1	0406-0512	●		●
5	BOLT; AIR CMPR FIX M12X110 FLANGE	0-28156-211-0	01	1	0601-	●		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9510-9910		●		●
5	BOLT; AIR CMPR FIX EXC. EURO2 SPECIFICATION<THN> M12X95 FLANGE	8-94396-485-1	01	1	9911-0004		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9911-0004				●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0005-		●		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9510-0004		●		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0405		●	●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0406-0602	●	●	●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9510-0004		●		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0405		●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0406-0602	●	●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-	●	●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-212-0	01	1	9610-0602					●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-212-0	01	1	0603-					●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	9-99110-524-0	01	1	9911-0004		●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	9-99110-524-0	01	1	0005-0010			●
14	NUT; GEAR M24	9-99110-524-0	01	1	0011-0405			●
14	NUT; GEAR M24	9-99110-524-0	01	1	0406-0512	●		●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-	●		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9510-9910		●		●	●
14	NUT; GEAR EXC. EURO2 SPECIFICATION<THN> M20	9-99110-520-0	01	1	9911-0004		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9911-0004				●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0512		●		●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-		●		●	●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-1	01	1	9911-0004		●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-2	01	1	0005-0405			●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-2	01	1	0406-			●
19	GEAR; INJ PUMP Z=35	8-94390-998-2	01	1	0406-	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9510-9910		●		●
19	GEAR; INJ PUMP EXC. EURO2 SPECIFICATION<THN> Z=35	8-94336-157-4	01	1	9911-0004		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9911-0004				●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0005-		●		●
19	GEAR; INJ PUMP EXC. EURO2 SPECIFICATION<THN> Z=35	8-94392-642-1	01	1	0011-			●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9510-0004		●		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-0405		●	●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0406-	●	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (D)	8-94391-030-2	01	1	9911-0004		●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94391-030-2	01	1	0005-0010			●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94391-030-2	01	1	0011-			●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94390-542-2	01	1	9911-0004		●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94390-542-2	01	1	0005-			●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-085-0	01	1	9510-9802		●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) (B)	8-94395-085-0	01	1	9510-9802				●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) (B)	8-94395-085-0	01	1	9803-0004		●		●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-084-0	01	1	9510-9802		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) AUSTRALIA EQUIPMENT(RR3) (C)	8-94394-967-0	01	1	9510-9702		●		●
27	HOSE; AIR CMPR,SUCTION HONG KONG EQUIPMENT(PQ1) (C)	8-94394-967-0	01	1	9510-9702				●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(WQ3) (C)	8-94394-967-0	01	1	9703-9808		●		●
27	HOSE; AIR CMPR,SUCTION HONG KONG EQUIPMENT(PQ1) (C)	8-94394-967-0	01	1	9703-9808				●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> (C)	8-94394-967-0	01	1	9911-0004		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-082-0	01	1	9510-9611		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A)	8-94395-082-0	01	1	9612-9612		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SI NGAPORE EQUIPMENT(WQ3) (A)	8-94395-082-0	01	1	9701-9802		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SING APORE EQUIPMENT(WQ3) (A)	8-94395-082-0	01	1	9803-9910		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),EURO 2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) (A)	8-94395-082-0	01	1	9911-0004		●		●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	0005-		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-809-1	01	1	9510-9611		●		●
27	HOSE; AIR CMPR,SUCTION THAILAND EQUIPMENT(PM9) (C)	8-94394-809-1	01	1	9510-9611		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-809-1	01	1	9612-9702		●		●
27	HOSE; AIR CMPR,SUCTION THAILAND EQUIPMENT(PM9) (C)	8-94394-809-1	01	1	9612-9702		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-809-1	01	1	9703-9910		●		●
27	HOSE; AIR CMPR,SUCTION THAILAND EQUIPMENT(PM9) (C)	8-94394-809-1	01	1	9703-9910		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (C)	8-94394-809-1	01	1	9911-0004		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-083-0	01	1	9510-9802				●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(WQ3) (A)	8-94395-083-0	01	1	9803-0004		●		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-083-0	01	1	0005-		●		●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9703-0405					●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0406-	●				●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=26	1-09707-091-0	01	1	9911-0004		●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=26	1-09707-091-0	01	1	0005-0010			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	01	1	0011-			●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=22.7	8-94466-382-0	01	1	9911-0004		●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=22.7	8-94466-382-0	01	1	0005-0010			●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	01	1	0011-			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9510-9910		●		●	●
28	CLIP; HOSE,AIR CMPR EXC. EURO2 SPECIFICATION<THN> ID=26	1-09707-091-0	02	1	9911-0004		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9911-0004				●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0405		●		●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0406-	●	●		●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9610-0405					●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0406-0512	●				●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-	●				●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-94390-859-1	01	1	0406-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<THN> (A)	8-94390-949-0	01	1	9911-0004		●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<THN> (A)	8-94390-949-0	01	1	0005-0010			●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94390-949-0	01	1	0011-			●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	9510-9808		●		●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A)	8-94399-954-0	01	1	9809-0004		●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94399-954-0	01	1	9809-0004				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	0005-		●		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	9510-9910		●		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (B)	8-94399-942-1	01	1	9911-0004		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	9911-0004				●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	0005-		●		●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94390-405-0	01	1	9610-					●
49	PIPE; AIR,CHARGE	8-97600-184-1	01	1	0406-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN>	8-94392-073-0	01	1	9911-0004		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-073-0	01	1	0005-0010			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-073-0	01	1	0011-			●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-087-0	01	1	9911-0004		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-087-0	01	1	0005-			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	9510-9808		●		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN>	8-94395-087-2	01	1	9809-0004		●
49	PIPE; AIR,CHARGE	8-94395-087-2	01	1	9809-0004				●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	0005-		●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9510-9910		●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN>	8-94390-063-0	01	1	9911-0004		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9911-0004				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-1	01	1	0005-0112		●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94394-275-1	01	1	0201-		●		●
49	PIPE; AIR,CHARGE	8-94395-723-0	01	1	9610-					●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9510-0004		●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9510-0004					●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	0005-0405		●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0405					●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-1	01	1	0406-1404		●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0406-1404	●				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-2	01	1	1405-		●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●				●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9510-9911		●		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> M20X38	1-09675-133-0	01	1	9912-0004		●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9912-0004				●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0005		●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0408		●		●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0408			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-1	01	1	0409-		●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	9510-0004		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9510-0004					●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	0005-0405		●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-0405					●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	0406-		●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0406-	●				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9510-9911		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN>. ID=20.5 OD=28.0	9-09571-420-0	02	1	9912-0004		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	02	1	9912-0004				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0005		●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0408		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0408			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0409-		●	●	●
68	SLEEVE; RUBBER ID=17 OD=21 L=40	1-09337-012-0	01	1	0406-	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9510-0004		●		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9510-0004					●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0005-0405		●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0405					●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0406-		●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0406-	●				●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9510-9911		●		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> M18X33	1-09675-058-0	01	1	9912-0004		●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9912-0004				●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0005		●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0408		●		●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0408			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0409-		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0004		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0004					●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0405		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0405					●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0406-1312		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0406-1312	●				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9510-9911		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9912-0004		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9912-0004				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0005		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0408		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0408			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0409-		●	●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9510-0004		●		●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0005-0405		●	●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0406-	●	●	●	●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	9610-					●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9510-9709		●		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9710-0004		●		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0005-0405		●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0406-0512	●	●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●	●	●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9610-9802					●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9610-9709					●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9710-0512					●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-					●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9803-0512					●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28650-620-0	01	1	0601-0611					●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28050-630-0	01	1	0612-					●
160	BRACKET; AIR PIPE	8-94392-031-1	01	1	0406-	●
160	BRACKET; AIR PIPE	8-94394-569-0	01	1	9510-0004		●		●
160	BRACKET; AIR PIPE	8-94394-569-0	01	1	0005-		●		●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<THN>	8-94394-569-0	01	1	0005-			●
160	BRACKET; AIR PIPE EXC. EURO2 SPECIFICATION<THN>	8-94390-664-1	01	1	0011-			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9510-0004		●		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0405		●	●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0406-0512	●	●	●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●	●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	9911-0004		●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0005-0405			●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0406-			●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0406-	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9510-9911		●		●	●
221	WASHER; PL,GEAR EXC. EURO2 SPECIFICATION<THN> ID=21	9-09160-520-0	01	1	9911-0004		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9911-0004				●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0605		●		●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-		●		●	●
233	RING; FRICTION EURO2 SPECIFICATION<THN>	8-94390-562-0	01	1	9911-0004		●
233	RING; FRICTION EURO2 SPECIFICATION<THN>	8-94390-562-0	01	1	0005-0311			●
233	RING; FRICTION EURO2 SPECIFICATION<THN>	8-97603-297-0	01	1	0312-0405			●
233	RING; FRICTION EURO2 SPECIFICATION<THN>	8-97603-297-0	01	1	0406-			●
233	RING; FRICTION	8-97603-297-0	01	1	0406-	●

215 218 220 190 166 220 220 190 166 190 166 215 218 219 220 190 166 219 220 219 220 190 166 190 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
166	BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) M10X25 FLANGE	0-28181-025-0	02	1	9510-9611	●		●
166	BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M10X25 FLANGE	0-28181-025-0	02	1	9612-9802	●		●
166	BOLT; COVER FIX AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M10X25 FLANGE	0-28181-025-0	02	1	9803-9805	●		●
166	BOLT; COVER FIX AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M10X25 FLANGE	0-28781-025-0	02	1	9806-0004	●		●
166	BOLT; COVER FIX EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> M10X25 FLANGE	0-28781-025-0	03	1	0005-0512		●
166	BOLT; COVER FIX EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> M10X25 FLANGE	0-28751-025-0	03	1	0601-		●
190	WASHER; PL,COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) ID=10.5 OD=26	9-09160-710-0	03	1	9510-9611	●		●
190	WASHER; PL,COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) ID=10.5 OD=26	9-09160-710-0	03	1	9612-9802	●		●
190	WASHER; PL,COVER AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) ID=10.5 OD=26	9-09160-710-0	03	1	9803-0004	●		●
190	WASHER; PL,COVER EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> ID=10.5 OD=26	9-09160-710-0	03	1	0005-		●
215	COVER; AIR CMPR HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94394-993-2	01	1	9510-9512	●		●
215	COVER; AIR CMPR HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B)	8-94390-408-0	01	1	9609-9611	●		●
215	COVER; AIR CMPR HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B)	8-94390-408-0	01	1	9612-9802	●		●
215	COVER; AIR CMPR AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B)	8-94390-408-0	01	1	9803-0004	●		●
215	COVER; AIR CMPR EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (C)	8-97600-108-0	01	1	0005-0112		●
215	COVER; AIR CMPR EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (D)	8-97602-469-1	01	1	0201-0208		●
215	COVER; AIR CMPR EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (D)	8-97602-627-0	01	1	0209-		●
218	INSULATOR; COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94394-995-2	01	1	9510-9611	●		●
218	INSULATOR; COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A)	8-94394-995-2	01	1	9612-9802	●		●
218	INSULATOR; COVER AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A)	8-94394-995-2	01	1	9803-0004	●		●
218	INSULATOR; COVER EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (B)	8-97600-109-0	01	1	0005-0208		●
218	INSULATOR; COVER EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (B)	8-97602-628-0	01	1	0209-		●
219	RUBBER; MTG HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) OD=22	8-94140-428-1	03	1	9510-9608	●		●
219	RUBBER; MTG EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK>	8-97602-472-0	03	1	0201-		●
220	TUBE; DIST HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) OD=13 T=9.5	8-94140-427-1	03	1	9510-9611	●		●
220	TUBE; DIST HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) OD=13 T=9.5	8-94140-427-1	03	1	9612-9802	●		●
220	TUBE; DIST AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) OD=13 T=9.5	8-94140-427-1	03	1	9803-0004	●		●
220	TUBE; DIST EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> OD=13 T=9.5	8-94140-427-1	03	1	0005-		●

113 110 160 49 161 79 80 51 28 52 27 80 52 14 24 221 58 28 4 27 1 31 28 19 2 28 28 5 36 6 31 6 28 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97600-704-2	01	1	0406-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN>	8-97600-705-0	01	1	9911-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-705-0	01	1	0005-0010			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-705-1	01	1	0011-1107			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-306-0	01	1	1108-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-699-0	01	1	9911-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-699-1	01	1	0005-1107			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-305-0	01	1	1108-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-8	01	1	9510-9808		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN>	8-94396-892-8	01	1	9809-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-8	01	1	9809-0004				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-9	01	1	0005-1107		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-310-1	01	1	1108-		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9510-9910		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN>	8-94396-891-4	01	1	9911-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9911-0004				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0005-1107		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-309-1	01	1	1108-		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	9610-1107					●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202					●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-					●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9510-0004		●		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0405		●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0406-	●	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9610-					●
4	KEY; INJ PUMP GEAR EURO2 SPECIFICATION<THN>	9-08055-519-0	01	1	9911-0004		●
4	KEY; INJ PUMP GEAR EURO2 SPECIFICATION<THN>	9-08055-519-0	01	1	0005-0010			●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0011-0405			●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0406-	●		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9510-9910		●		●
4	KEY; INJ PUMP GEAR EXC. EURO2 SPECIFICATION<THN>	9-08055-516-0	01	1	9911-0004		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9911-0004				●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0005-		●		●
5	BOLT; AIR CMPR FIX EURO2 SPECIFICATION<THN> M12X110	0-28186-211-0	01	1	9911-0004		●
5	BOLT; AIR CMPR FIX EURO2 SPECIFICATION<THN> M12X110	0-28186-211-0	01	1	0005-0010			●
5	BOLT; AIR CMPR FIX M12X110	0-28186-211-0	01	1	0011-0405			●
5	BOLT; AIR CMPR FIX M12X110	0-28186-211-0	01	1	0406-0512	●		●
5	BOLT; AIR CMPR FIX M12X110 FLANGE	0-28156-211-0	01	1	0601-	●		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9510-9910		●		●
5	BOLT; AIR CMPR FIX EXC. EURO2 SPECIFICATION<THN> M12X95 FLANGE	8-94396-485-1	01	1	9911-0004		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9911-0004				●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0005-		●		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9510-0004		●		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0405		●	●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0406-0602	●	●	●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9510-0004		●		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0405		●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0406-0602	●	●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-	●	●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-212-0	01	1	9610-0602					●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-212-0	01	1	0603-					●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	9-99110-524-0	01	1	9911-0004		●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	9-99110-524-0	01	1	0005-0010			●
14	NUT; GEAR M24	9-99110-524-0	01	1	0011-0405			●
14	NUT; GEAR M24	9-99110-524-0	01	1	0406-0512	●		●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-	●		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9510-9910		●		●	●
14	NUT; GEAR EXC. EURO2 SPECIFICATION<THN> M20	9-99110-520-0	01	1	9911-0004		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9911-0004				●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0512		●		●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-		●		●	●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-1	01	1	9911-0004		●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-2	01	1	0005-0405			●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-2	01	1	0406-			●
19	GEAR; INJ PUMP Z=35	8-94390-998-2	01	1	0406-	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9510-9910		●		●
19	GEAR; INJ PUMP EXC. EURO2 SPECIFICATION<THN> Z=35	8-94336-157-4	01	1	9911-0004		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9911-0004				●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0005-		●		●
19	GEAR; INJ PUMP EXC. EURO2 SPECIFICATION<THN> Z=35	8-94392-642-1	01	1	0011-			●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9510-0004		●		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-0405		●	●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0406-	●	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (D)	8-94391-030-2	01	1	9911-0004		●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94391-030-2	01	1	0005-0010			●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94391-030-2	01	1	0011-			●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94390-542-2	01	1	9911-0004		●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94390-542-2	01	1	0005-			●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-085-0	01	1	9510-9802		●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) (B)	8-94395-085-0	01	1	9510-9802				●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) (B)	8-94395-085-0	01	1	9803-0004		●		●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-084-0	01	1	9510-9802		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) AUSTRALIA EQUIPMENT(RR3) (C)	8-94394-967-0	01	1	9510-9702		●		●
27	HOSE; AIR CMPR,SUCTION HONG KONG EQUIPMENT(PQ1) (C)	8-94394-967-0	01	1	9510-9702				●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(WQ3) (C)	8-94394-967-0	01	1	9703-9808		●		●
27	HOSE; AIR CMPR,SUCTION HONG KONG EQUIPMENT(PQ1) (C)	8-94394-967-0	01	1	9703-9808				●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> (C)	8-94394-967-0	01	1	9911-0004		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-082-0	01	1	9510-9611		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A)	8-94395-082-0	01	1	9612-9612		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SI NGAPORE EQUIPMENT(WQ3) (A)	8-94395-082-0	01	1	9701-9802		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SING APORE EQUIPMENT(WQ3) (A)	8-94395-082-0	01	1	9803-9910		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),EURO 2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) (A)	8-94395-082-0	01	1	9911-0004		●		●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	0005-		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-809-1	01	1	9510-9611		●		●
27	HOSE; AIR CMPR,SUCTION THAILAND EQUIPMENT(PM9) (C)	8-94394-809-1	01	1	9510-9611		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-809-1	01	1	9612-9702		●		●
27	HOSE; AIR CMPR,SUCTION THAILAND EQUIPMENT(PM9) (C)	8-94394-809-1	01	1	9612-9702		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-809-1	01	1	9703-9910		●		●
27	HOSE; AIR CMPR,SUCTION THAILAND EQUIPMENT(PM9) (C)	8-94394-809-1	01	1	9703-9910		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (C)	8-94394-809-1	01	1	9911-0004		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-083-0	01	1	9510-9802				●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(WQ3) (A)	8-94395-083-0	01	1	9803-0004		●		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-083-0	01	1	0005-		●		●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9703-0405					●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0406-	●				●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=26	1-09707-091-0	01	1	9911-0004		●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=26	1-09707-091-0	01	1	0005-0010			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	01	1	0011-			●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=22.7	8-94466-382-0	01	1	9911-0004		●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=22.7	8-94466-382-0	01	1	0005-0010			●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	01	1	0011-			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9510-9910		●		●	●
28	CLIP; HOSE,AIR CMPR EXC. EURO2 SPECIFICATION<THN> ID=26	1-09707-091-0	02	1	9911-0004		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9911-0004				●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0405		●		●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0406-	●	●		●	●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-94390-859-1	01	1	0406-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<THN> (A)	8-94390-949-0	01	1	9911-0004		●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<THN> (A)	8-94390-949-0	01	1	0005-0010			●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94390-949-0	01	1	0011-			●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	9510-9808		●		●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A)	8-94399-954-0	01	1	9809-0004		●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94399-954-0	01	1	9809-0004				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	0005-		●		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	9510-9910		●		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (B)	8-94399-942-1	01	1	9911-0004		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	9911-0004				●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	0005-		●		●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94390-405-0	01	1	9610-					●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> ID=24.5 OD=32	9-09571-424-0	02	1	9911-0004		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> ID=24.5 OD=32	9-09571-424-0	02	1	0005-0010			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0011-			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	9510-9910		●		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> ID=24.5 OD=32	9-09571-424-0	01	1	9911-0004		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	9911-0004				●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	0005-		●		●
49	PIPE; AIR,CHARGE	8-97600-184-1	01	1	0406-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN>	8-94392-073-0	01	1	9911-0004		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-073-0	01	1	0005-0010			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-073-0	01	1	0011-			●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-087-0	01	1	9911-0004		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-087-0	01	1	0005-			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	9510-9808		●		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN>	8-94395-087-2	01	1	9809-0004		●
49	PIPE; AIR,CHARGE	8-94395-087-2	01	1	9809-0004				●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	0005-		●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9510-9910		●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN>	8-94390-063-0	01	1	9911-0004		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9911-0004				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-1	01	1	0005-0112		●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94394-275-1	01	1	0201-		●		●
49	PIPE; AIR,CHARGE	8-94395-723-0	01	1	9610-					●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9510-0004		●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9510-0004					●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	0005-0405		●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0405					●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-1	01	1	0406-1404		●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0406-1404	●				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-2	01	1	1405-		●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●				●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9510-9911		●		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> M20X38	1-09675-133-0	01	1	9912-0004		●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9912-0004				●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0005		●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0408		●		●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0408			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-1	01	1	0409-		●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	9510-0004		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9510-0004					●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	0005-0405		●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-0405					●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	0406-		●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0406-	●				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9510-9911		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN>. ID=20.5 OD=28.0	9-09571-420-0	02	1	9912-0004		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	02	1	9912-0004				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0005		●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0408		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0408			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0409-		●	●	●
58	SPACER; AIR CMPR HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94395-675-1	01	1	9510-9611		●		●
58	SPACER; AIR CMPR HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ)	8-94395-675-1	01	1	9612-9802		●		●
58	SPACER; AIR CMPR AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ)	8-94395-675-1	01	1	9803-0004		●		●
58	SPACER; AIR CMPR EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK>	8-94391-440-1	01	1	0005-			●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9510-0004		●		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9510-0004					●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0005-0405		●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0405					●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0406-		●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0406-	●				●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9510-9911		●		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> M18X33	1-09675-058-0	01	1	9912-0004		●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9912-0004				●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0005		●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0408		●		●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0408			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0409-		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0004		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0004					●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0405		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0405					●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0406-1312		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0406-1312	●				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9510-9911		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9912-0004		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9912-0004				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0005		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0408		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0408			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0409-		●	●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9510-0004		●		●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0005-0405		●	●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0406-	●	●	●	●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	9610-					●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9510-9709		●		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9710-0004		●		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0005-0405		●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0406-0512	●	●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●	●	●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9610-9802					●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9610-9709					●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9710-0512					●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-					●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9803-0512					●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28650-620-0	01	1	0601-0611					●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28050-630-0	01	1	0612-					●
160	BRACKET; AIR PIPE	8-94392-031-1	01	1	0406-	●
160	BRACKET; AIR PIPE	8-94394-569-0	01	1	9510-0004		●		●
160	BRACKET; AIR PIPE	8-94394-569-0	01	1	0005-		●		●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<THN>	8-94394-569-0	01	1	0005-			●
160	BRACKET; AIR PIPE EXC. EURO2 SPECIFICATION<THN>	8-94390-664-1	01	1	0011-			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9510-0004		●		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0405		●	●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0406-0512	●	●	●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●	●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	9911-0004		●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0005-0405			●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0406-			●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0406-	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9510-9911		●		●	●
221	WASHER; PL,GEAR EXC. EURO2 SPECIFICATION<THN> ID=21	9-09160-520-0	01	1	9911-0004		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9911-0004				●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0605		●		●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-		●		●	●

113 110 113 110 79 80 160 79 80 51 51 52 52 49 161 161 160 49 52 80 80 52 14 221 233 207 207 207 58 268 267 269 24 6 263 262 36 19 4 2 14 31 5 221 233 36 35 1 6 6 28 28 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97600-704-2	01	1	0406-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN>	8-97600-705-0	01	1	9911-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-705-0	01	1	0005-0010			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-705-1	01	1	0011-1107			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-306-0	01	1	1108-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-699-0	01	1	9911-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-699-1	01	1	0005-1107			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-305-0	01	1	1108-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-8	01	1	9510-9808		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN>	8-94396-892-8	01	1	9809-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-8	01	1	9809-0004				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-9	01	1	0005-1107		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-310-1	01	1	1108-		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9510-9910		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN>	8-94396-891-4	01	1	9911-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9911-0004				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0005-1107		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-309-1	01	1	1108-		●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	9610-1107					●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202					●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-					●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9510-0004		●		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0405		●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0406-	●	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9610-					●
4	KEY; INJ PUMP GEAR EURO2 SPECIFICATION<THN>	9-08055-519-0	01	1	9911-0004		●
4	KEY; INJ PUMP GEAR EURO2 SPECIFICATION<THN>	9-08055-519-0	01	1	0005-0010			●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0011-0405			●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0406-	●		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9510-9910		●		●
4	KEY; INJ PUMP GEAR EXC. EURO2 SPECIFICATION<THN>	9-08055-516-0	01	1	9911-0004		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9911-0004				●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0005-		●		●
5	BOLT; AIR CMPR FIX EURO2 SPECIFICATION<THN> M12X110	0-28186-211-0	01	1	9911-0004		●
5	BOLT; AIR CMPR FIX EURO2 SPECIFICATION<THN> M12X110	0-28186-211-0	01	1	0005-0010			●
5	BOLT; AIR CMPR FIX M12X110	0-28186-211-0	01	1	0011-0405			●
5	BOLT; AIR CMPR FIX M12X110	0-28186-211-0	01	1	0406-0512	●		●
5	BOLT; AIR CMPR FIX M12X110 FLANGE	0-28156-211-0	01	1	0601-	●		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9510-9910		●		●
5	BOLT; AIR CMPR FIX EXC. EURO2 SPECIFICATION<THN> M12X95 FLANGE	8-94396-485-1	01	1	9911-0004		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9911-0004				●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0005-		●		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9510-0004		●		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0405		●	●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0406-0602	●	●	●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9510-0004		●		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0405		●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0406-0602	●	●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-	●	●	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-212-0	01	1	9610-0602					●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-212-0	01	1	0603-					●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	9-99110-524-0	01	1	9911-0004		●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	9-99110-524-0	01	1	0005-0010			●
14	NUT; GEAR M24	9-99110-524-0	01	1	0011-0405			●
14	NUT; GEAR M24	9-99110-524-0	01	1	0406-0512	●		●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-	●		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9510-9910		●		●	●
14	NUT; GEAR EXC. EURO2 SPECIFICATION<THN> M20	9-99110-520-0	01	1	9911-0004		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9911-0004				●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0512		●		●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-		●		●	●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-1	01	1	9911-0004		●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-2	01	1	0005-0405			●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-2	01	1	0406-			●
19	GEAR; INJ PUMP Z=35	8-94390-998-2	01	1	0406-	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9510-9910		●		●
19	GEAR; INJ PUMP EXC. EURO2 SPECIFICATION<THN> Z=35	8-94336-157-4	01	1	9911-0004		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9911-0004				●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0005-		●		●
19	GEAR; INJ PUMP EXC. EURO2 SPECIFICATION<THN> Z=35	8-94392-642-1	01	1	0011-			●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9510-0004		●		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-0405		●	●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0406-	●	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (D)	8-94391-030-2	01	1	9911-0004		●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94391-030-2	01	1	0005-0010			●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94391-030-2	01	1	0011-			●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94390-542-2	01	1	9911-0004		●
27	HOSE; AIR CMPR,SUCTION EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94390-542-2	01	1	0005-			●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-085-0	01	1	9510-9802		●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) (B)	8-94395-085-0	01	1	9510-9802				●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) (B)	8-94395-085-0	01	1	9803-0004		●		●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FS*W) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-084-0	01	1	9510-9802		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) AUSTRALIA EQUIPMENT(RR3) (C)	8-94394-967-0	01	1	9510-9702		●		●
27	HOSE; AIR CMPR,SUCTION HONG KONG EQUIPMENT(PQ1) (C)	8-94394-967-0	01	1	9510-9702				●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(WQ3) (C)	8-94394-967-0	01	1	9703-9808		●		●
27	HOSE; AIR CMPR,SUCTION HONG KONG EQUIPMENT(PQ1) (C)	8-94394-967-0	01	1	9703-9808				●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(WQ3) EXC. EURO2 SPECIFICATION<THN> (C)	8-94394-967-0	01	1	9911-0004		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-082-0	01	1	9510-9611		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A)	8-94395-082-0	01	1	9612-9612		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SI NGAPORE EQUIPMENT(WQ3) (A)	8-94395-082-0	01	1	9701-9802		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SING APORE EQUIPMENT(WQ3) (A)	8-94395-082-0	01	1	9803-9910		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),EURO 2 SPECIFICATION<THN>,SINGAPORE EQUIPMENT(WQ3) (A)	8-94395-082-0	01	1	9911-0004		●		●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	0005-		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-809-1	01	1	9510-9611		●		●
27	HOSE; AIR CMPR,SUCTION THAILAND EQUIPMENT(PM9) (C)	8-94394-809-1	01	1	9510-9611		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-809-1	01	1	9612-9702		●		●
27	HOSE; AIR CMPR,SUCTION THAILAND EQUIPMENT(PM9) (C)	8-94394-809-1	01	1	9612-9702		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-809-1	01	1	9703-9910		●		●
27	HOSE; AIR CMPR,SUCTION THAILAND EQUIPMENT(PM9) (C)	8-94394-809-1	01	1	9703-9910		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (C)	8-94394-809-1	01	1	9911-0004		●		●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-083-0	01	1	9510-9802				●
27	HOSE; AIR CMPR,SUCTION STD CAB(FS*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(WQ3) (A)	8-94395-083-0	01	1	9803-0004		●		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-083-0	01	1	0005-		●		●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9703-0405					●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0406-	●				●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=26	1-09707-091-0	01	1	9911-0004		●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=26	1-09707-091-0	01	1	0005-0010			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	01	1	0011-			●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=22.7	8-94466-382-0	01	1	9911-0004		●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=22.7	8-94466-382-0	01	1	0005-0010			●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	01	1	0011-			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9510-9910		●		●	●
28	CLIP; HOSE,AIR CMPR EXC. EURO2 SPECIFICATION<THN> ID=26	1-09707-091-0	02	1	9911-0004		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9911-0004				●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0405		●		●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0406-	●	●		●	●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-94390-859-1	01	1	0406-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<THN> (A)	8-94390-949-0	01	1	9911-0004		●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<THN> (A)	8-94390-949-0	01	1	0005-0010			●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94390-949-0	01	1	0011-			●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	9510-9808		●		●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A)	8-94399-954-0	01	1	9809-0004		●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94399-954-0	01	1	9809-0004				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	0005-		●		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	9510-9910		●		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (B)	8-94399-942-1	01	1	9911-0004		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	9911-0004				●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	0005-		●		●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94390-405-0	01	1	9610-					●
35	BOLT; EYE,AIR PIPE EURO2 SPECIFICATION<THN> M24X39	1-09675-132-0	01	1	9911-0004		●
35	BOLT; EYE,AIR PIPE EURO2 SPECIFICATION<THN> M24X39	1-09675-132-0	01	1	0005-0010			●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	0011-1404			●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> ID=24.5 OD=32	9-09571-424-0	02	1	9911-0004		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> ID=24.5 OD=32	9-09571-424-0	02	1	0005-0010			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0011-			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	9510-9910		●		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> ID=24.5 OD=32	9-09571-424-0	01	1	9911-0004		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	9911-0004				●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	0005-		●		●
49	PIPE; AIR,CHARGE	8-97600-184-1	01	1	0406-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN>	8-94392-073-0	01	1	9911-0004		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-073-0	01	1	0005-0010			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-073-0	01	1	0011-			●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-087-0	01	1	9911-0004		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94392-087-0	01	1	0005-			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	9510-9808		●		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN>	8-94395-087-2	01	1	9809-0004		●
49	PIPE; AIR,CHARGE	8-94395-087-2	01	1	9809-0004				●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	0005-		●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9510-9910		●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN>	8-94390-063-0	01	1	9911-0004		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-0	01	1	9911-0004				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-1	01	1	0005-0112		●		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94394-275-1	01	1	0201-		●		●
49	PIPE; AIR,CHARGE	8-94395-723-0	01	1	9610-					●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9510-0004		●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9510-0004					●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	0005-0405		●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0405					●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-1	01	1	0406-1404		●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0406-1404	●				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-2	01	1	1405-		●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●				●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9510-9911		●		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> M20X38	1-09675-133-0	01	1	9912-0004		●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9912-0004				●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0005		●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0408		●		●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0408			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-1	01	1	0409-		●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	9510-0004		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9510-0004					●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	0005-0405		●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-0405					●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	0406-		●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0406-	●				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9510-9911		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN>. ID=20.5 OD=28.0	9-09571-420-0	02	1	9912-0004		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	02	1	9912-0004				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0005		●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0408		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0408			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0409-		●	●	●
58	SPACER; AIR CMPR HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94395-675-1	01	1	9510-9611		●		●
58	SPACER; AIR CMPR HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ)	8-94395-675-1	01	1	9612-9802		●		●
58	SPACER; AIR CMPR AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ)	8-94395-675-1	01	1	9803-0004		●		●
58	SPACER; AIR CMPR EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK>	8-94391-440-1	01	1	0005-			●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9510-0004		●		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9510-0004					●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0005-0405		●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0405					●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0406-		●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0406-	●				●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9510-9911		●		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> M18X33	1-09675-058-0	01	1	9912-0004		●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9912-0004				●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0005		●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0408		●		●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0408			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0409-		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0004		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0004					●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0405		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0405					●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0406-1312		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0406-1312	●				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9510-9911		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9912-0004		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9912-0004				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0005		●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0408		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0408			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0409-		●	●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9510-0004		●		●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0005-0405		●	●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0406-	●	●	●	●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	9610-					●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9510-9709		●		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9710-0004		●		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0005-0405		●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0406-0512	●	●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●	●	●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9610-9802					●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9610-9709					●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9710-0512					●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-					●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9803-0512					●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28650-620-0	01	1	0601-0611					●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28050-630-0	01	1	0612-					●
160	BRACKET; AIR PIPE	8-94392-031-1	01	1	0406-	●
160	BRACKET; AIR PIPE	8-94394-569-0	01	1	9510-0004		●		●
160	BRACKET; AIR PIPE	8-94394-569-0	01	1	0005-		●		●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<THN>	8-94394-569-0	01	1	0005-			●
160	BRACKET; AIR PIPE EXC. EURO2 SPECIFICATION<THN>	8-94390-664-1	01	1	0011-			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9510-0004		●		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0405		●	●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0406-0512	●	●	●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●	●
207	PIN; INJ PUMP GEAR SET EXC. EURO2 SPECIFICATION<THN> (B)	8-94392-647-0	01	1	0011-			●
207	PIN; INJ PUMP GEAR SET EXC. EURO2 SPECIFICATION<THN> (A)	8-97600-188-0	02	1	0011-			●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	9911-0004		●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0005-0405			●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0406-			●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0406-	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9510-9911		●		●	●
221	WASHER; PL,GEAR EXC. EURO2 SPECIFICATION<THN> ID=21	9-09160-520-0	01	1	9911-0004		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9911-0004				●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0605		●		●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-		●		●	●
233	RING; FRICTION EURO2 SPECIFICATION<THN>	8-94390-562-0	01	1	9911-0004		●
233	RING; FRICTION EURO2 SPECIFICATION<THN>	8-94390-562-0	01	1	0005-0311			●
233	RING; FRICTION EURO2 SPECIFICATION<THN>	8-97603-297-0	01	1	0312-0405			●
233	RING; FRICTION EURO2 SPECIFICATION<THN>	8-97603-297-0	01	1	0406-			●
233	RING; FRICTION	8-97603-297-0	01	1	0406-	●
262	ADAPTER; AIR SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN>	8-94391-995-0	01	1	9911-0004		●
262	ADAPTER; AIR SUCTION PIPE EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94391-995-0	01	1	0005-0010			●
262	ADAPTER; AIR SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94391-995-0	01	1	0011-			●
263	GASKET; ADAPTER AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> ID=30.5 OD=38.0	9-09571-430-0	01	1	9911-0004		●
263	GASKET; ADAPTER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=30.5 OD=38.0	9-09571-430-0	01	1	0005-0010			●
263	GASKET; ADAPTER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=30.5 OD=38.0	9-09571-430-0	01	1	0011-			●
267	GEAR; SUB,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	8-94392-643-1	01	1	0011-			●
268	PLATE; THRUST,GEAR EXC. EURO2 SPECIFICATION<THN>	8-94392-168-0	01	1	0011-			●
269	SPRING; GEAR EXC. EURO2 SPECIFICATION<THN>	8-94392-644-0	01	1	0011-			●

229 16 171 128 92 156 229 258 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	D
16	ADAPTER AUSTRALIA EQUIPMENT(RR3) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9803-0004	●	●
92	NUT; UNION AUSTRALIA EQUIPMENT(RR3) M12	9-09840-280-0	01	1	9510-0004	●	●
128	WASHER; LK,UNION AUSTRALIA EQUIPMENT(RR3) ID=12.2	9-09150-512-0	01	1	9510-0004	●	●
156	SLEEVE A/T<X9D> ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9804-0004		●
171	UNION AUSTRALIA EQUIPMENT(RR3)	1-09654-185-1	01	1	9510-9802	●	●
171	UNION AUSTRALIA EQUIPMENT(RR3) M12 L=56.5	9-09223-106-1	01	1	9803-0004	●	●
229	TUBE; NYLON AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9804-9804	●	●
229	TUBE; NYLON AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004	●	●
229	TUBE; NYLON AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004	●	●
230	TUBE; CORRUGATE AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9804-9804	●	●
258	CLIP; BAND,NYLON TUBE A/T<X9D> L=250	1-09707-126-0	01	1	9804-0004		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
