0-37 — TURBOCHARGER (#64194) — 46 parça

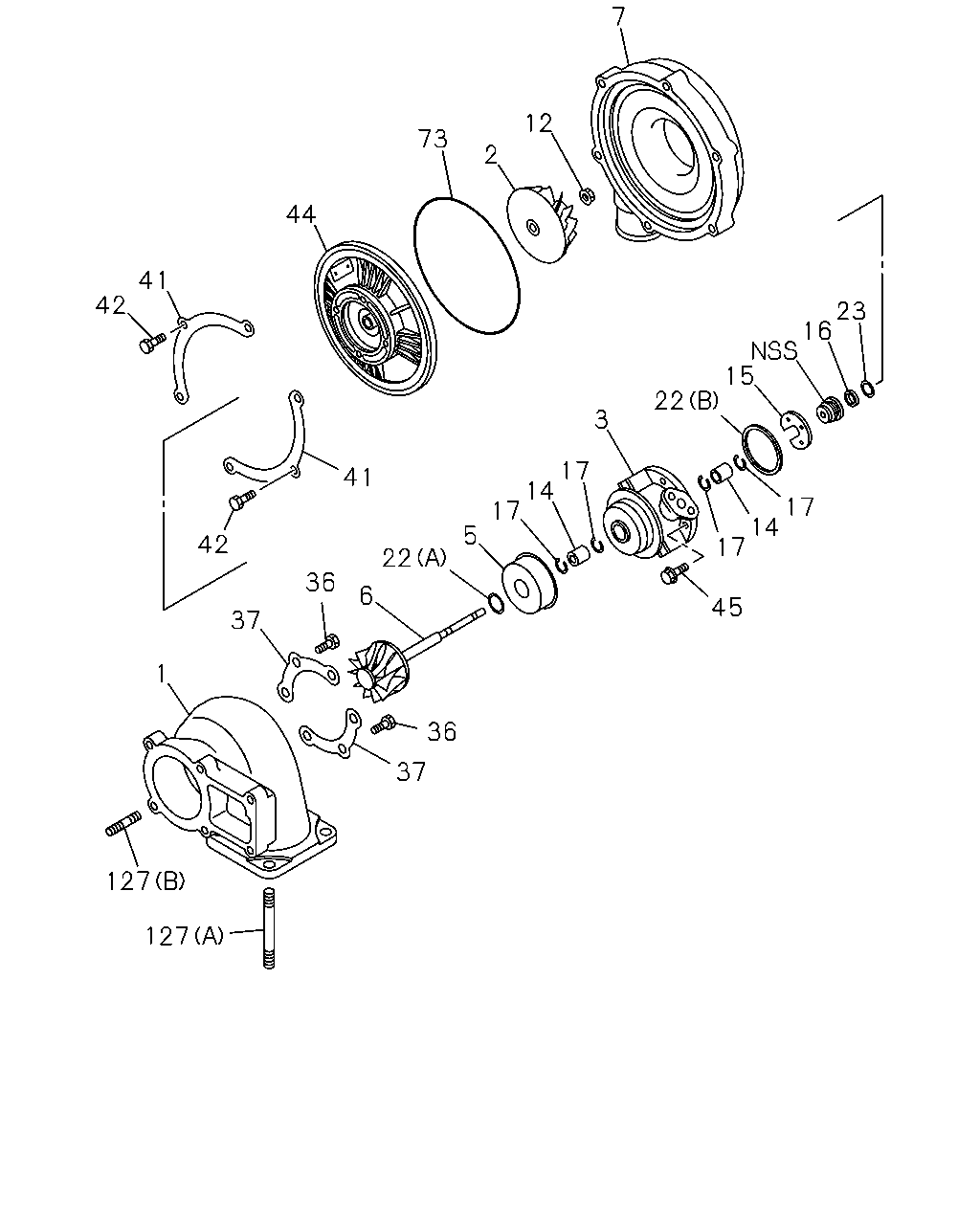

çizim 61402
7 12 73 2 44 41 42 23 16 15 22 3 17 14 17 41 17 14 17 5 42 22 36 6 45 37 1 36 37 17 127
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14415-104-0 01 1 -
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: B = 8-97602-809-0 		1-14415-110-0 01 1 -
2 IMPELLER; TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14452-019-0 01 1 -
3 HOUSING; BRG,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14411-029-0 01 1 -
5 PROTECTOR; HEAT,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		5-14429-003-0 01 1 -
6 SHAFT; TURBINE,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14451-038-0 01 1 -
7 HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14414-086-0 01 1 -
7 HOUSING; BLOWER,TURBOCHARGER
ASM PART: B = 8-97602-809-0 		1-14414-109-0 01 1 -
12 NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: A = 8-94390-651-0 		1-14459-021-0 01 1 -
14 BEARING; JOURNAL,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14453-044-0 02 1 -
15 BEARING; THRUST,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14453-061-0 01 1 -
16 COLLAR; THRUST,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14459-019-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14419-083-0 04 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
(A) ASM PART: A = 8-94390-651-0 		1-14419-102-0 01 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
(B) ASM PART: A = 8-94390-651-0 		1-14429-059-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		5-14419-010-0 01 1 -
36 BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: A = 8-94390-651-0 		1-14419-104-0 08 1 -
37 PLATE; LK,TURBINE HSG,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14419-103-0 02 1 -
41 PLATE; LK,BLOWER HSG,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14419-093-0 02 1 -
41 PLATE; LK,BLOWER HSG,TURBOCHARGER
ASM PART: B = 8-97602-809-0 		1-14419-151-0 03 1 -
42 BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14419-105-0 06 1 -
42 BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
ASM PART: B = 8-97602-809-0 		1-14419-150-0 16 1 -
44 PLATE; SEAL,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14459-054-0 01 1 -
45 SCREW; SEAL PLATE,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14419-144-0 04 1 -
73 GASKET; BRG HSG,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14459-037-0 01 1 -
127 STUD; TURBOCHARGER
(A) ASM PART: B = 8-97602-809-0 		1-14419-137-0 02 1 -
127 STUD; TURBOCHARGER
(A) ASM PART: A = 8-94390-651-0 		1-14419-138-0 02 1 -
127 STUD; TURBOCHARGER
(B) ASM PART: B = 8-97602-809-0 		1-14419-141-0 01 1 -
127 STUD; TURBOCHARGER
(B) ASM PART: A = 8-94390-651-0 		1-14419-142-0 01 1 -

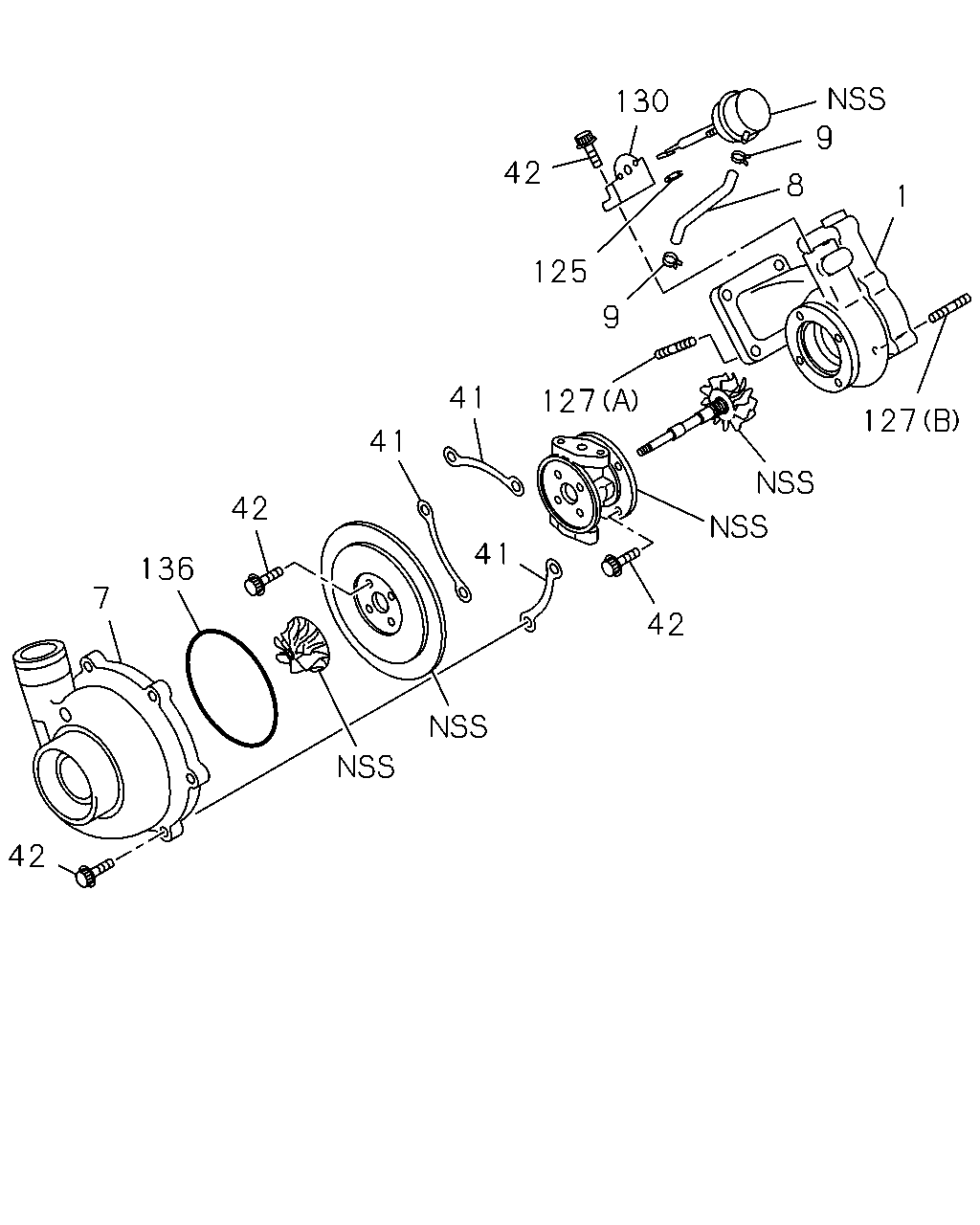

çizim 61813
130 9 42 8 1 125 9 41 127 127 41 42 41 136 7 42 42
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14415-104-0 01 1 -
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: B = 8-97602-809-0 		1-14415-110-0 01 1 -
7 HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14414-086-0 01 1 -
7 HOUSING; BLOWER,TURBOCHARGER
ASM PART: B = 8-97602-809-0 		1-14414-109-0 01 1 -
8 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: B = 8-97602-809-0 		1-14419-133-0 01 1 -
9 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: B = 8-97602-809-0 		1-14419-134-0 02 1 -
41 PLATE; LK,BLOWER HSG,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14419-093-0 02 1 -
41 PLATE; LK,BLOWER HSG,TURBOCHARGER
ASM PART: B = 8-97602-809-0 		1-14419-151-0 03 1 -
42 BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
ASM PART: A = 8-94390-651-0 		1-14419-105-0 06 1 -
42 BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
ASM PART: B = 8-97602-809-0 		1-14419-150-0 16 1 -
125 RING; SNAP,CONT LINK
ASM PART: B = 8-97602-809-0 		1-14419-108-0 01 1 -
127 STUD; TURBOCHARGER
(A) ASM PART: B = 8-97602-809-0 		1-14419-137-0 02 1 -
127 STUD; TURBOCHARGER
(A) ASM PART: A = 8-94390-651-0 		1-14419-138-0 02 1 -
127 STUD; TURBOCHARGER
(B) ASM PART: B = 8-97602-809-0 		1-14419-141-0 01 1 -
127 STUD; TURBOCHARGER
(B) ASM PART: A = 8-94390-651-0 		1-14419-142-0 01 1 -
130 BRACKET; ACTUATOR,TURBO
ASM PART: B = 8-97602-809-0 		1-14419-152-0 01 1 -
136 GASKET; TURBINE HSG,TURBOCHARGER
ASM PART: B = 8-97602-809-0 		1-14459-064-0 01 1 -
