◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#64189) — 121 parça

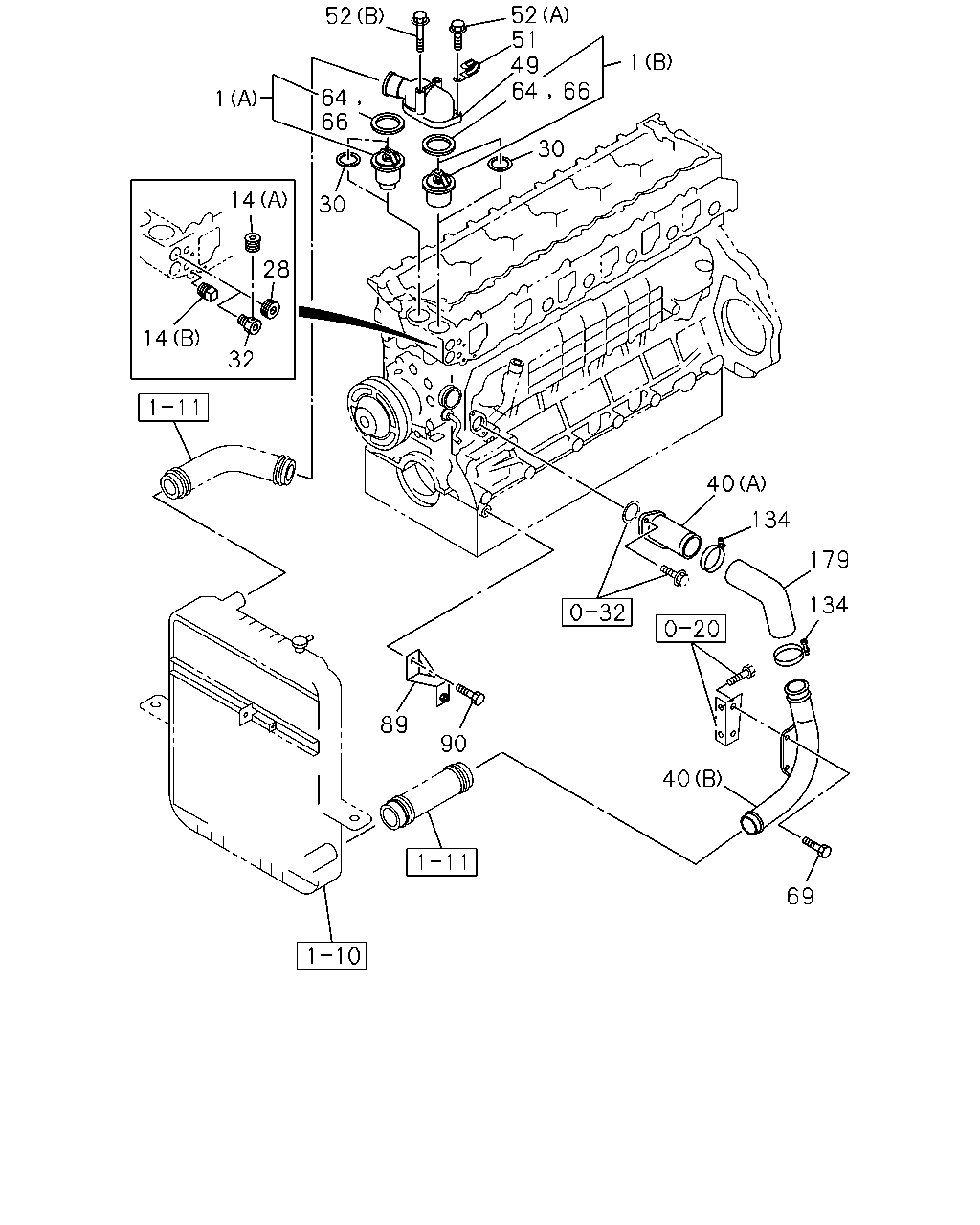

çizim 41657
52 51 49 64 52 1 66 64 66 1 30 30 14 28 14 32 40 134 179 134 89 90 40 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 THERMOSTAT
EXC. THAILAND EQUIPMENT(PM9) (A) 82 CELSIUS 		8-94397-310-0 01 1 9510-9802 ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (A) 82 CELSIUS 		8-94397-310-0 01 1 9510-9802 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9510-9802 ●
1 THERMOSTAT
EXC. THAILAND EQUIPMENT(PM9) (A) 82 CELSIUS 		8-94397-311-0 01 1 9510-9802 ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (A) 82 CELSIUS 		8-94397-311-0 01 1 9510-9802 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-311-0 01 1 9510-9802 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9803-0004 ● ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (A) 82 CELSIUS 		8-94397-310-0 01 1 9803-0004 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 0005-0105 ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (A) 82 CELSIUS 		8-94397-310-0 01 1 0005-0105 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-1 01 1 0106-0405 ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (A) 82 CELSIUS 		8-97602-048-1 01 1 0106-0405 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 0406- ● ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (A) 82 CELSIUS 		8-97602-048-3 01 1 0406- ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9803-9807 ● ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (B) 82 CELSIUS 		8-94397-311-0 01 1 9803-9807 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9808-0004 ● ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (B) 82 CELSIUS 		8-94392-817-0 01 1 9808-0004 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 0005-0105 ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (B) 82 CELSIUS 		8-94392-817-0 01 1 0005-0105 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (B) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-0 01 1 0201-0405 ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (B) 82 CELSIUS 		8-97602-393-0 01 1 0201-0405 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0406-1501 ● ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (B) 82 CELSIUS 		8-97602-393-1 01 1 0406-1501 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ●
1 THERMOSTAT
THERMOSTAT EXPORT VAR 1<Q1U> (A) 76.5 CELSIUS 		8-94393-349-1 01 1 9510-0105 ●
1 THERMOSTAT
THERMOSTAT EXPORT VAR 1<Q1U> (A) 76.5 CELSIUS 		8-97602-036-0 01 1 0106-0112 ●
1 THERMOSTAT
THERMOSTAT EXPORT VAR 1<Q1U> (A) 76.5 CELSIUS 		8-97602-392-2 01 1 0201- ●
1 THERMOSTAT
THERMOSTAT EXPORT VAR 1<Q1U> (B) 76.5 CELSIUS 		8-94393-350-1 01 1 9510-9807 ●
1 THERMOSTAT
THERMOSTAT EXPORT VAR 1<Q1U> (B) 76.5 CELSIUS 		8-94392-816-0 01 1 9808-0105 ●
1 THERMOSTAT
THERMOSTAT EXPORT VAR 1<Q1U> (B) 76.5 CELSIUS 		8-97602-035-3 01 1 0106- ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9510-0004 ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0005-0405 ● ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0406- ● ● ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9701-0010 ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 0011-1008 ●
14 PLUG; SW
EXC. EURO2 SPECIFICATION<THN> (A) PT1/4 		1-09605-019-0 01 1 0011-1008 ●
28 PLUG; HTR
EXC. AUSTRALIA EQUIPMENT(RR3) PT3/4 		1-09605-020-0 01 1 9510-9901 ● ●
28 PLUG; HTR
EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> PT3/4 		1-09605-020-0 01 1 9902-9910 ● ●
28 PLUG; HTR
EXC. AUSTRALIA EQUIPMENT(RR3) PT3/4 		1-09605-020-0 01 1 9911-0004 ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0005-0405 ● ●
28 PLUG; HTR
EURO2 SPECIFICATION<THN> PT3/4 		1-09605-020-0 01 1 0005-0405 ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0406- ● ● ●
28 PLUG; HTR
EURO2 SPECIFICATION<THN> PT3/4 		1-09605-020-0 01 1 0406- ●
30 SPACER
THAILAND EQUIPMENT(PM9) 		8-94393-517-0 02 1 9510-9802 ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 9610-1008 ●
32 CONNECTOR; HTR 8-98177-501-0 01 1 1009- ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-403-1 01 1 9510-9611 ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9612-9802 ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9510-0004 ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0005-0010 ● ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0011-0405 ● ● ●
40 DUCT; WATER,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		8-94394-404-1 01 1 0011-0405 ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0406- ● ●
40 DUCT; WATER,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		8-94394-404-1 01 1 0406- ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9803-0004 ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 0005-0405 ● ● ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> (A) 		8-94391-091-0 01 1 0005-0405 ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 0406- ● ● ● ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> (A) 		8-94391-091-1 01 1 0406- ●
40 DUCT; WATER,SUCTION
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94391-080-1 01 1 0011- ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9510-0004 ● ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 0005-0010 ● ● ●
49 PIPE; WATER OUTLET
EURO2 SPECIFICATION<THN> 		8-94399-499-1 01 1 0005-0010 ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 0011-0105 ● ● ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0106-0405 ● ● ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0406- ● ● ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9510-0004 ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0005-0405 ● ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0406-0801 ● ● ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X79 FLANGE 		8-94311-617-1 02 1 9510-9612 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X22 FLANGE 		0-28080-822-0 02 1 9510-9709 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9710-0004 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0010 ● ● ●
52 BOLT; JOINT,THERMOSTAT
EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0010 ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0011-0405 ● ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0406-0512 ● ● ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9610-9612 ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9701-0004 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 0005-0405 ● ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 0406-0512 ● ● ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ● ● ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9510-0004 ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 0005-0105 ● ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0106-0405 ● ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0406-1501 ● ● ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ● ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9712 ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 9801-0004 ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0010 ● ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 0011-0405 ● ● ●
69 BOLT; DUCT,WATER OUTLET
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE 		0-28680-820-0 02 1 0011-0405 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 0406-0512 ● ●
69 BOLT; DUCT,WATER OUTLET
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE 		0-28680-820-0 02 1 0406-0512 ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
69 BOLT; DUCT,WATER OUTLET
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
89 BRACKET
EXC. EURO2 SPECIFICATION<THN> 		8-94390-983-2 01 1 0011-0405 ●
89 BRACKET
EXC. EURO2 SPECIFICATION<THN> 		8-94390-983-2 01 1 0406- ●
89 BRACKET 8-94390-983-2 01 1 0406- ●
90 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> M10X16 FLANGE 		0-28181-016-0 01 1 0011-0405 ●
90 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> M10X16 FLANGE 		0-28181-016-0 01 1 0406-0512 ●
90 BOLT; BRKT
M10X16 FLANGE 		0-28181-016-0 01 1 0406-0512 ●
90 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> M10X16 FLANGE 		0-28151-016-0 01 1 0601- ●
90 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 01 1 0601- ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9510-0004 ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0005-0010 ● ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0011-0405 ● ● ●
134 CLIP; RUBBER HOSE
EXC. NEW ZEALAND EQUIPMENT(PK5) ID=63 		1-09704-067-0 02 1 0011-0405 ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0406- ● ●
134 CLIP; RUBBER HOSE
EXC. NEW ZEALAND EQUIPMENT(PK5) ID=63 		1-09704-067-0 02 1 0406- ● ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-1 01 1 9510-0004 ● ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-1 01 1 0005-0010 ● ● ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 0011-0405 ● ● ●
179 HOSE; RUBBER,WATER DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5) 		8-94394-535-2 01 1 0011-0405 ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 0406- ● ●
179 HOSE; RUBBER,WATER DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5) 		8-94394-535-2 01 1 0406- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
