◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10700 - FSR32,33(RHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#64187) — 118 parça

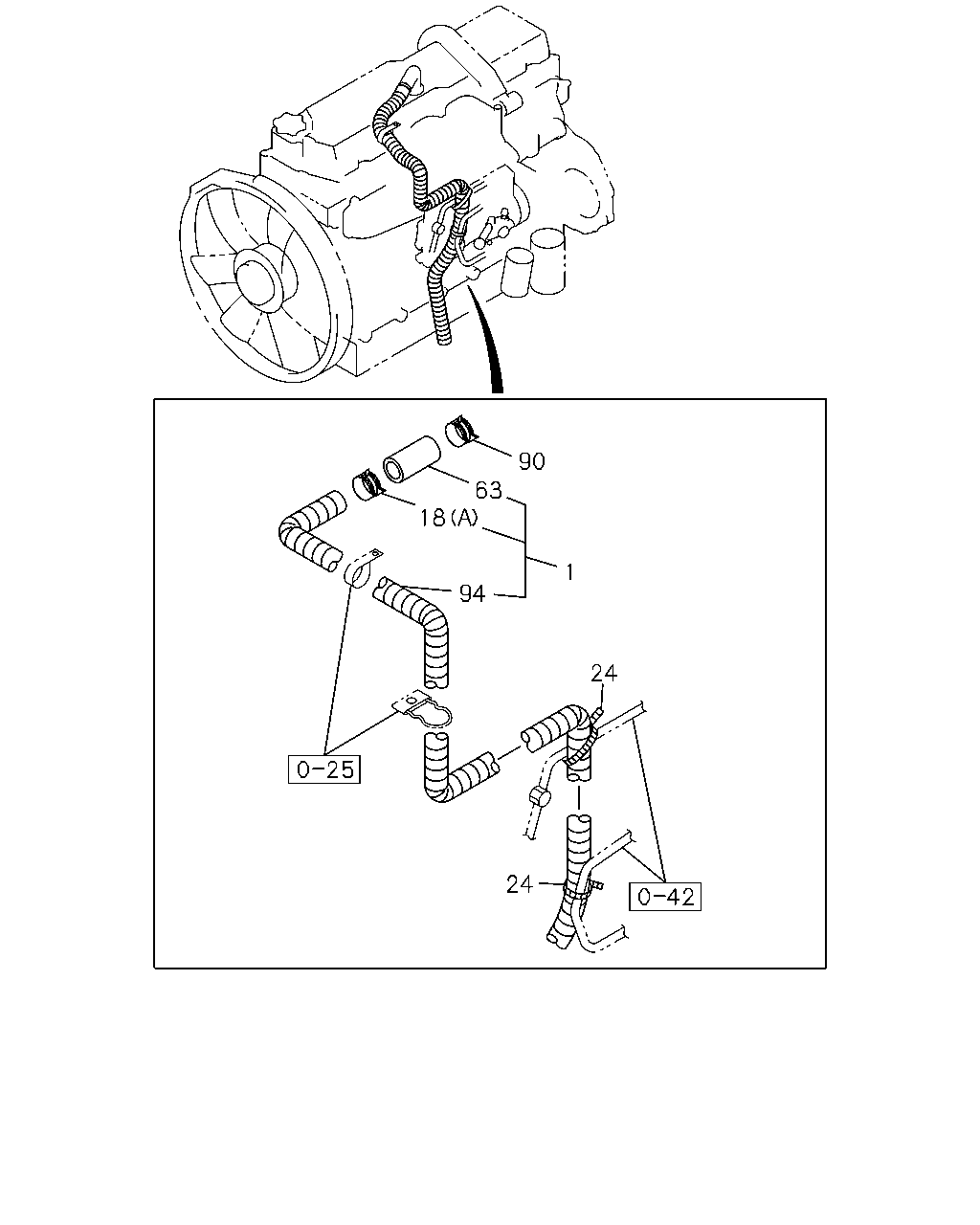

çizim 40851
90 63 18 1 94 24 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BREATHER; AIR
EURO2 SPECIFICATION<THN> 		8-94392-083-0 01 1 9911-0004 ●
1 BREATHER; AIR
EURO2 SPECIFICATION<THN> 		8-94392-083-3 01 1 0005- ●
1 BREATHER; AIR
STD CAB(FS**M*) 		8-94394-859-1 01 1 9510-9709 ● ●
1 BREATHER; AIR 8-94394-859-1 01 1 9710-9911 ● ●
1 BREATHER; AIR
EXC. EURO2 SPECIFICATION<THN> 		8-94394-859-1 01 1 9911-0004 ●
1 BREATHER; AIR 8-94394-859-1 01 1 9911-0004 ●
1 BREATHER; AIR 8-94394-859-4 01 1 0005- ● ●
1 BREATHER; AIR
DOUBLE CAB(FS**W*) 		8-94394-777-1 01 1 9510-9709 ● ●
1 BREATHER; AIR 8-94394-777-1 01 1 9510-9709 ●
1 BREATHER; AIR 8-94394-777-1 01 1 9710-0405 ●
1 BREATHER; AIR 8-94394-777-2 01 1 0406- ● ●
1 BREATHER; AIR
EXC. EURO2 SPECIFICATION<THN> 		8-97600-171-3 01 1 0011- ●
18 CLIP; RUBBER HOSE,AIR BREATHER
DOUBLE CAB(FS**W*) (B) ID=38 		9-09915-041-1 01 1 9510-9709 ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 9510-9709 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 9710-9802 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 9510-0004 ● ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 0005-0405 ● ● ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 0406- ● ● ● ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 9803-0405 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 0406- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 01 1 9911-0004 ●
24 CLIP; RUBBER HOSE,VENTILATOR
EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 01 1 0005-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
EURO2 SPECIFICATION<THN> L=250 		8-98216-430-0 01 1 1206- ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 9510-9911 ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 02 1 9911-0004 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 9911-0004 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0005-0005 ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 03 1 0006-0405 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 03 1 0406-1205 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 03 1 1206- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0006-0010 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0011-1205 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 02 1 0011-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 02 1 1206- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. EURO2 SPECIFICATION<THN> L=250 		8-98216-430-0 02 1 1206- ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02828-070-0 01 1 0704-1005 ● ● ●
63 HOSE; RUBBER,AIR BREATHER
HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) L=70 		0-02828-070-0 01 1 0704-1005 ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 1006-1007 ● ● ●
63 HOSE; RUBBER,AIR BREATHER
HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) L=70 		0-02728-070-0 01 1 1006-1007 ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 1008- ● ● ●
63 HOSE; RUBBER,AIR BREATHER
STD CAB(FS**M*) L=70 		0-02728-070-0 01 1 9510-9709 ● ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 9710-9809 ● ●
63 HOSE; RUBBER,AIR BREATHER
DOUBLE CAB(FS**W*) 		8-94394-471-0 01 1 9510-9709 ● ●
63 HOSE; RUBBER,AIR BREATHER 8-94394-471-0 01 1 9510-9709 ●
63 HOSE; RUBBER,AIR BREATHER 8-94394-471-0 01 1 9710-0405 ●
63 HOSE; RUBBER,AIR BREATHER 8-94394-471-0 01 1 0406- ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9510-0004 ● ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 0005-0405 ● ● ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 0406- ● ● ● ● ●
94 HOSE; BREATHER TO PIPE
EURO2 SPECIFICATION<THN> L=1260 		8-94392-082-0 01 1 9911-0004 ●
94 HOSE; BREATHER TO PIPE
EURO2 SPECIFICATION<THN> L=1260 		8-94392-082-0 01 1 0005- ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9510-9911 ● ● ●
94 HOSE; BREATHER TO PIPE
EXC. EURO2 SPECIFICATION<THN> L=1100 		8-94394-785-0 01 1 9911-0004 ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9911-0004 ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 0005-0405 ● ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 0406- ● ● ● ●
94 HOSE; BREATHER TO PIPE
EXC. EURO2 SPECIFICATION<THN> L=1320 		8-97600-189-0 01 1 0011- ●

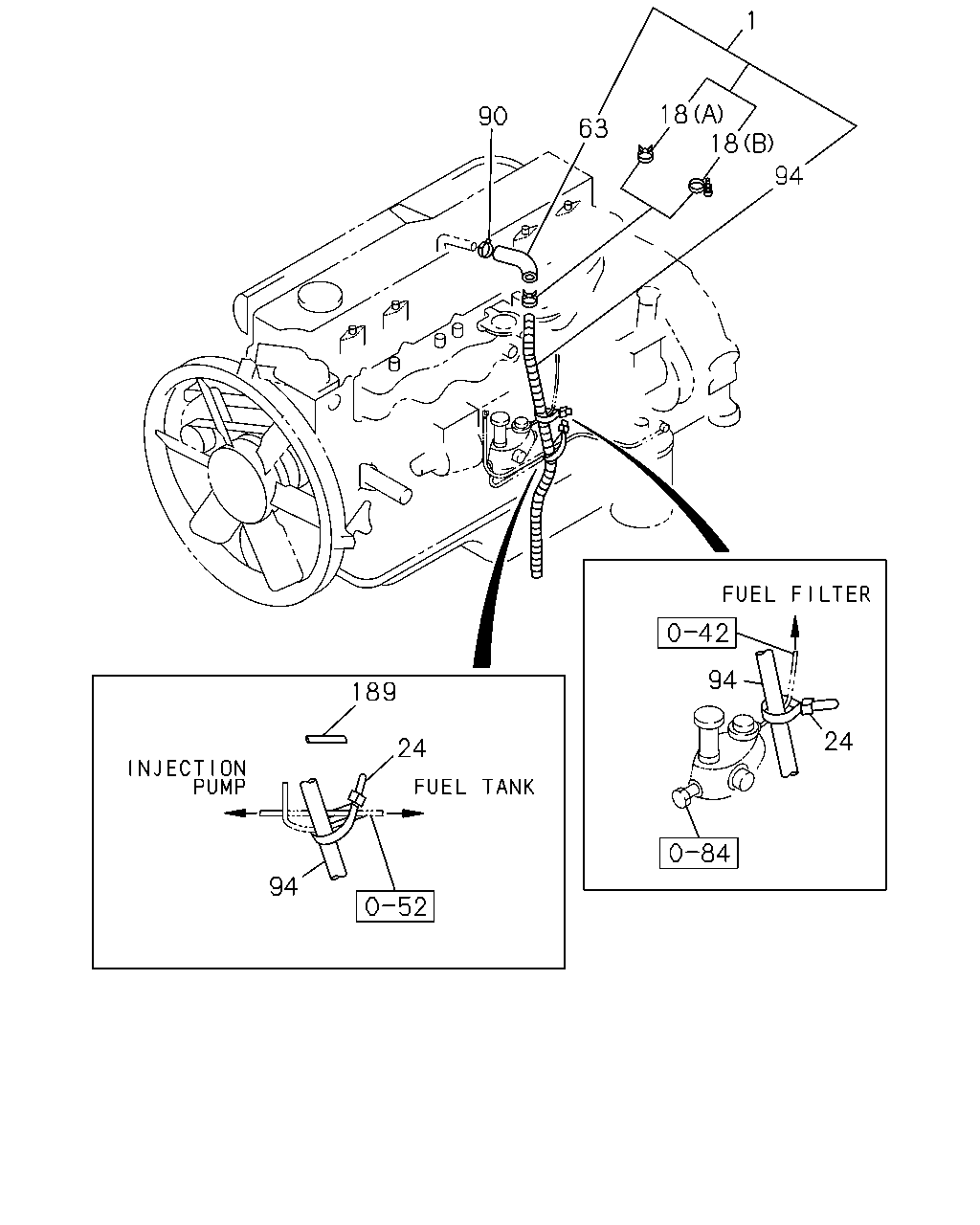

çizim 183930
1 18 18 90 63 94 94 189 24 24 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BREATHER; AIR
EURO2 SPECIFICATION<THN> 		8-94392-083-0 01 1 9911-0004 ●
1 BREATHER; AIR
EURO2 SPECIFICATION<THN> 		8-94392-083-3 01 1 0005- ●
1 BREATHER; AIR
STD CAB(FS**M*) 		8-94394-859-1 01 1 9510-9709 ● ●
1 BREATHER; AIR 8-94394-859-1 01 1 9710-9911 ● ●
1 BREATHER; AIR
EXC. EURO2 SPECIFICATION<THN> 		8-94394-859-1 01 1 9911-0004 ●
1 BREATHER; AIR 8-94394-859-1 01 1 9911-0004 ●
1 BREATHER; AIR 8-94394-859-4 01 1 0005- ● ●
1 BREATHER; AIR
DOUBLE CAB(FS**W*) 		8-94394-777-1 01 1 9510-9709 ● ●
1 BREATHER; AIR 8-94394-777-1 01 1 9510-9709 ●
1 BREATHER; AIR 8-94394-777-1 01 1 9710-0405 ●
1 BREATHER; AIR 8-94394-777-2 01 1 0406- ● ●
1 BREATHER; AIR
EXC. EURO2 SPECIFICATION<THN> 		8-97600-171-3 01 1 0011- ●
18 CLIP; RUBBER HOSE,AIR BREATHER
DOUBLE CAB(FS**W*) (B) ID=38 		9-09915-041-1 01 1 9510-9709 ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 9510-9709 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 9710-9802 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 9510-0004 ● ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 0005-0405 ● ● ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 0406- ● ● ● ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 9803-0405 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 0406- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 01 1 9911-0004 ●
24 CLIP; RUBBER HOSE,VENTILATOR
EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 01 1 0005-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
EURO2 SPECIFICATION<THN> L=250 		8-98216-430-0 01 1 1206- ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 9510-9911 ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 02 1 9911-0004 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 9911-0004 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0005-0005 ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 03 1 0006-0405 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 03 1 0406-1205 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 03 1 1206- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0006-0010 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0011-1205 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 02 1 0011-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 02 1 1206- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. EURO2 SPECIFICATION<THN> L=250 		8-98216-430-0 02 1 1206- ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02828-070-0 01 1 0704-1005 ● ● ●
63 HOSE; RUBBER,AIR BREATHER
HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) L=70 		0-02828-070-0 01 1 0704-1005 ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 1006-1007 ● ● ●
63 HOSE; RUBBER,AIR BREATHER
HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) L=70 		0-02728-070-0 01 1 1006-1007 ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 1008- ● ● ●
63 HOSE; RUBBER,AIR BREATHER
STD CAB(FS**M*) L=70 		0-02728-070-0 01 1 9510-9709 ● ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 9710-9809 ● ●
63 HOSE; RUBBER,AIR BREATHER
DOUBLE CAB(FS**W*) 		8-94394-471-0 01 1 9510-9709 ● ●
63 HOSE; RUBBER,AIR BREATHER 8-94394-471-0 01 1 9510-9709 ●
63 HOSE; RUBBER,AIR BREATHER 8-94394-471-0 01 1 9710-0405 ●
63 HOSE; RUBBER,AIR BREATHER 8-94394-471-0 01 1 0406- ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9510-0004 ● ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 0005-0405 ● ● ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 0406- ● ● ● ● ●
94 HOSE; BREATHER TO PIPE
EURO2 SPECIFICATION<THN> L=1260 		8-94392-082-0 01 1 9911-0004 ●
94 HOSE; BREATHER TO PIPE
EURO2 SPECIFICATION<THN> L=1260 		8-94392-082-0 01 1 0005- ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9510-9911 ● ● ●
94 HOSE; BREATHER TO PIPE
EXC. EURO2 SPECIFICATION<THN> L=1100 		8-94394-785-0 01 1 9911-0004 ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9911-0004 ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 0005-0405 ● ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 0406- ● ● ● ●
94 HOSE; BREATHER TO PIPE
EXC. EURO2 SPECIFICATION<THN> L=1320 		8-97600-189-0 01 1 0011- ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 03 1 0406- ●
189 SLEEVE; RUBBER
EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30 		9-09956-682-0 02 1 0002-0004 ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0002-0004 ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0005- ● ●
