0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#64183) — 806 parça
çizim 37957
250 167 179 176 62 2 224 177 490 234 115 208 225 397 338 485 419 556 175 177 115 234 290 193 29 228 209
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 HOUSING; FLYWHEEL
(D) 		8-94391-983-9 01 1 0406-1308 ●
2 HOUSING; FLYWHEEL
(D) 		8-98215-259-0 01 1 1309- ●
2 HOUSING; FLYWHEEL
(A) 		8-94394-757-3 01 1 9510-9805 ●
2 HOUSING; FLYWHEEL
ISUZU M/T<X9A> (A) 		8-94394-757-3 01 1 9510-9805 ●
2 HOUSING; FLYWHEEL
(A) 		8-94394-757-3 01 1 9806-9808 ●
2 HOUSING; FLYWHEEL
14" CLUTCH(WF6) (A) 		8-94394-757-3 01 1 9806-9808 ●
2 HOUSING; FLYWHEEL
14" CLUTCH(WF6) (A) 		8-94394-757-4 01 1 9809-9911 ● ●
2 HOUSING; FLYWHEEL
14" CLUTCH(WF6) EXC. EURO2 SPECIFICATION<THN> (A) 		8-94394-757-4 01 1 9911-0004 ● ●
2 HOUSING; FLYWHEEL
(A) 		8-94394-757-8 01 1 0005- ● ●
2 HOUSING; FLYWHEEL
EURO2 SPECIFICATION<THN> (A) 		8-94392-120-1 01 1 9911-0004 ●
2 HOUSING; FLYWHEEL
EURO2 SPECIFICATION<THN> (A) 		8-94392-120-5 01 1 0005- ●
2 HOUSING; FLYWHEEL
A/T<X9D> (A) 		8-94394-759-2 01 1 9510-9808 ●
2 HOUSING; FLYWHEEL
A/T<X9D> (A) 		8-94394-759-3 01 1 9809-0004 ● ●
2 HOUSING; FLYWHEEL
(B) 		8-94391-103-3 01 1 9610-9910 ●
2 HOUSING; FLYWHEEL
(B) 		8-94392-208-4 01 1 9911- ●
2 HOUSING; FLYWHEEL
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94390-834-8 01 1 0011- ●
29 KEY; COUPLING 9-08055-416-0 01 1 9510-9911 ● ●
29 KEY; COUPLING
EXC. EURO2 SPECIFICATION<THN> 		9-08055-416-0 01 1 9911-0004 ●
29 KEY; COUPLING 9-08055-416-0 01 1 9911-0004 ●
29 KEY; COUPLING 9-08055-416-0 01 1 0005- ● ●
29 KEY; COUPLING 9-08055-516-0 01 1 9610-9910 ●
29 KEY; COUPLING
EURO2 SPECIFICATION<THN> 		9-08055-516-0 01 1 9911-0004 ●
29 KEY; COUPLING 9-08055-516-0 01 1 9911-0004 ●
29 KEY; COUPLING 9-08055-516-0 01 1 0005-0405 ● ●
29 KEY; COUPLING 9-08055-516-0 01 1 0406- ● ● ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 9610-0010 ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 0011-0405 ●
62 BOLT; COVER
EXC. EURO2 SPECIFICATION<THN> (A) M8X14 FLANGE 		0-28080-814-0 03 1 0011-0405 ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 0406- ● ●
62 BOLT; COVER
EXC. EURO2 SPECIFICATION<THN> (A) M8X14 FLANGE 		0-28080-814-0 03 1 0406- ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 9610-9910 ●
62 BOLT; COVER
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28080-820-0 03 1 9911-0004 ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 9911-0004 ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 0005-0405 ● ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 0406-0512 ● ● ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28050-820-0 03 1 0601- ● ● ●
115 SENSOR; REVOLUTION,ENG SPD 8-94390-279-0 01 1 0406- ●
115 SENSOR; REVOLUTION,ENG SPD
EURO2 SPECIFICATION<THN> 		8-97600-829-0 01 1 0001-0004 ●
115 SENSOR; REVOLUTION,ENG SPD
EURO2 SPECIFICATION<THN> 		8-97600-829-2 01 1 0005- ●
115 SENSOR; REVOLUTION,ENG SPD
TACHOMETER<UD7> 		1-81510-561-0 01 1 9510- ● ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-549-1 01 1 9610-9910 ●
115 SENSOR; REVOLUTION,ENG SPD
EURO2 SPECIFICATION<THN> 		1-81510-549-1 01 1 9911-9912 ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-549-1 01 1 9911-9912 ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-549-1 01 1 0001-0002 ●
115 SENSOR; REVOLUTION,ENG SPD 8-97601-117-2 01 1 0003- ●
115 SENSOR; REVOLUTION,ENG SPD
EXC. EURO2 SPECIFICATION<THN> L=1750 		8-97600-085-3 01 1 0011- ●
167 COVER; OIL 1-11219-163-0 01 1 9510-0004 ● ● ●
167 COVER; OIL 1-11219-163-0 01 1 0005-0405 ● ● ● ●
167 COVER; OIL 1-11219-163-0 01 1 0406- ● ● ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-94370-637-0 01 1 9510-0004 ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-94370-637-0 01 1 0005-0112 ● ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0201-0405 ● ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0406- ● ● ● ● ●
176 BRACKET; HARNESS
(A) 		1-82699-412-1 01 1 9510-0004 ● ●
176 BRACKET; HARNESS
(A) 		1-82699-412-1 01 1 0005- ● ●
176 BRACKET; HARNESS
EURO2 SPECIFICATION<THN> (A) 		1-82699-412-1 01 1 0005- ●
176 BRACKET; HARNESS
(B) 		1-82699-828-1 01 1 9610- ●
176 BRACKET; HARNESS
EXC. EURO2 SPECIFICATION<THN> (C) 		1-82698-079-1 01 1 0011-0405 ●
176 BRACKET; HARNESS
EXC. EURO2 SPECIFICATION<THN> (C) 		1-82698-079-1 01 1 0406- ●
176 BRACKET; HARNESS
(C) 		1-82698-079-1 01 1 0406- ●
177 BOLT; SENSOR
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28680-825-0 02 1 9911-0004 ●
177 BOLT; SENSOR
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
177 BOLT; SENSOR
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 9510-9911 ● ●
177 BOLT; SENSOR
EXC. EURO2 SPECIFICATION<THN> M6X16 FLANGE 		0-28080-616-0 01 1 9911-0004 ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 9911-0004 ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 0005-0405 ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 0406-0512 ● ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28050-616-0 01 1 0601- ● ● ●
177 BOLT; SENSOR
M8X20 FLANGE 		0-28680-820-0 02 1 9610-0512 ●
177 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
177 BOLT; SENSOR
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28080-820-0 02 1 0011-0512 ●
177 BOLT; SENSOR
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9510-9802 ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9802 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9803-0004 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0405 ● ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ● ● ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9803-0004 ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0005-0405 ● ● ●
179 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28080-820-0 02 1 0005-0405 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ● ● ● ●
179 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ● ● ● ●
179 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
193 SPACER; STAY TO OIL,PAN
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-674-0 01 1 9510-9611 ● ●
193 SPACER; STAY TO OIL,PAN
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-674-0 01 1 9612-9802 ● ●
193 SPACER; STAY TO OIL,PAN
AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-674-0 01 1 9803-0004 ● ●
193 SPACER; STAY TO OIL,PAN
EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94395-674-0 01 1 0005- ●
208 DOWEL; ENG FOOT
EURO2 SPECIFICATION<THN> 		8-94396-208-0 04 1 9911-9912 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9510-9802 ● ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9909-9912 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9803-9908 ● ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9909-9911 ● ●
208 DOWEL; ENG FOOT
EXC. EURO2 SPECIFICATION<THN> 		9-43269-009-1 04 1 9911-9912 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9911-9912 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0001-0004 ● ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0005-0405 ● ● ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0406- ● ● ● ● ●
209 COVER; CONV HOLE
A/T<X9D> 		8-94396-842-0 01 1 9510-9808 ●
209 COVER; CONV HOLE
A/T<X9D> 		8-94396-842-0 01 1 9809-0004 ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9510-0004 ● ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0005-0405 ● ● ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0406-0604 ● ● ● ● ●
224 STUD; STARTER
M14X35 L=56 		0-44011-435-0 02 1 0605- ● ● ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9510-0004 ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0005-0010 ● ● ●
225 STUD; OIL PAN
EURO2 SPECIFICATION<THN> M8X28 L=38 		8-94396-512-0 04 1 0005-0010 ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0011-0405 ● ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0406-0609 ● ● ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0610-1101 ●
225 STUD; OIL PAN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8X28 L=38 		8-94396-512-0 04 1 0610-1101 ●
225 STUD; OIL PAN
HEATER & DEFROSTER(C41) M8X28 L=38 		8-94396-512-0 04 1 0610-1101 ●
225 STUD; OIL PAN
EURO2 SPECIFICATION<THN> M8X28 L=38 		8-94396-512-0 04 1 0610-1101 ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 1102- ● ● ● ● ●
228 STUD; AIR CMPR
EURO2 SPECIFICATION<THN> M12X77 L=95 		9-09831-161-0 01 1 9911-0004 ●
228 STUD; AIR CMPR
EURO2 SPECIFICATION<THN> M12X77 L=95 		9-09831-161-0 01 1 0005-0010 ●
228 STUD; AIR CMPR
M12X77 L=95 		9-09831-161-0 01 1 0011-0405 ●
228 STUD; AIR CMPR
M12X77 L=95 		9-09831-161-0 01 1 0406- ● ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 9510-9911 ● ●
228 STUD; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> M12X60 L=78 		9-94411-260-0 01 1 9911-0004 ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 9911-0004 ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 0005-0604 ● ●
228 STUD; AIR CMPR
M12X60 L=78 		0-44011-260-0 01 1 0605- ● ●
228 STUD; AIR CMPR
M12X35 L=53 		9-94411-235-0 01 1 9610-0604 ●
228 STUD; AIR CMPR
M12X35 L=53 		0-44011-235-0 01 1 0605- ●
234 BOLT; BRKT
A/T<X9D> M8X16 FLANGE 		0-28080-816-0 01 1 9908-0004 ● ●
234 BOLT; BRKT
TACHOMETER<UD7> M8X12 FLANGE 		0-28080-812-0 02 1 9510-0512 ● ●
234 BOLT; BRKT
TACHOMETER<UD7> M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 9510-0004 ● ● ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 0005-0405 ● ● ● ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 0406- ● ● ● ● ●
290 PLUG; SENSOR HOLE
EXC. TACHOMETER<UD7> 		1-11349-157-0 01 1 9510-0205 ● ●
290 PLUG; SENSOR HOLE
EXC. TACHOMETER<UD7> 		8-97101-974-0 01 1 0206- ● ●
338 BRACKET; CLIP,HARNESS
A/T<X9D> (B) 		1-82699-182-0 01 1 9908-0004 ● ●
338 BRACKET; CLIP,HARNESS
(A) 		1-82699-889-0 01 1 9510-0004 ● ● ●
338 BRACKET; CLIP,HARNESS
(A) 		1-82699-889-0 01 1 0005-0405 ● ● ●
338 BRACKET; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) 		1-82699-889-0 01 1 0005-0405 ●
338 BRACKET; CLIP,HARNESS
(A) 		1-82699-889-0 01 1 0406- ● ● ● ●
338 BRACKET; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) 		1-82699-889-0 01 1 0406- ●
397 BRACKET; CONNECTOR
TACHOMETER<UD7> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94394-411-1 01 1 9510-0004 ● ●
397 BRACKET; CONNECTOR
TACHOMETER<UD7> 		8-94394-411-1 01 1 0005- ● ●
419 BRACKET; SENSOR 8-94394-773-1 01 1 9610-9910 ●
419 BRACKET; SENSOR
EURO2 SPECIFICATION<THN> 		8-94394-773-1 01 1 9911-0004 ●
419 BRACKET; SENSOR 8-94394-773-1 01 1 9911-0004 ●
419 BRACKET; SENSOR 8-94394-773-1 01 1 0005- ● ●
485 GASKET; SENSOR
TACHOMETER<UD7> 		9-09565-212-0 01 1 9510- ● ●
490 BRACKET; AIR PIPE,VSS
AUSTRALIA EQUIPMENT(RR3) 		8-94394-857-0 01 1 9510-0004 ● ●
556 CLIP; HARNESS,SENSOR
EURO2 SPECIFICATION<THN> ID=18 L=44 		8-94225-185-0 01 1 9911-0002 ●
556 CLIP; HARNESS,SENSOR
EURO2 SPECIFICATION<THN> ID=18 L=44 		8-94225-185-0 01 1 0003-0004 ●
556 CLIP; HARNESS,SENSOR
ID=18 L=44 		8-94225-185-0 01 1 0003-0004 ●
556 CLIP; HARNESS,SENSOR
ID=18 L=44 		8-94225-185-0 01 1 0005-0801 ● ●
556 CLIP; HARNESS,SENSOR
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ●

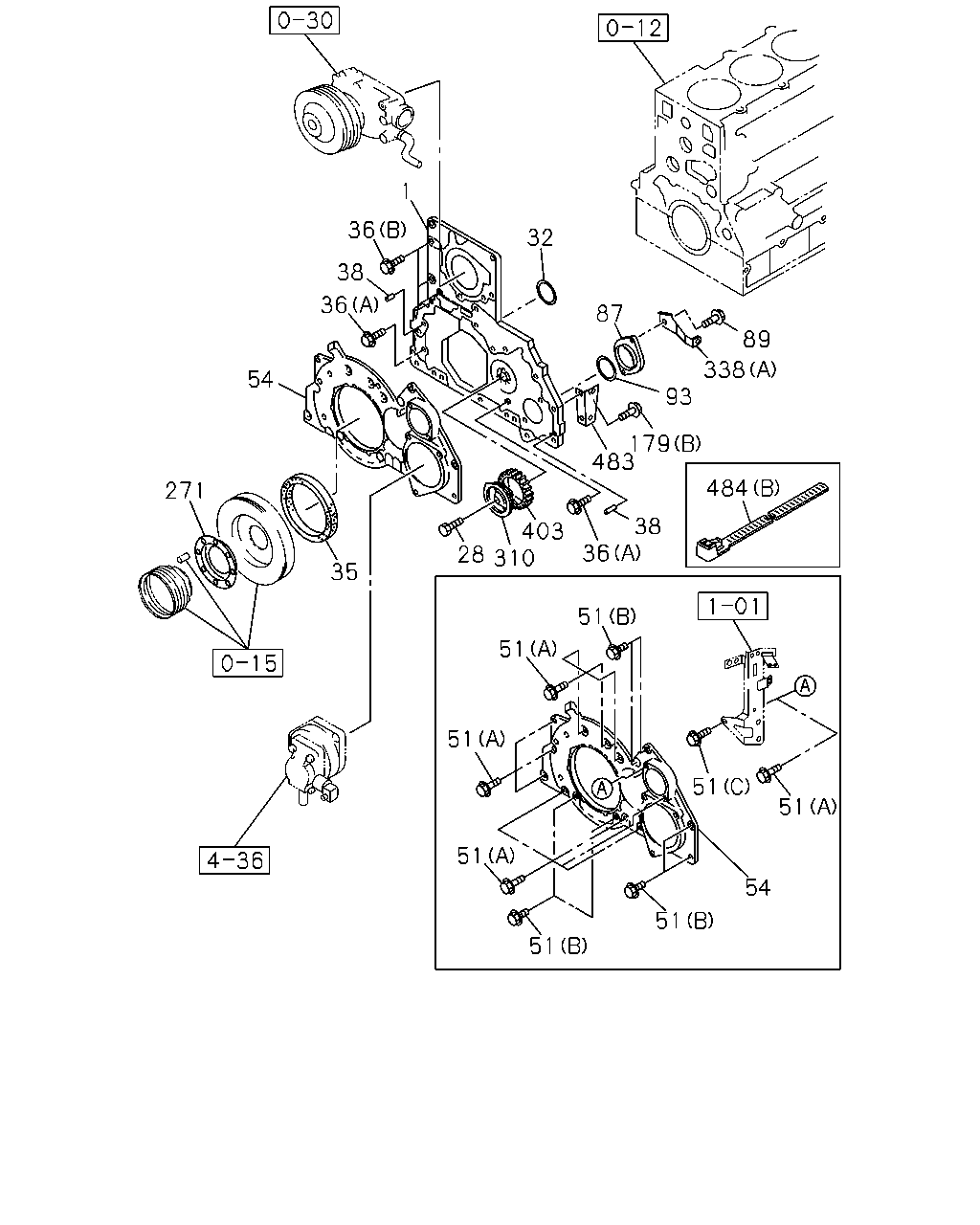

çizim 38137
1 36 32 38 36 87 89 338 93 179 483 54 403 38 484 28 310 36 271 35 51 51 51 51 51 51 54 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CASE; TIMING GEAR 8-94393-110-2 01 1 9510-9802 ● ● ●
1 CASE; TIMING GEAR 8-94396-434-5 01 1 9803-0004 ● ● ●
1 CASE; TIMING GEAR 8-94396-434-6 01 1 0005-0405 ● ● ●
1 CASE; TIMING GEAR
EURO2 SPECIFICATION<THN> 		8-94396-434-6 01 1 0005-0405 ●
1 CASE; TIMING GEAR 8-94396-434-6 01 1 0406- ● ● ● ●
1 CASE; TIMING GEAR
EURO2 SPECIFICATION<THN> 		8-94396-434-6 01 1 0406- ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 9510-0004 ● ● ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 0005-0009 ● ● ● ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 0010-0405 ● ● ●
28 BOLT; DRIVE GEAR
EURO2 SPECIFICATION<THN> M8X28 		8-94399-256-0 03 1 0010-0405 ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 0406-1501 ● ● ● ●
28 BOLT; DRIVE GEAR
EURO2 SPECIFICATION<THN> M8X28 		8-94399-256-0 03 1 0406-1501 ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 1502- ● ● ● ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		8-94397-364-0 01 1 9510-9805 ● ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 9806-0004 ● ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 0005-0405 ● ● ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 0406- ● ● ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 9510-0004 ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 0005-0112 ● ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-0 01 1 0201-0405 ● ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-3 01 1 0406- ● ● ● ● ●
36 BOLT; GEAR CASE
(A) M8X28 FLANGE 		0-28080-828-0 02 1 9510-9802 ● ● ●
36 BOLT; GEAR CASE
(B) M8X32 FLANGE 		0-28080-832-0 04 1 9510-9802 ● ● ●
36 BOLT; GEAR CASE
(A) M8X28 FLANGE 		0-28080-828-0 02 1 9803-0004 ● ● ●
36 BOLT; GEAR CASE
(A) M8X28 FLANGE 		0-28080-828-0 02 1 0005-0009 ● ● ● ●
36 BOLT; GEAR CASE
(A) M8X28 FLANGE 		0-28080-828-0 02 1 0010-0801 ● ● ●
36 BOLT; GEAR CASE
EURO2 SPECIFICATION<THN> (A) M8X28 FLANGE 		0-28080-828-0 02 1 0010-0801 ●
36 BOLT; GEAR CASE
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0802- ● ● ●
36 BOLT; GEAR CASE
EURO2 SPECIFICATION<THN> (A) M8X30 FLANGE 		0-28650-830-0 02 1 0802- ●
36 BOLT; GEAR CASE
(B) M8X32 FLANGE 		0-28080-832-0 04 1 9803-0004 ● ● ●
36 BOLT; GEAR CASE
(B) M8X32 FLANGE 		0-28080-832-0 04 1 0005-0009 ● ● ● ●
36 BOLT; GEAR CASE
(B) M8X32 FLANGE 		0-28080-832-0 04 1 0010-0405 ● ● ●
36 BOLT; GEAR CASE
EURO2 SPECIFICATION<THN> (B) M8X32 FLANGE 		0-28080-832-0 04 1 0010-0405 ●
36 BOLT; GEAR CASE
(B) M8X32 FLANGE 		0-28080-832-0 04 1 0406-0801 ● ● ● ●
36 BOLT; GEAR CASE
EURO2 SPECIFICATION<THN> (B) M8X32 FLANGE 		0-28080-832-0 04 1 0406-0801 ●
36 BOLT; GEAR CASE
(B) M8X35 FLANGE 		0-28050-835-0 04 1 0802-1501 ● ● ● ●
36 BOLT; GEAR CASE
EURO2 SPECIFICATION<THN> (B) M8X35 FLANGE 		0-28050-835-0 04 1 0802-1501 ●
36 BOLT; GEAR CASE
(B) M8X35 FLANGE 		0-28050-835-0 04 1 1502- ● ● ● ● ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 9510-0004 ● ● ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 0005-0009 ● ● ● ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 0010-0405 ● ● ●
38 PIN; GEAR CASE COVER
EURO2 SPECIFICATION<THN> L=22 		8-94483-674-0 02 1 0010-0405 ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 0406-1501 ● ● ● ●
38 PIN; GEAR CASE COVER
EURO2 SPECIFICATION<THN> L=22 		8-94483-674-0 02 1 0406-1501 ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 1502- ● ● ● ● ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 10 1 9510-9911 ● ●
51 BOLT; GEAR CASE COVER
EXC. EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE 		0-28080-840-0 10 1 9911-0004 ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 10 1 9911-0004 ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 10 1 0005-0512 ● ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28050-840-0 10 1 0601- ● ●
51 BOLT; GEAR CASE COVER
(C) M8X45 FLANGE 		0-28080-845-0 01 1 9510-9911 ● ●
51 BOLT; GEAR CASE COVER
EXC. EURO2 SPECIFICATION<THN> (C) M8X45 FLANGE 		0-28080-845-0 01 1 9911-0004 ●
51 BOLT; GEAR CASE COVER
(C) M8X45 FLANGE 		0-28080-845-0 01 1 9911-0004 ●
51 BOLT; GEAR CASE COVER
(C) M8X45 FLANGE 		0-28080-845-0 01 1 0005-0512 ● ●
51 BOLT; GEAR CASE COVER
(C) M8X45 FLANGE 		0-28050-845-0 01 1 0601- ● ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 9610-0004 ● ● ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 0005-0009 ● ● ● ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 0010-0405 ● ● ●
51 BOLT; GEAR CASE COVER
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28680-820-0 06 1 0010-0405 ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 0406-0512 ● ● ● ●
51 BOLT; GEAR CASE COVER
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28680-820-0 06 1 0406-0512 ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28650-820-0 06 1 0601-1501 ● ● ● ●
51 BOLT; GEAR CASE COVER
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28650-820-0 06 1 0601-1501 ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28650-820-0 06 1 1502- ● ● ● ● ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 11 1 9610-9910 ●
51 BOLT; GEAR CASE COVER
EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE 		0-28080-840-0 11 1 9911-0004 ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 11 1 9911-0004 ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 11 1 0005-0405 ● ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 11 1 0406-0512 ● ●
51 BOLT; GEAR CASE COVER
EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE 		0-28080-840-0 11 1 0406-0512 ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28050-840-0 11 1 0601- ● ●
51 BOLT; GEAR CASE COVER
EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE 		0-28050-840-0 11 1 0601- ●
51 BOLT; GEAR CASE COVER
EXC. EURO2 SPECIFICATION<THN> (D) M8X35 FLANGE 		0-28080-835-0 14 1 0011-0512 ●
51 BOLT; GEAR CASE COVER
EXC. EURO2 SPECIFICATION<THN> (D) M8X35 FLANGE 		0-28050-835-0 14 1 0601- ●
51 BOLT; GEAR CASE COVER
EXC. EURO2 SPECIFICATION<THN> (E) M8X40 FLANGE 		0-28080-840-0 02 1 0011-0512 ●
51 BOLT; GEAR CASE COVER
EXC. EURO2 SPECIFICATION<THN> (E) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ●
54 COVER; GEAR CASE 8-94393-304-1 01 1 9510-0004 ● ● ●
54 COVER; GEAR CASE 8-94393-304-1 01 1 0005-0405 ● ● ●
54 COVER; GEAR CASE
EURO2 SPECIFICATION<THN> 		8-94393-304-1 01 1 0005-0405 ●
54 COVER; GEAR CASE 8-94393-304-1 01 1 0406- ● ● ● ●
54 COVER; GEAR CASE
EURO2 SPECIFICATION<THN> 		8-94393-304-1 01 1 0406- ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 9510-0004 ● ● ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 0005-0009 ● ● ● ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 0010-0405 ● ● ●
87 COVER; TACHOMETER DRIVE
EURO2 SPECIFICATION<THN> 		8-94396-370-0 01 1 0010-0405 ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 0406-1501 ● ● ● ●
87 COVER; TACHOMETER DRIVE
EURO2 SPECIFICATION<THN> 		8-94396-370-0 01 1 0406-1501 ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 1502- ● ● ● ● ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 9510-0004 ● ● ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 0005-0009 ● ● ● ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 0010-0405 ● ● ●
89 BOLT; ELBOW
EURO2 SPECIFICATION<THN> M8X18 FLANGE 		0-28080-818-0 02 1 0010-0405 ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 0406-1501 ● ● ● ●
89 BOLT; ELBOW
EURO2 SPECIFICATION<THN> M8X18 FLANGE 		0-28080-818-0 02 1 0406-1501 ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 1502- ● ● ● ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7 		1-09623-180-0 01 1 9510-0004 ● ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7 		1-09623-180-0 01 1 0005-0009 ● ● ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-180-0 01 1 0010-0405 ● ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> OD=54.7 		1-09623-180-0 01 1 0010-0405 ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-180-0 01 1 0406-1501 ● ● ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> OD=54.7 		1-09623-180-0 01 1 0406-1501 ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7 		1-09623-180-0 01 1 1502- ● ● ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9510-9802 ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9802 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9803-0004 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0405 ● ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ● ● ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9803-0004 ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0005-0405 ● ● ●
179 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28080-820-0 02 1 0005-0405 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ● ● ● ●
179 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ● ● ● ●
179 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
271 COVER; DUST
THAILAND EQUIPMENT(PM9) 		8-94395-957-1 01 1 9510-9802 ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 9510-0004 ● ● ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 0005-0009 ● ● ● ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 0010-0405 ● ● ●
310 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<THN> 		8-94394-806-0 01 1 0010-0405 ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 0406-1501 ● ● ● ●
310 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<THN> 		8-94394-806-0 01 1 0406-1501 ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 1502- ● ● ● ● ●
338 BRACKET; CLIP,HARNESS
A/T<X9D> (B) 		1-82699-182-0 01 1 9908-0004 ● ●
338 BRACKET; CLIP,HARNESS
(A) 		1-82699-889-0 01 1 9510-0004 ● ● ●
338 BRACKET; CLIP,HARNESS
(A) 		1-82699-889-0 01 1 0005-0405 ● ● ●
338 BRACKET; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) 		1-82699-889-0 01 1 0005-0405 ●
338 BRACKET; CLIP,HARNESS
(A) 		1-82699-889-0 01 1 0406- ● ● ● ●
338 BRACKET; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (A) 		1-82699-889-0 01 1 0406- ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 9510-0004 ● ● ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 0005-0009 ● ● ● ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 0010-0405 ● ● ●
403 GEAR; IDLE,FRONT
EURO2 SPECIFICATION<THN> Z=33 		8-94395-943-1 01 1 0010-0405 ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 0406-1501 ● ● ● ●
403 GEAR; IDLE,FRONT
EURO2 SPECIFICATION<THN> Z=33 		8-94395-943-1 01 1 0406-1501 ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 1502- ● ● ● ● ●
483 BRACKET; WATER DUCT 8-94394-405-1 01 1 9510-0004 ● ● ●
483 BRACKET; WATER DUCT 8-94394-405-1 01 1 0005-0405 ● ● ●
483 BRACKET; WATER DUCT
EURO2 SPECIFICATION<THN> 		8-94394-405-1 01 1 0005-0405 ●
483 BRACKET; WATER DUCT 8-94394-405-1 01 1 0406- ● ● ● ●
483 BRACKET; WATER DUCT
EURO2 SPECIFICATION<THN> 		8-94394-405-1 01 1 0406- ●
484 CLIP; BAND
TACHOMETER<UD7> (B) L=250 		5-09707-030-1 01 1 1201-1205 ● ●
484 CLIP; BAND
TACHOMETER<UD7> (B) L=250 		8-98216-430-0 01 1 1206- ● ●
484 CLIP; BAND
(A) L=80 		5-09700-307-1 01 1 0406- ●

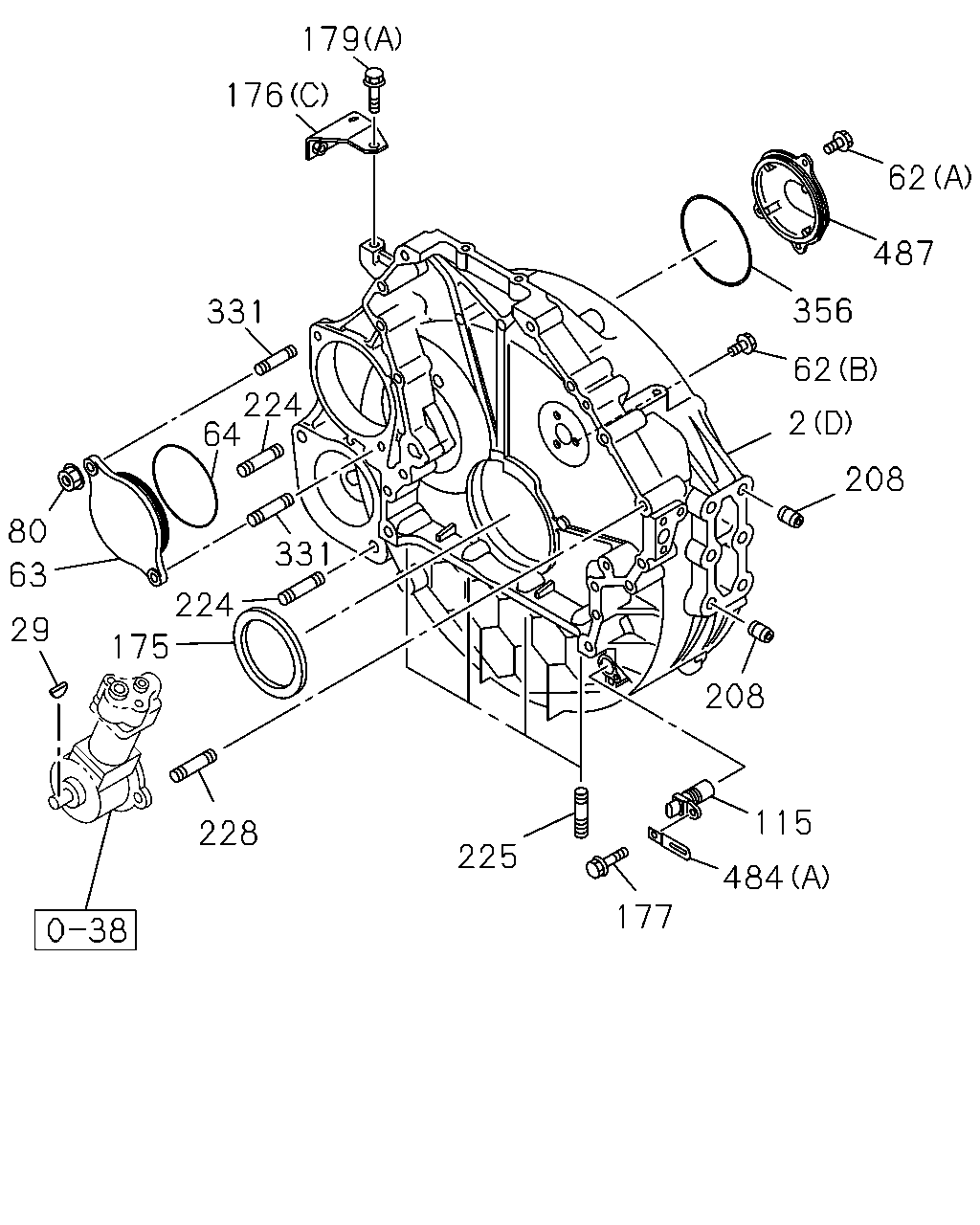

çizim 38466
179 176 62 487 356 62 2 208 331 224 64 80 63 29 331 224 175 208 115 484 177 225 228
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 HOUSING; FLYWHEEL
(D) 		8-94391-983-9 01 1 0406-1308 ●
2 HOUSING; FLYWHEEL
(D) 		8-98215-259-0 01 1 1309- ●
2 HOUSING; FLYWHEEL
(A) 		8-94394-757-3 01 1 9510-9805 ●
2 HOUSING; FLYWHEEL
ISUZU M/T<X9A> (A) 		8-94394-757-3 01 1 9510-9805 ●
2 HOUSING; FLYWHEEL
(A) 		8-94394-757-3 01 1 9806-9808 ●
2 HOUSING; FLYWHEEL
14" CLUTCH(WF6) (A) 		8-94394-757-3 01 1 9806-9808 ●
2 HOUSING; FLYWHEEL
14" CLUTCH(WF6) (A) 		8-94394-757-4 01 1 9809-9911 ● ●
2 HOUSING; FLYWHEEL
14" CLUTCH(WF6) EXC. EURO2 SPECIFICATION<THN> (A) 		8-94394-757-4 01 1 9911-0004 ● ●
2 HOUSING; FLYWHEEL
(A) 		8-94394-757-8 01 1 0005- ● ●
2 HOUSING; FLYWHEEL
EURO2 SPECIFICATION<THN> (A) 		8-94392-120-1 01 1 9911-0004 ●
2 HOUSING; FLYWHEEL
EURO2 SPECIFICATION<THN> (A) 		8-94392-120-5 01 1 0005- ●
2 HOUSING; FLYWHEEL
A/T<X9D> (A) 		8-94394-759-2 01 1 9510-9808 ●
2 HOUSING; FLYWHEEL
A/T<X9D> (A) 		8-94394-759-3 01 1 9809-0004 ● ●
2 HOUSING; FLYWHEEL
(B) 		8-94391-103-3 01 1 9610-9910 ●
2 HOUSING; FLYWHEEL
(B) 		8-94392-208-4 01 1 9911- ●
2 HOUSING; FLYWHEEL
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94390-834-8 01 1 0011- ●
29 KEY; COUPLING 9-08055-416-0 01 1 9510-9911 ● ●
29 KEY; COUPLING
EXC. EURO2 SPECIFICATION<THN> 		9-08055-416-0 01 1 9911-0004 ●
29 KEY; COUPLING 9-08055-416-0 01 1 9911-0004 ●
29 KEY; COUPLING 9-08055-416-0 01 1 0005- ● ●
29 KEY; COUPLING 9-08055-516-0 01 1 9610-9910 ●
29 KEY; COUPLING
EURO2 SPECIFICATION<THN> 		9-08055-516-0 01 1 9911-0004 ●
29 KEY; COUPLING 9-08055-516-0 01 1 9911-0004 ●
29 KEY; COUPLING 9-08055-516-0 01 1 0005-0405 ● ●
29 KEY; COUPLING 9-08055-516-0 01 1 0406- ● ● ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 9610-0010 ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 0011-0405 ●
62 BOLT; COVER
EXC. EURO2 SPECIFICATION<THN> (A) M8X14 FLANGE 		0-28080-814-0 03 1 0011-0405 ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 0406- ● ●
62 BOLT; COVER
EXC. EURO2 SPECIFICATION<THN> (A) M8X14 FLANGE 		0-28080-814-0 03 1 0406- ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 9610-9910 ●
62 BOLT; COVER
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28080-820-0 03 1 9911-0004 ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 9911-0004 ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 0005-0405 ● ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 0406-0512 ● ● ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28050-820-0 03 1 0601- ● ● ●
63 COVER; P/S 8-94392-615-1 01 1 0406- ●
64 GASKET; COVER,P/S
ID=105.6 		1-09623-423-0 01 1 0406- ●
80 NUT; COVER
M10 FLANGE 		0-91150-110-0 02 1 0406-0602 ●
80 NUT; COVER
M10 FLANGE 		0-91180-110-0 02 1 0603- ●
115 SENSOR; REVOLUTION,ENG SPD 8-94390-279-0 01 1 0406- ●
115 SENSOR; REVOLUTION,ENG SPD
EURO2 SPECIFICATION<THN> 		8-97600-829-0 01 1 0001-0004 ●
115 SENSOR; REVOLUTION,ENG SPD
EURO2 SPECIFICATION<THN> 		8-97600-829-2 01 1 0005- ●
115 SENSOR; REVOLUTION,ENG SPD
TACHOMETER<UD7> 		1-81510-561-0 01 1 9510- ● ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-549-1 01 1 9610-9910 ●
115 SENSOR; REVOLUTION,ENG SPD
EURO2 SPECIFICATION<THN> 		1-81510-549-1 01 1 9911-9912 ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-549-1 01 1 9911-9912 ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-549-1 01 1 0001-0002 ●
115 SENSOR; REVOLUTION,ENG SPD 8-97601-117-2 01 1 0003- ●
115 SENSOR; REVOLUTION,ENG SPD
EXC. EURO2 SPECIFICATION<THN> L=1750 		8-97600-085-3 01 1 0011- ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-94370-637-0 01 1 9510-0004 ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-94370-637-0 01 1 0005-0112 ● ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0201-0405 ● ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0406- ● ● ● ● ●
176 BRACKET; HARNESS
(A) 		1-82699-412-1 01 1 9510-0004 ● ●
176 BRACKET; HARNESS
(A) 		1-82699-412-1 01 1 0005- ● ●
176 BRACKET; HARNESS
EURO2 SPECIFICATION<THN> (A) 		1-82699-412-1 01 1 0005- ●
176 BRACKET; HARNESS
(B) 		1-82699-828-1 01 1 9610- ●
176 BRACKET; HARNESS
EXC. EURO2 SPECIFICATION<THN> (C) 		1-82698-079-1 01 1 0011-0405 ●
176 BRACKET; HARNESS
EXC. EURO2 SPECIFICATION<THN> (C) 		1-82698-079-1 01 1 0406- ●
176 BRACKET; HARNESS
(C) 		1-82698-079-1 01 1 0406- ●
177 BOLT; SENSOR
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28680-825-0 02 1 9911-0004 ●
177 BOLT; SENSOR
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
177 BOLT; SENSOR
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 9510-9911 ● ●
177 BOLT; SENSOR
EXC. EURO2 SPECIFICATION<THN> M6X16 FLANGE 		0-28080-616-0 01 1 9911-0004 ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 9911-0004 ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 0005-0405 ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 0406-0512 ● ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28050-616-0 01 1 0601- ● ● ●
177 BOLT; SENSOR
M8X20 FLANGE 		0-28680-820-0 02 1 9610-0512 ●
177 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
177 BOLT; SENSOR
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28080-820-0 02 1 0011-0512 ●
177 BOLT; SENSOR
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9510-9802 ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9802 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9803-0004 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0405 ● ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ● ● ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9803-0004 ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0005-0405 ● ● ●
179 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28080-820-0 02 1 0005-0405 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ● ● ● ●
179 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ● ● ● ●
179 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
208 DOWEL; ENG FOOT
EURO2 SPECIFICATION<THN> 		8-94396-208-0 04 1 9911-9912 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9510-9802 ● ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9909-9912 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9803-9908 ● ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9909-9911 ● ●
208 DOWEL; ENG FOOT
EXC. EURO2 SPECIFICATION<THN> 		9-43269-009-1 04 1 9911-9912 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9911-9912 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0001-0004 ● ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0005-0405 ● ● ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0406- ● ● ● ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9510-0004 ● ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0005-0405 ● ● ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0406-0604 ● ● ● ● ●
224 STUD; STARTER
M14X35 L=56 		0-44011-435-0 02 1 0605- ● ● ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9510-0004 ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0005-0010 ● ● ●
225 STUD; OIL PAN
EURO2 SPECIFICATION<THN> M8X28 L=38 		8-94396-512-0 04 1 0005-0010 ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0011-0405 ● ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0406-0609 ● ● ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0610-1101 ●
225 STUD; OIL PAN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8X28 L=38 		8-94396-512-0 04 1 0610-1101 ●
225 STUD; OIL PAN
HEATER & DEFROSTER(C41) M8X28 L=38 		8-94396-512-0 04 1 0610-1101 ●
225 STUD; OIL PAN
EURO2 SPECIFICATION<THN> M8X28 L=38 		8-94396-512-0 04 1 0610-1101 ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 1102- ● ● ● ● ●
228 STUD; AIR CMPR
EURO2 SPECIFICATION<THN> M12X77 L=95 		9-09831-161-0 01 1 9911-0004 ●
228 STUD; AIR CMPR
EURO2 SPECIFICATION<THN> M12X77 L=95 		9-09831-161-0 01 1 0005-0010 ●
228 STUD; AIR CMPR
M12X77 L=95 		9-09831-161-0 01 1 0011-0405 ●
228 STUD; AIR CMPR
M12X77 L=95 		9-09831-161-0 01 1 0406- ● ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 9510-9911 ● ●
228 STUD; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> M12X60 L=78 		9-94411-260-0 01 1 9911-0004 ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 9911-0004 ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 0005-0604 ● ●
228 STUD; AIR CMPR
M12X60 L=78 		0-44011-260-0 01 1 0605- ● ●
228 STUD; AIR CMPR
M12X35 L=53 		9-94411-235-0 01 1 9610-0604 ●
228 STUD; AIR CMPR
M12X35 L=53 		0-44011-235-0 01 1 0605- ●
331 STUD; P/S PUMP
EXC. EURO2 SPECIFICATION<THN> M10X36.5 L=48.5 		8-94396-145-0 02 1 0011-0301 ●
331 STUD; P/S PUMP
EXC. EURO2 SPECIFICATION<THN> M10X25 L=40 		0-49841-025-0 02 1 0302-0405 ●
331 STUD; P/S PUMP
EXC. EURO2 SPECIFICATION<THN> M10X25 L=40 		0-49841-025-0 02 1 0406-0512 ●
331 STUD; P/S PUMP
M10X25 L=40 		0-49841-025-0 02 1 0406-0512 ●
331 STUD; P/S PUMP
EXC. EURO2 SPECIFICATION<THN> M10X25 L=48.5 		0-49241-025-0 02 1 0601- ●
331 STUD; P/S PUMP
M10X25 L=48.5 		0-49241-025-0 02 1 0601- ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110 		8-94394-186-0 01 1 9610-0010 ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94394-186-0 01 1 0011-0405 ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> ID=110 		8-94394-186-0 01 1 0011-0405 ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94394-186-0 01 1 0406- ● ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> ID=110 		8-94394-186-0 01 1 0406- ●
484 CLIP; BAND
TACHOMETER<UD7> (B) L=250 		5-09707-030-1 01 1 1201-1205 ● ●
484 CLIP; BAND
TACHOMETER<UD7> (B) L=250 		8-98216-430-0 01 1 1206- ● ●
484 CLIP; BAND
(A) L=80 		5-09700-307-1 01 1 0406- ●
487 COVER; HOLE 8-94394-513-1 01 1 9610-0010 ●
487 COVER; HOLE 8-94394-513-1 01 1 0011-0405 ●
487 COVER; HOLE
EXC. EURO2 SPECIFICATION<THN> 		8-94394-513-1 01 1 0011-0405 ●
487 COVER; HOLE 8-94394-513-1 01 1 0406-0805 ● ●
487 COVER; HOLE
EXC. EURO2 SPECIFICATION<THN> 		8-94394-513-1 01 1 0406-0805 ●
487 COVER; HOLE 8-98023-824-1 01 1 0806- ● ●
487 COVER; HOLE
EXC. EURO2 SPECIFICATION<THN> 		8-98023-824-1 01 1 0806- ●
çizim 38529
211 241 211 211 241 241 211 241 241 211 211 241 2 211 211
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 HOUSING; FLYWHEEL
(D) 		8-94391-983-9 01 1 0406-1308 ●
2 HOUSING; FLYWHEEL
(D) 		8-98215-259-0 01 1 1309- ●
2 HOUSING; FLYWHEEL
(A) 		8-94394-757-3 01 1 9510-9805 ●
2 HOUSING; FLYWHEEL
ISUZU M/T<X9A> (A) 		8-94394-757-3 01 1 9510-9805 ●
2 HOUSING; FLYWHEEL
(A) 		8-94394-757-3 01 1 9806-9808 ●
2 HOUSING; FLYWHEEL
14" CLUTCH(WF6) (A) 		8-94394-757-3 01 1 9806-9808 ●
2 HOUSING; FLYWHEEL
14" CLUTCH(WF6) (A) 		8-94394-757-4 01 1 9809-9911 ● ●
2 HOUSING; FLYWHEEL
14" CLUTCH(WF6) EXC. EURO2 SPECIFICATION<THN> (A) 		8-94394-757-4 01 1 9911-0004 ● ●
2 HOUSING; FLYWHEEL
(A) 		8-94394-757-8 01 1 0005- ● ●
2 HOUSING; FLYWHEEL
EURO2 SPECIFICATION<THN> (A) 		8-94392-120-1 01 1 9911-0004 ●
2 HOUSING; FLYWHEEL
EURO2 SPECIFICATION<THN> (A) 		8-94392-120-5 01 1 0005- ●
2 HOUSING; FLYWHEEL
A/T<X9D> (A) 		8-94394-759-2 01 1 9510-9808 ●
2 HOUSING; FLYWHEEL
A/T<X9D> (A) 		8-94394-759-3 01 1 9809-0004 ● ●
2 HOUSING; FLYWHEEL
(B) 		8-94391-103-3 01 1 9610-9910 ●
2 HOUSING; FLYWHEEL
(B) 		8-94392-208-4 01 1 9911- ●
2 HOUSING; FLYWHEEL
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94390-834-8 01 1 0011- ●
211 BOLT; HSG
(F) M14X40 FLANGE 		0-28791-440-0 01 1 0406-0512 ●
211 BOLT; HSG
(F) M14X40 FLANGE 		0-28761-440-0 01 1 0601- ●
211 BOLT; HSG
(E) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 02 1 9510-0004 ● ●
211 BOLT; HSG
(E) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 02 1 0005- ● ●
211 BOLT; HSG
EURO2 SPECIFICATION<THN> (E) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 02 1 0005- ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 12 1 9510-0004 ● ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 12 1 0005-0512 ● ●
211 BOLT; HSG
EURO2 SPECIFICATION<THN> (D) M12X70 		9-01666-270-0 12 1 0005-0512 ●
211 BOLT; HSG
(D) M12X70 		0-16956-270-0 12 1 0601- ● ●
211 BOLT; HSG
EURO2 SPECIFICATION<THN> (D) M12X70 		0-16956-270-0 12 1 0601- ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 9510-9802 ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 9510-9802 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 9803-0004 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0005-0405 ● ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0406-0512 ● ● ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 0601- ● ● ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 9803-0004 ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 0005-0405 ● ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 0406-0512 ● ● ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0601- ● ● ● ● ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 9610-9802 ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 9610-9802 ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 9803-0010 ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 0011-0405 ●
211 BOLT; HSG
EXC. EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE 		8-94393-995-0 01 1 0011-0405 ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 0406- ● ●
211 BOLT; HSG
EXC. EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE 		8-94393-995-0 01 1 0406- ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 9803-0010 ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 0011-0405 ●
211 BOLT; HSG
EXC. EURO2 SPECIFICATION<THN> (D) M12X70 		9-01666-270-0 11 1 0011-0405 ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 0406-0512 ● ●
211 BOLT; HSG
EXC. EURO2 SPECIFICATION<THN> (D) M12X70 		9-01666-270-0 11 1 0406-0512 ●
211 BOLT; HSG
(D) M12X70 		0-16956-270-0 11 1 0601- ● ●
211 BOLT; HSG
EXC. EURO2 SPECIFICATION<THN> (D) M12X70 		0-16956-270-0 11 1 0601- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 9510-0004 ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 0005- ● ●
241 WASHER; PL,HSG
EURO2 SPECIFICATION<THN> ID=12.5 OD=22 		8-94393-140-1 13 1 0005- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 9610-0010 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0011-0405 ●
241 WASHER; PL,HSG
EXC. EURO2 SPECIFICATION<THN> ID=12.5 OD=22 		8-94393-140-1 12 1 0011-0405 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0406- ● ●
241 WASHER; PL,HSG
EXC. EURO2 SPECIFICATION<THN> ID=12.5 OD=22 		8-94393-140-1 12 1 0406- ●

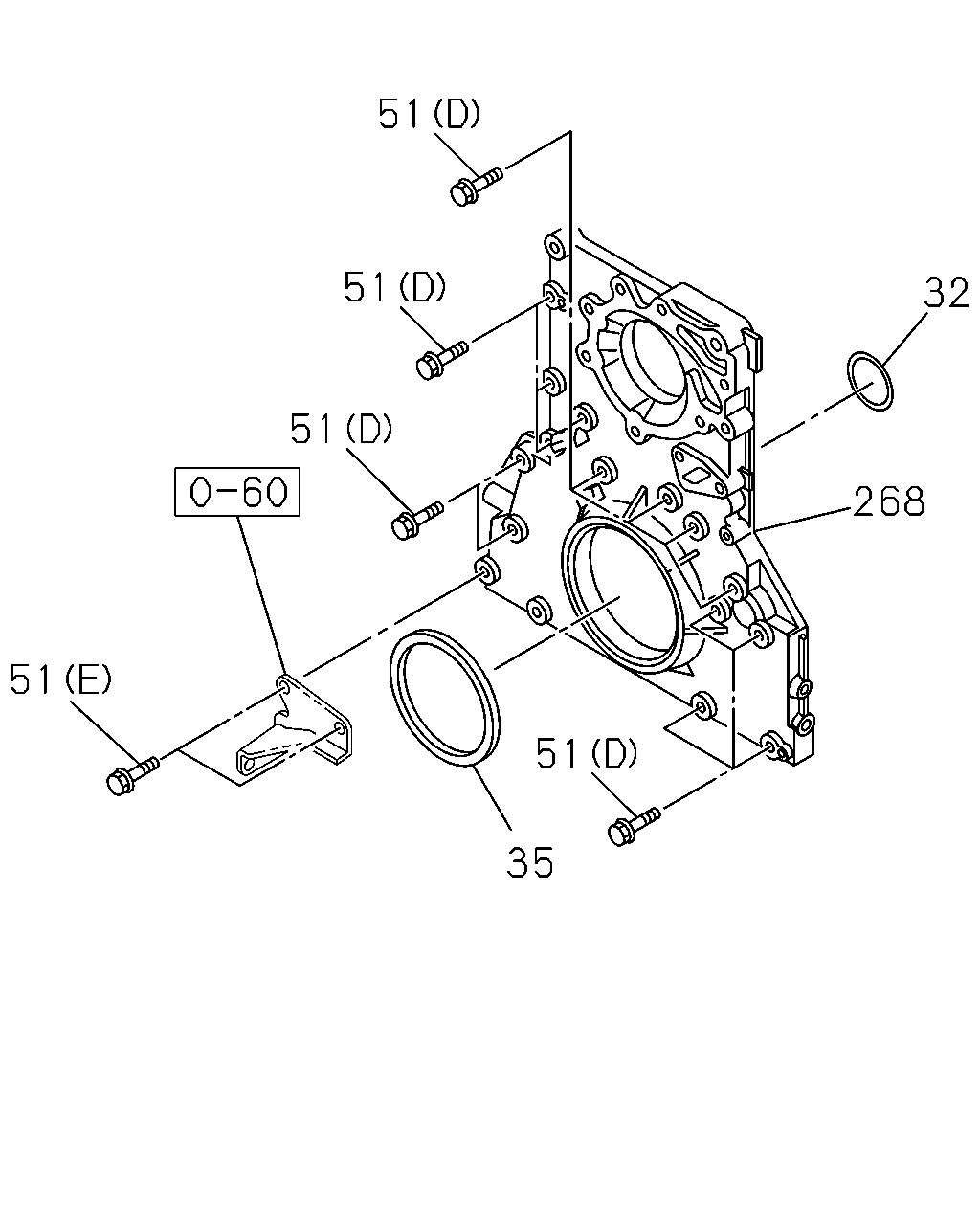

çizim 38538
51 51 32 51 268 51 51 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		8-94397-364-0 01 1 9510-9805 ● ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 9806-0004 ● ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 0005-0405 ● ● ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 0406- ● ● ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 9510-0004 ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 0005-0112 ● ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-0 01 1 0201-0405 ● ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-3 01 1 0406- ● ● ● ● ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 10 1 9510-9911 ● ●
51 BOLT; GEAR CASE COVER
EXC. EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE 		0-28080-840-0 10 1 9911-0004 ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 10 1 9911-0004 ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 10 1 0005-0512 ● ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28050-840-0 10 1 0601- ● ●
51 BOLT; GEAR CASE COVER
(C) M8X45 FLANGE 		0-28080-845-0 01 1 9510-9911 ● ●
51 BOLT; GEAR CASE COVER
EXC. EURO2 SPECIFICATION<THN> (C) M8X45 FLANGE 		0-28080-845-0 01 1 9911-0004 ●
51 BOLT; GEAR CASE COVER
(C) M8X45 FLANGE 		0-28080-845-0 01 1 9911-0004 ●
51 BOLT; GEAR CASE COVER
(C) M8X45 FLANGE 		0-28080-845-0 01 1 0005-0512 ● ●
51 BOLT; GEAR CASE COVER
(C) M8X45 FLANGE 		0-28050-845-0 01 1 0601- ● ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 9610-0004 ● ● ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 0005-0009 ● ● ● ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 0010-0405 ● ● ●
51 BOLT; GEAR CASE COVER
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28680-820-0 06 1 0010-0405 ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 0406-0512 ● ● ● ●
51 BOLT; GEAR CASE COVER
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28680-820-0 06 1 0406-0512 ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28650-820-0 06 1 0601-1501 ● ● ● ●
51 BOLT; GEAR CASE COVER
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28650-820-0 06 1 0601-1501 ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28650-820-0 06 1 1502- ● ● ● ● ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 11 1 9610-9910 ●
51 BOLT; GEAR CASE COVER
EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE 		0-28080-840-0 11 1 9911-0004 ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 11 1 9911-0004 ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 11 1 0005-0405 ● ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 11 1 0406-0512 ● ●
51 BOLT; GEAR CASE COVER
EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE 		0-28080-840-0 11 1 0406-0512 ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28050-840-0 11 1 0601- ● ●
51 BOLT; GEAR CASE COVER
EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE 		0-28050-840-0 11 1 0601- ●
51 BOLT; GEAR CASE COVER
EXC. EURO2 SPECIFICATION<THN> (D) M8X35 FLANGE 		0-28080-835-0 14 1 0011-0512 ●
51 BOLT; GEAR CASE COVER
EXC. EURO2 SPECIFICATION<THN> (D) M8X35 FLANGE 		0-28050-835-0 14 1 0601- ●
51 BOLT; GEAR CASE COVER
EXC. EURO2 SPECIFICATION<THN> (E) M8X40 FLANGE 		0-28080-840-0 02 1 0011-0512 ●
51 BOLT; GEAR CASE COVER
EXC. EURO2 SPECIFICATION<THN> (E) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ●
268 COVER; FRT
EXC. EURO2 SPECIFICATION<THN> 		8-94392-480-0 01 1 0011- ●

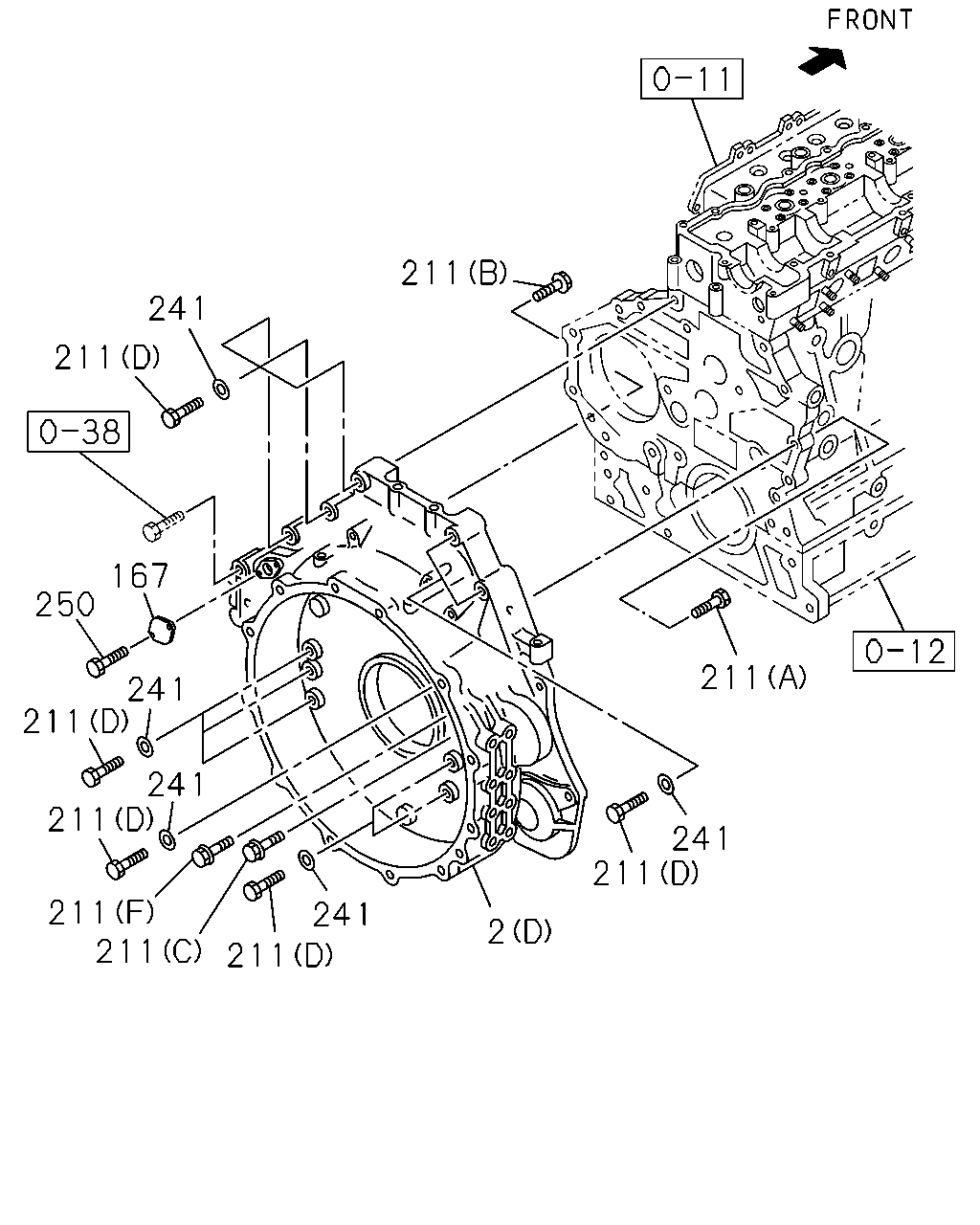

çizim 38711
211 241 211 167 250 211 241 211 241 211 241 211 211 211 241 211 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 HOUSING; FLYWHEEL
(D) 		8-94391-983-9 01 1 0406-1308 ●
2 HOUSING; FLYWHEEL
(D) 		8-98215-259-0 01 1 1309- ●
2 HOUSING; FLYWHEEL
(A) 		8-94394-757-3 01 1 9510-9805 ●
2 HOUSING; FLYWHEEL
ISUZU M/T<X9A> (A) 		8-94394-757-3 01 1 9510-9805 ●
2 HOUSING; FLYWHEEL
(A) 		8-94394-757-3 01 1 9806-9808 ●
2 HOUSING; FLYWHEEL
14" CLUTCH(WF6) (A) 		8-94394-757-3 01 1 9806-9808 ●
2 HOUSING; FLYWHEEL
14" CLUTCH(WF6) (A) 		8-94394-757-4 01 1 9809-9911 ● ●
2 HOUSING; FLYWHEEL
14" CLUTCH(WF6) EXC. EURO2 SPECIFICATION<THN> (A) 		8-94394-757-4 01 1 9911-0004 ● ●
2 HOUSING; FLYWHEEL
(A) 		8-94394-757-8 01 1 0005- ● ●
2 HOUSING; FLYWHEEL
EURO2 SPECIFICATION<THN> (A) 		8-94392-120-1 01 1 9911-0004 ●
2 HOUSING; FLYWHEEL
EURO2 SPECIFICATION<THN> (A) 		8-94392-120-5 01 1 0005- ●
2 HOUSING; FLYWHEEL
A/T<X9D> (A) 		8-94394-759-2 01 1 9510-9808 ●
2 HOUSING; FLYWHEEL
A/T<X9D> (A) 		8-94394-759-3 01 1 9809-0004 ● ●
2 HOUSING; FLYWHEEL
(B) 		8-94391-103-3 01 1 9610-9910 ●
2 HOUSING; FLYWHEEL
(B) 		8-94392-208-4 01 1 9911- ●
2 HOUSING; FLYWHEEL
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94390-834-8 01 1 0011- ●
167 COVER; OIL 1-11219-163-0 01 1 9510-0004 ● ● ●
167 COVER; OIL 1-11219-163-0 01 1 0005-0405 ● ● ● ●
167 COVER; OIL 1-11219-163-0 01 1 0406- ● ● ● ● ●
211 BOLT; HSG
(F) M14X40 FLANGE 		0-28791-440-0 01 1 0406-0512 ●
211 BOLT; HSG
(F) M14X40 FLANGE 		0-28761-440-0 01 1 0601- ●
211 BOLT; HSG
(E) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 02 1 9510-0004 ● ●
211 BOLT; HSG
(E) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 02 1 0005- ● ●
211 BOLT; HSG
EURO2 SPECIFICATION<THN> (E) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 02 1 0005- ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 12 1 9510-0004 ● ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 12 1 0005-0512 ● ●
211 BOLT; HSG
EURO2 SPECIFICATION<THN> (D) M12X70 		9-01666-270-0 12 1 0005-0512 ●
211 BOLT; HSG
(D) M12X70 		0-16956-270-0 12 1 0601- ● ●
211 BOLT; HSG
EURO2 SPECIFICATION<THN> (D) M12X70 		0-16956-270-0 12 1 0601- ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 9510-9802 ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 9510-9802 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 9803-0004 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0005-0405 ● ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0406-0512 ● ● ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 0601- ● ● ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 9803-0004 ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 0005-0405 ● ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 0406-0512 ● ● ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0601- ● ● ● ● ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 9610-9802 ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 9610-9802 ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 9803-0010 ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 0011-0405 ●
211 BOLT; HSG
EXC. EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE 		8-94393-995-0 01 1 0011-0405 ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 0406- ● ●
211 BOLT; HSG
EXC. EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE 		8-94393-995-0 01 1 0406- ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 9803-0010 ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 0011-0405 ●
211 BOLT; HSG
EXC. EURO2 SPECIFICATION<THN> (D) M12X70 		9-01666-270-0 11 1 0011-0405 ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 0406-0512 ● ●
211 BOLT; HSG
EXC. EURO2 SPECIFICATION<THN> (D) M12X70 		9-01666-270-0 11 1 0406-0512 ●
211 BOLT; HSG
(D) M12X70 		0-16956-270-0 11 1 0601- ● ●
211 BOLT; HSG
EXC. EURO2 SPECIFICATION<THN> (D) M12X70 		0-16956-270-0 11 1 0601- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 9510-0004 ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 0005- ● ●
241 WASHER; PL,HSG
EURO2 SPECIFICATION<THN> ID=12.5 OD=22 		8-94393-140-1 13 1 0005- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 9610-0010 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0011-0405 ●
241 WASHER; PL,HSG
EXC. EURO2 SPECIFICATION<THN> ID=12.5 OD=22 		8-94393-140-1 12 1 0011-0405 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0406- ● ●
241 WASHER; PL,HSG
EXC. EURO2 SPECIFICATION<THN> ID=12.5 OD=22 		8-94393-140-1 12 1 0406- ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 9510-0004 ● ● ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 0005-0405 ● ● ● ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 0406- ● ● ● ● ●
çizim 183932
179 176 179 176 331 224 228 331 175 224 19 241 208 211 211 177 419 225 115 20 404 18 405 29 43 241 211 109 241 20 211 167 250 62 241 211 211 356 487 241 62 211 486 2 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 HOUSING; FLYWHEEL
(D) 		8-94391-983-9 01 1 0406-1308 ●
2 HOUSING; FLYWHEEL
(D) 		8-98215-259-0 01 1 1309- ●
2 HOUSING; FLYWHEEL
(A) 		8-94394-757-3 01 1 9510-9805 ●
2 HOUSING; FLYWHEEL
ISUZU M/T<X9A> (A) 		8-94394-757-3 01 1 9510-9805 ●
2 HOUSING; FLYWHEEL
(A) 		8-94394-757-3 01 1 9806-9808 ●
2 HOUSING; FLYWHEEL
14" CLUTCH(WF6) (A) 		8-94394-757-3 01 1 9806-9808 ●
2 HOUSING; FLYWHEEL
14" CLUTCH(WF6) (A) 		8-94394-757-4 01 1 9809-9911 ● ●
2 HOUSING; FLYWHEEL
14" CLUTCH(WF6) EXC. EURO2 SPECIFICATION<THN> (A) 		8-94394-757-4 01 1 9911-0004 ● ●
2 HOUSING; FLYWHEEL
(A) 		8-94394-757-8 01 1 0005- ● ●
2 HOUSING; FLYWHEEL
EURO2 SPECIFICATION<THN> (A) 		8-94392-120-1 01 1 9911-0004 ●
2 HOUSING; FLYWHEEL
EURO2 SPECIFICATION<THN> (A) 		8-94392-120-5 01 1 0005- ●
2 HOUSING; FLYWHEEL
A/T<X9D> (A) 		8-94394-759-2 01 1 9510-9808 ●
2 HOUSING; FLYWHEEL
A/T<X9D> (A) 		8-94394-759-3 01 1 9809-0004 ● ●
2 HOUSING; FLYWHEEL
(B) 		8-94391-103-3 01 1 9610-9910 ●
2 HOUSING; FLYWHEEL
(B) 		8-94392-208-4 01 1 9911- ●
2 HOUSING; FLYWHEEL
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94390-834-8 01 1 0011- ●
18 GASKET; BRG CASE,DRIVE SHAFT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 9610- ●
19 BOLT; BRG CASE
M12X100 FLANGE 		0-28181-200-0 01 1 9610-0512 ●
19 BOLT; BRG CASE
M12X100 FLANGE 		0-28151-200-0 01 1 0601- ●
20 NUT; BRG CASE
(A) M10 FLANGE 		0-91150-110-0 02 1 9610-9802 ●
20 NUT; BRG CASE
(B) M12 FLANGE 		0-91150-212-0 01 1 9610-0602 ●
20 NUT; BRG CASE
(B) M12 FLANGE 		0-91180-212-0 01 1 0603- ●
20 NUT; BRG CASE
(A) M10 FLANGE 		0-91150-110-0 02 1 9803-0602 ●
20 NUT; BRG CASE
(A) M10 FLANGE 		0-91180-110-0 02 1 0603- ●
29 KEY; COUPLING 9-08055-416-0 01 1 9510-9911 ● ●
29 KEY; COUPLING
EXC. EURO2 SPECIFICATION<THN> 		9-08055-416-0 01 1 9911-0004 ●
29 KEY; COUPLING 9-08055-416-0 01 1 9911-0004 ●
29 KEY; COUPLING 9-08055-416-0 01 1 0005- ● ●
29 KEY; COUPLING 9-08055-516-0 01 1 9610-9910 ●
29 KEY; COUPLING
EURO2 SPECIFICATION<THN> 		9-08055-516-0 01 1 9911-0004 ●
29 KEY; COUPLING 9-08055-516-0 01 1 9911-0004 ●
29 KEY; COUPLING 9-08055-516-0 01 1 0005-0405 ● ●
29 KEY; COUPLING 9-08055-516-0 01 1 0406- ● ● ●
43 STUD; BRG COVER
M12X67 L=82 		1-09302-112-0 01 1 9610- ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 9610-0010 ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 0011-0405 ●
62 BOLT; COVER
EXC. EURO2 SPECIFICATION<THN> (A) M8X14 FLANGE 		0-28080-814-0 03 1 0011-0405 ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 0406- ● ●
62 BOLT; COVER
EXC. EURO2 SPECIFICATION<THN> (A) M8X14 FLANGE 		0-28080-814-0 03 1 0406- ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 9610-9910 ●
62 BOLT; COVER
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28080-820-0 03 1 9911-0004 ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 9911-0004 ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 0005-0405 ● ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 0406-0512 ● ● ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28050-820-0 03 1 0601- ● ● ●
109 POINTER; TIMING
L=21 		9-11327-602-0 01 1 9610- ●
115 SENSOR; REVOLUTION,ENG SPD 8-94390-279-0 01 1 0406- ●
115 SENSOR; REVOLUTION,ENG SPD
EURO2 SPECIFICATION<THN> 		8-97600-829-0 01 1 0001-0004 ●
115 SENSOR; REVOLUTION,ENG SPD
EURO2 SPECIFICATION<THN> 		8-97600-829-2 01 1 0005- ●
115 SENSOR; REVOLUTION,ENG SPD
TACHOMETER<UD7> 		1-81510-561-0 01 1 9510- ● ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-549-1 01 1 9610-9910 ●
115 SENSOR; REVOLUTION,ENG SPD
EURO2 SPECIFICATION<THN> 		1-81510-549-1 01 1 9911-9912 ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-549-1 01 1 9911-9912 ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-549-1 01 1 0001-0002 ●
115 SENSOR; REVOLUTION,ENG SPD 8-97601-117-2 01 1 0003- ●
115 SENSOR; REVOLUTION,ENG SPD
EXC. EURO2 SPECIFICATION<THN> L=1750 		8-97600-085-3 01 1 0011- ●
167 COVER; OIL 1-11219-163-0 01 1 9510-0004 ● ● ●
167 COVER; OIL 1-11219-163-0 01 1 0005-0405 ● ● ● ●
167 COVER; OIL 1-11219-163-0 01 1 0406- ● ● ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-94370-637-0 01 1 9510-0004 ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-94370-637-0 01 1 0005-0112 ● ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0201-0405 ● ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0406- ● ● ● ● ●
176 BRACKET; HARNESS
(A) 		1-82699-412-1 01 1 9510-0004 ● ●
176 BRACKET; HARNESS
(A) 		1-82699-412-1 01 1 0005- ● ●
176 BRACKET; HARNESS
EURO2 SPECIFICATION<THN> (A) 		1-82699-412-1 01 1 0005- ●
176 BRACKET; HARNESS
(B) 		1-82699-828-1 01 1 9610- ●
176 BRACKET; HARNESS
EXC. EURO2 SPECIFICATION<THN> (C) 		1-82698-079-1 01 1 0011-0405 ●
176 BRACKET; HARNESS
EXC. EURO2 SPECIFICATION<THN> (C) 		1-82698-079-1 01 1 0406- ●
176 BRACKET; HARNESS
(C) 		1-82698-079-1 01 1 0406- ●
177 BOLT; SENSOR
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28680-825-0 02 1 9911-0004 ●
177 BOLT; SENSOR
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
177 BOLT; SENSOR
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 9510-9911 ● ●
177 BOLT; SENSOR
EXC. EURO2 SPECIFICATION<THN> M6X16 FLANGE 		0-28080-616-0 01 1 9911-0004 ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 9911-0004 ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 0005-0405 ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 0406-0512 ● ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28050-616-0 01 1 0601- ● ● ●
177 BOLT; SENSOR
M8X20 FLANGE 		0-28680-820-0 02 1 9610-0512 ●
177 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
177 BOLT; SENSOR
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28080-820-0 02 1 0011-0512 ●
177 BOLT; SENSOR
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9510-9802 ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9802 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9803-0004 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0405 ● ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ● ● ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9803-0004 ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0005-0405 ● ● ●
179 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28080-820-0 02 1 0005-0405 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ● ● ● ●
179 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28080-820-0 02 1 0406-0512 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ● ● ● ●
179 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
208 DOWEL; ENG FOOT
EURO2 SPECIFICATION<THN> 		8-94396-208-0 04 1 9911-9912 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9510-9802 ● ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9909-9912 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9803-9908 ● ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9909-9911 ● ●
208 DOWEL; ENG FOOT
EXC. EURO2 SPECIFICATION<THN> 		9-43269-009-1 04 1 9911-9912 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9911-9912 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0001-0004 ● ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0005-0405 ● ● ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0406- ● ● ● ● ●
211 BOLT; HSG
(F) M14X40 FLANGE 		0-28791-440-0 01 1 0406-0512 ●
211 BOLT; HSG
(F) M14X40 FLANGE 		0-28761-440-0 01 1 0601- ●
211 BOLT; HSG
(E) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 02 1 9510-0004 ● ●
211 BOLT; HSG
(E) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 02 1 0005- ● ●
211 BOLT; HSG
EURO2 SPECIFICATION<THN> (E) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 02 1 0005- ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 12 1 9510-0004 ● ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 12 1 0005-0512 ● ●
211 BOLT; HSG
EURO2 SPECIFICATION<THN> (D) M12X70 		9-01666-270-0 12 1 0005-0512 ●
211 BOLT; HSG
(D) M12X70 		0-16956-270-0 12 1 0601- ● ●
211 BOLT; HSG
EURO2 SPECIFICATION<THN> (D) M12X70 		0-16956-270-0 12 1 0601- ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 9510-9802 ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 9510-9802 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 9803-0004 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0005-0405 ● ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0406-0512 ● ● ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 0601- ● ● ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 9803-0004 ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 0005-0405 ● ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 0406-0512 ● ● ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0601- ● ● ● ● ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 9610-9802 ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 9610-9802 ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 9803-0010 ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 0011-0405 ●
211 BOLT; HSG
EXC. EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE 		8-94393-995-0 01 1 0011-0405 ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 0406- ● ●
211 BOLT; HSG
EXC. EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE 		8-94393-995-0 01 1 0406- ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 9803-0010 ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 0011-0405 ●
211 BOLT; HSG
EXC. EURO2 SPECIFICATION<THN> (D) M12X70 		9-01666-270-0 11 1 0011-0405 ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 0406-0512 ● ●
211 BOLT; HSG
EXC. EURO2 SPECIFICATION<THN> (D) M12X70 		9-01666-270-0 11 1 0406-0512 ●
211 BOLT; HSG
(D) M12X70 		0-16956-270-0 11 1 0601- ● ●
211 BOLT; HSG
EXC. EURO2 SPECIFICATION<THN> (D) M12X70 		0-16956-270-0 11 1 0601- ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9510-0004 ● ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0005-0405 ● ● ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0406-0604 ● ● ● ● ●
224 STUD; STARTER
M14X35 L=56 		0-44011-435-0 02 1 0605- ● ● ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9510-0004 ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0005-0010 ● ● ●
225 STUD; OIL PAN
EURO2 SPECIFICATION<THN> M8X28 L=38 		8-94396-512-0 04 1 0005-0010 ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0011-0405 ● ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0406-0609 ● ● ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0610-1101 ●
225 STUD; OIL PAN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8X28 L=38 		8-94396-512-0 04 1 0610-1101 ●
225 STUD; OIL PAN
HEATER & DEFROSTER(C41) M8X28 L=38 		8-94396-512-0 04 1 0610-1101 ●
225 STUD; OIL PAN
EURO2 SPECIFICATION<THN> M8X28 L=38 		8-94396-512-0 04 1 0610-1101 ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 1102- ● ● ● ● ●
228 STUD; AIR CMPR
EURO2 SPECIFICATION<THN> M12X77 L=95 		9-09831-161-0 01 1 9911-0004 ●
228 STUD; AIR CMPR
EURO2 SPECIFICATION<THN> M12X77 L=95 		9-09831-161-0 01 1 0005-0010 ●
228 STUD; AIR CMPR
M12X77 L=95 		9-09831-161-0 01 1 0011-0405 ●
228 STUD; AIR CMPR
M12X77 L=95 		9-09831-161-0 01 1 0406- ● ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 9510-9911 ● ●
228 STUD; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> M12X60 L=78 		9-94411-260-0 01 1 9911-0004 ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 9911-0004 ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 0005-0604 ● ●
228 STUD; AIR CMPR
M12X60 L=78 		0-44011-260-0 01 1 0605- ● ●
228 STUD; AIR CMPR
M12X35 L=53 		9-94411-235-0 01 1 9610-0604 ●
228 STUD; AIR CMPR
M12X35 L=53 		0-44011-235-0 01 1 0605- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 9510-0004 ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 0005- ● ●
241 WASHER; PL,HSG
EURO2 SPECIFICATION<THN> ID=12.5 OD=22 		8-94393-140-1 13 1 0005- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 9610-0010 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0011-0405 ●
241 WASHER; PL,HSG
EXC. EURO2 SPECIFICATION<THN> ID=12.5 OD=22 		8-94393-140-1 12 1 0011-0405 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0406- ● ●
241 WASHER; PL,HSG
EXC. EURO2 SPECIFICATION<THN> ID=12.5 OD=22 		8-94393-140-1 12 1 0406- ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 9510-0004 ● ● ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 0005-0405 ● ● ● ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 0406- ● ● ● ● ●
331 STUD; P/S PUMP
EXC. EURO2 SPECIFICATION<THN> M10X36.5 L=48.5 		8-94396-145-0 02 1 0011-0301 ●
331 STUD; P/S PUMP
EXC. EURO2 SPECIFICATION<THN> M10X25 L=40 		0-49841-025-0 02 1 0302-0405 ●
331 STUD; P/S PUMP
EXC. EURO2 SPECIFICATION<THN> M10X25 L=40 		0-49841-025-0 02 1 0406-0512 ●
331 STUD; P/S PUMP
M10X25 L=40 		0-49841-025-0 02 1 0406-0512 ●
331 STUD; P/S PUMP
EXC. EURO2 SPECIFICATION<THN> M10X25 L=48.5 		0-49241-025-0 02 1 0601- ●
331 STUD; P/S PUMP
M10X25 L=48.5 		0-49241-025-0 02 1 0601- ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110 		8-94394-186-0 01 1 9610-0010 ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94394-186-0 01 1 0011-0405 ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> ID=110 		8-94394-186-0 01 1 0011-0405 ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94394-186-0 01 1 0406- ● ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> ID=110 		8-94394-186-0 01 1 0406- ●
404 CASE ASM; BRG,INJ PUMP 8-94395-014-5 01 1 9610-9703 ●
404 CASE ASM; BRG,INJ PUMP 8-94391-643-0 01 1 9704- ●
405 SEAL; OIL,BRG CASE 1-09625-576-0 01 1 9610- ●
419 BRACKET; SENSOR 8-94394-773-1 01 1 9610-9910 ●
419 BRACKET; SENSOR
EURO2 SPECIFICATION<THN> 		8-94394-773-1 01 1 9911-0004 ●
419 BRACKET; SENSOR 8-94394-773-1 01 1 9911-0004 ●
419 BRACKET; SENSOR 8-94394-773-1 01 1 0005- ● ●
486 BOLT; AIR CMPR
M12X70 FLANGE 		0-28181-270-0 03 1 9610-0512 ●
486 BOLT; AIR CMPR
M12X70 FLANGE 		0-28151-270-0 03 1 0601- ●
487 COVER; HOLE 8-94394-513-1 01 1 9610-0010 ●
487 COVER; HOLE 8-94394-513-1 01 1 0011-0405 ●
487 COVER; HOLE
EXC. EURO2 SPECIFICATION<THN> 		8-94394-513-1 01 1 0011-0405 ●
487 COVER; HOLE 8-94394-513-1 01 1 0406-0805 ● ●
487 COVER; HOLE
EXC. EURO2 SPECIFICATION<THN> 		8-94394-513-1 01 1 0406-0805 ●
487 COVER; HOLE 8-98023-824-1 01 1 0806- ● ●
487 COVER; HOLE
EXC. EURO2 SPECIFICATION<THN> 		8-98023-824-1 01 1 0806- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
