Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#64181) — 595 parça

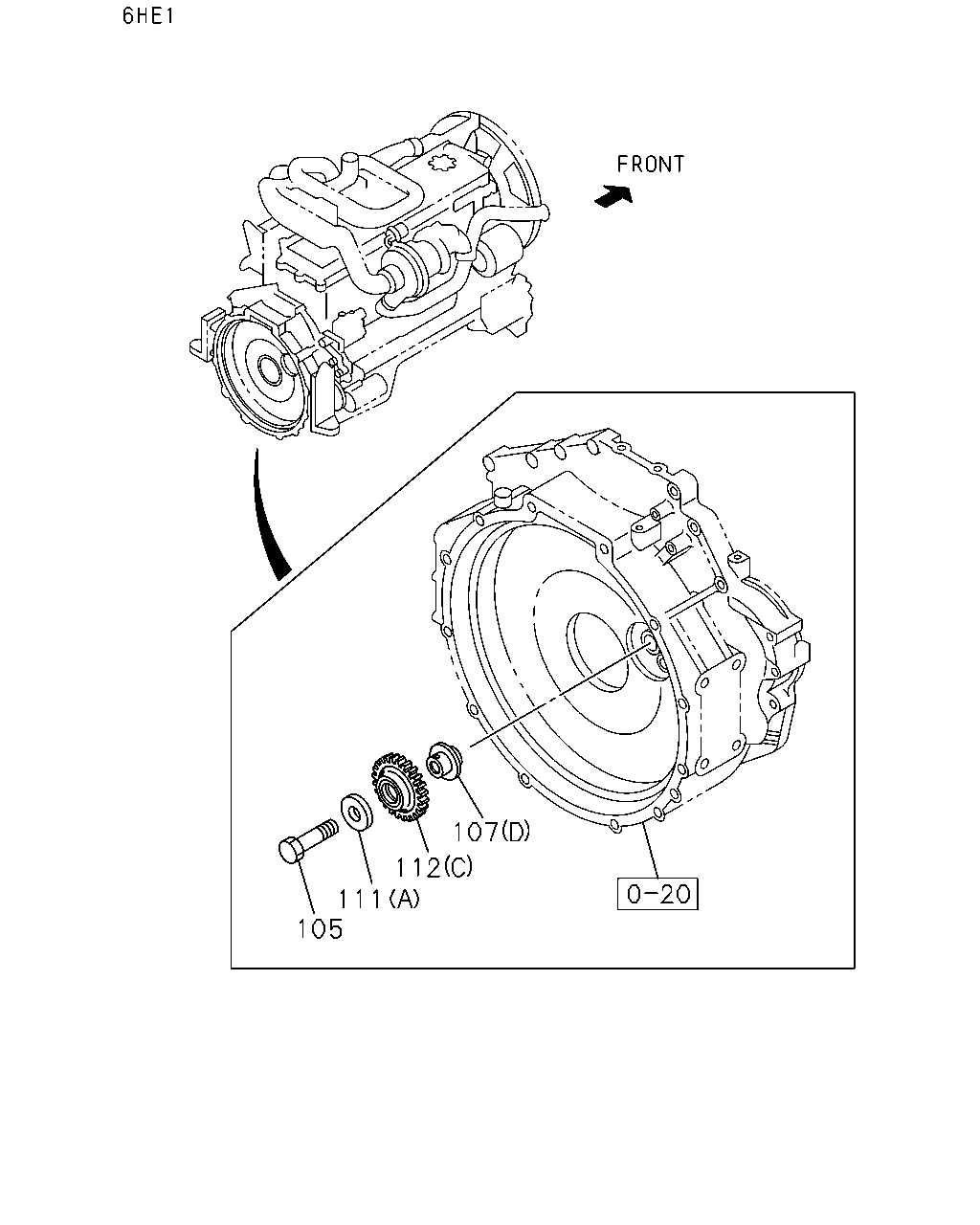

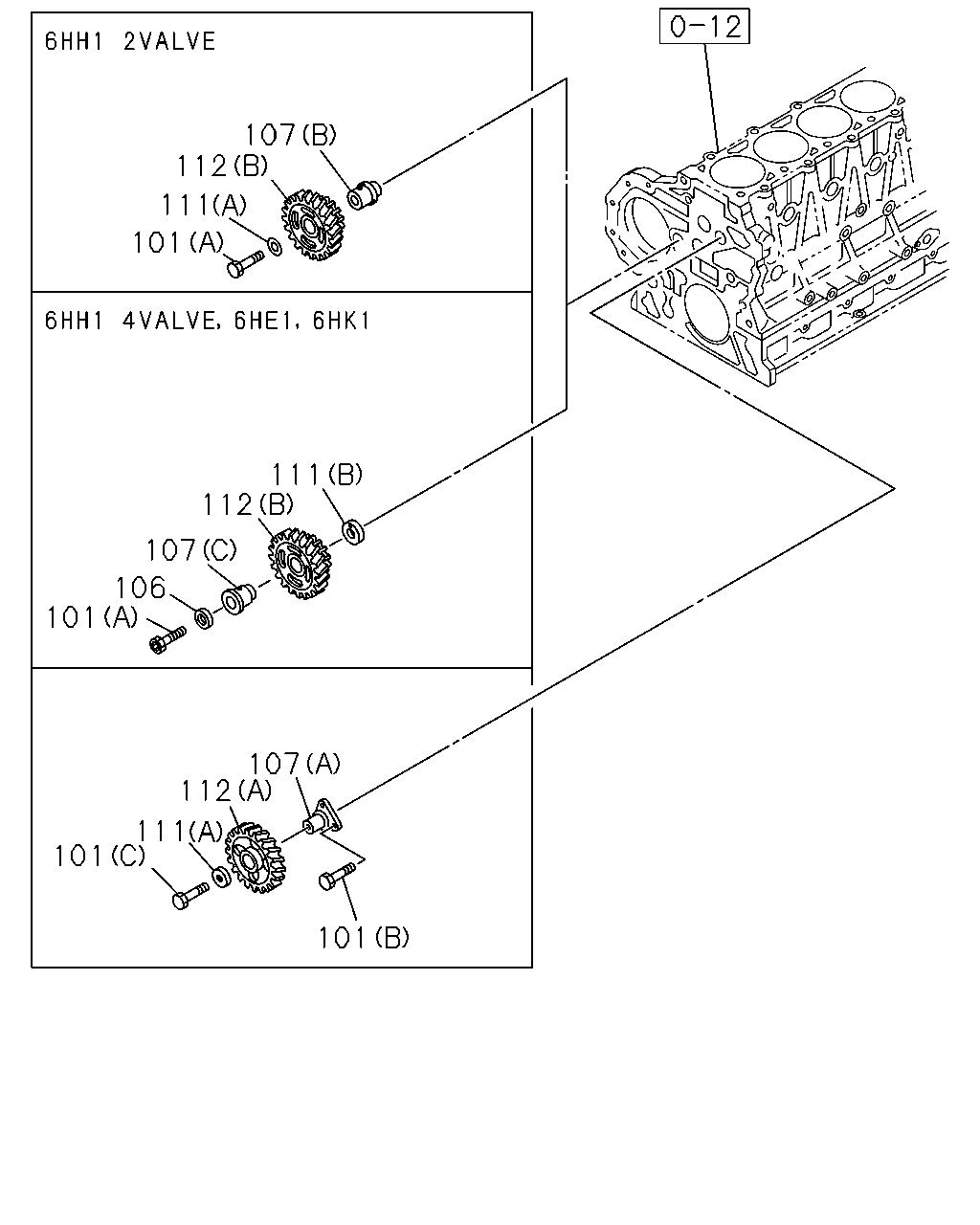

107 112 101 111 112 107 106 101 107 112 101 101 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
101	BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9510-9612	●	●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	9510-9911	●	●
101	BOLT; THRUST COLLAR EXC. EURO2 SPECIFICATION<THN> (A) M14X60	9-91666-460-0	01	1	9911-0004	●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	9911-0004		●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	0005-0512	●	●
101	BOLT; THRUST COLLAR (A) M14X60	0-16956-460-0	01	1	0601-	●	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9510-0004	●	●	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	0005-0405	●	●	●	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	0406-0512	●	●	●	●	●
101	BOLT; THRUST COLLAR (C) M14X30	0-23951-430-0	01	1	0601-	●	●	●	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9709-9802	●	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9610-9612			●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9701-9708	●	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9803-0004	●	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0005-0405	●	●	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0406-0512	●	●	●	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-	●	●	●	●	●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	9610-9910			●
101	BOLT; THRUST COLLAR EURO2 SPECIFICATION<THN> (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	9911-0004	●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	9911-0004			●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0005-0405			●	●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0406-			●	●	●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	9610-9910			●
106	WASHER; IDLE GEAR SHAFT EURO2 SPECIFICATION<THN> ID=14.2 OD=23	1-09503-031-0	01	1	9911-0004	●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	9911-0004			●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	0005-0010			●	●
106	WASHER; IDLE GEAR SHAFT EXC. EURO2 SPECIFICATION<THN> ID=14.5 OD=46	8-94370-688-0	01	1	0011-0306				●
106	WASHER; IDLE GEAR SHAFT EXC. EURO2 SPECIFICATION<THN> ID=14.5 OD=46	8-97209-728-2	01	1	0307-				●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	0011-0405			●	●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	0406-			●	●	●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9510-9911	●	●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-97104-380-0	01	1	9911-0004	●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9911-0004		●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	0005-0609	●	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	0610-	●	●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9510-9805	●	●	●
107	SHAFT; IDLE GEAR (A)	8-97189-244-0	01	1	9806-0004	●	●	●
107	SHAFT; IDLE GEAR (A)	8-97189-244-1	01	1	0005-0204	●	●	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0205-0405	●	●	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0406-	●	●	●	●	●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	9610-9802			●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	9610-9802			●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	9803-9910			●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-94395-073-2	01	1	9911-0004	●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	9911-0004			●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	0005-0205			●	●
107	SHAFT; IDLE GEAR (C)	8-97602-588-0	01	1	0206-0405			●	●
107	SHAFT; IDLE GEAR (C)	8-97602-588-0	01	1	0406-			●	●	●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	9803-0010			●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	0011-0304			●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (D)	8-94395-096-0	01	1	0011-0304				●
107	SHAFT; IDLE GEAR (D)	8-94334-682-1	01	1	0305-			●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (D)	8-94334-682-1	01	1	0305-				●
111	COLLAR; THRUST,IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-94370-688-0	02	1	9911-0004	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9911-0004		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	0005-0306	●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	02	1	0307-	●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9510-9910	●	●	●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-94370-688-0	01	1	9911-0004	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	9911-0004			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	9911-0004			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	0005-0306			●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	0005-0306			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-1	01	1	0307-0405			●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-1	01	1	0307-0405			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	01	1	0406-			●	●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	01	1	0406-			●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	9610-9910			●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (B) ID=24 OD=70	8-94394-097-1	01	1	9911-0004	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	9911-0004			●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0005-0405			●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0406-			●	●	●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9510-9911	●	●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94395-107-1	01	1	9911-0004	●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9911-0004		●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	0005-0609	●	●
112	GEAR; IDLE (B) Z=72-30	8-97227-074-0	01	1	0610-	●	●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9510-9911	●	●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (A) Z=61	8-97094-546-1	01	1	9911-0004	●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9911-0004		●
112	GEAR; IDLE (A) Z=61	8-97094-546-2	01	1	0005-	●	●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	9610-9802			●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	9610-9910			●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94394-092-3	01	1	9911-0004	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	9911-0004			●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0005-0405			●	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0406-			●	●	●
112	GEAR; IDLE (C) Z=34	8-94394-509-2	01	1	9610-9802			●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	9803-9910			●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (A) Z=61	8-94393-439-3	01	1	9911-0004	●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	9911-0004			●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	0005-0405			●	●
112	GEAR; IDLE (A) Z=61	8-94393-439-4	01	1	0406-			●	●	●
112	GEAR; IDLE (C) Z=34	8-94394-509-2	01	1	9803-0010			●
112	GEAR; IDLE (C) Z=34	8-94394-509-3	01	1	0011-			●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (C) Z=34	8-94394-509-3	01	1	0011-				●

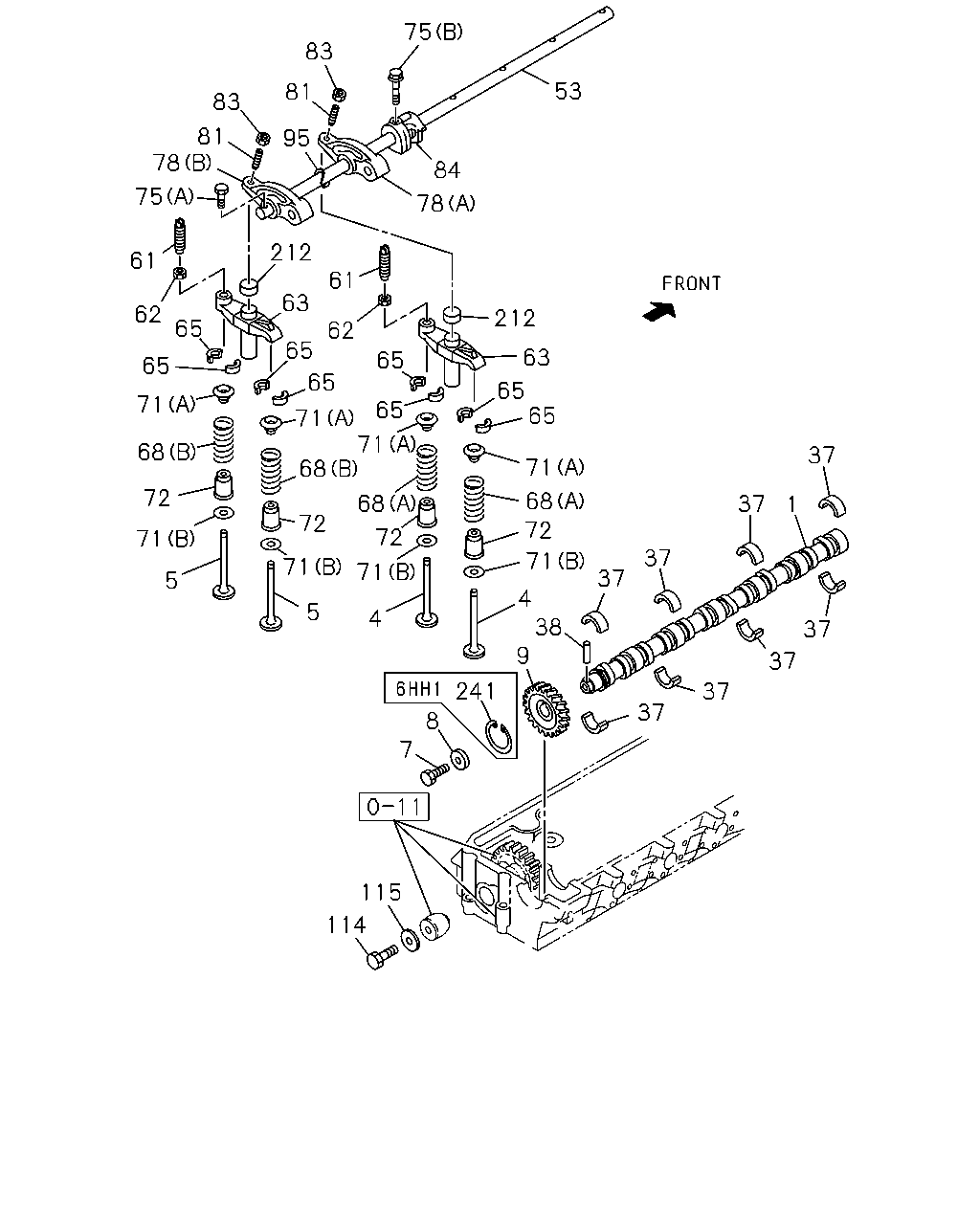

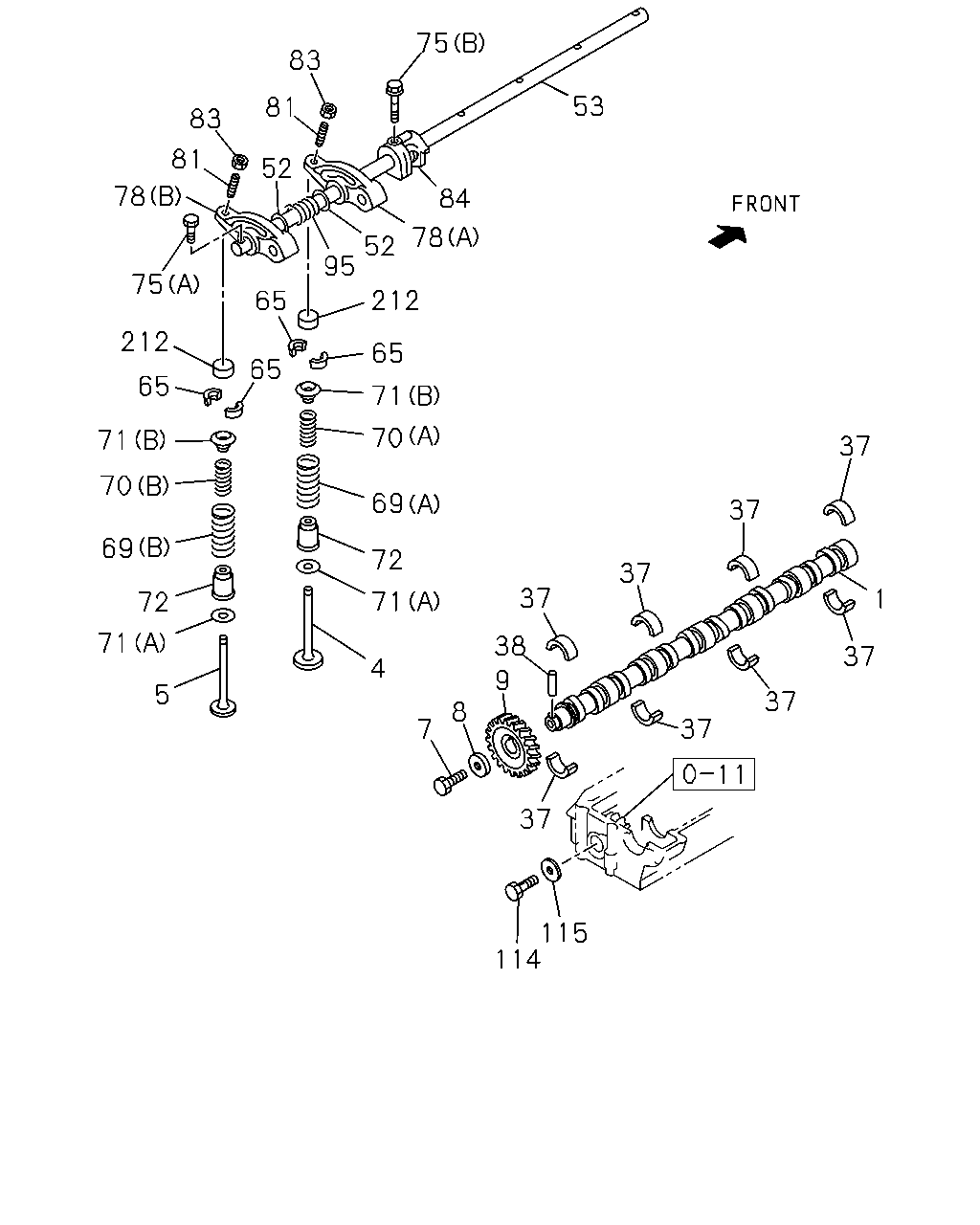

75 83 53 81 83 81 52 84 78 52 95 75 212 65 212 65 65 65 71 71 37 37 72 37 37 1 71 72 71 38 37 4 9 5 37 8 37 7 37 115 114 78 70 69 70 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	CAMSHAFT EURO2 SPECIFICATION<THN>	8-94390-469-1	01	1	9911-0004	●
1	CAMSHAFT EURO2 SPECIFICATION<THN>	8-94390-469-1	01	1	0005-0010				●
1	CAMSHAFT	8-94390-469-1	01	1	0011-0405				●
1	CAMSHAFT	8-94390-469-1	01	1	0406-1311				●	●
1	CAMSHAFT	8-98227-260-1	01	1	1312-				●	●
1	CAMSHAFT	8-94395-576-2	01	1	9510-9911	●	●
1	CAMSHAFT EXC. EURO2 SPECIFICATION<THN>	8-94395-576-2	01	1	9911-0004	●
1	CAMSHAFT	8-94395-576-2	01	1	9911-0004		●
1	CAMSHAFT	8-94395-576-2	01	1	0005-1311	●	●
1	CAMSHAFT	8-98227-259-1	01	1	1312-	●	●
1	CAMSHAFT	8-94395-758-2	01	1	9610-1311			●
1	CAMSHAFT	8-98227-258-1	01	1	1312-			●
4	VALVE; INL	8-94395-882-2	12	1	0406-					●
4	VALVE; INL EURO2 SPECIFICATION<THN>	8-94395-881-0	12	1	9911-0004	●
4	VALVE; INL EURO2 SPECIFICATION<THN>	8-94395-881-0	12	1	0005-0010				●
4	VALVE; INL	8-94395-881-3	12	1	0011-				●
4	VALVE; INL	8-94394-160-1	06	1	9510-9911	●	●
4	VALVE; INL EXC. EURO2 SPECIFICATION<THN>	8-94394-160-1	06	1	9911-0004	●
4	VALVE; INL	8-94394-160-1	06	1	9911-0004		●
4	VALVE; INL	8-94394-160-2	06	1	0005-	●	●
4	VALVE; INL	8-94395-113-1	06	1	9610-			●
5	VALVE; EXH EURO2 SPECIFICATION<THN>	8-94395-883-0	12	1	9911-0004	●
5	VALVE; EXH EURO2 SPECIFICATION<THN>	8-94395-883-0	12	1	0005-0010				●
5	VALVE; EXH	8-94395-883-0	12	1	0011-0206				●
5	VALVE; EXH	8-97209-876-2	12	1	0207-0405				●
5	VALVE; EXH	8-97209-876-4	12	1	0406-				●	●
5	VALVE; EXH	8-94395-462-0	06	1	9510-9911	●	●	●
5	VALVE; EXH EXC. EURO2 SPECIFICATION<THN>	8-94395-462-0	06	1	9911-0004	●
5	VALVE; EXH	8-94395-462-0	06	1	9911-0004		●	●
5	VALVE; EXH	8-94395-462-2	06	1	0005-	●	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9510-0004	●	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0005-0405	●	●	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0406-	●	●	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9510-0004	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0005-0405	●	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0406-	●	●	●	●	●
9	GEAR; CM/SHF EURO2 SPECIFICATION<THN> Z=35	8-94390-151-0	01	1	9911-0004	●
9	GEAR; CM/SHF EURO2 SPECIFICATION<THN> Z=35	8-94390-151-0	01	1	0005-0010				●
9	GEAR; CM/SHF Z=35	8-94390-151-0	01	1	0011-				●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9510-9911	●	●	●
9	GEAR; CM/SHF EXC. EURO2 SPECIFICATION<THN> Z=35	8-97094-440-2	01	1	9911-0004	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9911-0004		●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0005-0405	●	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0406-	●	●	●		●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0307-0312				●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0401-0405	●	●	●	●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0406-0706	●	●	●	●	●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	0707-	●	●	●	●	●
37	METAL; CM/SHF EURO2 SPECIFICATION<THN>	8-94390-311-0	08	1	9911-0004	●
37	METAL; CM/SHF EURO2 SPECIFICATION<THN>	8-94390-311-0	08	1	0005-0010				●
37	METAL; CM/SHF	8-94390-311-1	08	1	0011-0206				●
37	METAL; CM/SHF B=26	8-97602-699-0	08	1	0207-0306				●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0307-0405				●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0406-				●	●
37	METAL; CM/SHF	8-94393-380-0	14	1	9510-9608	●	●
37	METAL; CM/SHF	8-94363-100-0	08	1	9609-9911	●	●	●
37	METAL; CM/SHF EXC. EURO2 SPECIFICATION<THN>	8-94363-100-0	08	1	9911-0004	●
37	METAL; CM/SHF	8-94363-100-0	08	1	9911-0004		●	●
37	METAL; CM/SHF	8-94363-100-1	08	1	0005-0206	●	●	●
37	METAL; CM/SHF B=22	8-97602-698-0	08	1	0207-0312	●	●	●
37	METAL; CM/SHF LOWER B=22	8-97602-698-0	04	1	0401-	●	●	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	9510-0004	●	●	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	0005-0405	●	●	●	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	0406-	●	●	●	●	●
52	WASHER; ROCKER ARM SHAFT	8-94362-105-0	12	1	9510-9911	●	●	●
52	WASHER; ROCKER ARM SHAFT EXC. EURO2 SPECIFICATION<THN>	8-94362-105-0	12	1	9911-0004	●
52	WASHER; ROCKER ARM SHAFT	8-94362-105-0	12	1	9911-0004		●	●
52	WASHER; ROCKER ARM SHAFT	8-94362-105-0	12	1	0005-	●	●	●
53	SHAFT; ROCKER ARM EURO2 SPECIFICATION<THN>	8-94392-996-0	02	1	9911-0004	●
53	SHAFT; ROCKER ARM	8-94393-984-3	01	1	9510-9911	●	●	●
53	SHAFT; ROCKER ARM EXC. EURO2 SPECIFICATION<THN>	8-94393-984-3	01	1	9911-0004	●
53	SHAFT; ROCKER ARM	8-94393-984-3	01	1	9911-0004		●	●
53	SHAFT; ROCKER ARM	8-94393-984-4	01	1	0005-	●	●	●
53	SHAFT; ROCKER ARM EURO2 SPECIFICATION<THN>	8-94392-996-0	01	1	0005-0010				●
53	SHAFT; ROCKER ARM	8-94392-996-1	01	1	0011-0405				●
53	SHAFT; ROCKER ARM	8-94392-996-1	01	1	0406-0610				●	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0611-				●	●
65	COLLAR; SPLIT EURO2 SPECIFICATION<THN>	5-12565-004-0	48	1	9911-0004	●
65	COLLAR; SPLIT EURO2 SPECIFICATION<THN>	5-12565-004-0	48	1	0005-0010				●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0011-0405				●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0406-				●	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9510-9911	●	●	●
65	COLLAR; SPLIT EXC. EURO2 SPECIFICATION<THN>	5-12565-006-0	24	1	9911-0004	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9911-0004		●	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	0005-	●	●	●
69	SPRING; VLV,OUTER (B) EXHAUST	8-94393-310-0	06	1	9510-9911	●	●	●
69	SPRING; VLV,OUTER EXC. EURO2 SPECIFICATION<THN> (B) EXHAUST MARK YELLOW	8-94393-310-0	06	1	9911-0004	●
69	SPRING; VLV,OUTER (B) EXHAUST MARK YELLOW	8-94393-310-0	06	1	9911-0004		●	●
69	SPRING; VLV,OUTER (B) EXHAUST MARK YELLOW	8-94393-310-0	06	1	0005-	●	●	●
69	SPRING; VLV,OUTER (A) INLET	8-94394-996-0	06	1	9510-9911	●	●	●
69	SPRING; VLV,OUTER EXC. EURO2 SPECIFICATION<THN> (A) INLET	8-94394-996-0	06	1	9911-0004	●
69	SPRING; VLV,OUTER (A) INLET	8-94394-996-0	06	1	9911-0004		●	●
69	SPRING; VLV,OUTER (A) INLET	8-94394-996-0	06	1	0005-0111	●	●	●
69	SPRING; VLV,OUTER (A) INLET MARK PINK	8-97120-912-0	06	1	0112-	●	●	●
70	SPRING; VLV,INNER (A) INLET	8-94395-266-0	06	1	9510-9802	●	●	●
70	SPRING; VLV,INNER (B) EXHAUST	8-94397-500-0	06	1	9510-9802	●	●	●
70	SPRING; VLV,INNER (A) INLET	8-94395-266-0	06	1	9803-9911	●	●	●
70	SPRING; VLV,INNER EXC. EURO2 SPECIFICATION<THN> (A) INLET	8-94395-266-0	06	1	9911-0004	●
70	SPRING; VLV,INNER (A) INLET	8-94395-266-0	06	1	9911-0004		●	●
70	SPRING; VLV,INNER (A) INLET	8-94395-266-0	06	1	0005-0111	●	●	●
70	SPRING; VLV,INNER (A) INLET MARK PINK	8-97120-911-0	06	1	0112-	●	●	●
70	SPRING; VLV,INNER (B) EXHAUST MARK YELLOW	8-94397-500-0	06	1	9803-9911	●	●	●
70	SPRING; VLV,INNER EXC. EURO2 SPECIFICATION<THN> (B) EXHAUST MARK YELLOW	8-94397-500-0	06	1	9911-0004	●
70	SPRING; VLV,INNER (B) EXHAUST MARK YELLOW	8-94397-500-0	06	1	9911-0004		●	●
70	SPRING; VLV,INNER (B) EXHAUST MARK YELLOW	8-94397-500-0	06	1	0005-	●	●	●
71	SEAT; SPR EURO2 SPECIFICATION<THN> (A) OD=32.8 T=12.75	8-94390-783-1	24	1	9911-0004	●
71	SEAT; SPR EURO2 SPECIFICATION<THN> (A) OD=32.8 T=12.75	8-94390-783-2	24	1	0005-0010				●
71	SEAT; SPR (A) OD=32.8 T=12.75	8-94390-783-2	24	1	0011-0405				●
71	SEAT; SPR (A) OD=32.8 T=12.75	8-94390-783-2	24	1	0406-				●	●
71	SEAT; SPR EURO2 SPECIFICATION<THN> (B) ID=14.3 T=1.0	8-94391-468-0	24	1	9911-0004	●
71	SEAT; SPR EURO2 SPECIFICATION<THN> (B) ID=14.3 T=1.0	8-94391-468-0	24	1	0005-0010				●
71	SEAT; SPR (B) ID=14.3 T=1.0	8-94391-468-0	24	1	0011-0405				●
71	SEAT; SPR (B) ID=14.3 T=1.0	8-94391-468-0	24	1	0406-				●	●
71	SEAT; SPR (B) OD=38	8-94385-029-1	12	1	9510-9802	●	●	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9510-9802	●	●	●
71	SEAT; SPR (B) OD=38	8-94385-029-1	12	1	9803-9911	●	●	●
71	SEAT; SPR EXC. EURO2 SPECIFICATION<THN> (B) OD=38	8-94385-029-1	12	1	9911-0004	●
71	SEAT; SPR (B) OD=38	8-94385-029-1	12	1	9911-0004		●	●
71	SEAT; SPR (B) OD=38	8-94385-029-2	12	1	0005-	●	●	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9803-9911	●	●	●
71	SEAT; SPR EXC. EURO2 SPECIFICATION<THN> (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9911-0004	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9911-0004		●	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	0005-	●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN>	8-97120-307-0	24	1	9911-0004	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN>	8-97120-307-0	24	1	0005-0010				●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	24	1	0011-0405				●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	24	1	0406-0707				●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0708-				●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9510-9911	●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9911-0004	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9911-0004		●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	0005-	●	●	●
75	BOLT; BRKT EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE	0-28080-840-0	04	1	0005-0006				●
75	BOLT; BRKT EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE	0-28080-840-0	02	1	0007-0010				●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28080-840-0	02	1	0011-0405				●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28080-840-0	02	1	0406-0512				●	●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-				●	●
75	BOLT; BRKT EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE	0-28080-840-0	04	1	9911-0004	●
75	BOLT; BRKT EURO2 SPECIFICATION<THN> (B) M10X62 FLANGE	8-94393-131-0	05	1	9911-0004	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9510-9802	●	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9510-9802	●	●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9803-9911	●	●	●
75	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (A) M8X35 FLANGE	0-28080-835-0	02	1	9911-0004	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9911-0004		●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	0005-0512	●	●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28050-835-0	02	1	0601-	●	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9803-9911	●	●	●
75	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (B) M10X62 FLANGE	8-94393-131-0	05	1	9912-0004	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9912-0004		●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0005-0405	●	●	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0406-	●	●	●	●	●
78	ARM; ROCKER EURO2 SPECIFICATION<THN> (A) INLET	8-94392-992-0	12	1	9911-0004	●
78	ARM; ROCKER EURO2 SPECIFICATION<THN> (B) EXHAUST	8-94392-993-0	12	1	9911-0004	●
78	ARM; ROCKER (A) INLET	8-94394-424-0	06	1	9510-9512	●	●
78	ARM; ROCKER (B) EXHAUST	8-94397-362-1	06	1	9510-9512	●	●
78	ARM; ROCKER (B) EXHAUST	8-97014-258-1	06	1	9601-9802	●	●	●
78	ARM; ROCKER (A) INLET	8-97074-614-0	06	1	9601-9802	●	●	●
78	ARM; ROCKER (B) EXHAUST	8-97014-258-1	06	1	9803-9911	●	●	●
78	ARM; ROCKER EXC. EURO2 SPECIFICATION<THN> (B) EXHAUST	8-97014-258-1	06	1	9911-0004	●
78	ARM; ROCKER (B) EXHAUST	8-97014-258-1	06	1	9911-0004		●	●
78	ARM; ROCKER (B) EXHAUST	8-97014-258-2	06	1	0005-	●	●	●
78	ARM; ROCKER (A) INLET	8-97074-614-0	06	1	9803-9911	●	●	●
78	ARM; ROCKER EXC. EURO2 SPECIFICATION<THN> (A) INLET	8-97074-614-0	06	1	9911-0004	●
78	ARM; ROCKER (A) INLET	8-97074-614-0	06	1	9911-0004		●	●
78	ARM; ROCKER (A) INLET	8-97074-614-1	06	1	0005-	●	●	●
78	ARM; ROCKER EURO2 SPECIFICATION<THN> (A) INLET	8-94392-992-0	06	1	0005-0010				●
78	ARM; ROCKER (A) INLET	8-94392-992-0	06	1	0011-0211				●
78	ARM; ROCKER (A) INLET EXHAUST	8-97306-424-2	06	1	0212-0405				●
78	ARM; ROCKER (A) INLET EXHAUST	8-97306-424-3	06	1	0406-				●	●
78	ARM; ROCKER EURO2 SPECIFICATION<THN> (B) EXHAUST	8-94392-993-0	06	1	0005-0010				●
78	ARM; ROCKER (B) EXHAUST	8-94392-993-0	06	1	0011-0211				●
78	ARM; ROCKER (B) EXHAUST INLET	8-97306-421-2	06	1	0212-0405				●
78	ARM; ROCKER (B) EXHAUST INLET	8-97306-421-3	06	1	0406-				●	●
81	SCREW; ADJ,ROCKER ARM EURO2 SPECIFICATION<THN> M10 L=32	8-94395-024-0	24	1	9911-0004	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9510-9911	●	●	●
81	SCREW; ADJ,ROCKER ARM EXC. EURO2 SPECIFICATION<THN> M10 L=32	8-94395-024-0	12	1	9912-0004	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9912-0004		●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0005-0405	●	●	●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0406-	●	●	●	●	●
83	NUT; ADJ SCREW,LK EURO2 SPECIFICATION<THN> M10	9-09111-410-0	24	1	0005-0006				●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0007-0405	●	●	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0406-0512	●	●	●	●	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0601-	●	●	●	●	●
83	NUT; ADJ SCREW,LK EURO2 SPECIFICATION<THN> M10	9-09111-410-0	24	1	9911-0004	●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	12	1	9510-9705	●	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9706-9911	●	●	●
83	NUT; ADJ SCREW,LK EXC. EURO2 SPECIFICATION<THN> M10	9-09111-410-0	12	1	9912-0004	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9912-0004		●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0005-0006	●	●	●
84	BRACKET; ROCKER SHAFT,INTER EURO2 SPECIFICATION<THN>	8-94395-836-1	10	1	9911-0004	●
84	BRACKET; ROCKER SHAFT,INTER	8-94388-109-3	05	1	9510-9911	●	●	●
84	BRACKET; ROCKER SHAFT,INTER EXC. EURO2 SPECIFICATION<THN>	8-94388-109-3	05	1	9911-0004	●
84	BRACKET; ROCKER SHAFT,INTER	8-94388-109-3	05	1	9911-0004		●	●
84	BRACKET; ROCKER SHAFT,INTER	8-94388-109-3	05	1	0005-	●	●	●
84	BRACKET; ROCKER SHAFT,INTER EURO2 SPECIFICATION<THN>	8-94395-836-1	05	1	0005-0010				●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0011-0405				●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0406-				●	●
95	SPRING; ROCKER SHAFT EURO2 SPECIFICATION<THN>	8-94392-999-0	12	1	9911-0004	●
95	SPRING; ROCKER SHAFT	8-94397-263-0	06	1	9510-9911	●	●	●
95	SPRING; ROCKER SHAFT EXC. EURO2 SPECIFICATION<THN>	8-94397-263-0	06	1	9911-0004	●
95	SPRING; ROCKER SHAFT	8-94397-263-0	06	1	9911-0004		●	●
95	SPRING; ROCKER SHAFT	8-94397-263-0	06	1	0005-	●	●	●
95	SPRING; ROCKER SHAFT EURO2 SPECIFICATION<THN>	8-94392-999-0	06	1	0005-0010				●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0011-0405				●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0406-				●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9510-0004	●	●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0005-0405	●	●	●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0406-	●	●	●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9510-0004	●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	0005-0306	●	●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-1	01	1	0307-0405	●	●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0406-	●	●	●	●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	9510-0004	●	●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0005-0405	●	●	●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0406-	●	●	●	●	●

107 112 111 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	9610-0010			●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	0011-			●
105	BOLT; IDLE GEAR SHAFT EXC. EURO2 SPECIFICATION<THN> M14X65	8-97066-798-0	01	1	0011-				●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9510-9911	●	●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-97104-380-0	01	1	9911-0004	●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9911-0004		●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	0005-0609	●	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	0610-	●	●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9510-9805	●	●	●
107	SHAFT; IDLE GEAR (A)	8-97189-244-0	01	1	9806-0004	●	●	●
107	SHAFT; IDLE GEAR (A)	8-97189-244-1	01	1	0005-0204	●	●	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0205-0405	●	●	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0406-	●	●	●	●	●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	9610-9802			●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	9610-9802			●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	9803-9910			●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-94395-073-2	01	1	9911-0004	●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	9911-0004			●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	0005-0205			●	●
107	SHAFT; IDLE GEAR (C)	8-97602-588-0	01	1	0206-0405			●	●
107	SHAFT; IDLE GEAR (C)	8-97602-588-0	01	1	0406-			●	●	●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	9803-0010			●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	0011-0304			●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (D)	8-94395-096-0	01	1	0011-0304				●
107	SHAFT; IDLE GEAR (D)	8-94334-682-1	01	1	0305-			●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (D)	8-94334-682-1	01	1	0305-				●
111	COLLAR; THRUST,IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-94370-688-0	02	1	9911-0004	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9911-0004		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	0005-0306	●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	02	1	0307-	●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9510-9910	●	●	●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-94370-688-0	01	1	9911-0004	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	9911-0004			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	9911-0004			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	0005-0306			●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	0005-0306			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-1	01	1	0307-0405			●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-1	01	1	0307-0405			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	01	1	0406-			●	●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	01	1	0406-			●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	9610-9910			●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (B) ID=24 OD=70	8-94394-097-1	01	1	9911-0004	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	9911-0004			●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0005-0405			●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0406-			●	●	●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9510-9911	●	●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94395-107-1	01	1	9911-0004	●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9911-0004		●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	0005-0609	●	●
112	GEAR; IDLE (B) Z=72-30	8-97227-074-0	01	1	0610-	●	●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9510-9911	●	●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (A) Z=61	8-97094-546-1	01	1	9911-0004	●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9911-0004		●
112	GEAR; IDLE (A) Z=61	8-97094-546-2	01	1	0005-	●	●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	9610-9802			●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	9610-9910			●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94394-092-3	01	1	9911-0004	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	9911-0004			●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0005-0405			●	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0406-			●	●	●
112	GEAR; IDLE (C) Z=34	8-94394-509-2	01	1	9610-9802			●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	9803-9910			●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (A) Z=61	8-94393-439-3	01	1	9911-0004	●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	9911-0004			●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	0005-0405			●	●
112	GEAR; IDLE (A) Z=61	8-94393-439-4	01	1	0406-			●	●	●
112	GEAR; IDLE (C) Z=34	8-94394-509-2	01	1	9803-0010			●
112	GEAR; IDLE (C) Z=34	8-94394-509-3	01	1	0011-			●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (C) Z=34	8-94394-509-3	01	1	0011-				●

75 83 53 81 83 81 78 95 84 75 78 212 61 61 63 62 212 65 62 65 63 65 65 65 65 65 71 65 71 71 68 68 37 71 72 68 68 37 1 72 72 72 71 71 37 71 71 37 5 4 38 9 5 4 37 37 241 37 37 8 7 115 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	CAMSHAFT EURO2 SPECIFICATION<THN>	8-94390-469-1	01	1	9911-0004	●
1	CAMSHAFT EURO2 SPECIFICATION<THN>	8-94390-469-1	01	1	0005-0010				●
1	CAMSHAFT	8-94390-469-1	01	1	0011-0405				●
1	CAMSHAFT	8-94390-469-1	01	1	0406-1311				●	●
1	CAMSHAFT	8-98227-260-1	01	1	1312-				●	●
1	CAMSHAFT	8-94395-576-2	01	1	9510-9911	●	●
1	CAMSHAFT EXC. EURO2 SPECIFICATION<THN>	8-94395-576-2	01	1	9911-0004	●
1	CAMSHAFT	8-94395-576-2	01	1	9911-0004		●
1	CAMSHAFT	8-94395-576-2	01	1	0005-1311	●	●
1	CAMSHAFT	8-98227-259-1	01	1	1312-	●	●
1	CAMSHAFT	8-94395-758-2	01	1	9610-1311			●
1	CAMSHAFT	8-98227-258-1	01	1	1312-			●
4	VALVE; INL	8-94395-882-2	12	1	0406-					●
4	VALVE; INL EURO2 SPECIFICATION<THN>	8-94395-881-0	12	1	9911-0004	●
4	VALVE; INL EURO2 SPECIFICATION<THN>	8-94395-881-0	12	1	0005-0010				●
4	VALVE; INL	8-94395-881-3	12	1	0011-				●
4	VALVE; INL	8-94394-160-1	06	1	9510-9911	●	●
4	VALVE; INL EXC. EURO2 SPECIFICATION<THN>	8-94394-160-1	06	1	9911-0004	●
4	VALVE; INL	8-94394-160-1	06	1	9911-0004		●
4	VALVE; INL	8-94394-160-2	06	1	0005-	●	●
4	VALVE; INL	8-94395-113-1	06	1	9610-			●
5	VALVE; EXH EURO2 SPECIFICATION<THN>	8-94395-883-0	12	1	9911-0004	●
5	VALVE; EXH EURO2 SPECIFICATION<THN>	8-94395-883-0	12	1	0005-0010				●
5	VALVE; EXH	8-94395-883-0	12	1	0011-0206				●
5	VALVE; EXH	8-97209-876-2	12	1	0207-0405				●
5	VALVE; EXH	8-97209-876-4	12	1	0406-				●	●
5	VALVE; EXH	8-94395-462-0	06	1	9510-9911	●	●	●
5	VALVE; EXH EXC. EURO2 SPECIFICATION<THN>	8-94395-462-0	06	1	9911-0004	●
5	VALVE; EXH	8-94395-462-0	06	1	9911-0004		●	●
5	VALVE; EXH	8-94395-462-2	06	1	0005-	●	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9510-0004	●	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0005-0405	●	●	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0406-	●	●	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9510-0004	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0005-0405	●	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0406-	●	●	●	●	●
9	GEAR; CM/SHF EURO2 SPECIFICATION<THN> Z=35	8-94390-151-0	01	1	9911-0004	●
9	GEAR; CM/SHF EURO2 SPECIFICATION<THN> Z=35	8-94390-151-0	01	1	0005-0010				●
9	GEAR; CM/SHF Z=35	8-94390-151-0	01	1	0011-				●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9510-9911	●	●	●
9	GEAR; CM/SHF EXC. EURO2 SPECIFICATION<THN> Z=35	8-97094-440-2	01	1	9911-0004	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9911-0004		●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0005-0405	●	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0406-	●	●	●		●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0307-0312				●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0401-0405	●	●	●	●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0406-0706	●	●	●	●	●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	0707-	●	●	●	●	●
37	METAL; CM/SHF EURO2 SPECIFICATION<THN>	8-94390-311-0	08	1	9911-0004	●
37	METAL; CM/SHF EURO2 SPECIFICATION<THN>	8-94390-311-0	08	1	0005-0010				●
37	METAL; CM/SHF	8-94390-311-1	08	1	0011-0206				●
37	METAL; CM/SHF B=26	8-97602-699-0	08	1	0207-0306				●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0307-0405				●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0406-				●	●
37	METAL; CM/SHF	8-94393-380-0	14	1	9510-9608	●	●
37	METAL; CM/SHF	8-94363-100-0	08	1	9609-9911	●	●	●
37	METAL; CM/SHF EXC. EURO2 SPECIFICATION<THN>	8-94363-100-0	08	1	9911-0004	●
37	METAL; CM/SHF	8-94363-100-0	08	1	9911-0004		●	●
37	METAL; CM/SHF	8-94363-100-1	08	1	0005-0206	●	●	●
37	METAL; CM/SHF B=22	8-97602-698-0	08	1	0207-0312	●	●	●
37	METAL; CM/SHF LOWER B=22	8-97602-698-0	04	1	0401-	●	●	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	9510-0004	●	●	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	0005-0405	●	●	●	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	0406-	●	●	●	●	●
53	SHAFT; ROCKER ARM EURO2 SPECIFICATION<THN>	8-94392-996-0	02	1	9911-0004	●
53	SHAFT; ROCKER ARM	8-94393-984-3	01	1	9510-9911	●	●	●
53	SHAFT; ROCKER ARM EXC. EURO2 SPECIFICATION<THN>	8-94393-984-3	01	1	9911-0004	●
53	SHAFT; ROCKER ARM	8-94393-984-3	01	1	9911-0004		●	●
53	SHAFT; ROCKER ARM	8-94393-984-4	01	1	0005-	●	●	●
53	SHAFT; ROCKER ARM EURO2 SPECIFICATION<THN>	8-94392-996-0	01	1	0005-0010				●
53	SHAFT; ROCKER ARM	8-94392-996-1	01	1	0011-0405				●
53	SHAFT; ROCKER ARM	8-94392-996-1	01	1	0406-0610				●	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0611-				●	●
61	SCREW; ADJ,BRIDGE EURO2 SPECIFICATION<THN> M8X21	8-94394-803-0	12	1	9911-0004	●
61	SCREW; ADJ,BRIDGE EURO2 SPECIFICATION<THN> M8X21	8-94394-803-0	12	1	0005-0010				●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	0011-0405				●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	0406-				●	●
62	NUT; ADJ SCREW LK BRIDGE EURO2 SPECIFICATION<THN> M8 FLANGE	9-09844-574-0	12	1	9911-0004	●
62	NUT; ADJ SCREW LK BRIDGE EURO2 SPECIFICATION<THN> M8 FLANGE	9-09844-574-0	12	1	0005-0010				●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	0011-0405				●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	0406-				●	●
63	BRIDGE EURO2 SPECIFICATION<THN>	8-94392-002-1	12	1	9911-0004	●
63	BRIDGE EURO2 SPECIFICATION<THN>	8-94392-002-1	12	1	0005-0010				●
63	BRIDGE	8-94392-002-3	12	1	0011-0405				●
63	BRIDGE	8-94392-002-3	12	1	0406-				●	●
65	COLLAR; SPLIT EURO2 SPECIFICATION<THN>	5-12565-004-0	48	1	9911-0004	●
65	COLLAR; SPLIT EURO2 SPECIFICATION<THN>	5-12565-004-0	48	1	0005-0010				●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0011-0405				●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0406-				●	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9510-9911	●	●	●
65	COLLAR; SPLIT EXC. EURO2 SPECIFICATION<THN>	5-12565-006-0	24	1	9911-0004	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9911-0004		●	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	0005-	●	●	●
68	SPRING; VLV EURO2 SPECIFICATION<THN> (A) INLET MARK BLUE	8-94395-884-0	12	1	9911-0004	●
68	SPRING; VLV EURO2 SPECIFICATION<THN> (A) INLET MARK BLUE	8-94395-884-0	12	1	0005-0010				●
68	SPRING; VLV (A) INLET MARK BLUE	8-94395-884-0	12	1	0011-0405				●
68	SPRING; VLV (A) INLET MARK BLUE	8-94395-884-0	12	1	0406-				●	●
68	SPRING; VLV EURO2 SPECIFICATION<THN> (B) EXHAUST MARK WHITE	8-94395-885-0	12	1	9911-0004	●
68	SPRING; VLV EURO2 SPECIFICATION<THN> (B) EXHAUST MARK WHITE	8-94395-885-0	12	1	0005-0010				●
68	SPRING; VLV (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	0011-0405				●
68	SPRING; VLV (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	0406-				●	●
71	SEAT; SPR EURO2 SPECIFICATION<THN> (A) OD=32.8 T=12.75	8-94390-783-1	24	1	9911-0004	●
71	SEAT; SPR EURO2 SPECIFICATION<THN> (A) OD=32.8 T=12.75	8-94390-783-2	24	1	0005-0010				●
71	SEAT; SPR (A) OD=32.8 T=12.75	8-94390-783-2	24	1	0011-0405				●
71	SEAT; SPR (A) OD=32.8 T=12.75	8-94390-783-2	24	1	0406-				●	●
71	SEAT; SPR EURO2 SPECIFICATION<THN> (B) ID=14.3 T=1.0	8-94391-468-0	24	1	9911-0004	●
71	SEAT; SPR EURO2 SPECIFICATION<THN> (B) ID=14.3 T=1.0	8-94391-468-0	24	1	0005-0010				●
71	SEAT; SPR (B) ID=14.3 T=1.0	8-94391-468-0	24	1	0011-0405				●
71	SEAT; SPR (B) ID=14.3 T=1.0	8-94391-468-0	24	1	0406-				●	●
71	SEAT; SPR (B) OD=38	8-94385-029-1	12	1	9510-9802	●	●	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9510-9802	●	●	●
71	SEAT; SPR (B) OD=38	8-94385-029-1	12	1	9803-9911	●	●	●
71	SEAT; SPR EXC. EURO2 SPECIFICATION<THN> (B) OD=38	8-94385-029-1	12	1	9911-0004	●
71	SEAT; SPR (B) OD=38	8-94385-029-1	12	1	9911-0004		●	●
71	SEAT; SPR (B) OD=38	8-94385-029-2	12	1	0005-	●	●	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9803-9911	●	●	●
71	SEAT; SPR EXC. EURO2 SPECIFICATION<THN> (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9911-0004	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9911-0004		●	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	0005-	●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN>	8-97120-307-0	24	1	9911-0004	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN>	8-97120-307-0	24	1	0005-0010				●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	24	1	0011-0405				●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	24	1	0406-0707				●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0708-				●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9510-9911	●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9911-0004	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9911-0004		●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	0005-	●	●	●
75	BOLT; BRKT EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE	0-28080-840-0	04	1	0005-0006				●
75	BOLT; BRKT EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE	0-28080-840-0	02	1	0007-0010				●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28080-840-0	02	1	0011-0405				●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28080-840-0	02	1	0406-0512				●	●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-				●	●
75	BOLT; BRKT EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE	0-28080-840-0	04	1	9911-0004	●
75	BOLT; BRKT EURO2 SPECIFICATION<THN> (B) M10X62 FLANGE	8-94393-131-0	05	1	9911-0004	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9510-9802	●	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9510-9802	●	●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9803-9911	●	●	●
75	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (A) M8X35 FLANGE	0-28080-835-0	02	1	9911-0004	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9911-0004		●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	0005-0512	●	●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28050-835-0	02	1	0601-	●	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9803-9911	●	●	●
75	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (B) M10X62 FLANGE	8-94393-131-0	05	1	9912-0004	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9912-0004		●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0005-0405	●	●	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0406-	●	●	●	●	●
78	ARM; ROCKER EURO2 SPECIFICATION<THN> (A) INLET	8-94392-992-0	12	1	9911-0004	●
78	ARM; ROCKER EURO2 SPECIFICATION<THN> (B) EXHAUST	8-94392-993-0	12	1	9911-0004	●
78	ARM; ROCKER (A) INLET	8-94394-424-0	06	1	9510-9512	●	●
78	ARM; ROCKER (B) EXHAUST	8-94397-362-1	06	1	9510-9512	●	●
78	ARM; ROCKER (B) EXHAUST	8-97014-258-1	06	1	9601-9802	●	●	●
78	ARM; ROCKER (A) INLET	8-97074-614-0	06	1	9601-9802	●	●	●
78	ARM; ROCKER (B) EXHAUST	8-97014-258-1	06	1	9803-9911	●	●	●
78	ARM; ROCKER EXC. EURO2 SPECIFICATION<THN> (B) EXHAUST	8-97014-258-1	06	1	9911-0004	●
78	ARM; ROCKER (B) EXHAUST	8-97014-258-1	06	1	9911-0004		●	●
78	ARM; ROCKER (B) EXHAUST	8-97014-258-2	06	1	0005-	●	●	●
78	ARM; ROCKER (A) INLET	8-97074-614-0	06	1	9803-9911	●	●	●
78	ARM; ROCKER EXC. EURO2 SPECIFICATION<THN> (A) INLET	8-97074-614-0	06	1	9911-0004	●
78	ARM; ROCKER (A) INLET	8-97074-614-0	06	1	9911-0004		●	●
78	ARM; ROCKER (A) INLET	8-97074-614-1	06	1	0005-	●	●	●
78	ARM; ROCKER EURO2 SPECIFICATION<THN> (A) INLET	8-94392-992-0	06	1	0005-0010				●
78	ARM; ROCKER (A) INLET	8-94392-992-0	06	1	0011-0211				●
78	ARM; ROCKER (A) INLET EXHAUST	8-97306-424-2	06	1	0212-0405				●
78	ARM; ROCKER (A) INLET EXHAUST	8-97306-424-3	06	1	0406-				●	●
78	ARM; ROCKER EURO2 SPECIFICATION<THN> (B) EXHAUST	8-94392-993-0	06	1	0005-0010				●
78	ARM; ROCKER (B) EXHAUST	8-94392-993-0	06	1	0011-0211				●
78	ARM; ROCKER (B) EXHAUST INLET	8-97306-421-2	06	1	0212-0405				●
78	ARM; ROCKER (B) EXHAUST INLET	8-97306-421-3	06	1	0406-				●	●
81	SCREW; ADJ,ROCKER ARM EURO2 SPECIFICATION<THN> M10 L=32	8-94395-024-0	24	1	9911-0004	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9510-9911	●	●	●
81	SCREW; ADJ,ROCKER ARM EXC. EURO2 SPECIFICATION<THN> M10 L=32	8-94395-024-0	12	1	9912-0004	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9912-0004		●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0005-0405	●	●	●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0406-	●	●	●	●	●
83	NUT; ADJ SCREW,LK EURO2 SPECIFICATION<THN> M10	9-09111-410-0	24	1	0005-0006				●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0007-0405	●	●	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0406-0512	●	●	●	●	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0601-	●	●	●	●	●
83	NUT; ADJ SCREW,LK EURO2 SPECIFICATION<THN> M10	9-09111-410-0	24	1	9911-0004	●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	12	1	9510-9705	●	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9706-9911	●	●	●
83	NUT; ADJ SCREW,LK EXC. EURO2 SPECIFICATION<THN> M10	9-09111-410-0	12	1	9912-0004	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9912-0004		●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0005-0006	●	●	●
84	BRACKET; ROCKER SHAFT,INTER EURO2 SPECIFICATION<THN>	8-94395-836-1	10	1	9911-0004	●
84	BRACKET; ROCKER SHAFT,INTER	8-94388-109-3	05	1	9510-9911	●	●	●
84	BRACKET; ROCKER SHAFT,INTER EXC. EURO2 SPECIFICATION<THN>	8-94388-109-3	05	1	9911-0004	●
84	BRACKET; ROCKER SHAFT,INTER	8-94388-109-3	05	1	9911-0004		●	●
84	BRACKET; ROCKER SHAFT,INTER	8-94388-109-3	05	1	0005-	●	●	●
84	BRACKET; ROCKER SHAFT,INTER EURO2 SPECIFICATION<THN>	8-94395-836-1	05	1	0005-0010				●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0011-0405				●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0406-				●	●
95	SPRING; ROCKER SHAFT EURO2 SPECIFICATION<THN>	8-94392-999-0	12	1	9911-0004	●
95	SPRING; ROCKER SHAFT	8-94397-263-0	06	1	9510-9911	●	●	●
95	SPRING; ROCKER SHAFT EXC. EURO2 SPECIFICATION<THN>	8-94397-263-0	06	1	9911-0004	●
95	SPRING; ROCKER SHAFT	8-94397-263-0	06	1	9911-0004		●	●
95	SPRING; ROCKER SHAFT	8-94397-263-0	06	1	0005-	●	●	●
95	SPRING; ROCKER SHAFT EURO2 SPECIFICATION<THN>	8-94392-999-0	06	1	0005-0010				●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0011-0405				●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0406-				●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9510-0004	●	●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0005-0405	●	●	●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0406-	●	●	●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9510-0004	●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	0005-0306	●	●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-1	01	1	0307-0405	●	●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0406-	●	●	●	●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	9510-0004	●	●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0005-0405	●	●	●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0406-	●	●	●	●	●
241	RING; FRICTION EURO2 SPECIFICATION<THN>	8-94390-562-0	01	1	9911-0004	●
241	RING; FRICTION EURO2 SPECIFICATION<THN>	8-94390-562-0	01	1	0005-0010				●
241	RING; FRICTION	8-94390-562-0	01	1	0011-0311				●
241	RING; FRICTION	8-97603-297-0	01	1	0312-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
