0-11 — CYLINDER HEAD (#64178) — 597 parça

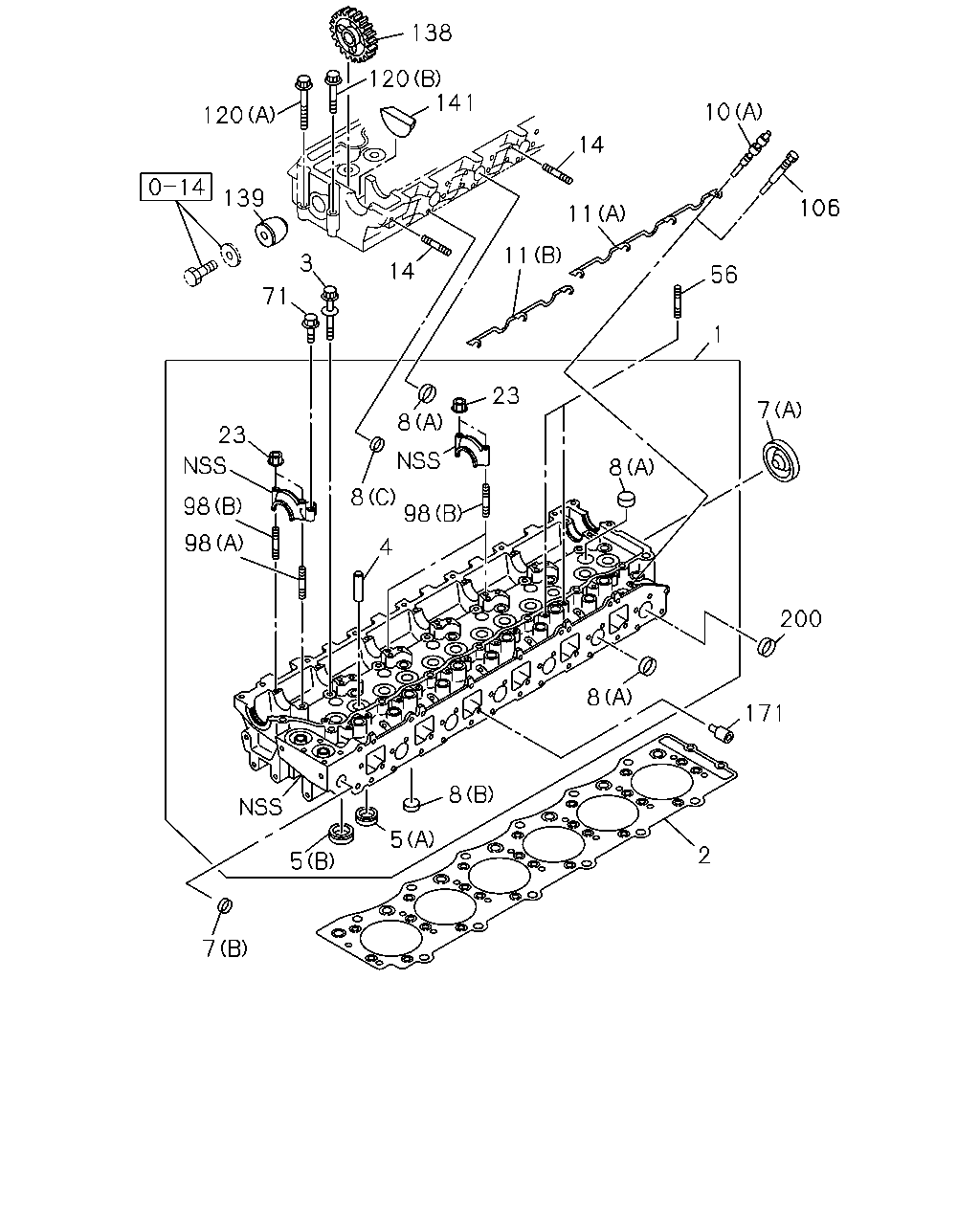

çizim 14921
138 120 141 10 120 14 139 106 11 11 3 14 56 71 1 23 7 8 23 8 8 98 98 98 4 200 8 171 8 5 2 5 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HEAD ASM; CYL 8-97602-686-1 01 1 0406-0406 ●
1 HEAD ASM; CYL 8-97605-004-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-991-6 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94392-455-3 01 1 9911-0004 ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94392-455-5 01 1 0005-0010 ●
1 HEAD ASM; CYL 8-94392-455-9 01 1 0011-0207 ●
1 HEAD ASM; CYL 8-97602-584-2 01 1 0208-0406 ●
1 HEAD ASM; CYL 8-97605-007-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-994-5 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-625-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-564-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-818-0 01 1 1306- ●
1 HEAD ASM; CYL 8-94393-375-2 01 1 9510-9608 ● ●
1 HEAD ASM; CYL 8-94390-082-2 01 1 9609-9911 ● ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-082-2 01 1 9911-0004 ●
1 HEAD ASM; CYL 8-94390-082-2 01 1 9911-0004 ●
1 HEAD ASM; CYL 8-94390-082-7 01 1 0005-1012 ● ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ● ●
1 HEAD ASM; CYL 8-94391-162-6 01 1 9610-1012 ●
1 HEAD ASM; CYL 8-98180-577-1 01 1 1101- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94390-787-2 01 1 9911-0004 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94390-787-2 01 1 0005-0010 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-787-4 01 1 0011-0405 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-787-4 01 1 0406-0407 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97605-228-0 01 1 0408- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-1 01 1 9510-9911 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-1 01 1 9911-0004 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-1 01 1 9911-0004 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-3 01 1 0005- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-2 01 1 9610- ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9510-0004 ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0005-0405 ● ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0406-0901 ● ● ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ● ● ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ● ● ● ● ●
4 GUIDE; VLV
EURO2 SPECIFICATION<THN> L=57 		8-94390-780-0 24 1 9911-0004 ●
4 GUIDE; VLV
EURO2 SPECIFICATION<THN> L=57 		8-94390-780-0 24 1 0005-0010 ●
4 GUIDE; VLV
L=57 		8-94390-780-0 24 1 0011-0405 ●
4 GUIDE; VLV
L=57 		8-94390-780-0 24 1 0406-0707 ● ●
4 GUIDE; VLV
L=57 		8-97376-719-2 24 1 0708- ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9510-9911 ● ● ●
4 GUIDE; VLV
EXC. EURO2 SPECIFICATION<THN> 		8-94396-598-0 12 1 9911-0004 ●
4 GUIDE; VLV 8-94396-598-0 12 1 9911-0004 ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 0005- ● ● ●
5 SEAT; VLV INSERT
(A) INLET OD=38 		8-94395-888-2 12 1 0406- ●
5 SEAT; VLV INSERT
EURO2 SPECIFICATION<THN> (A) INLET OD=40 		8-94395-624-0 12 1 9911-0004 ●
5 SEAT; VLV INSERT
EURO2 SPECIFICATION<THN> (A) INLET OD=40 		8-94395-624-0 12 1 0005-0010 ●
5 SEAT; VLV INSERT
(A) INLET OD=40 		8-94395-624-0 12 1 0011-0106 ●
5 SEAT; VLV INSERT
(A) INLET OD=40 		8-97216-510-0 12 1 0107- ●
5 SEAT; VLV INSERT
EURO2 SPECIFICATION<THN> (B) EXHAUST OD=38 		8-94395-625-0 12 1 9911-0004 ●
5 SEAT; VLV INSERT
EURO2 SPECIFICATION<THN> (B) EXHAUST OD=38 		8-94395-625-0 12 1 0005-0010 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=38 		8-94395-625-0 12 1 0011-0106 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=38 		8-97216-511-0 12 1 0107-0405 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=38 		8-97216-511-0 12 1 0406-0703 ● ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 12 1 0704- ● ●
5 SEAT; VLV INSERT
(B) INLET OD=52 		8-94394-127-0 06 1 9510-9911 ● ●
5 SEAT; VLV INSERT
EXC. EURO2 SPECIFICATION<THN> (B) INLET OD=52 		8-94394-127-0 06 1 9911-0004 ●
5 SEAT; VLV INSERT
(B) INLET OD=52 		8-94394-127-0 06 1 9911-0004 ●
5 SEAT; VLV INSERT
(B) INLET OD=52 		8-94394-127-0 06 1 0005- ● ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9510-9911 ● ● ●
5 SEAT; VLV INSERT
EXC. EURO2 SPECIFICATION<THN> (A) EXHAUST OD=43 		8-94396-172-0 06 1 9911-0004 ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9911-0004 ● ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 0005- ● ● ●
5 SEAT; VLV INSERT
(B) INLET OD=48 		8-94394-462-0 06 1 9610- ●
7 CUP; SEALING,CYL HEAD
THAILAND EQUIPMENT(PM9) (B) OD=30 		8-94393-509-0 01 1 9510-9802 ●
7 CUP; SEALING,CYL HEAD
(A) OD=51 		8-94396-229-0 01 1 9510-0004 ● ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=51 		8-94396-229-0 01 1 0005-0303 ● ● ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=51 		8-97096-826-0 01 1 0304-0405 ● ● ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=51 		8-97096-826-0 01 1 0406- ● ● ● ● ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-1 06 1 9911-0004 ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (B) OD=25 		1-09600-016-0 06 1 9911-0004 ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (C) OD=16 		5-11129-006-0 07 1 9911-0004 ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (D) OD=20 		9-11129-128-0 11 1 9911-0004 ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (D) OD=20 		9-11129-128-0 11 1 0005-0010 ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0011-0405 ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0406- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9510-9704 ● ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-1 01 1 9510-9911 ● ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-1 01 1 9912-0004 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 01 1 9912-0004 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 17 1 0005- ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9510-9911 ● ● ●
8 CUP; SEALING,WATER JACKET
EXC. EURO2 SPECIFICATION<THN> (B) OD=25 		1-09600-016-0 03 1 9911-0004 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9911-0004 ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 0005- ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9510-9911 ● ● ●
8 CUP; SEALING,WATER JACKET
EXC. EURO2 SPECIFICATION<THN> (C) OD=12.3 		5-09600-013-0 06 1 9911-0004 ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9911-0004 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 0005- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9705-9911 ● ● ●
8 CUP; SEALING,WATER JACKET
EXC. EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-1 17 1 9911-0004 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9911-0004 ● ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-1 01 1 0005-0005 ● ● ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-1 01 1 0005-0408 ● ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-1 01 1 0005-0408 ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-2 01 1 0409- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 18 1 9610-9704 ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-1 06 1 0005-0405 ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-2 06 1 0406- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 0406- ●
8 CUP; SEALING,WATER JACKET
EXC. EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-2 07 1 0011- ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (C) OD=16 		5-11129-006-0 07 1 0005-0010 ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0011-0405 ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0406- ● ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (B) OD=25 		1-09600-016-0 06 1 0005-0010 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0011-0405 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0406- ● ●
10 PLUG; GLOW
EURO2 SPECIFICATION<THN> (A) 		8-94392-815-1 06 1 9911-0004 ●
10 PLUG; GLOW
EURO2 SPECIFICATION<THN> (A) 		8-94392-815-3 06 1 0005-0405 ●
10 PLUG; GLOW
EURO2 SPECIFICATION<THN> (A) 		8-94392-815-4 06 1 0406- ●
10 PLUG; GLOW
(A) 		8-94392-815-4 06 1 0406- ●
10 PLUG; GLOW
EXC. THAILAND EQUIPMENT(PM9) (A) 		9-82513-928-9 06 1 9510-9802 ●
10 PLUG; GLOW
(A) 		9-82513-928-9 06 1 9510-9802 ● ●
10 PLUG; GLOW
(A) 		9-82513-928-9 06 1 9803-9809 ● ● ●
10 PLUG; GLOW
(A) 		1-82513-043-0 06 1 9810-9911 ● ● ●
10 PLUG; GLOW
EXC. EURO2 SPECIFICATION<THN> (A) 		1-82513-043-0 06 1 9911-0004 ●
10 PLUG; GLOW
(A) 		1-82513-043-0 06 1 9911-0004 ● ●
10 PLUG; GLOW
(A) 		1-82513-043-2 06 1 0005- ● ● ●
10 PLUG; GLOW
EXC. EURO2 SPECIFICATION<THN> (B) NGK 		8-94390-777-6 06 1 0011- ●
11 CONNECTOR; GLOW PLUG
EURO2 SPECIFICATION<THN> (A) 		8-94391-925-2 01 1 9911-0004 ●
11 CONNECTOR; GLOW PLUG
EURO2 SPECIFICATION<THN> (A) 		8-94391-925-2 01 1 0005-0010 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94391-925-3 01 1 0011-0405 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94391-925-3 01 1 0406-0804 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-98040-648-0 01 1 0805- ● ●
11 CONNECTOR; GLOW PLUG
EURO2 SPECIFICATION<THN> (B) 		8-94392-843-0 01 1 9911-0004 ●
11 CONNECTOR; GLOW PLUG
EURO2 SPECIFICATION<THN> (B) 		8-94392-843-0 01 1 0005-0010 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94392-843-1 01 1 0011-0405 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94392-843-1 01 1 0406-0804 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-98040-649-0 01 1 0805- ● ●
11 CONNECTOR; GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) (A) 		8-94399-608-2 01 1 9510-9802 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9510-9802 ● ●
11 CONNECTOR; GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) (B) 		8-94399-631-2 01 1 9510-9802 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9510-9802 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9803-9911 ● ● ●
11 CONNECTOR; GLOW PLUG
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94399-631-2 01 1 9911-0004 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9911-0004 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-3 01 1 0005- ● ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9803-9911 ● ● ●
11 CONNECTOR; GLOW PLUG
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94399-608-2 01 1 9911-0004 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9911-0004 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 0005-0206 ● ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-97136-565-0 01 1 0207- ● ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 9510-0004 ● ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0005-0009 ● ● ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0010-0405 ● ● ●
14 STUD; EXH MANIF
EURO2 SPECIFICATION<THN> M10X60 L=75 		8-94397-286-0 12 1 0010-0405 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0406- ● ● ● ●
14 STUD; EXH MANIF
EURO2 SPECIFICATION<THN> M10X60 L=75 		8-94397-286-0 12 1 0406- ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> M10X68 L=83 		8-94392-483-0 02 1 0011-0608 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> M10X85 L=100 		8-98037-215-0 02 1 0609- ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> M10X60 L=75 		8-94397-286-0 10 1 0011- ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 14 1 9510-9608 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9609-0004 ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0005-0405 ● ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0406-0602 ● ● ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603- ● ● ● ● ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 9610- ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9510-0004 ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0005-0405 ● ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0406-0512 ● ● ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ● ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 12 1 9510-9608 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9609-9802 ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9510-0004 ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0005-0405 ● ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0406- ● ● ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9803-0004 ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0005-0405 ● ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0406- ● ● ● ● ●
106 PLUG; GLOW PLUG HOLE
THAILAND EQUIPMENT(PM9) 		5-11119-007-1 06 1 9510-9802 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9510-0004 ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0005-0405 ● ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0406- ● ● ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9510-0004 ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0005-0405 ● ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0406- ● ● ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9510-0004 ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 0005-0405 ● ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 0406- ● ● ● ● ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9510-9711 ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9712-0004 ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0005-0405 ● ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0406- ● ● ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9510-0004 ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0005-0405 ● ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0406-1005 ● ● ● ● ●
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1006- ● ● ● ● ●
171 SEAT; VLV
AUSTRALIA EQUIPMENT(RR3) ID=5.5 L=35 YELLOW 		8-94395-210-0 06 1 9510-0004 ● ●
171 SEAT; VLV
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94395-571-1 06 1 9510-9901 ● ●
171 SEAT; VLV
EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> 		8-94395-571-1 06 1 9902-0004 ● ●
171 SEAT; VLV 8-94395-571-1 06 1 0005- ● ●
171 SEAT; VLV 8-94394-678-1 06 1 9610- ●
200 CUP; SEALING,INLET MANIFOLD
OD=32 		1-09600-012-2 01 1 9705- ●

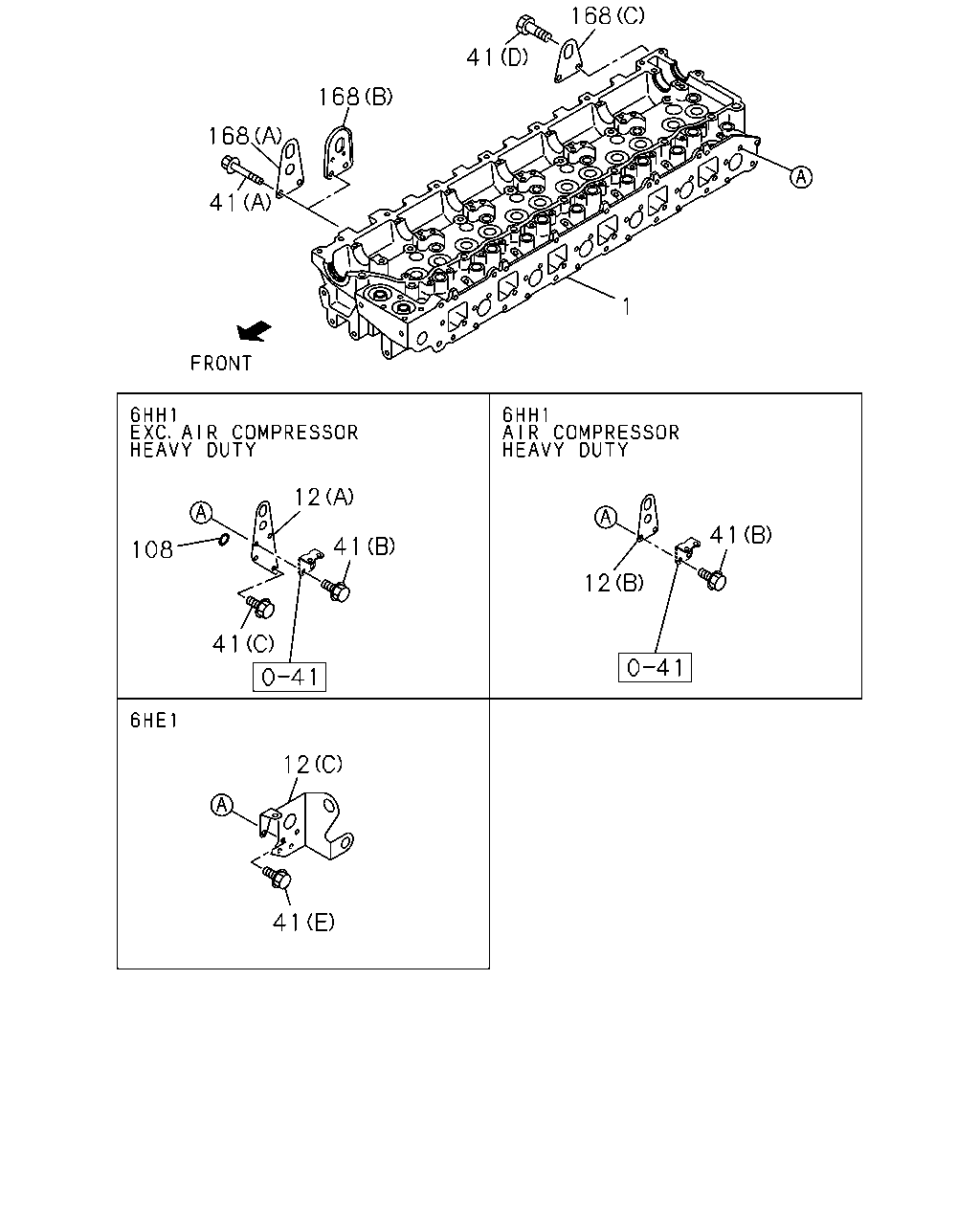

çizim 16291
168 41 168 168 41 1 12 41 41 108 12 41 12 41
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HEAD ASM; CYL 8-97602-686-1 01 1 0406-0406 ●
1 HEAD ASM; CYL 8-97605-004-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-991-6 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94392-455-3 01 1 9911-0004 ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94392-455-5 01 1 0005-0010 ●
1 HEAD ASM; CYL 8-94392-455-9 01 1 0011-0207 ●
1 HEAD ASM; CYL 8-97602-584-2 01 1 0208-0406 ●
1 HEAD ASM; CYL 8-97605-007-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-994-5 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-625-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-564-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-818-0 01 1 1306- ●
1 HEAD ASM; CYL 8-94393-375-2 01 1 9510-9608 ● ●
1 HEAD ASM; CYL 8-94390-082-2 01 1 9609-9911 ● ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-082-2 01 1 9911-0004 ●
1 HEAD ASM; CYL 8-94390-082-2 01 1 9911-0004 ●
1 HEAD ASM; CYL 8-94390-082-7 01 1 0005-1012 ● ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ● ●
1 HEAD ASM; CYL 8-94391-162-6 01 1 9610-1012 ●
1 HEAD ASM; CYL 8-98180-577-1 01 1 1101- ●
12 HANGER; ENG,RR
(F) 		8-94390-417-2 01 1 0406- ●
12 HANGER; ENG,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (E) 		8-94392-080-0 01 1 9911-0004 ●
12 HANGER; ENG,RR
EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (E) 		8-94392-080-0 01 1 0005- ●
12 HANGER; ENG,RR
EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D) 		8-94392-081-0 01 1 9911-0004 ●
12 HANGER; ENG,RR
EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D) 		8-94392-081-0 01 1 0005-0010 ●
12 HANGER; ENG,RR
EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D) 		8-94392-081-1 01 1 0011- ●
12 HANGER; ENG,RR
EXC. EURO2 SPECIFICATION<THN> (D) 		8-94392-081-1 01 1 0011- ●
12 HANGER; ENG,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-405-0 01 1 9510-9808 ● ●
12 HANGER; ENG,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (B) 		8-94399-405-0 01 1 9809-0004 ●
12 HANGER; ENG,RR
(B) 		8-94399-405-0 01 1 9809-0004 ●
12 HANGER; ENG,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-405-0 01 1 0005- ● ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-404-2 01 1 9510-9911 ● ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (A) 		8-94399-404-2 01 1 9911-0004 ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-404-2 01 1 9911-0004 ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-404-3 01 1 0005- ● ●
12 HANGER; ENG,RR
(C) 		8-94394-337-1 01 1 9610- ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (F) M12X22 FLANGE 		0-28181-222-0 02 1 9911-0004 ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (F) M12X22 FLANGE 		0-28181-222-0 02 1 0005-0010 ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (F) M12X22 FLANGE 		0-28181-222-0 02 1 0011- ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (F) M12X22 FLANGE 		0-28181-222-0 02 1 0011- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9510-0004 ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 0005-0512 ● ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ● ● ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 9510-9911 ● ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (B) M12X28 FLANGE 		0-28181-228-0 02 1 9911-0004 ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 9911-0004 ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 0005- ● ●
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE 		0-28181-222-0 01 1 9510-9808 ● ●
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (C) M12X22 FLANGE 		0-28181-222-0 01 1 9809-0004 ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 01 1 9809-0004 ●
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE 		0-28181-222-0 01 1 0005- ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9610-0405 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 0406-0512 ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0601- ● ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 9610-9910 ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> (E) M12X22 FLANGE 		0-28181-222-0 03 1 9911-0004 ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 9911-0004 ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 0005-0302 ●
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) (E) M12X22 FLANGE 		0-28181-222-0 03 1 0005-0302 ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (E) M12X22 FLANGE 		0-28181-222-0 03 1 0303-0405 ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (E) M12X22 FLANGE 		0-28181-222-0 03 1 0303-0405 ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 0406- ● ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (E) M12X22 FLANGE 		0-28181-222-0 03 1 0406- ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28781-025-0 02 1 9610-0405 ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28781-025-0 02 1 0406-0512 ● ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28751-025-0 02 1 0601- ● ●
108 GASKET; HANGER,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2 		1-09623-375-0 01 1 9510-0004 ● ●
108 GASKET; HANGER,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2 		1-09623-375-0 01 1 0005-0405 ● ● ●
108 GASKET; HANGER,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2 		1-09623-375-0 01 1 0406- ● ● ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 0406- ●
168 HANGER; ENG,FRT
(D) 		8-94392-799-0 01 1 0406- ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-0 01 1 9510-0004 ● ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-1 01 1 0005-0405 ● ● ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-1 01 1 0406- ● ● ● ●
168 HANGER; ENG,FRT
(B) 		8-94394-071-1 01 1 9610-9701 ●
168 HANGER; ENG,FRT
(B) 		8-94391-505-0 01 1 9702-9802 ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-0 01 1 9610-9802 ●
168 HANGER; ENG,FRT
(B) 		8-94391-505-0 01 1 9803- ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-1 01 1 9803- ●

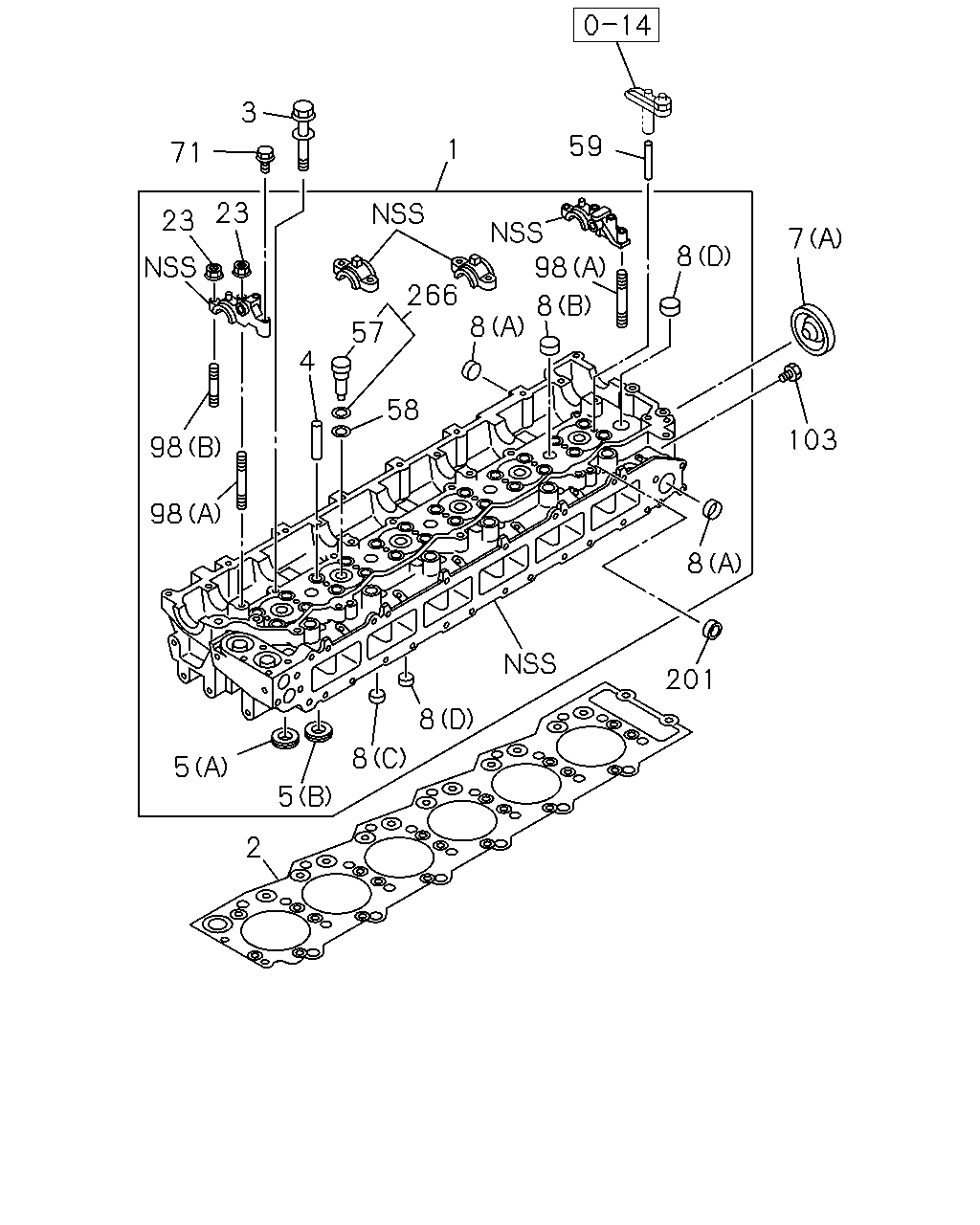

çizim 26734
3 71 1 59 7 103 8 98 266 57 4 8 8 58 8 201 8 8 5 2 5 98 98 23 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HEAD ASM; CYL 8-97602-686-1 01 1 0406-0406 ●
1 HEAD ASM; CYL 8-97605-004-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-991-6 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94392-455-3 01 1 9911-0004 ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94392-455-5 01 1 0005-0010 ●
1 HEAD ASM; CYL 8-94392-455-9 01 1 0011-0207 ●
1 HEAD ASM; CYL 8-97602-584-2 01 1 0208-0406 ●
1 HEAD ASM; CYL 8-97605-007-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-994-5 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-625-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-564-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-818-0 01 1 1306- ●
1 HEAD ASM; CYL 8-94393-375-2 01 1 9510-9608 ● ●
1 HEAD ASM; CYL 8-94390-082-2 01 1 9609-9911 ● ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-082-2 01 1 9911-0004 ●
1 HEAD ASM; CYL 8-94390-082-2 01 1 9911-0004 ●
1 HEAD ASM; CYL 8-94390-082-7 01 1 0005-1012 ● ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ● ●
1 HEAD ASM; CYL 8-94391-162-6 01 1 9610-1012 ●
1 HEAD ASM; CYL 8-98180-577-1 01 1 1101- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94390-787-2 01 1 9911-0004 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94390-787-2 01 1 0005-0010 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-787-4 01 1 0011-0405 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-787-4 01 1 0406-0407 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97605-228-0 01 1 0408- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-1 01 1 9510-9911 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-1 01 1 9911-0004 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-1 01 1 9911-0004 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-3 01 1 0005- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-2 01 1 9610- ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9510-0004 ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0005-0405 ● ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0406-0901 ● ● ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ● ● ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ● ● ● ● ●
4 GUIDE; VLV
EURO2 SPECIFICATION<THN> L=57 		8-94390-780-0 24 1 9911-0004 ●
4 GUIDE; VLV
EURO2 SPECIFICATION<THN> L=57 		8-94390-780-0 24 1 0005-0010 ●
4 GUIDE; VLV
L=57 		8-94390-780-0 24 1 0011-0405 ●
4 GUIDE; VLV
L=57 		8-94390-780-0 24 1 0406-0707 ● ●
4 GUIDE; VLV
L=57 		8-97376-719-2 24 1 0708- ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9510-9911 ● ● ●
4 GUIDE; VLV
EXC. EURO2 SPECIFICATION<THN> 		8-94396-598-0 12 1 9911-0004 ●
4 GUIDE; VLV 8-94396-598-0 12 1 9911-0004 ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 0005- ● ● ●
5 SEAT; VLV INSERT
(A) INLET OD=38 		8-94395-888-2 12 1 0406- ●
5 SEAT; VLV INSERT
EURO2 SPECIFICATION<THN> (A) INLET OD=40 		8-94395-624-0 12 1 9911-0004 ●
5 SEAT; VLV INSERT
EURO2 SPECIFICATION<THN> (A) INLET OD=40 		8-94395-624-0 12 1 0005-0010 ●
5 SEAT; VLV INSERT
(A) INLET OD=40 		8-94395-624-0 12 1 0011-0106 ●
5 SEAT; VLV INSERT
(A) INLET OD=40 		8-97216-510-0 12 1 0107- ●
5 SEAT; VLV INSERT
EURO2 SPECIFICATION<THN> (B) EXHAUST OD=38 		8-94395-625-0 12 1 9911-0004 ●
5 SEAT; VLV INSERT
EURO2 SPECIFICATION<THN> (B) EXHAUST OD=38 		8-94395-625-0 12 1 0005-0010 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=38 		8-94395-625-0 12 1 0011-0106 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=38 		8-97216-511-0 12 1 0107-0405 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=38 		8-97216-511-0 12 1 0406-0703 ● ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 12 1 0704- ● ●
5 SEAT; VLV INSERT
(B) INLET OD=52 		8-94394-127-0 06 1 9510-9911 ● ●
5 SEAT; VLV INSERT
EXC. EURO2 SPECIFICATION<THN> (B) INLET OD=52 		8-94394-127-0 06 1 9911-0004 ●
5 SEAT; VLV INSERT
(B) INLET OD=52 		8-94394-127-0 06 1 9911-0004 ●
5 SEAT; VLV INSERT
(B) INLET OD=52 		8-94394-127-0 06 1 0005- ● ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9510-9911 ● ● ●
5 SEAT; VLV INSERT
EXC. EURO2 SPECIFICATION<THN> (A) EXHAUST OD=43 		8-94396-172-0 06 1 9911-0004 ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9911-0004 ● ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 0005- ● ● ●
5 SEAT; VLV INSERT
(B) INLET OD=48 		8-94394-462-0 06 1 9610- ●
7 CUP; SEALING,CYL HEAD
THAILAND EQUIPMENT(PM9) (B) OD=30 		8-94393-509-0 01 1 9510-9802 ●
7 CUP; SEALING,CYL HEAD
(A) OD=51 		8-94396-229-0 01 1 9510-0004 ● ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=51 		8-94396-229-0 01 1 0005-0303 ● ● ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=51 		8-97096-826-0 01 1 0304-0405 ● ● ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=51 		8-97096-826-0 01 1 0406- ● ● ● ● ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-1 06 1 9911-0004 ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (B) OD=25 		1-09600-016-0 06 1 9911-0004 ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (C) OD=16 		5-11129-006-0 07 1 9911-0004 ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (D) OD=20 		9-11129-128-0 11 1 9911-0004 ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (D) OD=20 		9-11129-128-0 11 1 0005-0010 ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0011-0405 ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0406- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9510-9704 ● ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-1 01 1 9510-9911 ● ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-1 01 1 9912-0004 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 01 1 9912-0004 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 17 1 0005- ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9510-9911 ● ● ●
8 CUP; SEALING,WATER JACKET
EXC. EURO2 SPECIFICATION<THN> (B) OD=25 		1-09600-016-0 03 1 9911-0004 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9911-0004 ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 0005- ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9510-9911 ● ● ●
8 CUP; SEALING,WATER JACKET
EXC. EURO2 SPECIFICATION<THN> (C) OD=12.3 		5-09600-013-0 06 1 9911-0004 ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9911-0004 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 0005- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9705-9911 ● ● ●
8 CUP; SEALING,WATER JACKET
EXC. EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-1 17 1 9911-0004 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9911-0004 ● ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-1 01 1 0005-0005 ● ● ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-1 01 1 0005-0408 ● ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-1 01 1 0005-0408 ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-2 01 1 0409- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 18 1 9610-9704 ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-1 06 1 0005-0405 ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-2 06 1 0406- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 0406- ●
8 CUP; SEALING,WATER JACKET
EXC. EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-2 07 1 0011- ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (C) OD=16 		5-11129-006-0 07 1 0005-0010 ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0011-0405 ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0406- ● ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (B) OD=25 		1-09600-016-0 06 1 0005-0010 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0011-0405 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0406- ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 14 1 9510-9608 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9609-0004 ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0005-0405 ● ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0406-0602 ● ● ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603- ● ● ● ● ●
57 SLEEVE; NOZZLE HOLDER
EURO2 SPECIFICATION<THN> 		8-97600-972-0 06 1 9911-0004 ●
57 SLEEVE; NOZZLE HOLDER
EURO2 SPECIFICATION<THN> 		8-97600-972-0 06 1 0005-0010 ●
57 SLEEVE; NOZZLE HOLDER 8-97600-972-0 06 1 0011-0109 ●
57 SLEEVE; NOZZLE HOLDER 8-97602-301-1 06 1 0110-0405 ●
57 SLEEVE; NOZZLE HOLDER 8-97602-301-1 06 1 0406-0507 ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ID=27 		1-09623-355-0 06 1 9911-0004 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ID=27 		1-09623-355-0 06 1 0005-0010 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27 		1-09623-355-0 06 1 0011-0405 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27 		1-09623-355-0 06 1 0406-0406 ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 		8-97604-916-0 06 1 0407- ● ●
59 GUIDE; BRIDGE
EURO2 SPECIFICATION<THN> 		8-94395-889-1 12 1 9911-0004 ●
59 GUIDE; BRIDGE
EURO2 SPECIFICATION<THN> 		8-94395-889-1 12 1 0005-0010 ●
59 GUIDE; BRIDGE 8-94395-889-1 12 1 0011-0405 ●
59 GUIDE; BRIDGE 8-94395-889-1 12 1 0406-0409 ● ●
59 GUIDE; BRIDGE 8-97381-603-1 12 1 0410- ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9510-0004 ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0005-0405 ● ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0406-0512 ● ● ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ● ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 12 1 9510-9608 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9609-9802 ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9510-0004 ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0005-0405 ● ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0406- ● ● ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9803-0004 ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0005-0405 ● ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0406- ● ● ● ● ●
103 PLUG; HD
EURO2 SPECIFICATION<THN> M8X6 		8-94399-421-0 01 1 9911-0004 ●
103 PLUG; HD
EURO2 SPECIFICATION<THN> M8X6 		8-94399-421-0 01 1 0005-0010 ●
103 PLUG; HD
M8X6 		8-94399-421-0 01 1 0011-0405 ●
103 PLUG; HD
M8X6 		8-94399-421-0 01 1 0406-0501 ● ●
103 PLUG; HD
M8X10 		8-98003-416-0 01 1 0502- ● ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> OD=30 		1-09639-034-0 06 1 9911-0004 ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> OD=30 		1-09639-034-0 06 1 0005-0010 ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 06 1 0011-0405 ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 06 1 0406- ● ●
266 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 06 1 0508- ● ●

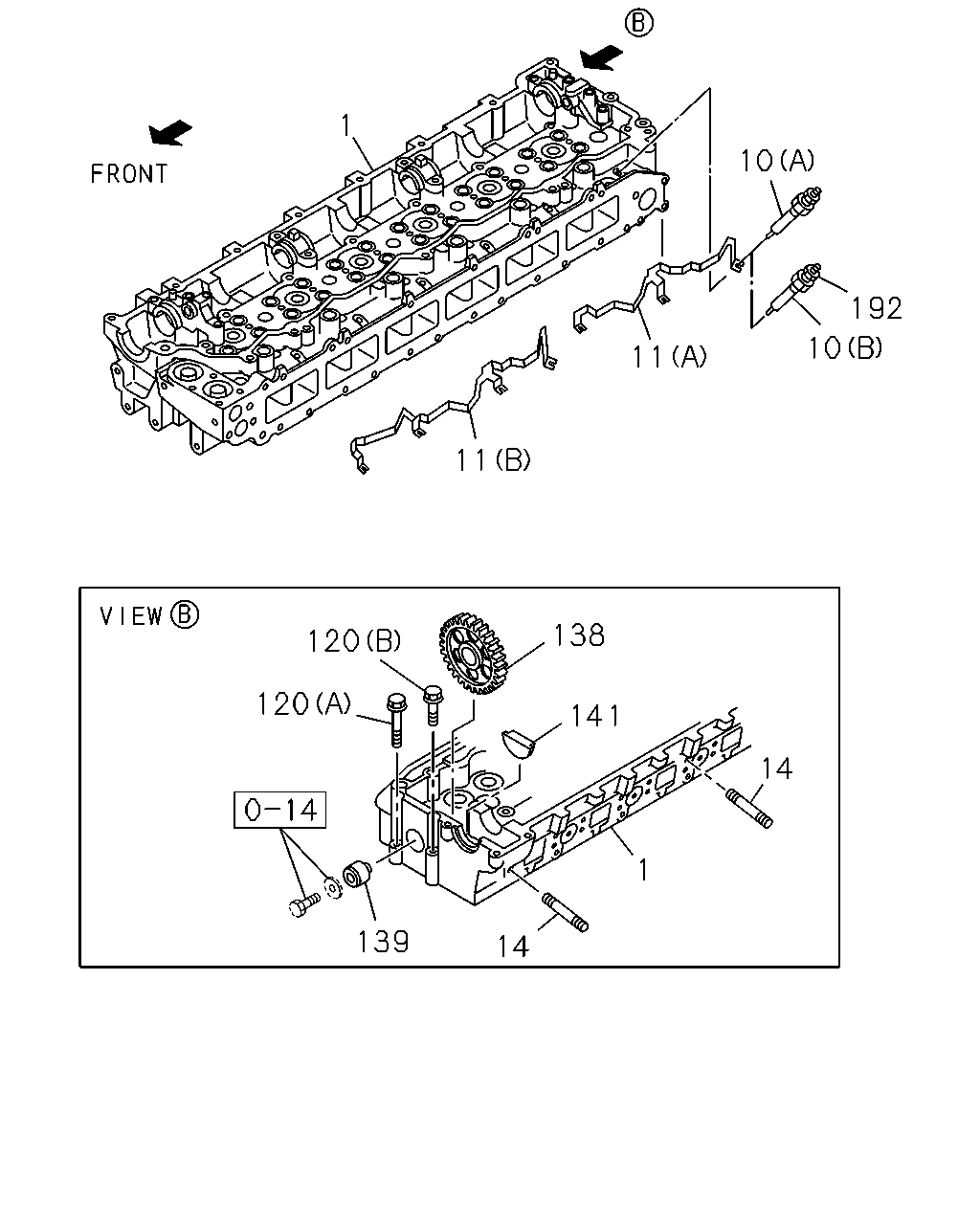

çizim 27726
1 10 192 10 11 11 138 120 120 141 14 1 139 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HEAD ASM; CYL 8-97602-686-1 01 1 0406-0406 ●
1 HEAD ASM; CYL 8-97605-004-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-991-6 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94392-455-3 01 1 9911-0004 ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94392-455-5 01 1 0005-0010 ●
1 HEAD ASM; CYL 8-94392-455-9 01 1 0011-0207 ●
1 HEAD ASM; CYL 8-97602-584-2 01 1 0208-0406 ●
1 HEAD ASM; CYL 8-97605-007-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-994-5 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-625-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-564-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-818-0 01 1 1306- ●
1 HEAD ASM; CYL 8-94393-375-2 01 1 9510-9608 ● ●
1 HEAD ASM; CYL 8-94390-082-2 01 1 9609-9911 ● ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-082-2 01 1 9911-0004 ●
1 HEAD ASM; CYL 8-94390-082-2 01 1 9911-0004 ●
1 HEAD ASM; CYL 8-94390-082-7 01 1 0005-1012 ● ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ● ●
1 HEAD ASM; CYL 8-94391-162-6 01 1 9610-1012 ●
1 HEAD ASM; CYL 8-98180-577-1 01 1 1101- ●
10 PLUG; GLOW
EURO2 SPECIFICATION<THN> (A) 		8-94392-815-1 06 1 9911-0004 ●
10 PLUG; GLOW
EURO2 SPECIFICATION<THN> (A) 		8-94392-815-3 06 1 0005-0405 ●
10 PLUG; GLOW
EURO2 SPECIFICATION<THN> (A) 		8-94392-815-4 06 1 0406- ●
10 PLUG; GLOW
(A) 		8-94392-815-4 06 1 0406- ●
10 PLUG; GLOW
EXC. THAILAND EQUIPMENT(PM9) (A) 		9-82513-928-9 06 1 9510-9802 ●
10 PLUG; GLOW
(A) 		9-82513-928-9 06 1 9510-9802 ● ●
10 PLUG; GLOW
(A) 		9-82513-928-9 06 1 9803-9809 ● ● ●
10 PLUG; GLOW
(A) 		1-82513-043-0 06 1 9810-9911 ● ● ●
10 PLUG; GLOW
EXC. EURO2 SPECIFICATION<THN> (A) 		1-82513-043-0 06 1 9911-0004 ●
10 PLUG; GLOW
(A) 		1-82513-043-0 06 1 9911-0004 ● ●
10 PLUG; GLOW
(A) 		1-82513-043-2 06 1 0005- ● ● ●
10 PLUG; GLOW
EXC. EURO2 SPECIFICATION<THN> (B) NGK 		8-94390-777-6 06 1 0011- ●
11 CONNECTOR; GLOW PLUG
EURO2 SPECIFICATION<THN> (A) 		8-94391-925-2 01 1 9911-0004 ●
11 CONNECTOR; GLOW PLUG
EURO2 SPECIFICATION<THN> (A) 		8-94391-925-2 01 1 0005-0010 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94391-925-3 01 1 0011-0405 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94391-925-3 01 1 0406-0804 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-98040-648-0 01 1 0805- ● ●
11 CONNECTOR; GLOW PLUG
EURO2 SPECIFICATION<THN> (B) 		8-94392-843-0 01 1 9911-0004 ●
11 CONNECTOR; GLOW PLUG
EURO2 SPECIFICATION<THN> (B) 		8-94392-843-0 01 1 0005-0010 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94392-843-1 01 1 0011-0405 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94392-843-1 01 1 0406-0804 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-98040-649-0 01 1 0805- ● ●
11 CONNECTOR; GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) (A) 		8-94399-608-2 01 1 9510-9802 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9510-9802 ● ●
11 CONNECTOR; GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) (B) 		8-94399-631-2 01 1 9510-9802 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9510-9802 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9803-9911 ● ● ●
11 CONNECTOR; GLOW PLUG
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94399-631-2 01 1 9911-0004 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9911-0004 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-3 01 1 0005- ● ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9803-9911 ● ● ●
11 CONNECTOR; GLOW PLUG
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94399-608-2 01 1 9911-0004 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9911-0004 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 0005-0206 ● ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-97136-565-0 01 1 0207- ● ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 9510-0004 ● ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0005-0009 ● ● ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0010-0405 ● ● ●
14 STUD; EXH MANIF
EURO2 SPECIFICATION<THN> M10X60 L=75 		8-94397-286-0 12 1 0010-0405 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0406- ● ● ● ●
14 STUD; EXH MANIF
EURO2 SPECIFICATION<THN> M10X60 L=75 		8-94397-286-0 12 1 0406- ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> M10X68 L=83 		8-94392-483-0 02 1 0011-0608 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> M10X85 L=100 		8-98037-215-0 02 1 0609- ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> M10X60 L=75 		8-94397-286-0 10 1 0011- ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9510-0004 ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0005-0405 ● ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0406- ● ● ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9510-0004 ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0005-0405 ● ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0406- ● ● ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9510-0004 ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 0005-0405 ● ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 0406- ● ● ● ● ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9510-9711 ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9712-0004 ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0005-0405 ● ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0406- ● ● ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9510-0004 ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0005-0405 ● ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0406-1005 ● ● ● ● ●
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1006- ● ● ● ● ●
192 NUT; GLOW PLUG
EXC. EURO2 SPECIFICATION<THN> M4 FLANGE 		8-97368-853-0 06 1 0011- ●

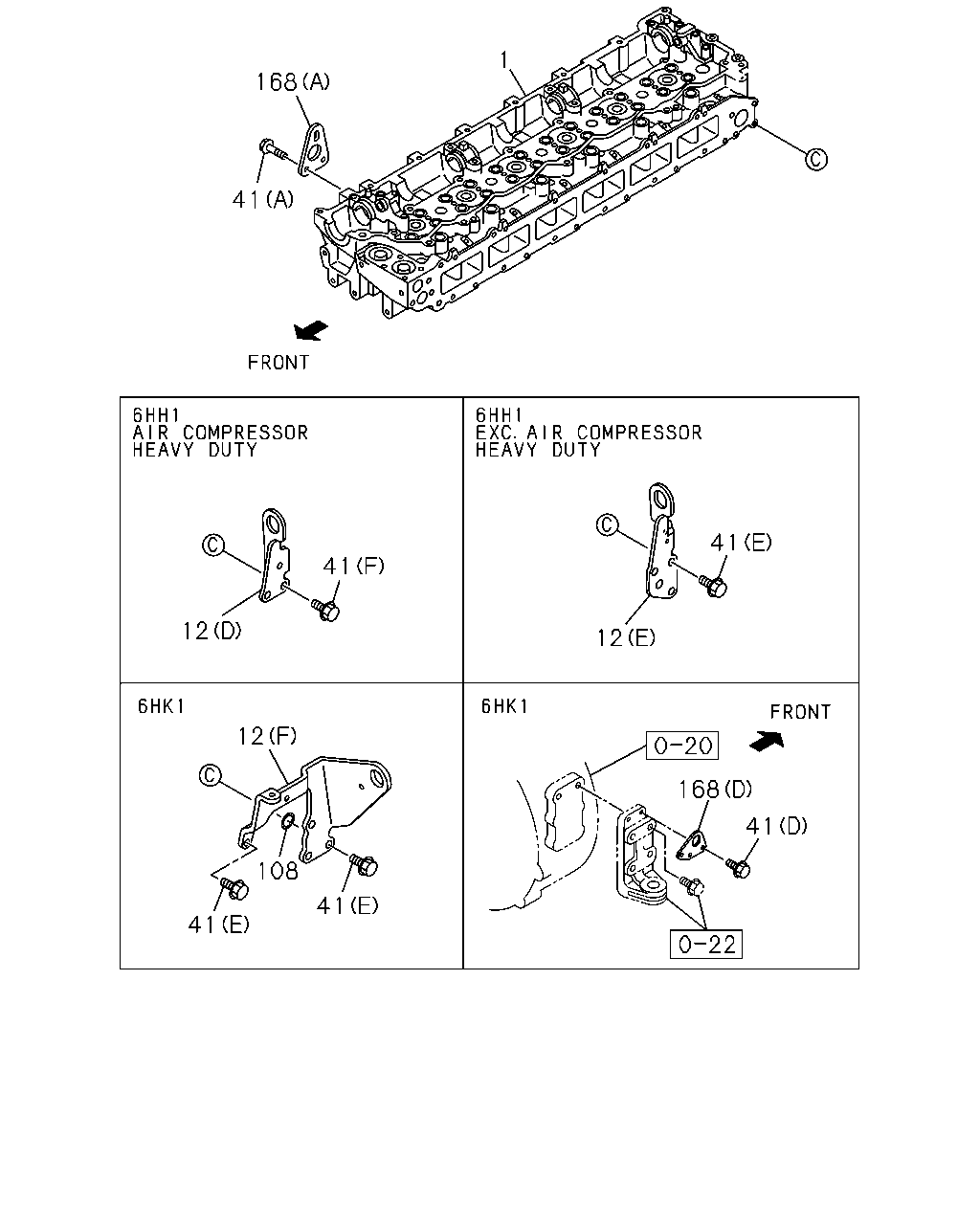

çizim 28415
1 168 41 41 41 12 12 12 168 41 108 41 41
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HEAD ASM; CYL 8-97602-686-1 01 1 0406-0406 ●
1 HEAD ASM; CYL 8-97605-004-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-991-6 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94392-455-3 01 1 9911-0004 ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94392-455-5 01 1 0005-0010 ●
1 HEAD ASM; CYL 8-94392-455-9 01 1 0011-0207 ●
1 HEAD ASM; CYL 8-97602-584-2 01 1 0208-0406 ●
1 HEAD ASM; CYL 8-97605-007-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-994-5 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-625-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-564-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-818-0 01 1 1306- ●
1 HEAD ASM; CYL 8-94393-375-2 01 1 9510-9608 ● ●
1 HEAD ASM; CYL 8-94390-082-2 01 1 9609-9911 ● ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-082-2 01 1 9911-0004 ●
1 HEAD ASM; CYL 8-94390-082-2 01 1 9911-0004 ●
1 HEAD ASM; CYL 8-94390-082-7 01 1 0005-1012 ● ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ● ●
1 HEAD ASM; CYL 8-94391-162-6 01 1 9610-1012 ●
1 HEAD ASM; CYL 8-98180-577-1 01 1 1101- ●
12 HANGER; ENG,RR
(F) 		8-94390-417-2 01 1 0406- ●
12 HANGER; ENG,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (E) 		8-94392-080-0 01 1 9911-0004 ●
12 HANGER; ENG,RR
EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (E) 		8-94392-080-0 01 1 0005- ●
12 HANGER; ENG,RR
EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D) 		8-94392-081-0 01 1 9911-0004 ●
12 HANGER; ENG,RR
EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D) 		8-94392-081-0 01 1 0005-0010 ●
12 HANGER; ENG,RR
EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D) 		8-94392-081-1 01 1 0011- ●
12 HANGER; ENG,RR
EXC. EURO2 SPECIFICATION<THN> (D) 		8-94392-081-1 01 1 0011- ●
12 HANGER; ENG,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-405-0 01 1 9510-9808 ● ●
12 HANGER; ENG,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (B) 		8-94399-405-0 01 1 9809-0004 ●
12 HANGER; ENG,RR
(B) 		8-94399-405-0 01 1 9809-0004 ●
12 HANGER; ENG,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-405-0 01 1 0005- ● ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-404-2 01 1 9510-9911 ● ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (A) 		8-94399-404-2 01 1 9911-0004 ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-404-2 01 1 9911-0004 ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-404-3 01 1 0005- ● ●
12 HANGER; ENG,RR
(C) 		8-94394-337-1 01 1 9610- ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (F) M12X22 FLANGE 		0-28181-222-0 02 1 9911-0004 ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (F) M12X22 FLANGE 		0-28181-222-0 02 1 0005-0010 ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (F) M12X22 FLANGE 		0-28181-222-0 02 1 0011- ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (F) M12X22 FLANGE 		0-28181-222-0 02 1 0011- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9510-0004 ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 0005-0512 ● ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ● ● ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 9510-9911 ● ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (B) M12X28 FLANGE 		0-28181-228-0 02 1 9911-0004 ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 9911-0004 ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 0005- ● ●
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE 		0-28181-222-0 01 1 9510-9808 ● ●
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (C) M12X22 FLANGE 		0-28181-222-0 01 1 9809-0004 ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 01 1 9809-0004 ●
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE 		0-28181-222-0 01 1 0005- ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9610-0405 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 0406-0512 ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0601- ● ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 9610-9910 ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> (E) M12X22 FLANGE 		0-28181-222-0 03 1 9911-0004 ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 9911-0004 ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 0005-0302 ●
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) (E) M12X22 FLANGE 		0-28181-222-0 03 1 0005-0302 ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (E) M12X22 FLANGE 		0-28181-222-0 03 1 0303-0405 ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (E) M12X22 FLANGE 		0-28181-222-0 03 1 0303-0405 ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 0406- ● ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (E) M12X22 FLANGE 		0-28181-222-0 03 1 0406- ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28781-025-0 02 1 9610-0405 ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28781-025-0 02 1 0406-0512 ● ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28751-025-0 02 1 0601- ● ●
108 GASKET; HANGER,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2 		1-09623-375-0 01 1 9510-0004 ● ●
108 GASKET; HANGER,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2 		1-09623-375-0 01 1 0005-0405 ● ● ●
108 GASKET; HANGER,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2 		1-09623-375-0 01 1 0406- ● ● ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 0406- ●
168 HANGER; ENG,FRT
(D) 		8-94392-799-0 01 1 0406- ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-0 01 1 9510-0004 ● ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-1 01 1 0005-0405 ● ● ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-1 01 1 0406- ● ● ● ●
168 HANGER; ENG,FRT
(B) 		8-94394-071-1 01 1 9610-9701 ●
168 HANGER; ENG,FRT
(B) 		8-94391-505-0 01 1 9702-9802 ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-0 01 1 9610-9802 ●
168 HANGER; ENG,FRT
(B) 		8-94391-505-0 01 1 9803- ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-1 01 1 9803- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
