9-01 — TOOLS (#64174) — 162 parça

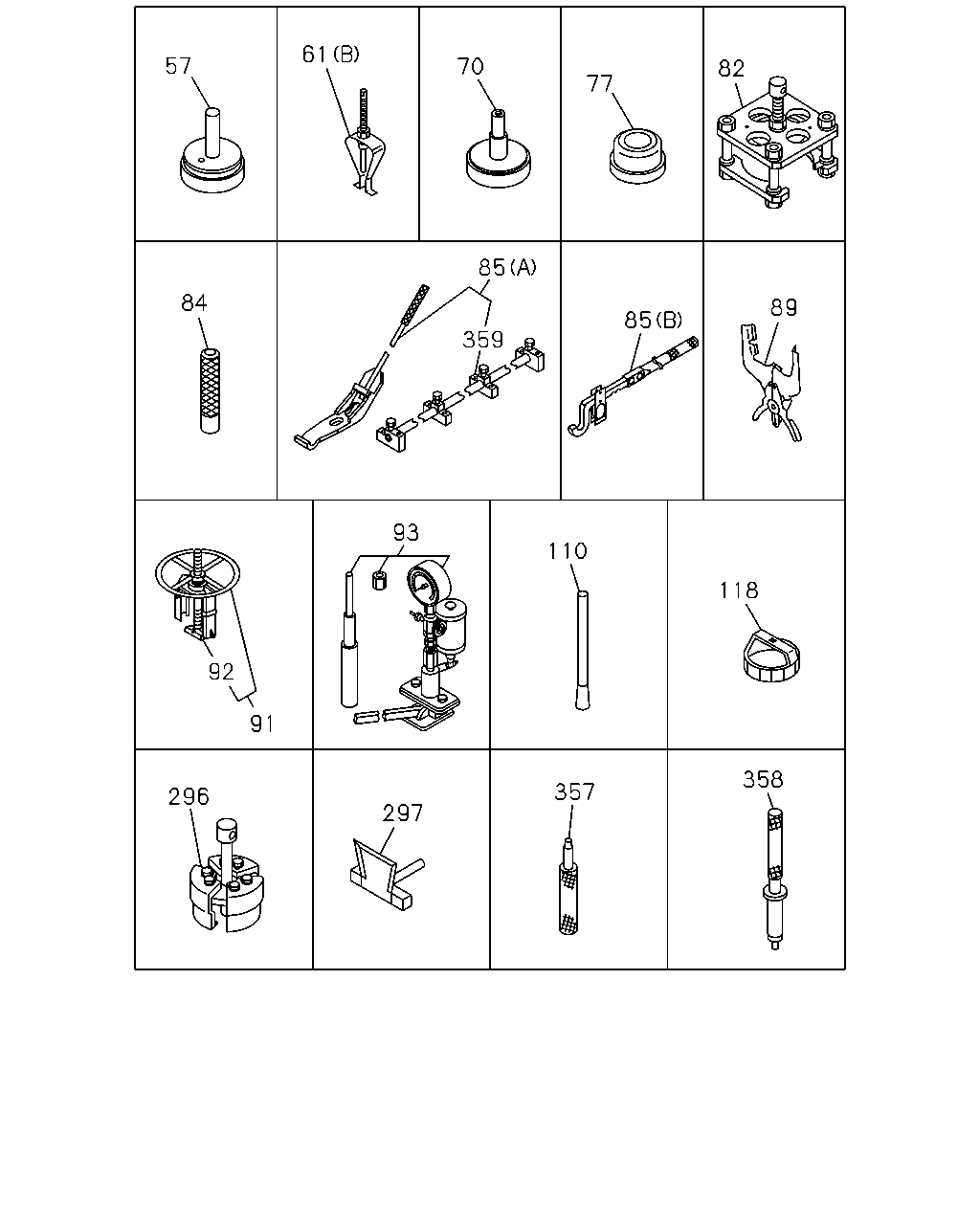

57 61 70 77 82 84 85 359 85 89 92 91 93 110 118 296 297 357 358

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	TOOL; SETTING CRANK GEAR ID=134.5	8-94396-819-0	01	1	9510-0004
61	PULLER ASM; PILOT BRG (B)	9-85210-157-0	01	1	9510-0004
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	9803-
70	TOOL; SETTING,OIL SEAL	8-94396-856-0	01	1	9510-0004
77	TOOL; SETTING,CYL LINER 6HE1 TCN ENG(58L)	8-94396-816-0	01	1	9510-9803
77	TOOL; SETTING,CYL LINER 6HE1 TC ENG(57L),6HE1 TCN ENG(58L)	8-94396-816-0	01	1	9804-0004
82	PULLER ASM; CR/SHF GEAR	8-94396-818-0	01	1	9510-0004
84	REPLACER; VALVE SEAL	8-94396-815-0	01	1	9510-0101
84	REPLACER; VALVE SEAL 6HH1 STD ENG(65L),6HH1 N ENG(66L)	8-94396-815-0	01	1	0102-
85	REPLACER ASM; VALVE SPR (A)	8-94396-861-0	01	1	9510-0004
85	REPLACER ASM; VALVE SPR 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94391-528-0	01	1	0005-0302
85	REPLACER ASM; VALVE SPR 6HH1 STD 4VALVE ENG(1A6) (B)	8-94391-528-0	01	1	0303-
89	TOOL; PISTON RING	1-85221-029-0	01	1	9510-0004
91	REPLACER ASM; CYL LINER	8-94396-849-0	01	1	9510-0101
91	REPLACER ASM; CYL LINER 6HH1 STD ENG(65L),6HH1 N ENG(66L)	8-94396-849-0	01	1	0102-
92	ANKLE; REPLACER,CYL LINER	8-94396-821-0	01	1	9510-0101
92	ANKLE; REPLACER,CYL LINER 6HH1 STD ENG(65L),6HH1 N ENG(66L)	8-94396-821-0	01	1	0102-
93	SETTING KIT; VALVE GUIDE	1-85220-001-0	01	1	9510-0101
93	SETTING KIT; VALVE GUIDE 6HH1 STD ENG(65L),6HH1 N ENG(66L)	1-85220-001-0	01	1	0102-
110	CAP; VALVE	9-85163-906-1	01	1	9510-9602
118	WRENCH; OIL FILTER	1-85221-097-0	01	1	9510-0004
296	REPLACER; SLINGER	8-94396-858-0	01	1	9510-0004
297	CUTTER; SEAL,OIL PAN	8-94393-112-0	01	1	9510-0004
357	REPLACER; NOZZLE SLEEVE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	8-94391-555-0	01	1	0303-
358	PLACER; NOZZLE SLEEVE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	8-94391-556-0	01	1	0303-
359	PIVOT 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	8-94396-862-0	01	1	0303-

177 172 174 182 180 179 178 186 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
172	PULLER ASM; BRG DIFF PILOT	9-85210-173-0	01	1	9510-0004
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	9510-
177	SETTING TOOL KIT	9-85220-040-0	01	1	9510-0004
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	9510-
179	PULLER; SPD METER GEAR	9-85210-181-0	01	1	9510-0004
180	PULLER; FRT & RR HUB M20	9-85210-187-0	01	1	9510-0004
182	REMOVER ASM	9-85210-095-0	01	1	9510-0004
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	9510-0208
186	ADJUSTER; BRAKE TOOL B KIT<SL1>	1-85269-008-0	01	1	0209-
321	SOCKET; PROP SHAFT P46 PROP SHAFT(C4Z) L=300	1-85115-024-0	01	1	9803-0004
321	SOCKET; PROP SHAFT 6HH1 STD ENG(65L),6HH1 N ENG(66L) L=250	1-85115-023-0	01	1	9803-0004
321	SOCKET; PROP SHAFT L=250	1-85115-023-0	01	1	0005-

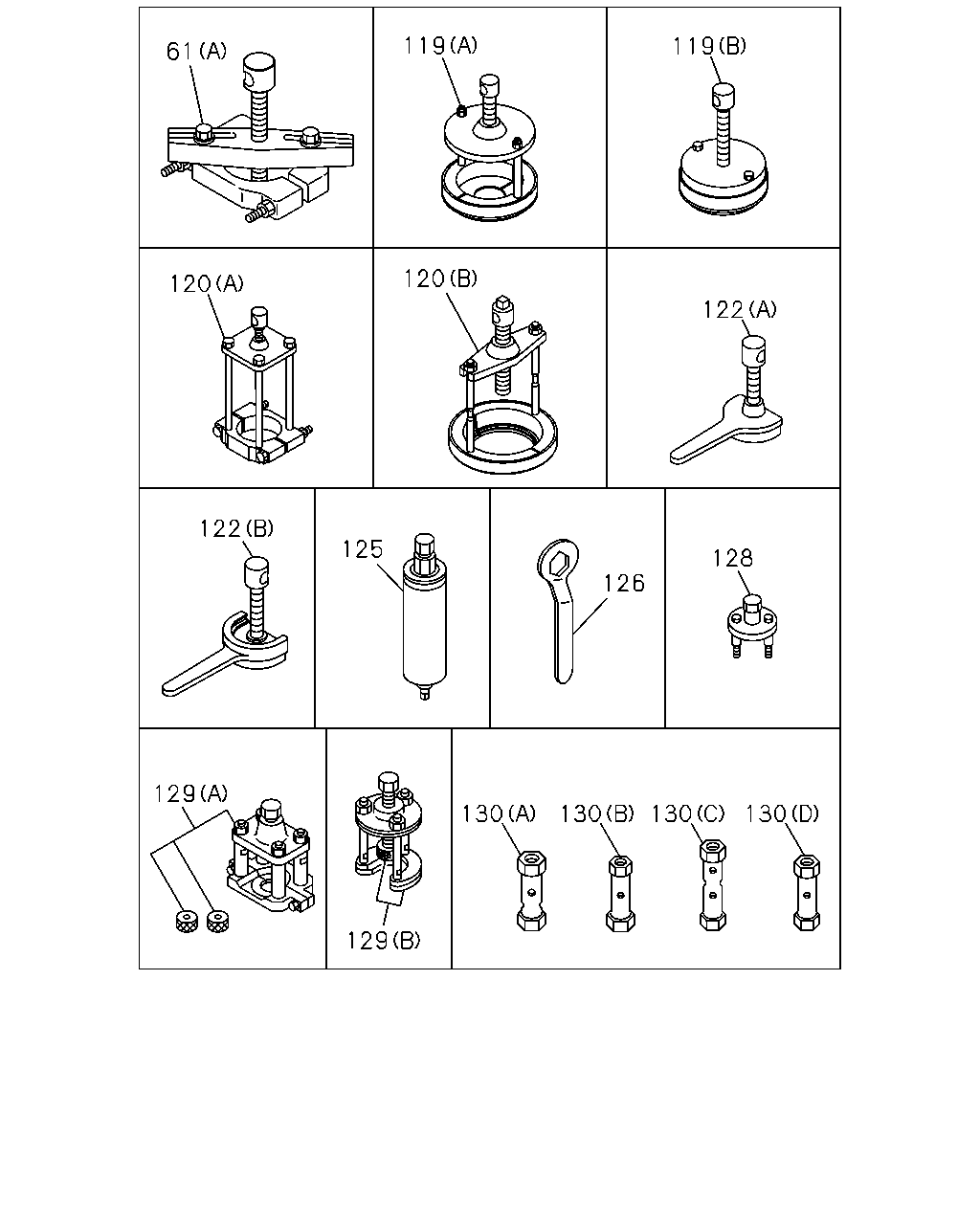

119 119 61 120 120 122 122 125 128 126 129 130 130 130 130 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	PULLER ASM; PILOT BRG (B)	9-85210-157-0	01	1	9510-0004
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	9803-
119	PULLER ASM; TOP GEAR BRG (B)	9-85210-186-0	01	1	9510-0004
119	PULLER ASM; TOP GEAR BRG MLD6 M/T<X9Y> (A)	9-85210-185-0	01	1	9510-0004
120	PULLER ASM; MAIN REAR BRG MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (A)	9-85210-169-0	01	1	9510-
120	PULLER ASM; MAIN REAR BRG MLD6 M/T<X9Y> (B)	9-85210-192-0	01	1	9510-0004
122	PULLER ASM; COUNTER FRT MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (A)	9-85210-168-0	01	1	9510-
122	PULLER ASM; COUNTER FRT MLD6 M/T<X9Y> (B)	9-85210-129-1	01	1	9510-0004
125	PULLER ASM; KING PIN L=360	9-85210-151-0	01	1	9510-0004
126	WRENCH; FRT HUB BRG NUT L=257 B=54	1-85111-011-0	01	1	9510-0004
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	9510-
129	PULLER ASM; PITMAN ARM (A)	9-85210-147-0	01	1	9510-0004
129	PULLER ASM; PITMAN ARM (B)	9-85210-170-0	01	1	9510-
130	WRENCH; BOX (A) B=46 & 54 L=165	9-85112-320-0	01	1	9510-0004
130	WRENCH; BOX (B) B=32 & 41 L=150	9-85112-322-0	01	1	9510-0004
130	WRENCH; BOX (C) B=36 & 41 L=200	9-85112-330-0	01	1	9510-0004
130	WRENCH; BOX (D) B=41 & 46 L=165	9-85113-401-0	01	1	9510-0004

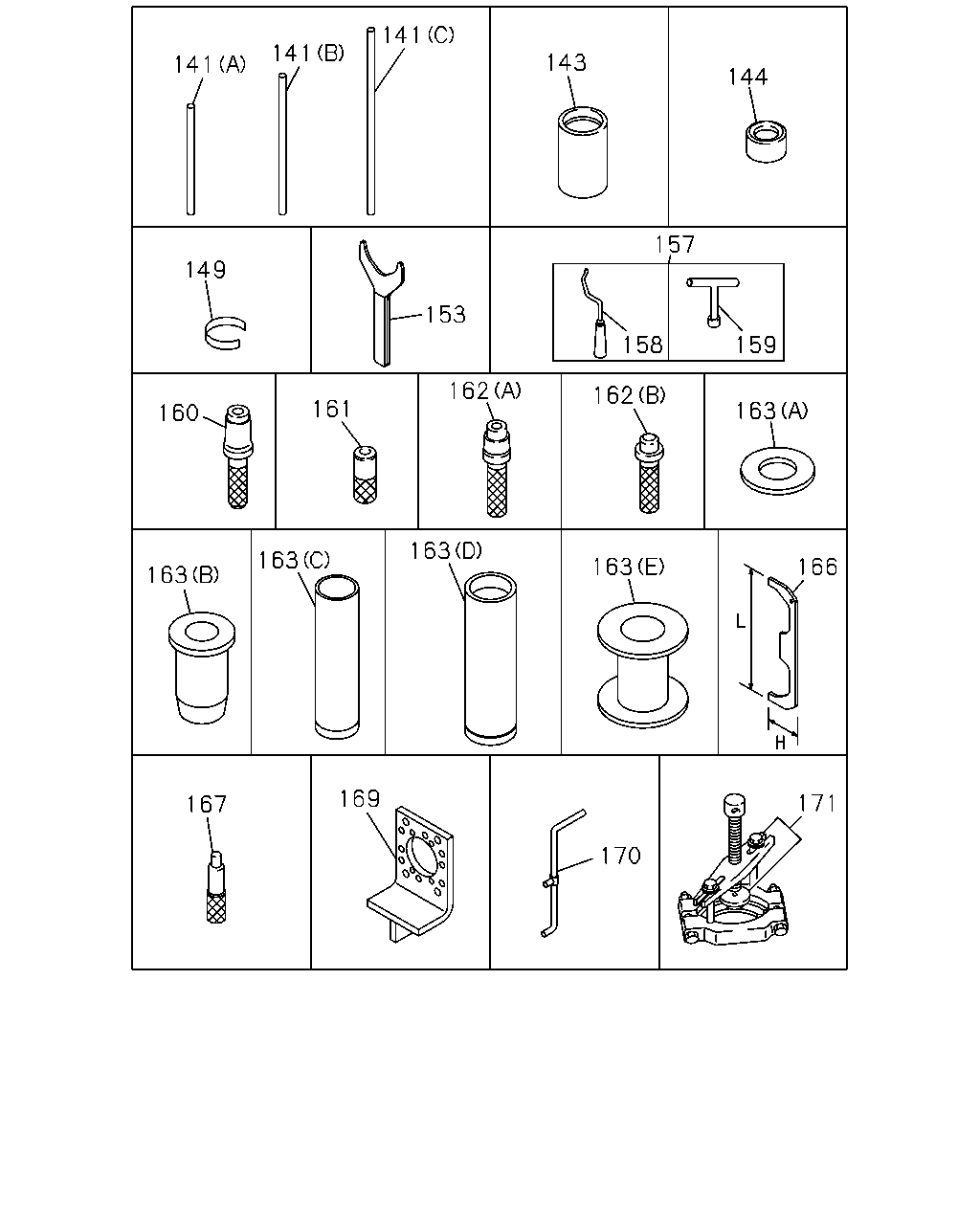

141 141 141 143 144 149 153 158 159 160 161 162 162 163 163 163 163 163 166 167 169 170 171 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
141	HANDLE; WRENCH (C) OD=25 L=480	1-85116-011-0	01	1	9510-1501
141	HANDLE; WRENCH (C) OD=25 L=480	8-98257-407-0	01	1	1502-
141	HANDLE; WRENCH (B) OD=19 L=400	9-85114-306-0	01	1	9510-0004
141	HANDLE; WRENCH (A) OD=16 L=300	9-85114-307-0	01	1	9510-0004
143	GUIDE; BOOT,TIE ROD END	1-85229-011-0	01	1	9510-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-012-0	01	1	9510-
149	PLATE; PILOT BRG PULLER	1-85219-009-0	01	1	9510-0004
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0005-
157	REPLACER KIT; RETURN SPR	9-85231-554-0	01	1	9510-0004
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9510-0004
159	REMOVER; RETURN SPR ID=12.5	9-85231-555-0	01	1	9510-0004
160	REMOVER; NEEDLE BRG L=215	1-85238-007-0	01	1	9510-0004
161	REMOVER; TIE ROD ARM	1-85176-001-0	01	1	9510-
162	SETTING TOOL; NEEDLE BRG (A) L=200	1-85238-005-0	01	1	9510-0004
162	SETTING TOOL; NEEDLE BRG (B) L=175	1-85238-006-0	01	1	9510-0004
163	TOOL; SETTING (A) OD=120	1-85221-164-0	01	1	9510-0004
163	TOOL; SETTING (B) L=150	9-85221-248-0	01	1	9510-0004
163	TOOL; SETTING (C) L=350	9-85221-310-0	01	1	9510-0004
163	TOOL; SETTING MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> (D) L=220	9-85221-323-0	01	1	9510-0004
163	TOOL; SETTING MLD6 M/T<X9Y> (B) L=195	1-85221-162-1	01	1	9510-0004
163	TOOL; SETTING MLD6 M/T<X9Y> (E) L=150	1-85221-163-0	01	1	9510-0004
166	ALIGNER; CLU RELEASE LEVER 13" CLUTCH(WD4) L=460	9-85241-420-0	01	1	9510-0004
166	ALIGNER; CLU RELEASE LEVER 13" CLUTCH(WD4) ISUZU M/T<X9A> L=460	9-85241-420-0	01	1	0005-
166	ALIGNER; CLU RELEASE LEVER 14" CLUTCH(WF6) L=480	1-85253-011-0	01	1	9510-9609
166	ALIGNER; CLU RELEASE LEVER MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) 14" CLUTCH(WF6) L=480	1-85253-011-0	01	1	9610-0004
166	ALIGNER; CLU RELEASE LEVER 14" CLUTCH(WF6) MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B> L=480	1-85253-023-0	01	1	9610-0004
167	ALIGNER; CLU PILOT L=185	1-85253-012-0	01	1	9510-9609
167	ALIGNER; CLU PILOT 13" CLUTCH(WD4) L=185	1-85253-012-0	01	1	9610-0004
167	ALIGNER; CLU PILOT 13" CLUTCH(WD4) ISUZU M/T<X9A> L=185	1-85253-012-0	01	1	0005-
167	ALIGNER; CLU PILOT 14" CLUTCH(WF6) L=185	1-85253-008-0	01	1	9610-0004
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9510-0004
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9510-0004
171	PULLER ASM; PINION BRG	9-85210-172-0	01	1	9510-0004

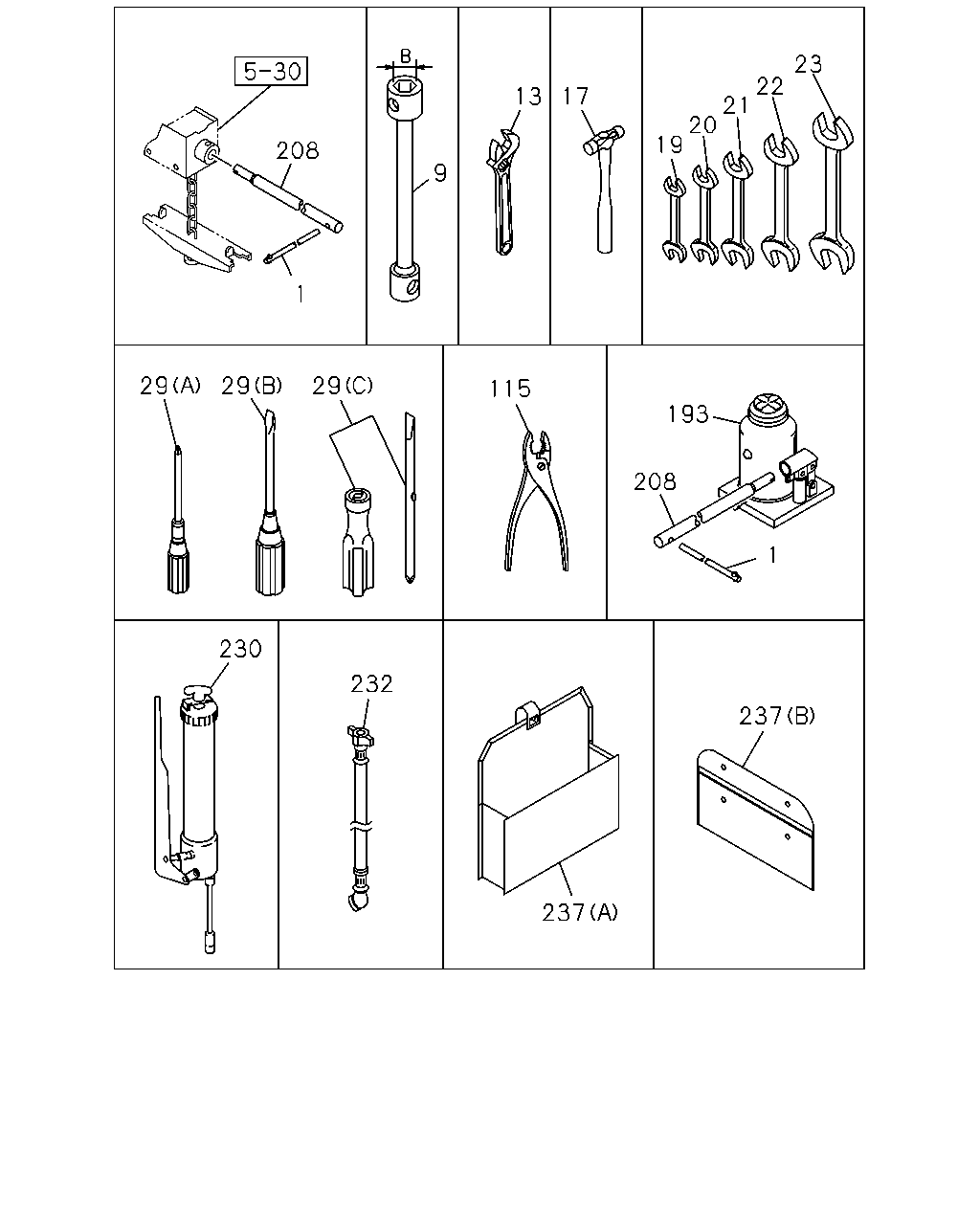

23 22 21 20 19 13 17 208 9 1 29 29 29 115 193 208 1 230 232 237 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> L=280	1-85515-007-0	01	1	9510-0208
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> TOOL A KIT<SK9>,TOOL B KIT<SL1> L=280	1-85515-007-0	01	1	0209-1107
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> TOOL A KIT<SK9>,TOOL B KIT<SL1> L=280	8-98181-251-0	01	1	1108-
9	WRENCH; WHEEL PIN SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> TOOL A KIT<SK9> 41X21 L=330	8-94340-033-2	01	1	0209-
9	WRENCH; WHEEL PIN B=41X21 L=440	1-85113-015-1	01	1	9510-0208
9	WRENCH; WHEEL PIN TOOL A KIT<SK9> EXC. SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRECARRIER LIFTING TYPE VAR1<SY8> B=41X21 L=440	1-85113-015-1	01	1	0209-
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=41X21 L=440	1-85113-015-1	01	1	0209-
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9510-0208
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0209-0211
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	0212-1407
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-
17	HAMMER	9-85121-406-0	01	1	9510-0208
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0209-
19	WRENCH; 7X8 8X10	9-99592-108-0	01	1	9510-9602
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9510-0208
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0209-0607
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	0608-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9510-0208
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0209-0607
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	0608-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9510-0208
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0209-0607
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	0608-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9510-0208
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0209-0607
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	0608-
29	DRIVER; SCREW (B) <-> L=285	1-85151-004-0	01	1	9510-0208
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=285	1-85151-004-0	01	1	0209-0611
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=275	8-98061-105-0	01	1	0612-
29	DRIVER; SCREW (A) <+> L=190	9-09595-522-0	01	1	9510-0208
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <+> L=190	9-09595-522-0	01	1	0209-
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	9603-0208
29	DRIVER; SCREW TOOL A KIT<SK9>,TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	0209-
115	PLIER	5-85171-001-0	01	1	9510-9602
115	PLIER	5-85171-002-0	01	1	9603-0208
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0209-1410
115	PLIER TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-
193	JACK ASM SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> TOOL A KIT<SK9> 7TON	1-85510-017-0	01	1	0209-
193	JACK ASM 7TON	1-85510-005-2	01	1	9510-0208
193	JACK ASM TOOL A KIT<SK9> EXC. SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRECARRIER LIFTING TYPE VAR1<SY8> 7TON	1-85510-005-2	01	1	0209-
193	JACK ASM TOOL B KIT<SL1> 7TON	1-85510-005-2	01	1	0209-
208	HANDLE; JACK L=580	1-85515-005-1	01	1	9510-0208
208	HANDLE; JACK SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> TOOL A KIT<SK9> L=580	1-85515-005-1	01	1	0209-1107
208	HANDLE; JACK L=580	1-85515-005-1	01	1	0209-1107
208	HANDLE; JACK SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> TOOL A KIT<SK9> L=580	8-98181-249-0	01	1	1108-
208	HANDLE; JACK L=580	8-98181-249-0	01	1	1108-
230	PUMP; GREASE	1-85556-007-2	01	1	9510-0208
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	0209-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<SG4>	1-09360-245-1	01	1	9510-
237	BAG; TOOL SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> TOOL A KIT<SK9> (B)	8-97312-893-0	01	1	0209-
237	BAG; TOOL (A)	8-97130-902-0	01	1	9510-0208
237	BAG; TOOL TOOL A KIT<SK9> EXC. SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRECARRIER LIFTING TYPE VAR1<SY8> (A)	8-97130-902-1	01	1	0209-
237	BAG; TOOL TOOL B KIT<SL1> (A)	8-97130-902-1	01	1	0209-

274 271 268 209 285 281 283 280 282 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
209	CLIP; JACK HANDLE	1-73638-011-1	02	1	9510-0708
209	CLIP; JACK HANDLE	8-98053-799-0	02	1	0709-
268	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9510-0604
268	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-
271	CLIP; TIRE HANGER	1-73638-012-1	02	1	9510-0708
271	CLIP; TIRE HANGER	8-98053-800-0	02	1	0709-
274	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9510-0604
274	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-
280	BOX; TOOL KEY LOCK TOOL BOX<RC5>	1-85561-006-3	01	1	9510-
281	BRACKET; TOOL BOX KEY LOCK TOOL BOX<RC5>	1-53459-665-2	02	1	9510-
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10	9-09110-510-0	04	1	9510-9606
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	9607-0602
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91180-210-0	04	1	0603-
283	WASHER; LK,BRKT KEY LOCK TOOL BOX<RC5> ID=10.2	9-09150-510-0	04	1	9510-0603
283	WASHER; LK,BRKT KEY LOCK TOOL BOX<RC5> ID=10.2	0-91510-510-0	04	1	0604-
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 W/LK WASHER	0-50041-020-0	04	1	9510-9606
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 FLANGE	0-28681-020-0	04	1	9607-0512
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 FLANGE	0-28651-020-0	04	1	0601-
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10	9-09110-510-0	04	1	9510-9606
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	9607-0602
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91180-210-0	04	1	0603-
