8-74 — EVAPORATOR (#64170) — 16 parça

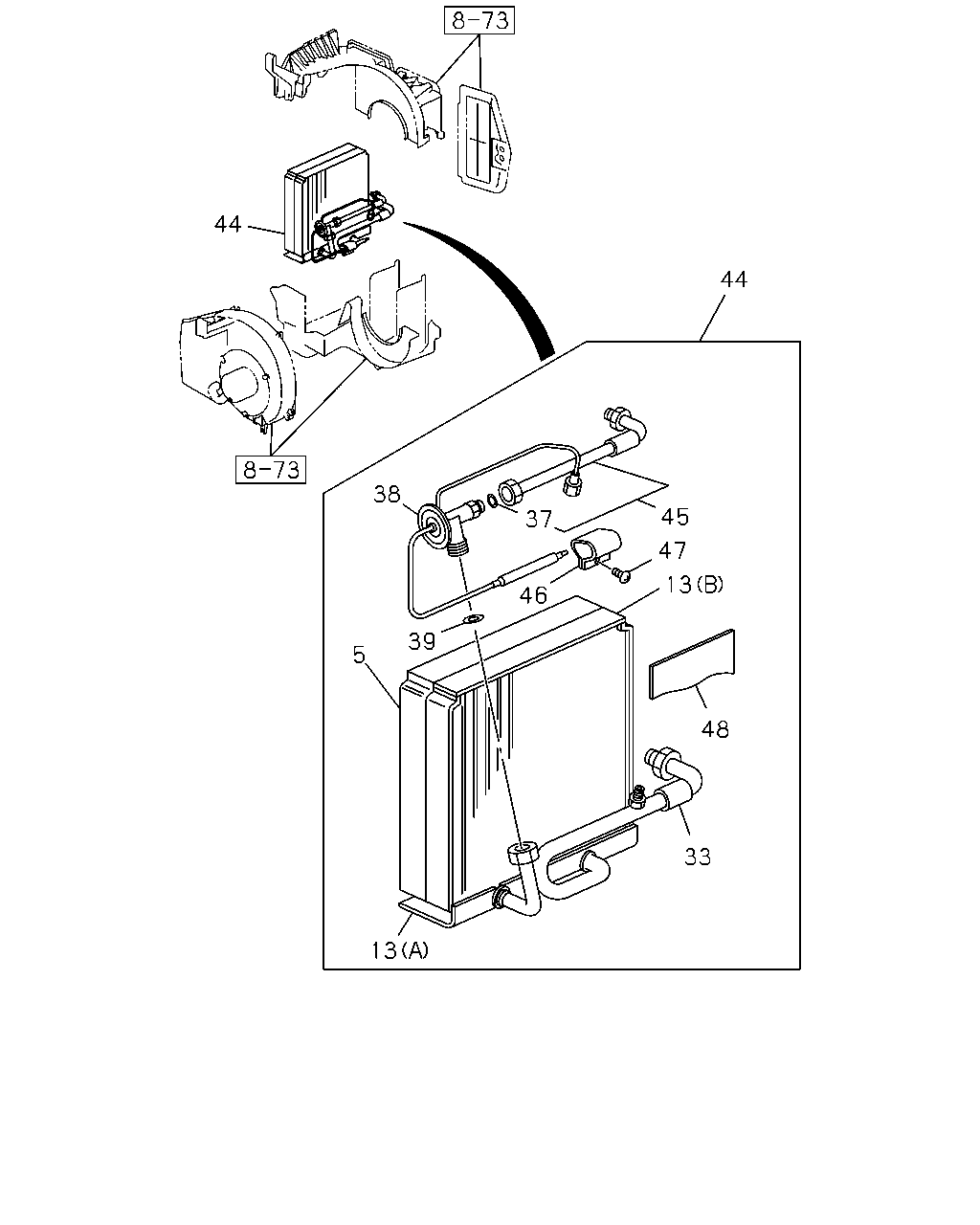

çizim 158208
44 44 38 45 37 47 13 46 39 5 48 33 13
BalonParca AdiParca NoAdetTipApplied Date
5 EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-087-0 01 1 9510-0004
5 EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-098-0 01 1 0005-
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-669-1 01 1 9510-
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-816-0 01 1 9510-
33 LINING; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-817-0 01 1 9510-
37 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 		8-94481-700-0 01 1 9510-9702
37 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07 		8-94461-902-0 01 1 9703-
38 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83569-158-0 01 1 9510-
39 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94481-717-0 01 1 9510-
44 EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-086-1 01 1 9510-0004
44 EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83541-142-0 01 1 0005-
45 PIPE; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-582-0 01 1 9510-0004
45 PIPE; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-689-0 01 1 0005-
46 CLIP; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) ID=8X2 		8-94344-881-1 01 1 9510-
47 SCREW; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 9510-
48 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-784-0 01 1 9510-
