1 |

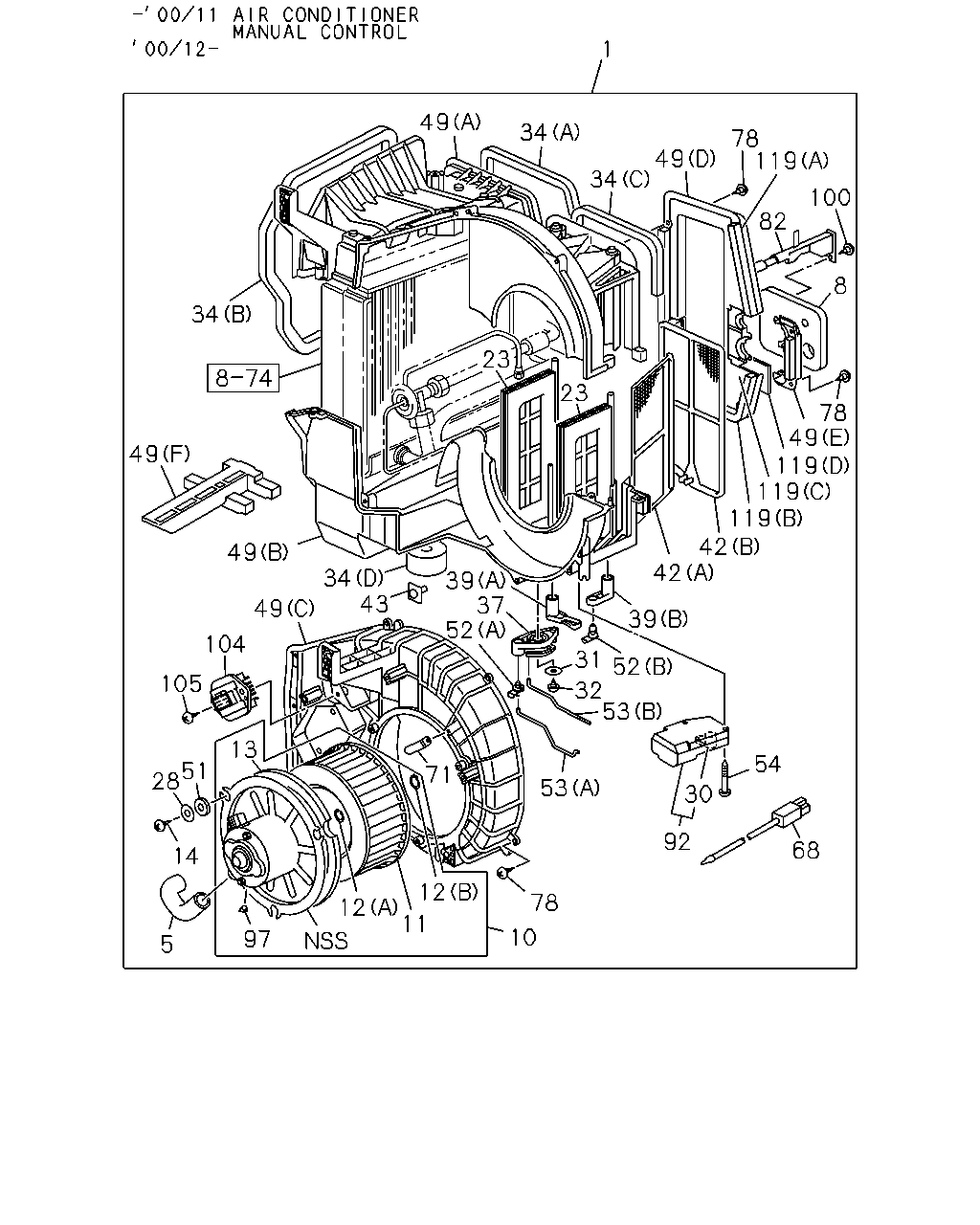

BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83561-103-3 |
01 |
1 |
9510-0004 |
| |
1 |
BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83561-155-4 |
01 |
1 |
0005- |
| |
1 |

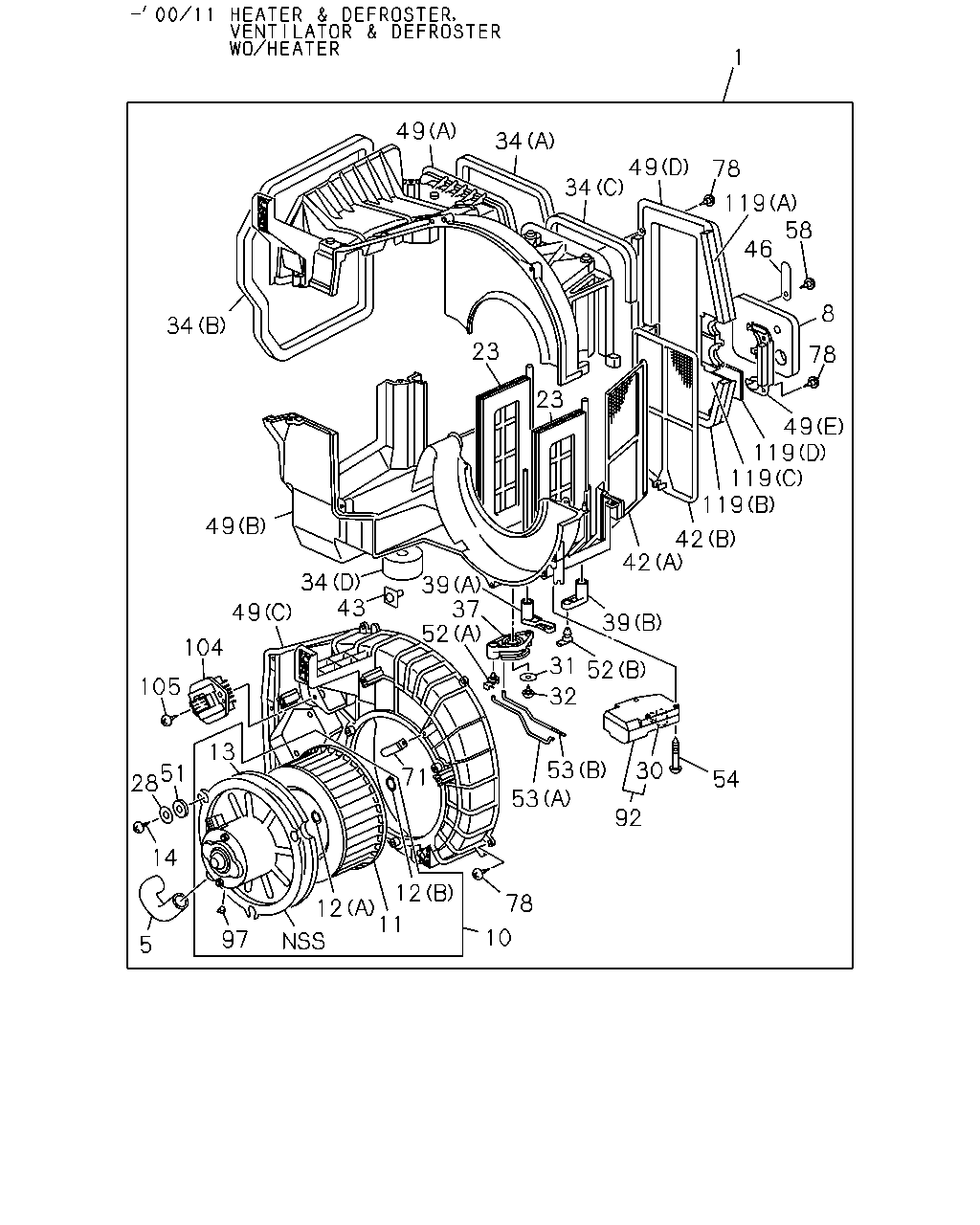

BLOWER ASM
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
|
1-83561-110-6 |
01 |
1 |
9510- |
| |
5 |
HOSE; AIR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83563-147-0 |
01 |
1 |
9510- |
| |
8 |
SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-245-1 |
01 |
1 |
9510-9702 |
| |
8 |
SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-261-1 |
01 |
1 |
9703- |
| |
8 |
SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
|
1-83579-632-1 |
01 |
1 |
9510-9702 |
| |
8 |
SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
|
1-83579-801-1 |
01 |
1 |
9703- |
| |
10 |
MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83561-164-0 |
01 |
1 |
0008-0011 |
| |
10 |
MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83561-164-0 |
01 |
1 |
0012- |
| |
10 |
MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83561-121-0 |
01 |
1 |
9510-0007 |
| |
10 |
MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
|
1-83561-121-0 |
01 |
1 |
0008-0011 |
| |
11 |
IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-796-0 |
01 |
1 |
9510- |
| |
12 |
RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(A)
|
5-83569-088-0 |
01 |
1 |
9510- |
| |
12 |
RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(B)
|
8-94243-962-0 |
01 |
1 |
9510- |
| |
13 |
LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-636-0 |
01 |
1 |
9510- |
| |
14 |
SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60)
M5X20
|
9-09829-324-1 |
03 |
1 |
0005-0011 |
| |
14 |
SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
M5X20
|
9-09829-324-1 |
03 |
1 |
0012- |
| |
14 |
SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
8-97130-601-0 |
03 |
1 |
9510-0004 |
| |
14 |
SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
|
8-97130-601-0 |
03 |
1 |
0005-0011 |
| |
23 |
SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-797-0 |
02 |
1 |
9510- |
| |
28 |
WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-170-0 |
03 |
1 |
9510- |
| |
30 |
LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83564-345-1 |
01 |
1 |
9510- |
| |
31 |
WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-095-0 |
01 |
1 |
9510- |
| |
32 |
SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60)
M5X20
|
9-09829-324-1 |
01 |
1 |
0005-0011 |
| |
32 |
SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
M5X20
|
9-09829-324-1 |
01 |
1 |
0012- |
| |
32 |
SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
8-97130-601-0 |
01 |
1 |
9510-0004 |
| |
32 |
SCREW; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
|
8-97130-601-0 |
01 |
1 |
0005-0011 |
| |
34 |
LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(A)
|
1-83579-633-2 |
01 |
1 |
9510- |
| |
34 |
LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(C)
|
1-83579-634-2 |
01 |
1 |
9510- |
| |
34 |
LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(B)
|
1-83579-644-0 |
01 |
1 |
9510- |
| |
34 |
LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(D)
|
1-83579-687-0 |
01 |
1 |
9510-9702 |
| |
37 |
LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83564-375-0 |
01 |
1 |
9510- |
| |
39 |
LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(A)
|
1-83564-373-0 |
01 |
1 |
9510- |
| |
39 |
LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(B)
|
1-83564-374-0 |
01 |
1 |
9510- |
| |
42 |
FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
|
1-83579-642-3 |
02 |
1 |
9706-0004 |
| |
42 |
FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
|
1-83579-993-0 |
02 |
1 |
0005-0011 |
| |
42 |
FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(A)
|
1-83579-993-0 |
02 |
1 |
0012- |
| |
42 |
FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(A)
|
1-83579-642-3 |
02 |
1 |
9510-9705 |
| |
42 |
FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
(A)
|
1-83579-933-0 |
02 |
1 |
9706-0011 |
| |
42 |
FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(B)
|
1-83579-800-1 |
01 |
1 |
9510- |
| |
43 |
BOLT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-657-2 |
04 |
1 |
9510- |
| |
49 |
CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
|
1-83564-378-0 |
01 |
1 |
9510- |
| |
49 |
CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
(F)
|
1-83564-379-0 |
01 |
1 |
9510-9702 |
| |
49 |
CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
(F)
|
8-97500-034-0 |
01 |
1 |
9703- |
| |
49 |
CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(A)
|
1-83564-368-0 |
01 |
1 |
9510- |
| |
49 |
CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(C)
|
1-83564-370-0 |
01 |
1 |
9510- |
| |
49 |
CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(D)
|
1-83564-371-0 |
01 |
1 |
9510- |
| |
49 |
CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(E)
|
1-83564-372-0 |
01 |
1 |
9510- |
| |
49 |
CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
(B)
|
1-83564-369-0 |
01 |
1 |
9510- |
| |
51 |
ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-496-0 |
03 |
1 |
9510- |
| |
52 |
CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(A)
|
1-83574-136-0 |
01 |
1 |
9510- |
| |
52 |
CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(B)
|
1-83579-488-0 |
01 |
1 |
9510-9702 |
| |
52 |
CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(B)
|
8-94248-794-0 |
01 |
1 |
9703- |
| |
53 |
ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(B)
|
1-83579-639-0 |
01 |
1 |
9510- |
| |
53 |
ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(A)
|
1-83579-799-0 |
01 |
1 |
9510- |
| |
54 |
SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
8-94348-809-0 |
02 |
1 |
9510- |
| |
68 |
THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97085-283-0 |
01 |
1 |
9510-9702 |
| |
68 |
THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83544-026-1 |
01 |
1 |
9703- |
| |
71 |
CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
8-97096-145-0 |
01 |
1 |
9510- |
| |
78 |
SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
M4X16
|
8-94324-850-0 |
18 |
1 |
9510- |
| |
82 |
BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83571-932-0 |
01 |
1 |
9510- |
| |
92 |
ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-798-1 |
01 |
1 |
9510- |
| |
97 |
PLUG; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-248-0 |
02 |
1 |
9510-9702 |
| |
100 |
SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60)
M4X16
|
8-94324-850-0 |
01 |
1 |
9510- |
| |
104 |
RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83519-092-0 |
01 |
1 |
0012- |
| |
104 |
RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83579-933-0 |
01 |
1 |
9706-0004 |
| |
104 |
RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83519-072-0 |
01 |
1 |
9510-9702 |
| |
104 |
RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83519-073-1 |
01 |
1 |
9703-9705 |
| |
104 |
RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
|
1-83519-073-1 |
01 |
1 |
9706-0004 |
| |
104 |
RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83519-073-1 |
01 |
1 |
0005-0011 |
| |
104 |
RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
|
1-83519-073-1 |
01 |
1 |
0012- |
| |
105 |
SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
M4X16
|
8-94324-850-0 |
02 |
1 |
9510- |
| |
119 |
LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(A)
|
1-83579-670-1 |
01 |
1 |
9510- |
| |
119 |
LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(B)
|
1-83579-671-1 |
01 |
1 |
9510- |
| |
119 |
LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(D)
|
1-83579-672-0 |
01 |
1 |
9510-9705 |
| |
119 |
LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60)
(D)
|
1-83579-672-0 |
01 |
1 |
9706- |
| |
119 |
LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(C)
|
1-83579-795-0 |
01 |
1 |
9510-9705 |
| |
119 |
LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60)
(C)
|
1-83579-795-0 |
01 |
1 |
9706- |
