8-28 — CHASSIS ELECTRICAL (#64162) — 98 parça

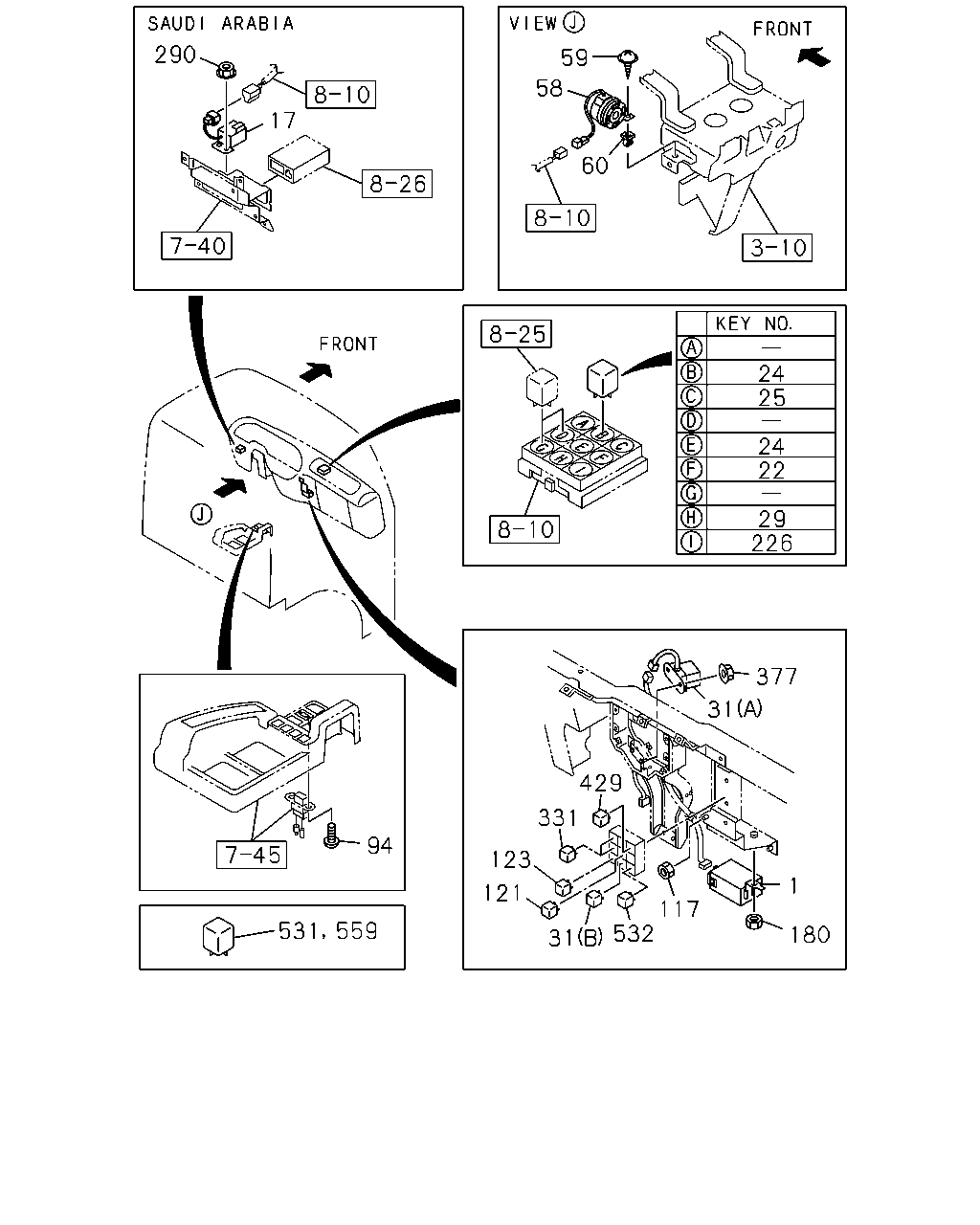

çizim 143846
290 59 58 17 60 24 25 24 22 29 226 377 31 429 331 94 123 1 121 117 532 531 559 180 31
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 1-83470-060-1 01 1 9510-
17 TIMER; SEAT BELT
SAUDI ARABIA EQUIPMENT(WH1) 		1-82550-183-1 01 1 0411-
17 TIMER; SEAT BELT
SAUDI ARABIA EQUIPMENT(WH1) 		1-82550-183-1 01 1 9510-0210
22 RELAY; STOP LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0111
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
24 RELAY; LIGHTING
24V 12.5A MITUBA 		8-97062-815-1 02 1 9510-0111
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0112-
25 RELAY; TAIL LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0111
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
29 RELAY; HORN
24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0111
29 RELAY; HORN
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
31 RELAY; PTO CONT
PTO CONTROL<SV6> (A) 24V 		1-82550-187-1 01 1 9510-
31 RELAY; PTO CONT
PTO CONTROL<SV6> (B) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0111
31 RELAY; PTO CONT
PTO CONTROL<SV6> (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
58 BUZZER; AIR PRESSURE WARNING
NIKKO 		1-83460-056-0 01 1 9510-0004
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-074-1 01 1 0005-0612
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		8-98069-865-0 01 1 0701-
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-074-0 01 1 9904-9907
58 BUZZER; AIR PRESSURE WARNING
EXC. NIKKO<Y70> METRO DENSO 		1-83460-074-1 01 1 9908-0004
59 SCREW; BUZZER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9510-0604
59 SCREW; BUZZER
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605-
60 GROMMET; SCREW,BUZZER
D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 9510-
94 SCREW; CONSENT TO BLIND PNL
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 9510-9810
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74110-510-0 02 1 9811-0604
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0605-
117 NUT; RELAY FIX
M6 FLANGE 		0-91150-106-0 01 1 9510-9510
121 RELAY; PARKING BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0111
121 RELAY; PARKING BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
123 RELAY; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0111
123 RELAY; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 9510-0602
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0603-
226 RELAY; EXH BRK
24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0004
226 RELAY; EXH BRK
EXHAUST BRAKE<NF8> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0005-0111
226 RELAY; EXH BRK
EXHAUST BRAKE<NF8> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
290 NUT
SAUDI ARABIA EQUIPMENT(WH1) M6 FLANGE 		0-91150-106-0 02 1 0411-0602
290 NUT
SAUDI ARABIA EQUIPMENT(WH1) M6 FLANGE 		0-91180-106-0 02 1 0603-
290 NUT
SAUDI ARABIA EQUIPMENT(WH1) M6 FLANGE 		0-91150-106-0 02 1 9510-0210
331 RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA 		8-97062-815-1 02 1 9510-0111
331 RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0112-
377 NUT; RELAY
PTO CONTROL<SV6> M6 FLANGE 		0-91150-106-0 02 1 9510-0602
377 NUT; RELAY
PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 02 1 0603-
429 RELAY; POWER CUT
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0011-0111
429 RELAY; POWER CUT
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-0302
429 RELAY; POWER CUT
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0303-
429 RELAY; POWER CUT
EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0303-
531 RELAY; MAIN
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0011-0111
531 RELAY; MAIN
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-0302
531 RELAY; MAIN
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0303-
532 RELAY; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0411-
532 RELAY; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0111
532 RELAY; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-0210
559 RELAY; MAG VLV
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0011-0111
559 RELAY; MAG VLV
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-0302
559 RELAY; MAG VLV
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0303-

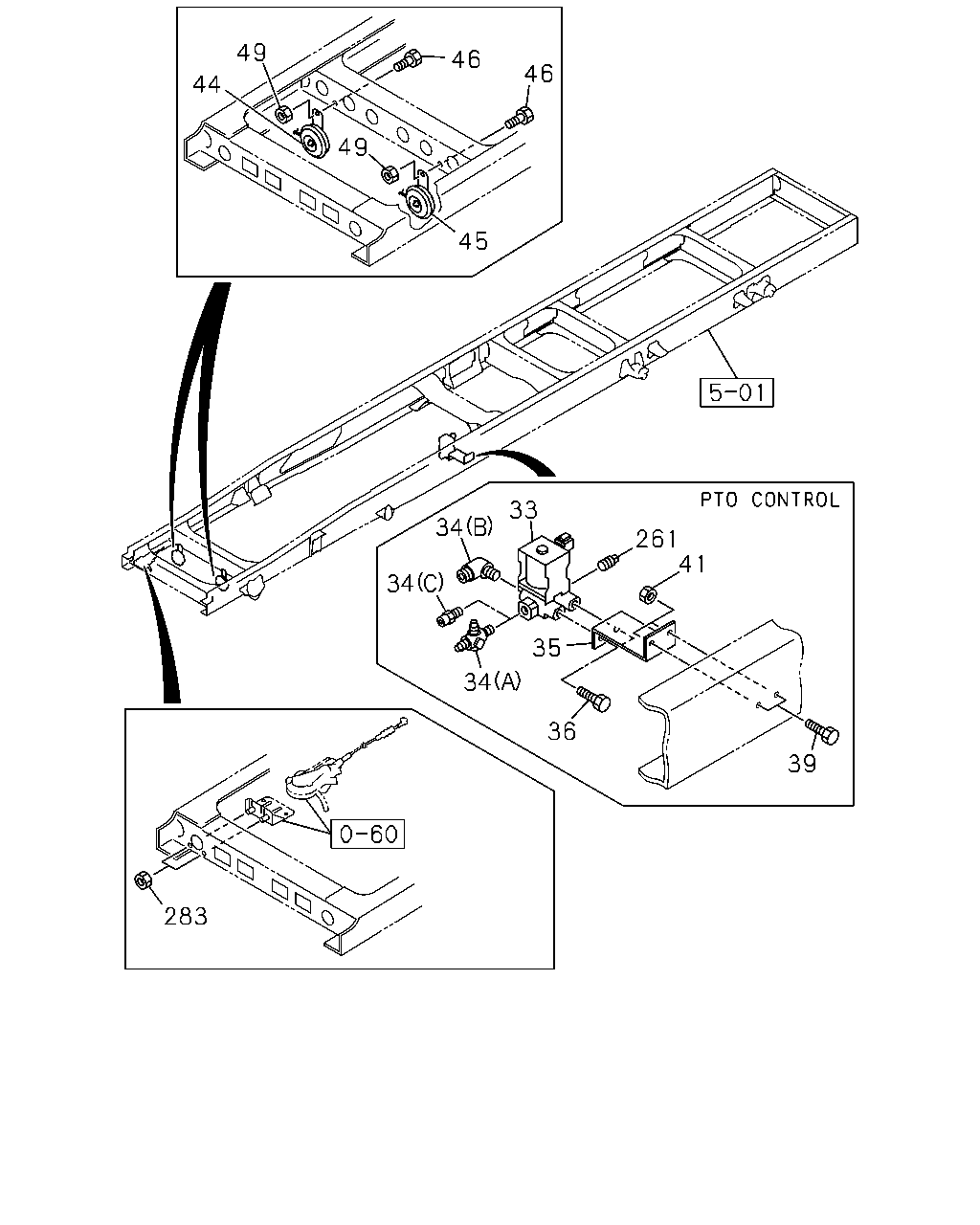

çizim 144126
49 46 46 44 49 45 33 34 261 41 34 35 34 36 39 283
BalonParca AdiParca NoAdetTipApplied Date
33 VALVE; MAG,PTO CONT
PTO CONTROL<SV6> 		1-82563-600-5 01 1 9510-
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 9510-9802
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 9803-9804
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 9805-
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9510-9802
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-
35 BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6> 		1-47477-462-0 01 1 9510-9704
35 BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6> 		1-47477-953-1 01 1 9705-
36 BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE 		0-28080-820-0 02 1 9510-9810
36 BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE 		0-28680-820-0 02 1 9811-0512
36 BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 0601-
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X30 FLANGE 		0-28680-830-0 02 1 9607-0512
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X30 FLANGE 		0-28650-830-0 02 1 0601-
41 NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 		9-09110-408-0 02 1 9510-9606
41 NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE 		0-91150-108-0 02 1 9607-0602
41 NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 0603-
44 HORN; HIGH NOTE
SAUDI ARABIA EQUIPMENT(WH1) 		1-83410-061-1 01 1 9510-9710
44 HORN; HIGH NOTE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-83410-061-1 01 1 9711-0210
44 HORN; HIGH NOTE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-83410-061-1 01 1 0211-0410
44 HORN; HIGH NOTE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-83410-061-1 01 1 0411-
44 HORN; HIGH NOTE
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83410-057-1 01 1 9510-9710
44 HORN; HIGH NOTE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-83410-057-1 01 1 9711-0210
44 HORN; HIGH NOTE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-83410-065-1 01 1 0211-0410
44 HORN; HIGH NOTE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-83410-065-1 01 1 0411-
45 HORN; LOW NOTE
SAUDI ARABIA EQUIPMENT(WH1) 		1-83410-062-1 01 1 9510-9710
45 HORN; LOW NOTE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-83410-062-1 01 1 9711-0210
45 HORN; LOW NOTE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-83410-062-1 01 1 0211-0410
45 HORN; LOW NOTE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-83410-062-1 01 1 0411-
45 HORN; LOW NOTE
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83410-058-1 01 1 9510-9710
45 HORN; LOW NOTE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-83410-058-1 01 1 9711-0210
45 HORN; LOW NOTE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-83410-064-1 01 1 0211-0410
45 HORN; LOW NOTE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-83410-064-1 01 1 0411-
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0512
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
49 NUT; HORN TO BODY
M8 FLANGE 		5-09440-005-0 02 1 9510-9606
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 9607-0602
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 0603-
261 PLUG; MAG VLV
PTO CONTROL<SV6> PT1/4 		9-99204-513-0 01 1 9510-
283 NUT; BRKT
M8 FLANGE 		5-09440-005-0 02 1 9510-9606
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0602
283 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
