8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#64161) — 22 parça

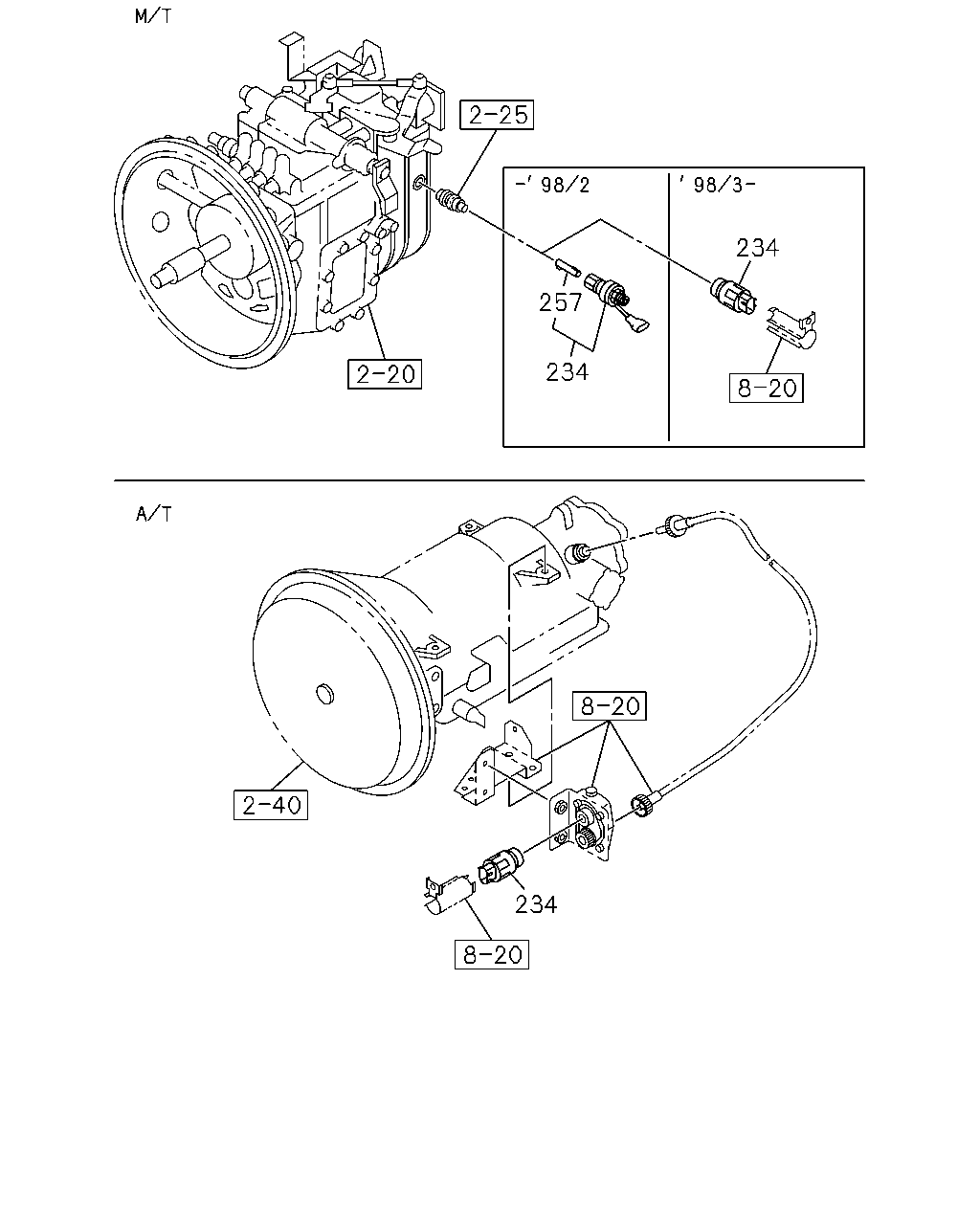

234 257 234 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
234	SENSOR; VEHICLE SPD	1-83127-241-1	01	1	9510-9802
234	SENSOR; VEHICLE SPD	1-80240-001-1	01	1	9803-0202
234	SENSOR; VEHICLE SPD 25 PULSE ALUMINUM	8-97328-058-1	01	1	0203-
257	KEY; SPEED SENSOR	1-83129-126-0	01	1	9510-9802

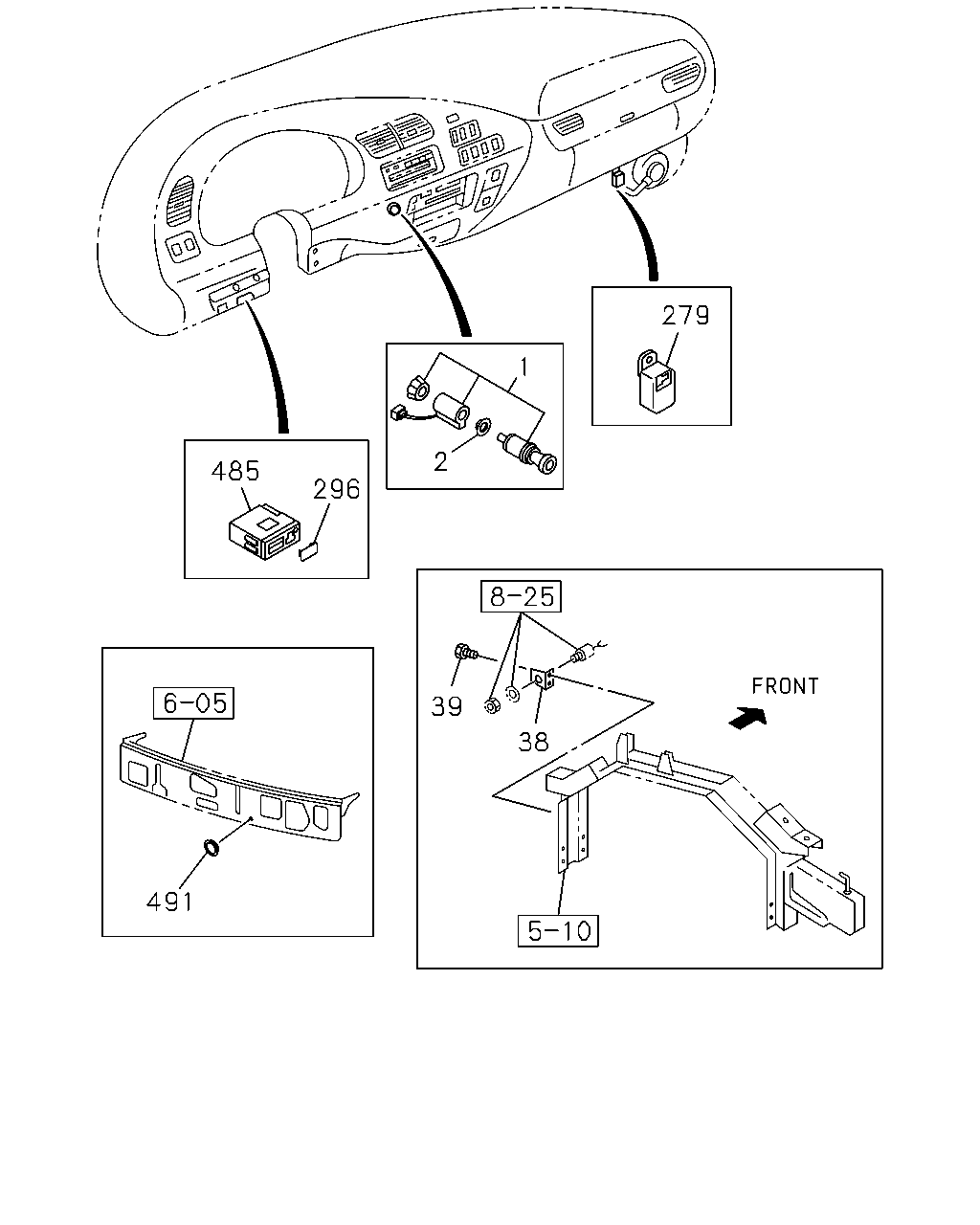

279 1 2 485 296 39 38 491

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LIGHTER; CIGAR	8-97064-970-1	01	1	9510-0108
1	LIGHTER; CIGAR	8-97320-325-0	01	1	0109-
2	BEZEL; CIGAR LIGHTER	1-73998-883-2	01	1	9510-
38	BRACKET; SW,STARTER SUB	1-82699-351-0	01	1	9510-0211
38	BRACKET; SW,STARTER SUB EXC. STARTER SWITCH DELETION<E5D>	1-82699-351-0	01	1	0212-
39	BOLT; BRKT,STARTER SUB SW M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
39	BOLT; BRKT,STARTER SUB SW M8X25 FLANGE	0-28680-825-0	02	1	9607-9801
39	BOLT; BRKT,STARTER SUB SW M8X20 FLANGE	0-28680-820-0	02	1	9802-0211
39	BOLT; BRKT,STARTER SUB SW EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE	0-28680-820-0	02	1	0212-0512
39	BOLT; BRKT,STARTER SUB SW EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE	0-28650-820-0	02	1	0601-
279	BUZZER ASM; SEAT BELT WARNING SAUDI ARABIA EQUIPMENT(WH1) 12V	5-83460-004-1	01	1	0411-
279	BUZZER ASM; SEAT BELT WARNING SAUDI ARABIA EQUIPMENT(WH1) 12V	5-83460-004-1	01	1	9510-0210
296	COVER; CONT UNIT	1-82549-010-0	01	1	9803-0004
485	CONTROL UNIT; SPEED SENSOR	1-82540-065-0	01	1	9510-0004
485	CONTROL UNIT; SPEED SENSOR	1-80190-038-1	01	1	0005-0402
485	CONTROL UNIT; SPEED SENSOR	1-80190-149-0	01	1	0403-0410
485	CONTROL UNIT; SPEED SENSOR	1-80190-158-0	01	1	0411-
491	PLUG; HOLE,CONT UNIT OD=54.5	1-73907-309-0	01	1	9510-
