◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10699 - FRR(LHD) EXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#64160) — 45 parça

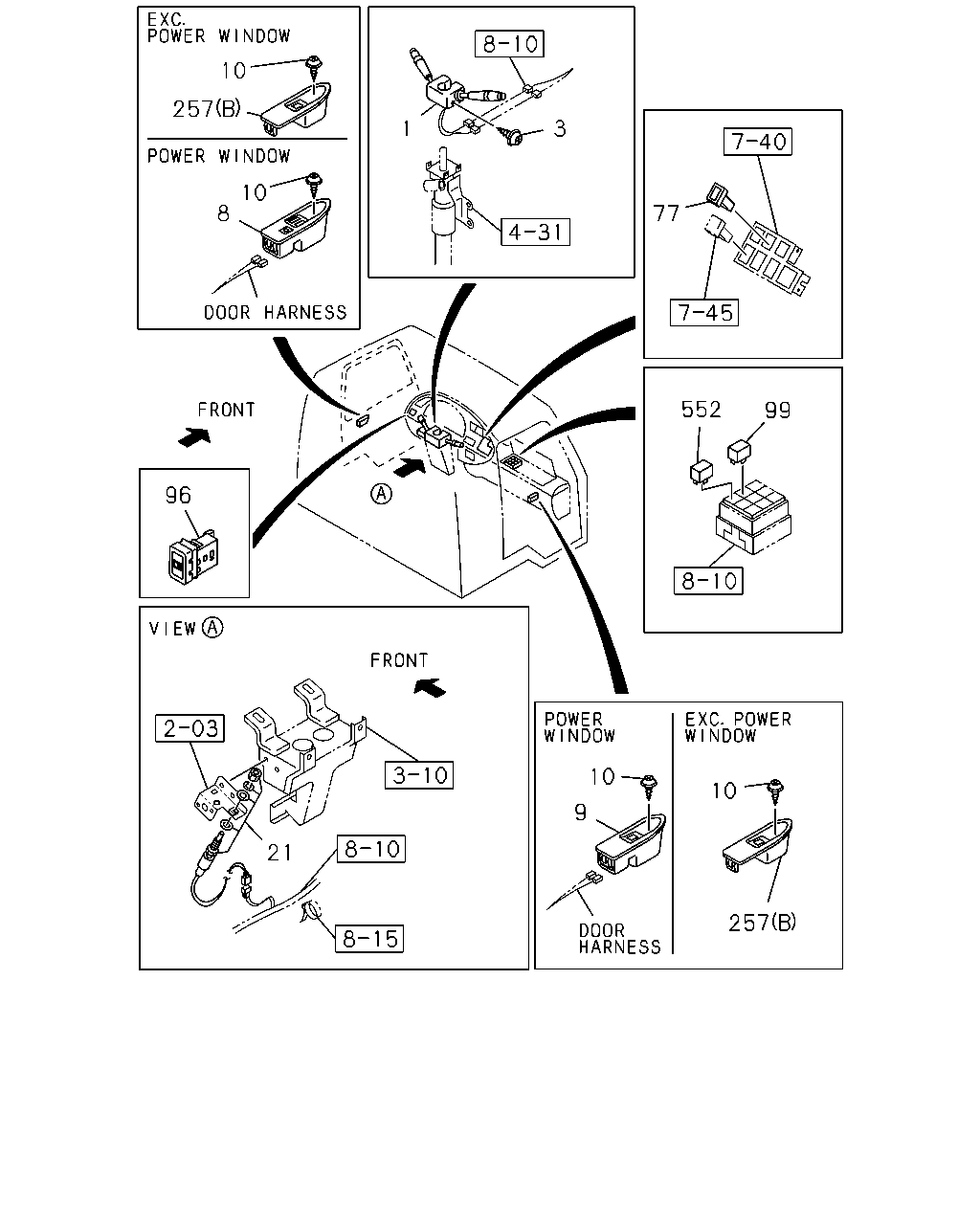

çizim 137910
10 257 3 1 10 8 77 552 99 96 10 10 9 21 257
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
EXHAUST BRAKE<NF8> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82360-539-0 01 1 0005-0103
1 SWITCH; COMB
EXHAUST BRAKE<NF8> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82360-654-0 01 1 0104-0309
1 SWITCH; COMB
EXHAUST BRAKE<NF8> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82360-704-1 01 1 0310-
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-405-4 01 1 9510-0004
1 SWITCH; COMB
EXHAUST BRAKE<NF8> HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-405-4 01 1 0005-0103
1 SWITCH; COMB
EXHAUST BRAKE<NF8> HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-647-0 01 1 0104-0312
1 SWITCH; COMB
EXHAUST BRAKE<NF8> HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-734-0 01 1 0401-
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. EXHAUST BRAKE<NF8> 		1-82360-534-0 01 1 0005-0103
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. EXHAUST BRAKE<NF8> 		1-82360-653-0 01 1 0104-0312
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. EXHAUST BRAKE<NF8> 		1-82360-738-0 01 1 0401-
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-371-4 01 1 9510-0004
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,CHINA EQUIPMENT(YT2) 		1-82360-371-4 01 1 0005-0103
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,CHINA EQUIPMENT(YT2) 		1-82360-642-0 01 1 0104-0312
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,CHINA EQUIPMENT(YT2) 		1-82360-731-0 01 1 0401-
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9510-0604
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605-
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-142-1 01 1 9510-9709
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-157-4 01 1 9710-
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-143-0 01 1 9510-9709
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-158-3 01 1 9710-
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9510-0604
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-
21 SWITCH; CLU 1-82380-114-2 01 1 9510-0004
21 SWITCH; CLU
ISUZU M/T<X9A> 		1-82380-114-3 01 1 0005-
77 SWITCH; PTO
PTO CONTROL<SV6> 		1-82340-403-0 01 1 9510-
96 SWITCH; FOG LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82340-676-0 01 1 0005-
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0004
99 RELAY; FOG LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 24V 12.5A MITUBA 		8-97062-815-1 02 1 0005-0111
99 RELAY; FOG LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0112-
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0011-0111
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9510-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 9510-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 9510-
552 RELAY; CIGAR LIGHTER
24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0111
552 RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-

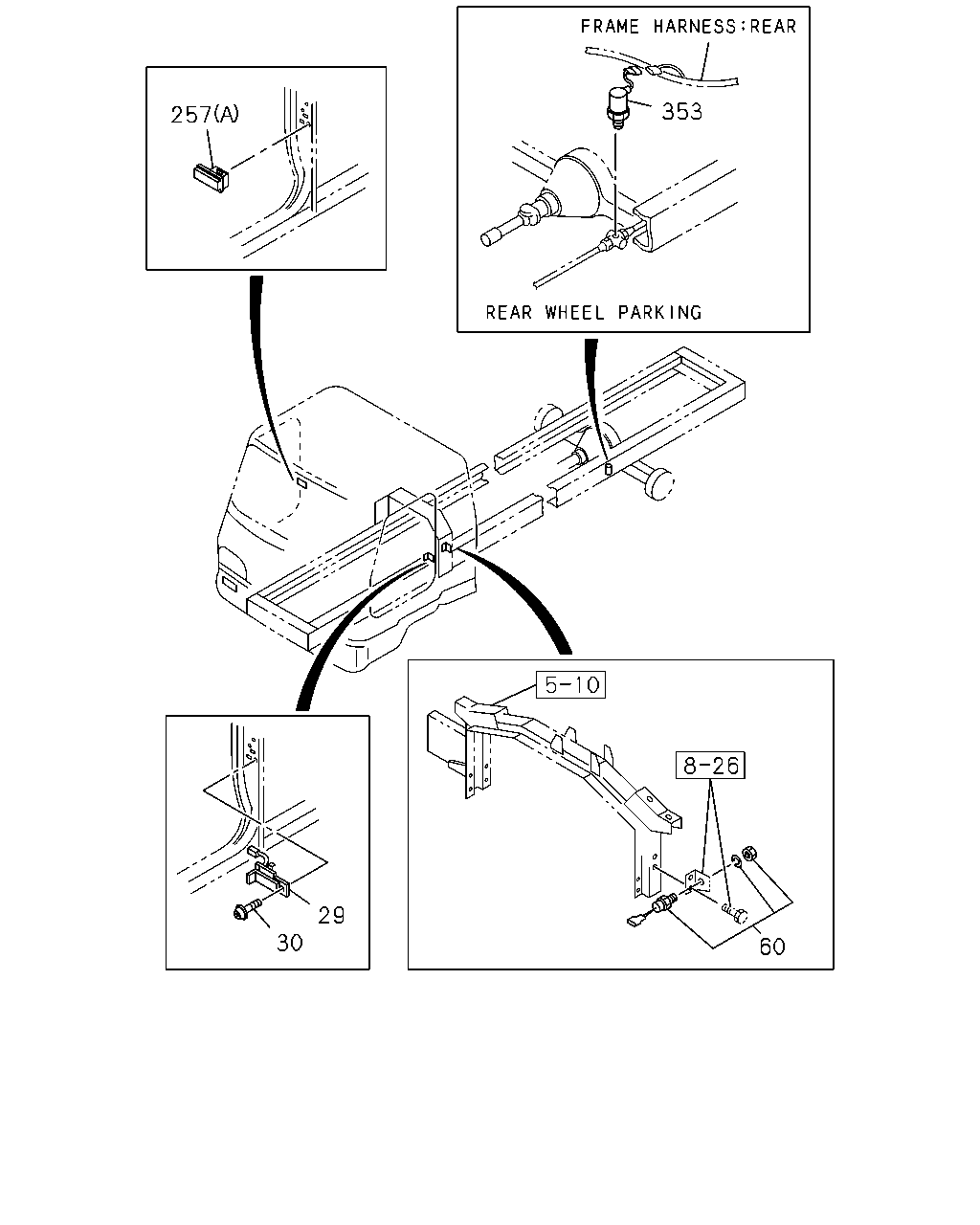

çizim 183775
353 257 29 30 60
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR 8-97855-032-3 01 1 9510-
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9510-9906
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 9907-
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 9510-0211
60 SWITCH; STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82380-107-1 01 1 0212-
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9510-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 9510-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 9510-
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-163-1 01 1 9510-
