Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#64157) — 456 parça

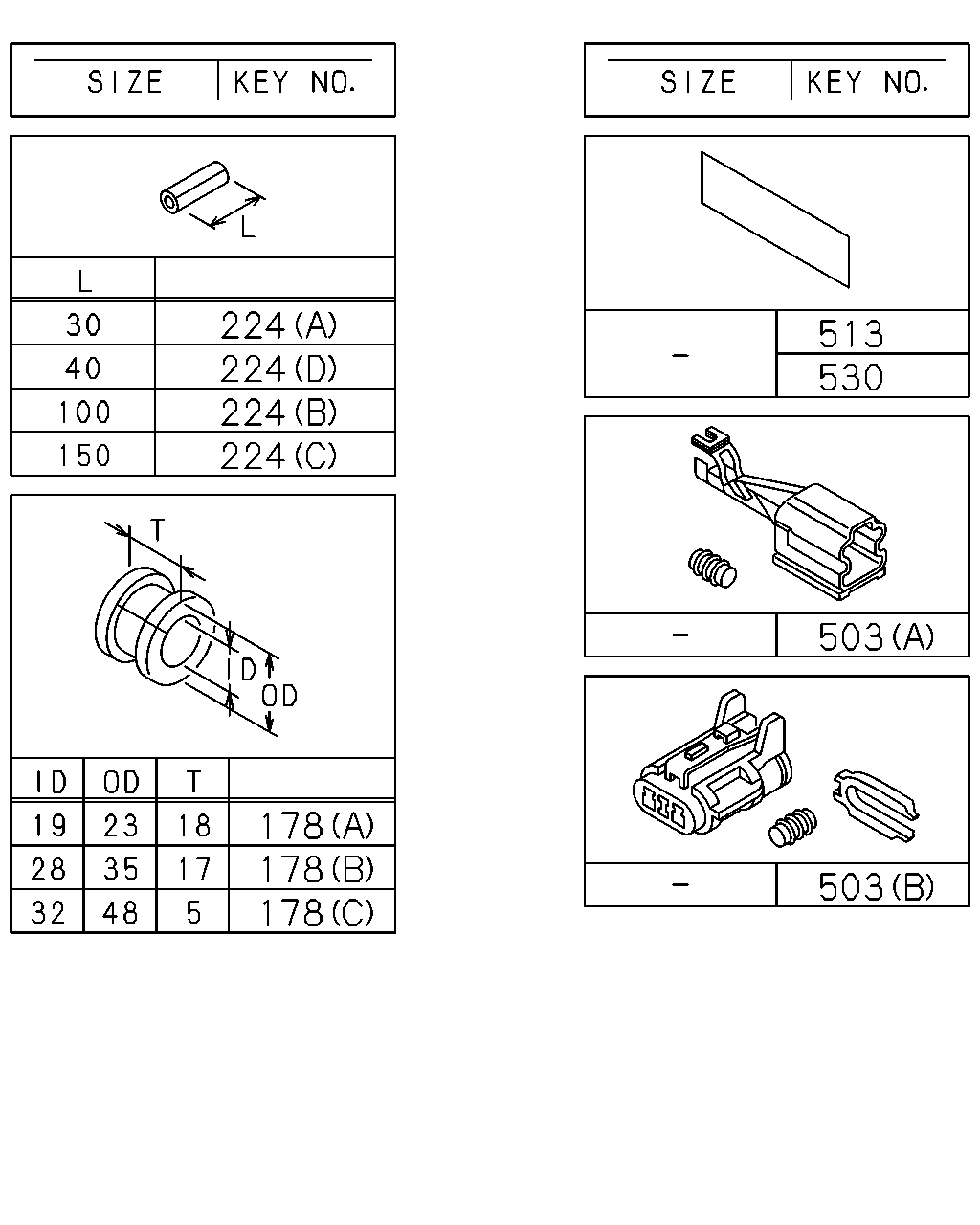

224 224 224 224 513 530 503 178 178 178 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
178	GROMMET; HARNESS (A) ID=19 OD=23 T=24	1-09332-103-0	01	1	9510-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	9510-
178	GROMMET; HARNESS LOW ROOF<6XQ> (C) ID=32 OD=48 T=5	9-09575-232-0	01	1	9510-
224	SLEEVE; RUBBER,HARNESS 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (D) ID=17 OD=21 L=40	1-09337-012-0	01	1	0303-
224	SLEEVE; RUBBER,HARNESS 6HH1 STD 4VALVE ENG(1A6) (B) ID=29 OD=39 L=100	1-09337-022-0	01	1	0007-0007
224	SLEEVE; RUBBER,HARNESS 6HH1 STD 4VALVE ENG(1A6) (C) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0007-0302
224	SLEEVE; RUBBER,HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (C) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0303-
224	SLEEVE; RUBBER,HARNESS EURO2 SPECIFICATION<THN> (C) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0303-
224	SLEEVE; RUBBER,HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0005-
503	CONNECTOR STARTER SWITCH DELETION<E5D> (B)	1-82690-666-0	01	1	0212-
503	CONNECTOR EXC. AIR DRYER<PS7> (A)	1-82690-668-0	01	1	9510-9608
503	CONNECTOR EXC. AIR DRYER<PS7> (A)	1-82690-668-0	01	1	9609-0004
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-82690-668-0	01	1	9609-0004
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-82690-668-0	01	1	0005-0109
503	CONNECTOR (A)	1-82690-668-0	01	1	0005-0109
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-82690-668-0	01	1	0110-
503	CONNECTOR EXC. AIR DRYER<PS7> (A)	1-82690-668-0	01	1	0110-
513	TAPE; SOFT,HARNESS EURO2 SPECIFICATION<THN> 100X40	1-72498-022-1	02	1	0303-
513	TAPE; SOFT,HARNESS 100X30	1-72498-014-1	02	1	9709-9903
513	TAPE; SOFT,HARNESS 100X40	1-72498-022-0	02	1	9904-0101
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	0407-
530	SEAL; HARNESS 180X40	1-72498-019-1	06	1	0102-

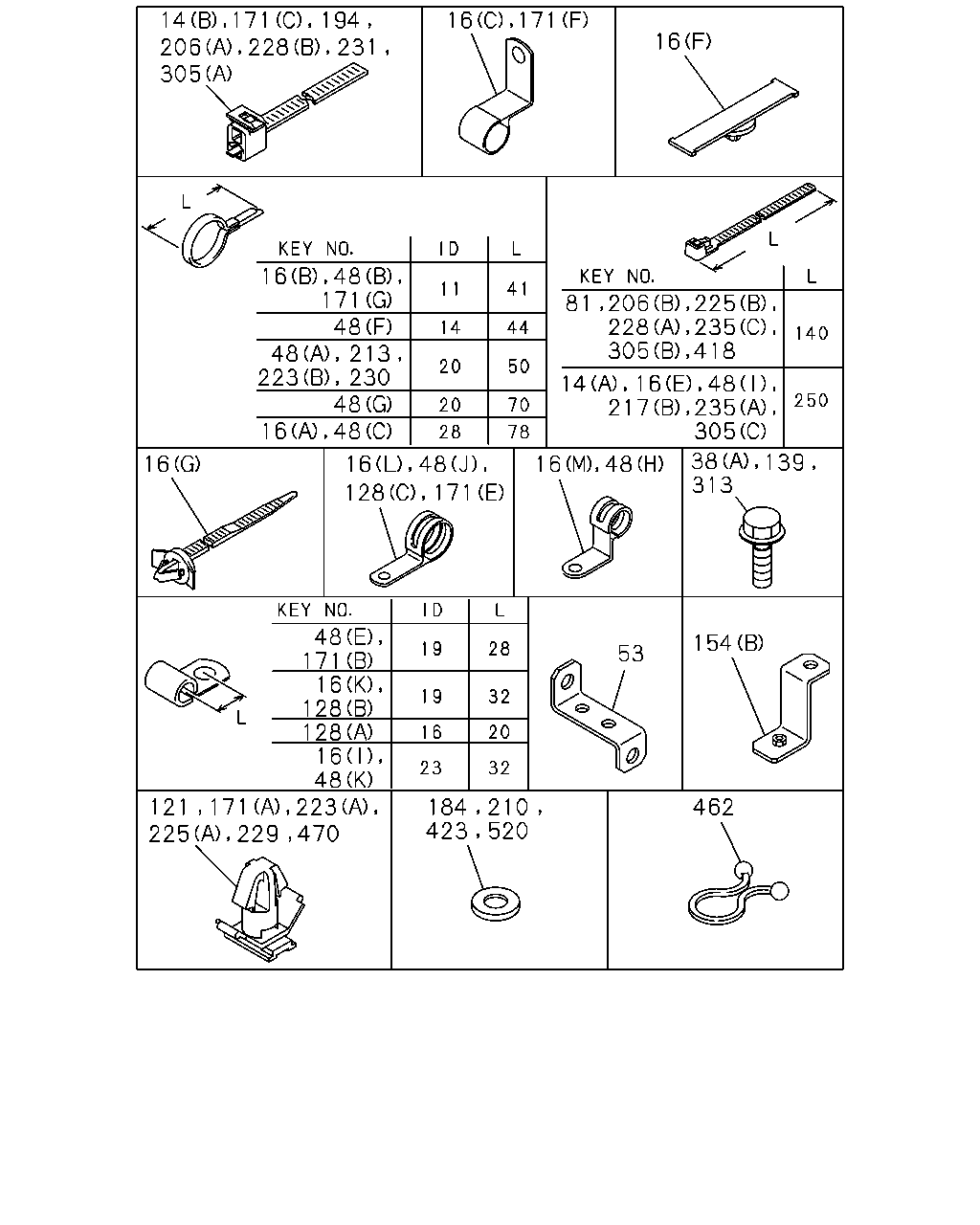

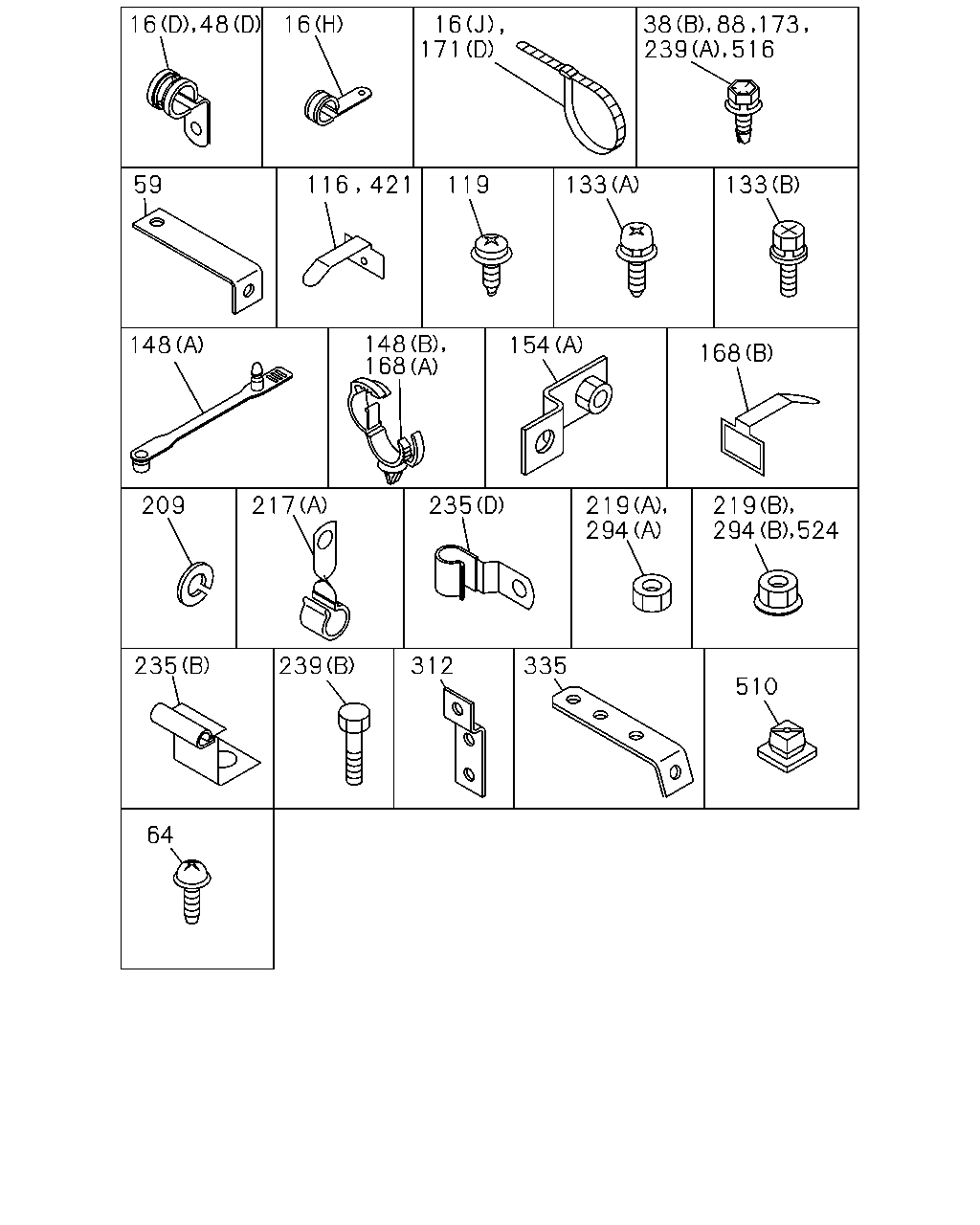

14 171 194 305 16 171 16 171 48 48 48 81 305 14 16 38 313 139 16 128 171 48 171 16 128 128 16 48 121 154 53 462 206 228 231 16 48 48 213 223 230 16 48 171 223 225 229 470 184 210 423 520 48 16 217 235 48 16 305 228 206 225 235 418

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	01	1	0002-0101
14	CLIP; BAND,HARNESS 6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) L=250	5-09707-030-1	01	1	0102-1205
14	CLIP; BAND,HARNESS 6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) L=250	8-98216-430-0	01	1	1206-
14	CLIP; BAND,HARNESS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=180	1-09707-162-1	01	1	9803-
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (I) ID=23 L=32	1-09700-346-0	01	1	0307-
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (L) ID=24 L=32	1-09700-766-1	01	1	0303-
16	CLIP; HARNESS (B) ID=11 L=41	1-09700-403-0	03	1	9510-
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	02	1	9510-9802
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	9803-0403
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	0404-
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	0404-
16	CLIP; HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9510-
16	CLIP; HARNESS (H) ID=25 L=50	1-09701-019-0	01	1	9510-0302
16	CLIP; HARNESS (H) ID=25 L=50	1-09701-019-0	01	1	0303-0306
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (H) ID=25 L=50	1-09701-019-0	01	1	0303-0306
16	CLIP; HARNESS (H) ID=25 L=50	1-09701-019-0	01	1	0307-
16	CLIP; HARNESS (C) ID=19 H=33 L=45	1-09701-045-0	01	1	9510-9801
16	CLIP; HARNESS (D) ID=19 H=21 L=50	1-09700-910-1	01	1	9802-
16	CLIP; HARNESS (J) L=300	1-09707-001-1	01	1	9510-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	01	1	9510-
16	CLIP; HARNESS (K) ID=19 L=32	9-09525-866-0	01	1	9510-0606
16	CLIP; HARNESS (K) ID=19 L=32	0-95235-866-0	01	1	0607-
16	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (L) ID=28 L=45	1-09700-825-1	01	1	0005-0302
16	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (L) ID=28 L=45	1-09700-825-1	01	1	0303-
16	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (H) ID=24 L=40	1-09701-139-0	01	1	0005-0302
16	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (H) ID=24 L=40	1-09701-139-0	01	1	0303-
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (H) ID=24 L=40	1-09701-139-0	01	1	0303-
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	06	1	9510-9909
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	04	1	9910-0004
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	06	1	0005-0101
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	04	1	0102-
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	04	1	9510-9904
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	06	1	9905-9909
16	CLIP; HARNESS (G) L=175	8-97110-167-0	02	1	9910-0004
16	CLIP; HARNESS EXC. POWER WINDOW<A30> (G) L=175	8-97110-167-0	02	1	0005-0101
16	CLIP; HARNESS (G) L=175	8-97110-167-0	02	1	0102-
16	CLIP; HARNESS EXC. POWER WINDOW<A30> (G) L=175	8-97110-167-0	02	1	9510-9909
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	03	1	9910-0004
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	03	1	9910-0004
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	06	1	0005-0101
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	03	1	0102-
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	03	1	0102-
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (M) ID=31 H=30 L=35	1-09700-994-0	01	1	0005-0006
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (L) ID=29 L=35	5-09700-293-1	01	1	0005-
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28080-816-0	04	1	9510-0004
38	BOLT; CLIP,HARNESS ISUZU M/T<X9A> (A) M8X16 FLANGE	0-28080-816-0	04	1	0005-0105
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28080-816-0	04	1	0106-0512
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28080-820-0	04	1	9510-9606
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0512
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28080-825-0	04	1	9510-9606
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-0004
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X16 FLANGE	0-28080-816-0	02	1	0005-0006
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X16 FLANGE	0-28080-816-0	01	1	0007-0512
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-
38	BOLT; CLIP,HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9510-9907
38	BOLT; CLIP,HARNESS (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9908-9909
38	BOLT; CLIP,HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9910-0004
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0005-0010
38	BOLT; CLIP,HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0005-0010
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0011-0302
38	BOLT; CLIP,HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0011-0302
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0303-1201
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0303-1201
38	BOLT; CLIP,HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0303-1201
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1202-
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1202-
38	BOLT; CLIP,HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1202-
38	BOLT; CLIP,HARNESS (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-0512
38	BOLT; CLIP,HARNESS (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
38	BOLT; CLIP,HARNESS (A) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	9607-9702
38	BOLT; CLIP,HARNESS (A) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9703-0512
38	BOLT; CLIP,HARNESS (A) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-
38	BOLT; CLIP,HARNESS A/T<X9D> (A) M8X16 FLANGE	0-28080-816-0	03	1	0104-0105
38	BOLT; CLIP,HARNESS MLD6 M/T<X9Y> (A) M10X20 W/LK WASHER	0-50051-020-0	01	1	9510-9606
38	BOLT; CLIP,HARNESS MLD6 M/T<X9Y> (A) M10X16 FLANGE	0-28081-016-0	01	1	9607-9802
38	BOLT; CLIP,HARNESS MLD6 M/T<X9Y> (A) M10X20 FLANGE	0-28781-020-0	01	1	9803-0004
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X25 FLANGE	0-28680-825-0	03	1	0005-0302
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X25 FLANGE	0-28680-825-0	03	1	0303-0512
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE	0-28680-825-0	03	1	0303-0512
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X20 FLANGE	0-28080-820-0	01	1	0005-0006
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X20 FLANGE	0-28080-820-0	01	1	0005-0006
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X20 FLANGE	0-28080-820-0	02	1	0007-0010
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X20 FLANGE	0-28080-820-0	02	1	0007-0010
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X20 FLANGE	0-28080-820-0	02	1	0011-0512
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X20 FLANGE	0-28050-820-0	02	1	0601-
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0010
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0010
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0010
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M8X20 FLANGE	0-28680-820-0	02	1	0011-0302
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	02	1	0011-0302
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28680-820-0	02	1	0303-0512
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	02	1	0303-0512
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M8X20 FLANGE	0-28680-820-0	01	1	0011-0302
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28680-820-0	01	1	0303-0512
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (J) ID=25 L=50	1-09700-976-0	01	1	0303-0306
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (K) ID=23 L=32	1-09700-346-0	01	1	0307-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	03	1	9510-
48	CLIP; FRAME HARNESS (C) ID=28 L=78	1-09700-858-0	04	1	9510-9808
48	CLIP; FRAME HARNESS (C) ID=28 L=78	1-09700-858-0	05	1	9510-
48	CLIP; FRAME HARNESS (E) ID=19 L=28	9-09525-856-0	01	1	9510-0606
48	CLIP; FRAME HARNESS (E) ID=19 L=28	0-95235-856-0	01	1	0607-
48	CLIP; FRAME HARNESS (F) ID=14 L=44	9-09917-427-0	02	1	9510-0004
48	CLIP; FRAME HARNESS (F) ID=14 L=44	9-09917-427-0	01	1	0005-
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	03	1	9510-9511
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	9512-0004
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	02	1	0005-
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	03	1	9510-9511
48	CLIP; FRAME HARNESS (G) ID=20 L=70	1-09700-485-0	01	1	9512-9802
48	CLIP; FRAME HARNESS (G) ID=20 L=70	1-09700-485-0	01	1	9803-0004
48	CLIP; FRAME HARNESS (G) ID=20 L=70	1-09700-485-0	04	1	0005-
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9510-
48	CLIP; FRAME HARNESS (G) ID=20 L=70	1-09700-485-0	03	1	9512-0004
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (G) ID=28 H=45 L=30	1-09700-948-0	02	1	0005-0006
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (G) ID=28 H=45 L=30	1-09700-948-0	03	1	0007-0302
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (G) ID=28 H=45 L=30	1-09700-948-0	03	1	0303-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (A) ID=20 L=50	9-09917-430-0	12	1	9510-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=20 L=50	9-09917-430-0	15	1	9510-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (A) ID=20 L=50	9-09917-430-0	18	1	9510-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=50	9-09917-430-0	20	1	9510-9605
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=50	9-09917-430-0	21	1	9606-0004
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) ID=28 L=45	1-09700-825-1	01	1	0005-0302
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (A) ID=28 L=45	1-09700-825-1	01	1	0303-
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) (I) L=250	5-09707-030-1	01	1	0007-0302
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (I) L=250	5-09707-030-1	01	1	0303-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (I) L=250	5-09707-030-1	01	1	0303-
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (H) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0006
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (H) ID=24 H=40 L=24	1-09701-243-0	02	1	0007-0010
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (H) ID=24 H=40 L=24	1-09701-243-1	01	1	0011-0302
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (H) ID=24 H=40 L=24	1-09701-243-1	01	1	0303-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (H) ID=24 H=40 L=24	1-09701-243-1	01	1	0303-
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (H) ID=24 H=40 L=24	1-09701-243-1	02	1	0011-
53	BRACKET; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-47476-812-1	01	1	0005-0302
53	BRACKET; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-47476-812-1	01	1	0303-
53	BRACKET; HARNESS EURO2 SPECIFICATION<THN>	1-47476-812-1	01	1	0303-
81	CLIP; HARNESS L=140	5-09707-031-1	02	1	9510-
121	CLIP; FACIA HARNESS OD=6.8 H=5	8-97082-051-0	02	1	9510-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	9-09525-535-0	01	1	9510-0606
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0607-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=19 L=32	9-09525-862-0	01	1	9510-0011
128	CLIP; COMB SW HARNESS,STRG COLUMN (C) ID=14.5 L=30	9-09916-893-1	01	1	0012-
139	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
139	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-0512
139	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-
154	BRACKET; STARTER EARTH CABLE (A)	1-47465-518-0	01	1	9510-
154	BRACKET; STARTER EARTH CABLE 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-47475-868-0	01	1	0005-0009
171	CLIP; STARTER HARNESS A/T<X9D> (G) ID=11 L=41	1-09700-403-0	01	1	0402-
171	CLIP; STARTER HARNESS (A) OD=9 H=6	1-09709-178-0	02	1	9510-0004
171	CLIP; STARTER HARNESS ISUZU M/T<X9A> (A) OD=9 H=6	1-09709-178-0	02	1	0005-
171	CLIP; STARTER HARNESS (B) ID=19 L=28	9-09525-856-0	04	1	9510-0004
171	CLIP; STARTER HARNESS ISUZU M/T<X9A> (B) ID=19 L=28	9-09525-856-0	04	1	0005-0606
171	CLIP; STARTER HARNESS ISUZU M/T<X9A> (B) ID=19 L=28	0-95235-856-0	04	1	0607-
171	CLIP; STARTER HARNESS (D) L=300	1-09707-001-1	01	1	0005-
171	CLIP; STARTER HARNESS A/T<X9D> (C) L=180	1-09707-162-1	01	1	0005-
171	CLIP; STARTER HARNESS A/T<X9D> (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0104-
171	CLIP; STARTER HARNESS A/T<X9D> (E) ID=21 L=24	8-94176-807-1	01	1	0104-0105
171	CLIP; STARTER HARNESS A/T<X9D> (B) ID=19 L=28	9-09525-856-0	01	1	0104-0105
171	CLIP; STARTER HARNESS A/T<X9D> (B) ID=19 L=28	9-09525-856-0	03	1	0106-0606
171	CLIP; STARTER HARNESS A/T<X9D> (B) ID=19 L=28	0-95235-856-0	03	1	0607-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	9908-
194	CLIP; BAND L=180	1-09707-162-1	01	1	9510-0004
194	CLIP; BAND REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=180	1-09707-162-1	01	1	9510-0004
194	CLIP; BAND EXC. DUAL AIR GAUGE<UG2> L=180	1-09707-162-1	01	1	0005-
194	CLIP; BAND REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=180	1-09707-162-1	01	1	0005-
194	CLIP; BAND CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=180	1-09707-162-1	02	1	9510-0004
194	CLIP; BAND DUAL AIR GAUGE<UG2> L=180	1-09707-162-1	02	1	0005-
206	CLIP; FUEL TANK HARNESS (B) L=140	5-09707-031-1	02	1	9510-
206	CLIP; FUEL TANK HARNESS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=180	1-09707-162-0	01	1	9510-9802
210	WASHER; PL,GEN ID=8.4	1-09503-264-0	01	1	9908-
213	CLIP; END CROSS HARNESS ID=20 L=50	9-09917-430-0	03	1	9510-
217	CLIP; RR BODY HARNESS (A) ID=15 L=70	1-09700-980-0	02	1	9510-0208
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-1	02	1	9510-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	03	1	9510-
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	05	1	9510-
225	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	9510-
225	CLIP; AIR TANK HARNESS DUAL AIR GAUGE<UG2> (B) L=140	5-09707-031-1	02	1	0005-
225	CLIP; AIR TANK HARNESS EXC. DUAL AIR GAUGE<UG2> (B) L=140	5-09707-031-1	01	1	0005-
228	CLIP; COOLER HARNESS (A) L=140	5-09707-031-1	01	1	9510-0112
228	CLIP; COOLER HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140	5-09707-031-1	01	1	0201-0405
228	CLIP; COOLER HARNESS (A) L=140	5-09707-031-1	01	1	0406-
228	CLIP; COOLER HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180	1-09707-162-1	01	1	0201-0405
229	CLIP; STARTER SUB SW HARNESS OD=9 H=6	1-09709-178-0	01	1	9510-
230	CLIP; C/MBR HARNESS ID=20 L=50	9-09917-430-0	02	1	9510-
231	CLIP; BAND,OIL PRESS L=180	1-09707-162-1	01	1	9510-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) L=250	5-09707-030-0	01	1	9510-9802
235	CLIP; HARNESS,SPD SENSOR,SSPS (C) L=140	5-09707-031-1	01	1	9510-0004
235	CLIP; HARNESS,SPD SENSOR,SSPS ISUZU M/T<X9A> (C) L=140	5-09707-031-1	01	1	0005-
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6 M/T<X9Y> (B)	1-09700-432-0	01	1	9510-9802
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6 M/T<X9Y> (D) ID=12 L=35	5-09700-206-0	01	1	9803-0004
305	CLIP; ENG HARNESS 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) L=250	5-09707-030-1	02	1	0303-
305	CLIP; ENG HARNESS (A) L=180	1-09707-162-1	01	1	9510-
305	CLIP; ENG HARNESS EXC. TACHOMETER<UD7> (B) L=140	5-09707-031-1	01	1	9510-
305	CLIP; ENG HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) L=140	5-09707-031-1	04	1	0005-
313	BOLT; BRKT PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> M8X20 FLANGE	0-28080-820-0	01	1	9510-9606
313	BOLT; BRKT PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> M8X16 FLANGE	0-28080-816-0	01	1	9607-0004
418	CLIP; LAMP HARNESS RADIO CLARION(SK2) L=140	5-09707-031-1	01	1	0703-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	01	1	9908-9909
462	CLIP; HARNESS,HTR A/T<X9D> EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20	1-09709-068-0	02	1	0005-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	9510-
520	WASHER; PL,EARTH CABLE ID=8.4	1-09503-264-0	01	1	9908-

16 16 171 59 119 133 133 148 148 154 168 209 217 235 219 294 219 235 312 239 335 510 64 16 48 116 421 38 88 173 239 516 168 294 524

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (I) ID=23 L=32	1-09700-346-0	01	1	0307-
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (L) ID=24 L=32	1-09700-766-1	01	1	0303-
16	CLIP; HARNESS (B) ID=11 L=41	1-09700-403-0	03	1	9510-
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	02	1	9510-9802
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	9803-0403
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	0404-
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	0404-
16	CLIP; HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9510-
16	CLIP; HARNESS (H) ID=25 L=50	1-09701-019-0	01	1	9510-0302
16	CLIP; HARNESS (H) ID=25 L=50	1-09701-019-0	01	1	0303-0306
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (H) ID=25 L=50	1-09701-019-0	01	1	0303-0306
16	CLIP; HARNESS (H) ID=25 L=50	1-09701-019-0	01	1	0307-
16	CLIP; HARNESS (C) ID=19 H=33 L=45	1-09701-045-0	01	1	9510-9801
16	CLIP; HARNESS (D) ID=19 H=21 L=50	1-09700-910-1	01	1	9802-
16	CLIP; HARNESS (J) L=300	1-09707-001-1	01	1	9510-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	01	1	9510-
16	CLIP; HARNESS (K) ID=19 L=32	9-09525-866-0	01	1	9510-0606
16	CLIP; HARNESS (K) ID=19 L=32	0-95235-866-0	01	1	0607-
16	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (L) ID=28 L=45	1-09700-825-1	01	1	0005-0302
16	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (L) ID=28 L=45	1-09700-825-1	01	1	0303-
16	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (H) ID=24 L=40	1-09701-139-0	01	1	0005-0302
16	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (H) ID=24 L=40	1-09701-139-0	01	1	0303-
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (H) ID=24 L=40	1-09701-139-0	01	1	0303-
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	06	1	9510-9909
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	04	1	9910-0004
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	06	1	0005-0101
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	04	1	0102-
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	04	1	9510-9904
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	06	1	9905-9909
16	CLIP; HARNESS (G) L=175	8-97110-167-0	02	1	9910-0004
16	CLIP; HARNESS EXC. POWER WINDOW<A30> (G) L=175	8-97110-167-0	02	1	0005-0101
16	CLIP; HARNESS (G) L=175	8-97110-167-0	02	1	0102-
16	CLIP; HARNESS EXC. POWER WINDOW<A30> (G) L=175	8-97110-167-0	02	1	9510-9909
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	03	1	9910-0004
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	03	1	9910-0004
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	06	1	0005-0101
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	03	1	0102-
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	03	1	0102-
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (M) ID=31 H=30 L=35	1-09700-994-0	01	1	0005-0006
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (L) ID=29 L=35	5-09700-293-1	01	1	0005-
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28080-816-0	04	1	9510-0004
38	BOLT; CLIP,HARNESS ISUZU M/T<X9A> (A) M8X16 FLANGE	0-28080-816-0	04	1	0005-0105
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28080-816-0	04	1	0106-0512
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28080-820-0	04	1	9510-9606
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0512
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28080-825-0	04	1	9510-9606
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-0004
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X16 FLANGE	0-28080-816-0	02	1	0005-0006
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X16 FLANGE	0-28080-816-0	01	1	0007-0512
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-
38	BOLT; CLIP,HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9510-9907
38	BOLT; CLIP,HARNESS (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9908-9909
38	BOLT; CLIP,HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9910-0004
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0005-0010
38	BOLT; CLIP,HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0005-0010
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0011-0302
38	BOLT; CLIP,HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0011-0302
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0303-1201
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0303-1201
38	BOLT; CLIP,HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0303-1201
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1202-
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1202-
38	BOLT; CLIP,HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1202-
38	BOLT; CLIP,HARNESS (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-0512
38	BOLT; CLIP,HARNESS (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
38	BOLT; CLIP,HARNESS (A) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	9607-9702
38	BOLT; CLIP,HARNESS (A) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9703-0512
38	BOLT; CLIP,HARNESS (A) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-
38	BOLT; CLIP,HARNESS A/T<X9D> (A) M8X16 FLANGE	0-28080-816-0	03	1	0104-0105
38	BOLT; CLIP,HARNESS MLD6 M/T<X9Y> (A) M10X20 W/LK WASHER	0-50051-020-0	01	1	9510-9606
38	BOLT; CLIP,HARNESS MLD6 M/T<X9Y> (A) M10X16 FLANGE	0-28081-016-0	01	1	9607-9802
38	BOLT; CLIP,HARNESS MLD6 M/T<X9Y> (A) M10X20 FLANGE	0-28781-020-0	01	1	9803-0004
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X25 FLANGE	0-28680-825-0	03	1	0005-0302
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X25 FLANGE	0-28680-825-0	03	1	0303-0512
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE	0-28680-825-0	03	1	0303-0512
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X20 FLANGE	0-28080-820-0	01	1	0005-0006
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X20 FLANGE	0-28080-820-0	01	1	0005-0006
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X20 FLANGE	0-28080-820-0	02	1	0007-0010
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X20 FLANGE	0-28080-820-0	02	1	0007-0010
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X20 FLANGE	0-28080-820-0	02	1	0011-0512
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X20 FLANGE	0-28050-820-0	02	1	0601-
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0010
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0010
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0010
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M8X20 FLANGE	0-28680-820-0	02	1	0011-0302
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	02	1	0011-0302
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28680-820-0	02	1	0303-0512
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	02	1	0303-0512
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M8X20 FLANGE	0-28680-820-0	01	1	0011-0302
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28680-820-0	01	1	0303-0512
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (J) ID=25 L=50	1-09700-976-0	01	1	0303-0306
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (K) ID=23 L=32	1-09700-346-0	01	1	0307-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	03	1	9510-
48	CLIP; FRAME HARNESS (C) ID=28 L=78	1-09700-858-0	04	1	9510-9808
48	CLIP; FRAME HARNESS (C) ID=28 L=78	1-09700-858-0	05	1	9510-
48	CLIP; FRAME HARNESS (E) ID=19 L=28	9-09525-856-0	01	1	9510-0606
48	CLIP; FRAME HARNESS (E) ID=19 L=28	0-95235-856-0	01	1	0607-
48	CLIP; FRAME HARNESS (F) ID=14 L=44	9-09917-427-0	02	1	9510-0004
48	CLIP; FRAME HARNESS (F) ID=14 L=44	9-09917-427-0	01	1	0005-
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	03	1	9510-9511
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	9512-0004
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	02	1	0005-
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	03	1	9510-9511
48	CLIP; FRAME HARNESS (G) ID=20 L=70	1-09700-485-0	01	1	9512-9802
48	CLIP; FRAME HARNESS (G) ID=20 L=70	1-09700-485-0	01	1	9803-0004
48	CLIP; FRAME HARNESS (G) ID=20 L=70	1-09700-485-0	04	1	0005-
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9510-
48	CLIP; FRAME HARNESS (G) ID=20 L=70	1-09700-485-0	03	1	9512-0004
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (G) ID=28 H=45 L=30	1-09700-948-0	02	1	0005-0006
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (G) ID=28 H=45 L=30	1-09700-948-0	03	1	0007-0302
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (G) ID=28 H=45 L=30	1-09700-948-0	03	1	0303-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (A) ID=20 L=50	9-09917-430-0	12	1	9510-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=20 L=50	9-09917-430-0	15	1	9510-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (A) ID=20 L=50	9-09917-430-0	18	1	9510-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=50	9-09917-430-0	20	1	9510-9605
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=50	9-09917-430-0	21	1	9606-0004
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) ID=28 L=45	1-09700-825-1	01	1	0005-0302
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (A) ID=28 L=45	1-09700-825-1	01	1	0303-
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) (I) L=250	5-09707-030-1	01	1	0007-0302
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (I) L=250	5-09707-030-1	01	1	0303-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (I) L=250	5-09707-030-1	01	1	0303-
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (H) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0006
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (H) ID=24 H=40 L=24	1-09701-243-0	02	1	0007-0010
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (H) ID=24 H=40 L=24	1-09701-243-1	01	1	0011-0302
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (H) ID=24 H=40 L=24	1-09701-243-1	01	1	0303-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (H) ID=24 H=40 L=24	1-09701-243-1	01	1	0303-
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (H) ID=24 H=40 L=24	1-09701-243-1	02	1	0011-
59	BRACKET; FRAME HARNESS L=95	1-82699-085-0	01	1	9510-
64	SCREW; CLIP EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER	0-74100-612-0	01	1	0303-
88	BOLT; DOOR HARNESS EARTH DOOR WINDOW MANUAL CONT<SKF> M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9510-1007
88	BOLT; DOOR HARNESS EARTH DOOR WINDOW MANUAL CONT<SKF> M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1008-
88	BOLT; DOOR HARNESS EARTH POWER WINDOW<A30> M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	9510-1007
88	BOLT; DOOR HARNESS EARTH POWER WINDOW<A30> M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> EXC. MAP LAMP<C85> L=20 SET=10 PIECE	1-09987-246-2	02	1	9510-0009
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> EXC. MAP LAMP<C85> L=20 SET=10 PIECE	1-09987-246-2	03	1	0010-1409
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> EXC. MAP LAMP<C85> L=20 SET=10 PIECE	1-09987-246-2	04	1	1410-
116	CLIP; ROOF HARNESS LOW ROOF<6XQ> L=20 SET=10 PIECE	1-09987-246-2	05	1	9510-0009
116	CLIP; ROOF HARNESS MAP LAMP<C85> L=20 SET=10 PIECE	1-09987-246-2	05	1	9510-0009
116	CLIP; ROOF HARNESS LOW ROOF<6XQ> L=20 SET=10 PIECE	1-09987-246-2	06	1	0010-0112
116	CLIP; ROOF HARNESS MAP LAMP<C85> L=20 SET=10 PIECE	1-09987-246-2	06	1	0010-0112
116	CLIP; ROOF HARNESS LOW ROOF<6XQ> L=20 SET=10 PIECE	1-09987-246-2	05	1	0201-1409
116	CLIP; ROOF HARNESS MAP LAMP<C85> L=20 SET=10 PIECE	1-09987-246-2	05	1	0201-1409
116	CLIP; ROOF HARNESS LOW ROOF<6XQ> L=20 SET=10 PIECE	1-09987-246-2	06	1	1410-
116	CLIP; ROOF HARNESS MAP LAMP<C85> L=20 SET=10 PIECE	1-09987-246-2	06	1	1410-
119	SCREW; DOOR HARNESS EARTH POWER WINDOW<A30> M5X14 W/PL WASHER	8-94447-551-0	02	1	9510-
133	SCREW; HARNESS CLIP,STRG COLUMN (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9510-0110
133	SCREW; HARNESS CLIP,STRG COLUMN (A) M6X12 W/PL WASHER	8-97806-950-0	01	1	0111-
133	SCREW; HARNESS CLIP,STRG COLUMN (B) M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0107-0210
148	CLIP; BAND,HEADLAMP HARNESS (A) L=85	8-94232-611-0	01	1	9510-
148	CLIP; BAND,HEADLAMP HARNESS (B) ID=6 & 10-13	8-97069-515-0	01	1	9510-
154	BRACKET; STARTER EARTH CABLE (A)	1-47465-518-0	01	1	9510-
154	BRACKET; STARTER EARTH CABLE 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-47475-868-0	01	1	0005-0009
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	05	1	9510-
168	CLIP; DASH HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) A/T<X9D> (B) L=30 SET=10 PIECE	1-09987-265-0	01	1	0102-
171	CLIP; STARTER HARNESS A/T<X9D> (G) ID=11 L=41	1-09700-403-0	01	1	0402-
171	CLIP; STARTER HARNESS (A) OD=9 H=6	1-09709-178-0	02	1	9510-0004
171	CLIP; STARTER HARNESS ISUZU M/T<X9A> (A) OD=9 H=6	1-09709-178-0	02	1	0005-
171	CLIP; STARTER HARNESS (B) ID=19 L=28	9-09525-856-0	04	1	9510-0004
171	CLIP; STARTER HARNESS ISUZU M/T<X9A> (B) ID=19 L=28	9-09525-856-0	04	1	0005-0606
171	CLIP; STARTER HARNESS ISUZU M/T<X9A> (B) ID=19 L=28	0-95235-856-0	04	1	0607-
171	CLIP; STARTER HARNESS (D) L=300	1-09707-001-1	01	1	0005-
171	CLIP; STARTER HARNESS A/T<X9D> (C) L=180	1-09707-162-1	01	1	0005-
171	CLIP; STARTER HARNESS A/T<X9D> (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0104-
171	CLIP; STARTER HARNESS A/T<X9D> (E) ID=21 L=24	8-94176-807-1	01	1	0104-0105
171	CLIP; STARTER HARNESS A/T<X9D> (B) ID=19 L=28	9-09525-856-0	01	1	0104-0105
171	CLIP; STARTER HARNESS A/T<X9D> (B) ID=19 L=28	9-09525-856-0	03	1	0106-0606
171	CLIP; STARTER HARNESS A/T<X9D> (B) ID=19 L=28	0-95235-856-0	03	1	0607-
173	BOLT; STARTER EARTH M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	9510-
209	WASHER; LK,GEN,EARTH ID=5.1	9-09150-505-0	01	1	9510-0603
209	WASHER; LK,GEN,EARTH ID=5.1	0-91510-505-0	01	1	0604-
217	CLIP; RR BODY HARNESS (A) ID=15 L=70	1-09700-980-0	02	1	9510-0208
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-1	02	1	9510-
219	NUT (A) M8	9-09110-408-0	02	1	9510-9609
219	NUT (B) M8 FLANGE	0-91150-108-0	02	1	9610-0602
219	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
219	NUT (A) M8	9-09110-408-0	04	1	9510-9606
219	NUT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9609
219	NUT (B) M8 FLANGE	0-91150-108-0	04	1	9610-0004
219	NUT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8 FLANGE	0-91150-108-0	04	1	0005-0302
219	NUT (B) M8 FLANGE	0-91150-108-0	04	1	0005-0302
219	NUT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8 FLANGE	0-91150-108-0	04	1	0303-0602
219	NUT EURO2 SPECIFICATION<THN> (B) M8 FLANGE	0-91150-108-0	04	1	0303-0602
219	NUT (B) M8 FLANGE	0-91150-108-0	04	1	0303-0602
219	NUT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8 FLANGE	0-91180-108-0	04	1	0603-
219	NUT EURO2 SPECIFICATION<THN> (B) M8 FLANGE	0-91180-108-0	04	1	0603-
219	NUT (B) M8 FLANGE	0-91180-108-0	04	1	0603-
219	NUT 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8 FLANGE	0-91150-108-0	01	1	0011-0103
219	NUT 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8 FLANGE	0-91150-108-0	01	1	0104-0302
219	NUT A/T<X9D> (B) M8 FLANGE	0-91150-108-0	01	1	0104-0302
219	NUT 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8 FLANGE	0-91150-108-0	01	1	0303-0602
219	NUT A/T<X9D> (B) M8 FLANGE	0-91150-108-0	01	1	0303-0602
219	NUT 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8 FLANGE	0-91180-108-0	01	1	0603-
219	NUT A/T<X9D> (B) M8 FLANGE	0-91180-108-0	01	1	0603-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) L=250	5-09707-030-0	01	1	9510-9802
235	CLIP; HARNESS,SPD SENSOR,SSPS (C) L=140	5-09707-031-1	01	1	9510-0004
235	CLIP; HARNESS,SPD SENSOR,SSPS ISUZU M/T<X9A> (C) L=140	5-09707-031-1	01	1	0005-
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6 M/T<X9Y> (B)	1-09700-432-0	01	1	9510-9802
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6 M/T<X9Y> (D) ID=12 L=35	5-09700-206-0	01	1	9803-0004
239	BOLT; GRAND (B) M5X8	0-20800-508-0	01	1	9510-
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	9510-9802
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9803-0004
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0005-1007
239	BOLT; GRAND (A) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-
239	BOLT; GRAND (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9510-9907
239	BOLT; GRAND (A) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9908-1201
239	BOLT; GRAND (A) M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-
294	NUT (A) M8	9-09110-408-0	02	1	9510-9606
294	NUT (B) M8 FLANGE	0-91150-108-0	02	1	9607-0602
294	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
294	NUT PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (A) M8	9-09110-408-0	01	1	9510-9606
294	NUT PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (B) M8 FLANGE	0-91150-108-0	01	1	9607-0004
312	BRACKET; CLIP HARNESS PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y>	1-82699-588-0	01	1	9510-0004
335	BRACKET; CONNECTOR	1-82699-517-0	01	1	9510-9910
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	9911-
421	CLIP; FLOOR HARNESS L=20 SET=10 PIECE	1-09987-246-2	07	1	9510-9708
421	CLIP; FLOOR HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	9709-0101
421	CLIP; FLOOR HARNESS L=20 SET=10 PIECE	1-09987-246-2	01	1	0102-0406
510	GROMMET; SCREW EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	01	1	0303-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-
524	NUT; HARNESS M6 FLANGE	0-91150-106-0	01	1	9510-0602
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
