◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10699 - FRR(LHD) EXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#64153) — 191 parça

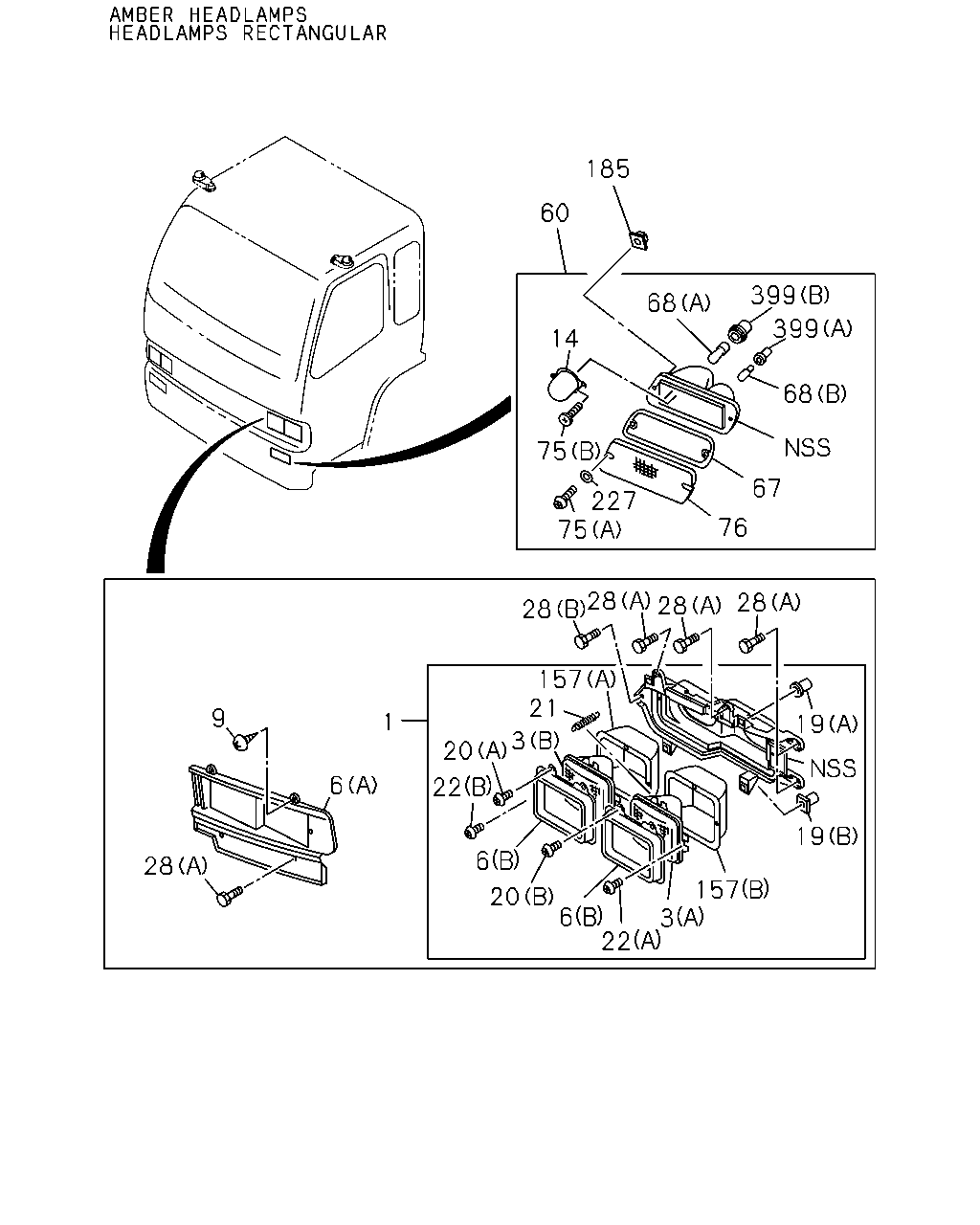

çizim 135796
185 60 399 68 399 14 68 75 227 75 67 76 28 28 28 28 157 21 9 3 1 19 20 6 22 19 6 28 157 20 6 22 3
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> 		1-82110-314-0 01 1 9510-0004
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> 		1-82110-313-0 01 1 9510-0004
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-174-1 01 1 9510-0004
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-173-1 01 1 9510-0004
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-176-4 01 1 9510-0210
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82110-440-0 01 1 0211-
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-175-4 01 1 9510-0210
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82110-439-0 01 1 0211-
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-124-4 01 1 9510-
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-123-4 01 1 9510-
3 SEALED BEAM; HEADLAMP
AMBER HEADLAMPS<T75> (A) TYPE2 24V 75/70W 		1-82113-015-0 02 1 9510-0004
3 SEALED BEAM; HEADLAMP
AMBER HEADLAMPS<T75> (B) TYPE1 24V 70W 		1-82113-016-0 02 1 9510-0004
3 SEALED BEAM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (A) 24V 50/65W 		8-94111-275-0 02 1 9510-0004
3 SEALED BEAM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> (B) 24V 55W 		8-94111-276-0 02 1 9510-0004
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		8-94165-573-0 04 1 9510-0004
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-71118-746-1 01 1 9510-0004
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-71118-745-1 01 1 9510-0004
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) 		1-86830-006-5 01 1 9510-
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) 		1-86830-005-5 01 1 9510-
9 SCREW; HEADLAMP RIM
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> M4X20 TAPPING W/PL WASHER 		0-74110-420-0 08 1 9511-0004
14 CAP; BULB,LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82219-030-0 02 1 9609-9705
14 CAP; BULB,LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> 		1-82219-030-0 02 1 9706-0004
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 9510-
19 NUT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82119-117-0 08 1 9510-0004
19 NUT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		8-97044-618-0 08 1 9510-0004
20 SCREW; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) M4X20 TAPPING W/PL WASHER 		0-74110-420-0 08 1 9510-9510
20 SCREW; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) M4X8 		8-94165-886-0 16 1 9510-0004
21 SPRING; ADJ HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> 		1-82119-120-0 04 1 9510-0004
22 SCREW; ADJ,HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82119-118-0 07 1 9510-0004
22 SCREW; ADJ,HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		1-82119-119-0 01 1 9510-0004
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) M6X16 FLANGE 		0-28650-616-0 04 1 0709-
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-0004
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0005-0708
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709-
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9510-0004
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9510-0004
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> 		1-82210-211-0 01 1 9510-9608
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> 		1-82210-221-0 01 1 9609-9705
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> 		1-82210-221-0 01 1 9706-0004
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> 		1-82210-210-0 01 1 9510-9608
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4> 		1-82210-220-0 01 1 9609-9705
60 LAMP ASM; FRT COMB
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> 		1-82210-220-0 01 1 9706-0004
67 GASKET; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82216-033-0 02 1 9510-9705
67 GASKET; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> 		1-82216-033-0 02 1 9706-0004
68 BULB; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) 24V 21W 		1-82194-036-0 02 1 9510-9705
68 BULB; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 24V 21W 		1-82194-036-0 02 1 9706-0004
68 BULB; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (B) 24V 5W 		8-94135-397-0 02 1 9510-9705
68 BULB; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 24V 5W 		8-94135-397-0 02 1 9706-0004
75 SCREW; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82219-026-0 04 1 9510-9705
75 SCREW; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82219-026-0 04 1 9706-0004
75 SCREW; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-031-0 04 1 9609-9705
75 SCREW; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		1-82219-031-0 04 1 9706-0004
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> ORANGE 		1-82215-065-0 01 1 9510-9608
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82215-071-0 01 1 9609-9705
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> 		1-82215-071-0 01 1 9706-0004
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> ORANGE 		1-82215-064-0 01 1 9510-9608
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82215-070-0 01 1 9609-9705
76 LENS; FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> 		1-82215-070-0 01 1 9706-0004
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		1-82119-032-0 01 1 9510-0004
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82119-033-0 01 1 9510-0004
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82119-031-0 01 1 9510-0004
157 RING; MTG,HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		1-82119-034-0 01 1 9510-0004
185 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 9510-
227 SEAT; SET SCREW,FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82216-032-0 04 1 9510-9705
227 SEAT; SET SCREW,FRT COMB LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> 		1-82216-032-0 04 1 9706-0004
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82219-033-0 02 1 9510-9705
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82219-033-0 02 1 9706-0004
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-034-0 02 1 9510-9705
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4>, AMBER HEADLAMPS<T75> (B) 		1-82219-034-0 02 1 9706-0004
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82219-034-0 02 1 0005-

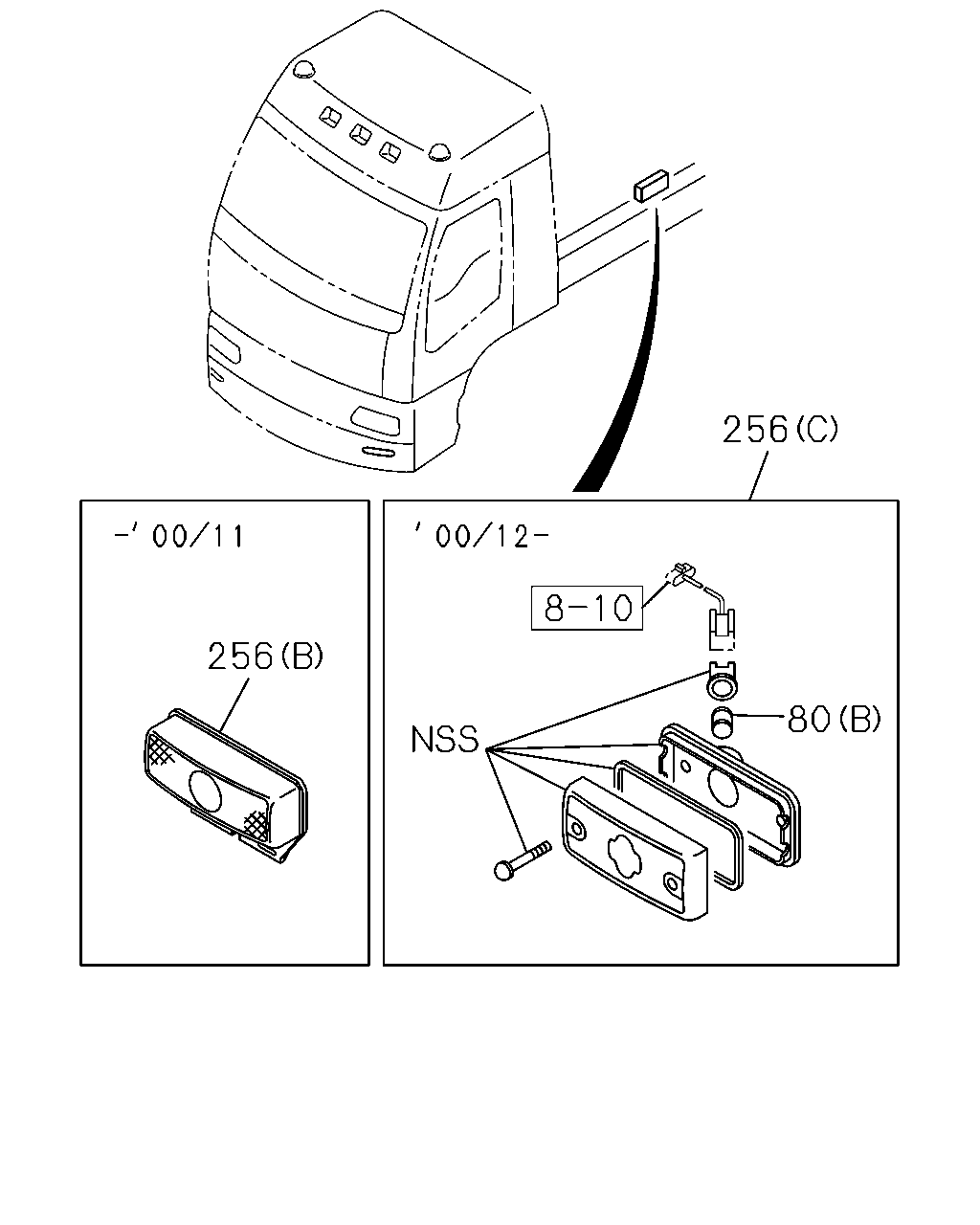

çizim 136145
256 256 80
BalonParca AdiParca NoAdetTipApplied Date
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (A) 24V 5W 		8-94135-397-0 02 1 0005-
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (A) 12V 5W 		1-82194-053-0 02 1 9510-0004
80 BULB; MARKER LAMP
LIGHTING SYSTEM ECE<SLC> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) SIDE MARKER 24V 3W 		1-82219-035-0 06 1 0012-
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> (A) 		1-86830-293-0 01 1 9510-
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> (A) 		1-86830-292-0 01 1 9510-
256 LAMP; MARKER
LIGHTING SYSTEM ECE<SLC> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82210-241-0 06 1 0005-0011
256 LAMP; MARKER
LIGHTING SYSTEM ECE<SLC> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 		1-82210-244-0 06 1 0012-

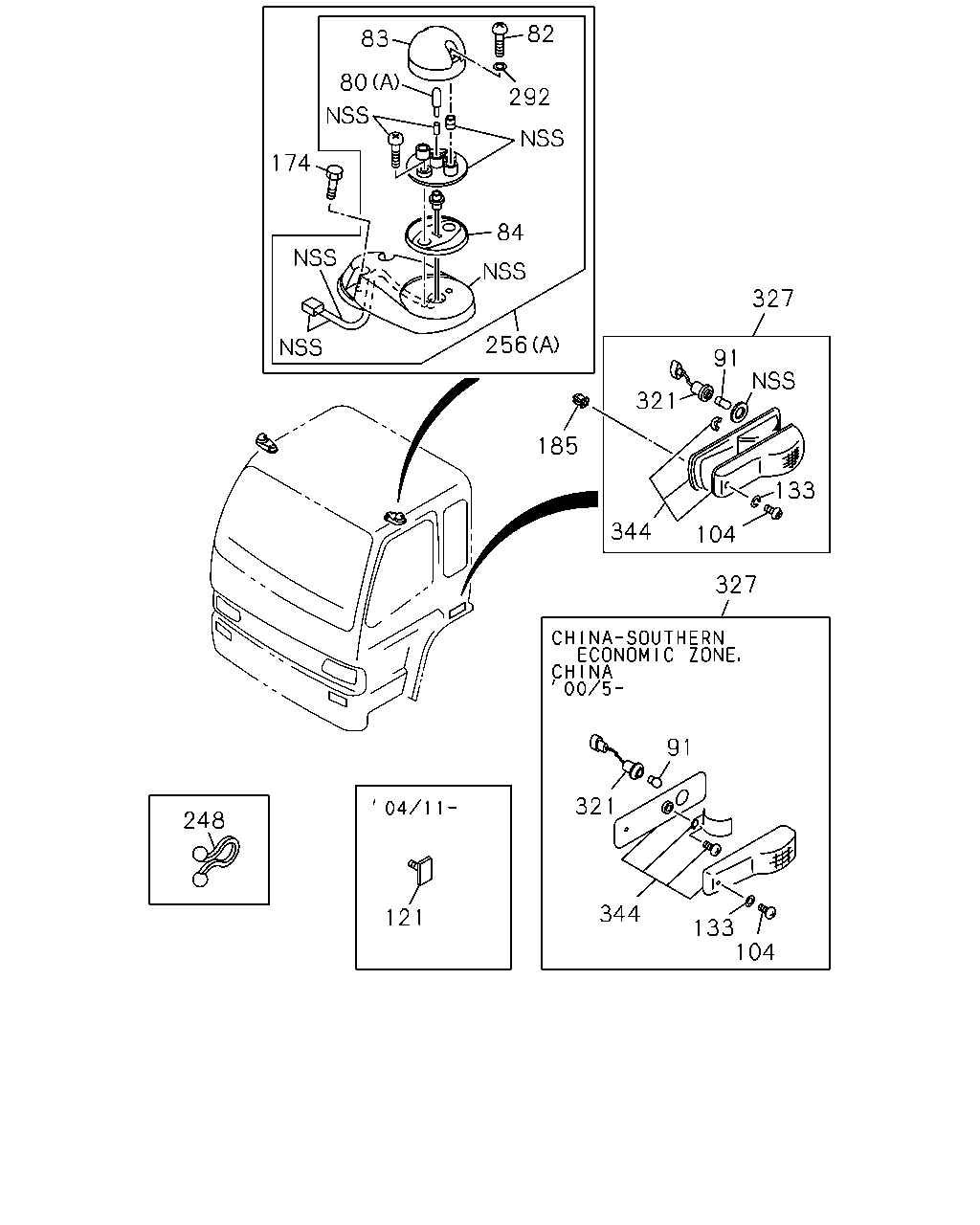

çizim 136397
82 83 80 292 174 84 327 256 91 321 185 133 344 104 327 91 321 248 344 121 133 104
BalonParca AdiParca NoAdetTipApplied Date
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (A) 24V 5W 		8-94135-397-0 02 1 0005-
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (A) 12V 5W 		1-82194-053-0 02 1 9510-0004
80 BULB; MARKER LAMP
LIGHTING SYSTEM ECE<SLC> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) SIDE MARKER 24V 3W 		1-82219-035-0 06 1 0012-
82 SCREW; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> ROOF MARKER 		1-82219-011-0 04 1 9510-
83 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82215-046-0 02 1 9510-
84 GASKET; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-86830-288-0 04 1 9510-
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 9510-9809
91 BULB; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 24V 10W 		1-82194-037-0 02 1 9810-0004
91 BULB; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 24V 21W 		1-82194-036-0 02 1 0005-
91 BULB; SIDE TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 24V 12W 		1-82194-030-0 02 1 9810-
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9510-
121 REFLECTOR; REFLEX
LIGHTING SYSTEM SAUDI<JAQ> 		1-82290-061-0 02 1 0411-
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9510-0206
133 WASHER; PL,SIDE FLASHER LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-86830-150-0 02 1 0207-
174 BOLT
LAMPS TWO ROOF MARKER<TEC> M6X25 W/PL WASHER 		1-09039-006-1 04 1 9510-0906
174 BOLT
LAMPS TWO ROOF MARKER<TEC> M6X25 W/PL WASHER 		8-98064-173-0 04 1 0907-
185 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 9510-
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=11.5 		1-09709-083-0 01 1 9510-
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> (A) 		1-86830-293-0 01 1 9510-
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> (A) 		1-86830-292-0 01 1 9510-
256 LAMP; MARKER
LIGHTING SYSTEM ECE<SLC> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82210-241-0 06 1 0005-0011
256 LAMP; MARKER
LIGHTING SYSTEM ECE<SLC> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 		1-82210-244-0 06 1 0012-
292 WASHER; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-012-0 04 1 9510-
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9510-0004
321 HARNESS; SIDE FLASHER LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-86830-253-0 02 1 0005-
321 HARNESS; SIDE FLASHER LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82218-002-0 02 1 0005-
327 LAMP ASM; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-86830-265-1 01 1 9510-0004
327 LAMP ASM; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82210-228-2 01 1 0005-
327 LAMP ASM; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-86830-264-1 01 1 9510-0004
327 LAMP ASM; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82210-227-2 01 1 0005-
327 LAMP ASM; SIDE TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-86830-263-0 01 1 9510-9809
327 LAMP ASM; SIDE TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-86830-011-6 01 1 9810-
327 LAMP ASM; SIDE TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-86830-262-0 01 1 9510-9809
327 LAMP ASM; SIDE TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-86830-007-6 01 1 9810-
344 LAMP UNIT; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-86830-267-1 01 1 9510-0004
344 LAMP UNIT; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82213-021-0 01 1 0005-
344 LAMP UNIT; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-86830-266-1 01 1 9510-0004
344 LAMP UNIT; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82213-020-0 01 1 0005-
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-86830-241-1 01 1 9510-
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-86830-240-1 01 1 9510-

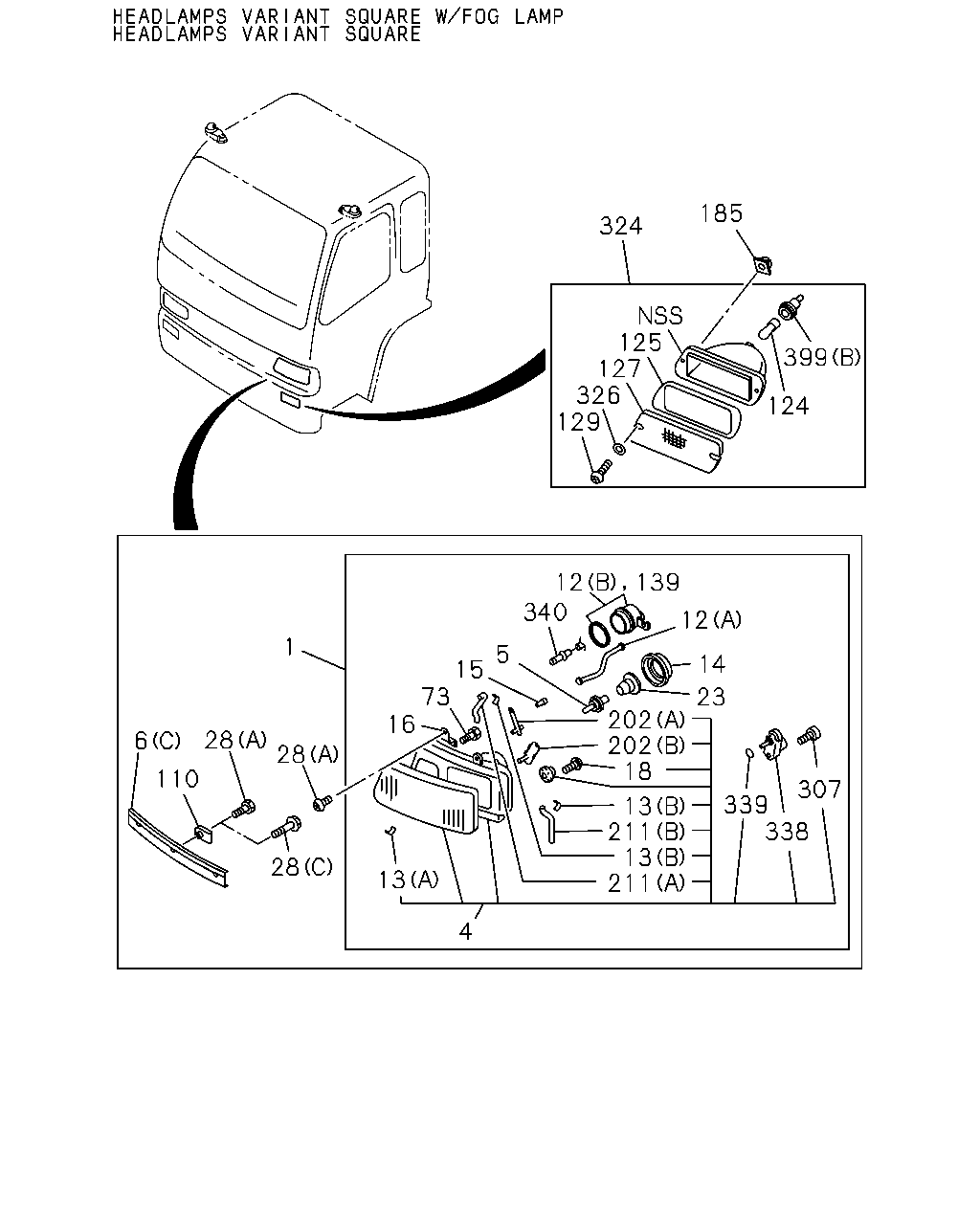

çizim 183763
324 185 125 399 127 326 129 124 139 12 14 23 12 340 5 15 73 16 13 4 211 338 307 339 13 211 13 18 202 202 28 6 28 28 110 1
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> 		1-82110-314-0 01 1 9510-0004
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> 		1-82110-313-0 01 1 9510-0004
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-174-1 01 1 9510-0004
1 LAMP ASM; HEAD
HEADLAMPS RECTANGULAR<TR4> 		1-86830-173-1 01 1 9510-0004
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-176-4 01 1 9510-0210
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82110-440-0 01 1 0211-
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-175-4 01 1 9510-0210
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82110-439-0 01 1 0211-
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-124-4 01 1 9510-
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-123-4 01 1 9510-
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-198-1 01 1 9510-0210
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-205-0 01 1 0211-
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-197-1 01 1 9510-0210
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-204-0 01 1 0211-
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-196-1 01 1 9510-
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-195-1 01 1 9510-
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W 		8-94405-657-0 02 1 9803-
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 75/70W 		1-82194-063-0 02 1 9510-9802
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 75/70W 		1-82194-063-0 02 1 9803-
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 		8-94165-573-0 04 1 9510-0004
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-71118-746-1 01 1 9510-0004
6 RIM; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-71118-745-1 01 1 9510-0004
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) 		1-86830-006-5 01 1 9510-
6 RIM; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) 		1-86830-005-5 01 1 9510-
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-199-0 02 1 0005-
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-145-0 02 1 9510-
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-199-0 02 1 9510-0004
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 9510-
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 9510-
14 CAP; BULB,LAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82219-030-0 02 1 9609-9705
14 CAP; BULB,LAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> 		1-82219-030-0 02 1 9706-0004
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 9510-
15 BULB; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 55W 		1-82194-079-0 02 1 9510-
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-076-0 01 1 9510-
16 BRACKET; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-075-0 01 1 9510-
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 9510-
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 9510-
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) M6X16 FLANGE 		0-28650-616-0 04 1 0709-
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-0004
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0005-0708
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709-
28 BOLT; HEADLAMP
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9510-0004
28 BOLT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9510-0004
73 BOLT; BRKT,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		8-94332-050-0 04 1 9510-
110 CLIP; RIM,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-213-1 04 1 9510-
124 BULB; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W 		1-82194-036-0 02 1 9510-
125 GASKET; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-033-0 02 1 9510-
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-065-0 01 1 9510-
127 LENS; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE 		1-82215-064-0 01 1 9510-
129 SCREW; FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82219-026-0 04 1 9510-
139 COVER; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-224-0 02 1 0005-
185 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 9510-
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) OUTER 		1-86830-139-0 02 1 9510-
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) INNER 		1-86830-140-0 02 1 9510-
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-142-0 01 1 9510-9911
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-329-0 01 1 9912-0105
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-144-0 01 1 9510-9911
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 9912-
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-141-0 01 1 9510-9911
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-328-0 01 1 9912-0105
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-143-0 01 1 9510-9911
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 9912-
307 SCREW; TAPPING,HEAD LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 02 1 0211-
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-203-1 01 1 9510-
324 LAMP; FRT FLASHER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82210-202-1 01 1 9510-
326 WASHER; PL,FRT TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82216-032-0 04 1 9510-
338 LEVELING; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-138-0 02 1 0211-
339 GASKET; LEVELING
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-158-0 02 1 0211-
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 9510-
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4> (A) 		1-82219-033-0 02 1 9510-9705
399 SOCKET; TURN SIGNAL
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 		1-82219-033-0 02 1 9706-0004
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> (B) 		1-82219-034-0 02 1 9510-9705
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4>, AMBER HEADLAMPS<T75> (B) 		1-82219-034-0 02 1 9706-0004
399 SOCKET; TURN SIGNAL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82219-034-0 02 1 0005-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
