Sayfa 7-70 - Isuzu EPC

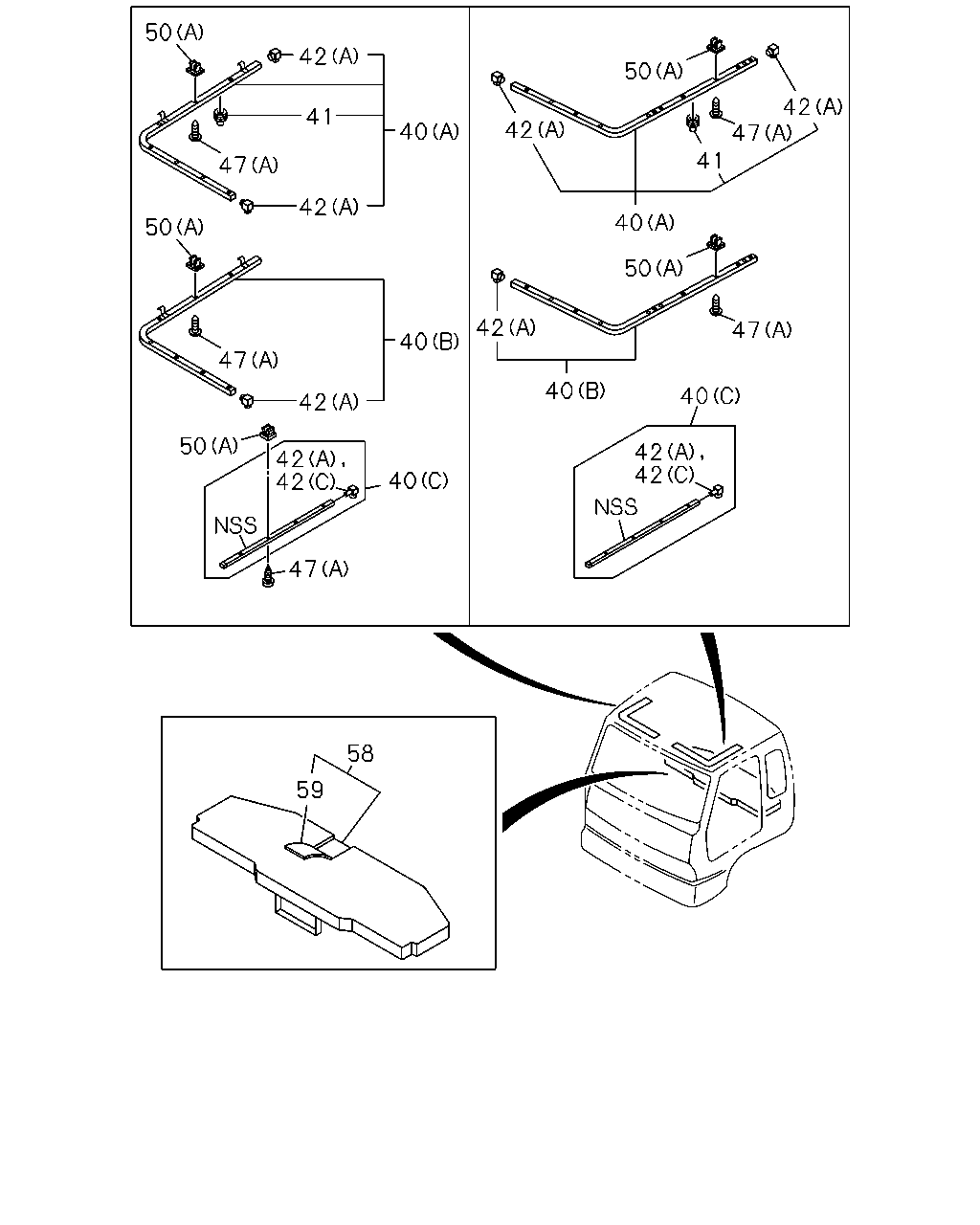

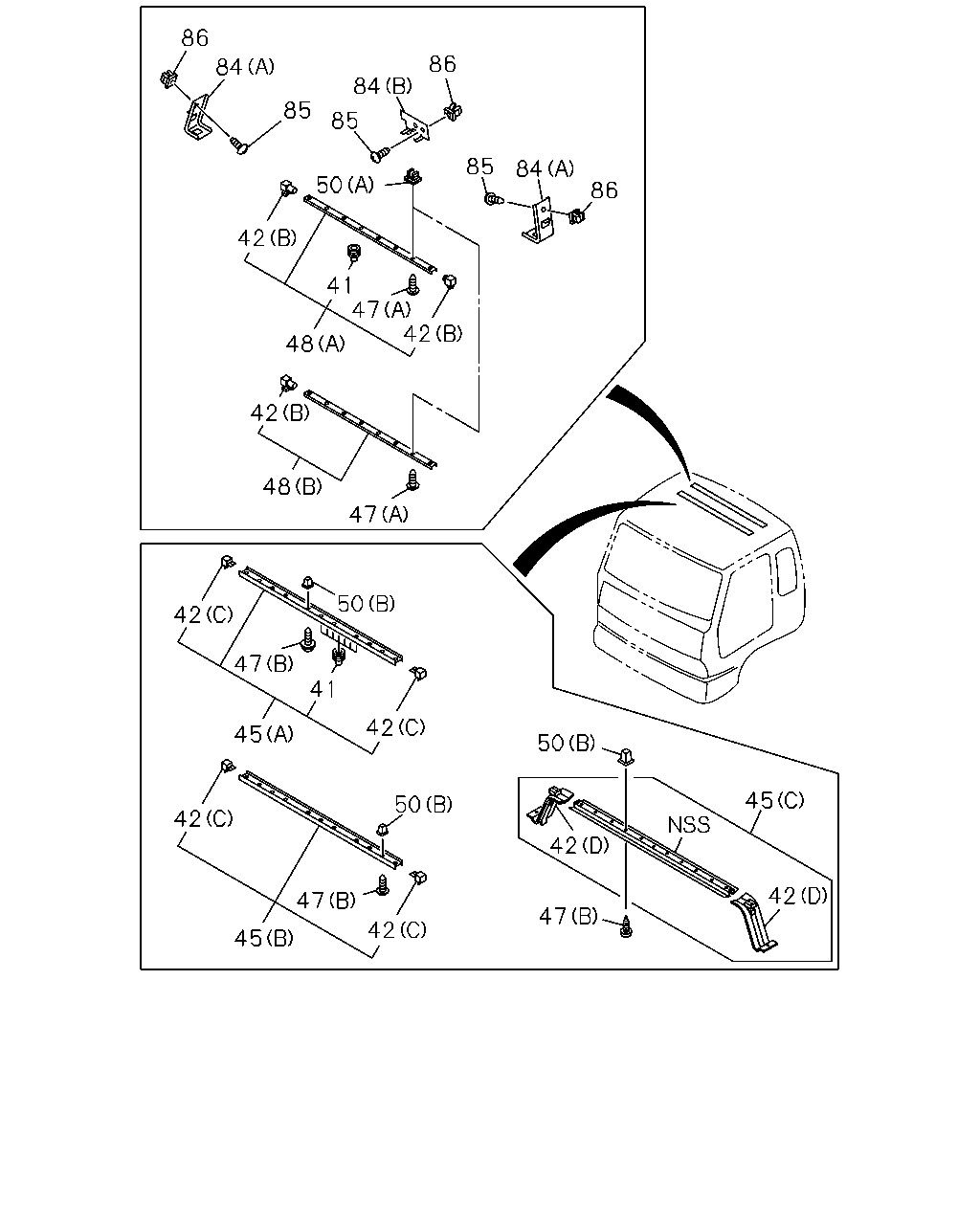

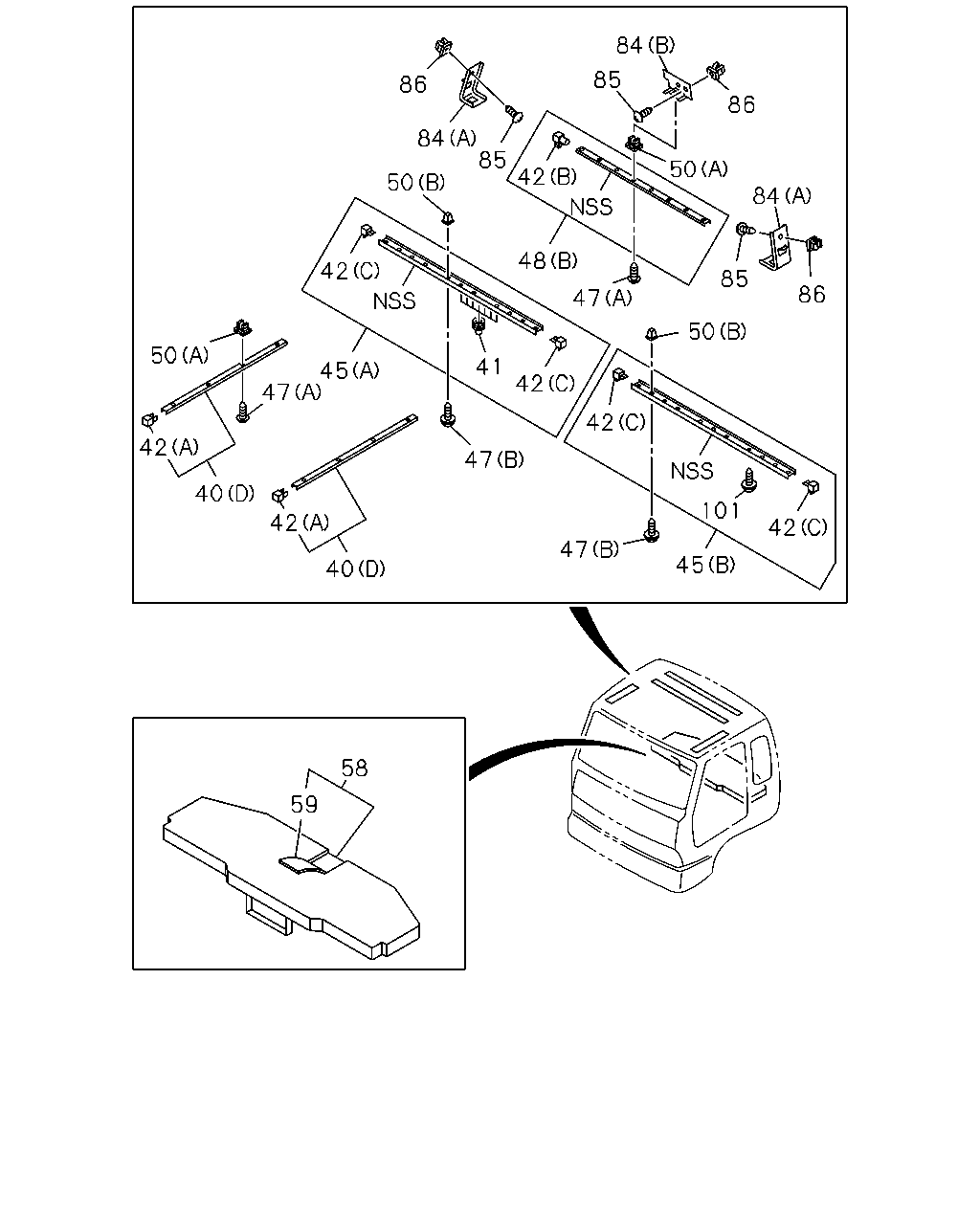

7-70 — SEPARATER AND BED (#64152) — 273 parça

84 85 86 86 84 85 50 42 50 84 48 42 85 86 47 50 50 41 45 42 47 42 42 47 40 101 42 42 47 45 40 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73908-109-1	01	1	9510-9802
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73908-108-1	01	1	9510-9802
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-334-1	02	1	9803-0004
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-378-1	02	1	0005-
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (D)	1-73908-204-0	02	1	9510-9512
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (D)	1-73908-219-0	01	1	9601-0004
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (D)	1-73996-379-0	01	1	0005-
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (D)	1-73908-220-0	01	1	9601-0004
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (D)	1-73996-380-1	01	1	0005-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-154-1	01	1	9510-0004
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-368-1	01	1	0005-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-153-1	01	1	9510-0004
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-367-1	01	1	0005-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	08	1	9510-0004
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	08	1	0005-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	32	1	9510-0004
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	32	1	0005-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	12	1	9705-9802
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	14	1	9803-0004
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0005-0006
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE	1-73996-398-0	14	1	0007-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0007-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY	1-73996-105-0	13	1	9510-9704
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9705-0004
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE	1-73996-398-0	13	1	0005-0006
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-279-2	02	1	9510-9802
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (D)	1-73907-449-2	02	1	9803-0004
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (D)	1-73996-402-0	02	1	0005-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	9510-9512
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73908-193-0	02	1	9601-0004
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	9601-0004
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73996-393-0	02	1	0005-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0005-
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-403-1	02	1	9510-0004
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-657-0	02	1	0005-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	02	1	9510-0004
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0005-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-193-0	04	1	9510-0004
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-393-0	04	1	0005-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	01	1	9510-0004
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0005-
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A)	1-73908-150-0	01	1	9510-0004
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A)	1-73908-374-2	01	1	0005-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-110-0	01	1	9510-9802
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C)	1-73996-303-3	01	1	9803-0004
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C)	1-73996-369-1	01	1	0005-
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-148-0	01	1	9510-0004
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-373-1	01	1	0005-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A)	1-73996-101-4	01	1	9510-9802
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C)	1-73908-262-0	01	1	9803-0004
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C)	1-73996-370-1	01	1	0005-
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	21	1	9510-9703
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	30	1	9704-9802
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	25	1	9803-
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (B) M5X25	5-09981-093-0	09	1	9510-9703
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	19	1	9803-
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X20	5-09981-059-0	17	1	9510-
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (B) M5X25	5-09981-093-0	07	1	9510-9802
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	9803-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-106-3	01	1	9510-0004
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-386-1	01	1	0005-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	8-94265-811-0	01	1	9510-0004
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-385-1	01	1	0005-
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	09	1	9510-9802
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9803-0211
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9803-0211
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-0212
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0301-
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0301-
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	21	1	9510-9708
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5	8-94279-078-0	21	1	9709-9802
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	9803-
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	9803-
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9510-9802
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	9803-0211
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0301-
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	17	1	9510-9708
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	9709-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-226-1	01	1	9510-0003
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-521-0	01	1	0004-0004
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-522-1	01	1	0005-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-231-0	01	1	9510-0003
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-668-0	01	1	0004-0004
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-669-1	01	1	0005-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	9510-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	02	1	9510-9802
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9803-
84	BRACKET; CURTAIN RAIL LOW ROOF<6XQ> (B)	1-73998-987-4	07	1	9510-9802
85	SCREW; BRKT HIGH ROOF<S2F> M5X20	5-09981-059-0	04	1	9510-9802
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	9803-0004
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0005-
85	SCREW; BRKT LOW ROOF<6XQ> M5X20	5-09981-059-0	09	1	9510-9802
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9803-0004
86	GROMMET; SCREW,BRKT HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	04	1	9510-9708
86	GROMMET; SCREW,BRKT HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9709-9802
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9803-0004
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0005-
86	GROMMET; SCREW,BRKT LOW ROOF<6XQ> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	09	1	9510-9708
86	GROMMET; SCREW,BRKT LOW ROOF<6XQ> D=8.6X7.7 L=7.5	8-94279-078-0	09	1	9709-9802
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9803-0004
101	SCREW; STOPPER LOW ROOF<6XQ>	1-73907-400-0	02	1	0005-

50 42 50 42 41 42 40 47 41 47 42 40 50 50 42 47 40 47 40 40 42 50 42 42 42 42 40 47 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73908-109-1	01	1	9510-9802
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73908-108-1	01	1	9510-9802
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-334-1	02	1	9803-0004
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-378-1	02	1	0005-
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (D)	1-73908-204-0	02	1	9510-9512
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (D)	1-73908-219-0	01	1	9601-0004
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (D)	1-73996-379-0	01	1	0005-
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (D)	1-73908-220-0	01	1	9601-0004
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (D)	1-73996-380-1	01	1	0005-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-154-1	01	1	9510-0004
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-368-1	01	1	0005-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-153-1	01	1	9510-0004
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-367-1	01	1	0005-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	08	1	9510-0004
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	08	1	0005-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	32	1	9510-0004
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	32	1	0005-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	12	1	9705-9802
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	14	1	9803-0004
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0005-0006
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE	1-73996-398-0	14	1	0007-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0007-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY	1-73996-105-0	13	1	9510-9704
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9705-0004
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE	1-73996-398-0	13	1	0005-0006
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-279-2	02	1	9510-9802
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (D)	1-73907-449-2	02	1	9803-0004
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (D)	1-73996-402-0	02	1	0005-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	9510-9512
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73908-193-0	02	1	9601-0004
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	9601-0004
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73996-393-0	02	1	0005-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0005-
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-403-1	02	1	9510-0004
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-657-0	02	1	0005-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	02	1	9510-0004
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0005-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-193-0	04	1	9510-0004
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-393-0	04	1	0005-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	01	1	9510-0004
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0005-
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	21	1	9510-9703
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	30	1	9704-9802
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	25	1	9803-
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (B) M5X25	5-09981-093-0	09	1	9510-9703
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	19	1	9803-
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X20	5-09981-059-0	17	1	9510-
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (B) M5X25	5-09981-093-0	07	1	9510-9802
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	9803-
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	09	1	9510-9802
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9803-0211
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9803-0211
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-0212
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0301-
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0301-
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	21	1	9510-9708
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5	8-94279-078-0	21	1	9709-9802
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	9803-
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	9803-
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9510-9802
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	9803-0211
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0301-
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	17	1	9510-9708
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	9709-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-226-1	01	1	9510-0003
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-521-0	01	1	0004-0004
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-522-1	01	1	0005-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-231-0	01	1	9510-0003
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-668-0	01	1	0004-0004
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-669-1	01	1	0005-

86 86 84 84 85 85 85 84 50 86 42 41 47 42 48 42 48 47 50 42 47 41 42 45 50 45 50 42 42 42 47 47 42 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	08	1	9510-0004
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	08	1	0005-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	32	1	9510-0004
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	32	1	0005-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	12	1	9705-9802
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	14	1	9803-0004
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0005-0006
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE	1-73996-398-0	14	1	0007-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0007-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY	1-73996-105-0	13	1	9510-9704
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9705-0004
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE	1-73996-398-0	13	1	0005-0006
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-279-2	02	1	9510-9802
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (D)	1-73907-449-2	02	1	9803-0004
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (D)	1-73996-402-0	02	1	0005-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	9510-9512
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73908-193-0	02	1	9601-0004
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	9601-0004
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73996-393-0	02	1	0005-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0005-
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-403-1	02	1	9510-0004
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-657-0	02	1	0005-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	02	1	9510-0004
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0005-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-193-0	04	1	9510-0004
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-393-0	04	1	0005-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	01	1	9510-0004
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0005-
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A)	1-73908-150-0	01	1	9510-0004
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A)	1-73908-374-2	01	1	0005-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-110-0	01	1	9510-9802
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C)	1-73996-303-3	01	1	9803-0004
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C)	1-73996-369-1	01	1	0005-
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-148-0	01	1	9510-0004
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-373-1	01	1	0005-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A)	1-73996-101-4	01	1	9510-9802
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C)	1-73908-262-0	01	1	9803-0004
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C)	1-73996-370-1	01	1	0005-
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	21	1	9510-9703
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	30	1	9704-9802
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	25	1	9803-
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (B) M5X25	5-09981-093-0	09	1	9510-9703
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	19	1	9803-
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X20	5-09981-059-0	17	1	9510-
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (B) M5X25	5-09981-093-0	07	1	9510-9802
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	9803-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-106-3	01	1	9510-0004
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-386-1	01	1	0005-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	8-94265-811-0	01	1	9510-0004
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-385-1	01	1	0005-
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	09	1	9510-9802
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9803-0211
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9803-0211
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-0212
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0301-
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0301-
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	21	1	9510-9708
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5	8-94279-078-0	21	1	9709-9802
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	9803-
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	9803-
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9510-9802
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	9803-0211
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0301-
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	17	1	9510-9708
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	9709-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	9510-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	02	1	9510-9802
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9803-
84	BRACKET; CURTAIN RAIL LOW ROOF<6XQ> (B)	1-73998-987-4	07	1	9510-9802
85	SCREW; BRKT HIGH ROOF<S2F> M5X20	5-09981-059-0	04	1	9510-9802
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	9803-0004
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0005-
85	SCREW; BRKT LOW ROOF<6XQ> M5X20	5-09981-059-0	09	1	9510-9802
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9803-0004
86	GROMMET; SCREW,BRKT HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	04	1	9510-9708
86	GROMMET; SCREW,BRKT HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9709-9802
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9803-0004
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0005-
86	GROMMET; SCREW,BRKT LOW ROOF<6XQ> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	09	1	9510-9708
86	GROMMET; SCREW,BRKT LOW ROOF<6XQ> D=8.6X7.7 L=7.5	8-94279-078-0	09	1	9709-9802
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9803-0004

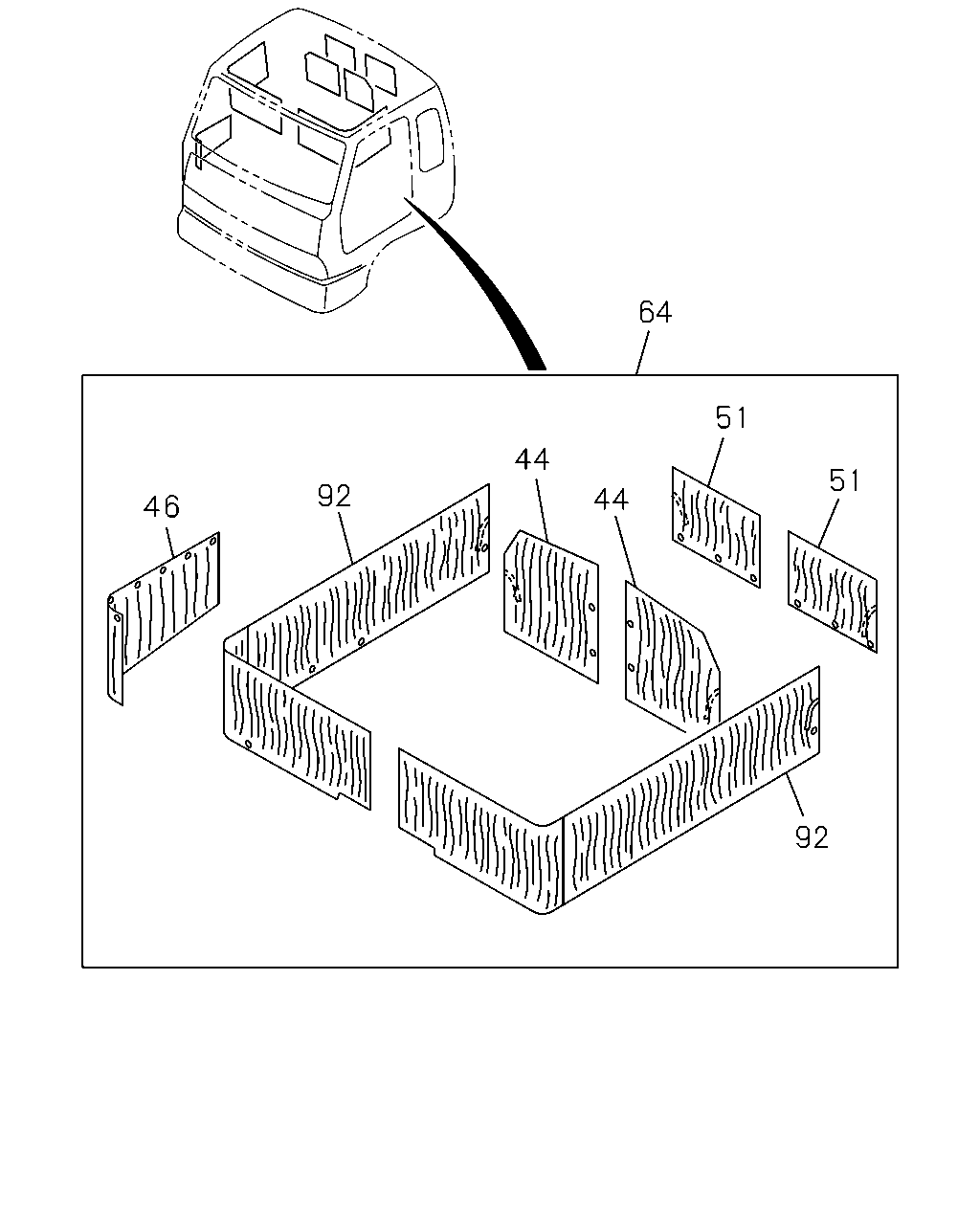

64 51 44 51 92 44 46 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73908-208-0	01	1	9510-0004
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73908-208-1	01	1	0005-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73908-207-0	01	1	9510-0004
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73908-207-1	01	1	0005-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-303-0	01	1	9510-0004
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-303-0	01	1	0005-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73908-212-0	01	1	9510-0004
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73908-211-1	01	1	0005-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73908-211-0	01	1	9510-0004
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73908-212-1	01	1	0005-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73908-205-1	01	1	9510-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73908-216-0	01	1	9510-0004
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73908-216-1	01	1	0005-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73908-215-0	01	1	9510-0004
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73908-215-1	01	1	0005-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
