7-40 — INSTRUMENT PANEL AND BOX (#64147) — 111 parça

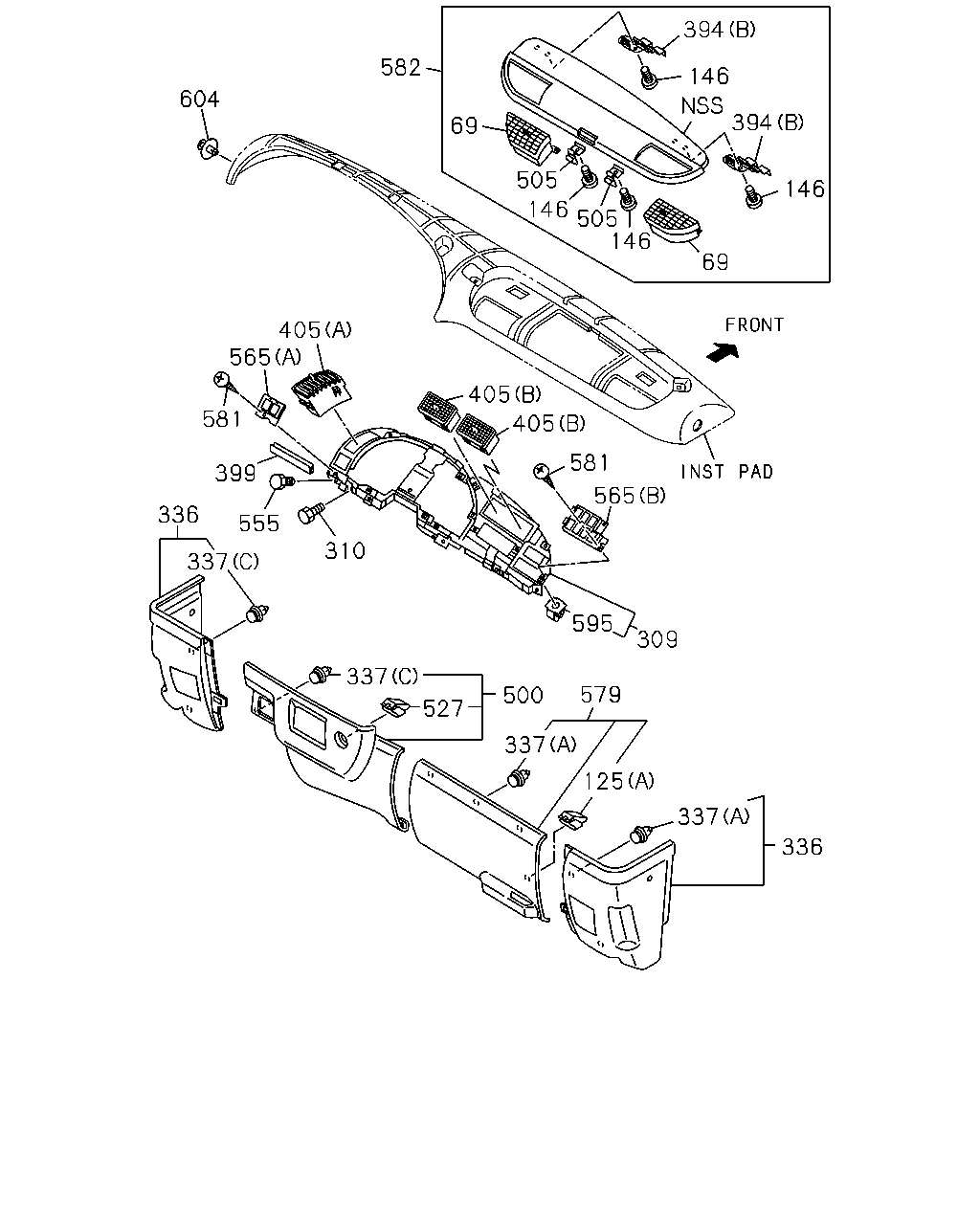

çizim 183757
394 582 146 604 394 69 505 146 146 505 146 69 405 565 405 581 405 581 565 399 336 555 310 337 595 309 337 579 500 527 337 125 337 336
BalonParca AdiParca NoAdetTipApplied Date
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9510-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9510-
125 CLIP; INST PANEL
(A) 		8-97853-939-4 01 1 9510-9812
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 9901-
125 CLIP; INST PANEL
(B) 		8-97853-939-4 08 1 9510-9812
125 CLIP; INST PANEL
(B) 		8-97217-066-0 08 1 9901-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9510-
309 PANEL; SW,INST 1-72418-018-3 01 1 9510-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9510-
336 COVER; INST PANEL SIDE 1-72438-132-0 01 1 9510-0004
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 0005-
336 COVER; INST PANEL SIDE 1-72438-130-1 01 1 9510-0004
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 0005-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9510-
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 9510-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9510-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9510-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9510-0407
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408-
399 FINISHER; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9803-9807
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9808-
405 GRILLE ASM; METER VENT
(A) 		1-76368-062-0 01 1 9510-
405 GRILLE ASM; METER VENT
(B) BLACK 		8-94333-730-4 02 1 9510-
500 CLUSTER; INST CENTER 1-72438-126-3 01 1 9510-0004
500 CLUSTER; INST CENTER 1-72438-192-1 01 1 0005-
505 LOCK; LID 1-72558-024-2 02 1 9510-
527 CLIP; INST CLUSTER 8-97853-939-4 04 1 9510-9812
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9901-
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 9510-0512
555 BOLT; PAD
M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0605-
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9510-
565 BEZEL; SW PANEL
(A) 		1-72418-021-1 01 1 9510-
565 BEZEL; SW PANEL
(B) 		1-72418-020-1 01 1 9510-
579 COVER; INST PNL 1-72438-128-1 01 1 9510-0004
579 COVER; INST PNL 1-72438-195-1 01 1 0005-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9510-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72548-140-1 01 1 9510-0004
582 LID; FUSE & RELAY 1-72548-146-1 01 1 0005-
595 NUT; HOOK 1-72418-013-0 10 1 9510-
604 CLIP; INST PAD 1-09983-123-0 01 1 9510-

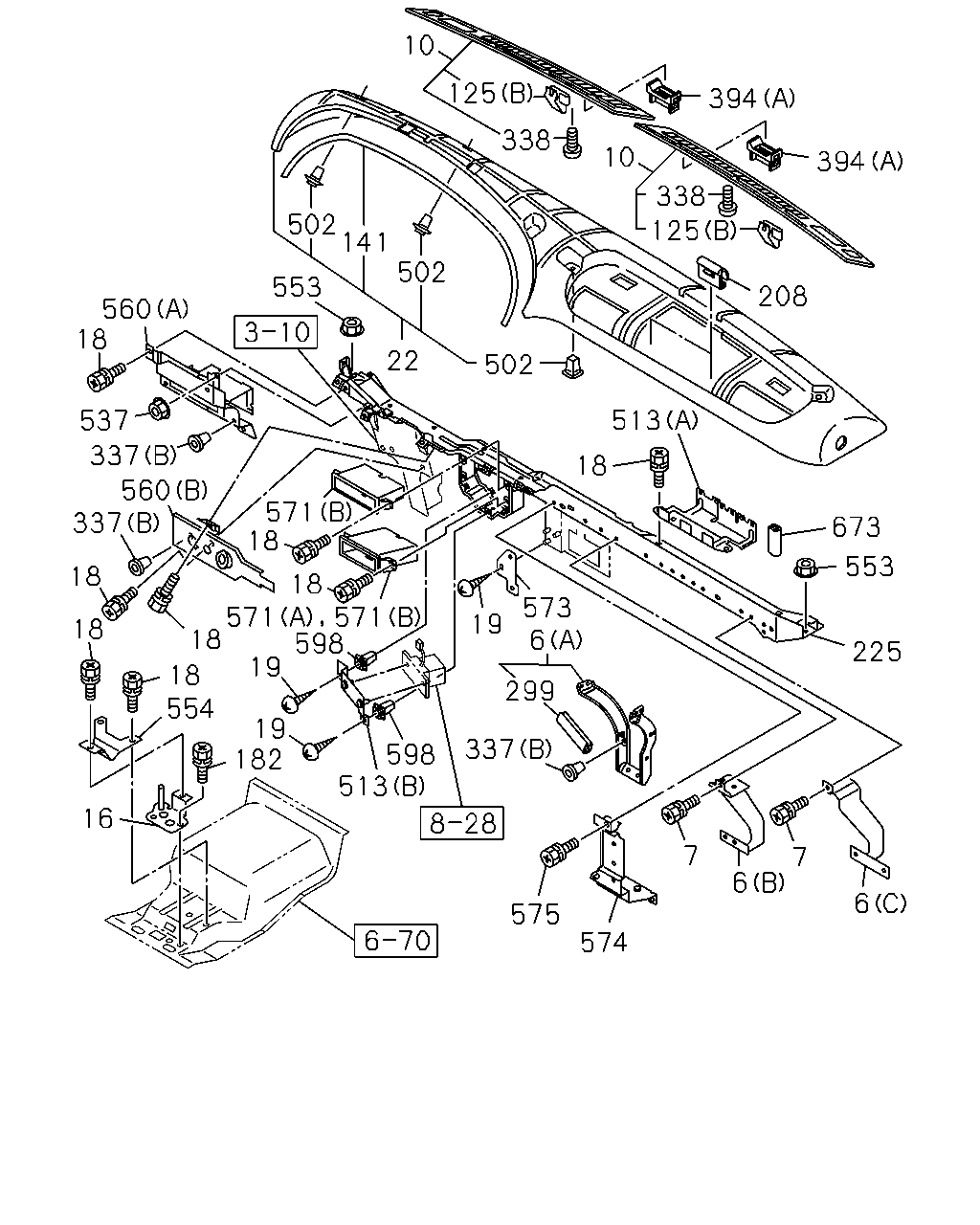

çizim 183759
10 125 394 338 10 394 338 502 141 125 502 553 208 560 18 22 502 513 537 337 18 560 337 571 18 673 18 18 598 573 6 553 18 18 19 225 19 18 554 299 19 182 337 598 513 16 7 7 6 6 575 574 571 571
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
(A) 		1-65681-035-6 01 1 9510-
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-062-2 01 1 9510-
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-061-2 01 1 9510-
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9510-
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9510-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72437-089-8 01 1 9510-9601
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-6 01 1 9602-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-150-2 01 1 9510-9601
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-7 01 1 9602-
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-142-0 01 1 9510-9601
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-158-1 01 1 9602-
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-141-0 01 1 9510-9601
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-157-1 01 1 9602-
16 BRACKET; INST PNL 1-79738-802-1 01 1 9510-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9510-
18 BOLT; BRKT
M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9510-
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9510-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9510-
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9510-
22 PAD; INST 1-72318-415-2 01 1 9510-0004
22 PAD; INST 1-72318-435-3 01 1 0005-
125 CLIP; INST PANEL
(A) 		8-97853-939-4 01 1 9510-9812
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 9901-
125 CLIP; INST PANEL
(B) 		8-97853-939-4 08 1 9510-9812
125 CLIP; INST PANEL
(B) 		8-97217-066-0 08 1 9901-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9510-
182 BOLT; BRKT,INST PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9510-
225 FRAME; FACIA 1-65681-028-8 01 1 9510-1002
225 FRAME; FACIA 8-98142-104-0 01 1 1003-
299 FINISHER; STAY,INST CENTER
L=150 SERVICED BY L=314 		8-94262-845-0 01 1 0006-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9510-
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 9510-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9510-
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 9510-0208
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94148-576-1 10 1 0209-0309
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 20 1 0310-0405
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 0406-0801
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 15 1 0802-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9510-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9510-0407
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9510-
513 BRACKET; RELAY
(A) 		1-73908-056-3 01 1 9510-9604
513 BRACKET; RELAY
(A) 		8-97865-168-3 01 1 9605-
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 9510-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9510-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9510-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
554 BRACKET; CENTER BEZEL 1-65681-039-2 01 1 9510-
560 BRACKET
(A) 		1-65681-045-6 01 1 9510-
560 BRACKET
(B) 		1-65681-043-2 01 1 9510-
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9510-9812
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-0 01 1 9510-9812
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A),(B) 		1-72438-151-3 01 1 9901-
571 BEZEL; POCKET
(A),(B) 		1-72438-151-3 01 1 9901-
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-023-2 01 1 9510-
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-200-0 01 1 9510-
574 PANEL; RELAY BOX 1-73908-058-7 01 1 9510-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-
598 GROMMET; SCREW
PTO CONTROL<SV6> D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 02 1 9510-
673 FINISHER; BRKT,RELAY
L=30 SERVICED BY L=50 		8-94270-377-1 01 1 0006-0009
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010-
çizim 183779
259 260 597
BalonParca AdiParca NoAdetTipApplied Date
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73318-551-0 01 1 9510-0004
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0005-
260 SCREW; STUFF PLATE
EXC. SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9510-
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0104-
