Isuzu WW
▶
TRUCKS
▶
FRR
▶
10699 - FRR(LHD) EXC.EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

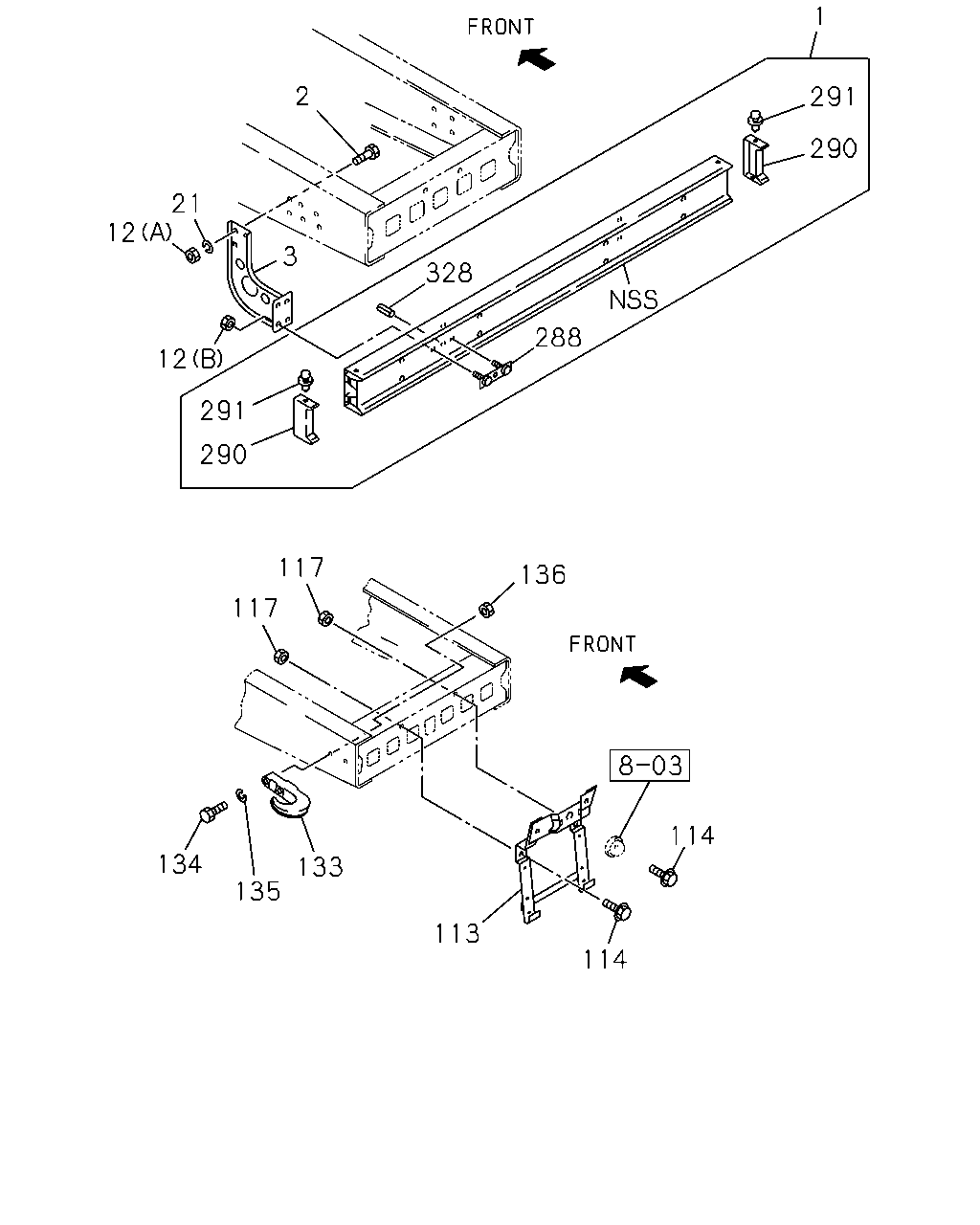

6-90 — REAR BUMPER
(#64142) — 34 parça
1
2
291
290
3
21
12
328
288
12
291
290
117
136
117
114
134
133
135
113
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER; RR
BUMPER REAR REINFORCEMENT VAR5<SMV> STAMP D4S
1-71220-163-1
01
1
0411-
2
BOLT; BACK BAR
BUMPER REAR REINFORCEMENT VAR5<SMV> M16X40
0-20801-640-0
08
1
0411-0512
2
BOLT; BACK BAR
BUMPER REAR REINFORCEMENT VAR5<SMV> M16X40
0-20851-640-0
08
1
0601-
3
BRACKET; BUMPER
BUMPER REAR REINFORCEMENT VAR5<SMV> STAMP GU
1-71230-270-1
01
1
0411-0503
3
BRACKET; BUMPER
BUMPER REAR REINFORCEMENT VAR5<SMV> STAMP GL
1-71230-272-2
01
1
0504-
3
BRACKET; BUMPER
BUMPER REAR REINFORCEMENT VAR5<SMV> STAMP GU
1-71230-271-1
01
1
0411-0503
3
BRACKET; BUMPER
BUMPER REAR REINFORCEMENT VAR5<SMV> STAMP GL
1-71230-273-2
01
1
0504-
12
NUT; BRKT
BUMPER REAR REINFORCEMENT VAR5<SMV> (B) M12 FLANGE
0-91150-212-0
08
1
0411-0602
12
NUT; BRKT
BUMPER REAR REINFORCEMENT VAR5<SMV> (B) M12 FLANGE
0-91180-212-0
08
1
0603-
12
NUT; BRKT
BUMPER REAR REINFORCEMENT VAR5<SMV> (A) M16
9-99110-516-0
08
1
0411-0512
12
NUT; BRKT
BUMPER REAR REINFORCEMENT VAR5<SMV> (A) M16
0-91110-516-0
08
1
0601-
21
WASHER; LK,BUMPER
BUMPER REAR REINFORCEMENT VAR5<SMV> ID=16.2
9-09150-816-0
08
1
0411-0603
21
WASHER; LK,BUMPER
BUMPER REAR REINFORCEMENT VAR5<SMV> ID=16.2
0-91510-816-0
08
1
0604-
113
BRACKET; LICENSE PLATE
1-53485-048-2
01
1
9510-9608
113
BRACKET; LICENSE PLATE
1-53485-065-0
01
1
9609-0302
113
BRACKET; LICENSE PLATE
1-53485-074-0
01
1
0303-
114
BOLT; BRKT,LICENSE PLATE
M8X20 FLANGE
0-28080-820-0
02
1
9510-9606
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28680-825-0
02
1
9607-0512
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28650-825-0
02
1
0601-
117
NUT; BRKT
M8
9-09110-408-0
02
1
9510-9606
117
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
9607-0602
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
133
HOOK
1-57181-003-5
01
1
9510-
134
BOLT; HOOK
M14X50
0-10811-450-0
02
1
9510-0512
134
BOLT; HOOK
M14X50
0-10861-450-0
02
1
0601-
135
WASHER; LK,HOOK
ID=14.2
9-09150-514-0
02
1
9510-0603
135
WASHER; LK,HOOK
ID=14.2
0-91510-514-0
02
1
0604-
136
NUT; HOOK
M14
9-99110-414-0
02
1
9510-0512
136
NUT; HOOK
M14
0-91110-514-0
02
1
0601-
288
PLATE; RR BUMPER,REFLECTOR
BUMPER REAR REINFORCEMENT VAR5<SMV>
1-71290-053-0
04
1
0411-
290
COVER; RR
BUMPER REAR REINFORCEMENT VAR5<SMV>
1-71290-056-0
01
1
0411-
290
COVER; RR
BUMPER REAR REINFORCEMENT VAR5<SMV>
1-71290-057-0
01
1
0411-
291
RIVET; REFLECTOR
BUMPER REAR REINFORCEMENT VAR5<SMV> PUSH RIVET BLACK
1-71290-041-0
04
1
0411-
328
PIN; REFLECTOR
BUMPER REAR REINFORCEMENT VAR5<SMV>
1-71290-054-0
04
1
0411-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
