Sayfa 6-47 - Isuzu EPC

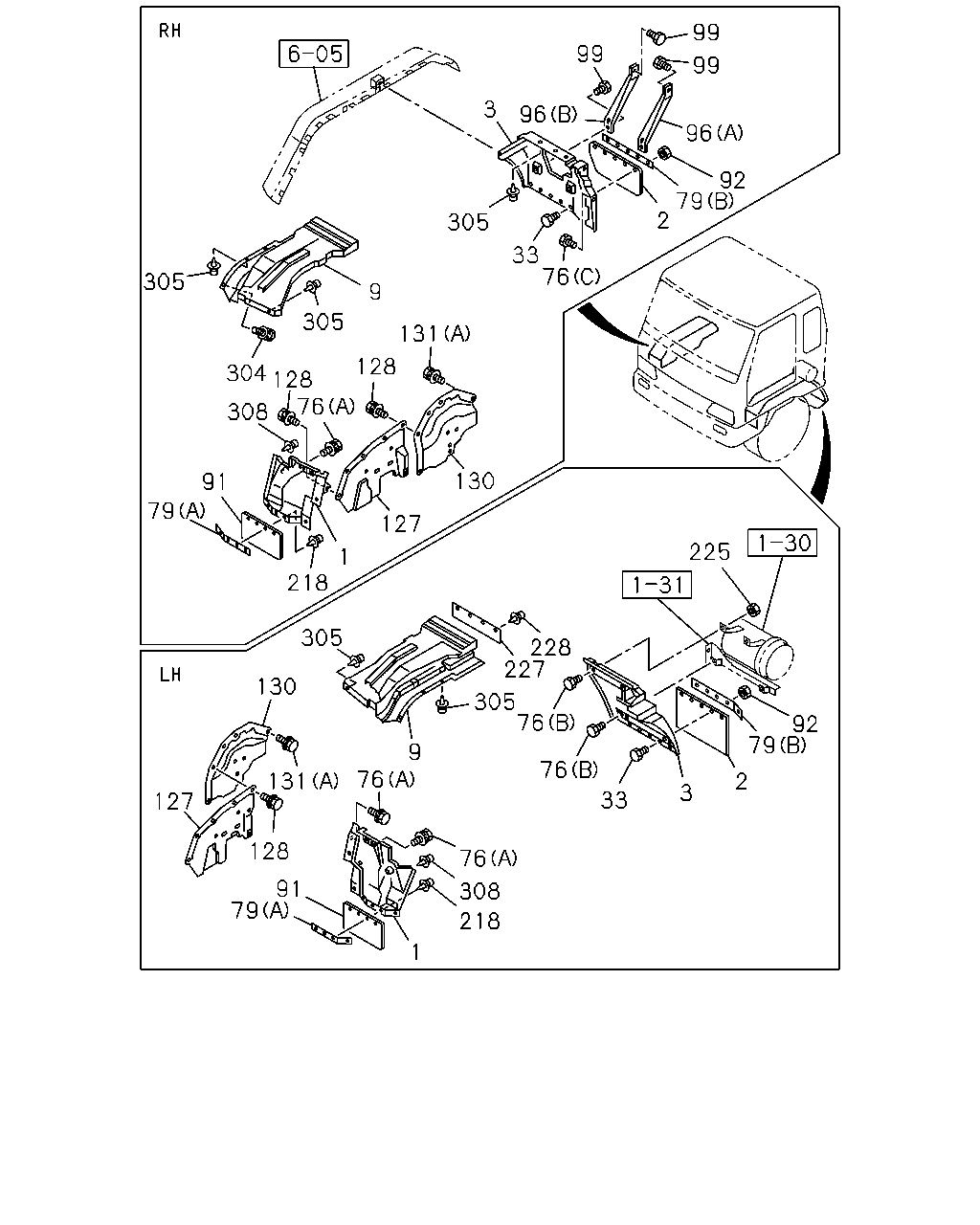

6-47 — MUD GUARD AND INSULATOR (#64132) — 281 parça

99 99 99 3 96 96 92 79 2 305 33 76 305 9 305 131 128 304 128 76 308 130 91 79 127 225 1 218 305 228 227 130 305 76 92 79 131 9 76 76 2 3 33 127 128 76 91 79 308 218 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79938-812-8	01	1	9510-
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9510-
2	COVER; MUD,TIRE RR	1-79931-224-0	01	1	9512-9610
2	COVER; MUD,TIRE RR	1-79931-217-0	01	1	9512-9610
2	COVER; MUD,TIRE RR	1-79930-484-2	01	1	9611-
2	COVER; MUD,TIRE RR	1-79930-693-1	01	1	9611-
3	GUARD; MUD,RR	1-79938-933-2	01	1	9510-9604
3	GUARD; MUD,RR	1-79938-961-2	01	1	9605-
3	GUARD; MUD,RR	1-79938-935-3	01	1	9510-
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-822-9	01	1	9510-0304
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-037-1	01	1	0305-
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-821-9	01	1	9510-0304
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-036-1	01	1	0305-
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	09	1	9510-9702
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	9703-
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9510-9605
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9606-0805
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0806-
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9510-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9510-
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9510-
79	RETAINER; MUD COVER (B)	1-79930-962-1	01	1	9510-
79	RETAINER; MUD COVER (B) L=509	1-79930-695-1	01	1	9510-
91	COVER; MUD,FRT	1-79931-043-0	02	1	9510-9511
91	COVER; MUD,FRT	1-79931-214-1	02	1	9512-
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9510-9612
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9701-0602
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	09	1	0603-
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	0405-
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9510-
96	STAY; MUD GUARD (B)	1-79938-738-0	01	1	9510-0404
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9510-
127	APRON; FRT	1-53193-222-0	01	1	9510-9611
127	APRON; FRT ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53193-222-1	01	1	9612-0004
127	APRON; FRT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ANTI NOISE EQUIPMENT ECE<SLK>	1-53193-222-1	01	1	0005-
127	APRON; FRT	1-53192-301-3	01	1	9510-
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53193-223-1	01	1	9612-0004
127	APRON; FRT EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-53193-223-1	01	1	0005-0403
127	APRON; FRT EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-53193-223-1	01	1	0404-
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9510-
130	PANEL; SHUTTER NOISE	1-53192-307-3	01	1	9510-9611
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-307-4	01	1	9612-0004
130	PANEL; SHUTTER NOISE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-307-4	01	1	0005-
130	PANEL; SHUTTER NOISE	1-53192-305-2	01	1	9510-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-308-3	01	1	9612-0004
130	PANEL; SHUTTER NOISE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-53192-308-3	01	1	0005-0403
130	PANEL; SHUTTER NOISE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-53192-308-3	01	1	0404-
131	BOLT; PANEL SAUDI ARABIA EQUIPMENT(WH1) (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	0411-
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9510-
131	BOLT; PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	9511-0004
218	FASTENER; RUBBER	1-09470-001-0	08	1	9510-
225	NUT; MUD GUARD M8	9-09110-408-0	02	1	9510-9612
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	02	1	9701-0602
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	02	1	0603-
227	SEAL; MUD GUARD	1-79938-820-1	01	1	9510-9601
227	SEAL; MUD GUARD	1-79938-953-1	01	1	9602-
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	9510-
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9510-
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	04	1	9510-0004
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	0005-
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9510-0004
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	08	1	0005-
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	08	1	9510-0004
308	FASTENER; MUD GUARD	1-09470-007-0	04	1	9510-

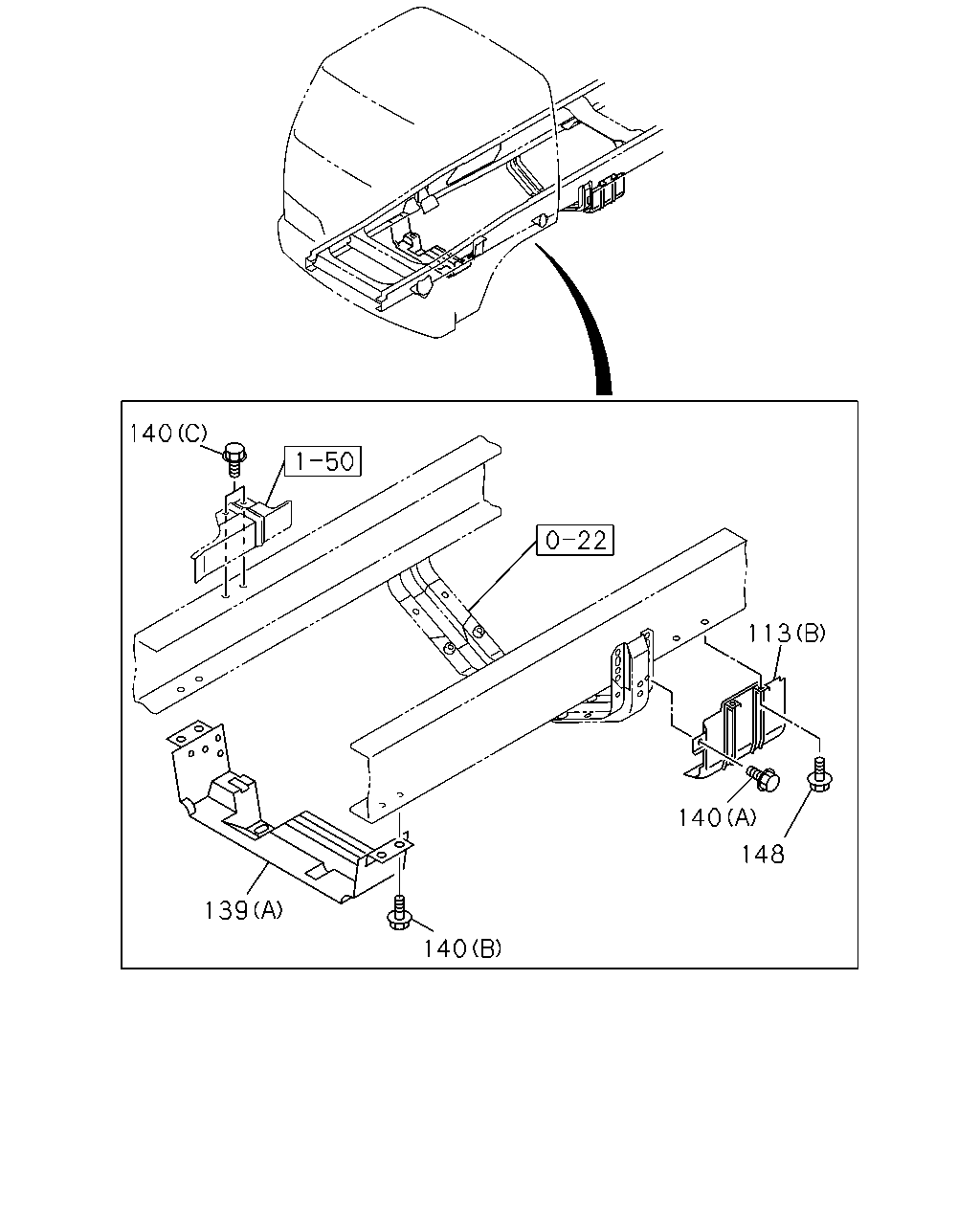

140 113 140 148 139 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
113	PANEL; SIDE SAUDI ARABIA EQUIPMENT(WH1) (C)	1-53194-388-0	01	1	0411-
113	PANEL; SIDE SAUDI ARABIA EQUIPMENT(WH1) (C)	1-53194-390-0	01	1	0411-
113	PANEL; SIDE ANTI NOISE EQUIPMENT VAR2<TAK> (B)	1-53192-297-4	01	1	9510-9510
113	PANEL; SIDE ANTI NOISE EQUIPMENT VAR2<TAK> (B)	1-53192-297-4	01	1	9511-9802
113	PANEL; SIDE 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (B)	1-53192-297-4	01	1	9511-9802
113	PANEL; SIDE 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A)	1-53192-295-3	01	1	9511-9802
139	PANEL; SIDE SAUDI ARABIA EQUIPMENT(WH1) (B)	1-53192-917-2	01	1	0411-
139	PANEL; SIDE ANTI NOISE EQUIPMENT ECE<SLK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-53192-591-0	01	1	9510-9802
139	PANEL; SIDE 6HH1 N ENG(66L) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-53192-591-0	01	1	9803-0004
139	PANEL; SIDE 6HH1 STD 4VALVE ENG(1A6) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-53192-591-0	01	1	0005-0410
139	PANEL; SIDE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (A)	1-53192-591-0	01	1	0411-
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (E) M8X25 FLANGE	0-28680-825-0	09	1	0411-0512
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (E) M8X25 FLANGE	0-28650-825-0	09	1	0601-
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (F) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0411-
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X25 FLANGE	0-28080-825-0	04	1	9510-9510
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8X25 FLANGE	0-28080-825-0	04	1	9511-9606
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (B) M8X25 FLANGE	0-28080-825-0	04	1	9511-9606
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8X25 FLANGE	0-28680-825-0	04	1	9607-9802
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (B) M8X25 FLANGE	0-28680-825-0	04	1	9607-9802
140	BOLT; SIDE PANEL 6HH1 N ENG(66L) ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X25 FLANGE	0-28680-825-0	04	1	9803-0004
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6) ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X25 FLANGE	0-28680-825-0	04	1	0005-0410
140	BOLT; SIDE PANEL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) M8X25 FLANGE	0-28680-825-0	04	1	0411-0512
140	BOLT; SIDE PANEL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (C) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-0512
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X25 FLANGE	0-28080-825-0	01	1	9511-9606
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9802
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	9511-9802
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	9511-9802
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	9803-0004
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X25 FLANGE	0-28680-825-0	01	1	9803-0004
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D) M8X16 FLANGE	0-28080-816-0	04	1	0102-0302
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M8X16 FLANGE	0-28080-816-0	04	1	0303-0512
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M8X16 FLANGE	0-28050-816-0	04	1	0601-
148	BOLT; PANEL TO PANEL SAUDI ARABIA EQUIPMENT(WH1) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0411-
148	BOLT; PANEL TO PANEL SAUDI ARABIA EQUIPMENT(WH1) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0411-
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	09	1	9511-9511
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	9511-9511
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	9512-9802
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	9512-9802
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	9803-0004
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	9803-0004

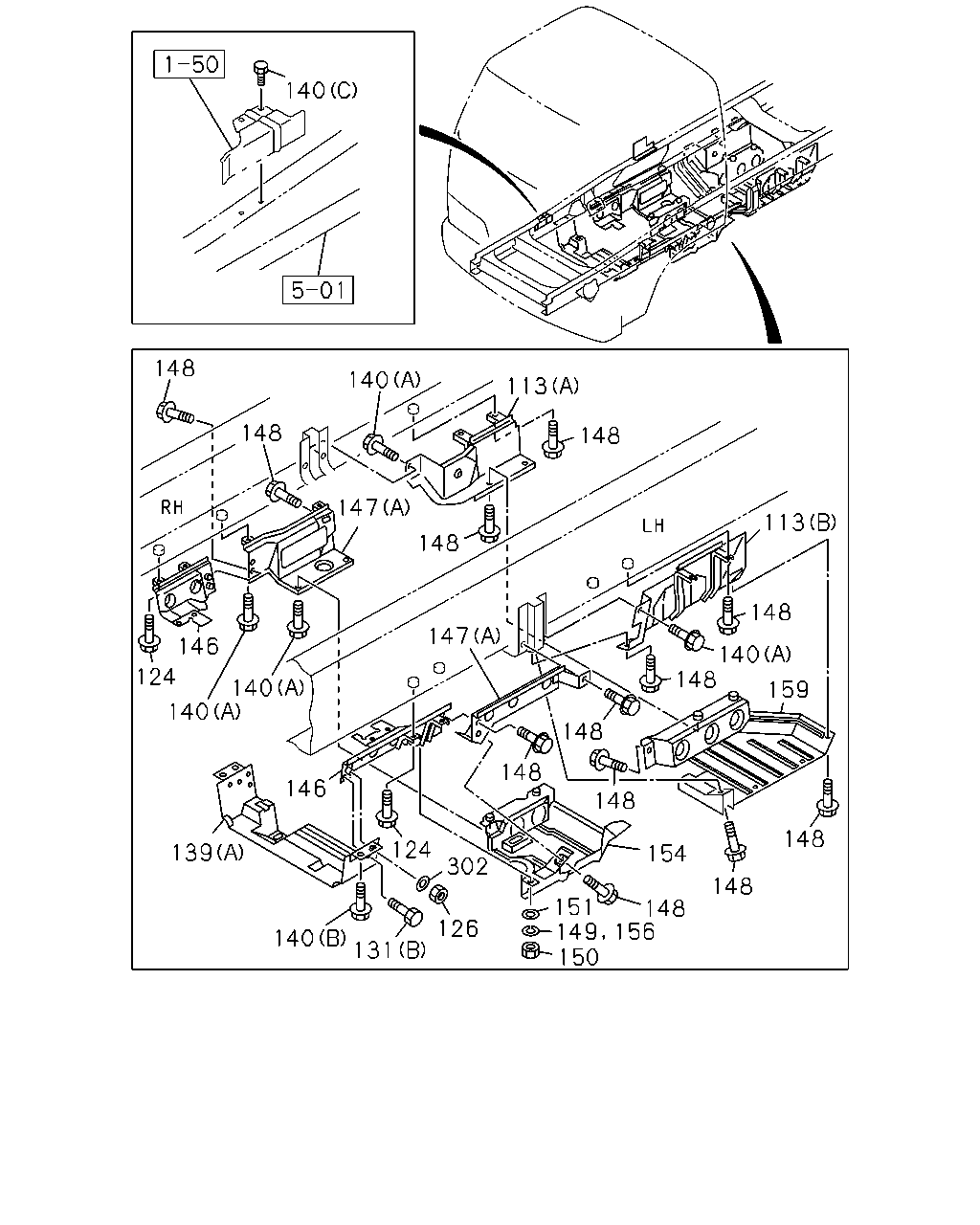

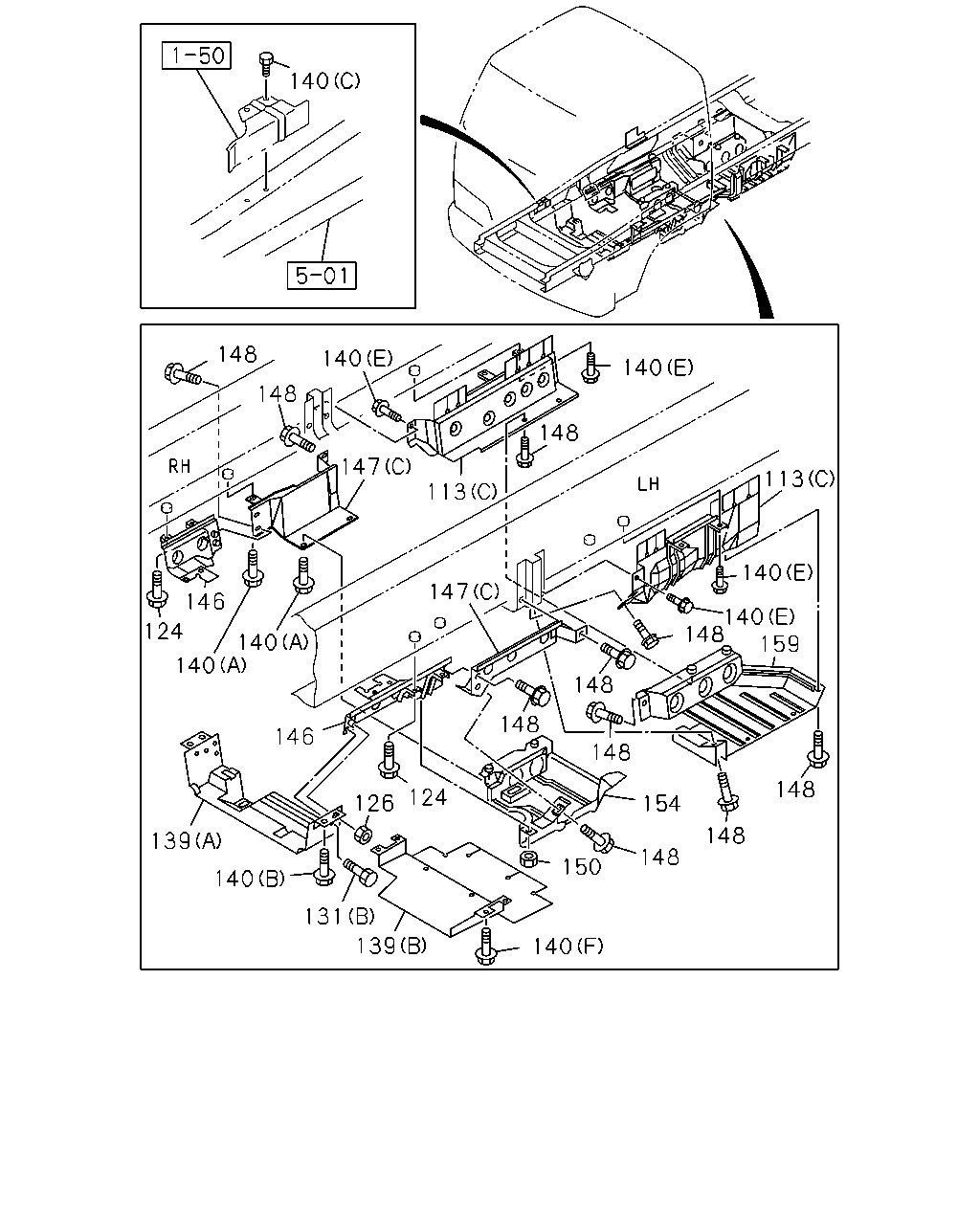

140 148 140 113 148 148 147 113 148 148 147 146 140 148 124 140 159 140 148 148 146 148 148 124 139 154 302 148 151 149 150 148 156 126 140 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
113	PANEL; SIDE SAUDI ARABIA EQUIPMENT(WH1) (C)	1-53194-388-0	01	1	0411-
113	PANEL; SIDE SAUDI ARABIA EQUIPMENT(WH1) (C)	1-53194-390-0	01	1	0411-
113	PANEL; SIDE ANTI NOISE EQUIPMENT VAR2<TAK> (B)	1-53192-297-4	01	1	9510-9510
113	PANEL; SIDE ANTI NOISE EQUIPMENT VAR2<TAK> (B)	1-53192-297-4	01	1	9511-9802
113	PANEL; SIDE 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (B)	1-53192-297-4	01	1	9511-9802
113	PANEL; SIDE 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A)	1-53192-295-3	01	1	9511-9802
124	BOLT; BRKT SAUDI ARABIA EQUIPMENT(WH1) M8X25 FLANGE	0-28680-825-0	04	1	0411-0512
124	BOLT; BRKT SAUDI ARABIA EQUIPMENT(WH1) M8X25 FLANGE	0-28650-825-0	04	1	0601-
124	BOLT; BRKT 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE	0-28080-825-0	04	1	9511-9606
124	BOLT; BRKT 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE	0-28680-825-0	04	1	9607-0004
126	NUT; PANEL SAUDI ARABIA EQUIPMENT(WH1) M8 FLANGE	0-91150-108-0	01	1	0411-0602
126	NUT; PANEL SAUDI ARABIA EQUIPMENT(WH1) M8 FLANGE	0-91180-108-0	01	1	0603-
126	NUT; PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8	9-09110-408-0	01	1	9511-0004
131	BOLT; PANEL SAUDI ARABIA EQUIPMENT(WH1) (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	0411-
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9510-
131	BOLT; PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	9511-0004
139	PANEL; SIDE SAUDI ARABIA EQUIPMENT(WH1) (B)	1-53192-917-2	01	1	0411-
139	PANEL; SIDE ANTI NOISE EQUIPMENT ECE<SLK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-53192-591-0	01	1	9510-9802
139	PANEL; SIDE 6HH1 N ENG(66L) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-53192-591-0	01	1	9803-0004
139	PANEL; SIDE 6HH1 STD 4VALVE ENG(1A6) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-53192-591-0	01	1	0005-0410
139	PANEL; SIDE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (A)	1-53192-591-0	01	1	0411-
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (E) M8X25 FLANGE	0-28680-825-0	09	1	0411-0512
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (E) M8X25 FLANGE	0-28650-825-0	09	1	0601-
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (F) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0411-
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X25 FLANGE	0-28080-825-0	04	1	9510-9510
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8X25 FLANGE	0-28080-825-0	04	1	9511-9606
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (B) M8X25 FLANGE	0-28080-825-0	04	1	9511-9606
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8X25 FLANGE	0-28680-825-0	04	1	9607-9802
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (B) M8X25 FLANGE	0-28680-825-0	04	1	9607-9802
140	BOLT; SIDE PANEL 6HH1 N ENG(66L) ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X25 FLANGE	0-28680-825-0	04	1	9803-0004
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6) ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X25 FLANGE	0-28680-825-0	04	1	0005-0410
140	BOLT; SIDE PANEL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) M8X25 FLANGE	0-28680-825-0	04	1	0411-0512
140	BOLT; SIDE PANEL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (C) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-0512
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X25 FLANGE	0-28080-825-0	01	1	9511-9606
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9802
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	9511-9802
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	9511-9802
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	9803-0004
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X25 FLANGE	0-28680-825-0	01	1	9803-0004
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D) M8X16 FLANGE	0-28080-816-0	04	1	0102-0302
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M8X16 FLANGE	0-28080-816-0	04	1	0303-0512
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M8X16 FLANGE	0-28050-816-0	04	1	0601-
146	PANEL; SIDE,UNDER,FRT SAUDI ARABIA EQUIPMENT(WH1)	1-53192-936-0	01	1	0411-
146	PANEL; SIDE,UNDER,FRT SAUDI ARABIA EQUIPMENT(WH1)	1-53192-938-0	01	1	0411-
146	PANEL; SIDE,UNDER,FRT 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53193-039-0	01	1	9511-0004
146	PANEL; SIDE,UNDER,FRT 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53193-037-1	01	1	9511-0004
147	PANEL; SIDE,UNDER,RR SAUDI ARABIA EQUIPMENT(WH1) (C)	1-53192-924-0	01	1	0411-
147	PANEL; SIDE,UNDER,RR SAUDI ARABIA EQUIPMENT(WH1) (C)	1-53193-043-1	01	1	0411-
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A)	1-53193-043-1	01	1	9511-0004
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A)	1-53193-042-2	01	1	9511-0004
147	PANEL; SIDE,UNDER,RR 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) L=892	1-22119-503-0	01	1	0102-0302
147	PANEL; SIDE,UNDER,RR 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) L=892	1-22119-503-0	01	1	0303-
148	BOLT; PANEL TO PANEL SAUDI ARABIA EQUIPMENT(WH1) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0411-
148	BOLT; PANEL TO PANEL SAUDI ARABIA EQUIPMENT(WH1) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0411-
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	09	1	9511-9511
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	9511-9511
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	9512-9802
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	9512-9802
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	9803-0004
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	9803-0004
149	WASHER; LK,SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.2	9-09150-508-0	01	1	9511-0004
150	NUT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) M8 FLANGE	0-91150-108-0	01	1	0411-0602
150	NUT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) M8 FLANGE	0-91180-108-0	01	1	0603-
150	NUT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8	9-09110-408-0	01	1	9511-0004
151	WASHER; PL,SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=22	9-09160-708-0	01	1	9511-0004
154	PANEL; SIDE,UNDER ENG CTR SAUDI ARABIA EQUIPMENT(WH1)	1-53193-142-0	01	1	0411-
154	PANEL; SIDE,UNDER ENG CTR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53193-142-0	01	1	9511-0004
156	WASHER; LK,PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.2	9-09150-508-0	01	1	9511-0004
159	PANEL; SIDE,TRANS,CTR SAUDI ARABIA EQUIPMENT(WH1)	1-53193-116-1	01	1	0411-
159	PANEL; SIDE,TRANS,CTR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53193-116-1	01	1	9511-9802
302	WASHER; PL,PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=22	9-09160-708-0	01	1	9511-0004

140 148 140 140 148 148 147 113 113 140 147 146 140 148 159 124 140 140 148 148 146 148 148 124 126 154 148 139 148 150 140 131 139 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
113	PANEL; SIDE SAUDI ARABIA EQUIPMENT(WH1) (C)	1-53194-388-0	01	1	0411-
113	PANEL; SIDE SAUDI ARABIA EQUIPMENT(WH1) (C)	1-53194-390-0	01	1	0411-
113	PANEL; SIDE ANTI NOISE EQUIPMENT VAR2<TAK> (B)	1-53192-297-4	01	1	9510-9510
113	PANEL; SIDE ANTI NOISE EQUIPMENT VAR2<TAK> (B)	1-53192-297-4	01	1	9511-9802
113	PANEL; SIDE 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (B)	1-53192-297-4	01	1	9511-9802
113	PANEL; SIDE 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A)	1-53192-295-3	01	1	9511-9802
124	BOLT; BRKT SAUDI ARABIA EQUIPMENT(WH1) M8X25 FLANGE	0-28680-825-0	04	1	0411-0512
124	BOLT; BRKT SAUDI ARABIA EQUIPMENT(WH1) M8X25 FLANGE	0-28650-825-0	04	1	0601-
124	BOLT; BRKT 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE	0-28080-825-0	04	1	9511-9606
124	BOLT; BRKT 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE	0-28680-825-0	04	1	9607-0004
126	NUT; PANEL SAUDI ARABIA EQUIPMENT(WH1) M8 FLANGE	0-91150-108-0	01	1	0411-0602
126	NUT; PANEL SAUDI ARABIA EQUIPMENT(WH1) M8 FLANGE	0-91180-108-0	01	1	0603-
126	NUT; PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8	9-09110-408-0	01	1	9511-0004
131	BOLT; PANEL SAUDI ARABIA EQUIPMENT(WH1) (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	0411-
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9510-
131	BOLT; PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	9511-0004
139	PANEL; SIDE SAUDI ARABIA EQUIPMENT(WH1) (B)	1-53192-917-2	01	1	0411-
139	PANEL; SIDE ANTI NOISE EQUIPMENT ECE<SLK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-53192-591-0	01	1	9510-9802
139	PANEL; SIDE 6HH1 N ENG(66L) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-53192-591-0	01	1	9803-0004
139	PANEL; SIDE 6HH1 STD 4VALVE ENG(1A6) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-53192-591-0	01	1	0005-0410
139	PANEL; SIDE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (A)	1-53192-591-0	01	1	0411-
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (E) M8X25 FLANGE	0-28680-825-0	09	1	0411-0512
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (E) M8X25 FLANGE	0-28650-825-0	09	1	0601-
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (F) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0411-
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X25 FLANGE	0-28080-825-0	04	1	9510-9510
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8X25 FLANGE	0-28080-825-0	04	1	9511-9606
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (B) M8X25 FLANGE	0-28080-825-0	04	1	9511-9606
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8X25 FLANGE	0-28680-825-0	04	1	9607-9802
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (B) M8X25 FLANGE	0-28680-825-0	04	1	9607-9802
140	BOLT; SIDE PANEL 6HH1 N ENG(66L) ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X25 FLANGE	0-28680-825-0	04	1	9803-0004
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6) ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X25 FLANGE	0-28680-825-0	04	1	0005-0410
140	BOLT; SIDE PANEL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) M8X25 FLANGE	0-28680-825-0	04	1	0411-0512
140	BOLT; SIDE PANEL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (C) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-0512
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X25 FLANGE	0-28080-825-0	01	1	9511-9606
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9802
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	9511-9802
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	9511-9802
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	9803-0004
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X25 FLANGE	0-28680-825-0	01	1	9803-0004
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D) M8X16 FLANGE	0-28080-816-0	04	1	0102-0302
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M8X16 FLANGE	0-28080-816-0	04	1	0303-0512
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M8X16 FLANGE	0-28050-816-0	04	1	0601-
146	PANEL; SIDE,UNDER,FRT SAUDI ARABIA EQUIPMENT(WH1)	1-53192-936-0	01	1	0411-
146	PANEL; SIDE,UNDER,FRT SAUDI ARABIA EQUIPMENT(WH1)	1-53192-938-0	01	1	0411-
146	PANEL; SIDE,UNDER,FRT 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53193-039-0	01	1	9511-0004
146	PANEL; SIDE,UNDER,FRT 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53193-037-1	01	1	9511-0004
147	PANEL; SIDE,UNDER,RR SAUDI ARABIA EQUIPMENT(WH1) (C)	1-53192-924-0	01	1	0411-
147	PANEL; SIDE,UNDER,RR SAUDI ARABIA EQUIPMENT(WH1) (C)	1-53193-043-1	01	1	0411-
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A)	1-53193-043-1	01	1	9511-0004
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A)	1-53193-042-2	01	1	9511-0004
147	PANEL; SIDE,UNDER,RR 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) L=892	1-22119-503-0	01	1	0102-0302
147	PANEL; SIDE,UNDER,RR 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) L=892	1-22119-503-0	01	1	0303-
148	BOLT; PANEL TO PANEL SAUDI ARABIA EQUIPMENT(WH1) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0411-
148	BOLT; PANEL TO PANEL SAUDI ARABIA EQUIPMENT(WH1) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0411-
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	09	1	9511-9511
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	9511-9511
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	9512-9802
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	9512-9802
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	9803-0004
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	9803-0004
150	NUT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) M8 FLANGE	0-91150-108-0	01	1	0411-0602
150	NUT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) M8 FLANGE	0-91180-108-0	01	1	0603-
150	NUT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8	9-09110-408-0	01	1	9511-0004
154	PANEL; SIDE,UNDER ENG CTR SAUDI ARABIA EQUIPMENT(WH1)	1-53193-142-0	01	1	0411-
154	PANEL; SIDE,UNDER ENG CTR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53193-142-0	01	1	9511-0004
159	PANEL; SIDE,TRANS,CTR SAUDI ARABIA EQUIPMENT(WH1)	1-53193-116-1	01	1	0411-
159	PANEL; SIDE,TRANS,CTR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53193-116-1	01	1	9511-9802

140 140 140 140 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (E) M8X25 FLANGE	0-28680-825-0	09	1	0411-0512
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (E) M8X25 FLANGE	0-28650-825-0	09	1	0601-
140	BOLT; SIDE PANEL SAUDI ARABIA EQUIPMENT(WH1) (F) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0411-
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X25 FLANGE	0-28080-825-0	04	1	9510-9510
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8X25 FLANGE	0-28080-825-0	04	1	9511-9606
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (B) M8X25 FLANGE	0-28080-825-0	04	1	9511-9606
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8X25 FLANGE	0-28680-825-0	04	1	9607-9802
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (B) M8X25 FLANGE	0-28680-825-0	04	1	9607-9802
140	BOLT; SIDE PANEL 6HH1 N ENG(66L) ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X25 FLANGE	0-28680-825-0	04	1	9803-0004
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6) ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X25 FLANGE	0-28680-825-0	04	1	0005-0410
140	BOLT; SIDE PANEL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) M8X25 FLANGE	0-28680-825-0	04	1	0411-0512
140	BOLT; SIDE PANEL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (C) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-0512
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X25 FLANGE	0-28080-825-0	01	1	9511-9606
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9802
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	9511-9802
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	9511-9802
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	9803-0004
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X25 FLANGE	0-28680-825-0	01	1	9803-0004
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D) M8X16 FLANGE	0-28080-816-0	04	1	0102-0302
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M8X16 FLANGE	0-28080-816-0	04	1	0303-0512
140	BOLT; SIDE PANEL 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M8X16 FLANGE	0-28050-816-0	04	1	0601-
147	PANEL; SIDE,UNDER,RR SAUDI ARABIA EQUIPMENT(WH1) (C)	1-53192-924-0	01	1	0411-
147	PANEL; SIDE,UNDER,RR SAUDI ARABIA EQUIPMENT(WH1) (C)	1-53193-043-1	01	1	0411-
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A)	1-53193-043-1	01	1	9511-0004
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> (A)	1-53193-042-2	01	1	9511-0004
147	PANEL; SIDE,UNDER,RR 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) L=892	1-22119-503-0	01	1	0102-0302
147	PANEL; SIDE,UNDER,RR 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) L=892	1-22119-503-0	01	1	0303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
