◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10699 - FRR(LHD) EXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#64129) — 98 parça

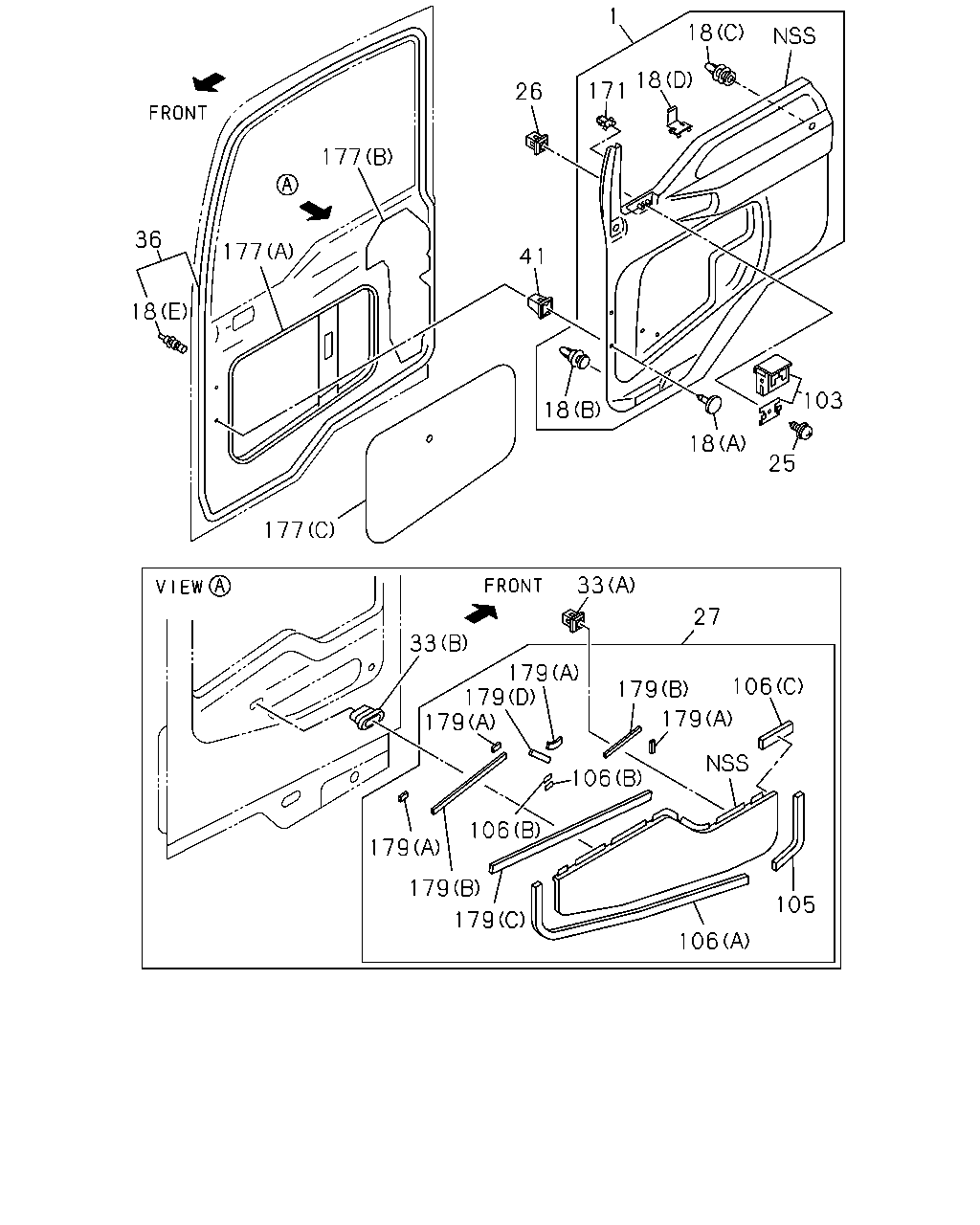

çizim 130791
36 18 177 177 177 26 1 41 18 18 103 25 18 171 18 27 33 33 179 106 179 179 179 179 179 179 179 106 105 106 106
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-449-4 01 1 9510-0004
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-506-0 01 1 0005-0012
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-538-0 01 1 0101-0702
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-515-1 01 1 0703-
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-467-4 01 1 9510-0004
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-485-0 01 1 0005-0012
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-510-0 01 1 0101-0702
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-514-1 01 1 0703-
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-466-4 01 1 9510-0004
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-509-0 01 1 0005-0012
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-539-0 01 1 0101-0702
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-516-1 01 1 0703-
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-465-4 01 1 9510-0004
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-484-0 01 1 0005-0012
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-509-0 01 1 0101-0702
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-513-1 01 1 0703-
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 9510-0004
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0005-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 46 1 9510-
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 9510-0005
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0006-0010
18 CLIP; DOOR PAD
POWER WINDOW<A30> (D) 		1-09987-262-0 05 1 0011-
18 CLIP; DOOR PAD
POWER WINDOW<A30> (D) 		1-09987-262-0 05 1 0011-
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 9510-0010
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-94126-768-0 05 1 0011-0012
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-94126-768-0 05 1 0011-0012
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101-
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 9510-0010
18 CLIP; DOOR PAD
POWER WINDOW<A30> (C) OD=7.9 BLACK 		8-94279-974-1 01 1 0011-
18 CLIP; DOOR PAD
POWER WINDOW<A30> (C) OD=7.9 BLACK 		8-94279-974-1 01 1 0011-
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (D) 		1-09987-262-0 10 1 0011-
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (B) OD=8.5 GRAY 		8-94126-768-0 10 1 0011-0012
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101-
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (C) OD=7.9 BLACK 		8-94279-974-1 02 1 0011-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9510-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9510-
27 PANEL; ORNAMENT,DOOR 1-76218-096-7 01 1 9510-
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> 		1-76218-125-5 01 1 9510-0303
27 PANEL; ORNAMENT,DOOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> 		1-76218-125-5 01 1 0304-0307
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-76218-125-5 01 1 0304-0307
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> 		1-76218-125-7 01 1 0308-1210
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> 		8-98229-329-0 01 1 1211-
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW WIDE<WU4> 		1-76218-095-5 01 1 9510-0303
27 PANEL; ORNAMENT,DOOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> 		1-76218-095-5 01 1 0304-0307
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW WIDE<WU4> 		1-76218-095-5 01 1 0304-0307
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW WIDE<WU4> 		1-76218-095-7 01 1 0308-1210
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW WIDE<WU4> 		8-98229-328-0 01 1 1211-
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9510-0802
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803-
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9510-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 9510-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 9510-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9510-
103 TRAY ASM; ASH,DOOR 1-76458-070-6 01 1 9510-9802
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9803-0004
103 TRAY ASM; ASH,DOOR 1-76457-054-0 01 1 0005-0111
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0112-
103 TRAY ASM; ASH,DOOR 1-76458-069-5 01 1 9510-9802
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9803-0004
103 TRAY ASM; ASH,DOOR 1-76457-053-0 01 1 0005-0111
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0112-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 9510-0303
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 0304-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 0304-
106 SEAL; DOOR ORNAMENT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> (C) 		8-98226-642-0 01 1 1211-
106 SEAL; DOOR ORNAMENT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) (C) 		8-98226-642-0 01 1 1211-
106 SEAL; DOOR ORNAMENT
MIR O/S RR VIEW WIDE<WU4> (C) 		8-98226-642-0 01 1 1211-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 9510-0303
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 0304-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 0304-
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW WIDE<WU4> (B) 		1-76218-104-0 02 1 9510-0303
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9510-0303
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0304-
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW WIDE<WU4> (B) 		1-76218-104-0 02 1 0304-
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 9510-0010
171 RETAINER; DOOR PAD
POWER WINDOW<A30> 		1-09987-264-0 01 1 0011-
171 RETAINER; DOOR PAD
POWER WINDOW<A30> 		1-09987-264-0 01 1 0011-
171 RETAINER; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> 		1-09987-264-0 02 1 0011-
177 SEAL; WATER,DOOR
(B) 		1-76778-036-1 02 1 9510-9511
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9512-
177 SEAL; WATER,DOOR
DOOR WINDOW MANUAL CONT<SKF> (C) 		1-76778-047-3 02 1 9510-
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-052-2 01 1 9510-
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-035-6 01 1 9510-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-1 08 1 9510-0303
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 0304-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 0304-
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-1 02 1 9510-0303
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 01 1 0304-
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 01 1 0304-
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-0 02 1 9510-0303
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 01 1 0304-
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 01 1 0304-
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-0 04 1 9510-0303
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 02 1 0304-
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 02 1 0304-
