◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10699 - FRR(LHD) EXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#64123) — 220 parça

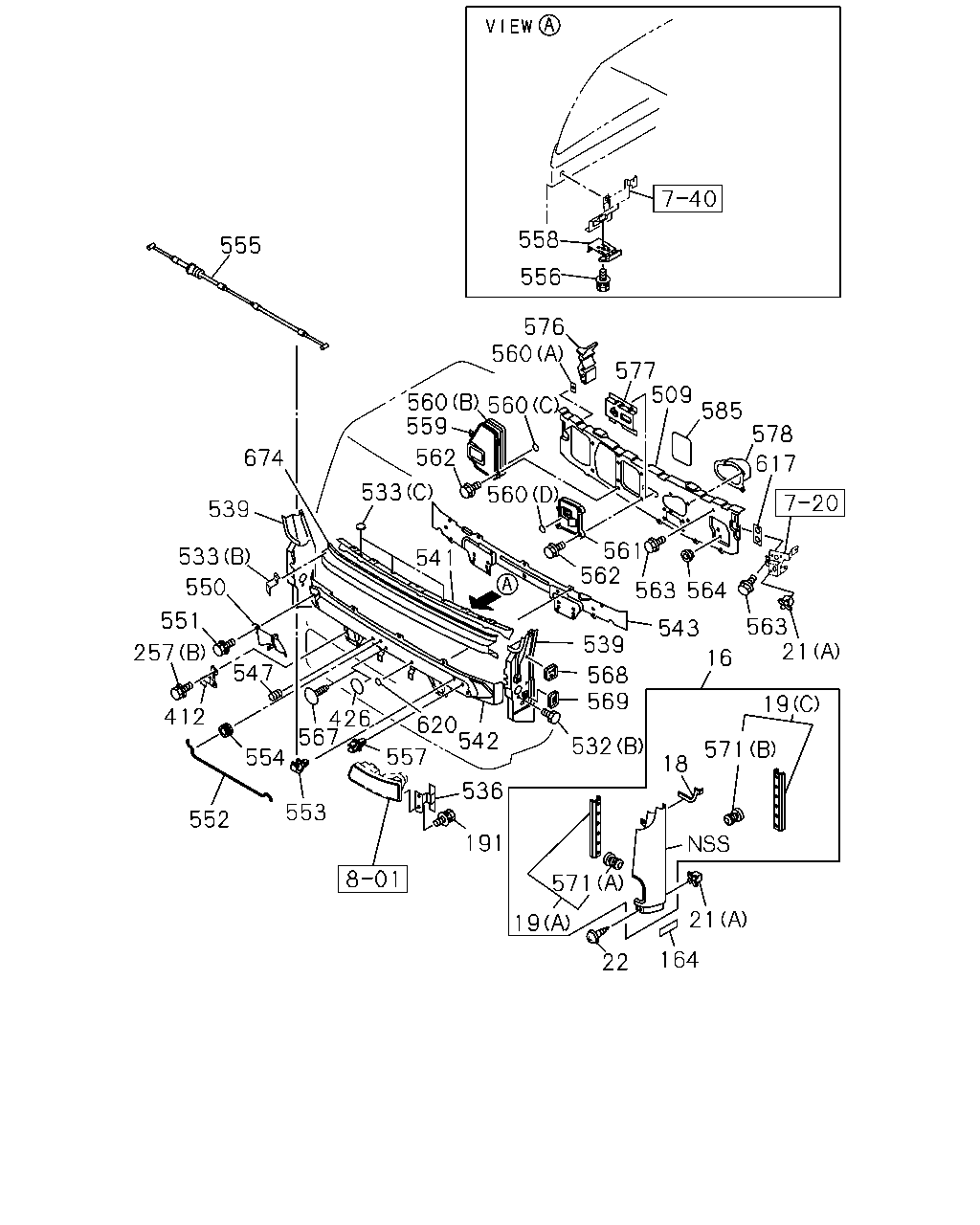

çizim 183737
558 555 556 576 560 577 509 560 560 559 585 578 562 674 617 560 533 539 541 561 562 533 550 563 564 551 563 21 543 539 257 16 547 568 569 19 412 426 567 620 542 557 532 571 554 18 536 553 552 191 571 21 19 164 22
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65481-591-2 01 1 9510-
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-562-2 01 1 9510-0302
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> WHITE 		1-65481-562-2 01 1 0303-0307
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIR O/S RR VIEW WIDE<WU4> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) WHITE 		1-65481-562-2 01 1 0303-0307
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-562-3 01 1 0308-
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-590-1 01 1 9510-0302
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> WHITE 		1-65481-590-1 01 1 0303-0307
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-590-1 01 1 0303-0307
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-590-2 01 1 0308-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> WHITE 		1-65481-562-2 01 1 0303-0307
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIR O/S RR VIEW WIDE<WU4> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) WHITE 		1-65481-562-2 01 1 0303-0307
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-562-3 01 1 0308-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> WHITE 		1-65481-590-1 01 1 0303-0307
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-590-1 01 1 0303-0307
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-590-2 01 1 0308-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9510-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9510-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9510-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9510-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9510-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9510-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9510-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9510-
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 9510-0003
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0004-0810
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 0811-1010
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9510-
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9510-0004
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0005-0708
191 BOLT; HINGE
M6X16 FLANGE 		0-28650-616-0 04 1 0709-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9510-
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-0004
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-044-3 01 1 9510-0004
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0005-
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-043-3 01 1 9510-0004
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0005-
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 9805-0112
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 9805-0112
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 03 1 0201-
509 PANEL; DASH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-198-4 01 1 9510-
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-216-4 01 1 9510-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9510-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9510-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 0005-0406
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9510-
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		5-76777-035-0 13 1 9510-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9510-
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 9510-0004
536 HINGE 1-86830-004-5 01 1 0005-
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 9510-0004
536 HINGE 1-86830-003-5 01 1 0005-
539 CLOSING; PILLAR 1-61480-763-1 01 1 9510-
539 CLOSING; PILLAR 1-61480-762-1 01 1 9510-
541 PANEL; FRONT,INNER 1-61480-765-1 01 1 9510-
542 RAIL; FRT MOUNTING 1-61480-768-5 01 1 9510-
543 CLOSING; FRT MTG RAIL 1-61480-769-2 01 1 9510-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 9510-
550 LOCK ASM; FRT LID 1-79318-007-5 01 1 9510-
550 LOCK ASM; FRT LID 1-79318-006-3 01 1 9510-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9510-
552 STAY; FRT LID 1-71996-046-2 01 1 9510-0205
552 STAY; FRT LID 1-71996-311-0 01 1 0206-0706
552 STAY; FRT LID 1-71996-353-0 01 1 0707-
553 CLIP; STAY 8-97031-428-0 01 1 9510-
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 9510-
555 CABLE; FRT LID
L=2242 		1-79348-006-2 01 1 9510-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9510-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 9510-
558 LEVER; FRT LID 1-79338-003-1 01 1 9510-9601
558 LEVER; FRT LID 8-97865-110-0 01 1 9602-
559 COVER; EVAPOLATOR 1-71998-994-1 01 1 9510-9608
559 COVER; EVAPOLATOR 1-71996-193-1 01 1 9609-
560 SEAL; COVER
(A) 		1-61281-497-0 02 1 9510-9805
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9510-
560 SEAL; COVER
(C) OD=25 BLACK 		1-76798-019-0 01 1 9510-
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 BLACK 		5-76777-035-0 01 1 9510-0004
560 SEAL; COVER
ISUZU M/T<X9A> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 BLACK 		5-76777-035-0 01 1 0005-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D) OD=36 BLACK 		5-76777-035-0 02 1 9510-
561 COVER; HEATER CORE 1-71998-993-2 01 1 9510-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 9510-9707
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 10 1 9708-9807
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 9808-0202
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0203-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 9510-9707
563 BOLT; DASH PANEL
M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 9708-9807
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9510-
567 PLUG; FRT MTG RAIL
OD=15 BLACK 		8-94279-804-0 01 1 9510-9803
567 PLUG; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 9804-9804
568 PATCH; INST REINF 1-61480-675-2 02 1 9510-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 9510-
569 PATCH; LWR GRIP 1-61480-772-0 01 1 9510-
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9510-
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9510-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 14 1 9510-0207
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0208-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0208-
576 FRAME; INST SIDE 1-62280-201-2 01 1 9510-
576 FRAME; INST SIDE 1-62280-200-2 01 1 9510-
577 BRACKET; IDLER 1-62280-202-0 01 1 9510-
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 9510-
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-71996-084-1 01 1 9510-
617 SEAL; DASH 1-61281-497-1 02 1 9806-
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 01 1 9803-
674 PANEL; UPR 1-61480-677-4 01 1 9510-

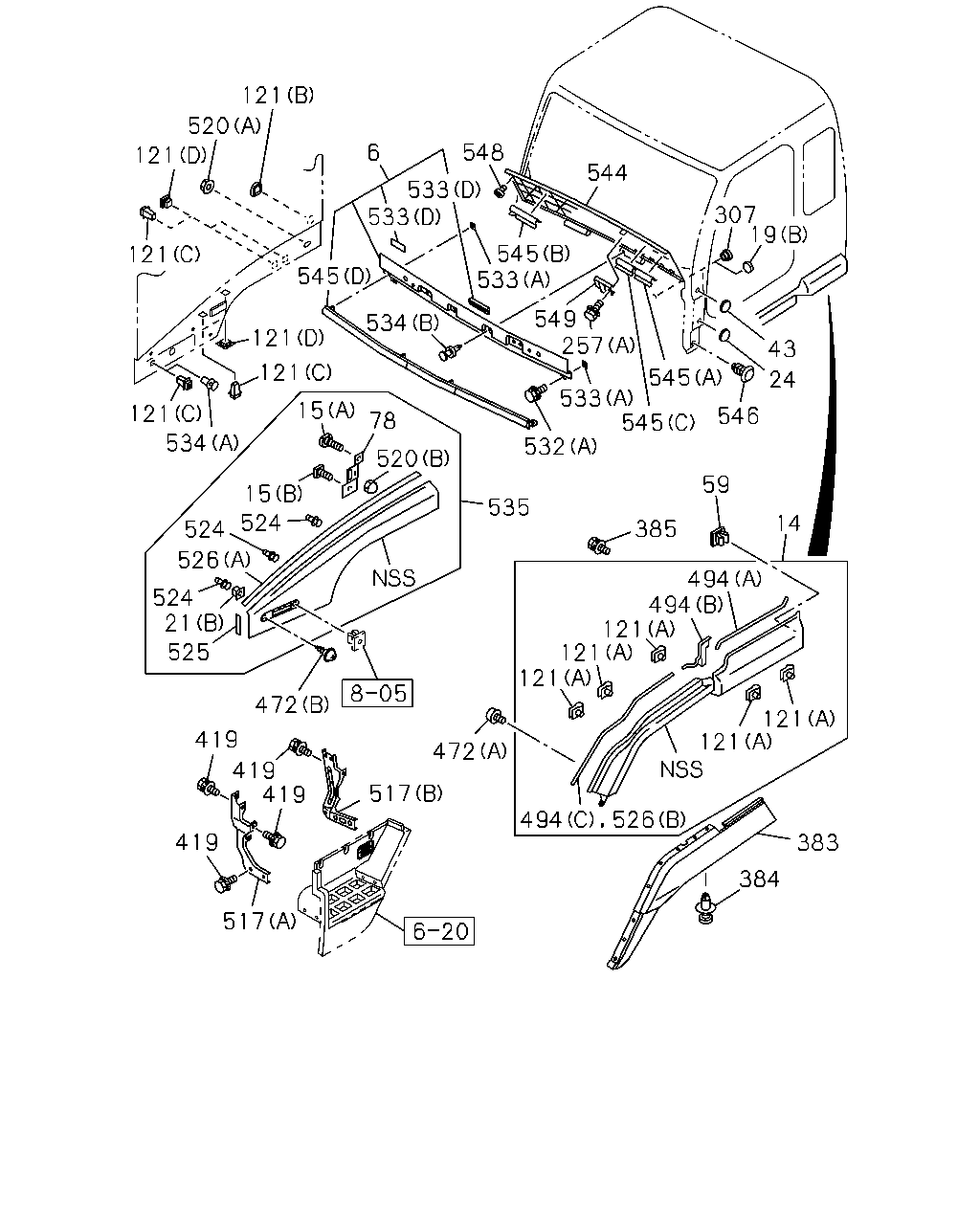

çizim 183748
121 520 548 6 121 544 533 533 545 307 19 545 533 549 257 121 534 121 43 121 533 545 545 24 15 121 546 78 534 532 520 59 15 535 524 14 385 524 526 494 494 121 121 121 524 21 525 472 121 419 121 472 419 419 517 419 383 384 517 494 526
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65481-556-2 01 1 9510-9807
6 PANEL; FRONT 1-65481-744-2 01 1 9808-
14 FENDER; FRT
WHITE 		1-65481-447-1 01 1 9510-0209
14 FENDER; FRT
WHITE 		1-65482-023-1 01 1 0210-
14 FENDER; FRT
WHITE 		1-65481-446-1 01 1 9510-0209
14 FENDER; FRT
WHITE 		1-65482-022-1 01 1 0210-
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 9510-
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 9510-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9510-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9510-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9510-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9510-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9510-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9510-
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 04 1 9510-9811
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 08 1 9812-
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 02 1 9510-9903
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 04 1 9904-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9510-
59 GROMMET; SCREW
LIGHTING SYSTEM ECE<SLC> D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9601-9708
59 GROMMET; SCREW
LIGHTING SYSTEM ECE<SLC> D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9601-9708
59 GROMMET; SCREW
LIGHTING SYSTEM ECE<SLC> D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9709-9709
59 GROMMET; SCREW
LIGHTING SYSTEM ECE<SLC> D=8.6X7.7 L=7.5 		1-09983-177-0 04 1 9710-
78 BRACKET; FENDER 1-71268-323-0 01 1 9510-
78 BRACKET; FENDER 1-71268-322-0 01 1 9510-
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 9510-1009
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9510-9601
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 9602-9603
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9604-0304
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0305-
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 9510-
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 9604-0304
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9510-
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-0004
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
307 GROMMET; FRT PANEL
OD=44 		8-94279-727-0 03 1 9510-9703
383 GUARD; MUD,FENDER LWR 1-71996-062-3 01 1 9510-
383 GUARD; MUD,FENDER LWR 1-71996-061-3 01 1 9510-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 06 1 9510-
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 01 1 9510-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 18 1 9510-0009
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0010-0904
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010-0204
419 BOLT; STEP
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302-
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 17 1 9510-
472 SCREW; FENDER TO CAB
(B) M5X20 		5-09981-102-0 02 1 9510-9706
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9707-
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 9510-0610
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611-
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 9510-
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 9510-
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 9510-
517 SUPPORT; STEP PANEL
(A) 		1-71996-078-3 01 1 9510-
517 SUPPORT; STEP PANEL
(B) 		1-71998-782-2 01 1 9510-9512
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 9601-
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 9510-
517 SUPPORT; STEP PANEL
(B) 		1-71998-781-2 01 1 9510-9512
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 9601-
520 NUT; FENDER
(B) M6 CAP 		1-09984-031-0 02 1 9510-9510
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 9511-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9510-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-174-0 08 1 9510-9803
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9804-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 9510-0409
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 9510-
526 FINISHER; FENDER
(B) 		1-71998-900-3 04 1 9803-0207
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71998-900-3 04 1 0208-0209
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71998-900-3 02 1 0210-0610
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71907-641-0 02 1 0611-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9510-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9510-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 0005-0406
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9510-
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		5-76777-035-0 13 1 9510-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9510-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9510-9803
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-0001
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9510-
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 9510-0209
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0210-
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 9510-0209
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0210-
544 LID; FRT 1-71108-073-3 01 1 9510-9703
544 LID; FRT
WHITE 		1-71108-118-1 01 1 9704-9802
544 LID; FRT
CHEV BRAND PACKAGE<PS2> WHITE 		1-71108-118-1 01 1 9803-0004
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> CHEV BRAND PACKAGE<PS2> WHITE 		1-71108-118-1 01 1 0005-
544 LID; FRT
CHEV BRAND PACKAGE<PS2> EXC. FRONT PANEL CARGO FACE<NGD> 		1-71108-228-3 01 1 0005-
544 LID; FRT
EXC. CHEV BRAND PACKAGE<PS2> HITACHI CHEMICAL 		1-71108-152-0 01 1 9803-0004
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> EXC. CHEV BRAND PACKAGE<PS2> HITACHI CHEMICAL 		1-71108-152-0 01 1 0005-
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> EXC. CHEV BRAND PACKAGE<PS2> MITRAS 		1-71108-116-0 01 1 0007-0411
544 LID; FRT
EXC. FRONT PANEL CARGO FACE<NGD>,CHEV BRAND PACKAGE<PS2> 		1-71108-235-3 01 1 0005-
545 SEAL; FRT LID
(B) 		1-71996-045-3 01 1 9510-9908
545 SEAL; FRT LID
(B) 		1-71996-257-1 01 1 9909-
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 9510-
545 SEAL; FRT LID
(C) 		1-71998-873-2 01 1 9510-9908
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 9909-
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 9510-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 9510-
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 9510-
549 BRACKET; STOPPER,FRT LID 1-71108-060-1 01 1 9510-0301
549 BRACKET; STOPPER,FRT LID 8-97589-019-0 01 1 0302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
