◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11A - CYLINDER HEAD ▶

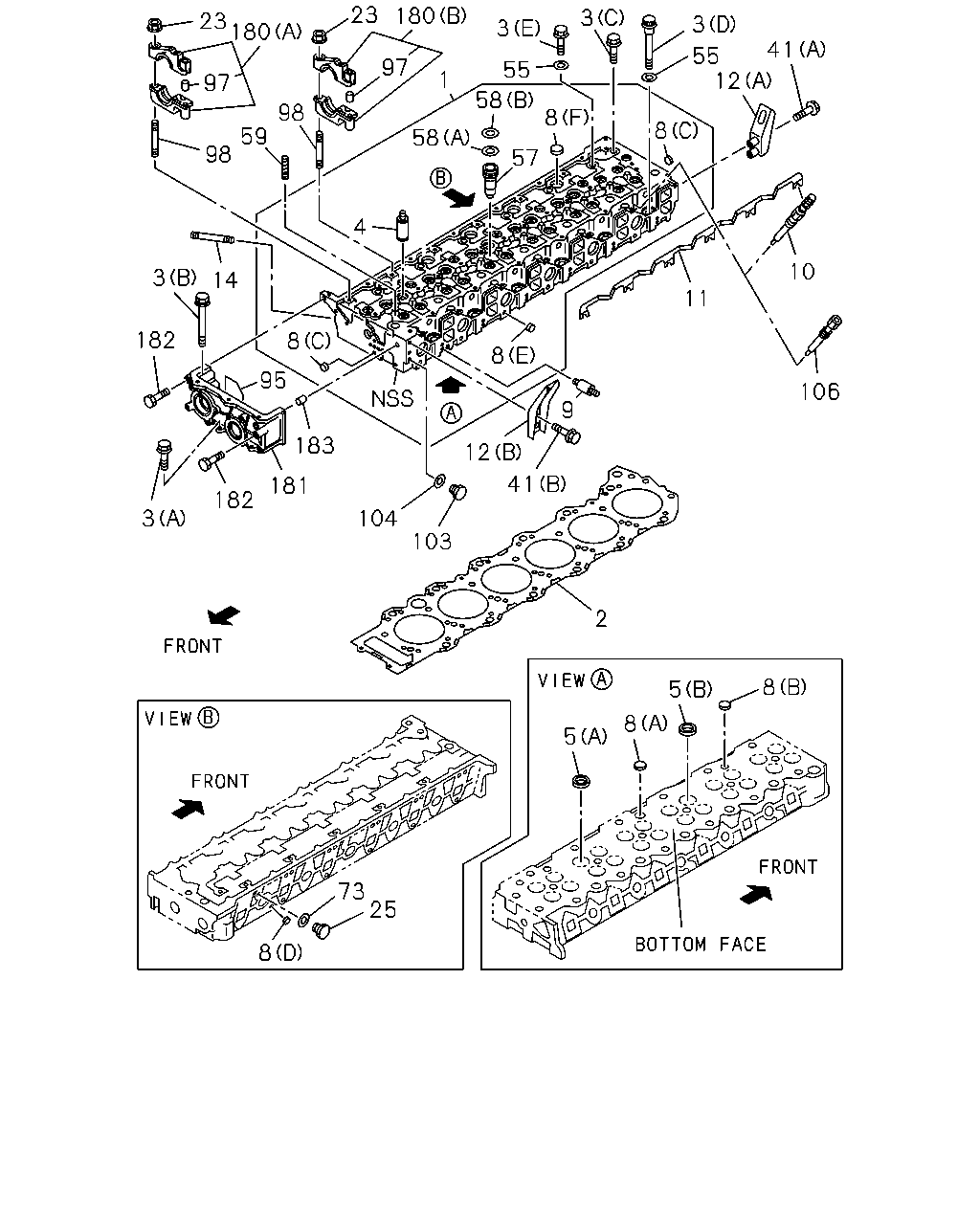

0-11A — CYLINDER HEAD (#6412) — 150 parça
çizim 4918
23 180 3 23 180 3 3 41 55 12 97 55 1 97 58 98 8 8 59 98 58 57 4 10 3 14 11 8 182 8 95 106 9 183 12 41 181 182 3 104 103 2 8 5 8 5 73 25 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 1-11110-774-9 01 1 9601-9607 ●
1 HEAD ASM; CYL 1-11110-872-0 01 1 9608-9610 ●
1 HEAD ASM; CYL 1-11110-872-1 01 1 9611-9710 ● ●
1 HEAD ASM; CYL 1-11110-891-0 01 1 9711-9804 ● ●
1 HEAD ASM; CYL 1-11110-902-0 01 1 9805-9904 ● ●
1 HEAD ASM; CYL 1-11110-902-3 01 1 9905- ● ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-227-2 01 1 9601-9607 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-264-0 01 1 9608-9610 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-264-0 01 1 9611-9802 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-271-0 01 1 9803-9904 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-271-2 01 1 9905- ● ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE 		0-28181-035-0 02 1 9601-9610 ●
3 BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE 		0-28181-035-0 02 1 9611-9904 ● ●
3 BOLT; CYL HD TO BLOCK
(B) M12X110 		1-09030-089-0 01 1 9601-9607 ●
3 BOLT; CYL HD TO BLOCK
(C) M12X120 		1-09044-070-0 01 1 9601-9607 ●
3 BOLT; CYL HD TO BLOCK
(C) M12X120 FLANGE 		0-28186-212-0 01 1 9608-9610 ●
3 BOLT; CYL HD TO BLOCK
(C) M12X120 FLANGE 		0-28186-212-0 01 1 9611-9904 ● ●
3 BOLT; CYL HD TO BLOCK
(D) M18X115 		1-09070-114-0 06 1 9601-9610 ●
3 BOLT; CYL HD TO BLOCK
(D) M18X115 		1-09070-114-2 06 1 9611-9902 ● ●
3 BOLT; CYL HD TO BLOCK
(E) M18X159 		1-09070-115-0 20 1 9601-9610 ●
3 BOLT; CYL HD TO BLOCK
(E) M18X159 		1-09070-115-2 20 1 9611-9902 ● ●
3 BOLT; CYL HD TO BLOCK
(D) M18X115 FLANGE 		1-09070-141-0 06 1 9903-9904 ● ●
3 BOLT; CYL HD TO BLOCK
(E) M18X159 		1-09070-142-0 20 1 9903-9904 ● ●
3 BOLT; CYL HD TO BLOCK
(E) M18X159 		1-09070-142-0 20 1 9905- ● ● ●
4 GUIDE; VLV 1-11721-004-0 24 1 9601-9610 ●
4 GUIDE; VLV 1-11721-004-0 24 1 9611-9904 ● ●
4 GUIDE; VLV 1-11721-004-0 24 1 9905-0005 ● ● ●
4 GUIDE; VLV 1-11721-012-0 24 1 0006- ● ● ●
5 SEAT; VLV INSERT
(A) 		1-11711-057-4 12 1 9601-9610 ●
5 SEAT; VLV INSERT
(A) 		1-11711-057-4 12 1 9611-9710 ● ●
5 SEAT; VLV INSERT
(A) 		1-11711-076-0 12 1 9711-9904 ● ●
5 SEAT; VLV INSERT
(B) 		1-11715-091-1 12 1 9601-9610 ●
5 SEAT; VLV INSERT
(B) 		1-11715-091-1 12 1 9611-9611 ● ●
5 SEAT; VLV INSERT
(B) 		1-11715-107-0 12 1 9612-9710 ● ●
5 SEAT; VLV INSERT
(B) 		1-11715-111-0 12 1 9711-9904 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 03 1 9601-9610 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 03 1 9611-9904 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 03 1 9905- ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 09 1 9601-9610 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 09 1 9611-9904 ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 09 1 9905- ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 02 1 9601-9610 ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 02 1 9611-9904 ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=16 		5-11129-006-0 06 1 9601-9602 ●
8 CUP; SEALING,WATER JACKET
(E) OD=18 		5-11219-008-0 12 1 9601-9603 ●
8 CUP; SEALING,WATER JACKET
(F) OD=40 		8-94241-637-0 18 1 9601-9602 ●
8 CUP; SEALING,WATER JACKET
(D) OD=16 		5-11129-006-0 06 1 9603-9609 ●
8 CUP; SEALING,WATER JACKET
(F) OD=40 		8-94241-637-0 18 1 9603-9607 ●
8 CUP; SEALING,WATER JACKET
(E) OD=18 		5-11219-008-0 12 1 9604-9610 ●
8 CUP; SEALING,WATER JACKET
(F) OD=40 		8-94241-637-0 18 1 9608-9609 ●
8 CUP; SEALING,WATER JACKET
(D) OD=16 		5-11129-006-0 06 1 9610-9610 ●
8 CUP; SEALING,WATER JACKET
(D) OD=16 		5-11129-006-0 06 1 9611-9801 ● ●
8 CUP; SEALING,WATER JACKET
(F) OD=40 		8-94241-637-0 18 1 9610-9610 ●
8 CUP; SEALING,WATER JACKET
(F) OD=40 		8-94241-637-0 18 1 9611-9801 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 02 1 9905- ● ● ●
8 CUP; SEALING,WATER JACKET
(F) OD=40 		8-94241-637-0 18 1 9802-9902 ● ●
8 CUP; SEALING,WATER JACKET
(E) OD=18 		5-11219-008-0 12 1 9611-9904 ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=16 		5-11129-006-0 06 1 9802-9904 ● ●
8 CUP; SEALING,WATER JACKET
(F) OD=40 		8-94241-637-0 18 1 9903-9904 ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=16 		5-11129-006-0 06 1 9905- ● ● ●
8 CUP; SEALING,WATER JACKET
(E) OD=18 		5-11219-008-0 12 1 9905- ● ● ●
8 CUP; SEALING,WATER JACKET
(F) OD=40 		8-94241-637-0 18 1 9905- ● ● ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 12 1 9601-9610 ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 12 1 9611-9904 ● ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 12 1 9905- ● ● ●
10 PLUG; GLOW
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		9-82513-928-8 06 1 9601-9610 ●
10 PLUG; GLOW
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-82513-043-0 06 1 9611-9904 ● ●
10 PLUG; GLOW
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-82513-043-1 06 1 9905- ● ● ●
11 CONNECTOR; GLOW PLUG
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-19732-030-1 01 1 9601-9610 ●
11 CONNECTOR; GLOW PLUG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-19732-030-1 01 1 9611-9904 ● ●
11 CONNECTOR; GLOW PLUG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-19732-030-2 01 1 9905- ● ● ●
12 HANGER; ENG,RR
(A) 		1-11777-149-2 02 1 9601-9610 ●
12 HANGER; ENG,RR
(A) 		1-11777-149-2 02 1 9611-9904 ● ●
12 HANGER; ENG,RR
(A) 		1-11777-149-2 02 1 9905- ● ● ●
12 HANGER; ENG,RR
(B) 		1-11777-156-2 01 1 9601-9607 ●
12 HANGER; ENG,RR
(B) 		1-11777-216-1 01 1 9608-9610 ●
12 HANGER; ENG,RR
(B) 		1-11777-216-1 01 1 9611-9904 ● ●
12 HANGER; ENG,RR
(B) 		1-11777-216-1 01 1 9905- ● ● ●
14 STUD; EXH MANIF
M10X95 L=110 		1-09302-063-0 15 1 9601-9610 ●
14 STUD; EXH MANIF
M10X95 L=110 		1-09302-063-0 15 1 9611-9904 ● ●
14 STUD; EXH MANIF
M10X95 L=110 		1-09302-063-0 15 1 9905- ● ● ●
14 STUD; EXH MANIF
M10X130 L=145 		1-09302-107-0 03 1 9601-9610 ●
14 STUD; EXH MANIF
M10X130 L=145 		1-09302-107-0 03 1 9611-9904 ● ●
14 STUD; EXH MANIF
M10X130 L=145 		1-09302-107-0 03 1 9905- ● ● ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 9601-9610 ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 9611-9904 ● ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 9905- ● ● ●
25 PLUG; CYL HD
M14X9 		9-99202-314-0 01 1 9601-9610 ●
25 PLUG; CYL HD
M14X9 		9-99202-314-0 01 1 9611-9904 ● ●
25 PLUG; CYL HD
M14X9 		9-99202-314-0 01 1 9905- ● ● ●
41 BOLT; ENG HANGER
(A) M12X50 FLANGE 		0-28191-250-0 04 1 9601-9610 ●
41 BOLT; ENG HANGER
(A) M12X50 FLANGE 		0-28191-250-0 04 1 9611-9904 ● ●
41 BOLT; ENG HANGER
(A) M12X50 FLANGE 		0-28191-250-0 04 1 9905- ● ● ●
41 BOLT; ENG HANGER
(B) M12X35 FLANGE 		0-28791-235-0 02 1 9601-9607 ●
41 BOLT; ENG HANGER
(B) M12X25 FLANGE 		0-28191-225-0 02 1 9608-9610 ●
41 BOLT; ENG HANGER
(B) M12X25 FLANGE 		0-28191-225-0 02 1 9611-9904 ● ●
41 BOLT; ENG HANGER
(B) M12X25 FLANGE 		0-28191-225-0 02 1 9905- ● ● ●
55 WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29 		1-09503-032-0 26 1 9601-9610 ●
55 WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29 		1-09503-032-0 26 1 9611-9904 ● ●
55 WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29 		1-09503-032-0 26 1 9905- ● ● ●
57 SLEEVE; NOZZLE HOLDER 1-11129-043-0 06 1 9601-9610 ●
57 SLEEVE; NOZZLE HOLDER 1-11129-043-0 06 1 9611-9804 ● ●
57 SLEEVE; NOZZLE HOLDER 1-11129-057-1 06 1 9805-9904 ● ●
57 SLEEVE; NOZZLE HOLDER 1-11129-057-1 06 1 9905-0005 ● ● ●
57 SLEEVE; NOZZLE HOLDER 1-11129-058-0 06 1 0006- ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		9-09565-330-0 06 1 9601-9610 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		9-09565-330-0 06 1 9611-9904 ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		9-09565-330-0 06 1 9905-0005 ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) LOWER ID=30.9 BLACK 		8-97233-126-0 06 1 0006- ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) UPPER ID=30.9 RED 		8-97233-127-0 06 1 0006- ● ● ●
59 GUIDE; BRIDGE 1-11729-005-0 12 1 9601-9610 ●
59 GUIDE; BRIDGE 1-11729-005-0 12 1 9611-9904 ● ●
59 GUIDE; BRIDGE 1-11729-005-0 12 1 9905- ● ● ●
73 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9601-9610 ●
73 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9611-9904 ● ●
73 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9905- ● ● ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 9601-9610 ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 9611-9904 ● ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 9905- ● ● ●
97 DOWEL; CAM BRKT SET
OD=16 		1-13119-005-0 28 1 9601-9610 ●
97 DOWEL; CAM BRKT SET
OD=16 		1-13119-005-0 28 1 9611-9904 ● ●
97 DOWEL; CAM BRKT SET
OD=16 		1-13119-005-0 28 1 9905- ● ● ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 9601-9610 ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 9611-9904 ● ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 9905- ● ● ●
103 PLUG; HD
M10X7 		1-09604-094-0 01 1 9601-9610 ●
103 PLUG; HD
M10X7 		1-09604-094-0 01 1 9611-9904 ● ●
103 PLUG; HD
M10X7 		1-09604-094-0 01 1 9905- ● ● ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9601-9610 ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9611-9904 ● ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9905- ● ● ●
106 PLUG; GLOW PLUG HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-11119-018-0 06 1 9601-9610 ●
106 PLUG; GLOW PLUG HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-11119-018-0 06 1 9611-9904 ● ●
106 PLUG; GLOW PLUG HOLE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-11119-018-0 06 1 9905- ● ● ●
180 BRACKET SET; CAM,CYL HD
(A) 		1-12516-148-1 01 1 9601-9610 ●
180 BRACKET SET; CAM,CYL HD
(A) 		1-12516-148-1 01 1 9611-9904 ● ●
180 BRACKET SET; CAM,CYL HD
(A) 		1-12516-148-1 01 1 9905- ● ● ●
180 BRACKET SET; CAM,CYL HD
(B) 		1-12516-152-1 06 1 9601-9610 ●
180 BRACKET SET; CAM,CYL HD
(B) 		1-12516-152-1 06 1 9611-9904 ● ●
180 BRACKET SET; CAM,CYL HD
(B) 		1-12516-152-1 06 1 9905- ● ● ●
181 CASE; HEAD GEAR 1-11310-057-0 01 1 9601-9607 ●
181 CASE; HEAD GEAR 1-11310-058-0 01 1 9608-9610 ●
181 CASE; HEAD GEAR 1-11310-058-0 01 1 9611-9904 ● ●
181 CASE; HEAD GEAR 1-11310-058-1 01 1 9905- ● ● ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 9601-9610 ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 9611-9904 ● ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 9905- ● ● ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 9601-9610 ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 9611-9904 ● ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 9905- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
