Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#64116) — 296 parça

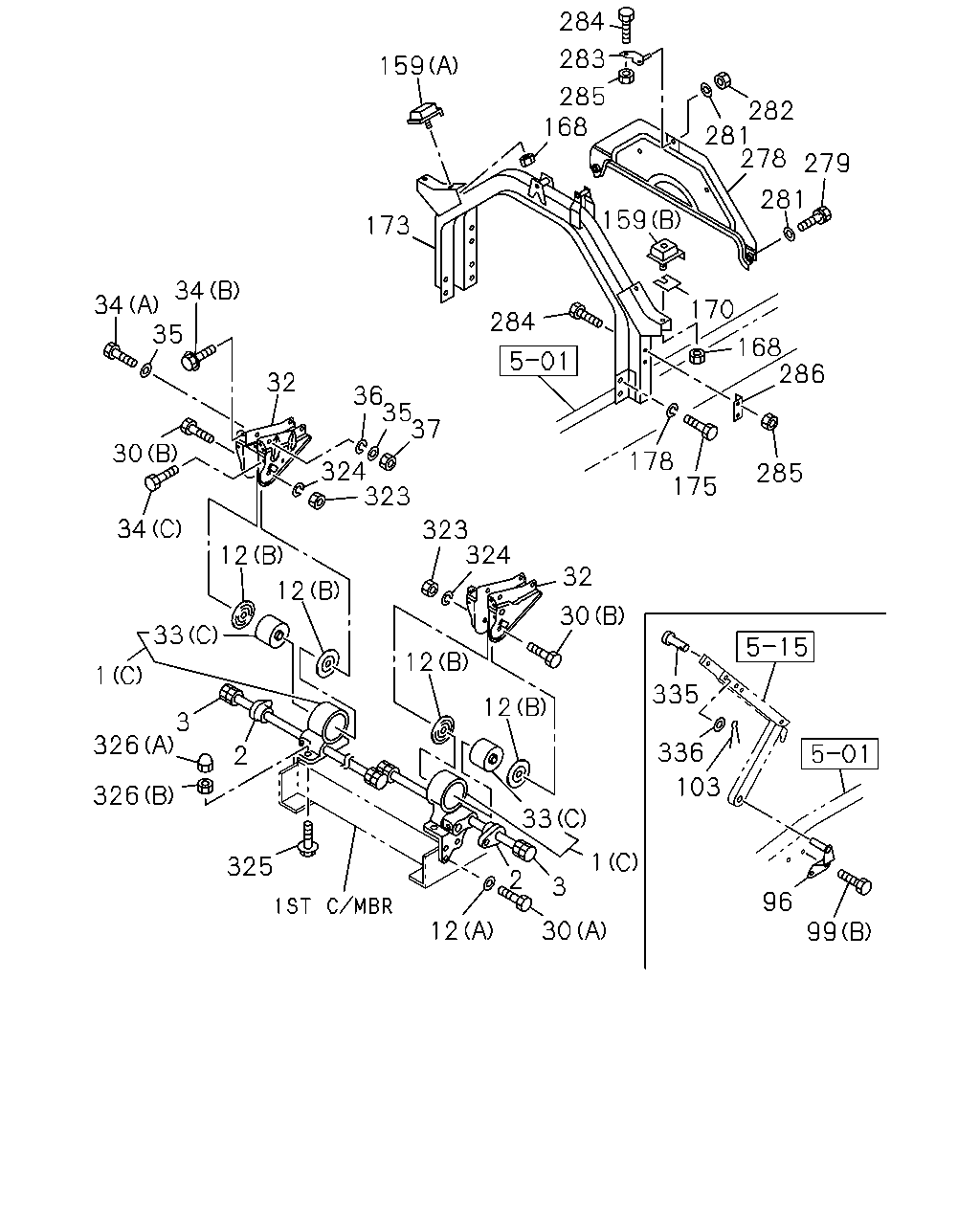

284 283 159 285 168 282 281 278 279 281 159 173 34 34 35 170 168 286 284 32 36 35 37 30 324 323 178 175 285 34 323 324 12 32 12 30 33 335 12 1 12 3 326 336 2 103 326 33 1 325 2 3 96 12 30 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (C)	1-53453-248-0	01	1	9510-
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (C)	1-53453-247-0	01	1	9510-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (B)	1-53454-648-1	02	1	9803-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-53453-285-0	01	1	9510-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-53453-284-0	01	1	9510-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-53453-256-0	01	1	9510-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-53453-255-0	01	1	9510-
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9510-
3	TORSION BAR	1-09585-130-0	01	1	9510-
3	TORSION BAR	1-09585-129-0	01	1	9510-
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9510-1201
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-
12	WASHER; LK,BRKT CAB SUSPENSION RIGID<W71> (B) ID=34.5	1-53458-281-1	04	1	9510-
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23	1-53458-693-1	04	1	9510-0306
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23	1-53457-076-1	04	1	0307-
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9510-
30	BOLT; CAB FRT FOOT (A) M14X40	9-92061-440-0	10	1	9510-0512
30	BOLT; CAB FRT FOOT (A) M14X40	0-20951-440-0	10	1	0601-
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION RIGID<W71>	1-62580-233-4	01	1	9510-
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION RIGID<W71>	1-62580-232-4	01	1	9510-
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION RIGID<W71>	1-62580-231-4	01	1	9510-
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION RIGID<W71>	1-62580-230-4	01	1	9510-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (C)	1-53458-636-1	02	1	9510-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-53458-634-0	02	1	9510-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-53458-635-0	02	1	9510-9802
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-53459-836-3	02	1	9510-
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	9510-
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9510-
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-0904
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9510-0904
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9510-
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9510-
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9510-
96	BRACKET; CAB STAY	1-62500-628-0	01	1	9510-
99	BOLT; BRKT (B) M10X30 FLANGE	0-28091-030-0	02	1	9510-9606
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	9607-0512
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE	0-28080-820-0	08	1	9510-9606
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE	0-28680-820-0	08	1	9607-0512
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X25 FLANGE	0-28081-225-0	04	1	9510-9606
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X30 FLANGE	0-28681-230-0	04	1	9607-0512
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9510-
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION RIGID<W71> (A)	1-53459-619-3	02	1	9510-
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION RIGID<W71> (B)	1-53459-620-3	02	1	9510-
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (C)	1-53458-285-0	02	1	9510-
168	NUT; CUSHION RUBBER,BODY MTG CAB SUSPENSION RIGID<W71> M12 FLANGE	0-91150-112-0	04	1	9510-9606
168	NUT; CUSHION RUBBER,BODY MTG CAB SUSPENSION RIGID<W71> M12 FLANGE	0-91150-212-0	04	1	9607-0602
168	NUT; CUSHION RUBBER,BODY MTG CAB SUSPENSION RIGID<W71> M12 FLANGE	0-91180-212-0	04	1	0603-
170	SHIM; CUSHION RUBBER CAB SUSPENSION RIGID<W71> T=1.6	1-53459-621-0	AR	1	9510-
173	MEMBER; CAB MTG RR CAB SUSPENSION RIGID<W71>	1-53454-618-0	01	1	9510-
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-597-1	01	1	9510-9802
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-729-0	01	1	9803-
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9510-0512
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9510-0603
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-
278	COVER 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-309-0	01	1	9511-0004
279	BOLT 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE	0-28280-825-0	02	1	9511-9606
279	BOLT 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE	0-28680-825-0	02	1	9607-0004
281	WASHER; PL,BACK COVER 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26	9-09164-808-0	03	1	9511-0004
282	NUT; BACK COVER 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE	0-91150-108-0	01	1	9511-0004
283	BRACKET; UPR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53459-630-2	01	1	9511-0004
284	BOLT; BRKT UPR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE	0-28080-820-0	06	1	9511-9606
284	BOLT; BRKT UPR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE	0-28680-820-0	06	1	9607-0004
285	NUT; BRKT UPR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8	9-09110-408-0	06	1	9511-9606
285	NUT; BRKT UPR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE	0-91150-108-0	06	1	9607-0004
286	BRACKET; LOW 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53459-631-3	01	1	9511-0004
286	BRACKET; LOW 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53459-632-3	01	1	9511-0004
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9510-0512
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9510-0603
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-
325	BOLT; GUIDE NUT M12X30 FLANGE	0-28081-230-0	02	1	9510-9606
325	BOLT; GUIDE NUT M12X30 FLANGE	0-28681-230-0	02	1	9607-9612
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9701-0512
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-
326	NUT; GUIDE NUT (A) M12	1-53459-803-0	02	1	9510-9612
326	NUT; GUIDE NUT (B) M12	9-99110-512-0	02	1	9510-0512
326	NUT; GUIDE NUT (B) M12	0-91110-512-0	02	1	0601-
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9510-
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9510-

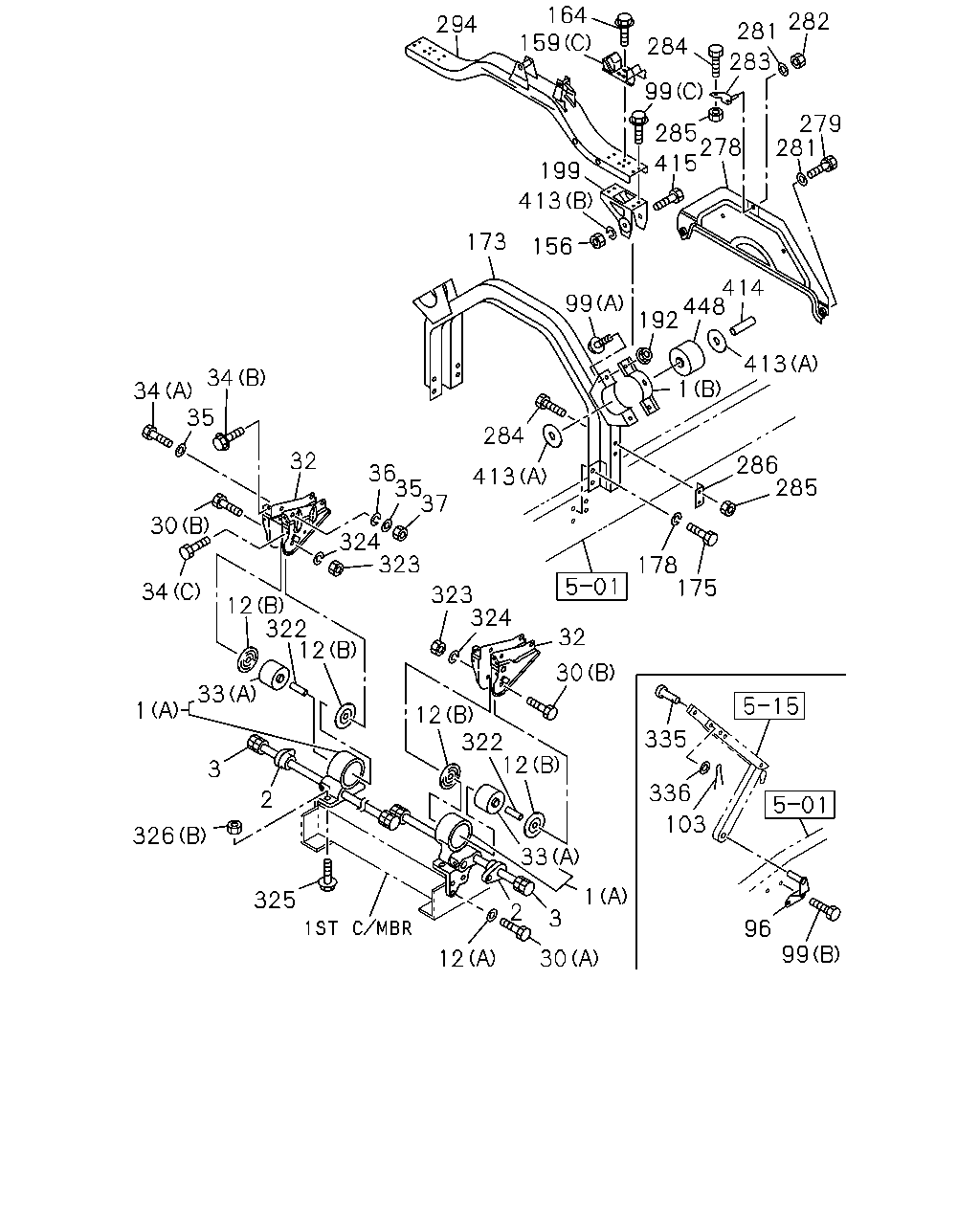

164 159 282 294 281 284 283 99 279 281 285 278 415 199 413 173 156 414 448 192 99 413 34 1 34 35 284 32 286 285 36 35 37 413 30 324 323 178 175 34 323 324 12 322 2 32 30 33 1 12 322 12 335 3 336 2 103 326 33 1 325 2 3 96 99 12 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (C)	1-53453-248-0	01	1	9510-
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (C)	1-53453-247-0	01	1	9510-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (B)	1-53454-648-1	02	1	9803-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-53453-285-0	01	1	9510-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-53453-284-0	01	1	9510-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-53453-256-0	01	1	9510-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-53453-255-0	01	1	9510-
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9510-
3	TORSION BAR	1-09585-130-0	01	1	9510-
3	TORSION BAR	1-09585-129-0	01	1	9510-
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9510-1201
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-
12	WASHER; LK,BRKT CAB SUSPENSION RIGID<W71> (B) ID=34.5	1-53458-281-1	04	1	9510-
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23	1-53458-693-1	04	1	9510-0306
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23	1-53457-076-1	04	1	0307-
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9510-
30	BOLT; CAB FRT FOOT (A) M14X40	9-92061-440-0	10	1	9510-0512
30	BOLT; CAB FRT FOOT (A) M14X40	0-20951-440-0	10	1	0601-
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION RIGID<W71>	1-62580-233-4	01	1	9510-
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION RIGID<W71>	1-62580-232-4	01	1	9510-
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION RIGID<W71>	1-62580-231-4	01	1	9510-
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION RIGID<W71>	1-62580-230-4	01	1	9510-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (C)	1-53458-636-1	02	1	9510-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-53458-634-0	02	1	9510-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-53458-635-0	02	1	9510-9802
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-53459-836-3	02	1	9510-
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	9510-
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9510-
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-0904
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9510-0904
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9510-
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9510-
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9510-
96	BRACKET; CAB STAY	1-62500-628-0	01	1	9510-
99	BOLT; BRKT (B) M10X30 FLANGE	0-28091-030-0	02	1	9510-9606
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	9607-0512
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE	0-28080-820-0	08	1	9510-9606
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE	0-28680-820-0	08	1	9607-0512
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X25 FLANGE	0-28081-225-0	04	1	9510-9606
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X30 FLANGE	0-28681-230-0	04	1	9607-0512
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9510-
156	NUT; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> M16	9-99110-516-0	02	1	9510-0512
156	NUT; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> M16	0-91110-516-0	02	1	0601-
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION RIGID<W71> (A)	1-53459-619-3	02	1	9510-
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION RIGID<W71> (B)	1-53459-620-3	02	1	9510-
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (C)	1-53458-285-0	02	1	9510-
164	BOLT; CUSHION RUBBER,CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28080-820-0	04	1	9510-9606
164	BOLT; CUSHION RUBBER,CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28680-820-0	04	1	9607-0512
164	BOLT; CUSHION RUBBER,CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28650-820-0	04	1	0601-
173	MEMBER; CAB MTG RR CAB SUSPENSION RIGID<W71>	1-53454-618-0	01	1	9510-
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-597-1	01	1	9510-9802
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-729-0	01	1	9803-
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9510-0512
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9510-0603
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-
192	NUT; BRKT FIX CAB SUSPENSION SEMI FLOATING<SDK> M12 FLANGE	0-91150-212-0	04	1	9803-0602
192	NUT; BRKT FIX CAB SUSPENSION SEMI FLOATING<SDK> M12 FLANGE	0-91180-212-0	04	1	0603-
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53454-627-1	02	1	9510-9802
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-644-2	02	1	9803-1103
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-911-0	02	1	1104-1403
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98269-637-0	02	1	1404-
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-53454-526-1	02	1	9510-9802
278	COVER 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-309-0	01	1	9511-0004
279	BOLT 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE	0-28280-825-0	02	1	9511-9606
279	BOLT 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE	0-28680-825-0	02	1	9607-0004
281	WASHER; PL,BACK COVER 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26	9-09164-808-0	03	1	9511-0004
282	NUT; BACK COVER 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE	0-91150-108-0	01	1	9511-0004
283	BRACKET; UPR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53459-630-2	01	1	9511-0004
284	BOLT; BRKT UPR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE	0-28080-820-0	06	1	9511-9606
284	BOLT; BRKT UPR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE	0-28680-820-0	06	1	9607-0004
285	NUT; BRKT UPR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8	9-09110-408-0	06	1	9511-9606
285	NUT; BRKT UPR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE	0-91150-108-0	06	1	9607-0004
286	BRACKET; LOW 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53459-631-3	01	1	9511-0004
286	BRACKET; LOW 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53459-632-3	01	1	9511-0004
294	MEMBER; FLOATING CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-530-1	01	1	9510-
322	COLLAR; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-941-1	02	1	9510-
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9510-0512
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9510-0603
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-
325	BOLT; GUIDE NUT M12X30 FLANGE	0-28081-230-0	02	1	9510-9606
325	BOLT; GUIDE NUT M12X30 FLANGE	0-28681-230-0	02	1	9607-9612
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9701-0512
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-
326	NUT; GUIDE NUT (A) M12	1-53459-803-0	02	1	9510-9612
326	NUT; GUIDE NUT (B) M12	9-99110-512-0	02	1	9510-0512
326	NUT; GUIDE NUT (B) M12	0-91110-512-0	02	1	0601-
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9510-
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9510-
413	WASHER; LK,CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=23	1-53458-693-1	04	1	9510-0306
413	WASHER; LK,CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=23	1-53457-076-1	04	1	0307-
413	WASHER; LK,CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=16.2	9-09150-816-0	02	1	9510-0603
413	WASHER; LK,CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=16.2	0-91510-816-0	02	1	0604-
414	COLLAR; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-941-1	02	1	9510-
415	PIN; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> M16X115	5-51361-002-1	02	1	9510-
448	BUSHING; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53458-635-0	02	1	9803-
448	BUSHING; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-53459-836-3	02	1	9803-

164 282 281 294 159 284 283 99 416 417 279 281 285 278 415 413 156 413 177 413 414 33 199 173 99 34 34 35 32 284 36 35 37 286 285 30 324 323 178 175 323 324 34 12 322 2 32 30 33 1 335 12 322 12 3 326 336 2 103 326 33 1 325 2 3 96 99 12 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (C)	1-53453-248-0	01	1	9510-
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (C)	1-53453-247-0	01	1	9510-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (B)	1-53454-648-1	02	1	9803-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-53453-285-0	01	1	9510-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-53453-284-0	01	1	9510-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-53453-256-0	01	1	9510-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-53453-255-0	01	1	9510-
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9510-
3	TORSION BAR	1-09585-130-0	01	1	9510-
3	TORSION BAR	1-09585-129-0	01	1	9510-
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9510-1201
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-
12	WASHER; LK,BRKT CAB SUSPENSION RIGID<W71> (B) ID=34.5	1-53458-281-1	04	1	9510-
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23	1-53458-693-1	04	1	9510-0306
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23	1-53457-076-1	04	1	0307-
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9510-
30	BOLT; CAB FRT FOOT (A) M14X40	9-92061-440-0	10	1	9510-0512
30	BOLT; CAB FRT FOOT (A) M14X40	0-20951-440-0	10	1	0601-
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION RIGID<W71>	1-62580-233-4	01	1	9510-
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION RIGID<W71>	1-62580-232-4	01	1	9510-
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION RIGID<W71>	1-62580-231-4	01	1	9510-
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION RIGID<W71>	1-62580-230-4	01	1	9510-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (C)	1-53458-636-1	02	1	9510-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-53458-634-0	02	1	9510-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-53458-635-0	02	1	9510-9802
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-53459-836-3	02	1	9510-
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	9510-
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9510-
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-0904
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9510-0904
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9510-
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9510-
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9510-
96	BRACKET; CAB STAY	1-62500-628-0	01	1	9510-
99	BOLT; BRKT (B) M10X30 FLANGE	0-28091-030-0	02	1	9510-9606
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	9607-0512
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE	0-28080-820-0	08	1	9510-9606
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE	0-28680-820-0	08	1	9607-0512
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X25 FLANGE	0-28081-225-0	04	1	9510-9606
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X30 FLANGE	0-28681-230-0	04	1	9607-0512
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9510-
156	NUT; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> M16	9-99110-516-0	02	1	9510-0512
156	NUT; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> M16	0-91110-516-0	02	1	0601-
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION RIGID<W71> (A)	1-53459-619-3	02	1	9510-
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION RIGID<W71> (B)	1-53459-620-3	02	1	9510-
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (C)	1-53458-285-0	02	1	9510-
164	BOLT; CUSHION RUBBER,CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28080-820-0	04	1	9510-9606
164	BOLT; CUSHION RUBBER,CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28680-820-0	04	1	9607-0512
164	BOLT; CUSHION RUBBER,CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28650-820-0	04	1	0601-
173	MEMBER; CAB MTG RR CAB SUSPENSION RIGID<W71>	1-53454-618-0	01	1	9510-
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-597-1	01	1	9510-9802
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-729-0	01	1	9803-
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9510-0512
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-
177	BRACKET; MEMBER CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-529-1	01	1	9510-9802
177	BRACKET; MEMBER CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-528-1	01	1	9510-9802
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9510-0603
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53454-627-1	02	1	9510-9802
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-644-2	02	1	9803-1103
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-911-0	02	1	1104-1403
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98269-637-0	02	1	1404-
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-53454-526-1	02	1	9510-9802
278	COVER 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-309-0	01	1	9511-0004
279	BOLT 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE	0-28280-825-0	02	1	9511-9606
279	BOLT 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE	0-28680-825-0	02	1	9607-0004
281	WASHER; PL,BACK COVER 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26	9-09164-808-0	03	1	9511-0004
282	NUT; BACK COVER 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE	0-91150-108-0	01	1	9511-0004
283	BRACKET; UPR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53459-630-2	01	1	9511-0004
284	BOLT; BRKT UPR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE	0-28080-820-0	06	1	9511-9606
284	BOLT; BRKT UPR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE	0-28680-820-0	06	1	9607-0004
285	NUT; BRKT UPR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8	9-09110-408-0	06	1	9511-9606
285	NUT; BRKT UPR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE	0-91150-108-0	06	1	9607-0004
286	BRACKET; LOW 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53459-631-3	01	1	9511-0004
286	BRACKET; LOW 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK>	1-53459-632-3	01	1	9511-0004
294	MEMBER; FLOATING CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-530-1	01	1	9510-
322	COLLAR; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-941-1	02	1	9510-
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9510-0512
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9510-0603
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-
325	BOLT; GUIDE NUT M12X30 FLANGE	0-28081-230-0	02	1	9510-9606
325	BOLT; GUIDE NUT M12X30 FLANGE	0-28681-230-0	02	1	9607-9612
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9701-0512
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-
326	NUT; GUIDE NUT (A) M12	1-53459-803-0	02	1	9510-9612
326	NUT; GUIDE NUT (B) M12	9-99110-512-0	02	1	9510-0512
326	NUT; GUIDE NUT (B) M12	0-91110-512-0	02	1	0601-
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9510-
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9510-
413	WASHER; LK,CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=23	1-53458-693-1	04	1	9510-0306
413	WASHER; LK,CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=23	1-53457-076-1	04	1	0307-
413	WASHER; LK,CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=16.2	9-09150-816-0	02	1	9510-0603
413	WASHER; LK,CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=16.2	0-91510-816-0	02	1	0604-
414	COLLAR; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-941-1	02	1	9510-
415	PIN; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> M16X115	5-51361-002-1	02	1	9510-
416	RUBBER; SHUTTER 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EXC. CAB SUSPENSION RIGID<W71>	1-53446-730-0	02	1	9511-9603
416	RUBBER; SHUTTER 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> TAIWAN EQUIPMENT(WW5) EXC. CAB SUSPENSION RIGID<W71>	1-53446-730-0	02	1	9604-9802
417	RIVET 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> EXC. CAB SUSPENSION RIGID<W71>	1-09470-001-0	04	1	9511-9603
417	RIVET 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT VAR2<TAK> TAIWAN EQUIPMENT(WW5) EXC. CAB SUSPENSION RIGID<W71>	1-09470-001-0	04	1	9604-9802

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
