5-01 — FRAME AND OTHER PARTS (#64115) — 146 parça

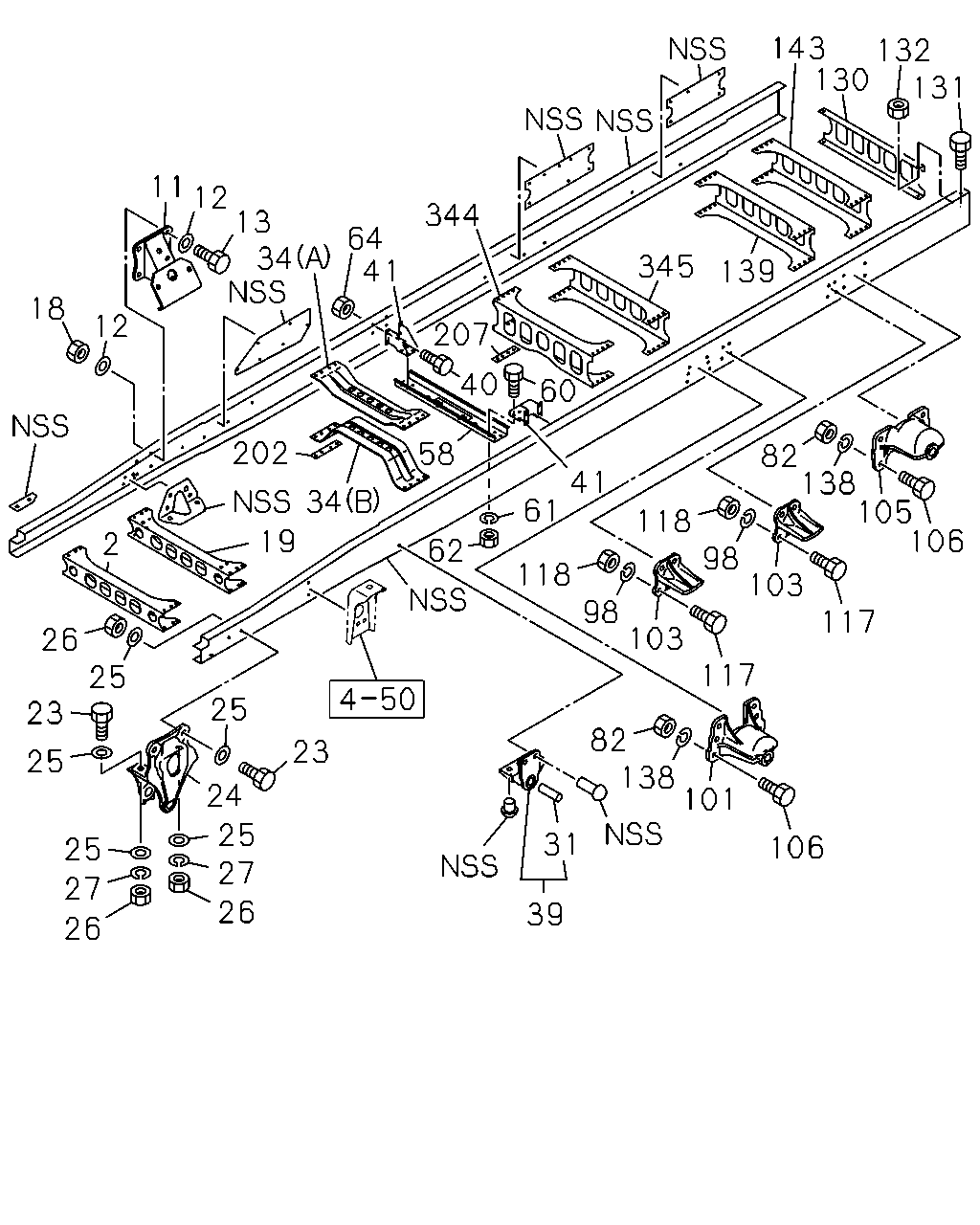

çizim 183742
143 132 130 131 11 12 13 34 344 64 41 345 139 18 12 40 60 58 82 138 105 106 202 41 2 34 61 118 98 103 19 62 118 98 103 117 26 25 117 25 23 82 138 101 23 25 24 25 27 31 106 25 27 26 39 26 207
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 1-53181-460-9 01 1 9510-0004 ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-460-9 01 1 0005-0407 ● ● ●
2 MEMBER; CROSS,1ST 1-53181-892-4 01 1 0408- ● ● ●
11 BRACKET; ENG MTG 1-53211-195-0 02 1 9510-0004 ● ● ●
11 BRACKET; ENG MTG
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53211-195-0 02 1 9510-0004 ●
11 BRACKET; ENG MTG 1-53211-195-0 02 1 0005- ● ●
11 BRACKET; ENG MTG
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53211-195-0 02 1 0005- ●
11 BRACKET; ENG MTG
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53211-197-0 02 1 9510- ●
12 WASHER; PL,BRKT,ENG MTG
ID=12.5 		1-09503-171-0 16 1 9510-9802 ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X40 		9-92061-240-0 08 1 9510-9802 ● ● ● ●
13 BOLT; BRKT,ENG MTG
HEAVY DUTY PACKAGE TRUCK<RD2> M12X40 FLANGE 		0-28691-240-0 08 1 9803-0512 ●
13 BOLT; BRKT,ENG MTG
HEAVY DUTY PACKAGE TRUCK<RD2> M12X40 FLANGE 		0-28661-240-0 08 1 0601- ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 9803-0004 ● ● ●
13 BOLT; BRKT,ENG MTG
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12X35 FLANGE 		0-28691-235-0 08 1 9803-0004 ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 0005-0512 ● ●
13 BOLT; BRKT,ENG MTG
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12X35 FLANGE 		0-28691-235-0 08 1 0005-0512 ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0601- ● ●
13 BOLT; BRKT,ENG MTG
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12X35 FLANGE 		0-28661-235-0 08 1 0601- ●
18 NUT; BRKT,ENG MTG
M12 		9-99110-512-0 08 1 9510-9802 ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 9803-0004 ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 0005-0602 ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0603- ● ● ●
19 MEMBER; CROSS,2ND 1-53181-715-7 01 1 9510-0004 ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-715-9 01 1 0005-0410 ● ● ●
19 MEMBER; CROSS,2ND 8-97606-307-1 01 1 0411- ● ● ●
23 BOLT; BRKT,SPR
M14X45 		9-92061-445-0 08 1 9510-0004 ● ● ● ●
23 BOLT; BRKT,SPR
M14X45 		9-92061-445-0 08 1 0005- ● ● ●
24 BRACKET; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53351-234-0 01 1 9903-0004 ●
24 BRACKET; FRT SPR,FRT
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53351-234-0 01 1 9903-0004 ●
24 BRACKET; FRT SPR,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53351-234-0 01 1 9903-0004 ●
24 BRACKET; FRT SPR,FRT 1-53351-234-0 01 1 0005- ● ●
24 BRACKET; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53351-233-0 01 1 9903-0004 ●
24 BRACKET; FRT SPR,FRT
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53351-233-0 01 1 9903-0004 ●
24 BRACKET; FRT SPR,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53351-233-0 01 1 9903-0004 ●
24 BRACKET; FRT SPR,FRT 1-53351-233-0 01 1 0005- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-216-0 01 1 9510-9902 ● ● ● ●
24 BRACKET; FRT SPR,FRT
FRAME EQUIPMENT HEAVY DUTY VAR1(F03) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53351-216-0 01 1 9903-0004 ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-216-0 01 1 0005- ●
24 BRACKET; FRT SPR,FRT 1-53351-215-0 01 1 9510-9902 ● ● ● ●
24 BRACKET; FRT SPR,FRT
FRAME EQUIPMENT HEAVY DUTY VAR1(F03) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53351-215-0 01 1 9903-0004 ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-215-0 01 1 0005- ●
25 WASHER; PL,BRKT
ID=15 		9-09651-069-0 16 1 9510-0004 ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		9-09651-069-0 16 1 0005-1201 ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1202- ● ● ●
26 NUT; BRKT,SPR
M14 		9-99110-514-0 08 1 9510-0004 ● ● ● ●
26 NUT; BRKT,SPR
M14 		9-99110-514-0 08 1 0005-0512 ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 08 1 0601- ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		9-09150-614-0 08 1 9510-9802 ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 9510-0004 ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0005- ● ● ●
34 MEMBER; CROSS,3RD
(A) 		1-53175-358-1 01 1 9510-0004 ● ● ● ●
34 MEMBER; CROSS,3RD
(A) 		1-53175-358-1 01 1 0005- ● ● ●
34 MEMBER; CROSS,3RD
(B) 		1-53175-360-1 01 1 9510-9810 ● ● ●
34 MEMBER; CROSS,3RD
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53175-360-1 01 1 9510-9810 ●
34 MEMBER; CROSS,3RD
FRAME EQUIPMENT HEAVY DUTY VAR1(F03) (B) 		1-53175-360-1 01 1 9811-0004 ●
34 MEMBER; CROSS,3RD
FRAME EQUIPMENT HEAVY DUTY VAR1(F03) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53175-360-1 01 1 9811-0004 ●
34 MEMBER; CROSS,3RD
(B) 		1-53175-360-1 01 1 9811-0004 ● ●
34 MEMBER; CROSS,3RD
FRAME EQUIPMENT HEAVY DUTY VAR1(F03) (B) 		1-53175-360-1 01 1 0005- ●
34 MEMBER; CROSS,3RD
HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53175-359-1 01 1 9510-9810 ●
34 MEMBER; CROSS,3RD
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1(F03) (B) 		1-53175-359-1 01 1 9811-0004 ●
34 MEMBER; CROSS,3RD
HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53175-359-1 01 1 9811-0004 ●
34 MEMBER; CROSS,3RD
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1(F03),HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53175-359-1 01 1 9811-0004 ●
34 MEMBER; CROSS,3RD
(B) 		1-53175-359-1 01 1 0005- ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-1 02 1 9510-0004 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 0005- ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 W/LK WASHER 		0-50041-030-0 08 1 9510-9802 ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28681-030-0 08 1 9803-0512 ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 0601- ●
41 BRACKET; CENTER BRG,FRAME SIDE 1-37515-086-0 02 1 9510- ●
58 MEMBER; CENTER BRG 1-37529-082-0 01 1 9510- ●
60 BOLT; MBR
M10X25 W/LK WASHER 		0-50041-025-0 08 1 9510-9802 ●
60 BOLT; MBR
M10X25 FLANGE 		0-28681-025-0 08 1 9803-0512 ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0601- ●
61 WASHER; PL,MBR
ID=10.5 OD=22 		9-09164-610-0 08 1 9510-9802 ●
62 NUT; MBR
M10 		9-09110-410-0 08 1 9510-9802 ●
62 NUT; MBR
M10 FLANGE 		0-91150-110-0 08 1 9803-0602 ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 0603- ●
64 NUT; BRKT TO FRAME
M10 		9-09110-410-0 08 1 9510-9802 ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91150-110-0 08 1 9803-0602 ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 0603- ●
82 NUT; BRKT
M14 		9-99110-414-0 22 1 9510-0004 ● ● ● ●
82 NUT; BRKT
M14 		9-99110-414-0 22 1 0005-0512 ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 22 1 0601- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 9510-0004 ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 0005-0603 ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0604- ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 9510-0004 ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0005- ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 9510-0004 ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0005- ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 9510-0004 ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0005- ● ● ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 22 1 9510-9802 ● ● ● ●
106 BOLT; BRKT
M14X40 		0-20801-440-0 22 1 9803-0004 ● ● ● ●
106 BOLT; BRKT
M14X40 		0-20801-440-0 22 1 0005-0512 ● ● ●
106 BOLT; BRKT
M14X40 		0-20851-440-0 22 1 0601- ● ● ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 9510-0004 ● ● ● ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 0005- ● ● ●
118 NUT; STOPPER
M14 		9-99110-414-0 16 1 9510-0004 ● ● ● ●
118 NUT; STOPPER
M14 		9-99110-414-0 16 1 0005-0512 ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0601- ● ● ●
130 MEMBER; CROSS,END 1-53181-469-2 01 1 9510- ●
130 MEMBER; CROSS,END
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-469-2 01 1 9510- ●
130 MEMBER; CROSS,END
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-516-2 01 1 9510-0004 ●
130 MEMBER; CROSS,END 1-53181-516-2 01 1 9510-0004 ● ●
130 MEMBER; CROSS,END
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-516-2 01 1 0005- ●
130 MEMBER; CROSS,END 1-53181-516-2 01 1 0005- ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9510-9802 ● ● ● ●
131 BOLT; END C/MBR
HEAVY DUTY PACKAGE TRUCK<RD2> M10X30 FLANGE 		0-28681-030-0 04 1 9803-0512 ●
131 BOLT; END C/MBR
HEAVY DUTY PACKAGE TRUCK<RD2> M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
131 BOLT; END C/MBR
M10X25 FLANGE 		0-28681-025-0 04 1 9803-0004 ● ● ●
131 BOLT; END C/MBR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X25 FLANGE 		0-28681-025-0 04 1 9803-0004 ●
131 BOLT; END C/MBR
M10X25 FLANGE 		0-28681-025-0 04 1 0005-0512 ● ●
131 BOLT; END C/MBR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X25 FLANGE 		0-28681-025-0 04 1 0005-0512 ●
131 BOLT; END C/MBR
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ●
131 BOLT; END C/MBR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
132 NUT; END C/MBR
M10 		9-09110-410-0 04 1 9510-9802 ● ● ● ●
132 NUT; END C/MBR
M10 FLANGE 		0-91150-110-0 04 1 9803-0004 ● ● ● ●
132 NUT; END C/MBR
M10 FLANGE 		0-91150-110-0 04 1 0005-0602 ● ● ●
132 NUT; END C/MBR
M10 FLANGE 		0-91180-110-0 04 1 0603- ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 22 1 9510-0004 ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 22 1 0005-0603 ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 22 1 0604- ● ● ●
139 MEMBER; CROSS,6TH
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53182-067-2 01 1 0309- ●
139 MEMBER; CROSS,6TH
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-465-9 01 1 9510-0004 ●
139 MEMBER; CROSS,6TH 1-53181-465-9 01 1 9510-0004 ● ●
139 MEMBER; CROSS,6TH
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-465-9 01 1 0005-0308 ●
139 MEMBER; CROSS,6TH 1-53181-465-9 01 1 0005-0308 ●
139 MEMBER; CROSS,6TH 1-53181-465-9 01 1 0309- ●
139 MEMBER; CROSS,6TH
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-521-3 01 1 9510- ●
143 MEMBER; CROSS,7TH 1-53181-465-9 01 1 9510-0004 ●
202 SPACER; 3RD C/MBR 1-53178-015-0 02 1 9510-9810 ● ● ●
202 SPACER; 3RD C/MBR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53178-015-0 02 1 9510-9810 ●
202 SPACER; 3RD C/MBR
FRAME EQUIPMENT HEAVY DUTY VAR1(F03) 		1-53178-015-0 02 1 9811-0004 ●
202 SPACER; 3RD C/MBR
FRAME EQUIPMENT HEAVY DUTY VAR1(F03) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53178-015-0 02 1 9811-0004 ●
202 SPACER; 3RD C/MBR 1-53178-015-0 02 1 9811-0004 ● ●
202 SPACER; 3RD C/MBR
FRAME EQUIPMENT HEAVY DUTY VAR1(F03) 		1-53178-015-0 02 1 0005- ●
207 SPACER; 4TH C/MBR
T=7.0 		1-53168-321-0 02 1 9510-0004 ●
344 MEMBER; CROSS,4TH 1-53181-520-8 01 1 9510- ●
344 MEMBER; CROSS,4TH 1-53181-463-3 01 1 9510- ● ●
344 MEMBER; CROSS,4TH 1-53181-604-1 01 1 9510-0004 ●
345 MEMBER; CROSS,5TH 1-53181-521-3 01 1 9510- ●
345 MEMBER; CROSS,5TH
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-465-9 01 1 9510- ●
345 MEMBER; CROSS,5TH 1-53181-465-9 01 1 9510- ●
345 MEMBER; CROSS,5TH
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-520-8 01 1 9510- ●
345 MEMBER; CROSS,5TH 1-53181-604-1 01 1 9510-0004 ●
