1 |

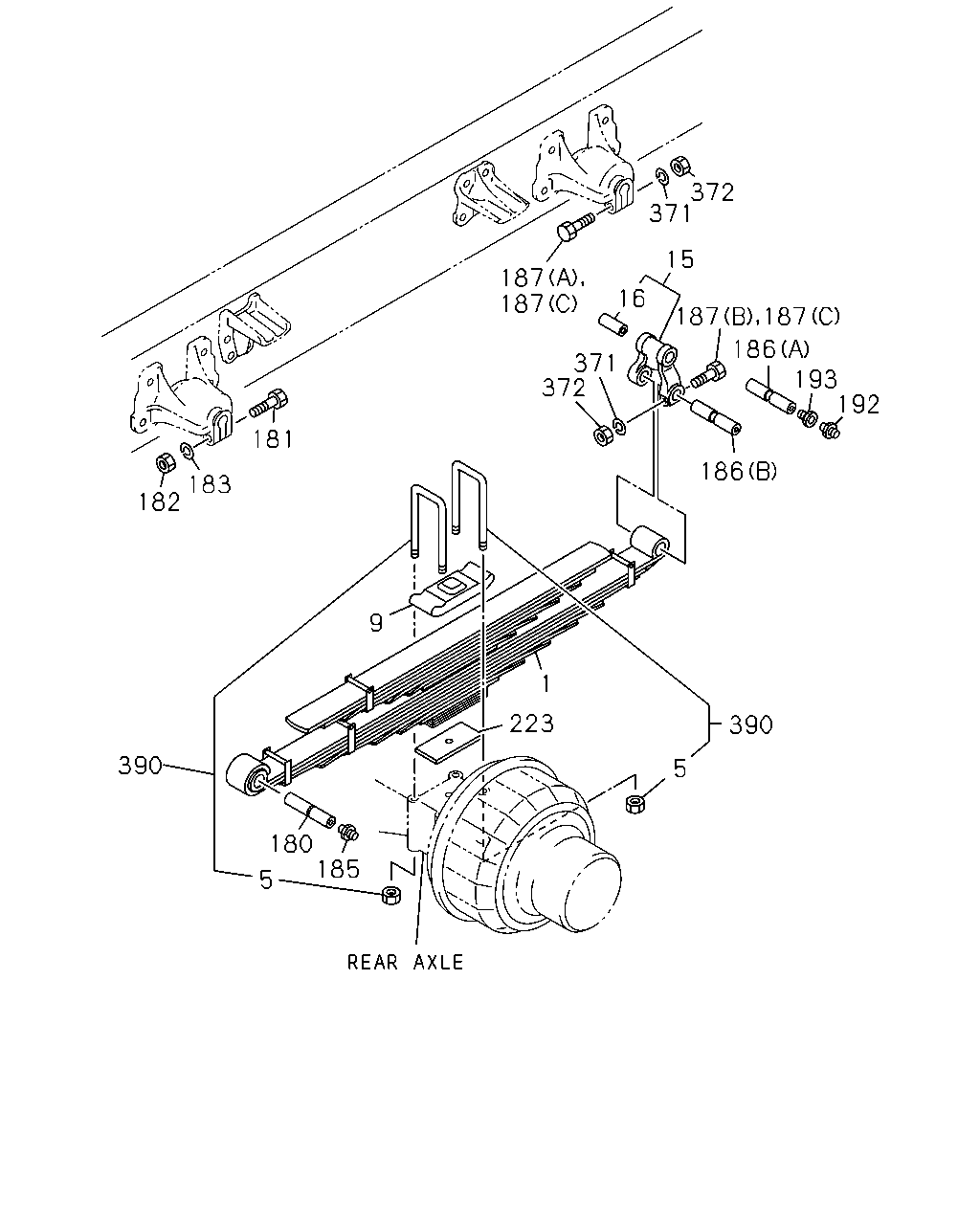

SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
REAR SPRING HEAVY DUTY(G50)
|
1-51300-364-1 |
02 |
1 |
9510- |
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
EXC. REAR SPRING HEAVY DUTY(G50)
15-LEAF
|
1-51300-362-3 |
02 |
1 |
9510- |
| |
5 |
NUT; U-BOLT,RR SPR
M18 FLANGE
|
1-09440-039-1 |
08 |
1 |
9510- |
| |
9 |
PAD; U BOLT,RR SPR
|
1-51372-059-0 |
02 |
1 |
9510- |
| |
15 |
SHACKLE; RR SPR
|
1-51362-038-2 |
02 |
1 |
9510- |
| |
16 |
BUSHING; SHACKLE,RR SPR
ID=25
|
9-51151-032-0 |
02 |
1 |
9510-0902 |
| |
16 |
BUSHING; SHACKLE,RR SPR
ID=25
|
8-98082-176-0 |
02 |
1 |
0903- |
| |
180 |
PIN; RR SPR
DO=25 L=115 PT1/8
|
1-51361-016-0 |
02 |
1 |
9510- |
| |
181 |
BOLT; SPR & SHACKLE
M12X55
|
0-10811-255-0 |
02 |
1 |
9510- |
| |
182 |
NUT; PIN,RR SPR
M12
|
9-99110-512-0 |
02 |
1 |
9510-0512 |
| |
182 |
NUT; PIN,RR SPR
M12
|
0-91110-512-0 |
02 |
1 |
0601- |
| |
183 |
WASHER; LK,PIN,RR SPR
ID=12.2
|
9-09150-612-0 |
02 |
1 |
9510-0603 |
| |
183 |
WASHER; LK,PIN,RR SPR
ID=12.2
|
0-91510-612-0 |
02 |
1 |
0604- |
| |
185 |
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9510-0512 |
| |
185 |
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
|
0-90301-410-0 |
02 |
1 |
0601- |
| |
186 |
PIN; SHACKLE,RR SPR
(A)
DO=25 L=115 PT1/8
|
1-51361-016-0 |
02 |
1 |
9510- |
| |
186 |
PIN; SHACKLE,RR SPR
(B)
DO=25 L=115 M12
|
1-51361-017-0 |
02 |
1 |
9510- |
| |
187 |
BOLT; SPR & SHACKLE
(C)
M12X65
|
0-10811-265-0 |
04 |
1 |
9510-9701 |
| |
187 |
BOLT; SPR & SHACKLE
(B)
M12X65
|
0-10811-265-0 |
02 |
1 |
9702- |
| |
187 |
BOLT; SPR & SHACKLE
(A)
M12X55
|
0-10811-255-0 |
02 |
1 |
9702- |
| |
192 |
NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT
|
9-09031-010-0 |
04 |
1 |
9510-0512 |
| |
192 |
NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT
|
0-90301-410-0 |
04 |
1 |
0601- |
| |
193 |
ATTACHMENT; GREASE NIPPLE
|
9-43165-001-0 |
02 |
1 |
9510- |
| |
223 |
SPACER; U BOLT,RR SPR
|
1-51377-329-1 |
02 |
1 |
9510- |
| |
371 |
WASHER; LK,SHACKLE
ID=12.2
|
9-09150-612-0 |
04 |
1 |
9510-0603 |
| |
371 |
WASHER; LK,SHACKLE
ID=12.2
|
0-91510-612-0 |
04 |
1 |
0604- |
| |
372 |
NUT; SHACKLE
M12
|
9-99110-512-0 |
04 |
1 |
9510-0512 |
| |
372 |
NUT; SHACKLE
M12
|
0-91110-512-0 |
04 |
1 |
0601- |
| |
390 |
U-BOLT SET; RR SPRING
REAR SPRING HEAVY DUTY(G50)
L=390
|
1-87870-399-0 |
04 |
1 |
9510- |
| |
390 |
U-BOLT SET; RR SPRING
EXC. REAR SPRING HEAVY DUTY(G50)
L=405
|
1-87870-353-0 |
04 |
1 |
9510- |
