◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10699 - FRR(LHD) EXC.EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶

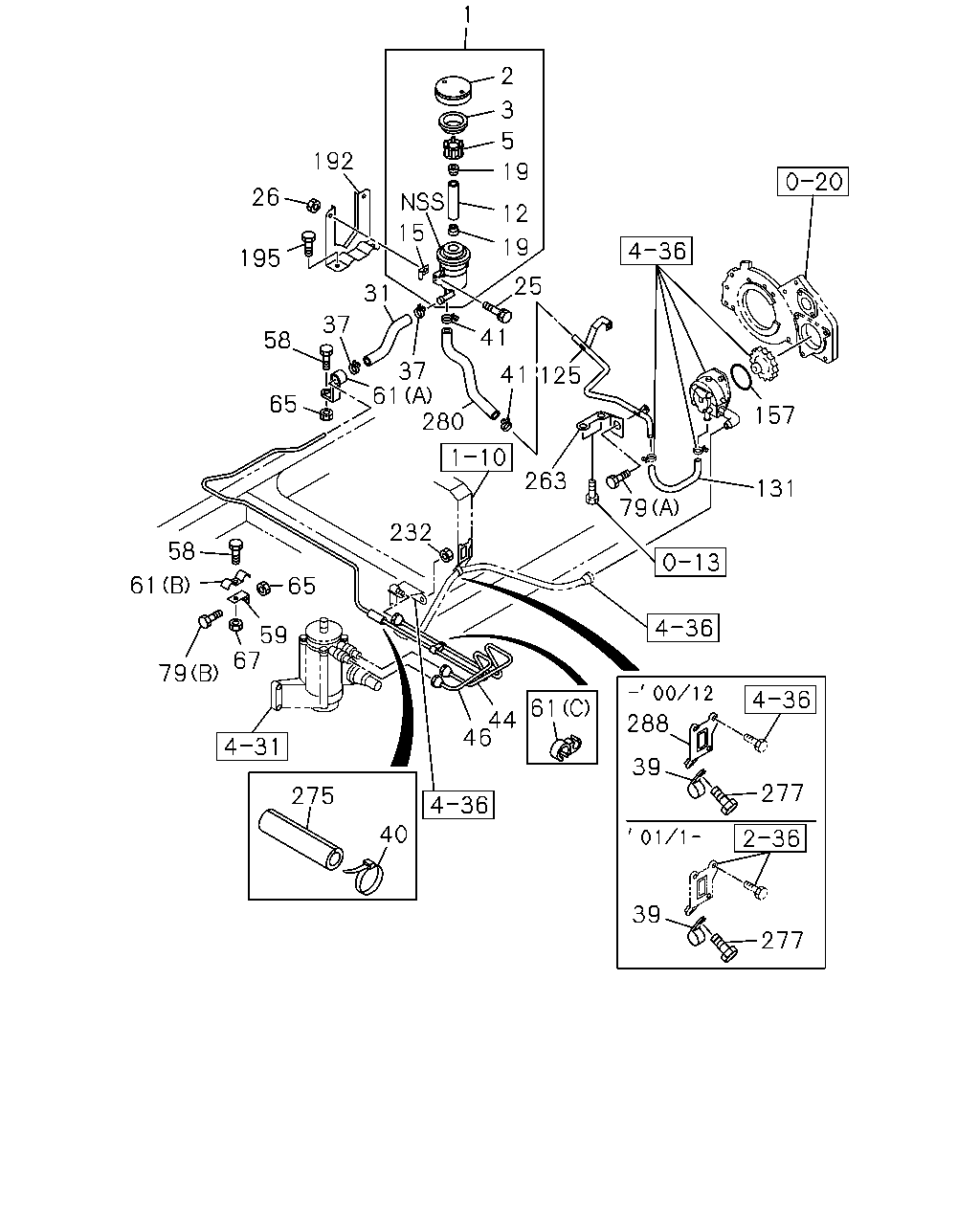

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#64106) — 84 parça
çizim 183732
1 2 3 5 192 19 26 12 15 19 195 25 31 37 41 58 37 61 280 41 125 65 157 263 131 79 232 58 61 65 59 67 79 61 44 46 288 39 277 275 40 39 277
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 9510-0508
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509-1006
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1007-
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 9510-1006
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007-
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 9510-
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 9510-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 9510-
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 9510-0508
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0509-
19 SEAT; OIL TANK 1-21249-004-0 02 1 9510-
25 BOLT; OIL TANK BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0512
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
26 NUT; OIL TANK TO BRKT
M8 		9-09110-408-0 02 1 9510-9606
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0602
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 0404-
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 9510-0403
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 9510-
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 9510-
40 CLIP; BAND
L=140 		5-09707-031-1 02 1 9901-
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 9510-
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21115-426-0 01 1 9510-9901
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21116-341-0 01 1 9902-
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21115-427-0 01 1 9510-9712
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-021-0 01 1 9801-9802
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-025-1 01 1 9803-9809
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-205-0 01 1 9810-
58 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606
58 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9607-9802
58 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 03 1 9803-0512
58 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0601-
58 BOLT; CLIP
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606
58 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 9510-
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 02 1 9510-
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 9510-
61 CLIP; OIL PIPE
(C) ID=12 & 15 		1-09709-281-1 01 1 9510-
65 NUT; BRKT
M8 		9-09110-408-0 03 1 9510-9606
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 9607-0602
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603-
67 NUT; BRKT
M8 		9-09110-408-0 01 1 9510-9606
67 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9607-0602
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 02 1 9510-0512
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0601-
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606
79 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9801
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9802-0512
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
125 CONNECTOR; P/S PUMP 8-94394-319-0 01 1 9510-9605
125 CONNECTOR; P/S PUMP 8-94390-310-0 01 1 9606-9901
125 CONNECTOR; P/S PUMP 8-97600-113-0 01 1 9902-0101
125 CONNECTOR; P/S PUMP
6HH1 STD ENG(65L),6HH1 N ENG(66L) 		8-97600-113-0 01 1 0102-0302
125 CONNECTOR; P/S PUMP
6HH1 STD ENG(65L),6HH1 N ENG(66L) 		8-97600-113-0 01 1 0303-0407
125 CONNECTOR; P/S PUMP
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-97600-113-0 01 1 0303-0407
125 CONNECTOR; P/S PUMP
6HH1 N ENG(66L) 		8-97600-113-0 01 1 0408-
125 CONNECTOR; P/S PUMP
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-97600-113-0 01 1 0408-
125 CONNECTOR; P/S PUMP
6HH1 STD ENG(65L) EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		8-97600-113-0 01 1 0408-
125 CONNECTOR; P/S PUMP
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97600-115-0 01 1 0005-0302
125 CONNECTOR; P/S PUMP
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97600-115-0 01 1 0303-0411
125 CONNECTOR; P/S PUMP
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-97600-115-0 01 1 0303-0411
125 CONNECTOR; P/S PUMP
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97600-115-0 01 1 0412-
125 CONNECTOR; P/S PUMP
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-97600-115-0 01 1 0412-
125 CONNECTOR; P/S PUMP
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> 		8-97600-115-0 01 1 0412-
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 9510-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 9510-
192 BRACKET; P/S OIL TANK 1-21119-129-0 01 1 9510-
195 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 9510-9606
195 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 9607-0406
195 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 0407-0512
195 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 02 1 0601-
232 NUT; BRKT
M8 		9-09110-408-0 02 1 9510-9606
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0602
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
263 BRACKET; P/S PIPE 8-94393-981-0 01 1 9510-9901
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 9902-
275 SLEEVE; RUBBER
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 9901-
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9510-0512
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
280 HOSE; P/S OIL PUMP,INL 1-21115-230-1 01 1 9510-0004
280 HOSE; P/S OIL PUMP,INL 1-21116-695-0 01 1 0005-
288 BRACKET; CLIP,P/S 1-82659-149-0 01 1 9510-0012
