4-31 — STEERING COLUMN AND SHAFT (#64104) — 116 parça

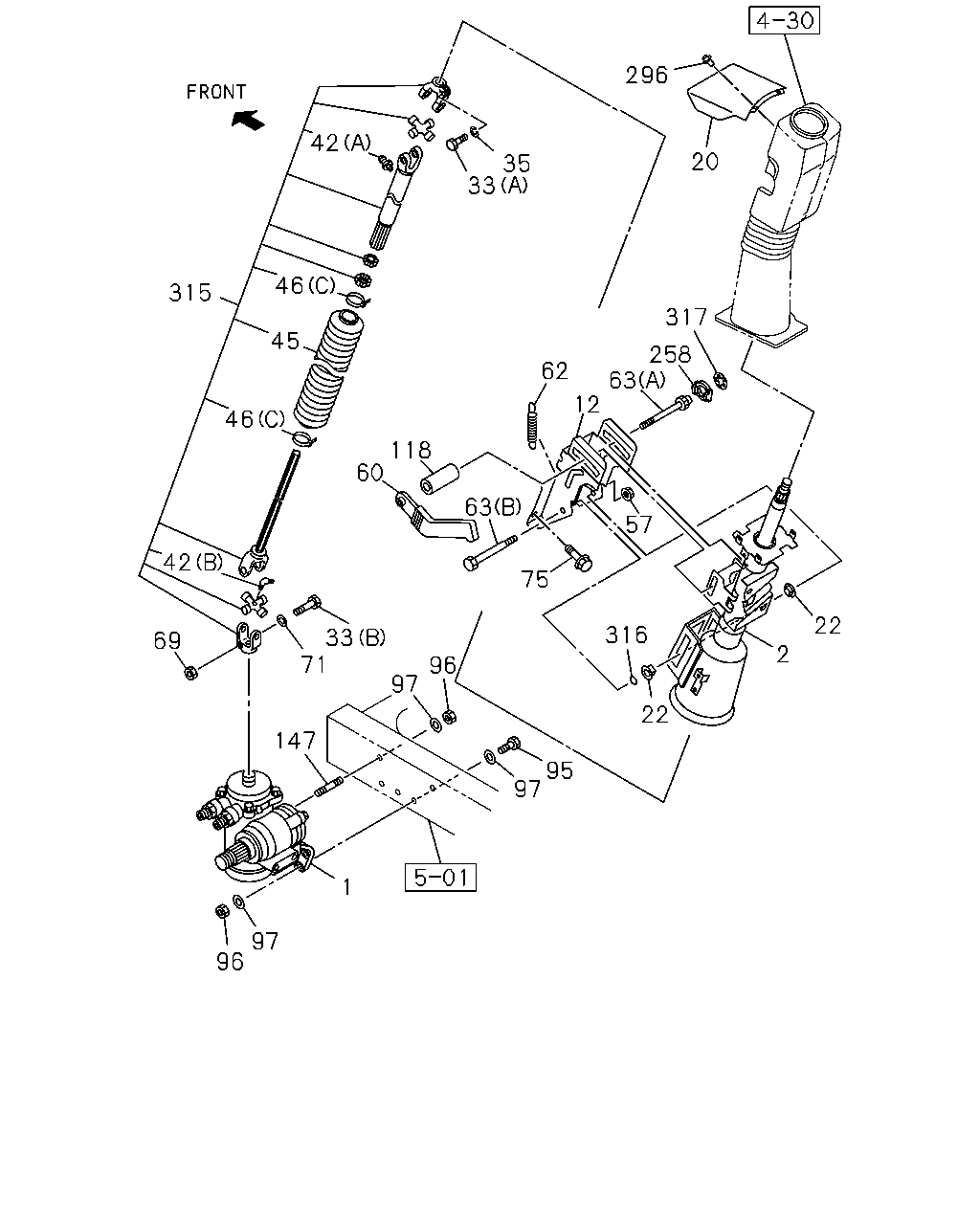

çizim 183726
296 42 20 35 33 46 315 317 45 258 63 12 62 46 118 60 63 57 42 75 22 316 33 71 69 2 96 97 22 147 95 97 1 97 96
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-842-2 01 1 9510-0205
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-887-2 01 1 0206-
2 SHAFT ASM; STRG 1-44130-556-1 01 1 9510-9804
2 SHAFT ASM; STRG 1-44130-689-1 01 1 9805-
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 9805-0811
12 BRACKET; LWR,STRG COLUMN 1-44227-167-0 01 1 0812-
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9510-
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 9805-
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9510-0707
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 0708-
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9510-9804
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9805-
35 WASHER; LK,STRG SHAFT 1-44139-142-0 01 1 9510-9804
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 9805-
42 NIPPLE; GREASE,SLEEVE YOKE
(A) STRAIGHT 		1-44135-375-0 01 1 0507-
42 NIPPLE; GREASE,SLEEVE YOKE
(B) ELBOW 		1-44135-376-0 01 1 0507-
42 NIPPLE; GREASE,SLEEVE YOKE
(A) M6 STRAIGHT 		9-09031-006-0 01 1 9510-9804
42 NIPPLE; GREASE,SLEEVE YOKE
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 9510-9804
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9510-9804
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805-
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9510-9804
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805-
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9510-9804
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9510-9804
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805-
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9510-9804
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805-
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9510-9804
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9805-0111
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0112-
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-126-0 01 1 9510-9804
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9805-
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9805-
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 9510-0512
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 0601-
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 9510-0603
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 0604-
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9510-9610
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9611-0512
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
95 BOLT; STRG UNIT
M14X45 		9-92061-445-0 04 1 9510-0009
95 BOLT; STRG UNIT
M14X50 		1-09000-739-1 04 1 0010-0805
95 BOLT; STRG UNIT
M14X50 		1-09000-787-1 04 1 0806-
96 NUT; STRG UNIT
M14 		9-99110-514-0 05 1 9510-0009
96 NUT; STRG UNIT
M14 		1-09440-080-0 05 1 0010-0805
96 NUT; STRG UNIT
M14 		1-09440-097-0 05 1 0806-
97 WASHER; PL,STRG UNIT
ID=15 		9-09651-069-0 09 1 9510-1201
97 WASHER; PL,STRG UNIT
ID=15 		8-98010-627-1 09 1 1202-
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 9805-0506
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 0507-
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-095-1 01 1 9510-
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 9805-
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9510-
315 JOINT; SPLINE 1-44135-341-1 01 1 9805-
316 RING 1-44227-152-0 01 1 9805-
317 NUT; PUSH 1-44227-148-0 01 1 9805-

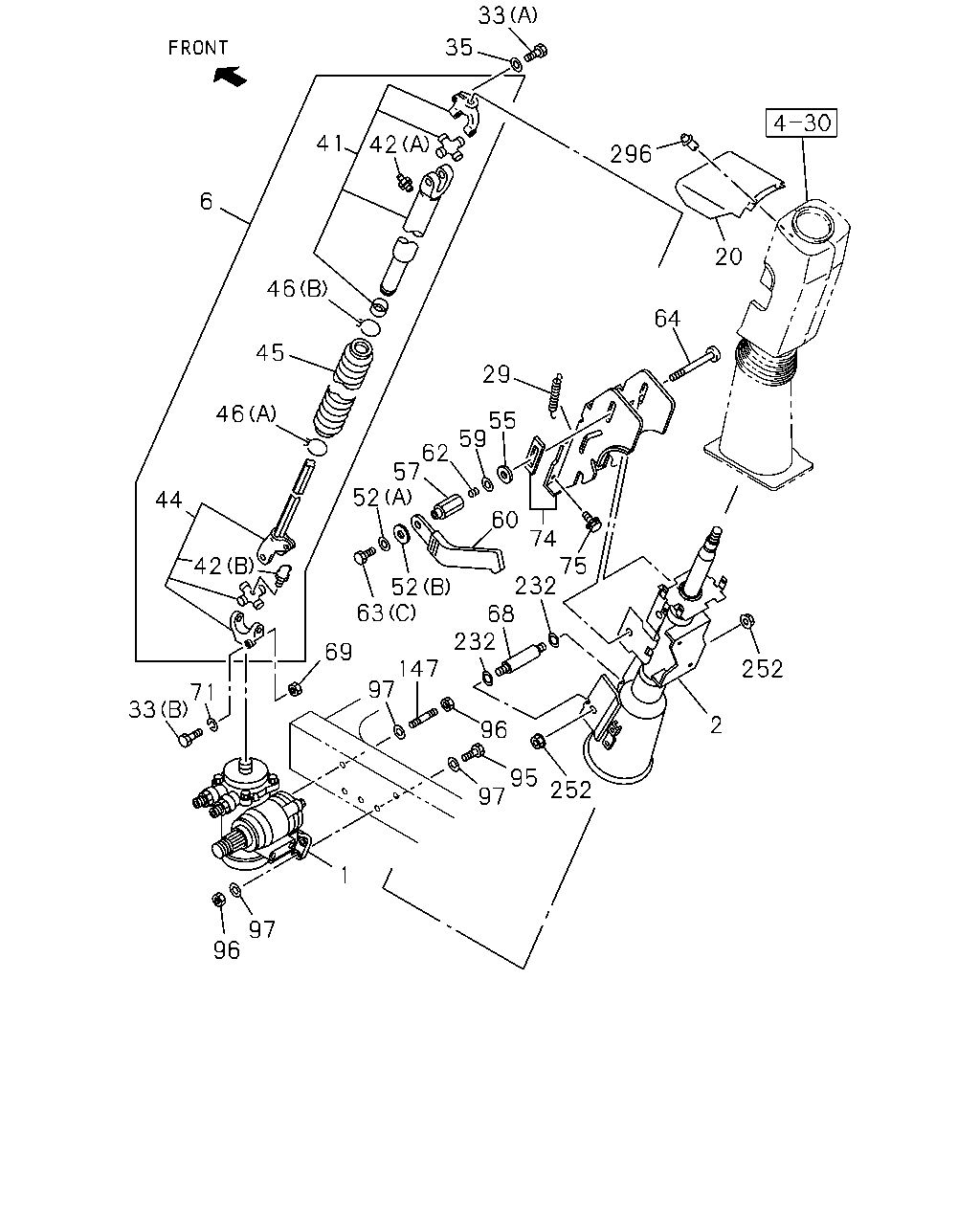

çizim 183733
6 41 35 33 296 20 64 29 55 59 62 57 52 74 60 232 75 52 63 147 68 232 96 97 252 95 2 252 97 96 1 71 33 44 42 46 45 46 42 69 97
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-842-2 01 1 9510-0205
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-887-2 01 1 0206-
2 SHAFT ASM; STRG 1-44130-556-1 01 1 9510-9804
2 SHAFT ASM; STRG 1-44130-689-1 01 1 9805-
6 SHAFT; STRG LWR 1-44135-298-0 01 1 9510-9804
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9510-
29 SPRING; COLUMN 1-44227-136-0 02 1 9510-9804
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9510-0707
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 0708-
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9510-9804
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9805-
35 WASHER; LK,STRG SHAFT 1-44139-142-0 01 1 9510-9804
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 9805-
41 YOKE; SLEEVE,STRG 1-44135-299-0 01 1 9510-9804
42 NIPPLE; GREASE,SLEEVE YOKE
(A) STRAIGHT 		1-44135-375-0 01 1 0507-
42 NIPPLE; GREASE,SLEEVE YOKE
(B) ELBOW 		1-44135-376-0 01 1 0507-
42 NIPPLE; GREASE,SLEEVE YOKE
(A) M6 STRAIGHT 		9-09031-006-0 01 1 9510-9804
42 NIPPLE; GREASE,SLEEVE YOKE
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 9510-9804
44 SHAFT; SPLINE,STRG 1-44135-300-0 01 1 9510-9804
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9510-9804
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805-
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9510-9804
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805-
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9510-9804
52 WASHER; PL,ADJ LEVER
(A) 		1-44227-127-0 01 1 9510-9804
52 WASHER; PL,ADJ LEVER
(B) 		1-44227-137-0 01 1 9510-9804
55 PLATE; GUIDE 1-44227-132-0 01 1 9510-9804
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9510-9804
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805-
59 COLLAR; DIST,ADJ BOLT 1-44227-131-0 01 1 9510-9804
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9510-9804
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805-
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9510-9804
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9805-0111
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0112-
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-126-0 01 1 9510-9804
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9805-
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9805-
64 BOLT; ADJ,PROTECTOR 1-44227-128-0 01 1 9510-9804
68 PIN; TILT CENTER 1-44227-133-1 01 1 9510-9804
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 9510-0512
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 0601-
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 9510-0603
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 0604-
74 BRACKET; SUPPORT,STRG 1-44221-075-1 01 1 9510-9804
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9510-9610
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9611-0512
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
95 BOLT; STRG UNIT
M14X45 		9-92061-445-0 04 1 9510-0009
95 BOLT; STRG UNIT
M14X50 		1-09000-739-1 04 1 0010-0805
95 BOLT; STRG UNIT
M14X50 		1-09000-787-1 04 1 0806-
96 NUT; STRG UNIT
M14 		9-99110-514-0 05 1 9510-0009
96 NUT; STRG UNIT
M14 		1-09440-080-0 05 1 0010-0805
96 NUT; STRG UNIT
M14 		1-09440-097-0 05 1 0806-
97 WASHER; PL,STRG UNIT
ID=15 		9-09651-069-0 09 1 9510-1201
97 WASHER; PL,STRG UNIT
ID=15 		8-98010-627-1 09 1 1202-
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-095-1 01 1 9510-
232 SPACER; STRG SHAFT 1-44227-134-0 02 1 9510-9804
252 NUT; TILT CENTER BOLT 1-44227-135-0 02 1 9510-9804
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9510-
