◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10699 - FRR(LHD) EXC.EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#64098) — 241 parça

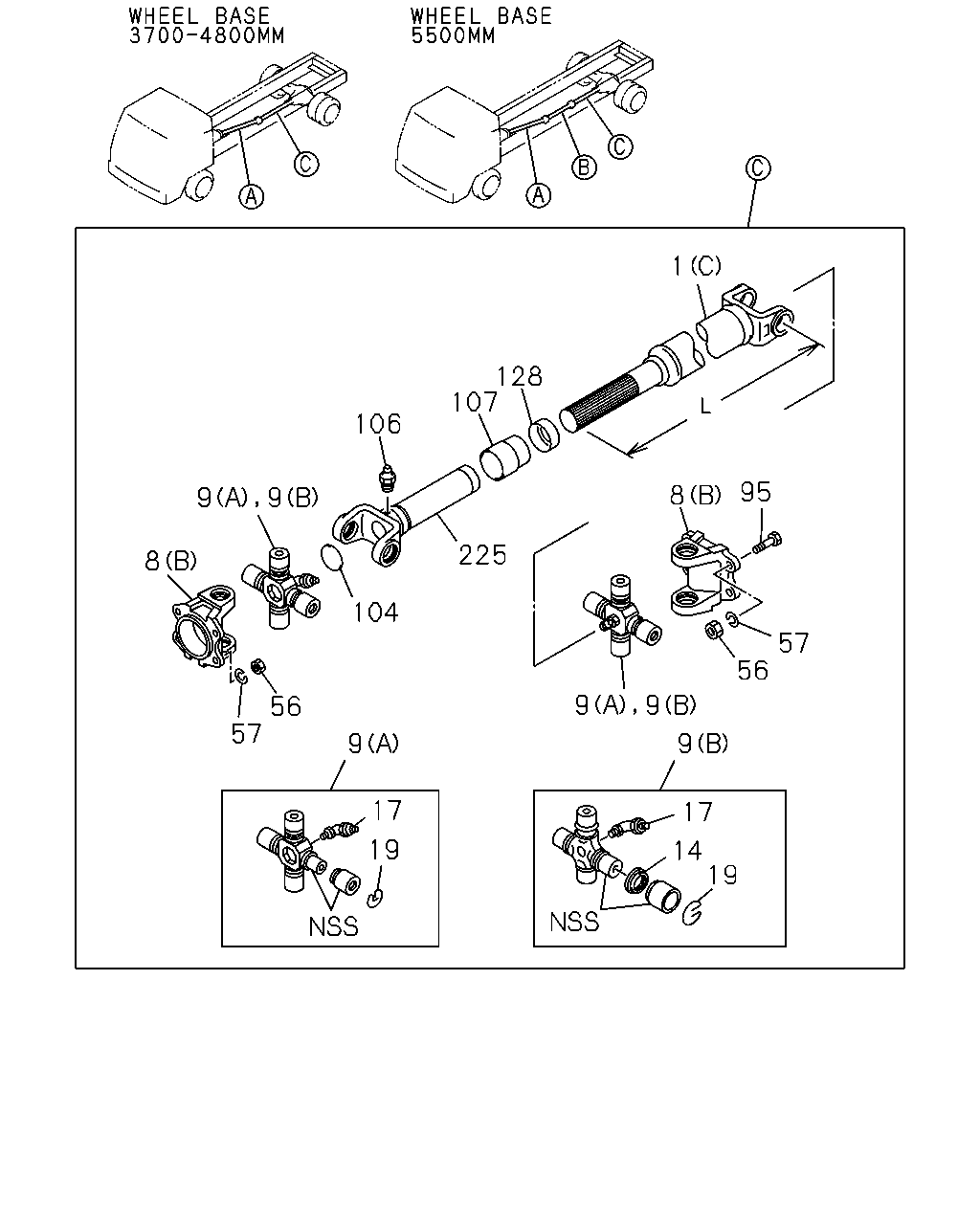

çizim 122571
1 128 107 106 95 8 9 9 225 8 104 57 56 9 9 56 57 9 9 17 17 19 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(C) L=747 		1-37123-758-1 01 1 9510- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=893 		1-37151-893-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=793 		1-37151-553-1 01 1 9510- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1108 		1-37151-896-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> P30 PROP SHAFT(B2F) (A) L=1108 		1-37151-897-1 01 1 9510-0004 ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=1108 		1-37151-897-1 01 1 0005- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) L=997 		1-37122-946-1 01 1 9510-0004 ●
1 SHAFT; PROP
(C) L=997 		1-37122-946-1 01 1 0005- ●
1 SHAFT; PROP
EXC. P30 PROP SHAFT(B2F) (C) L=951 		1-37123-764-1 01 1 9510-0004 ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=968 		1-37152-013-1 01 1 0005- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> EXC. P30 PROP SHAFT(B2F) (A) L=991 		1-37151-582-0 01 1 9510-9802 ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y>,MBJ6 M/T<Y9B> EXC. P30 PROP SHAFT(B2F) (A) L=991 		1-37151-582-1 01 1 9803-0004 ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1403 		1-37152-014-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> P30 PROP SHAFT(B2F) (A) L=1303 		1-37151-478-1 01 1 9510-0004 ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=1303 		1-37151-478-1 01 1 0005- ●
1 SHAFT; PROP
EXC. P30 PROP SHAFT(B2F) (A) L=1286 		1-37151-583-1 01 1 9510-0004 ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) L=1302 		1-37122-704-1 01 1 9510-0004 ● ●
1 SHAFT; PROP
(C) L=1302 		1-37122-704-1 01 1 0005- ●
1 SHAFT; PROP
EXC. P30 PROP SHAFT(B2F) (C) L=1256 		1-37123-393-3 01 1 9510-0004 ● ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> P30 PROP SHAFT(B2F) (A) L=1113 		1-37152-282-1 01 1 9803-0004 ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> P30 PROP SHAFT(B2F) (A) L=1013 		1-37152-283-1 01 1 9803-0004 ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (B) L=938 		1-37151-557-1 01 1 9510-0004 ●
1 SHAFT; PROP
EXC. P30 PROP SHAFT(B2F) (B) L=931 		1-37151-576-1 01 1 9510-0004 ●
1 SHAFT; PROP
EXC. P30 PROP SHAFT(B2F) (A) L=996 		1-37152-006-1 01 1 9803-0004 ●
8 YOKE; FLANGE,PROP SHAFT
P30 PROP SHAFT(B2F) (A) 1ST AND 2ND D=80 		1-37211-037-4 01 1 9510-0004 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P30 PROP SHAFT(B2F) (A) 1ST AND 2ND D=80 		1-37211-037-4 01 1 9510-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST D=80 		1-37211-037-4 01 1 0005- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P30 PROP SHAFT(B2F) (B) END D=80 		1-37211-037-4 02 1 9510-0004 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) END D=80 		1-37211-037-4 02 1 0005- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
EXC. P30 PROP SHAFT(B2F) (A) 1ST 		1-37211-054-0 01 1 9510-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
EXC. P30 PROP SHAFT(B2F) (B) END 		1-37211-056-3 02 1 9510-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
EXC. P30 PROP SHAFT(B2F) (A) 2ND 		1-37211-056-3 01 1 9510-0004 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P30 PROP SHAFT(B2F) (B) 		1-37300-089-0 AR 1 9510-9809 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P30 PROP SHAFT(B2F) (B) 		1-37300-103-0 AR 1 9810-0004 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 01 1 1107- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9510-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37300-102-0 AR 1 9810-0004 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0005-1106 ● ● ●
14 COVER; DUST,SPIDER
P30 PROP SHAFT(B2F) 		1-37319-006-0 AR 1 9510-9809 ● ● ● ●
14 COVER; DUST,SPIDER
P30 PROP SHAFT(B2F) 		1-37319-011-0 AR 1 9810-0004 ● ● ● ●
14 COVER; DUST,SPIDER 1-37319-011-0 AR 1 0005-1106 ● ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		1-37319-012-0 AR 1 9810-0004 ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-791-0 08 1 1107- ● ● ●
14 COVER; DUST,SPIDER 8-98020-791-0 04 1 1107- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 9510-0004 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=1.95 		1-09587-014-0 AR 1 9510-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=1.95 		1-09587-014-0 AR 1 0005- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=2.00 		1-09587-015-2 AR 1 9510-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.00 		1-09587-015-2 AR 1 0005- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=2.05 		1-09587-016-1 AR 1 9510-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.05 		1-09587-016-1 AR 1 0005- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9510-0004 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9510-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9510-0004 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9510-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9510-0004 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9510-0004 ●
56 NUT; YOKE
P30 PROP SHAFT(B2F) M12 		9-99110-512-0 08 1 9510-0004 ● ● ● ●
56 NUT; YOKE
M12 		9-99110-512-0 08 1 0005-0512 ● ● ●
56 NUT; YOKE
M12 		0-91110-512-0 08 1 0601- ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 08 1 9510-0004 ● ● ●
57 WASHER; LK,YOKE
P30 PROP SHAFT(B2F) ID=12.2 		9-09150-612-0 08 1 9510-0004 ● ● ● ●
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 0005-0603 ● ● ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 0604- ● ● ●
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		9-09150-614-0 08 1 9510-0004 ● ● ●
95 BOLT; YOKE,FINAL
P30 PROP SHAFT(B2F) M12X32 		1-09000-076-1 04 1 9510-0004 ● ● ● ●
95 BOLT; YOKE,FINAL
M12X32 		1-09000-076-1 04 1 0005- ● ● ●
95 BOLT; YOKE,FINAL
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9510-0004 ● ● ●
104 PLUG; SLEEVE YOKE
P30 PROP SHAFT(B2F) 		1-09600-014-0 01 1 9510-0004 ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-014-0 01 1 0005- ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9510-0004 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9510-0004 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9510-0004 ● ● ●
128 SEAL; SLEEVE
P30 PROP SHAFT(B2F) 		1-37247-001-1 01 1 9510-0004 ● ● ● ●
128 SEAL; SLEEVE 1-37247-001-1 01 1 0005- ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9510-9811 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-024-0 01 1 9812-0004 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P30 PROP SHAFT(B2F) 		1-37241-098-2 01 1 9510-0004 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT 1-37241-098-2 01 1 0005- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37241-099-2 01 1 9510-9811 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37241-129-0 01 1 9812-9902 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37241-099-2 01 1 9903-0004 ● ● ●

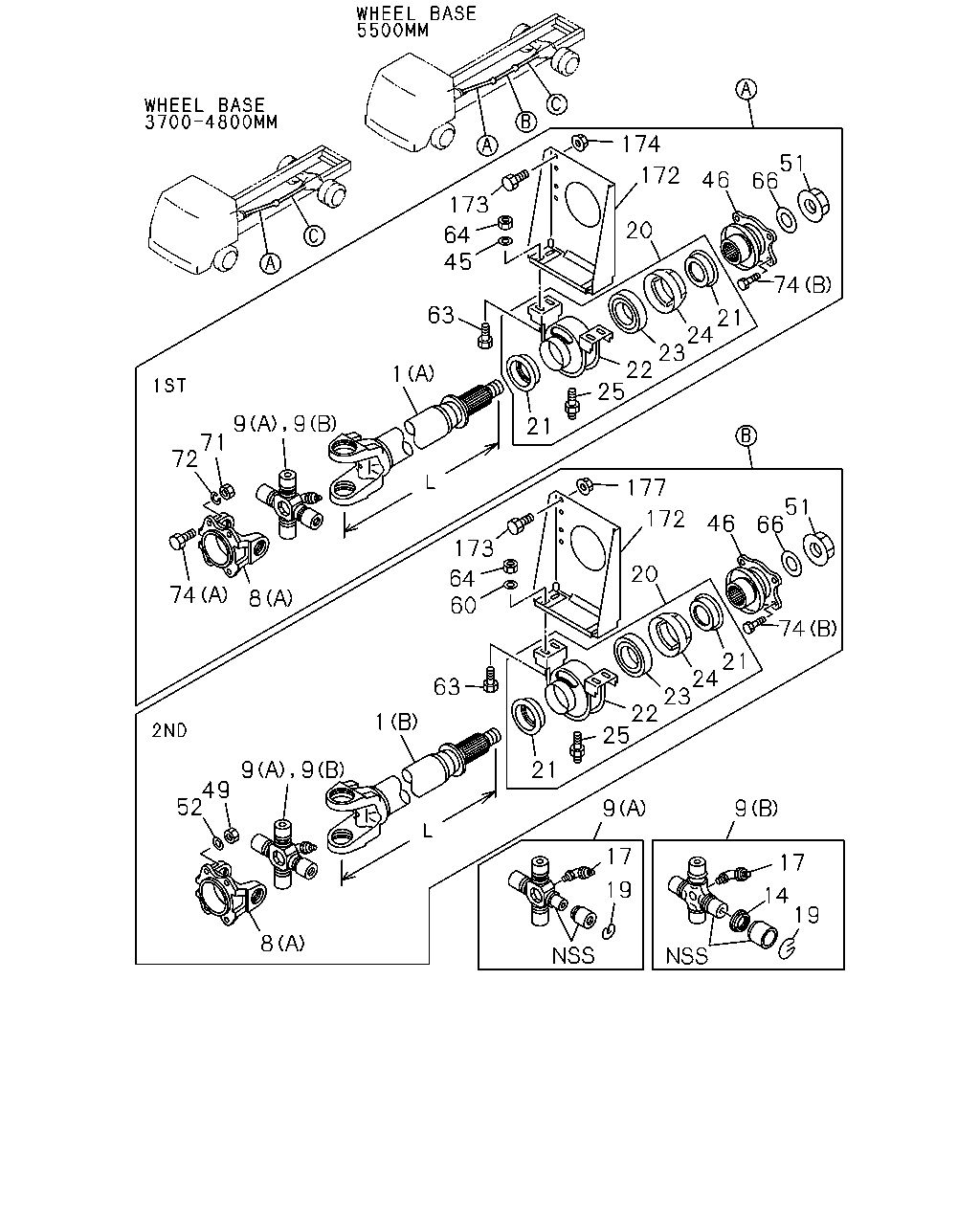

çizim 183765
174 51 66 172 46 173 20 64 45 74 63 21 24 23 22 25 1 9 9 21 71 72 177 51 66 172 46 173 20 64 60 74 8 74 21 24 23 22 25 63 1 9 9 21 49 52 9 9 17 17 19 14 19 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(C) L=747 		1-37123-758-1 01 1 9510- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=893 		1-37151-893-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=793 		1-37151-553-1 01 1 9510- ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1108 		1-37151-896-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> P30 PROP SHAFT(B2F) (A) L=1108 		1-37151-897-1 01 1 9510-0004 ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=1108 		1-37151-897-1 01 1 0005- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) L=997 		1-37122-946-1 01 1 9510-0004 ●
1 SHAFT; PROP
(C) L=997 		1-37122-946-1 01 1 0005- ●
1 SHAFT; PROP
EXC. P30 PROP SHAFT(B2F) (C) L=951 		1-37123-764-1 01 1 9510-0004 ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=968 		1-37152-013-1 01 1 0005- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> EXC. P30 PROP SHAFT(B2F) (A) L=991 		1-37151-582-0 01 1 9510-9802 ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y>,MBJ6 M/T<Y9B> EXC. P30 PROP SHAFT(B2F) (A) L=991 		1-37151-582-1 01 1 9803-0004 ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> (A) L=1403 		1-37152-014-1 01 1 9510- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> P30 PROP SHAFT(B2F) (A) L=1303 		1-37151-478-1 01 1 9510-0004 ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> (A) L=1303 		1-37151-478-1 01 1 0005- ●
1 SHAFT; PROP
EXC. P30 PROP SHAFT(B2F) (A) L=1286 		1-37151-583-1 01 1 9510-0004 ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) L=1302 		1-37122-704-1 01 1 9510-0004 ● ●
1 SHAFT; PROP
(C) L=1302 		1-37122-704-1 01 1 0005- ●
1 SHAFT; PROP
EXC. P30 PROP SHAFT(B2F) (C) L=1256 		1-37123-393-3 01 1 9510-0004 ● ●
1 SHAFT; PROP
MBJ5 M/T<Y9A> P30 PROP SHAFT(B2F) (A) L=1113 		1-37152-282-1 01 1 9803-0004 ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> P30 PROP SHAFT(B2F) (A) L=1013 		1-37152-283-1 01 1 9803-0004 ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (B) L=938 		1-37151-557-1 01 1 9510-0004 ●
1 SHAFT; PROP
EXC. P30 PROP SHAFT(B2F) (B) L=931 		1-37151-576-1 01 1 9510-0004 ●
1 SHAFT; PROP
EXC. P30 PROP SHAFT(B2F) (A) L=996 		1-37152-006-1 01 1 9803-0004 ●
8 YOKE; FLANGE,PROP SHAFT
P30 PROP SHAFT(B2F) (A) 1ST AND 2ND D=80 		1-37211-037-4 01 1 9510-0004 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P30 PROP SHAFT(B2F) (A) 1ST AND 2ND D=80 		1-37211-037-4 01 1 9510-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST D=80 		1-37211-037-4 01 1 0005- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P30 PROP SHAFT(B2F) (B) END D=80 		1-37211-037-4 02 1 9510-0004 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) END D=80 		1-37211-037-4 02 1 0005- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
EXC. P30 PROP SHAFT(B2F) (A) 1ST 		1-37211-054-0 01 1 9510-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
EXC. P30 PROP SHAFT(B2F) (B) END 		1-37211-056-3 02 1 9510-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
EXC. P30 PROP SHAFT(B2F) (A) 2ND 		1-37211-056-3 01 1 9510-0004 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P30 PROP SHAFT(B2F) (B) 		1-37300-089-0 AR 1 9510-9809 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P30 PROP SHAFT(B2F) (B) 		1-37300-103-0 AR 1 9810-0004 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 01 1 1107- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9510-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37300-102-0 AR 1 9810-0004 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0005-1106 ● ● ●
14 COVER; DUST,SPIDER
P30 PROP SHAFT(B2F) 		1-37319-006-0 AR 1 9510-9809 ● ● ● ●
14 COVER; DUST,SPIDER
P30 PROP SHAFT(B2F) 		1-37319-011-0 AR 1 9810-0004 ● ● ● ●
14 COVER; DUST,SPIDER 1-37319-011-0 AR 1 0005-1106 ● ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		1-37319-012-0 AR 1 9810-0004 ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-791-0 08 1 1107- ● ● ●
14 COVER; DUST,SPIDER 8-98020-791-0 04 1 1107- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 9510-0004 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=1.95 		1-09587-014-0 AR 1 9510-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=1.95 		1-09587-014-0 AR 1 0005- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=2.00 		1-09587-015-2 AR 1 9510-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.00 		1-09587-015-2 AR 1 0005- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=2.05 		1-09587-016-1 AR 1 9510-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.05 		1-09587-016-1 AR 1 0005- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9510-0004 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9510-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9510-0004 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9510-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9510-0004 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9510-0004 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9510-0004 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9510-0004 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-1106 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1107- ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9510-0004 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9510-0004 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9510-0004 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9510-0004 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9510-0004 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9510-0004 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005- ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9510-0004 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9510-0004 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-1106 ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1107- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9510-0004 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9510-0004 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005- ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9510-0004 ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0605 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) 		1-37245-115-0 01 1 9510-0004 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) 		1-37245-115-0 01 1 9510-0004 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-115-1 01 1 0005- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9510-0004 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9510-0004 ●
49 NUT; YOKE
P30 PROP SHAFT(B2F) M12 		9-99110-512-0 04 1 9510-0004 ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9510-0004 ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9510-9801 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9510-9801 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802-0004 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802-0004 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005- ● ● ●
52 WASHER; LK,YOKE
P30 PROP SHAFT(B2F) ID=12.2 		9-09150-612-0 04 1 9510-0004 ●
52 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		9-09150-614-0 04 1 9510-0004 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9510-0004 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9510-0004 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9510-0004 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0512 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ●
64 NUT; RET TO BRKT 0-91150-110-0 04 1 9510-9608 ● ● ● ●
64 NUT; RET TO BRKT 0-91150-110-0 04 1 9510-9608 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-0004 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-0004 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9510-9801 ● ● ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9510-9801 ●
71 NUT; YOKE
P30 PROP SHAFT(B2F) M12 		9-99110-512-0 04 1 9510-0004 ● ● ● ●
71 NUT; YOKE
M12 		9-99110-512-0 04 1 0005-0512 ● ● ●
71 NUT; YOKE
M12 		0-91110-512-0 04 1 0601- ● ● ●
71 NUT; YOKE
MBJ6T M/T(Y2A) EXC. P30 PROP SHAFT(B2F) M14 		9-99110-514-0 04 1 9803-0004 ● ● ●
71 NUT; YOKE
P46 PROP SHAFT(C4Z) M16 FLANGE 		1-09449-065-0 04 1 9510-9802 ● ● ●
71 NUT; YOKE
MLD6Q M/T(X5J) EXC. P30 PROP SHAFT(B2F) M16 FLANGE 		1-09449-065-0 04 1 9803-0004 ● ● ●
72 WASHER; LK,YOKE
P30 PROP SHAFT(B2F) ID=12.2 		9-09150-612-0 04 1 9510-0004 ● ● ● ●
72 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 04 1 0005-0603 ● ● ●
72 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 04 1 0604- ● ● ●
72 WASHER; LK,YOKE
MBJ6T M/T(Y2A) EXC. P30 PROP SHAFT(B2F) ID=14.2 		9-09150-614-0 04 1 9803-0004 ● ● ●
74 BOLT; YOKE,TRANS
P30 PROP SHAFT(B2F) (B) M12X32 		1-09000-076-1 04 1 9510-0004 ● ● ● ●
74 BOLT; YOKE,TRANS
P30 PROP SHAFT(B2F) (B) M12X32 		1-09000-076-1 04 1 9510-0004 ●
74 BOLT; YOKE,TRANS
(B) M12X32 		1-09000-076-1 04 1 0005- ● ● ●
74 BOLT; YOKE,TRANS
MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. P30 PROP SHAFT(B2F) (A) M14X40 		1-09000-187-0 04 1 9803-9807 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (B) M14X37 		1-09000-121-0 04 1 9510-0004 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (B) M14X37 		1-09000-121-0 04 1 9510-0004 ●
172 BRACKET; CENTER BRG
1ST 		1-37515-118-0 01 1 9510-9802 ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-118-0 01 1 9803-0612 ●
172 BRACKET; CENTER BRG
EXC. EURO2 SPECIFICATION<THN> 		1-37515-118-0 01 1 0701- ●
172 BRACKET; CENTER BRG
1ST 		1-37515-122-0 01 1 9510-9802 ●
172 BRACKET; CENTER BRG
1ST 		1-37515-122-0 01 1 9803-0004 ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-122-0 01 1 0005-0612 ●
172 BRACKET; CENTER BRG
EURO2 SPECIFICATION<THN> 		1-37515-122-0 01 1 0701- ●
172 BRACKET; CENTER BRG 1-37515-122-0 01 1 0701- ●
172 BRACKET; CENTER BRG
2ND 		1-37515-120-0 01 1 9510-9802 ●
172 BRACKET; CENTER BRG
2ND 		1-37515-121-0 01 1 9803-0004 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9510-9606 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9510-9606 ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-9702 ● ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-9702 ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9703-9712 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9703-9712 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-0004 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-0004 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0005-0512 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ●
174 NUT; BRKT
M10 		9-09110-510-0 04 1 9510-9606 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9607-0004 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
177 NUT
M10 		9-09110-510-0 04 1 9510-9606 ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 9607-0004 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
