Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#64096) — 224 parça

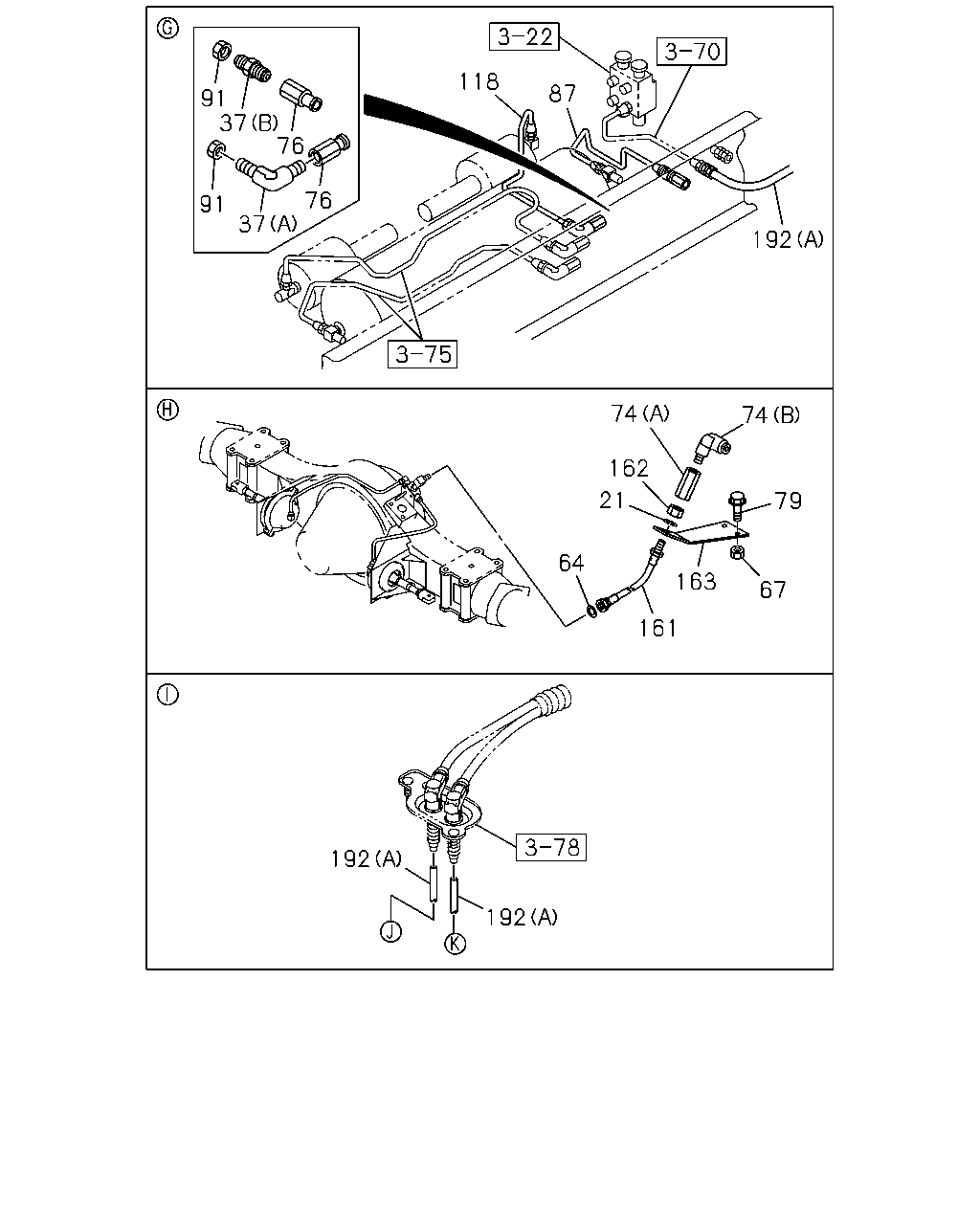

118 87 91 37 76 76 91 37 192 74 74 162 21 79 64 163 67 161 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	9510-0603
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-514-0	01	1	0604-
37	UNION; AIR PIPE (B)	1-09660-807-2	01	1	9510-9802
37	UNION; AIR PIPE (B) M16 L=74	9-09233-310-1	01	1	9803-0607
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0608-
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	02	1	9510-9802
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	01	1	9803-0607
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0608-
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	9510-
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0602
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-
74	ADAPTER; UNION TO NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-881-0	01	1	9803-
74	ADAPTER; UNION TO NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9803-
76	ADAPTER; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9803-0004
76	ADAPTER; NYLON TUBE DIN12 & M16 STRAIGHT	1-09661-096-0	02	1	0005-0007
76	ADAPTER; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0512
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
87	PIPE; AIR,AIR TANK TO UNION	1-49115-908-0	01	1	9510-9802
87	PIPE; AIR,AIR TANK TO UNION	1-49119-151-1	01	1	9803-0105
87	PIPE; AIR,AIR TANK TO UNION	1-49123-092-0	01	1	0106-
91	NUT; PIPE UNION M16	9-99111-416-0	02	1	9510-0512
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0601-
118	PIPE; AIR,UNION TO AIR MASTER	1-49114-965-0	01	1	9510-9802
118	PIPE; AIR,UNION TO AIR MASTER	1-49119-148-0	01	1	9803-0105
118	PIPE; AIR,UNION TO AIR MASTER	1-49123-093-0	01	1	0106-
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	9510-0605
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-57462-580-1	01	1	0606-
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9510-0512
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	0-91111-514-0	01	1	0601-
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	9510-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9510-9802
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0212
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9510-
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	9803-
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-

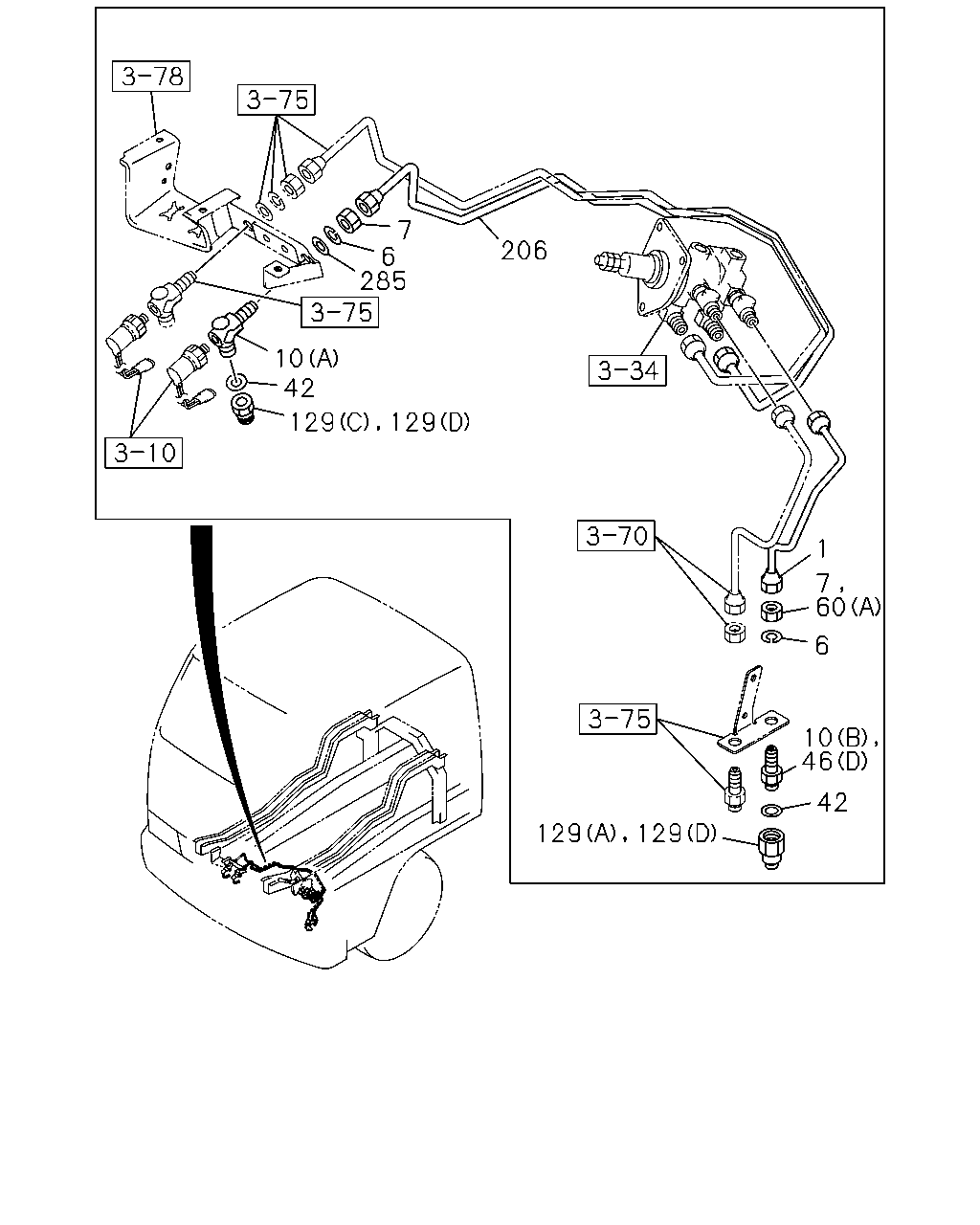

7 6 285 206 10 42 129 129 1 7 60 6 10 46 42 129 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=423	1-49113-428-2	01	1	9510-
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2>	1-49116-436-1	01	1	9510-
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9510-0603
6	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-
7	NUT; FLEX HOSE M16	9-99111-416-0	01	1	9510-9512
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0512
7	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-
10	CONNECTOR; FLEX HOSE (A)	1-09656-700-0	01	1	9510-9811
10	CONNECTOR; FLEX HOSE (A) M16X2 & PT1/4 3WAY	1-09656-329-1	01	1	9812-
10	CONNECTOR; FLEX HOSE (B)	1-09654-324-0	01	1	9601-9802
10	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	9803-
42	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	02	1	9510-9802
42	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	01	1	9803-9811
46	NIPPLE; AIR PIPE (D)	1-09660-807-1	01	1	9510-9512
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	9510-9802
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-913-1	01	1	9510-9802
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802
60	NUT; NIPPLE,AIR PIPE (A) M16	9-99111-416-0	01	1	9510-9512
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	9-99111-414-0	01	1	9510-9802
129	CONNECTOR; NYLON TUBE (D)	1-09660-728-1	02	1	9510-9802
129	CONNECTOR; NYLON TUBE (C)	1-09660-728-1	01	1	9803-9811
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9812-0007
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0007
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9803-0004
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9812-0004
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=1145	1-49116-438-0	01	1	9510-0004
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=1267	1-49121-665-0	01	1	0005-
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9510-9801

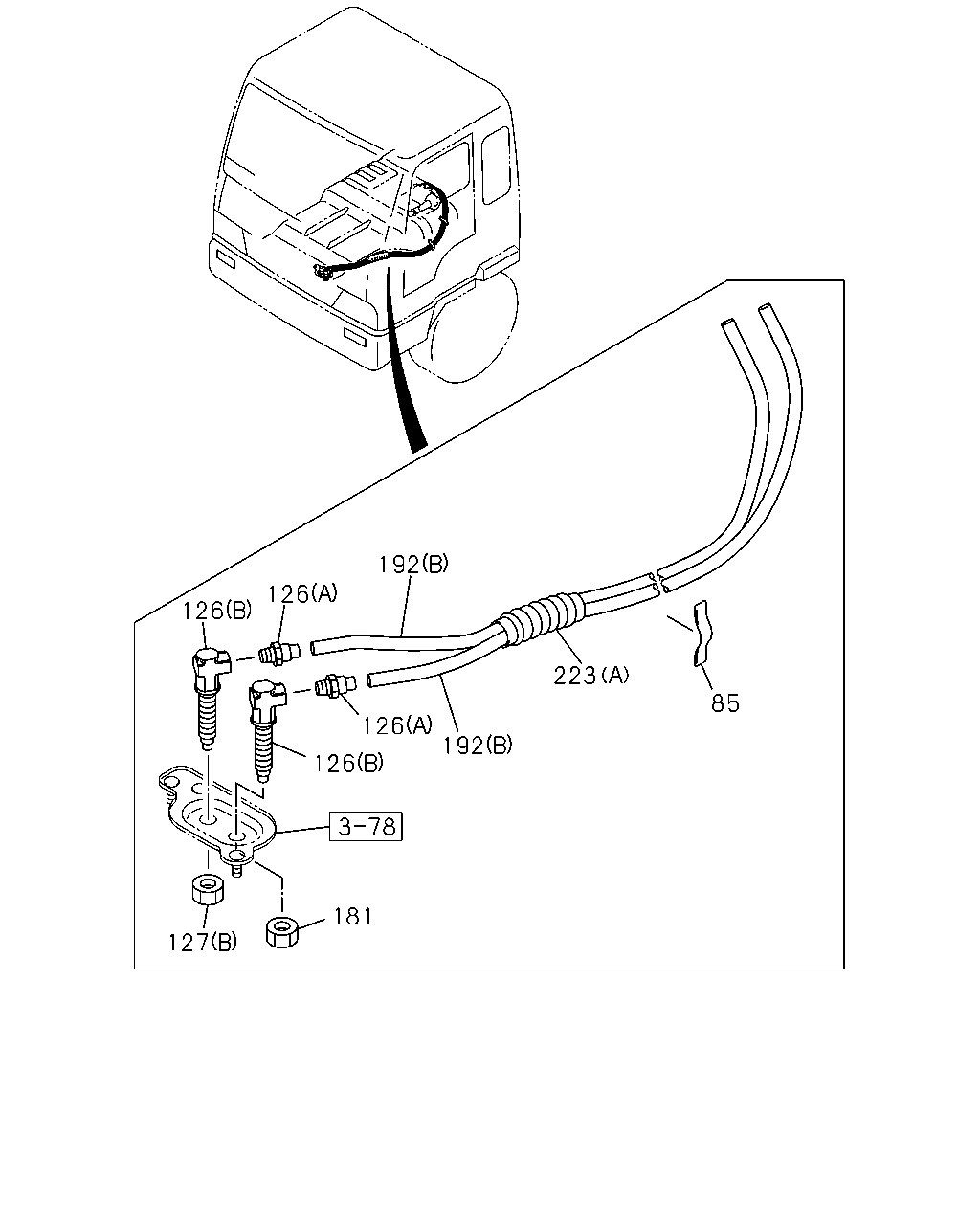

192 126 126 223 85 126 192 126 181 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X30	1-72498-014-1	05	1	9510-9903
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	05	1	9904-
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9510-9802
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9803-0004
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0005-
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09660-743-0	02	1	9510-9802
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9803-
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9803-
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	01	1	9510-9802
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M20	9-99111-420-0	01	1	9803-0512
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M20	0-91111-520-0	01	1	0601-
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M18	9-99111-418-0	01	1	9510-9802
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	9-99111-418-0	01	1	9510-9802
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	9803-0512
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	0-91111-520-0	01	1	0601-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9510-9802
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0212
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9510-
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	9803-
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 ID=15	1-87410-102-0	01	1	9510-
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	9803-
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	9803-

87 118 102 96 192 97 30 144 192 46 31 31 159 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1785 SERVICED BY L=1800	1-47426-392-0	01	1	9510-9605
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1785 SERVICED BY L=1800	1-47426-392-0	01	1	9606-9802
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	9510-9802
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=2504 SERVICED BY L=2700	1-47426-396-0	01	1	9510-9802
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2015 SERVICED BY L=2150	1-47426-394-0	01	1	9510-9802
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2617 SERVICED BY L=2700	1-47426-396-0	01	1	9510-9802
31	PIPE; AIR,UNION TO UNION WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=3315 SERVICED BY L=3500	1-47428-860-0	01	1	9606-9802
46	NIPPLE; AIR PIPE (D)	1-09660-807-1	01	1	9510-9512
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	9510-9802
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-913-1	01	1	9510-9802
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802
87	PIPE; AIR,AIR TANK TO UNION	1-49115-908-0	01	1	9510-9802
87	PIPE; AIR,AIR TANK TO UNION	1-49119-151-1	01	1	9803-0105
87	PIPE; AIR,AIR TANK TO UNION	1-49123-092-0	01	1	0106-
96	PIPE; AIR,UNION TO UNION L=2861 SERVICED BY L=2900	1-47426-425-0	01	1	9510-9802
97	UNION; AIR PIPE (A)	1-09660-807-2	01	1	9510-9802
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09660-913-1	01	1	9510-9802
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802
102	PIPE; AIR,UNION TO UNION L=2574 SERVICED BY L=2600	1-47426-424-0	01	1	9510-9802
118	PIPE; AIR,UNION TO AIR MASTER	1-49114-965-0	01	1	9510-9802
118	PIPE; AIR,UNION TO AIR MASTER	1-49119-148-0	01	1	9803-0105
118	PIPE; AIR,UNION TO AIR MASTER	1-49123-093-0	01	1	0106-
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2530 SERVICED BY L=2700	1-47426-396-0	01	1	9510-9802
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1713 SERVICED BY L=1800	1-47426-392-0	01	1	9510-9802
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1767 SERVICED BY L=1800	1-47426-392-0	01	1	9510-9605
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1767 SERVICED BY L=1800	1-47426-392-0	01	1	9606-9802
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9510-9802
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0212
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9510-
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	9803-
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-

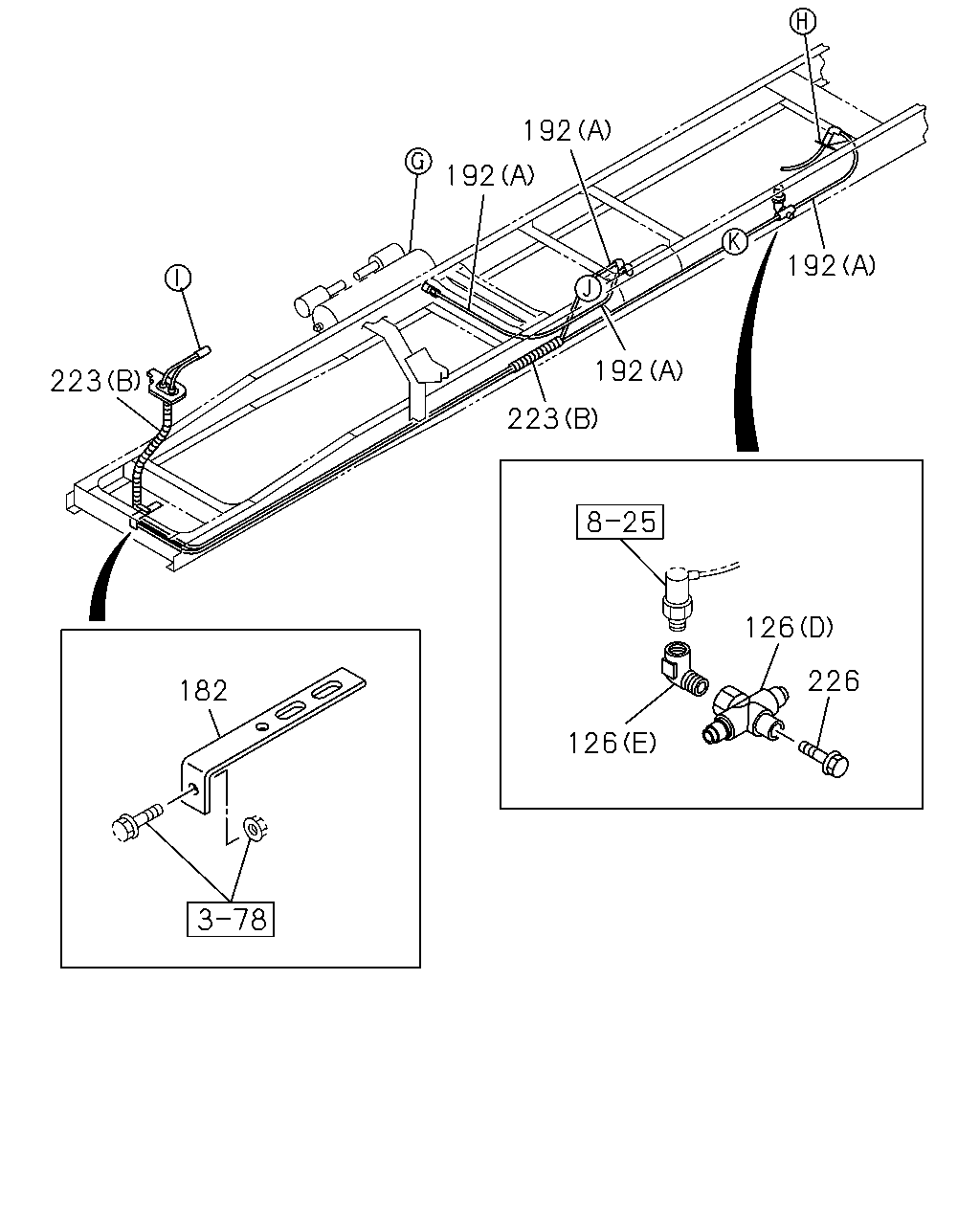

192 192 192 192 223 223 126 226 182 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9510-9802
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9803-0004
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0005-
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09660-743-0	02	1	9510-9802
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9803-
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9803-
182	BRACKET; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=100 H=30	1-47477-645-2	01	1	9803-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9510-9802
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0212
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9510-
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	9803-
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 ID=15	1-87410-102-0	01	1	9510-
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	9803-
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	9803-
226	BOLT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	9803-0512
226	BOLT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0601-

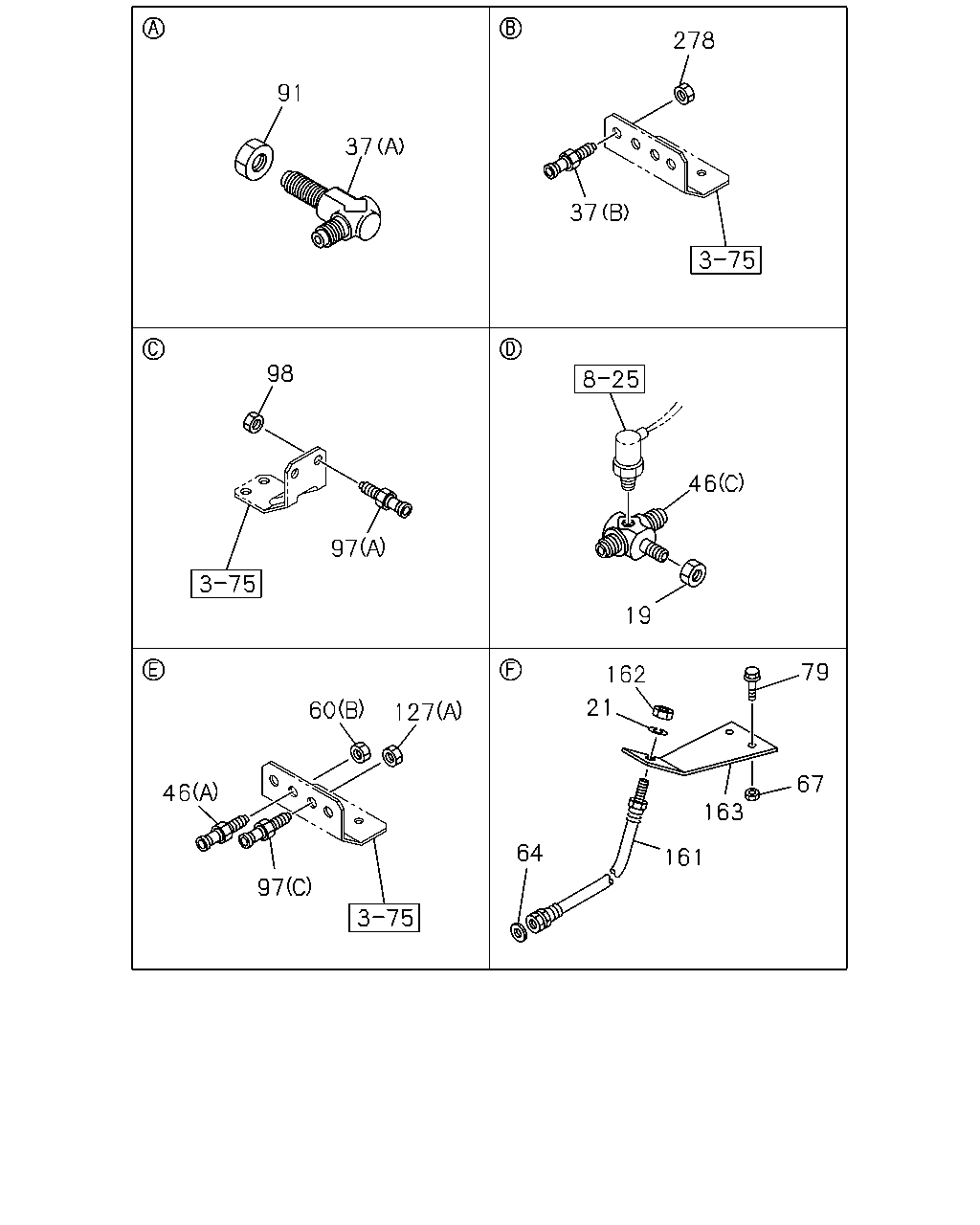

278 91 37 37 98 46 97 19 79 162 21 60 127 67 46 163 64 161 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	9-99111-412-0	01	1	9510-9802
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	9510-0603
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-514-0	01	1	0604-
37	UNION; AIR PIPE (B)	1-09660-807-2	01	1	9510-9802
37	UNION; AIR PIPE (B) M16 L=74	9-09233-310-1	01	1	9803-0607
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0608-
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	02	1	9510-9802
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	01	1	9803-0607
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0608-
46	NIPPLE; AIR PIPE (D)	1-09660-807-1	01	1	9510-9512
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	9510-9802
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-913-1	01	1	9510-9802
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802
60	NUT; NIPPLE,AIR PIPE (A) M16	9-99111-416-0	01	1	9510-9512
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	9-99111-414-0	01	1	9510-9802
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	9510-
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0602
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0512
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
91	NUT; PIPE UNION M16	9-99111-416-0	02	1	9510-0512
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0601-
97	UNION; AIR PIPE (A)	1-09660-807-2	01	1	9510-9802
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09660-913-1	01	1	9510-9802
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802
98	NUT; PIPE UNION M16	9-99111-416-0	01	1	9510-9802
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	01	1	9510-9802
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M20	9-99111-420-0	01	1	9803-0512
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M20	0-91111-520-0	01	1	0601-
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M18	9-99111-418-0	01	1	9510-9802
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	9510-0605
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-57462-580-1	01	1	0606-
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9510-0512
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	0-91111-514-0	01	1	0601-
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	9510-
278	NUT; UNION M16	9-99111-416-0	01	1	9510-9802

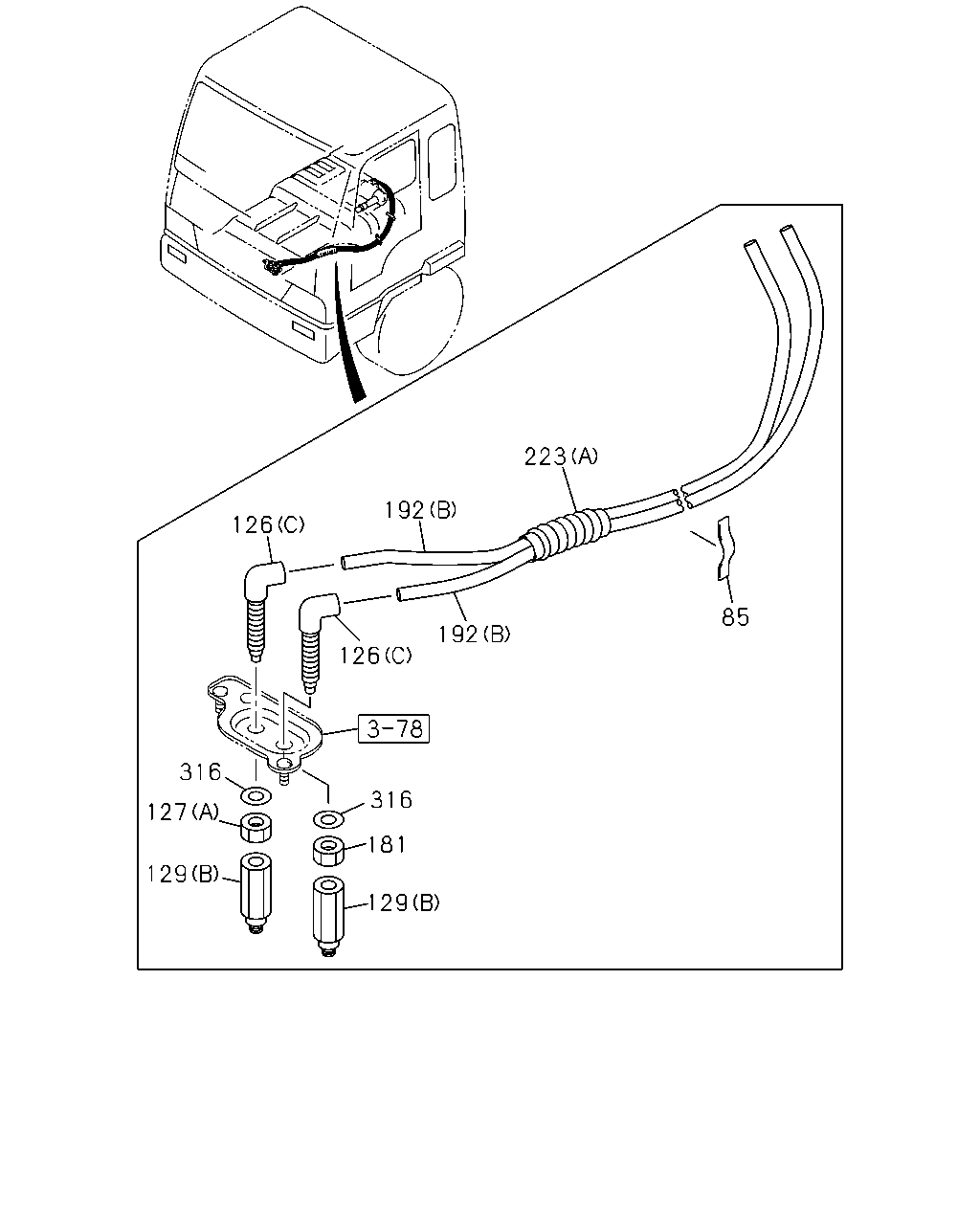

223 192 126 85 192 126 316 316 127 181 129 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X30	1-72498-014-1	05	1	9510-9903
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	05	1	9904-
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9510-9802
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9803-0004
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0005-
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09660-743-0	02	1	9510-9802
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9803-
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9803-
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	01	1	9510-9802
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M20	9-99111-420-0	01	1	9803-0512
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M20	0-91111-520-0	01	1	0601-
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M18	9-99111-418-0	01	1	9510-9802
129	CONNECTOR; NYLON TUBE (D)	1-09660-728-1	02	1	9510-9802
129	CONNECTOR; NYLON TUBE (C)	1-09660-728-1	01	1	9803-9811
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9812-0007
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0007
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9803-0004
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9812-0004
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	9-99111-418-0	01	1	9510-9802
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	9803-0512
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	0-91111-520-0	01	1	0601-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9510-9802
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-0212
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9510-
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	9803-
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	9803-
192	TUBE; NYLON WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	9803-
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 ID=15	1-87410-102-0	01	1	9510-
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	9803-
223	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	9803-
316	WASHER; PL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21	9-09160-520-0	02	1	9804-0605
316	WASHER; PL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21	0-91610-520-0	02	1	0606-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
