3-75 — BRAKE PIPING; AIR,FRONT (#64095) — 133 parça

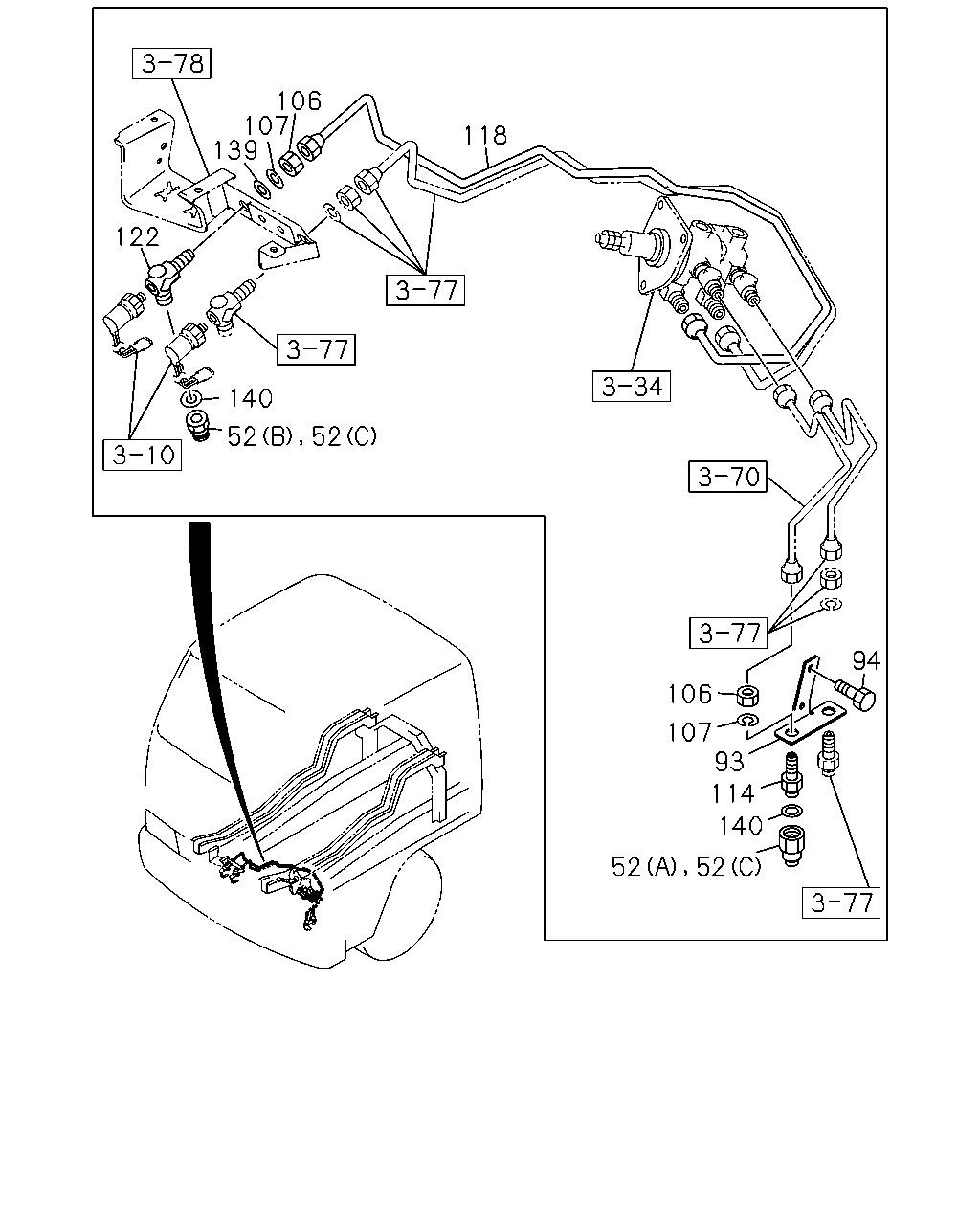

106 107 139 118 122 140 94 106 107 93 114 140 52 52 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	CONNECTOR; NYLON TUBE (C)	1-09660-728-1	02	1	9510-9802
52	CONNECTOR; NYLON TUBE (B)	1-09660-728-1	01	1	9803-9811
52	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9812-0007
52	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0007
52	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
52	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
93	BRACKET; UNION,TUBE	1-71996-119-0	01	1	9510-
94	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9510-0904
94	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9510-0512
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9510-0603
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-
114	UNION; NYLON TUBE	1-09660-807-1	01	1	9510-9512
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=1303	1-49116-437-0	01	1	9510-0004
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=989	1-49121-666-0	01	1	0005-
122	CONNECTOR; FLEX HOSE	1-09656-700-0	01	1	9510-9811
122	CONNECTOR; FLEX HOSE M16X2 & PT1/4 3WAY	1-09656-329-1	01	1	9812-
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9510-9801
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	02	1	9510-9802
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	01	1	9803-9811

98 98 117 93 114 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
93	BRACKET; UNION,TUBE	1-71996-119-0	01	1	9510-
98	TUBE; NYLON L=2000	1-87410-069-0	03	1	9510-9802
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	9803-0004
98	TUBE; NYLON A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0005-0106
98	TUBE; NYLON EXC. A/T<X9D> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0005-0106
98	TUBE; NYLON A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0107-0308
98	TUBE; NYLON A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=12	1-87411-013-0	04	1	0309-
98	TUBE; NYLON A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=8	1-87410-075-0	01	1	0005-0308
98	TUBE; NYLON A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0309-
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> EXC. A/T<X9D> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0005-0106
98	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>, A/T<X9D> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0005-0106
114	UNION; NYLON TUBE	1-09660-807-1	01	1	9510-9512
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	9803-0004
117	TUBE; CORRUGATE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0005-0012
117	TUBE; CORRUGATE EXC. A/T<X9D> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0005-0012
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56> EXC. A/T<X9D> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0101-0106
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0101-0106
117	TUBE; CORRUGATE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0107-0308
117	TUBE; CORRUGATE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	0309-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9803-0004
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56> EXC. A/T<X9D> SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0005-0106
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>, A/T<X9D> SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0005-0106
117	TUBE; CORRUGATE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=32	1-87410-104-0	03	1	0005-0308
117	TUBE; CORRUGATE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=32	1-87411-035-0	03	1	0309-
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=32	1-87410-104-0	02	1	9803-0004
117	TUBE; CORRUGATE EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=32	1-87410-104-0	02	1	9803-0004
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56> EXC. A/T<X9D> SERVICED BY L=2000 ID=32	1-87410-104-0	02	1	0005-0106
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>, A/T<X9D> SERVICED BY L=2000 ID=32	1-87410-104-0	02	1	0005-0106
117	TUBE; CORRUGATE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,A/T<X9D> SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0005-0106

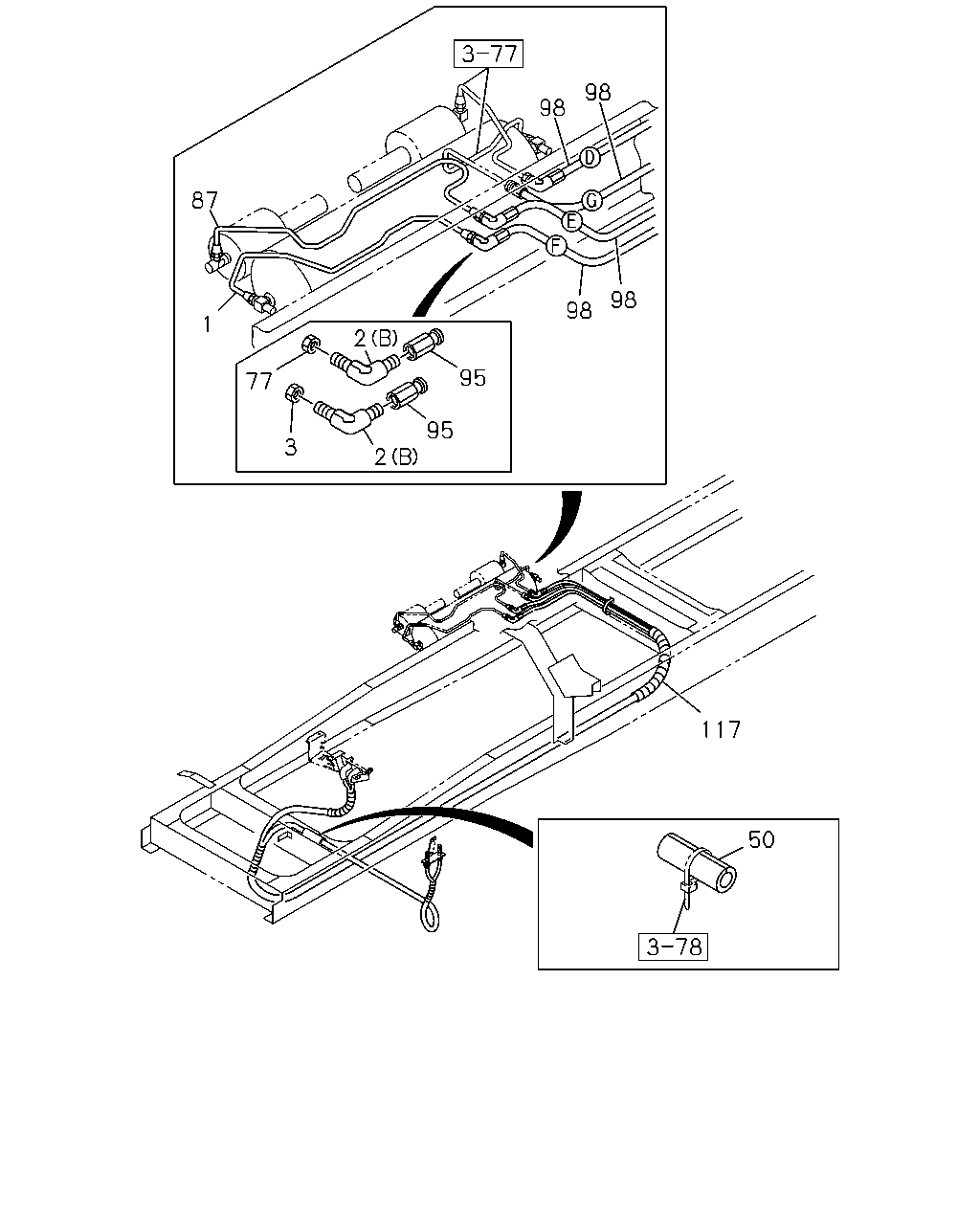

87 1 76 5 98 98 98 66 3 77 48 68 75 75 2 2 36 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION	1-49115-907-0	01	1	9510-9711
1	PIPE; AIR,AIR TANK TO UNION	1-49119-044-0	01	1	9712-9802
1	PIPE; AIR,AIR TANK TO UNION	1-49118-367-0	01	1	9803-0302
1	PIPE; AIR,AIR TANK TO UNION	1-49124-022-0	01	1	0303-
2	UNION; AIR PIPE (A)	1-09660-807-2	01	1	9510-9802
2	UNION; AIR PIPE (B) M16 ELBOW	9-09235-210-1	02	1	9510-0607
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	0608-
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	9510-0512
3	NUT; PIPE UNION M16	0-91111-516-0	01	1	0601-
5	PIPE; AIR,UNION TO UNION L=2570 SERVICED BY L=2600	1-47426-424-0	01	1	9510-9802
36	NUT; HOSE BRKT M8	9-09110-408-0	02	1	9510-9606
36	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9802
48	NUT; UNION BRKT M16	9-99111-416-0	01	1	9510-9802
66	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9801
66	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	9802-9802
68	NUT; UNION M16	9-99111-416-0	01	1	9510-9802
75	BRACKET; UNION (B)	1-47477-487-2	01	1	9510-9802
75	BRACKET; UNION (A)	1-47477-642-2	01	1	9510-9802
76	PIPE; AIR,UNION TO UNION L=2515 SERVICED BY L=2600	1-47426-424-0	01	1	9510-9802
77	NUT; PIPE UNION M16	9-99111-416-0	01	1	9510-0512
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	0601-
87	PIPE; AIR,UNION TO AIR MASTER	1-49115-906-0	01	1	9510-9605
87	PIPE; AIR,UNION TO AIR MASTER	1-49117-430-0	01	1	9606-9802
87	PIPE; AIR,UNION TO AIR MASTER	1-49119-149-0	01	1	9803-0106
87	PIPE; AIR,UNION TO AIR MASTER L=607	1-49123-213-0	01	1	0107-
98	TUBE; NYLON L=2000	1-87410-069-0	03	1	9510-9802
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	9803-0004
98	TUBE; NYLON A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0005-0106
98	TUBE; NYLON EXC. A/T<X9D> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0005-0106
98	TUBE; NYLON A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0107-0308
98	TUBE; NYLON A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=12	1-87411-013-0	04	1	0309-
98	TUBE; NYLON A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=8	1-87410-075-0	01	1	0005-0308
98	TUBE; NYLON A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0309-
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> EXC. A/T<X9D> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0005-0106
98	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>, A/T<X9D> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0005-0106
120	UNION; AIR PIPE	1-09660-807-2	01	1	9510-9802

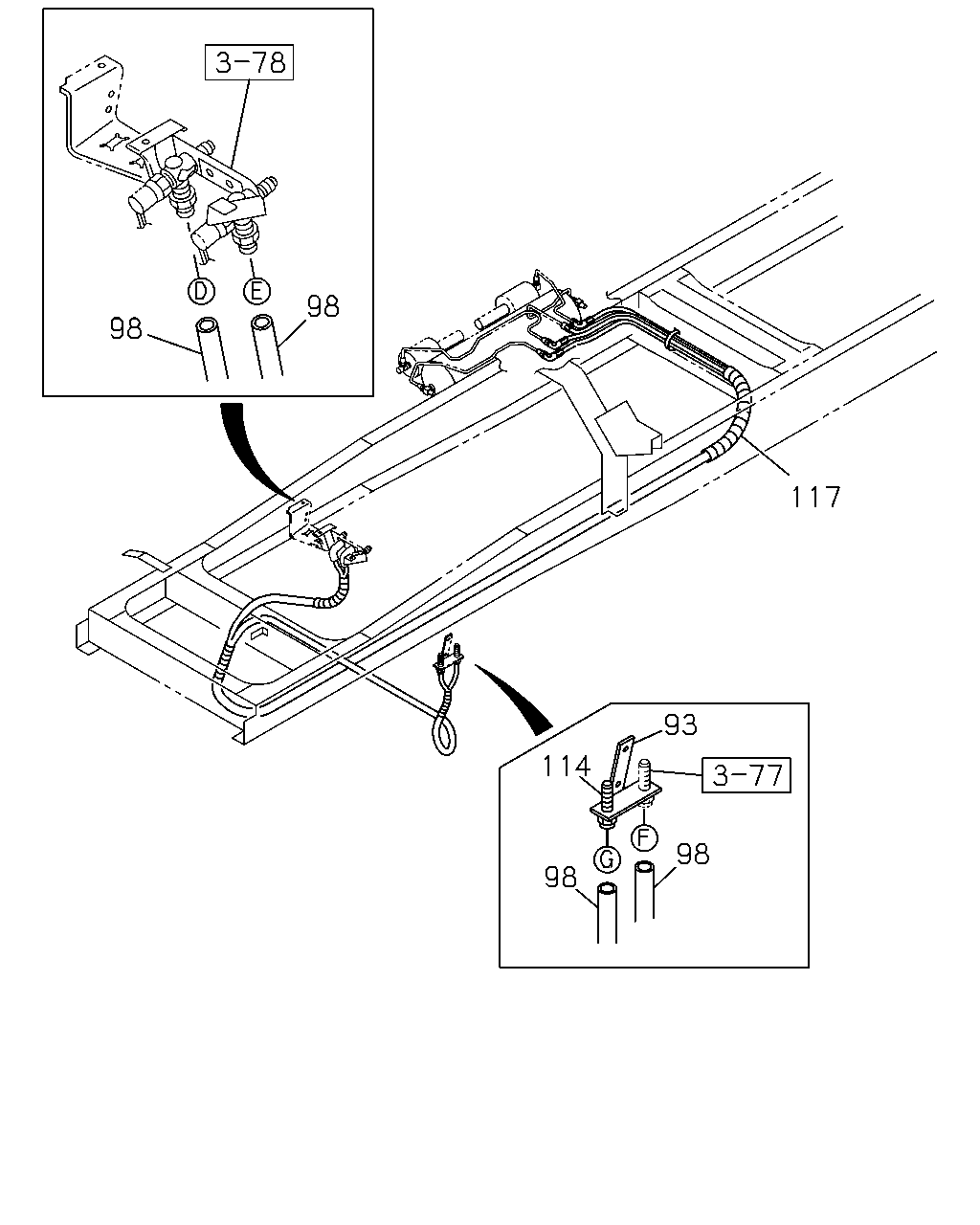

98 98 87 98 98 1 2 95 77 95 2 3 117 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION	1-49115-907-0	01	1	9510-9711
1	PIPE; AIR,AIR TANK TO UNION	1-49119-044-0	01	1	9712-9802
1	PIPE; AIR,AIR TANK TO UNION	1-49118-367-0	01	1	9803-0302
1	PIPE; AIR,AIR TANK TO UNION	1-49124-022-0	01	1	0303-
2	UNION; AIR PIPE (A)	1-09660-807-2	01	1	9510-9802
2	UNION; AIR PIPE (B) M16 ELBOW	9-09235-210-1	02	1	9510-0607
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	0608-
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	9510-0512
3	NUT; PIPE UNION M16	0-91111-516-0	01	1	0601-
50	SLEEVE; RUBBER,NYLON TUBE L=1300	1-09360-677-1	01	1	9901-
77	NUT; PIPE UNION M16	9-99111-416-0	01	1	9510-0512
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	0601-
87	PIPE; AIR,UNION TO AIR MASTER	1-49115-906-0	01	1	9510-9605
87	PIPE; AIR,UNION TO AIR MASTER	1-49117-430-0	01	1	9606-9802
87	PIPE; AIR,UNION TO AIR MASTER	1-49119-149-0	01	1	9803-0106
87	PIPE; AIR,UNION TO AIR MASTER L=607	1-49123-213-0	01	1	0107-
95	ADAPTER; BRKT DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9803-0004
95	ADAPTER; BRKT DIN12 & M16 STRAIGHT	1-09661-096-0	02	1	0005-0007
95	ADAPTER; BRKT DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-
98	TUBE; NYLON L=2000	1-87410-069-0	03	1	9510-9802
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	9803-0004
98	TUBE; NYLON A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0005-0106
98	TUBE; NYLON EXC. A/T<X9D> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0005-0106
98	TUBE; NYLON A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0107-0308
98	TUBE; NYLON A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=12	1-87411-013-0	04	1	0309-
98	TUBE; NYLON A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=8	1-87410-075-0	01	1	0005-0308
98	TUBE; NYLON A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0309-
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> EXC. A/T<X9D> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0005-0106
98	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>, A/T<X9D> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0005-0106
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	9803-0004
117	TUBE; CORRUGATE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0005-0012
117	TUBE; CORRUGATE EXC. A/T<X9D> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0005-0012
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56> EXC. A/T<X9D> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0101-0106
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0101-0106
117	TUBE; CORRUGATE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0107-0308
117	TUBE; CORRUGATE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	0309-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9803-0004
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56> EXC. A/T<X9D> SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0005-0106
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>, A/T<X9D> SERVICED BY L=2000 ID=28	1-87410-098-0	01	1	0005-0106
117	TUBE; CORRUGATE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=32	1-87410-104-0	03	1	0005-0308
117	TUBE; CORRUGATE A/T<X9D> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=32	1-87411-035-0	03	1	0309-
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=32	1-87410-104-0	02	1	9803-0004
117	TUBE; CORRUGATE EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=32	1-87410-104-0	02	1	9803-0004
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56> EXC. A/T<X9D> SERVICED BY L=2000 ID=32	1-87410-104-0	02	1	0005-0106
117	TUBE; CORRUGATE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>, A/T<X9D> SERVICED BY L=2000 ID=32	1-87410-104-0	02	1	0005-0106
117	TUBE; CORRUGATE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,A/T<X9D> SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0005-0106
