Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#64094) — 352 parça

307 322 323 438 321 375 140 374 137 337 258 434 325 333 328 286 337 434 258 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	HOSE; FLEX,AIR PRESSURE GAGE AIR SUSP DRIVER SEAT<A56> L=450	0-07120-450-0	01	1	9510-9802
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=450	0-07120-450-0	01	1	9510-9802
140	GASKET; FLEX HOSE AIR SUSP DRIVER SEAT<A56> ID=11 OD=18	9-09572-510-0	01	1	9510-9802
140	GASKET; FLEX HOSE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9510-9802
258	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9811
258	CONNECTOR; NYLON TUBE (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0007
258	CONNECTOR; NYLON TUBE (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-
258	CONNECTOR; NYLON TUBE MLD6Q M/T(X5J),MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) (B) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9510-0004
258	CONNECTOR; NYLON TUBE AT545 A/T ALLISON(MD1),MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) AIR SUSP DRIVER SEAT<A56> (B) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0005-0302
258	CONNECTOR; NYLON TUBE AT545 A/T ALLISON(MD1),MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) AIR SUSP DRIVER SEAT<A56> (B) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
286	PLUG; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>	9-09204-510-0	01	1	9510-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
296	TUBE; NYLON PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004
296	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004
296	TUBE; NYLON ISUZU M/T<X9A> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0212
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> ISUZU M/T<X9A> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0301-
296	TUBE; NYLON ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0301-
296	TUBE; NYLON MLD6Q M/T(X5J),MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) (B) SERVICED BY L=30000 OD=6	1-09366-235-0	01	1	9510-0001
296	TUBE; NYLON MLD6Q M/T(X5J),MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) (B) L=1200 OD=6	1-09366-256-1	01	1	0002-
307	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=540	1-49113-427-2	01	1	9510-
307	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=434	1-49116-435-1	01	1	9510-
321	JOINT; FLEX HOSE	1-09654-362-1	01	1	9510-9811
321	JOINT; FLEX HOSE	1-09656-738-0	01	1	9812-
322	NUT; JOINT,FLEX HOSE M10 H=8	1-09400-029-0	01	1	9510-
323	WASHER; LK,JOINT ID=10.2	9-09150-510-0	01	1	9510-0603
323	WASHER; LK,JOINT ID=10.2	0-91510-510-0	01	1	0604-
325	PIPE; AIR,FLEX HOSE TO UNION L=791	1-49116-077-0	01	1	9510-
328	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-47470-415-1	01	1	9510-
328	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-473-0	01	1	9510-
333	BOLT; PIPE UNION M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	9510-0608
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-57210-720-0	02	1	0609-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=810	0-07210-810-0	01	1	9510-0605
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=810	0-57210-810-0	01	1	0606-
374	CONNECTOR	1-09654-324-0	01	1	9601-9802
374	CONNECTOR M16 STRAIGHT	1-09654-380-0	01	1	9803-
375	GASKET ID=11 OD=18	9-09572-510-0	01	1	9803-9811
434	CLIP (C) D=9 T=45	5-09700-021-0	01	1	9803-0004
434	CLIP DUAL AIR GAUGE<UG2> (D) ID=10 & 10	1-09709-221-0	01	1	9812-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A) ID=17	1-09987-105-1	01	1	9510-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B)	8-94297-486-0	02	1	9510-
438	WASHER; PL,JOINT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9510-

251 222 217 272 250 238 222 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
217	PIPE; VAC,UNION TO MAG VLV	1-49114-871-0	01	1	9510-9802
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 TCN ENG(58L) L=1047 SERVICED BY L=1100	1-47426-351-0	01	1	9510-9711
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 TCN ENG(58L) L=1011 SERVICED BY L=1100	1-47426-351-0	01	1	9712-9803
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L) L=1011 SERVICED BY L=1100	1-47426-351-0	01	1	9804-0004
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD ENG(65L),6HH1 N ENG(66L) L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	9510-0004
222	PIPE; AIR,MAG VLV TO FLEX HOSE L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	0005-
238	PIPE; AIR,UNION TO UNION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. PTO CONTROL<SV6> L=1348 SERVICED BY L=1370	1-47426-354-0	01	1	9510-9802
238	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PTO CONTROL<SV6> L=1359 SERVICED BY L=1370	1-47426-354-0	01	1	9510-9802
238	PIPE; AIR,UNION TO UNION AIR ASSIST CLUTCH<PK1> EXC. PTO CONTROL<SV6> L=1359 SERVICED BY L=1370	1-47426-354-0	01	1	9510-9802
238	PIPE; AIR,UNION TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR ASSIST CLUTCH<PK1>,PTO CONTROL<SV6>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=1379 SERVICED BY L=1500	1-47426-355-0	01	1	9510-9802
250	PIPE; AIR,UNION TO FLEX HOSE AIR SUSP DRIVER SEAT<A56> L=2646 SERVICED BY L=2900	1-47426-364-0	01	1	9510-9802
250	PIPE; AIR,UNION TO FLEX HOSE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=2646 SERVICED BY L=2900	1-47426-364-0	01	1	9510-9802
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-49115-027-0	01	1	9510-9802
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR ASSIST CLUTCH<PK1>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-49115-028-0	01	1	9510-9802
251	PIPE; AIR,UNION TO MAG VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6>	1-49115-024-0	01	1	9510-9802
251	PIPE; AIR,UNION TO MAG VLV AIR ASSIST CLUTCH<PK1> PTO CONTROL<SV6>	1-49115-024-0	01	1	9510-9802
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6>	1-49116-267-0	01	1	9510-9802

230 307 230 322 323 438 321 137 140 339 375 374 231 258 232 334 330 231 337 325 232 333 337 328 258 296 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	HOSE; FLEX,AIR PRESSURE GAGE AIR SUSP DRIVER SEAT<A56> L=450	0-07120-450-0	01	1	9510-9802
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=450	0-07120-450-0	01	1	9510-9802
140	GASKET; FLEX HOSE AIR SUSP DRIVER SEAT<A56> ID=11 OD=18	9-09572-510-0	01	1	9510-9802
140	GASKET; FLEX HOSE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9510-9802
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (A) L=426	1-49116-433-0	01	1	9510-
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (B) L=483	1-49116-434-0	01	1	9510-
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (A) M10 ELBOW	1-09654-186-2	01	1	9510-
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (B) M10 STRAIGHT	1-09654-361-0	01	1	9510-
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> (A) M10 H=8	1-09400-029-0	01	1	9510-
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> (B) M10	9-09110-410-0	01	1	9510-0512
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> (B) M10	0-91110-510-0	01	1	0601-
258	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9811
258	CONNECTOR; NYLON TUBE (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0007
258	CONNECTOR; NYLON TUBE (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-
258	CONNECTOR; NYLON TUBE MLD6Q M/T(X5J),MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) (B) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9510-0004
258	CONNECTOR; NYLON TUBE AT545 A/T ALLISON(MD1),MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) AIR SUSP DRIVER SEAT<A56> (B) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0005-0302
258	CONNECTOR; NYLON TUBE AT545 A/T ALLISON(MD1),MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) AIR SUSP DRIVER SEAT<A56> (B) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
296	TUBE; NYLON PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004
296	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004
296	TUBE; NYLON ISUZU M/T<X9A> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0212
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> ISUZU M/T<X9A> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0301-
296	TUBE; NYLON ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0301-
296	TUBE; NYLON MLD6Q M/T(X5J),MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) (B) SERVICED BY L=30000 OD=6	1-09366-235-0	01	1	9510-0001
296	TUBE; NYLON MLD6Q M/T(X5J),MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) (B) L=1200 OD=6	1-09366-256-1	01	1	0002-
307	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=540	1-49113-427-2	01	1	9510-
307	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=434	1-49116-435-1	01	1	9510-
321	JOINT; FLEX HOSE	1-09654-362-1	01	1	9510-9811
321	JOINT; FLEX HOSE	1-09656-738-0	01	1	9812-
322	NUT; JOINT,FLEX HOSE M10 H=8	1-09400-029-0	01	1	9510-
323	WASHER; LK,JOINT ID=10.2	9-09150-510-0	01	1	9510-0603
323	WASHER; LK,JOINT ID=10.2	0-91510-510-0	01	1	0604-
325	PIPE; AIR,FLEX HOSE TO UNION L=791	1-49116-077-0	01	1	9510-
328	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-47470-415-1	01	1	9510-
328	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-473-0	01	1	9510-
330	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	02	1	9510-0603
330	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ID=10.2	0-91510-510-0	02	1	0604-
333	BOLT; PIPE UNION M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-
334	SPACER; PIPE UNION DUAL AIR GAUGE<UG2> ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9510-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	9510-0608
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-57210-720-0	02	1	0609-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=810	0-07210-810-0	01	1	9510-0605
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=810	0-57210-810-0	01	1	0606-
339	GROMMET; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> OD=28	8-94279-720-0	01	1	9510-
374	CONNECTOR	1-09654-324-0	01	1	9601-9802
374	CONNECTOR M16 STRAIGHT	1-09654-380-0	01	1	9803-
375	GASKET ID=11 OD=18	9-09572-510-0	01	1	9803-9811
434	CLIP (C) D=9 T=45	5-09700-021-0	01	1	9803-0004
434	CLIP DUAL AIR GAUGE<UG2> (D) ID=10 & 10	1-09709-221-0	01	1	9812-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A) ID=17	1-09987-105-1	01	1	9510-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B)	8-94297-486-0	02	1	9510-
438	WASHER; PL,JOINT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9510-

243 243 140 138 139 244 244 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	HOSE; FLEX,AIR PRESSURE GAGE AIR SUSP DRIVER SEAT<A56> L=450	0-07120-450-0	01	1	9510-9802
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=450	0-07120-450-0	01	1	9510-9802
138	NUT; FLEX HOSE,AIR GOV AIR SUSP DRIVER SEAT<A56> M12	9-09840-280-0	01	1	9510-9802
138	NUT; FLEX HOSE,AIR GOV EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M12	9-09840-280-0	01	1	9510-9802
139	WASHER; LK,FLEX HOSE,AIR GOV AIR SUSP DRIVER SEAT<A56> ID=12.2	9-09150-512-0	01	1	9510-9802
139	WASHER; LK,FLEX HOSE,AIR GOV EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9510-9802
140	GASKET; FLEX HOSE AIR SUSP DRIVER SEAT<A56> ID=11 OD=18	9-09572-510-0	01	1	9510-9802
140	GASKET; FLEX HOSE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9510-9802
243	UNION; AIR PIPE AIR ASSIST CLUTCH<PK1> (E)	1-09656-311-1	01	1	9510-9802
243	UNION; AIR PIPE AIR ASSIST CLUTCH<PK1> (G) M12 3WAY	9-09228-906-1	01	1	9803-0004
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> (A) M12	9-09228-306-1	01	1	9510-9802
243	UNION; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12	9-09228-306-1	01	1	9510-9802
243	UNION; AIR PIPE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) M12 L=66.5	9-09223-306-1	01	1	9510-9802
243	UNION; AIR PIPE EXC. AIR ASSIST CLUTCH<PK1> (D) M12 L=66.5	9-09223-306-1	01	1	9803-0004
243	UNION; AIR PIPE (D) M12 L=66.5	9-09223-306-1	01	1	0005-0607
243	UNION; AIR PIPE (D) M12 L=66.5	0-92113-306-0	01	1	0608-
243	UNION; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY	1-09654-059-2	01	1	9510-9802
243	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & M16X2 3WAY	1-09654-086-1	01	1	9510-9802
243	UNION; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR ASSIST CLUTCH<PK1>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) M12 & M16 STRAIGHT	1-09654-314-1	01	1	9510-9802
244	NUT; UNION,AIR PIPE (C) M12	9-99111-412-0	01	1	9510-9802
244	NUT; UNION,AIR PIPE (C) M12	9-09840-280-0	01	1	9803-
244	NUT; UNION,AIR PIPE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M12	9-09840-280-0	01	1	9510-9802
244	NUT; UNION,AIR PIPE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M16	9-99111-416-0	01	1	9510-9802

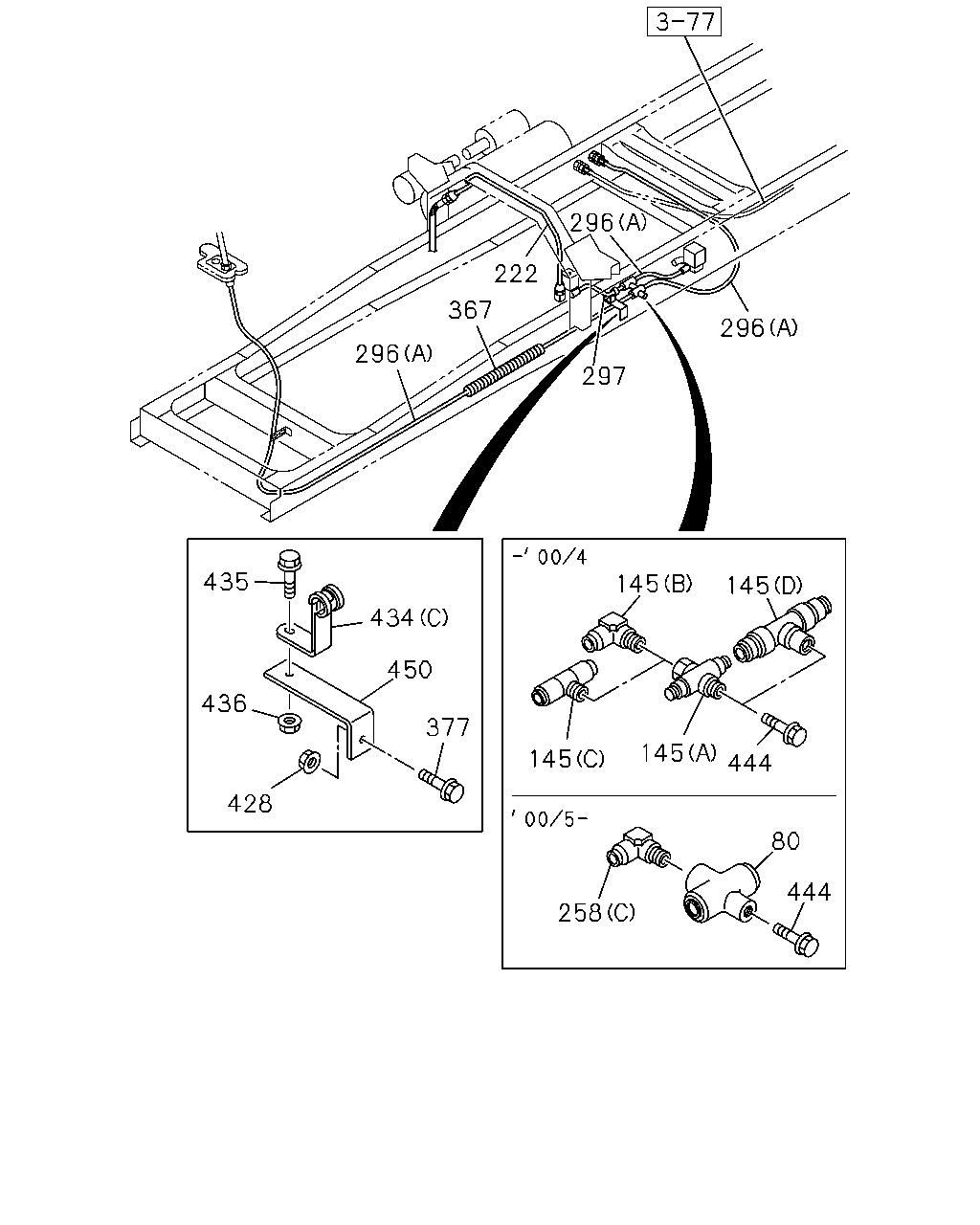

296 222 367 296 296 297 435 145 145 434 450 436 377 145 444 145 428 80 444 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	UNION; 3 WAY ISUZU M/T<X9A> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0005-
145	UNION; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9803-9804
145	UNION; NYLON TUBE EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9803-9804
145	UNION; NYLON TUBE PTO CONTROL<SV6> (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9803-9804
145	UNION; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9805-0004
145	UNION; NYLON TUBE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9805-0004
145	UNION; NYLON TUBE AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (C) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9803-9804
145	UNION; NYLON TUBE PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9803-9804
145	UNION; NYLON TUBE AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9803-9804
145	UNION; NYLON TUBE EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9803-9804
145	UNION; NYLON TUBE PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9803-9804
145	UNION; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9805-0004
145	UNION; NYLON TUBE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9805-0004
145	UNION; NYLON TUBE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6> (D)	1-09660-788-0	01	1	9803-9804
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 TCN ENG(58L) L=1047 SERVICED BY L=1100	1-47426-351-0	01	1	9510-9711
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 TCN ENG(58L) L=1011 SERVICED BY L=1100	1-47426-351-0	01	1	9712-9803
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L) L=1011 SERVICED BY L=1100	1-47426-351-0	01	1	9804-0004
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD ENG(65L),6HH1 N ENG(66L) L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	9510-0004
222	PIPE; AIR,MAG VLV TO FLEX HOSE L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	0005-
258	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9811
258	CONNECTOR; NYLON TUBE (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0007
258	CONNECTOR; NYLON TUBE (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-
258	CONNECTOR; NYLON TUBE MLD6Q M/T(X5J),MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) (B) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9510-0004
258	CONNECTOR; NYLON TUBE AT545 A/T ALLISON(MD1),MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) AIR SUSP DRIVER SEAT<A56> (B) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0005-0302
258	CONNECTOR; NYLON TUBE AT545 A/T ALLISON(MD1),MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) AIR SUSP DRIVER SEAT<A56> (B) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
296	TUBE; NYLON PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9803-9803
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004
296	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004
296	TUBE; NYLON ISUZU M/T<X9A> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0212
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> ISUZU M/T<X9A> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0301-
296	TUBE; NYLON ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0301-
296	TUBE; NYLON MLD6Q M/T(X5J),MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) (B) SERVICED BY L=30000 OD=6	1-09366-235-0	01	1	9510-0001
296	TUBE; NYLON MLD6Q M/T(X5J),MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) (B) L=1200 OD=6	1-09366-256-1	01	1	0002-
297	TUBE; NYLON PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
297	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> ISUZU M/T<X9A> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
297	TUBE; NYLON ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004
297	TUBE; NYLON ISUZU M/T<X9A> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0212
297	TUBE; NYLON DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0301-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9803-9804
367	TUBE; CORRUGATE EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9805-0004
367	TUBE; CORRUGATE ISUZU M/T<X9A> EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0005-
377	BOLT; BRKT FIX M8X25 FLANGE	0-28680-825-0	01	1	9803-0004
428	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9803-0004
434	CLIP (C) D=9 T=45	5-09700-021-0	01	1	9803-0004
434	CLIP DUAL AIR GAUGE<UG2> (D) ID=10 & 10	1-09709-221-0	01	1	9812-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A) ID=17	1-09987-105-1	01	1	9510-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B)	8-94297-486-0	02	1	9510-
435	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9803-0004
436	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9803-0004
444	BOLT; UNION M8X25 FLANGE	0-28680-825-0	01	1	9803-0001
444	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	0002-0004
444	BOLT; UNION ISUZU M/T<X9A> M8X20 FLANGE	0-28080-820-0	01	1	0005-0512
444	BOLT; UNION ISUZU M/T<X9A> M8X20 FLANGE	0-28050-820-0	01	1	0601-
450	BRACKET; CLIP L=90 B=25	1-47475-530-0	01	1	9803-0004

171 154 34 176 14 170 154 14 184 6 186 185 3 2 155 1 155 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=350	1-09363-558-0	01	1	9510-
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	9510-0512
2	NUT; FLEX HOSE,AIR TANK M22	0-91111-522-0	01	1	0601-
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	9510-0603
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	0-91510-522-0	01	1	0604-
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-264-2	01	1	9510-0304
6	BRACKET; FLEX HOSE,AIR TANK	1-47478-864-0	01	1	0305-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	9607-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0601-
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7>	1-49114-920-0	01	1	9510-0004
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7>	1-49114-920-0	01	1	0110-
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>	1-49114-923-0	01	1	9510-9802
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>	1-49119-158-0	01	1	9803-0004
14	PIPE; AIR,FLEX HOSE TO AIR TANK	1-49119-158-0	01	1	0005-0109
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>	1-49119-158-0	01	1	0110-
34	PIPE; AIR AIR DRYER<PS7>	1-49115-815-0	01	1	9510-9802
34	PIPE; AIR AIR DRYER<PS7>	1-49119-150-1	01	1	9803-0004
34	PIPE; AIR AIR DRYER<PS7>	1-49119-150-1	01	1	0110-
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49114-967-0	01	1	9510-0004
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-146-0	01	1	0005-
155	GASKET; AIR PIPE ID=11 OD=18	9-09572-510-0	02	1	9510-0004
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49115-964-0	01	1	9510-9802
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49119-159-0	01	1	9803-0004
170	PIPE; AIR,AIR GOV TO FLEX HOSE	1-49122-148-0	01	1	0005-0109
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49122-148-0	01	1	0110-0208
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49123-104-0	01	1	0209-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-49115-909-0	01	1	9510-0004
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-49122-150-0	01	1	0110-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7>	1-49115-910-0	01	1	9510-0004
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7>	1-49115-910-0	01	1	0110-0208
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7>	1-49119-646-0	01	1	0209-
184	HOSE; FLEX,AIR GOV 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=370	1-09363-586-0	01	1	0303-
184	HOSE; FLEX,AIR GOV L=330	1-09363-584-0	01	1	9510-9606
184	HOSE; FLEX,AIR GOV 6HE1 TCN ENG(58L) L=330	1-09363-584-0	01	1	9607-9803
184	HOSE; FLEX,AIR GOV 6HE1 TC ENG(57L),6HE1 TCN ENG(58L) L=330	1-09363-584-0	01	1	9804-0004
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L),6HH1 N ENG(66L) L=350	1-09363-651-0	01	1	9607-0004
184	HOSE; FLEX,AIR GOV 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=350	1-09363-651-0	01	1	0005-
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L),6HH1 N ENG(66L) L=350	1-09363-651-0	01	1	0005-
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9510-
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9510-0603
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	0-91510-512-0	01	1	0604-

359 358 75 242 244 244 243 243 243 238 251 238 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
75	PIPE; AIR,JOINT TO SUB AIR TANK WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2235 SERVICED BY L=2500	1-47428-798-0	01	1	9510-9605
75	PIPE; AIR,JOINT TO SUB AIR TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2235 SERVICED BY L=2500	1-47428-798-0	01	1	9606-9802
75	PIPE; AIR,JOINT TO SUB AIR TANK WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2742 SERVICED BY L=2900	1-47426-425-0	01	1	9510-9802
238	PIPE; AIR,UNION TO UNION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. PTO CONTROL<SV6> L=1348 SERVICED BY L=1370	1-47426-354-0	01	1	9510-9802
238	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PTO CONTROL<SV6> L=1359 SERVICED BY L=1370	1-47426-354-0	01	1	9510-9802
238	PIPE; AIR,UNION TO UNION AIR ASSIST CLUTCH<PK1> EXC. PTO CONTROL<SV6> L=1359 SERVICED BY L=1370	1-47426-354-0	01	1	9510-9802
238	PIPE; AIR,UNION TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR ASSIST CLUTCH<PK1>,PTO CONTROL<SV6>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=1379 SERVICED BY L=1500	1-47426-355-0	01	1	9510-9802
242	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-49118-369-0	01	1	9803-
242	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-49118-536-0	01	1	9803-
242	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-49114-992-0	01	1	9510-9802
242	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-49118-368-0	01	1	9803-
243	UNION; AIR PIPE AIR ASSIST CLUTCH<PK1> (E)	1-09656-311-1	01	1	9510-9802
243	UNION; AIR PIPE AIR ASSIST CLUTCH<PK1> (G) M12 3WAY	9-09228-906-1	01	1	9803-0004
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> (A) M12	9-09228-306-1	01	1	9510-9802
243	UNION; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12	9-09228-306-1	01	1	9510-9802
243	UNION; AIR PIPE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) M12 L=66.5	9-09223-306-1	01	1	9510-9802
243	UNION; AIR PIPE EXC. AIR ASSIST CLUTCH<PK1> (D) M12 L=66.5	9-09223-306-1	01	1	9803-0004
243	UNION; AIR PIPE (D) M12 L=66.5	9-09223-306-1	01	1	0005-0607
243	UNION; AIR PIPE (D) M12 L=66.5	0-92113-306-0	01	1	0608-
243	UNION; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY	1-09654-059-2	01	1	9510-9802
243	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & M16X2 3WAY	1-09654-086-1	01	1	9510-9802
243	UNION; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR ASSIST CLUTCH<PK1>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) M12 & M16 STRAIGHT	1-09654-314-1	01	1	9510-9802
244	NUT; UNION,AIR PIPE (C) M12	9-99111-412-0	01	1	9510-9802
244	NUT; UNION,AIR PIPE (C) M12	9-09840-280-0	01	1	9803-
244	NUT; UNION,AIR PIPE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M12	9-09840-280-0	01	1	9510-9802
244	NUT; UNION,AIR PIPE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M16	9-99111-416-0	01	1	9510-9802
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-49115-027-0	01	1	9510-9802
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR ASSIST CLUTCH<PK1>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-49115-028-0	01	1	9510-9802
251	PIPE; AIR,UNION TO MAG VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6>	1-49115-024-0	01	1	9510-9802
251	PIPE; AIR,UNION TO MAG VLV AIR ASSIST CLUTCH<PK1> PTO CONTROL<SV6>	1-49115-024-0	01	1	9510-9802
358	PIPE; AIR,AIR TANK TO AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49115-872-0	01	1	9510-9802
359	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49115-873-0	01	1	9510-9802

58 116 53 57 116 244 243 67 202 229 68 243 242 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	PIPE; AIR,AIR TANK TO VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-49116-143-0	01	1	9510-9802
53	PIPE; AIR,AIR TANK TO VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-49118-361-0	01	1	9803-
57	PIPE; AIR,P/VALVE TO A/T CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-49115-820-0	01	1	9510-9802
57	PIPE; AIR,P/VALVE TO A/T CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-49118-725-0	01	1	9803-
58	PIPE; AIR CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-49115-821-0	01	1	9510-9802
58	PIPE; AIR CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-49118-363-0	01	1	9803-
67	JOINT; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 L=74	9-09233-310-1	01	1	9803-0607
67	JOINT; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 L=74	0-92123-310-0	01	1	0608-
68	NUT; JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	9-99111-416-0	01	1	9803-0512
68	NUT; JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0601-
116	PIPE; AIR,PROTECTION VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-49115-874-0	01	1	9510-9802
116	PIPE; AIR,PROTECTION VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-49118-370-0	01	1	9803-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49118-537-0	01	1	9803-
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9803-9803
202	ADAPTER PTO CONTROL<SV6> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9803-9803
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9804-0004
202	ADAPTER DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0005-0007
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0008-
229	ADAPTER; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0004
229	ADAPTER; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	0005-0007
229	ADAPTER; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
242	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-49118-369-0	01	1	9803-
242	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-49118-536-0	01	1	9803-
242	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-49114-992-0	01	1	9510-9802
242	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-49118-368-0	01	1	9803-
243	UNION; AIR PIPE AIR ASSIST CLUTCH<PK1> (E)	1-09656-311-1	01	1	9510-9802
243	UNION; AIR PIPE AIR ASSIST CLUTCH<PK1> (G) M12 3WAY	9-09228-906-1	01	1	9803-0004
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> (A) M12	9-09228-306-1	01	1	9510-9802
243	UNION; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12	9-09228-306-1	01	1	9510-9802
243	UNION; AIR PIPE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) M12 L=66.5	9-09223-306-1	01	1	9510-9802
243	UNION; AIR PIPE EXC. AIR ASSIST CLUTCH<PK1> (D) M12 L=66.5	9-09223-306-1	01	1	9803-0004
243	UNION; AIR PIPE (D) M12 L=66.5	9-09223-306-1	01	1	0005-0607
243	UNION; AIR PIPE (D) M12 L=66.5	0-92113-306-0	01	1	0608-
243	UNION; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY	1-09654-059-2	01	1	9510-9802
243	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & M16X2 3WAY	1-09654-086-1	01	1	9510-9802
243	UNION; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR ASSIST CLUTCH<PK1>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) M12 & M16 STRAIGHT	1-09654-314-1	01	1	9510-9802
244	NUT; UNION,AIR PIPE (C) M12	9-99111-412-0	01	1	9510-9802
244	NUT; UNION,AIR PIPE (C) M12	9-09840-280-0	01	1	9803-
244	NUT; UNION,AIR PIPE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M12	9-09840-280-0	01	1	9510-9802
244	NUT; UNION,AIR PIPE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M16	9-99111-416-0	01	1	9510-9802

58 57 53 116 244 243 238 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	PIPE; AIR,AIR TANK TO VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-49116-143-0	01	1	9510-9802
53	PIPE; AIR,AIR TANK TO VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-49118-361-0	01	1	9803-
57	PIPE; AIR,P/VALVE TO A/T CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-49115-820-0	01	1	9510-9802
57	PIPE; AIR,P/VALVE TO A/T CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-49118-725-0	01	1	9803-
58	PIPE; AIR CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-49115-821-0	01	1	9510-9802
58	PIPE; AIR CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-49118-363-0	01	1	9803-
116	PIPE; AIR,PROTECTION VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-49115-874-0	01	1	9510-9802
116	PIPE; AIR,PROTECTION VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-49118-370-0	01	1	9803-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49118-537-0	01	1	9803-
238	PIPE; AIR,UNION TO UNION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. PTO CONTROL<SV6> L=1348 SERVICED BY L=1370	1-47426-354-0	01	1	9510-9802
238	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PTO CONTROL<SV6> L=1359 SERVICED BY L=1370	1-47426-354-0	01	1	9510-9802
238	PIPE; AIR,UNION TO UNION AIR ASSIST CLUTCH<PK1> EXC. PTO CONTROL<SV6> L=1359 SERVICED BY L=1370	1-47426-354-0	01	1	9510-9802
238	PIPE; AIR,UNION TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR ASSIST CLUTCH<PK1>,PTO CONTROL<SV6>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=1379 SERVICED BY L=1500	1-47426-355-0	01	1	9510-9802
243	UNION; AIR PIPE AIR ASSIST CLUTCH<PK1> (E)	1-09656-311-1	01	1	9510-9802
243	UNION; AIR PIPE AIR ASSIST CLUTCH<PK1> (G) M12 3WAY	9-09228-906-1	01	1	9803-0004
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> (A) M12	9-09228-306-1	01	1	9510-9802
243	UNION; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) M12	9-09228-306-1	01	1	9510-9802
243	UNION; AIR PIPE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) M12 L=66.5	9-09223-306-1	01	1	9510-9802
243	UNION; AIR PIPE EXC. AIR ASSIST CLUTCH<PK1> (D) M12 L=66.5	9-09223-306-1	01	1	9803-0004
243	UNION; AIR PIPE (D) M12 L=66.5	9-09223-306-1	01	1	0005-0607
243	UNION; AIR PIPE (D) M12 L=66.5	0-92113-306-0	01	1	0608-
243	UNION; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M12 2WAY	1-09654-059-2	01	1	9510-9802
243	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & M16X2 3WAY	1-09654-086-1	01	1	9510-9802
243	UNION; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR ASSIST CLUTCH<PK1>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) M12 & M16 STRAIGHT	1-09654-314-1	01	1	9510-9802
244	NUT; UNION,AIR PIPE (C) M12	9-99111-412-0	01	1	9510-9802
244	NUT; UNION,AIR PIPE (C) M12	9-09840-280-0	01	1	9803-
244	NUT; UNION,AIR PIPE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M12	9-09840-280-0	01	1	9510-9802
244	NUT; UNION,AIR PIPE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M16	9-99111-416-0	01	1	9510-9802
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-49115-027-0	01	1	9510-9802
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),AIR ASSIST CLUTCH<PK1>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-49115-028-0	01	1	9510-9802
251	PIPE; AIR,UNION TO MAG VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6>	1-49115-024-0	01	1	9510-9802
251	PIPE; AIR,UNION TO MAG VLV AIR ASSIST CLUTCH<PK1> PTO CONTROL<SV6>	1-49115-024-0	01	1	9510-9802

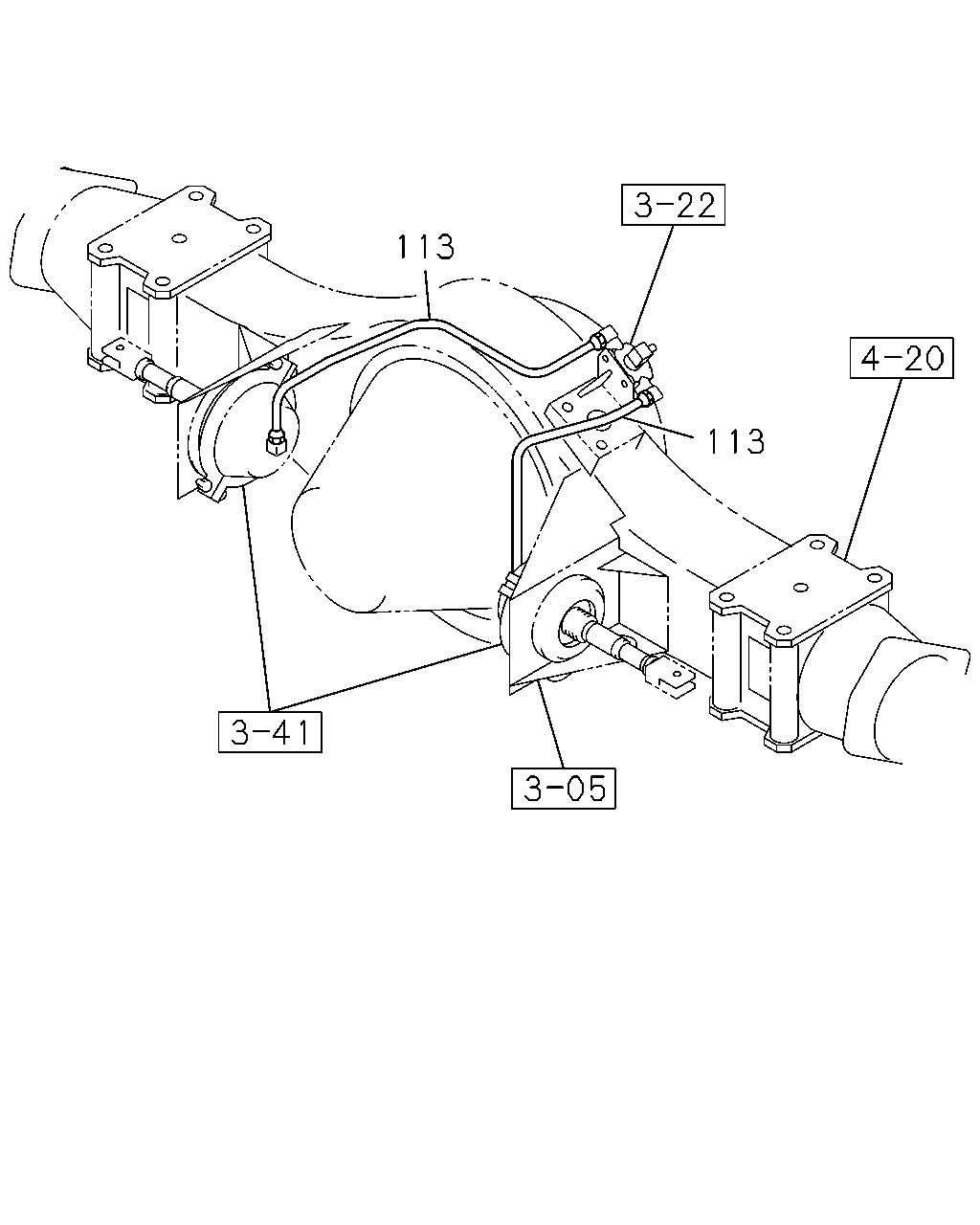

113 113

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=324	1-49112-659-0	01	1	9510-
	113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=635	1-49112-658-0	01	1	9510-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
