3-55 — BRAKE PIPING; OIL,REAR (#64092) — 56 parça

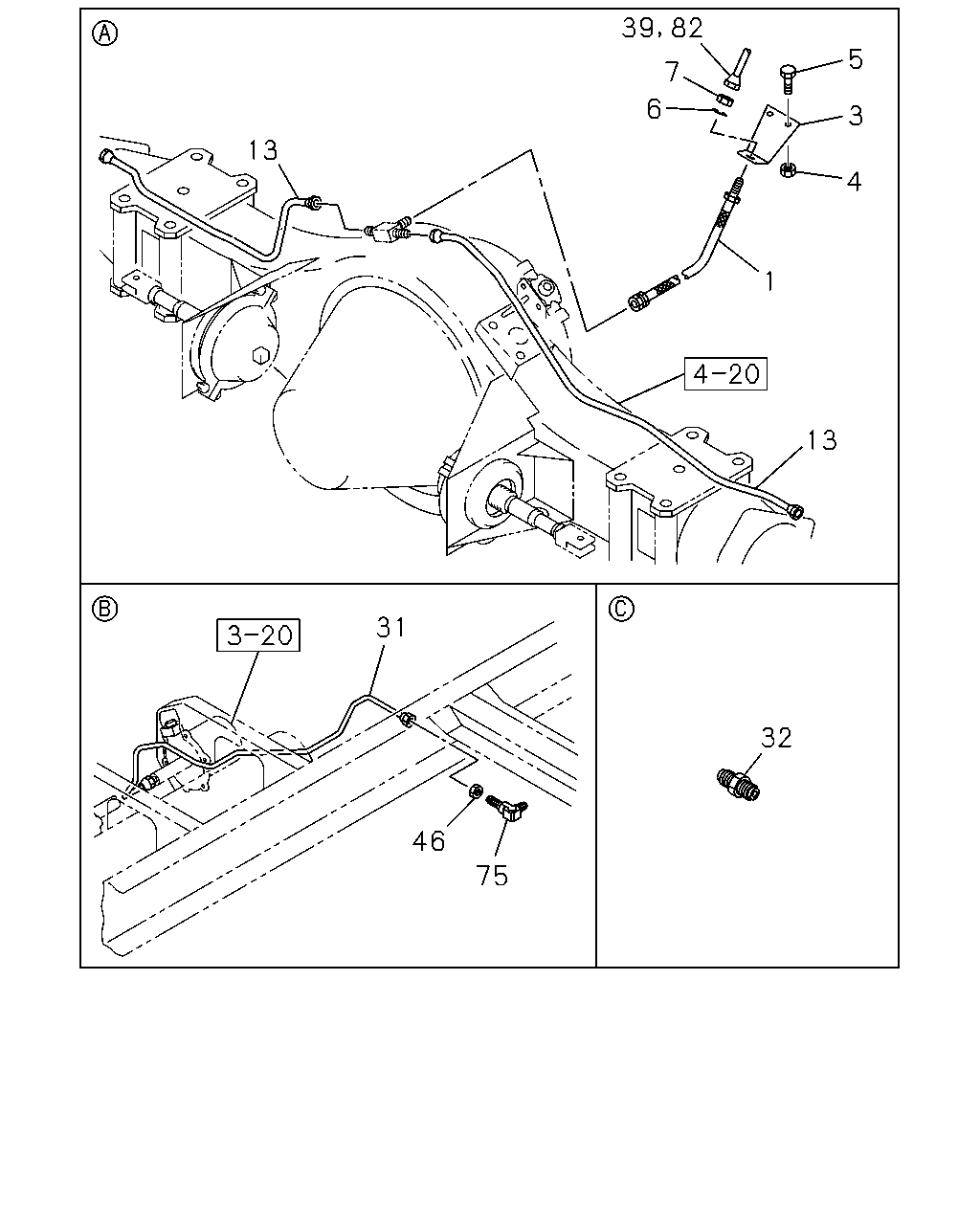

çizim 119831
5 7 6 3 13 4 1 13 31 32 46 75 39 82
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
L=610 		0-05313-610-0 01 1 9510-0004
1 HOSE; FLEX,RR BRK
L=610 		0-05313-610-0 01 1 0005-0511
1 HOSE; FLEX,RR BRK
L=610 		0-05213-610-0 01 1 0512-
3 BRACKET; FLEX HOSE,RR BRK 1-47465-251-0 01 1 9510-
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 		9-09110-408-0 02 1 9510-9606
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91150-108-0 02 1 9607-0602
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 0603-
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0512
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
6 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 9510-0603
6 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 01 1 0604-
7 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 9510-
13 PIPE; BRK,RR AXLE
L=847 		1-47427-106-0 01 1 9510-
13 PIPE; BRK,RR AXLE
L=675 		1-47427-105-0 01 1 9510-
31 PIPE; OIL,AIR MASTER TO UNION
L=889 		1-47429-269-0 01 1 9510-9802
31 PIPE; OIL,AIR MASTER TO UNION
L=890 		1-49161-560-0 01 1 9803-
32 UNION; OIL PIPE
M12 L=40 		9-09223-006-1 01 1 9510-0607
32 UNION; OIL PIPE
M12 L=40 		0-92113-006-0 01 1 0608-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 3700MM(37W) L=2040 SERVICED BY L=2200 		1-47426-360-0 01 1 9510-0307
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2040 SERVICED BY L=2200 		1-47426-360-0 01 1 9510-0307
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 3700MM(37W) EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=2040 SERVICED BY L=2200 		1-47426-360-0 01 1 0308-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4200MM(42W) EXC. LOAD SENSING PROPORTIONING VALVE(JR7),HEAVY DUTY PACKAGE TRUCK<RD2> L=2040 SERVICED BY L=2200 		1-47426-360-0 01 1 0308-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4200MM(42W) HEAVY DUTY PACKAGE TRUCK<RD2> L=1966 SERVICED BY L=2000 		1-47426-359-0 01 1 9510-0004
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=1966 SERVICED BY L=2000 		1-47426-359-0 01 1 9510-0004
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4200MM(42W) HEAVY DUTY PACKAGE TRUCK<RD2> L=1966 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0307
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4800MM(48W) L=1966 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0307
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4200MM(42W) HEAVY DUTY PACKAGE TRUCK<RD2> EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1966 SERVICED BY L=2000 		1-47426-359-0 01 1 0308-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4800MM(48W) EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1966 SERVICED BY L=2000 		1-47426-359-0 01 1 0308-
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 9510-
75 UNION; OIL PIPE
M12 ELBOW 		9-09225-206-1 01 1 9510-0607
75 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 0608-
82 PIPE; OIL,LSPV TO FLEX HOSE
WHEEL BASE 4200MM(42W) LOAD SENSING PROPORTIONING VALVE(JR7) HEAVY DUTY PACKAGE TRUCK<RD2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=572 SERVICED BY L=600 		1-47426-345-0 01 1 0308-
çizim 119872
39 33 1 82 81 1 33
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
L=610 		0-05313-610-0 01 1 9510-0004
1 HOSE; FLEX,RR BRK
L=610 		0-05313-610-0 01 1 0005-0511
1 HOSE; FLEX,RR BRK
L=610 		0-05213-610-0 01 1 0512-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) L=1091 SERVICED BY L=1100 		1-47426-351-0 01 1 9510-0001
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) L=1082 SERVICED BY L=1100 		1-47426-351-0 01 1 0002-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4200MM(42W) L=1554 SERVICED BY L=1620 		1-47426-356-0 01 1 9510-0001
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4200MM(42W) L=1545 SERVICED BY L=1620 		1-47426-356-0 01 1 0002-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) L=2165 SERVICED BY L=2200 		1-47426-360-0 01 1 9510-0001
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) L=2156 SERVICED BY L=2200 		1-47426-360-0 01 1 0002-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) L=2854 SERVICED BY L=2900 		1-47426-364-0 01 1 9510-0001
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) L=2846 SERVICED BY L=2900 		1-47426-364-0 01 1 0002-0004
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 3700MM(37W) L=2040 SERVICED BY L=2200 		1-47426-360-0 01 1 9510-0307
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2040 SERVICED BY L=2200 		1-47426-360-0 01 1 9510-0307
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 3700MM(37W) EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=2040 SERVICED BY L=2200 		1-47426-360-0 01 1 0308-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4200MM(42W) EXC. LOAD SENSING PROPORTIONING VALVE(JR7),HEAVY DUTY PACKAGE TRUCK<RD2> L=2040 SERVICED BY L=2200 		1-47426-360-0 01 1 0308-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4200MM(42W) HEAVY DUTY PACKAGE TRUCK<RD2> L=1966 SERVICED BY L=2000 		1-47426-359-0 01 1 9510-0004
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=1966 SERVICED BY L=2000 		1-47426-359-0 01 1 9510-0004
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4200MM(42W) HEAVY DUTY PACKAGE TRUCK<RD2> L=1966 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0307
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4800MM(48W) L=1966 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0307
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4200MM(42W) HEAVY DUTY PACKAGE TRUCK<RD2> EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1966 SERVICED BY L=2000 		1-47426-359-0 01 1 0308-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4800MM(48W) EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1966 SERVICED BY L=2000 		1-47426-359-0 01 1 0308-
81 PIPE; OIL,UNION TO LSPV
WHEEL BASE 4200MM(42W) LOAD SENSING PROPORTIONING VALVE(JR7) HEAVY DUTY PACKAGE TRUCK<RD2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=2531 SERVICED BY L=2650 		1-47426-363-0 01 1 0308-
82 PIPE; OIL,LSPV TO FLEX HOSE
WHEEL BASE 4200MM(42W) LOAD SENSING PROPORTIONING VALVE(JR7) HEAVY DUTY PACKAGE TRUCK<RD2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=572 SERVICED BY L=600 		1-47426-345-0 01 1 0308-
