3-46 — AIR DRYER (#64090) — 73 parça

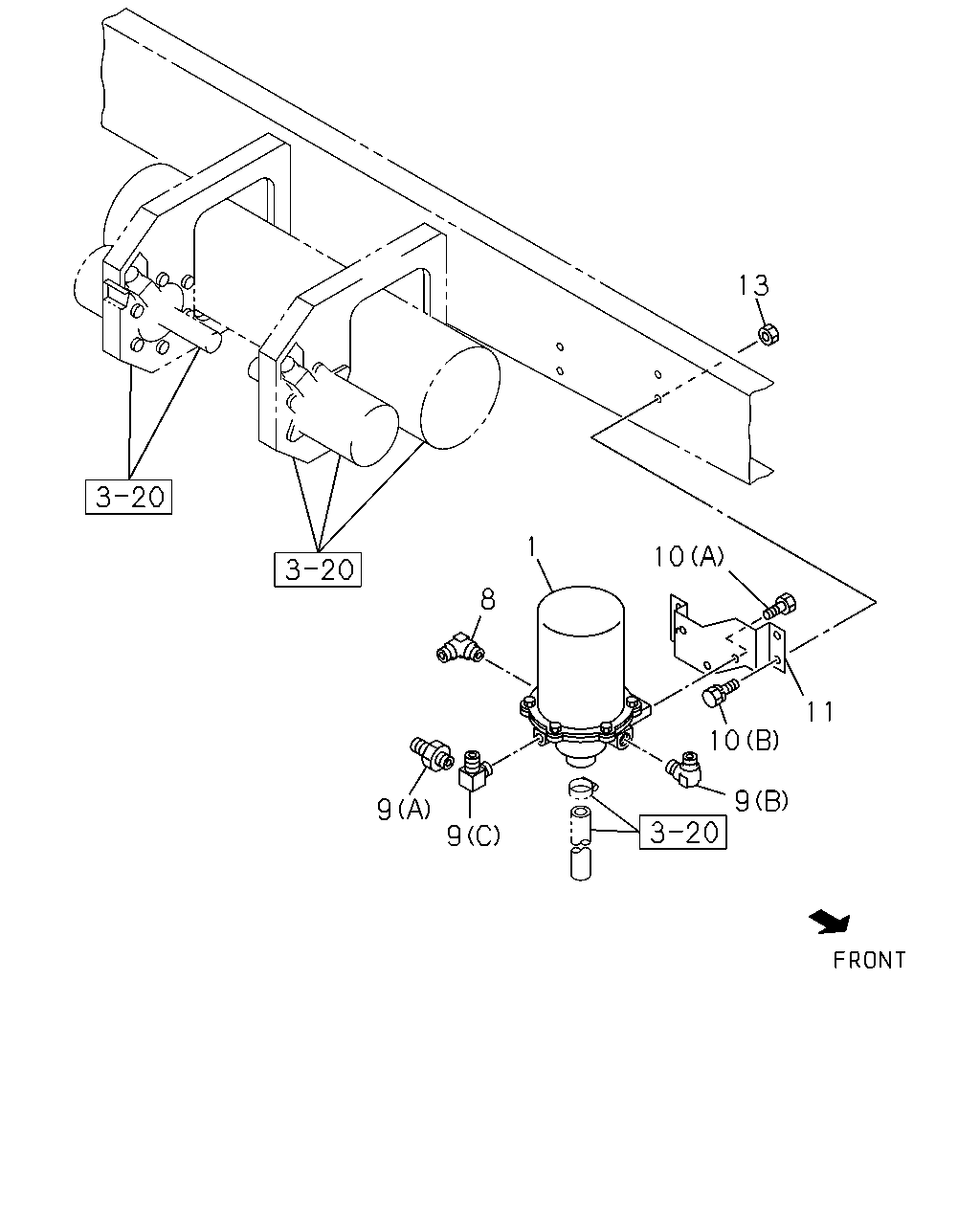

çizim 118327
13 1 10 8 11 10 9 9 9
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-157-1 01 1 9510-9703
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-200-0 01 1 9704-0004
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-200-1 01 1 0110-
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 9510-0004
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0110-
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9510-0004
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 9510-0004
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (C) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 9510-0004
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0110-
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (C) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0110-
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 0110-
10 BOLT; AIR DRYER
AIR DRYER<PS7> (A) M10X16 		0-20801-016-0 03 1 9510-0004
10 BOLT; AIR DRYER
AIR DRYER<PS7> (B) M10X30 FLANGE 		0-28081-030-0 04 1 9510-9606
10 BOLT; AIR DRYER
AIR DRYER<PS7> (B) M10X35 FLANGE 		0-28681-035-0 04 1 9607-0004
10 BOLT; AIR DRYER
AIR DRYER<PS7> (A) M10X16 		0-20801-016-0 03 1 0110-0512
10 BOLT; AIR DRYER
AIR DRYER<PS7> (A) M10X16 		0-20851-016-0 03 1 0601-
10 BOLT; AIR DRYER
AIR DRYER<PS7> (B) M10X35 FLANGE 		0-28681-035-0 04 1 0110-0512
10 BOLT; AIR DRYER
AIR DRYER<PS7> (B) M10X35 FLANGE 		0-28651-035-0 04 1 0601-
11 BRACKET; AIR DRYER
AIR DRYER<PS7> 		1-48195-066-0 01 1 9510-0004
11 BRACKET; AIR DRYER
AIR DRYER<PS7> 		1-48195-066-0 01 1 0110-
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 		9-09110-510-0 04 1 9510-9606
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 9607-0004
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 0110-0602
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE 		0-91180-210-0 04 1 0603-

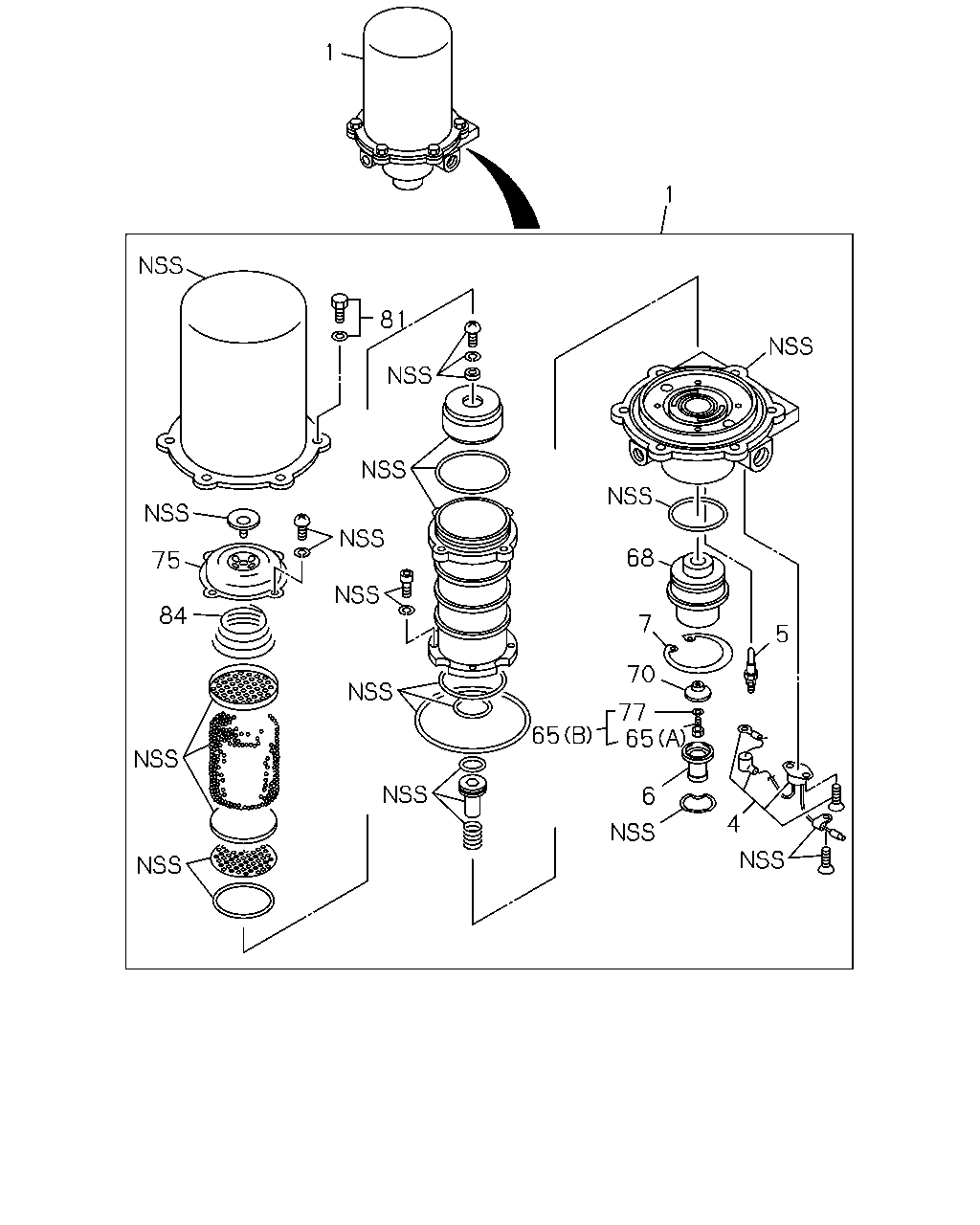

çizim 118410
1 1 81 68 75 84 7 5 70 77 65 65 6 4
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-157-1 01 1 9510-9703
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-200-0 01 1 9704-0004
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-200-1 01 1 0110-
4 THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-152-0 01 1 9510-0004
4 THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-152-0 01 1 0110-
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> 		1-48199-085-0 01 1 9510-0004
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> 		1-48199-085-0 01 1 0110-
6 COVER; EXH,AIR DRYER
AIR DRYER<PS7> 		1-48199-266-0 01 1 9510-9606
6 COVER; EXH,AIR DRYER
AIR DRYER<PS7> 		1-48199-392-0 01 1 9607-9703
6 COVER; EXH,AIR DRYER
AIR DRYER<PS7> 		1-48199-404-0 01 1 9704-0004
6 COVER; EXH,AIR DRYER
AIR DRYER<PS7> 		1-48199-404-0 01 1 0110-
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> 		1-48199-223-0 01 1 9510-9703
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> 		1-48199-403-0 01 1 9704-0004
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> 		1-48199-403-0 01 1 0110-
65 BOLT; PURGE VLV
AIR DRYER<PS7> (A) 		1-48199-102-0 01 1 9510-9606
65 BOLT; PURGE VLV
AIR DRYER<PS7> (B) 		1-48199-393-0 01 1 9607-0004
65 BOLT; PURGE VLV
AIR DRYER<PS7> (B) 		1-48199-393-0 01 1 0110-
68 BODY; VALVE
AIR DRYER<PS7> 		1-48199-221-0 01 1 9510-9606
68 BODY; VALVE
AIR DRYER<PS7> 		1-48199-391-0 01 1 9607-9703
68 BODY; VALVE
AIR DRYER<PS7> 		1-48199-408-0 01 1 9704-0004
68 BODY; VALVE
AIR DRYER<PS7> 		1-48199-408-0 01 1 0110-
70 VALVE; AIR DRYER
AIR DRYER<PS7> 		1-48199-105-0 01 1 9510-0004
70 VALVE; AIR DRYER
AIR DRYER<PS7> 		1-48199-105-0 01 1 0110-
75 COVER; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-236-0 01 1 9510-9703
75 COVER; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-395-0 01 1 9704-0004
75 COVER; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-395-0 01 1 0110-
77 WASHER; LK,VALVE
AIR DRYER<PS7> 		1-48199-103-0 01 1 9510-9606
81 BOLT; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-365-0 06 1 9510-0004
81 BOLT; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-365-0 06 1 0110-
84 SPRING; AIR DRYER
AIR DRYER<PS7> 		1-48199-235-0 01 1 9510-9703
84 SPRING; AIR DRYER
AIR DRYER<PS7> 		1-48199-396-0 01 1 9704-0004
84 SPRING; AIR DRYER
AIR DRYER<PS7> 		1-48199-396-0 01 1 0110-

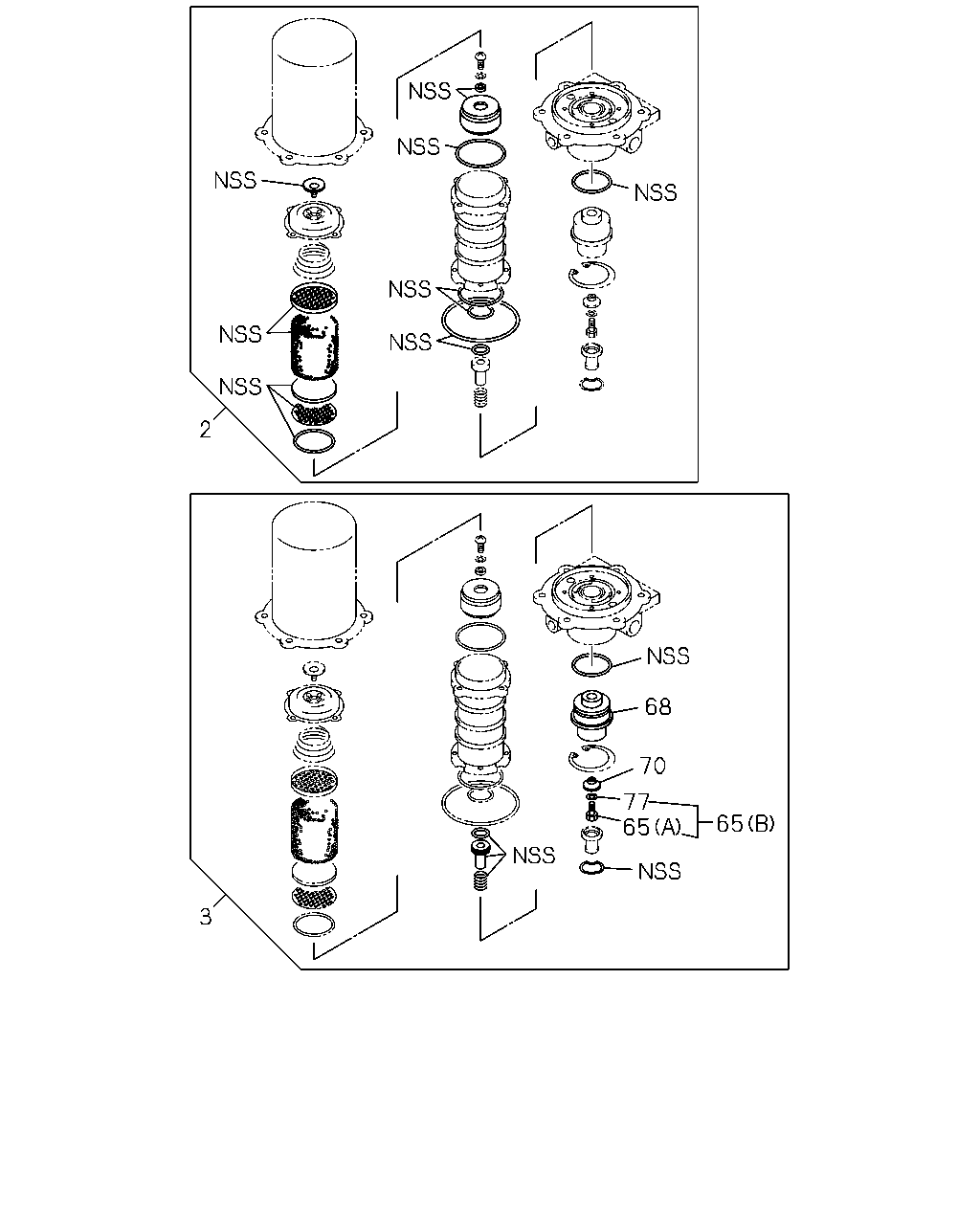

çizim 183872
2 68 70 77 65 65 3
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-368-0 01 1 9510-9606
2 REPAIR KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-149-0 01 1 9607-9703
2 REPAIR KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-194-0 01 1 9704-0004
2 REPAIR KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-194-0 01 1 0110-
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-150-0 01 1 9510-9703
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-193-0 01 1 9704-0004
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-193-0 01 1 0110-
65 BOLT; PURGE VLV
AIR DRYER<PS7> (A) 		1-48199-102-0 01 1 9510-9606
65 BOLT; PURGE VLV
AIR DRYER<PS7> (B) 		1-48199-393-0 01 1 9607-0004
65 BOLT; PURGE VLV
AIR DRYER<PS7> (B) 		1-48199-393-0 01 1 0110-
68 BODY; VALVE
AIR DRYER<PS7> 		1-48199-221-0 01 1 9510-9606
68 BODY; VALVE
AIR DRYER<PS7> 		1-48199-391-0 01 1 9607-9703
68 BODY; VALVE
AIR DRYER<PS7> 		1-48199-408-0 01 1 9704-0004
68 BODY; VALVE
AIR DRYER<PS7> 		1-48199-408-0 01 1 0110-
70 VALVE; AIR DRYER
AIR DRYER<PS7> 		1-48199-105-0 01 1 9510-0004
70 VALVE; AIR DRYER
AIR DRYER<PS7> 		1-48199-105-0 01 1 0110-
77 WASHER; LK,VALVE
AIR DRYER<PS7> 		1-48199-103-0 01 1 9510-9606
