Isuzu WW
▶
TRUCKS
▶
FRR
▶
10699 - FRR(LHD) EXC.EURO4
▶
3 - Brakes, Brake System
▶
3-45 - LOAD SENSING PROPORTIONING VALVE
▶
3-45 — LOAD SENSING PROPORTIONING VALVE
(#64089) — 20 parça
◀

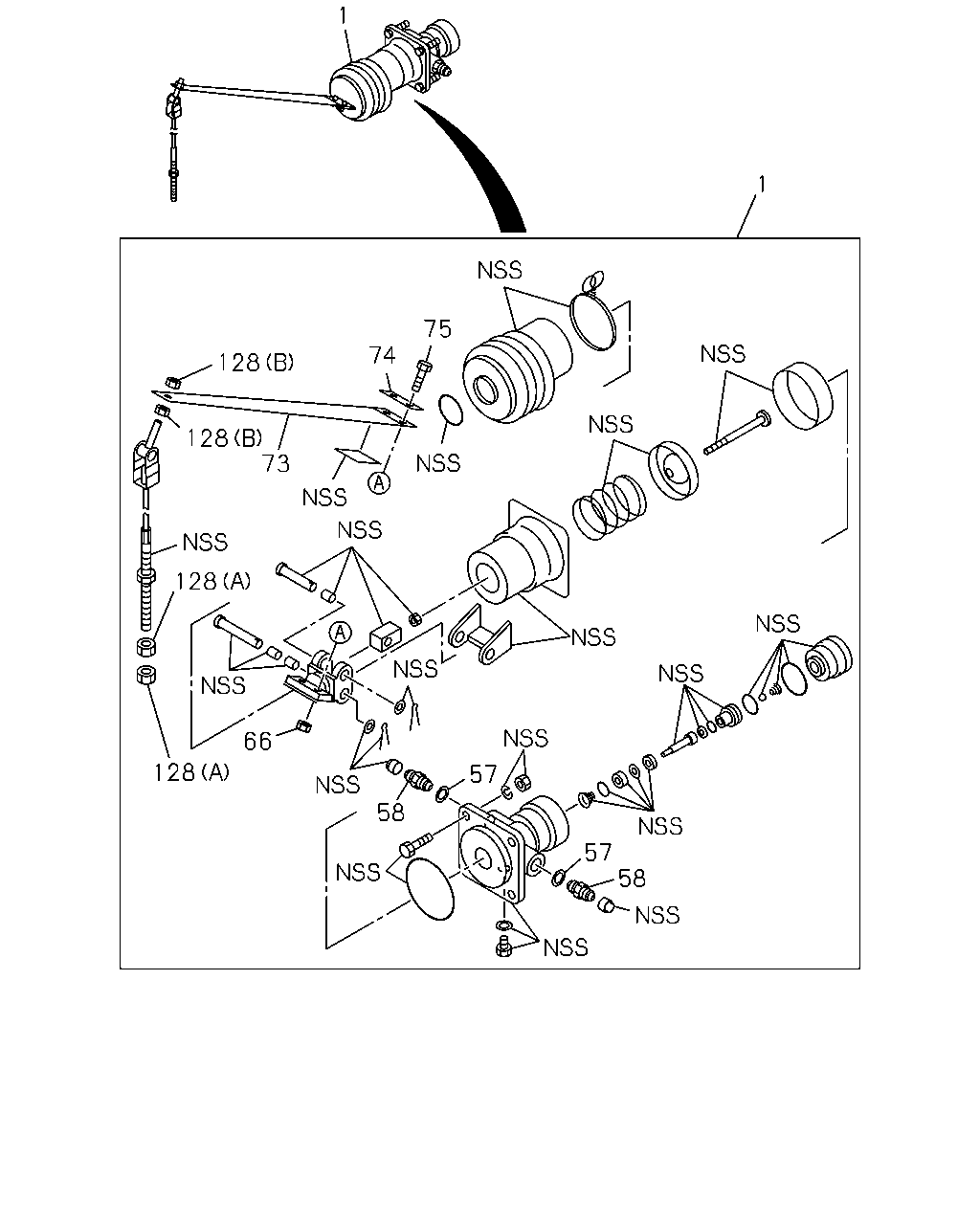

[345A] COMPONENT (9 parça)
[345A] FIXING (10 parça)
[345A] REPAIR KIT (1 parça)
▶
1
1
75
74
128
128
73
128
66
128
57
58
57
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7)
1-47710-094-0
01
1
0308-
57
GASKET; CONNECTOR
LOAD SENSING PROPORTIONING VALVE(JR7)
1-47719-039-0
02
1
0308-
58
CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7)
1-47719-035-0
02
1
0308-
66
NUT; LEAF SPR,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7)
1-47819-021-0
02
1
0308-
73
SPRING; LEAF,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7)
1-47714-016-0
01
1
0308-
74
PLATE; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7)
1-47719-067-0
01
1
0308-
75
BOLT; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7)
1-47719-031-0
02
1
0308-
128
NUT; CABLE
LOAD SENSING PROPORTIONING VALVE(JR7) (B)
1-47819-021-0
02
1
0308-
128
NUT; CABLE
LOAD SENSING PROPORTIONING VALVE(JR7) (A)
9-83315-085-0
02
1
0308-

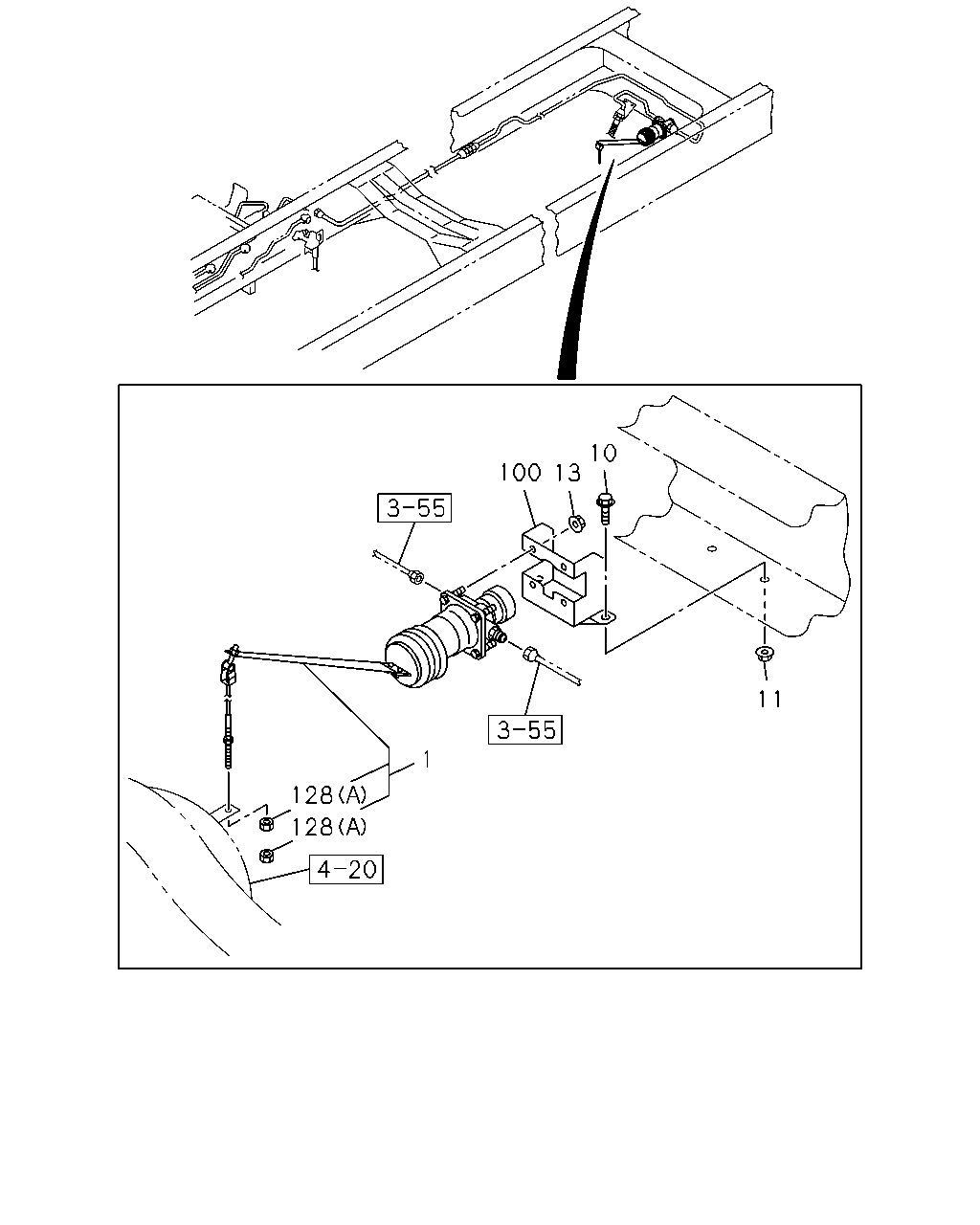

10
100
13
11
1
128
128
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7)
1-47710-094-0
01
1
0308-
10
BOLT; BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8X25 FLANGE
0-28680-825-0
02
1
0308-0512
10
BOLT; BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8X25 FLANGE
0-28650-825-0
02
1
0601-
11
NUT; BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8 FLANGE
0-91150-108-0
02
1
0308-0602
11
NUT; BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8 FLANGE
0-91180-108-0
02
1
0603-
13
NUT; LSPV TO BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8 FLANGE
0-91150-108-0
04
1
0308-0602
13
NUT; LSPV TO BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8 FLANGE
0-91180-108-0
04
1
0603-
100
BRACKET; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7)
1-47477-787-0
01
1
0308-
128
NUT; CABLE
LOAD SENSING PROPORTIONING VALVE(JR7) (B)
1-47819-021-0
02
1
0308-
128
NUT; CABLE
LOAD SENSING PROPORTIONING VALVE(JR7) (A)
9-83315-085-0
02
1
0308-

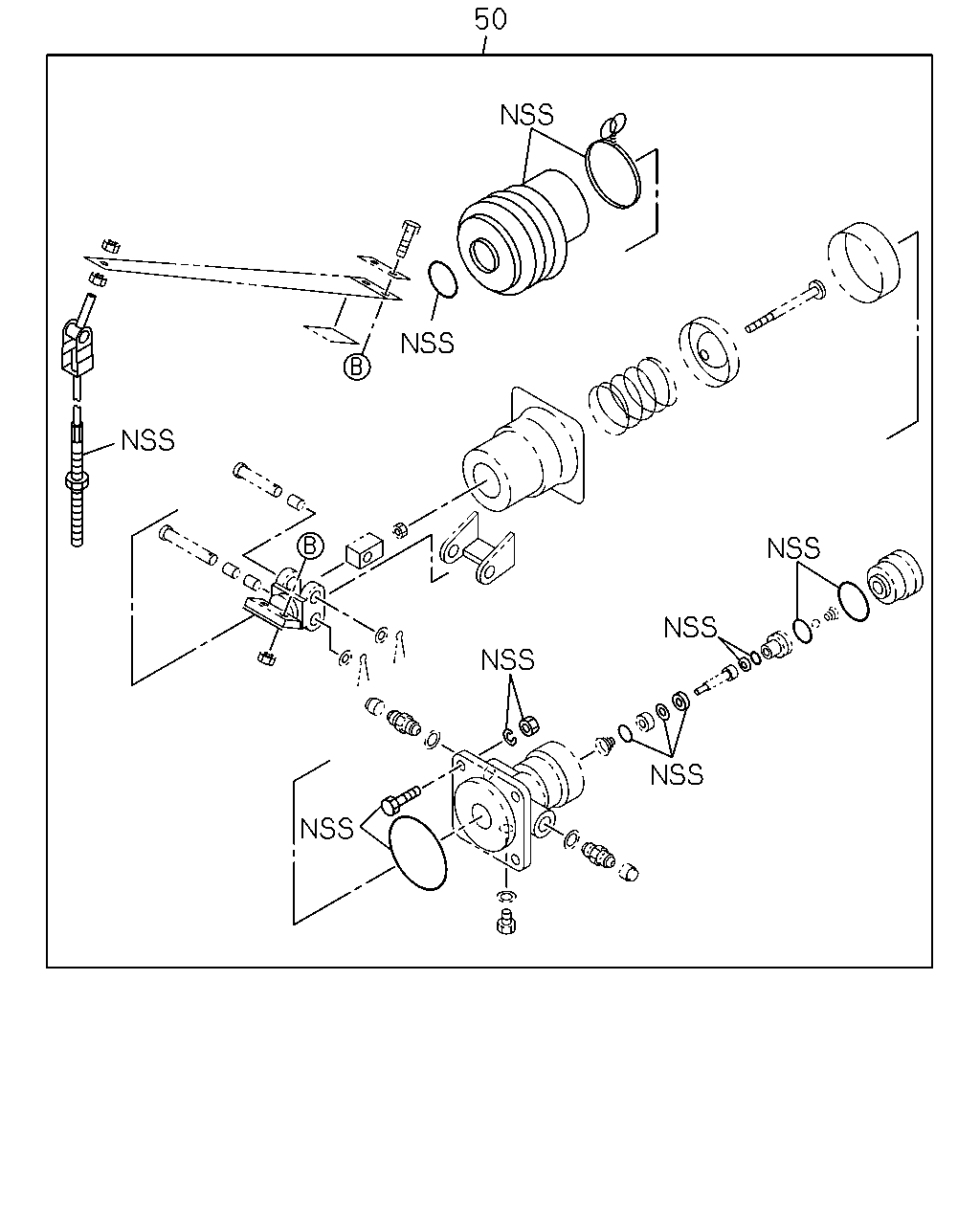

50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
REPAIR KIT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7)
1-85576-341-0
01
1
0308-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
