Sayfa 3-33 - Isuzu EPC

3-33 — AIR MASTER (#64086) — 146 parça

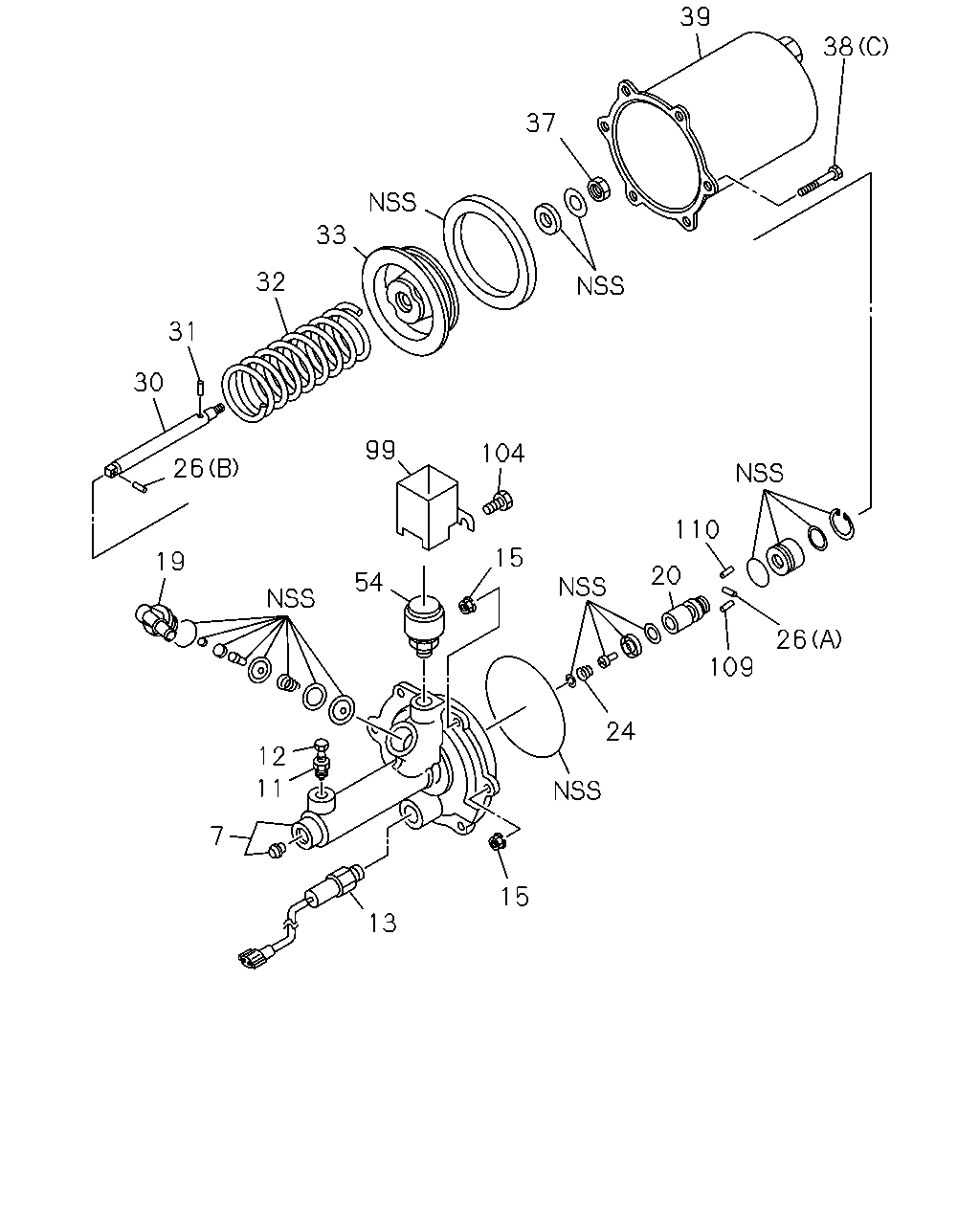

39 38 37 33 32 31 30 99 104 26 110 15 19 20 54 26 109 24 12 11 7 15 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47841-072-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47841-083-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47819-197-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47819-198-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47819-170-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47819-196-0	01	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47819-200-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-069-0	07	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47819-174-1	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47819-195-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-500-2	1-47821-019-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: B = 1-47800-575-0	1-47821-026-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: C = 1-47800-656-2, D = 1-47800-669-2	1-47821-047-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47821-053-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-500-2	1-47824-017-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: B = 1-47800-575-0	1-47824-028-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2	1-47824-034-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47824-041-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (C) ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-039-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: C = 1-47800-656-2, D = 1-47800-669-2	1-47829-099-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (B) ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47829-101-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47829-141-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47825-021-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47829-102-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-054-0	01	1	-
31	PIN; STRAIGHT ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47829-103-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47824-018-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47824-035-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47822-008-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47829-104-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47829-105-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-31829-015-0	05	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (C) ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47819-199-0	06	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-065-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47811-116-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47811-137-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47819-039-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47819-194-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47819-172-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47819-202-0	01	1	-
104	BOLT; BRKT,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47819-201-0	01	1	-
109	CLIP; PIN,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47829-098-0	01	1	-
110	GUIDE; PIN,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2	1-47829-100-0	01	1	-
110	GUIDE; PIN,AIR MASTER ASM PART: E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47829-142-0	01	1	-

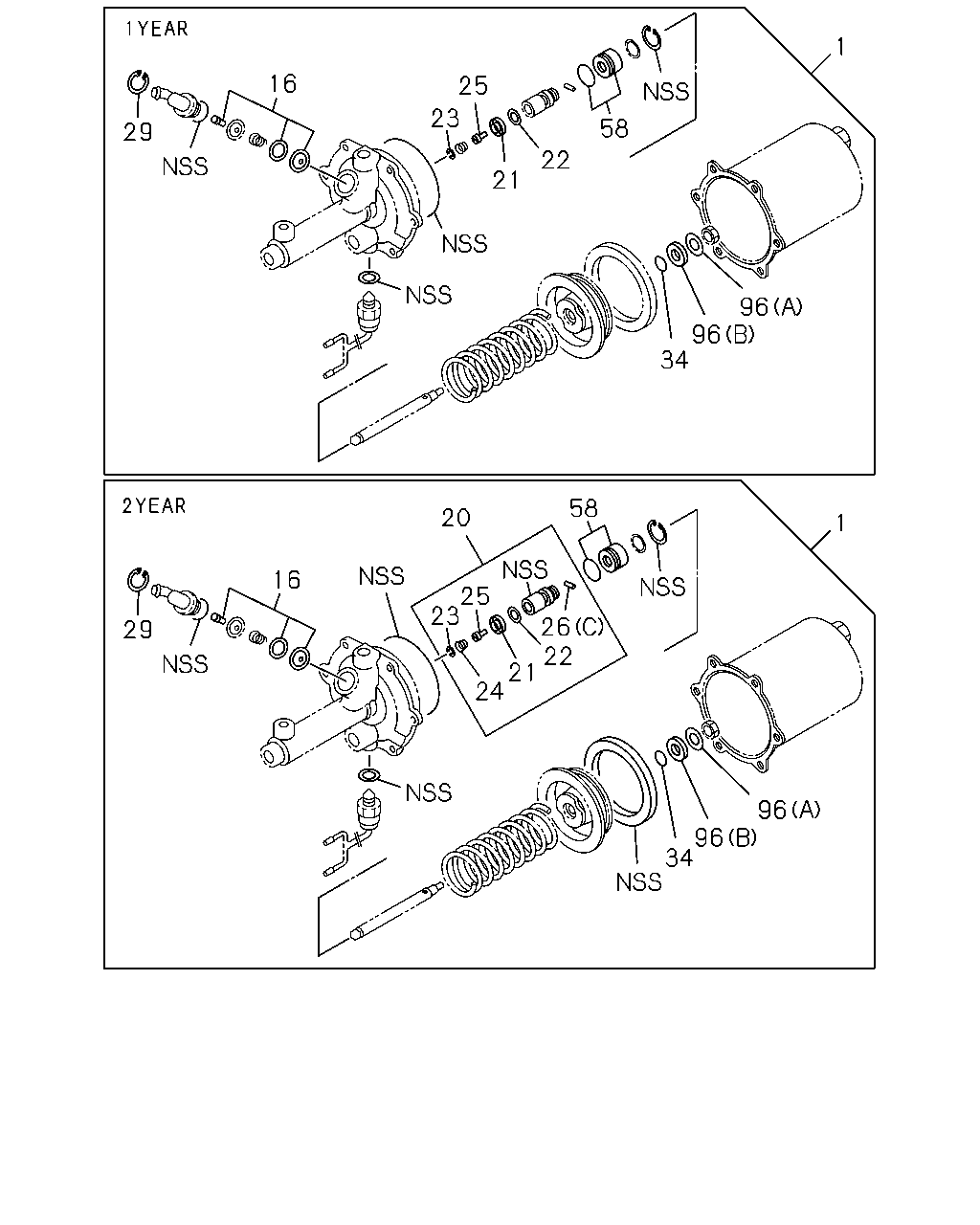

1 16 25 23 58 29 22 21 96 96 34 58 20 1 16 25 23 26 22 29 21 24 96 96 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: B = 1-47800-575-0	1-85576-165-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: B = 1-47800-575-0	1-85576-166-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: E = 1-47800-789-0, F = 1-47800-791-0	1-85576-308-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: C = 1-47800-656-2, D = 1-47800-669-2	1-85576-384-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: G = 1-47800-827-0	1-85576-480-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-500-2	1-87830-393-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: A = 1-47800-500-2	1-87830-394-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47842-009-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-500-2	1-47821-019-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: B = 1-47800-575-0	1-47821-026-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: C = 1-47800-656-2, D = 1-47800-669-2	1-47821-047-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47821-053-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-037-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-036-0	01	1	-
23	RING; RET ASM PART: B = 1-47800-575-0	1-31829-081-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-500-2	9-83315-102-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-500-2	1-47824-017-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: B = 1-47800-575-0	1-47824-028-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2	1-47824-034-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47824-041-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-500-2	1-47827-038-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (C) ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-039-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: C = 1-47800-656-2, D = 1-47800-669-2	1-47829-099-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (B) ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47829-101-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47829-141-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-057-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	9-09561-111-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-056-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-032-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-053-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: B = 1-47800-575-0	1-85576-165-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: B = 1-47800-575-0	1-85576-166-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: E = 1-47800-789-0, F = 1-47800-791-0	1-85576-308-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: C = 1-47800-656-2, D = 1-47800-669-2	1-85576-384-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: G = 1-47800-827-0	1-85576-480-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-500-2	1-87830-393-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: A = 1-47800-500-2	1-87830-394-0	01	1	-

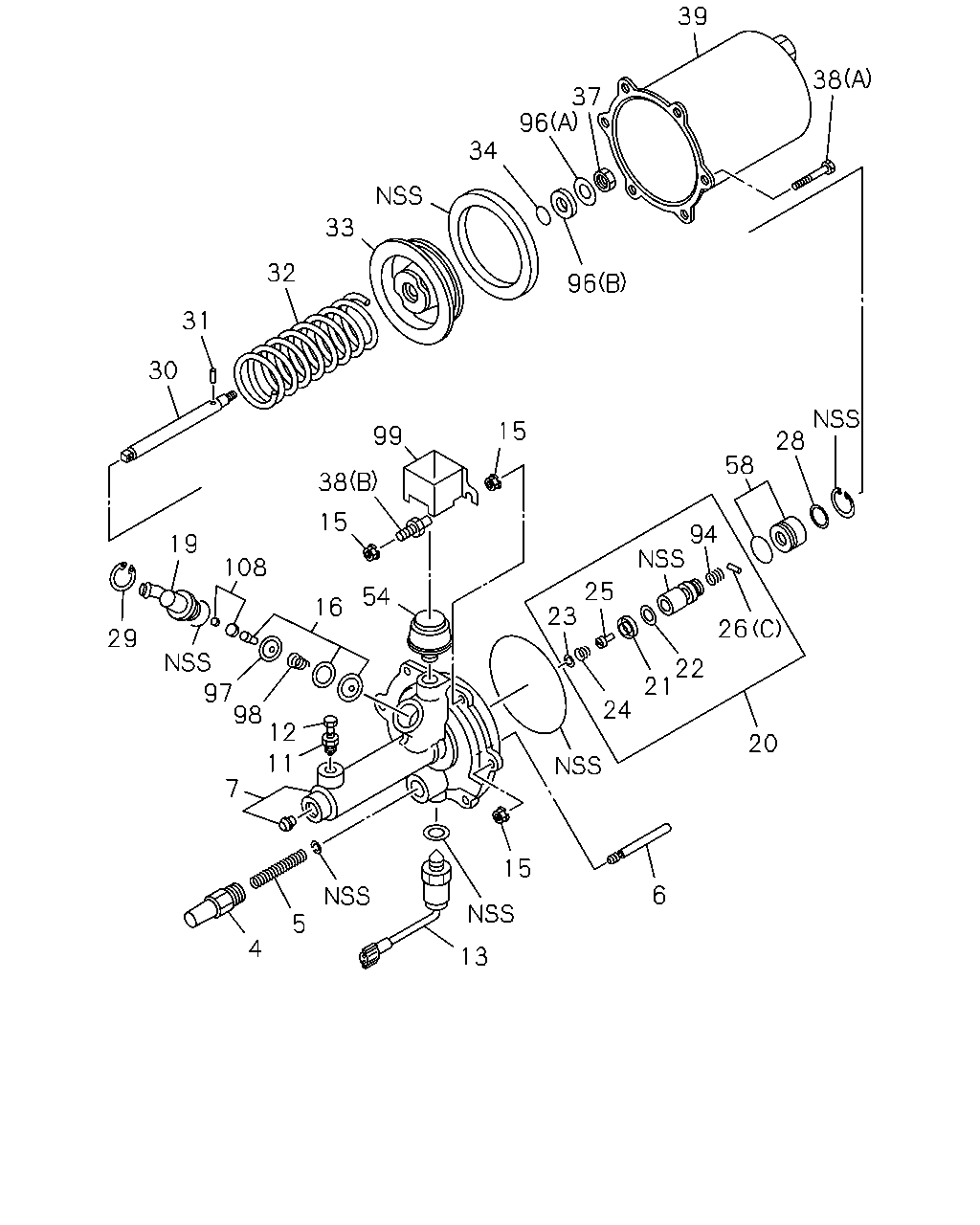

39 38 37 96 34 33 32 96 31 30 28 15 99 58 38 15 94 19 108 25 23 54 16 26 29 97 98 12 22 21 24 20 11 7 15 6 5 4 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-070-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47824-027-0	01	1	-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-043-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47841-072-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47841-083-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47819-197-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47819-198-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47819-170-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47819-196-0	01	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47819-200-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-069-0	07	1	-
16	VALVE ASM ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47842-009-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47819-174-1	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47819-195-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-500-2	1-47821-019-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: B = 1-47800-575-0	1-47821-026-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: C = 1-47800-656-2, D = 1-47800-669-2	1-47821-047-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47821-053-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-037-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-036-0	01	1	-
23	RING; RET ASM PART: B = 1-47800-575-0	1-31829-081-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-500-2	9-83315-102-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-500-2	1-47824-017-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: B = 1-47800-575-0	1-47824-028-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2	1-47824-034-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47824-041-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-500-2	1-47827-038-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (C) ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-039-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: C = 1-47800-656-2, D = 1-47800-669-2	1-47829-099-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (B) ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47829-101-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47829-141-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47819-173-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-057-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47825-021-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47829-102-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-054-0	01	1	-
31	PIN; STRAIGHT ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47829-103-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47824-018-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47824-035-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47822-008-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47829-104-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	9-09561-111-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47829-105-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-31829-015-0	05	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (C) ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47819-199-0	06	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-065-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47811-116-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47811-137-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47819-039-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47819-194-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-056-0	01	1	-
94	SPRING; PISTON ASM PART: B = 1-47800-575-0	1-47829-059-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-032-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47829-053-0	01	1	-
97	RETAINER; VALVE ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47824-023-0	01	1	-
98	SPRING; VALVE ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47843-006-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47819-172-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: C = 1-47800-656-2, D = 1-47800-669-2, E = 1-47800-789-0, F = 1-47800-791-0, G = 1-47800-827-0	1-47819-202-0	01	1	-
108	FILTER; OIL ASM PART: A = 1-47800-500-2, B = 1-47800-575-0	1-47819-175-0	01	1	-
