3-22 — AIR CONTROL PARTS (#64084) — 92 parça

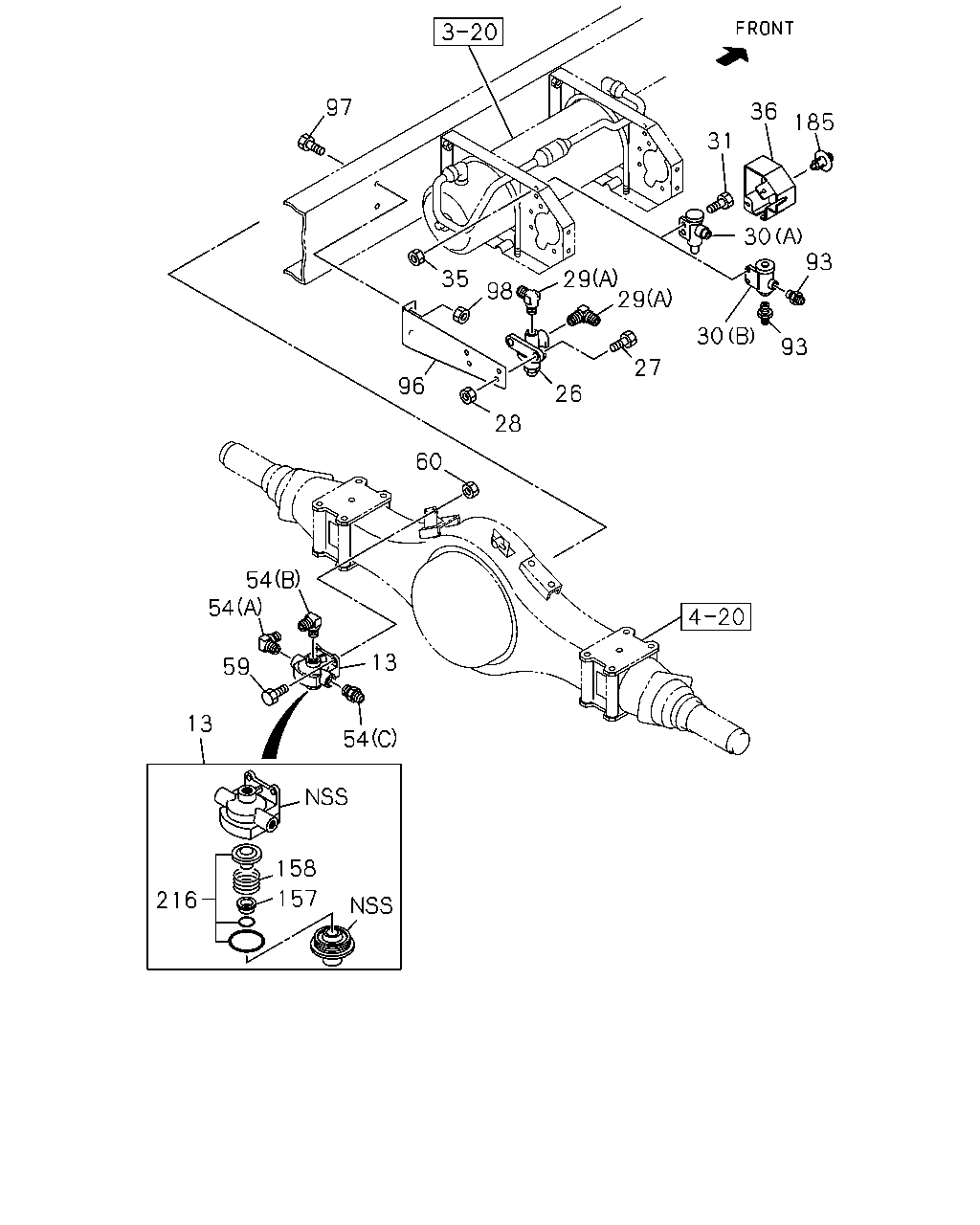

97 36 185 31 30 93 35 29 98 29 30 93 27 96 26 28 60 54 54 13 59 13 54 158 157 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9510-0109
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-659-0	01	1	0110-
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-0	01	1	9510-9802
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9802
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-9802
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E)	1-09650-068-1	01	1	9510-9802
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (G) FLARE M20 PT3/8	9-09231-812-1	02	1	9803-0607
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (G) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0608-
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M20 & PT3/8 STRAIGHT	1-09650-211-1	01	1	9510-9802
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-09650-283-1	01	1	9510-
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	9510-0607
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) M20	0-92121-812-0	02	1	0608-
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9510-9802
29	CONNECTOR; AIR VLV TIRE INFLATOR DEVICE<SG4> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9510-9802
30	GOVERNOR; AIR CONT (A)	1-48350-059-0	01	1	9510-0004
30	GOVERNOR; AIR CONT (B)	1-48350-063-2	01	1	0005-
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9510-9702
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9703-9802
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	9803-0512
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0601-
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9510-9609
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9610-0602
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-
36	COVER; GOV	1-48359-043-3	01	1	9510-
54	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9510-
54	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9510-
54	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9510-
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9510-0906
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-
60	NUT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-0512
60	NUT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	02	1	0601-
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0005-
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47477-412-2	01	1	9510-9802
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9802
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-9802
157	RETAINER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48419-020-0	01	1	0110-
158	SPRING; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-48419-003-0	01	1	0110-
185	FASTENER; COVER	1-09470-006-0	02	1	9510-
216	REPAIR KIT; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-235-0	01	1	0110-

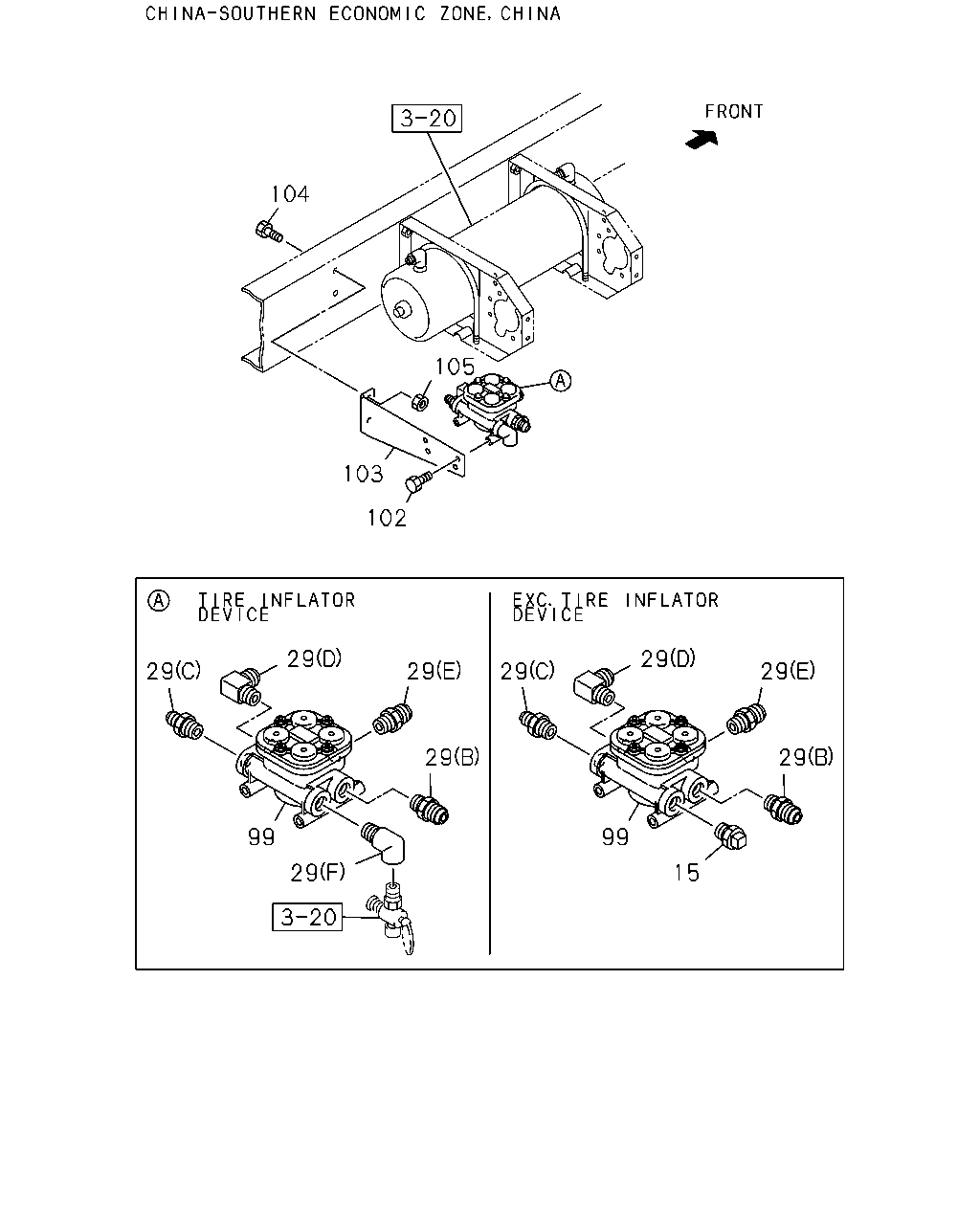

104 105 103 102 29 29 29 29 29 29 29 29 99 99 29 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	PLUG; VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	01	1	9510-
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E)	1-09650-068-1	01	1	9510-9802
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (G) FLARE M20 PT3/8	9-09231-812-1	02	1	9803-0607
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (G) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0608-
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M20 & PT3/8 STRAIGHT	1-09650-211-1	01	1	9510-9802
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-09650-283-1	01	1	9510-
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	9510-0607
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) M20	0-92121-812-0	02	1	0608-
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9510-9802
29	CONNECTOR; AIR VLV TIRE INFLATOR DEVICE<SG4> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9510-9802
99	VALVE; PROTECTION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48110-079-0	01	1	9510-9802
99	VALVE; PROTECTION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48110-136-4	01	1	9803-0004
99	VALVE; PROTECTION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48110-135-5	01	1	0005-
102	BOLT; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X20 FLANGE	0-28080-820-0	02	1	9510-9802
103	BRACKET; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-47477-412-2	01	1	9510-9802
103	BRACKET; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-47477-971-0	01	1	9803-
104	BOLT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
104	BOLT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28680-830-0	02	1	9607-0512
104	BOLT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28650-830-0	02	1	0601-
105	NUT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8	9-09110-408-0	02	1	9510-9606
105	NUT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	02	1	9607-0602
105	NUT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	0603-

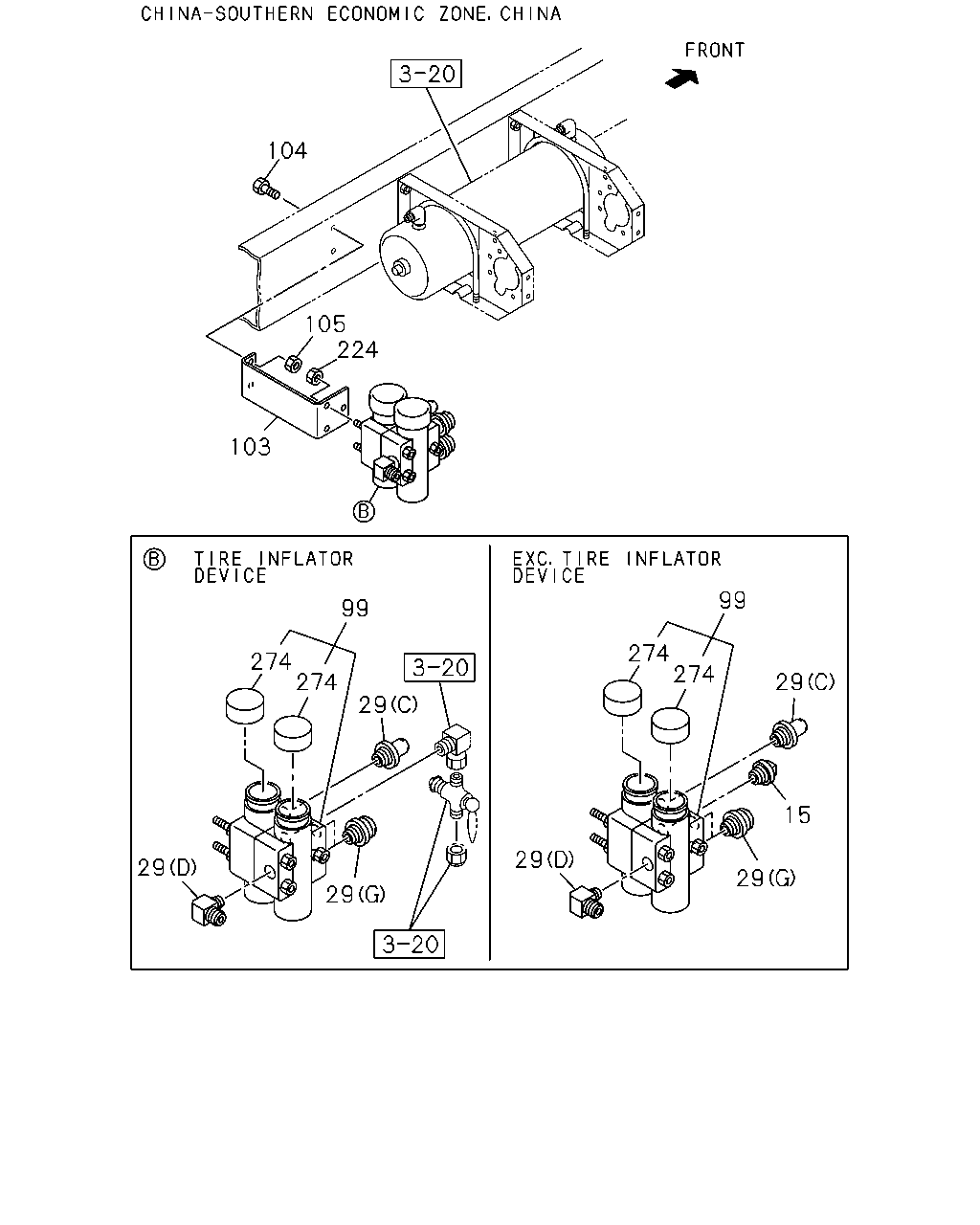

104 105 224 103 99 99 274 274 274 274 29 29 15 29 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	PLUG; VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. TIRE INFLATOR DEVICE<SG4> PT3/8	9-09204-517-0	01	1	9510-
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E)	1-09650-068-1	01	1	9510-9802
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (G) FLARE M20 PT3/8	9-09231-812-1	02	1	9803-0607
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (G) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0608-
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M20 & PT3/8 STRAIGHT	1-09650-211-1	01	1	9510-9802
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-09650-283-1	01	1	9510-
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	9510-0607
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) M20	0-92121-812-0	02	1	0608-
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9510-9802
29	CONNECTOR; AIR VLV TIRE INFLATOR DEVICE<SG4> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9510-9802
99	VALVE; PROTECTION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48110-079-0	01	1	9510-9802
99	VALVE; PROTECTION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48110-136-4	01	1	9803-0004
99	VALVE; PROTECTION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48110-135-5	01	1	0005-
103	BRACKET; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-47477-412-2	01	1	9510-9802
103	BRACKET; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-47477-971-0	01	1	9803-
104	BOLT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
104	BOLT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28680-830-0	02	1	9607-0512
104	BOLT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28650-830-0	02	1	0601-
105	NUT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8	9-09110-408-0	02	1	9510-9606
105	NUT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	02	1	9607-0602
105	NUT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	0603-
224	NUT; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	03	1	9803-0602
224	NUT; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	03	1	0603-
274	COVER; DUST CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48119-450-0	02	1	0005-

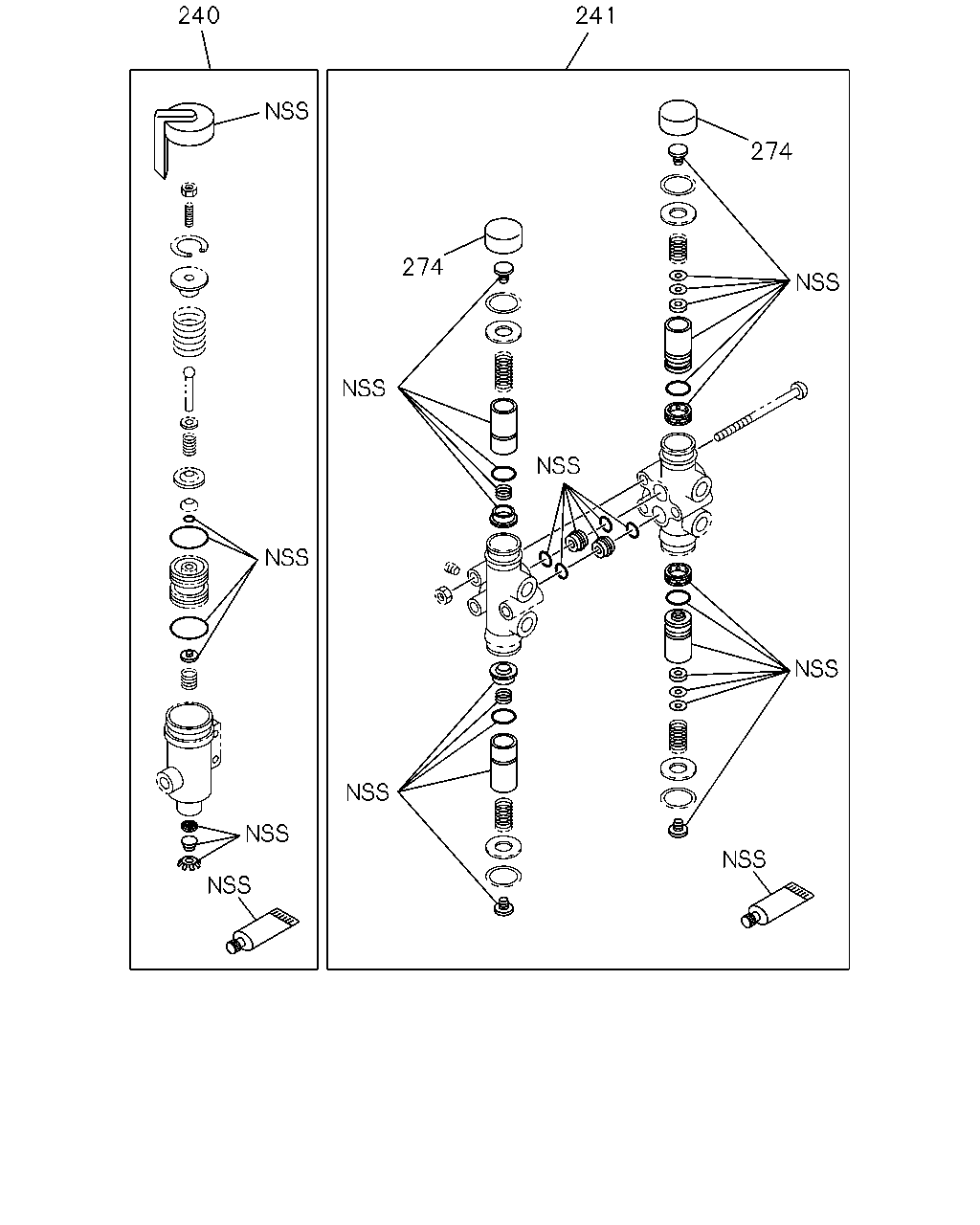

240 241 274 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0005-
241	REPAIR KIT; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-85576-224-0	01	1	0005-
274	COVER; DUST CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48119-450-0	02	1	0005-
