Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#64083) — 337 parça

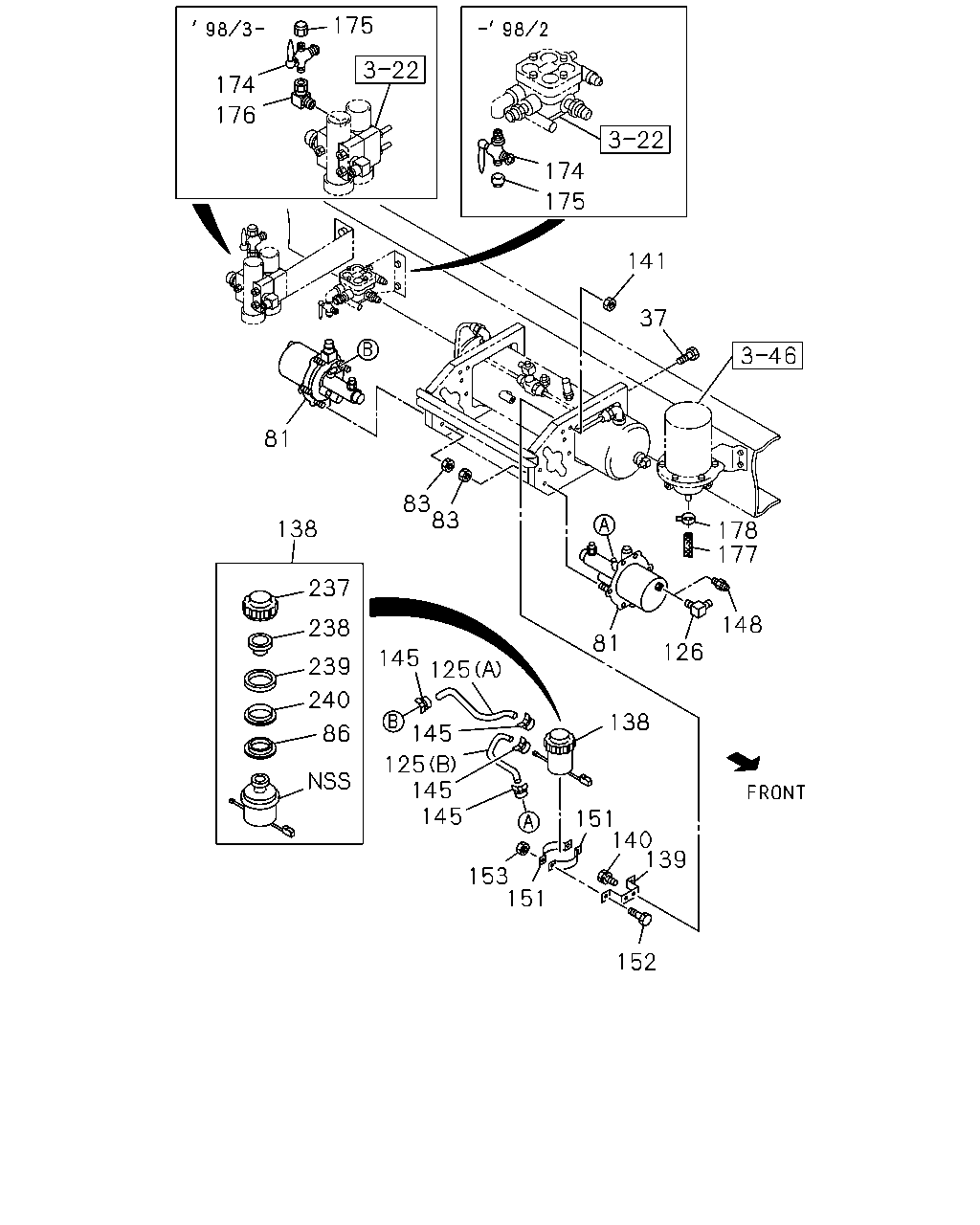

175 174 176 174 175 141 37 81 83 83 138 178 177 237 148 238 81 126 145 239 125 240 138 145 86 12 145 145 151 140 139 153 151 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-47497-008-0	01	1	9510-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-47497-009-0	01	1	9510-
37	BOLT; AIR TANK M10X35 FLANGE	0-28681-035-0	04	1	9510-0512
37	BOLT; AIR TANK M10X35 FLANGE	0-28651-035-0	04	1	0601-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47800-575-0	02	1	9510-9802
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-47800-669-2	02	1	9803-0202
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-47800-791-0	02	1	0203-0204
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47800-500-2	02	1	9510-9802
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-47800-656-2	02	1	9803-0202
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-47800-789-0	02	1	0203-0204
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-789-0	02	1	0205-0901
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-827-0	02	1	0902-
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	08	1	9510-0602
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	08	1	0603-
86	SEAL; DUST	1-47529-019-0	01	1	9510-
125	HOSE; OIL TANK TO AIR MASTER (A) L=240 SERVICED BY L=1800	1-09360-320-0	01	1	9510-
125	HOSE; OIL TANK TO AIR MASTER (B) L=335	1-47469-045-0	01	1	9510-
126	CONNECTOR; ELBOW M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9803-
138	TANK ASM; OIL,AIR MASTER	1-47530-170-1	01	1	9510-0011
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0012-0206
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0207-
139	BRACKET; OIL TANK	1-47537-123-1	01	1	9510-
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	9510-9606
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE	0-28681-025-0	02	1	9607-9903
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	9904-0512
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-
141	NUT; OIL TANK TO BRKT M10	9-09110-510-0	02	1	9510-9606
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	9607-0602
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9510-
148	CONNECTOR; AIR MASTER M16 & PT3/8 STRAIGHT	1-09650-179-1	02	1	9510-9802
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9510-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
152	BOLT; OIL TANK TO BAND M8X25 FLANGE	0-28680-825-0	02	1	9607-9712
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	9801-0512
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0601-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9510-0602
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0603-
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	02	1	9510-0004
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	0005-0010
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0011-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	02	1	9510-0004
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0005-
176	ADAPTER TIRE INFLATOR DEVICE<SG4> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9803-0004
176	ADAPTER TIRE INFLATOR DEVICE<SG4> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9510-0004
178	CLIP; HOSE AIR DRYER<PS7> ID=21	8-94242-034-0	01	1	9908-0004
237	CAP; OIL TANK	1-47525-019-2	01	1	9510-0004
237	CAP; OIL TANK	1-47525-024-0	01	1	0005-0011
237	CAP; OIL TANK	1-47525-030-0	01	1	0012-
238	PLATE; BAFFLE	1-47529-022-0	01	1	9510-
239	FILTER; DUST	1-47529-017-0	01	1	9510-
240	HOLDER; FILTER	1-47529-018-0	01	1	9510-

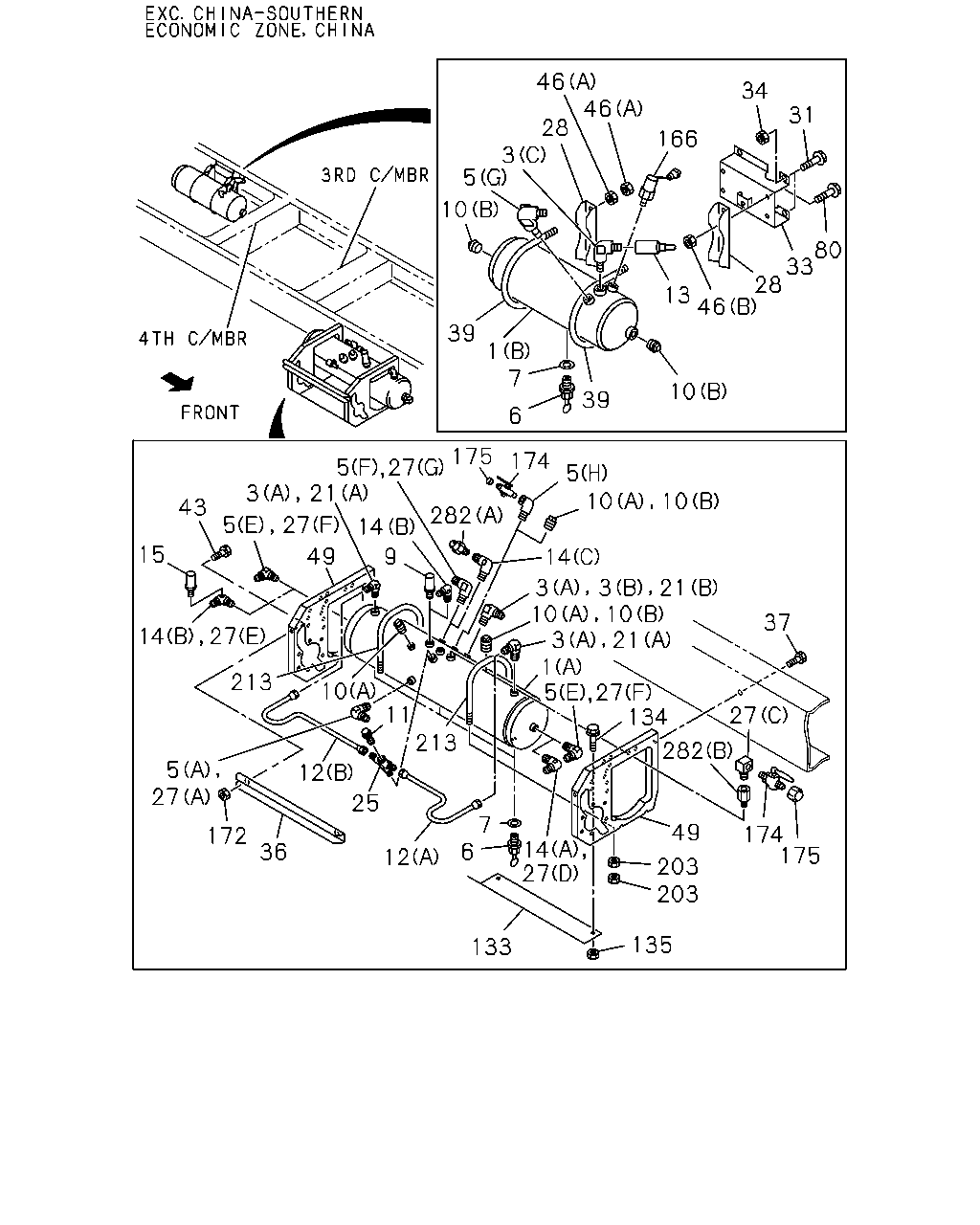

46 46 34 31 28 3 166 5 10 80 33 28 13 46 39 1 7 10 39 6 175 174 21 5 10 3 10 43 282 14 15 49 9 14 10 10 1 134 10 37 213 27 11 213 282 14 27 5 27 12 25 7 6 49 174 175 172 36 12 203 203 135 133 5 27 5 27 14 27 3 3 21 3 21 5 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48330-686-1	01	1	9510-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-333-0	01	1	9510-9802
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-536-0	01	1	9803-9804
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-719-0	01	1	9805-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9510-9606
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-9802
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48410-133-2	02	1	9510-9606
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-9802
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9510-9802
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-48410-132-3	01	1	9510-9802
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M22 & R1/2 W/VALVE	1-48320-026-0	01	1	9803-9804
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-
5	UNION; AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9510-9802
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9803-
5	UNION; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	9510-9802
5	UNION; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	9510-9802
5	UNION; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	9510-9802
5	UNION; AIR TANK EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (E) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9510-9802
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9803-0607
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0608-
5	UNION; AIR TANK EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9510-9802
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9510-9802
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9803-
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (H) PT1/4 2WAY	1-09660-693-0	01	1	9510-9711
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	9510-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	9510-
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	03	1	9510-9604
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	03	1	9605-9608
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	9609-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=19.2	1-09630-085-0	01	1	9510-9604
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=23.0	9-09572-014-0	01	1	9605-9608
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	9609-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 530KPA	1-48340-054-0	03	1	9510-9802
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 530KPA	1-48340-054-0	01	1	9510-9711
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 530KPA	1-48340-054-0	01	1	9712-9802
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	9510-9802
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4	9-99204-513-0	02	1	9510-9802
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) PT1/4	9-99204-513-0	01	1	9803-0304
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) PT1/4	9-99204-513-0	01	1	0305-
10	PLUG; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	01	1	9803-0004
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	01	1	9803-0004
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	01	1	9803-0004
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	0005-0304
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	0305-
10	PLUG; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	01	1	0305-
10	PLUG; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) PT1/4	9-99204-513-0	02	1	9803-0004
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) PT1/4	9-99204-513-0	02	1	9803-0004
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) PT1/4	9-99204-513-0	02	1	0005-0304
10	PLUG; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) PT1/4	9-99204-513-0	02	1	0005-0304
10	PLUG; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) PT1/4	9-99204-513-0	02	1	0305-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) PT1/4	9-99204-513-0	02	1	0305-
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	02	1	9803-0304
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	9510-9802
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	03	1	9803-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9510-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-47497-008-0	01	1	9510-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-47497-009-0	01	1	9510-
13	ADAPTER; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9803-9804
13	ADAPTER; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9805-
14	UNION; 3 WAY,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	9803-0004
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	9803-0004
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	0005-
14	UNION; 3 WAY,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	0005-
14	UNION; 3 WAY,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	9803-0004
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	9803-0004
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0005-
14	UNION; 3 WAY,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0005-
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9803-
15	SWITCH; LOW PRESS,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 530KPA	1-48340-054-0	02	1	9803-0004
15	SWITCH; LOW PRESS,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 530KPA	1-48340-054-0	02	1	9803-0004
15	SWITCH; LOW PRESS,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 530KPA	1-48340-054-1	02	1	0005-
15	SWITCH; LOW PRESS,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 530KPA	1-48340-054-1	02	1	0005-
15	SWITCH; LOW PRESS,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 530KPA	1-48340-054-0	01	1	9803-0004
15	SWITCH; LOW PRESS,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 530KPA	1-48340-054-1	01	1	0005-
21	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0110-
21	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9803-0004
21	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0005-0109
21	VALVE; CHECK,AIR TANK EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0110-
21	VALVE; CHECK,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9803-0004
21	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9803-0004
21	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0005-
21	VALVE; CHECK,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9803-0004
21	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9803-0004
25	UNION; 4 WAY EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-09656-699-0	01	1	9510-
27	UNION; ELBOW,AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9803-
27	UNION; ELBOW,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	9803-0607
27	UNION; ELBOW,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0608-
27	UNION; ELBOW,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (D) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	0005-
27	UNION; ELBOW,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (E) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0005-
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9803-
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0005-0607
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0608-
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (G) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0005-
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-430-0	02	1	9510-
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28081-030-0	04	1	9510-9606
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X35 FLANGE	0-28681-035-0	04	1	9607-0512
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X35 FLANGE	0-28651-035-0	04	1	0601-
33	BRACKET; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-431-2	01	1	9510-
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	9-09110-510-0	02	1	9510-9606
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91150-210-0	02	1	9607-0602
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0603-
36	STAY; MAIN TANK	1-48317-307-2	01	1	9510-
37	BOLT; AIR TANK M10X35 FLANGE	0-28681-035-0	04	1	9510-0512
37	BOLT; AIR TANK M10X35 FLANGE	0-28651-035-0	04	1	0601-
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-48317-308-0	02	1	9510-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	02	1	9510-9702
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28680-820-0	02	1	9703-0512
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28650-820-0	02	1	0601-
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	9-09110-408-0	08	1	9510-0512
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	0-91110-508-0	08	1	0601-
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10	9-09110-510-0	04	1	9510-9702
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE	0-91150-210-0	04	1	9703-0602
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE	0-91180-210-0	04	1	0603-
49	BRACKET; AIR TANK	1-48317-709-4	02	1	9510-
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X20 FLANGE	0-28081-020-0	04	1	9510-9702
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28681-025-0	04	1	9703-0512
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28651-025-0	04	1	0601-
133	COVER; AIR MASTER	1-48317-641-1	01	1	9510-
134	BOLT; COVER FIX M8X20 FLANGE	0-28080-820-0	04	1	9510-9606
134	BOLT; COVER FIX M8X20 FLANGE	0-28680-820-0	04	1	9607-0512
134	BOLT; COVER FIX M8X20 FLANGE	0-28650-820-0	04	1	0601-
135	NUT; COVER M8	9-09110-408-0	04	1	9510-9606
135	NUT; COVER M8 FLANGE	0-91150-108-0	04	1	9607-0602
135	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	0603-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-1	01	1	9510-
172	NUT; STAY,AIR TANK,MAIN M8	9-09110-408-0	02	1	9510-9702
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91150-108-0	02	1	9703-0602
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91180-108-0	02	1	0603-
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	02	1	9510-0004
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	0005-0010
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0011-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	02	1	9510-0004
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0005-
203	NUT M8	9-09110-408-0	08	1	9510-0512
203	NUT M8	0-91110-508-0	08	1	0601-
213	BOLT; U AIR TANK L=250	1-48317-308-0	02	1	9510-
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9803-
282	UNION; 2 WAY TIRE INFLATOR DEVICE<SG4> (B) PT3/8	1-48319-058-0	01	1	9712-

46 46 34 31 28 3 166 5 10 80 33 28 13 46 39 1 7 10 39 6 27 176 174 175 49 43 11 10 9 5 14 3 21 37 134 15 213 1 9 5 14 5 27 213 7 6 49 172 36 203 203 133 135 282 3 21 10 10 10 3 21 5 27 9 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48330-686-1	01	1	9510-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-333-0	01	1	9510-9802
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-536-0	01	1	9803-9804
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-719-0	01	1	9805-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9510-9606
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-9802
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48410-133-2	02	1	9510-9606
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-9802
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9510-9802
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-48410-132-3	01	1	9510-9802
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M22 & R1/2 W/VALVE	1-48320-026-0	01	1	9803-9804
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-
5	UNION; AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9510-9802
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9803-
5	UNION; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	9510-9802
5	UNION; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	9510-9802
5	UNION; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	9510-9802
5	UNION; AIR TANK EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (E) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9510-9802
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9803-0607
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0608-
5	UNION; AIR TANK EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9510-9802
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9510-9802
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9803-
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (H) PT1/4 2WAY	1-09660-693-0	01	1	9510-9711
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	9510-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	9510-
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	03	1	9510-9604
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	03	1	9605-9608
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	9609-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=19.2	1-09630-085-0	01	1	9510-9604
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=23.0	9-09572-014-0	01	1	9605-9608
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	9609-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 530KPA	1-48340-054-0	03	1	9510-9802
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 530KPA	1-48340-054-0	01	1	9510-9711
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 530KPA	1-48340-054-0	01	1	9712-9802
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	9510-9802
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4	9-99204-513-0	02	1	9510-9802
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) PT1/4	9-99204-513-0	01	1	9803-0304
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) PT1/4	9-99204-513-0	01	1	0305-
10	PLUG; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	01	1	9803-0004
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	01	1	9803-0004
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	01	1	9803-0004
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	0005-0304
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	0305-
10	PLUG; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	01	1	0305-
10	PLUG; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) PT1/4	9-99204-513-0	02	1	9803-0004
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) PT1/4	9-99204-513-0	02	1	9803-0004
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) PT1/4	9-99204-513-0	02	1	0005-0304
10	PLUG; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) PT1/4	9-99204-513-0	02	1	0005-0304
10	PLUG; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) PT1/4	9-99204-513-0	02	1	0305-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) PT1/4	9-99204-513-0	02	1	0305-
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	02	1	9803-0304
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	9510-9802
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	03	1	9803-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9510-
13	ADAPTER; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9803-9804
13	ADAPTER; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9805-
14	UNION; 3 WAY,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	9803-0004
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	9803-0004
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	0005-
14	UNION; 3 WAY,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	0005-
14	UNION; 3 WAY,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	9803-0004
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	9803-0004
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0005-
14	UNION; 3 WAY,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0005-
14	UNION; 3 WAY,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9803-
15	SWITCH; LOW PRESS,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 530KPA	1-48340-054-0	02	1	9803-0004
15	SWITCH; LOW PRESS,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 530KPA	1-48340-054-0	02	1	9803-0004
15	SWITCH; LOW PRESS,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 530KPA	1-48340-054-1	02	1	0005-
15	SWITCH; LOW PRESS,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 530KPA	1-48340-054-1	02	1	0005-
15	SWITCH; LOW PRESS,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 530KPA	1-48340-054-0	01	1	9803-0004
15	SWITCH; LOW PRESS,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 530KPA	1-48340-054-1	01	1	0005-
21	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0110-
21	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9803-0004
21	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0005-0109
21	VALVE; CHECK,AIR TANK EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0110-
21	VALVE; CHECK,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9803-0004
21	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9803-0004
21	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0005-
21	VALVE; CHECK,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9803-0004
21	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9803-0004
27	UNION; ELBOW,AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9803-
27	UNION; ELBOW,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	9803-0607
27	UNION; ELBOW,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0608-
27	UNION; ELBOW,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (D) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	0005-
27	UNION; ELBOW,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (E) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0005-
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9803-
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0005-0607
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0608-
27	UNION; ELBOW,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (G) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0005-
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-430-0	02	1	9510-
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28081-030-0	04	1	9510-9606
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X35 FLANGE	0-28681-035-0	04	1	9607-0512
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X35 FLANGE	0-28651-035-0	04	1	0601-
33	BRACKET; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-431-2	01	1	9510-
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	9-09110-510-0	02	1	9510-9606
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91150-210-0	02	1	9607-0602
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0603-
36	STAY; MAIN TANK	1-48317-307-2	01	1	9510-
37	BOLT; AIR TANK M10X35 FLANGE	0-28681-035-0	04	1	9510-0512
37	BOLT; AIR TANK M10X35 FLANGE	0-28651-035-0	04	1	0601-
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-48317-308-0	02	1	9510-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	02	1	9510-9702
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28680-820-0	02	1	9703-0512
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28650-820-0	02	1	0601-
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	9-09110-408-0	08	1	9510-0512
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	0-91110-508-0	08	1	0601-
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10	9-09110-510-0	04	1	9510-9702
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE	0-91150-210-0	04	1	9703-0602
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE	0-91180-210-0	04	1	0603-
49	BRACKET; AIR TANK	1-48317-709-4	02	1	9510-
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X20 FLANGE	0-28081-020-0	04	1	9510-9702
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28681-025-0	04	1	9703-0512
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28651-025-0	04	1	0601-
133	COVER; AIR MASTER	1-48317-641-1	01	1	9510-
134	BOLT; COVER FIX M8X20 FLANGE	0-28080-820-0	04	1	9510-9606
134	BOLT; COVER FIX M8X20 FLANGE	0-28680-820-0	04	1	9607-0512
134	BOLT; COVER FIX M8X20 FLANGE	0-28650-820-0	04	1	0601-
135	NUT; COVER M8	9-09110-408-0	04	1	9510-9606
135	NUT; COVER M8 FLANGE	0-91150-108-0	04	1	9607-0602
135	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	0603-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-1	01	1	9510-
172	NUT; STAY,AIR TANK,MAIN M8	9-09110-408-0	02	1	9510-9702
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91150-108-0	02	1	9703-0602
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91180-108-0	02	1	0603-
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	02	1	9510-0004
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	0005-0010
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0011-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	02	1	9510-0004
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0005-
176	ADAPTER TIRE INFLATOR DEVICE<SG4> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9803-0004
176	ADAPTER TIRE INFLATOR DEVICE<SG4> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-
203	NUT M8	9-09110-408-0	08	1	9510-0512
203	NUT M8	0-91110-508-0	08	1	0601-
213	BOLT; U AIR TANK L=250	1-48317-308-0	02	1	9510-
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9803-
282	UNION; 2 WAY TIRE INFLATOR DEVICE<SG4> (B) PT3/8	1-48319-058-0	01	1	9712-

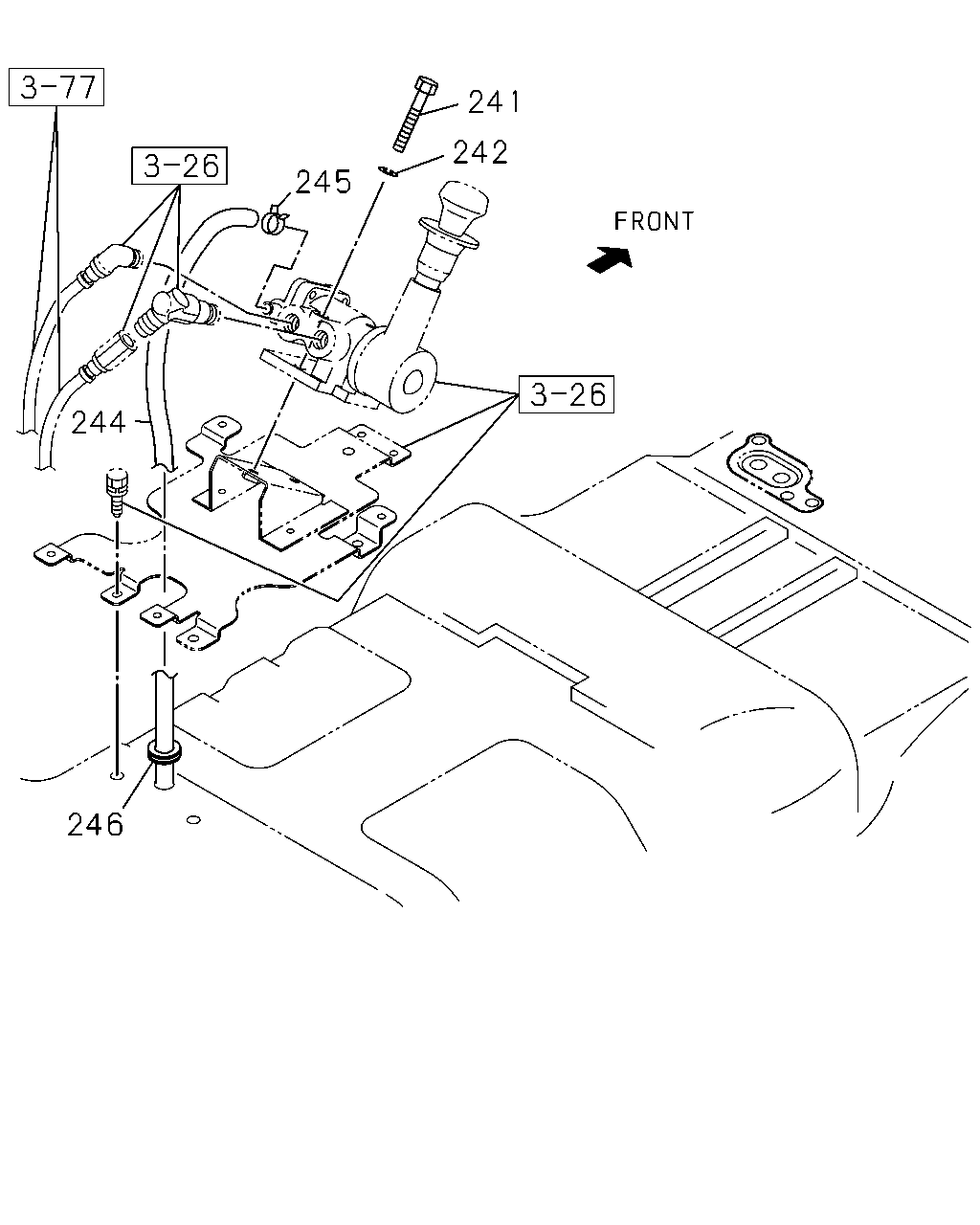

241 242 245 244 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X65	0-10805-865-0	02	1	9510-9704
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28080-870-0	02	1	9705-0512
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	0601-
242	WASHER; LK,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8.2	9-09150-508-0	02	1	9510-9704
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9510-0110
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 SERVICED BY L=10000	9-09914-701-0	01	1	0111-
245	CLIP; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	9510-
246	GROMMET; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	9510-
246	GROMMET; VINYL PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=35	8-94122-971-0	01	1	9510-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
