2 |

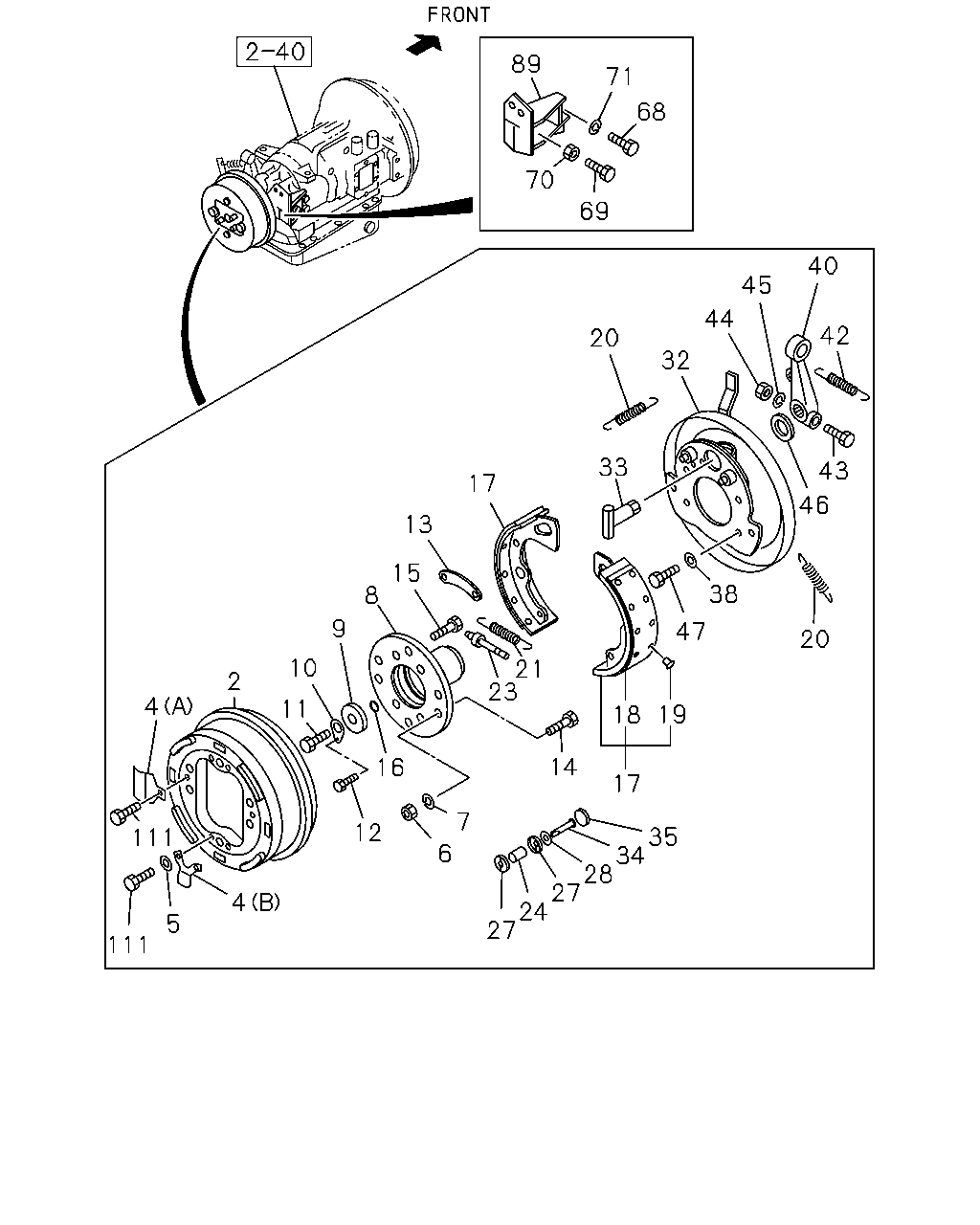

DRUM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-46211-051-0 |
01 |
1 |
0005- |
| |
4 |
COVER; ADJ HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-46219-085-0 |
02 |
1 |
0005- |
| |
4 |
COVER; ADJ HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
9-46219-024-0 |
02 |
1 |
0005- |
| |
5 |
WASHER; LK,COVER,CHECK HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=8.2
|
9-09150-508-0 |
06 |
1 |
0005-0603 |
| |
5 |
WASHER; LK,COVER,CHECK HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=8.2
|
0-91510-508-0 |
06 |
1 |
0604- |
| |
6 |
NUT; FLANGE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M14
|
9-99110-514-0 |
06 |
1 |
0005-0512 |
| |
6 |
NUT; FLANGE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M14
|
0-91110-514-0 |
06 |
1 |
0601- |
| |
7 |
WASHER; LK,FLANGE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=14.2
|
9-09150-514-0 |
06 |
1 |
0005-0603 |
| |
7 |
WASHER; LK,FLANGE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=14.2
|
0-91510-514-0 |
06 |
1 |
0604- |
| |
8 |
FLANGE; PARKING BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-37245-042-2 |
01 |
1 |
0005- |
| |
8 |
FLANGE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
WO/BOLT
|
1-37243-042-2 |
01 |
1 |
0005- |
| |
9 |
WASHER; FLANGE FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=14.5 OD=56.426
|
1-09503-078-0 |
01 |
1 |
0005- |
| |
10 |
PLATE; LOCK
|
1-37249-021-0 |
01 |
1 |
0005- |
| |
11 |
BOLT; FLANGE FIX
M14X44.5
|
1-09087-014-0 |
01 |
1 |
0005- |
| |
12 |
BOLT; FIX
M6X14 W/LK WASHER
|
0-50040-614-0 |
01 |
1 |
0005-0906 |
| |
12 |
BOLT; FIX
M6X14 W/LK WASHER
|
0-50540-614-0 |
01 |
1 |
0907- |
| |
13 |
BRACE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-46239-002-0 |
01 |
1 |
0005- |
| |
14 |
BOLT; DRUM TO FLANGE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M14X46
|
9-46219-012-0 |
06 |
1 |
0005- |
| |
15 |
BOLT; FLANGE
M12X39
|
1-09046-001-2 |
04 |
1 |
0005-0305 |
| |
16 |
GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T).
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-09921-103-0 |
01 |
1 |
0005- |
| |
17 |
SHOE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46220-025-1 |
02 |
1 |
0005- |
| |
18 |
LINING; BRK,PARKING
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46225-024-0 |
02 |
1 |
0005- |
| |
19 |
RIVET; LINING,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-09871-033-0 |
24 |
1 |
0005-0807 |
| |
19 |
RIVET; LINING,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09732-057-0 |
24 |
1 |
0808- |
| |
20 |
SPRING; RETURN,SECONDARY,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-09942-434-0 |
02 |
1 |
0005- |
| |
21 |
SPRING; RETURN,PARKING BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-09942-516-0 |
01 |
1 |
0005- |
| |
23 |
SCREW; ADJ,PARKING BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46240-003-0 |
01 |
1 |
0005- |
| |
24 |
SPRING; BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-09941-186-0 |
02 |
1 |
0005- |
| |
27 |
SEAT; BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-46239-005-1 |
04 |
1 |
0005- |
| |
28 |
WASHER; BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-46239-006-1 |
02 |
1 |
0005- |
| |
32 |
PLATE; SUPPORT,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46213-006-1 |
01 |
1 |
0005- |
| |
33 |
SHAFT; CAM,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-46251-069-0 |
01 |
1 |
0005- |
| |
34 |
PIN; BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-46239-004-1 |
02 |
1 |
0005- |
| |
35 |
GROMMET; BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-46239-007-0 |
02 |
1 |
0005- |
| |
38 |
WASHER; LK,SUPPORT PLATE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09500-002-0 |
04 |
1 |
0005- |
| |
40 |
LEVER; CM/SHF,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46259-005-0 |
01 |
1 |
0005- |
| |
42 |
SPRING; RETURN,LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09583-041-0 |
01 |
1 |
0005- |
| |
43 |
BOLT; LEVER TO CM/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
0-10811-040-0 |
01 |
1 |
0005- |
| |
44 |
NUT; LEVER TO CM/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M10
|
9-09110-410-0 |
01 |
1 |
0005-0512 |
| |
44 |
NUT; LEVER TO CM/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M10
|
0-91110-510-0 |
01 |
1 |
0601- |
| |
45 |
WASHER; LK,LEVER TO CM/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=10.2
|
9-09150-510-0 |
01 |
1 |
0005-0603 |
| |
45 |
WASHER; LK,LEVER TO CM/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=10.2
|
0-91510-510-0 |
01 |
1 |
0604- |
| |
46 |
WASHER; LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-09855-362-0 |
01 |
1 |
0005- |
| |
47 |
BOLT; SUPPORT PLATE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09087-001-1 |
04 |
1 |
0005- |
| |
68 |
BOLT; BRKT,PARKING BRK CONT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09087-005-1 |
02 |
1 |
0005- |
| |
69 |
BOLT; GASKET BRK SUPPORT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09009-039-0 |
01 |
1 |
0005- |
| |
70 |
NUT; LK,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M12
|
9-99110-512-0 |
01 |
1 |
0005-0512 |
| |
70 |
NUT; LK,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M12
|
0-91110-512-0 |
01 |
1 |
0601- |
| |
71 |
WASHER; LK,BRKT FIX,PARKING
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
9-09150-512-0 |
02 |
1 |
0005-0603 |
| |
71 |
WASHER; LK,BRKT FIX,PARKING
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
0-91510-512-0 |
02 |
1 |
0604- |
| |
89 |
BRACKET; PARKING BRK CONT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46276-016-1 |
01 |
1 |
0005- |
| |
111 |
BOLT; COVER,CHECK HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X12
|
0-20800-812-0 |
06 |
1 |
0005-0512 |
| |
111 |
BOLT; COVER,CHECK HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X12
|
0-20850-812-0 |
06 |
1 |
0601- |
